Safety instructions

INTERNAL CAB COMPONENTS

1-1

1. SAFETY INSTRUCTIONS

You can stop the cab tilting forward
at any time by turning the tap to the
reverse tilting position.

If the vehicle has been involved in a
collision, the cab must under no
circumstances be tilted without due
precautions. The internal
mechanism of the lifting cylinder
may have been damaged to such an
extent that the cylinder is no longer
locked by the internal stop collar. In
that case there is a danger of the
cab no longer being held back and
falling forward to the ground.

2

ᓻ 0209

1

INTERNAL CAB COMPONENTS

Safety instructions

1-2

2

ᓻ 0209

1

General

INTERNAL CAB COMPONENTS

2-1

2. GENERAL

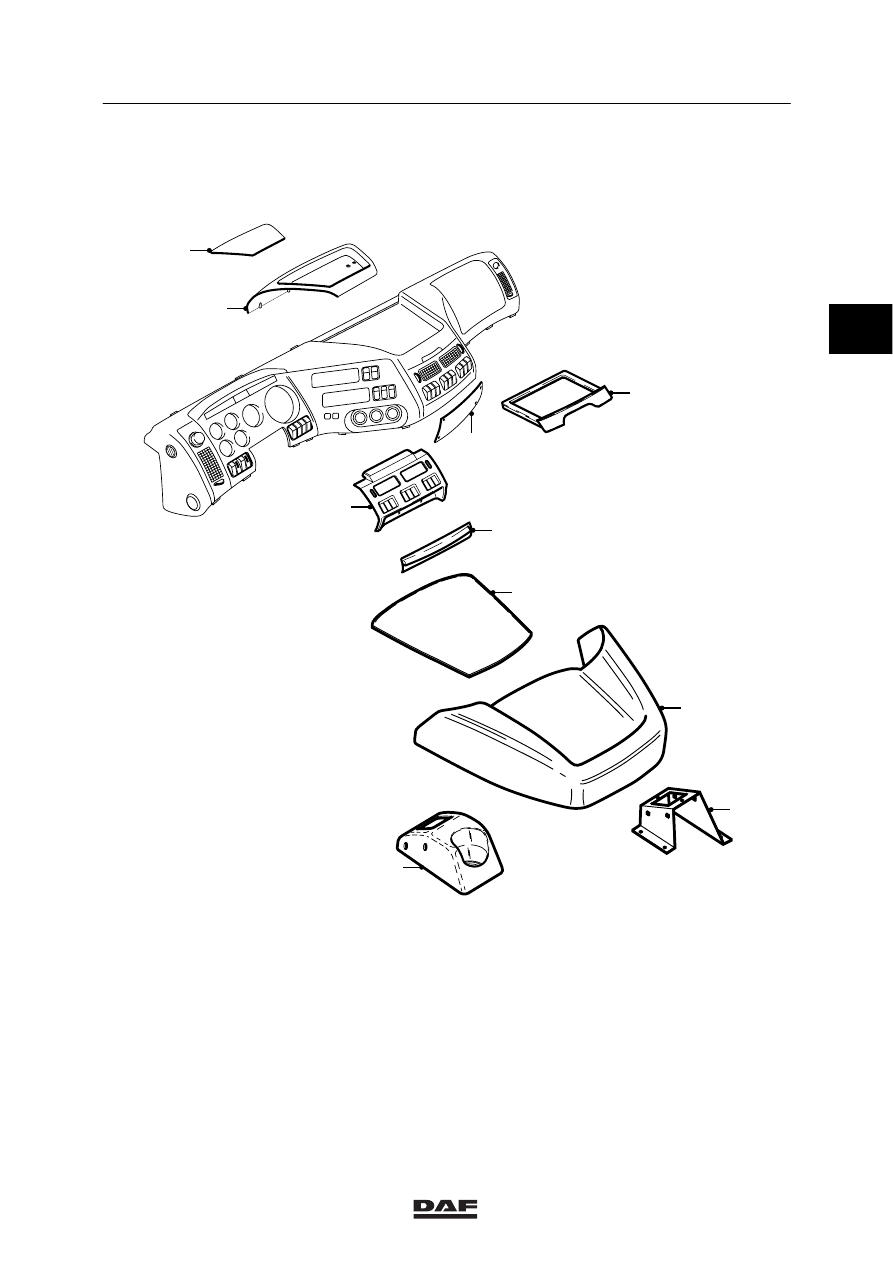

2.1 OVERVIEW DRAWING, INTERIOR CAB COMPONENTS

3

6

1

7

9

4

8

5

K100476

1

2

Centre console

Legend
1.

Rubber mat

2.

Upper storage compartment

3.

Lower panel

4.

Extendable drawer

5.

Control panel

6.

Ashtray

7.

Lower storage compartment

8.

Parking brake panel

9.

Parking brake valve frame

2
