Citroen C4 Aircross (2017 year). Instruction - part 16

239

BLUETOOTH

TELEPHONE

WITH VOICE RECOGNITION

For reasons of safety and because the sustained attention of the

driver is needed, operations of matching a Bluetooth

mobile phone

with the audio system's hands-free function must be done with the

vehicle stationary

The systems says "Please say the 4 digits of a pairing code".

Press this button.

The system confirms the validity of the number spoken,

answer "Yes

Say "No

" to return to step 7.

Say "Pairing options

Pairing a Bluetooth

telephone

First connection

Say "Pair a telephone

Say "

Configure".

The system can register up to 7 Bluetooth

compatible mobile

telephones.

The telephone which has the highest level of priority is connected

automatically.

The system says "Do you wish to pair a telephone, delete a

telephone or obtain the list of paired telephones?

Say a 4-digit number which will be recorded as the pairing

code.

Remember this pairing code as you must enter it in the telephone in

one of the following steps of the matching procedure.

240

Consult your mobile telephone's user manual and enter

the pairing code recorded in step 7 in the telephone.

BLUETOOTH

TELEPHONE

WITH VOICE RECOGNITION

The system says "Start the pairing procedure on the telephone.

Consult the instructions in the telephone manual

If the code is incorrect, the system locks. To clear the code:

- check that the telephone's voice recognition is not activated,

- with the ignition on and the audio system active, press the END

CALL button for 2 seconds, 3 times in succession.

When it detects a Bluetooth

compatible mobile telephone,

the system says "Please say the name of the telephone after

the beep

After the audible signal, allocate a name to the telephone

by saying the name of your choice.

The system says "Allocate an order of priority between 1 and 7.

One is the highest level of priority

Give a number between 1 and 7 to establish the level of

priority of the mobile telephone.

The system says and confirms the "name of the telephone" and

the "number

" of its priority.

Answer "Yes

Say "No

" to return to step 13.

The systems says "Pairing complete" then emits an audible signal

and deactivates the voice recognition.

The services available depend on the network, the SIM card and the compatibility of the Bluetooth

telephone used. Check in your telephone

user manual and with your service provider for the services you have access to.

If the system does not detect the Bluetooth

compatible mobile

telephone, the matching process stops ands is accompanied by an

audible signal.

If you select a level of priority which has already been allocated to

another telephone, the system asks you if you wish to replace this

level of priority.

241

BLUETOOTH

TELEPHONE

WITH VOICE RECOGNITION

Say "Dial

The system says "Number please".

Using a telephone number

Call out the telephone number.

Press this button.

The system asks you to confirm this number,

answer "Yes

Say "No

" to return to the previous step.

You must have first paired a Bluetooth

compatible mobile

telephone with the system.

242

BLUETOOTH

TELEPHONE

WITH VOICE RECOGNITION

The system has its own phone book, independent of that of the

mobile telephone.

It can contain up to 32 names for each language.

Each name in the phone book is associated with 4 locations:

HOME, WORK, MOBILE and PAGER.

The system says "Select one of the following items: New Entry,

Change, List of names, Delete or Clear all, or say Cancel to
return to the main menu

Say "New entry

The system says "HOME, WORK, MOBILE OR PAGER".

Give the location which corresponds to the number that

you wish to record.

The system asks you to confirm the location.

Answer "Yes

Say "No

" to return to step 7.

If a telephone number has already been recorded for this location,

the system says "The current number is -number-, number

please

Saving a name in the system phone book

Press this button.

Say "Phone book

The system says "Name please".

Give the name of your choice.

If you do not wish to change the telephone number, repeat

the original number to retain it, otherwise say the new

number.

Answer "Yes

Say "No

" to return to step 11.

The system asks you to confirm the number.

243

BLUETOOTH

TELEPHONE

WITH VOICE RECOGNITION

Say "Call

The system says "Name please".

Using a name in the system phone book

Give the name of the person that you wish to call.

Press this button.

Give the location corresponding to the number that you

wish to call.

You must have first paired a compatible Bluetooth

mobile

telephone with the system.

If several telephone numbers have been recorded for this person,

the system says "Do you wish to call -name- {home}, {work},

{mobile} or {pager}?"

The system request confirmation of the name.

Answer "Yes

Say "No

" to return to step 4.

The system says "Call to -name- at -location-" and makes the call.

244

BLUETOOTH

TELEPHONE

WITH VOICE RECOGNITION

The telephone ring is sent to the speaker by the front passenger's

seat.

If an audio source (CD, radio, ...) is in operation when the call is

received, it is placed on MUTE and only the incoming call is heard.

When the ignition switch is in the ACC or ON position, the audio

system is activated automatically if an incoming call is received,

even if it was originally off.

At the end of the call, the audio system returns to its previous state.

Redial the last number called

Press this button.

Say "Redial

Receiving a call

Press this button.

245

Voice commands (1/2)

Configure
Phone book

Dial

Call

Redial
Emergency number
Pairing options

Pair a telephone

Delete a telephone

List of paired telephones

Select a telephone

Press this button to start the voice recognition.

When the system is waiting for a voice command, say "Help" to obtain a list of commands which can be used in the current situation.

Divert the call

Add a location
Configure the confirmation requests
Language

New entry

Delete

Change
Call this number
Change another entry
Try again

Clear all

List of names

Home, at home
Work, at work
Mobile, on mobile
Pager, on pager

Help

Continue

All

Cancel

Mute

Deactivate mute

Yes

BLUETOOTH

TELEPHONE

WITH VOICE RECOGNITION

246

Voice commands (2/2)

Press this button to start the voice recognition.

When the system is waiting for a voice command, say "Help" to obtain a list of commands which can be used in the current situation.

Zero

One

Two

Three

Four

Five

Six

Seven

Eight

Nine

Star (*)

Hash (#)

Word training

Repeat training

Activate

Deactivate

Incorporate the call

<digits> Send

English
Phone book New entry
Phone book Change
Phone book Delete
Phone book Clear All
Phone book List of names
Configure the confirmation requests
Configure Select a telephone
Configure the pairing options
Delete a name
Configure the language
Configure the PIN

BLUETOOTH

TELEPHONE

WITH VOICE RECOGNITION

247

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

AUDIO-TELEMATIC TOUCH
SCREEN SYSTEM

The system is protected in such a way that it will only

operate in your vehicle.

01 First steps - Control panel

For safety reasons, the driver must carry out operations

which require prolonged attention while the vehicle is

stationary.

When the engine is switched off and to prevent

discharging of the battery, the system switches off

following the activation of the energy economy mode.

CONTENTS

03 General operation

04 Navigation

05 Media

06 Settings

07 Information

02 Steering mounted controls

288

08 BLUETOOTH

streaming - telephone

248

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

PWR/VOL

- audio system on/off.

- volume adjustment for the audio and

telephone functions.

Short press: change the audio source.

Long press: CD / MP3 / USB, SD, for fast

forward or rewind.

Long press: RADIO, automatic frequency

search down/up.

FOLDER

: allows selection of a folder or a

manual search for a radio station.

OPEN

: Allows the screen panel to be opened or closed to insert

or remove a CD or SD cards.

ZOOM

: zoom the map in or out.

Allows the colour map screen the be switched

between day and night mode according to the

state of the vehicle's lighting.

Move a finger over the screen to operate

the system.

Use the buttons offered on the screen.

For safety reasons, the driver
must only carry out operations
which require prolonged
attention with the vehicle
stationary.

Insert the SD card containing

the navigation mapping data into

the left-hand slot.

Insert the SD card containing

the audio data into the right-

hand slot.

FIRST STEPS

249

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

Increase / reduce audio volume.

Search for a higher / lower radio frequency.

Previous/next CD track.

CD fast forward/back.

Long press: audio system on / off.

Short press: selection of the source in the

following order (in a loop):

CD, SD, USB/iPod, Bluetooth, AUX, FM,

MW, LW.

STEERING MOUNTED CONTROLS

250

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

251

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

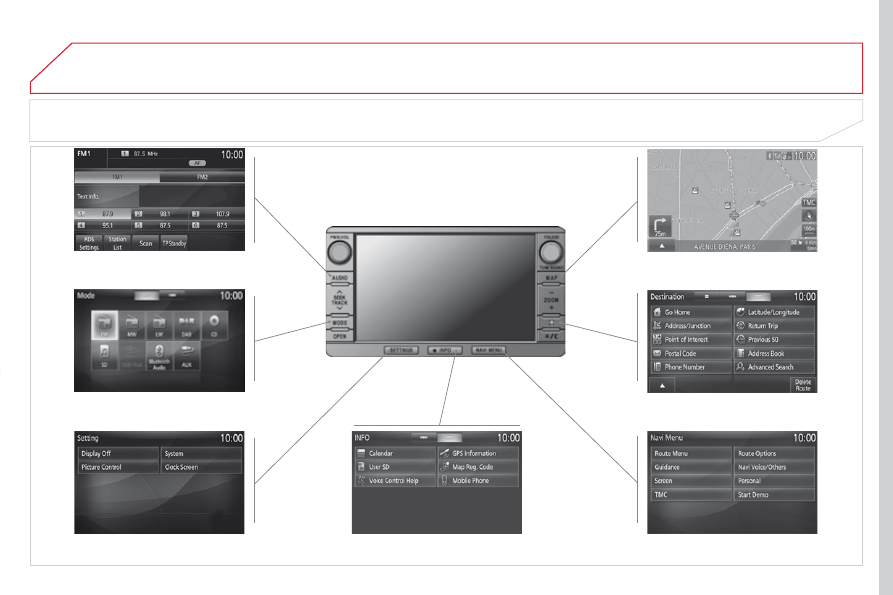

Description of the controls - Menus

SETTINGS:

used to manage the

different adjustments.

DESTINATION:

used to set

navigation options and select the

destination.

NAVI MENU:

used for adjustments

to the navigation system.

MODE:

used to select the audio

source.

INFO:

used to check information.

AUDIO:

display the screen for the

last audio source used.

MAP:

used to display the current

position of your vehicle on the map.

GENERAL OPERATION

252

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

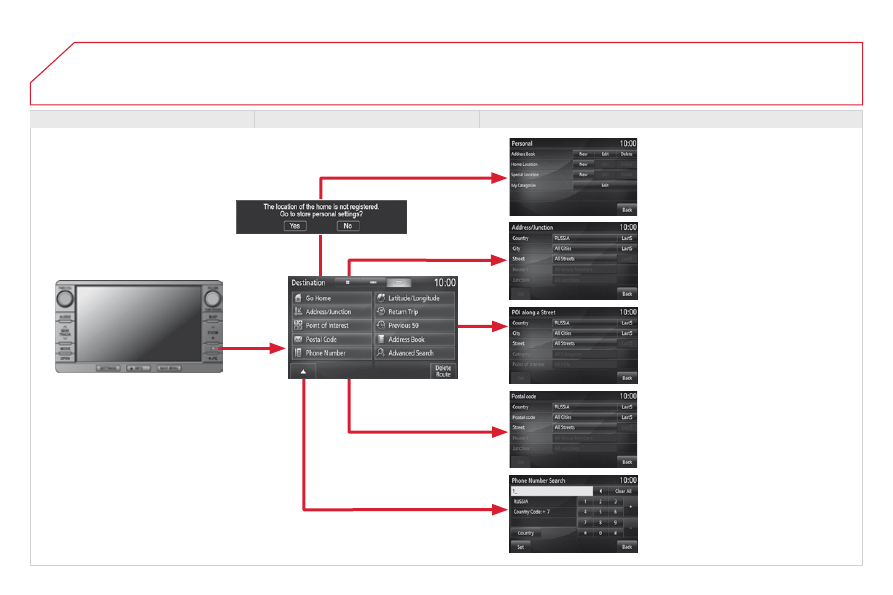

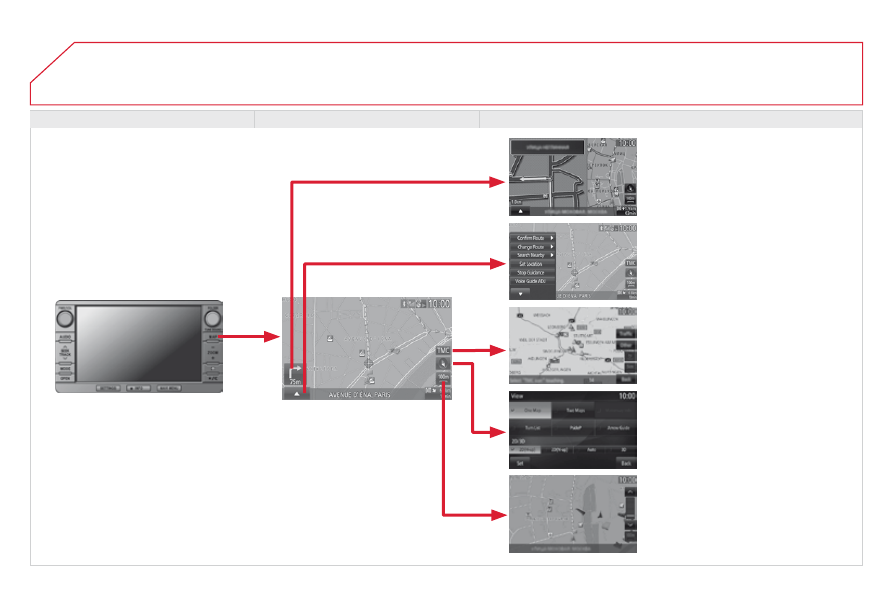

NAVIGATION

Level 1

Level 2

Level 3

253

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

Level 1

Level 2

Level 3

Comments

Guidance

Indicates that a turn should be made to the left or right at the next

junction and the distance to this junction.

Press on it to to display a navigation zoom to the left of the map.

Navigation

sub-menu

Confirm Route

Press on it to modify the current navigation criteria.

Change Route

Search Nearby

Set location

Stop Guidance
Voice Guide ADJ

TMC (Traffic Message

Channel)

Press on it to display traffic information transmitted in real time.

Type of display and map

orientation

"View"
"2D/3D"

Indicates North.

Press on it to select the type of screen display and the map orientation

(2D with vehicle direction, 2D with North at the top, auto 2D according

to scale or 3D perspective).

Map scale

Indicates the scale of the map displayed.

Press on it to zoom in or out

Information on

the destination /

intermediate destination

Indicates the distance and time to the destination or the intermediate

destination.

254

C4-Aircross_en_Chap10b_Mitsu6_ed01-2016

NAVIGATION

Level 1

Level 2

Level 3
