Citroen C4 Aircross (2017 year). Instruction

207

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

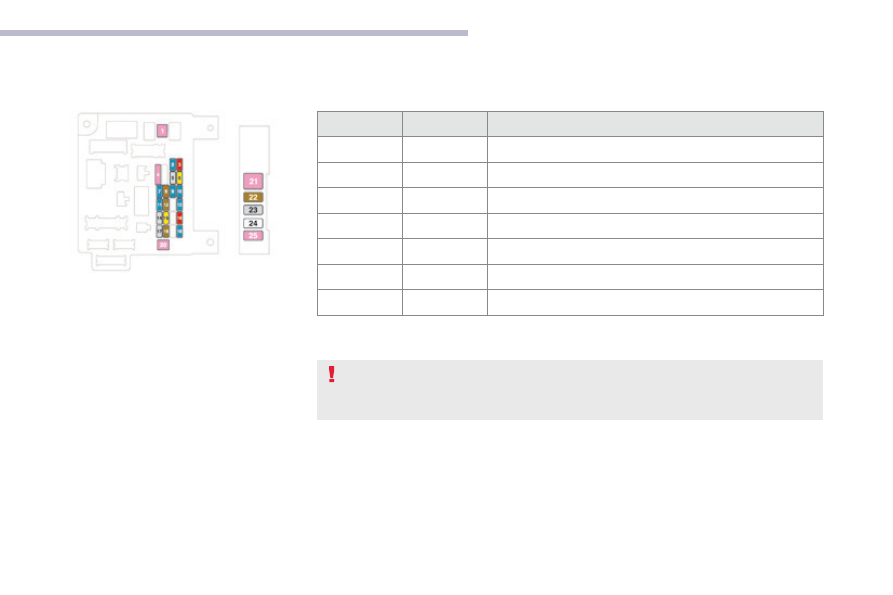

* The maxi-fuses provide additional protection for the electrical systems. All work on the

maxi-fuses must be carried out by a CITROËN dealer or a qualified workshop.

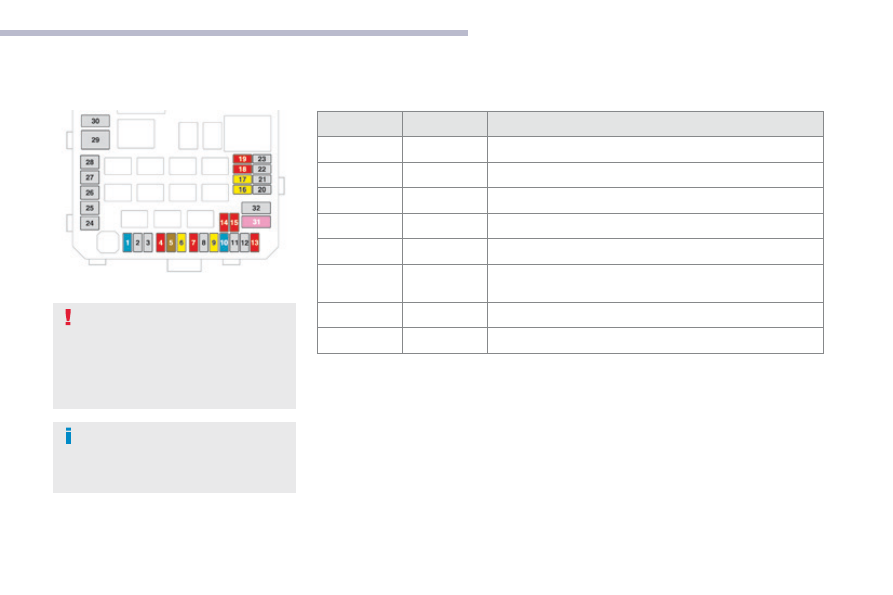

Fuse N°

Rating

Functions

7.5 A

Reversing lamps.

15 A

Accessory socket.

20*

30 A

Electric window controls.

21*

30 A

Heated rear screen.

7.5 A

Heated door mirrors.

25 A

Driver's and passenger's electric seats.

30 A

Heated seats.

208

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

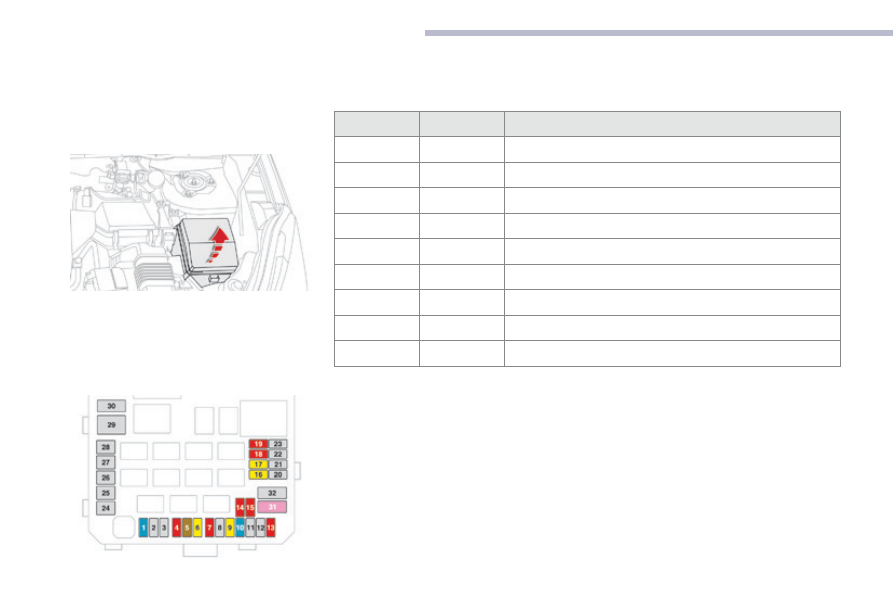

Engine compartment
fuses

Access to the fuses

Unclip the cover and remove it completely.

Fuse N°

Rating

Functions

15 A

Front foglamps.

10 A

Horn.

7.5 A

Alternator.

20 A

Headlamp wash.

10 A

Air conditioning.

20 A

Alarm.

15 A

Demisting, wipers.

Not used.

The fusebox is placed in the engine
compartment (left-hand side).

209

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

Fuse N°

Rating

Functions

10 A

Daytime running lamps.

10 A

Left-hand main beam headlamp.

10 A

Right-hand main beam headlamp.

20 A

Left-hand dipped beam headlamp (xenon).

20 A

Right-hand dipped beam headlamp (xenon).

10 A

Left-hand dipped beam headlamp (halogen), manual and
automatic headlamp adjustment.

10 A

Right-hand dipped beam headlamp (halogen).

30 A

Audio amplifier.

The maxi-fuses provide additional
protection for the electrical systems. All
work on the maxi-fuses must be carried
out by a CITROËN dealer or a qualified
workshop.

Carefully close the cover after replacing
a fuse so as to ensure the correct
sealing of the fusebox.

210

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

Spare fuses

The spare fuses are located under the engine
compartment fusebox cover.

The cover does not contain spare
fuses with an amperage of 7.5 A, 25 A
or 30 A. If one of the fuses with these
amperages develops a fault, replace it
with the following fuse:
A 7.5 A fuse

must be replaced with the

10 A spare fuse, a 25 A fuse with the
20 A spare fuse

and a 30 A fuse with

the audio system fuse (N° 31)

Fuse N°

Rating

10 A

15 A

20 A

211

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

12 V battery

The battery is located under the bonnet.
To gain access to it:
F

open the bonnet using the interior release

lever, then the exterior catch,

F secure the bonnet stay,

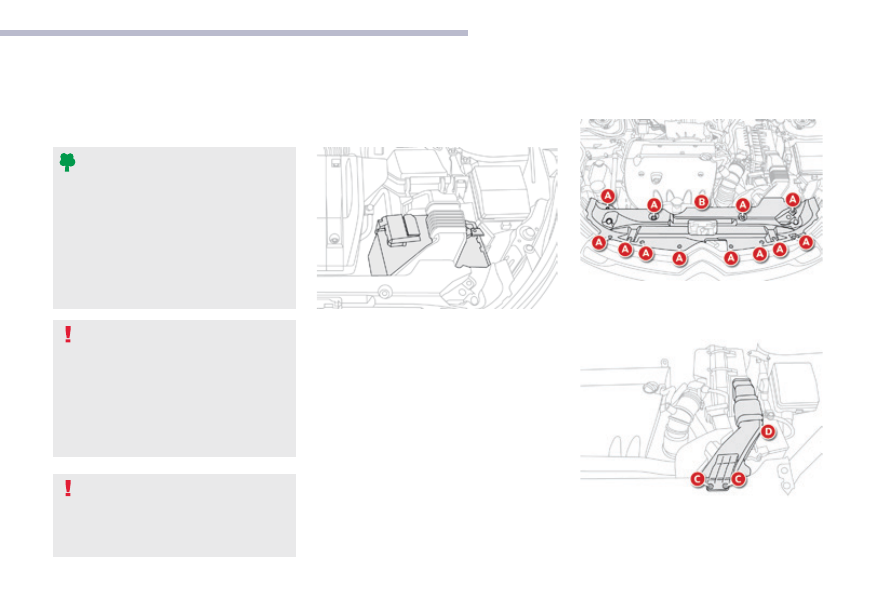

Access to the battery

Procedure for charging your battery when it is flat or for starting the engine using another battery and jump leads.

remove the retaining pins A,

remove the protective cover B,

remove the retaining pins C,

remove the air duct D.

General

If your vehicle has an automatic
gearbox, do not try to start the engine
by pushing the vehicle.

The batteries contain harmful
substances such as sulphuric acid and
lead.
They must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.

Before handling the battery, protect
your eyes and face.
All work on the battery must be carried
out in a ventilated area and away from
naked flames or sources of sparks, to
avoid any risk of explosion and fire.
Wash your hands when you have
finished.

212

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

Check the electrolyte level and top up if
necessary.
For more information on Checking levels,
refer to the corresponding section.

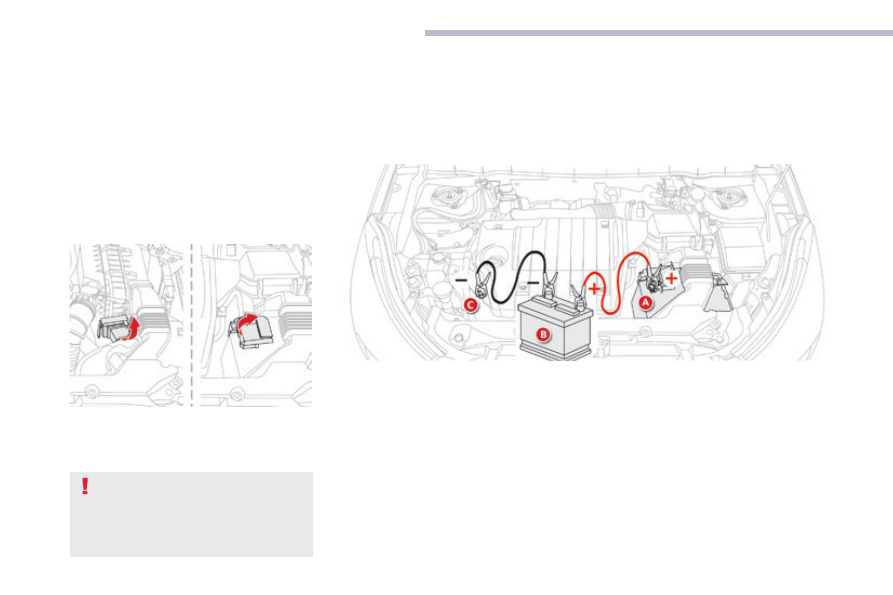

Starting using another
battery

Connect the red cable to the (+) terminal of

the flat battery A

, then to the (+) terminal of

the slave battery B

Connect one end of the green or black

cable to the (-) terminal of the slave
battery B

Connect the other end of the green or black

cable to the earth point C on your vehicle
(engine mounting).

Operate the starter, let the engine run.

Wait until the engine returns to idle and

disconnect the cables.

F Raise the protective cover on

the (+) terminal.

Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.

213

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

If you intend to charge your vehicle's
battery yourself, use only a charger
compatible with lead batteries, with a
nominal voltage of 12 V.

Disconnect the battery from the vehicle, if

necessary.

Follow the instructions for use provided by

the manufacturer of the charger.

Reconnect, starting with the (-) terminal.

Check that the terminals and connectors

are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them
and clean them.

Charging the battery using
a battery charger

Follow the instructions for use provided
by the manufacturer of the charger.
Never invert the polarities.

Never start the engine by connecting a
battery charger.
Never use a battery booster of 24 V or
higher.
Check first that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
The two vehicles must not touch.
Switch off all power-consuming
equipment on the two vehicles (audio
system, wipers, lamps, etc.).
Ensure that the slave cables do not
pass near the moving parts of the
engine (fan, belt, etc.).
Do not disconnect the (+) terminal while
the engine is running.

214

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

Do not invert the polarities and use only a 12 V charger.
Do not disconnect the terminals while the engine is running.
Do not charge the batteries without disconnecting the terminals first.
Do not push the vehicle to start the engine if it is fitted with a CVT gearbox.

Disconnecting the battery

To maintain a sufficient level of charge
to start the engine, it is advisable to
disconnect the battery if the vehicle is not
going to be used for a very long period.
Before disconnecting the battery:
F

Close all the doors and windows,

the tailgate and the roof.

Switch off all power-consuming

equipment (audio system, wipers,
lamps, etc.).

Switch off the ignition and wait

4 minutes.

Once you have gained access to
the battery, start by disconnecting
the (-) terminal.

Following reconnection of the
battery

Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation of the
electronic systems.
However, if problems remain following this
operation, contact a CITROËN dealer or a
qualified workshop.
Referring to the corresponding section, you
must reinitialise certain equipment yourself,
such as:
- The remote control key or the electronic

key (depending on version).

-  The electric blind(s).
-  The electric windows.
-  The date and time.
-  The stored radio stations.

Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.

Never try to charge a frozen battery.
If the battery has been frozen, have
it checked by a CITROËN dealer or a
qualified workshop, who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.

The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the exterior
temperature and the state of charge of
the battery (up to about 8 hours).

215

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

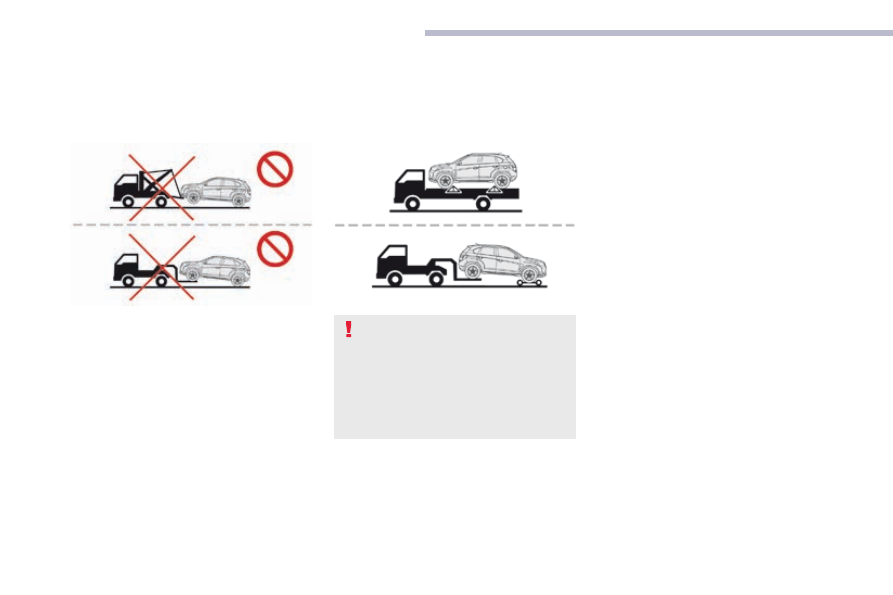

Towing the vehicle

Towing your vehicle

2 wheel drive (2WD) versions: towing
with the wheels on the ground

General recommendations

Towing with the wheels on the ground
is only possible on 2 wheel drive (2WD)
versions.

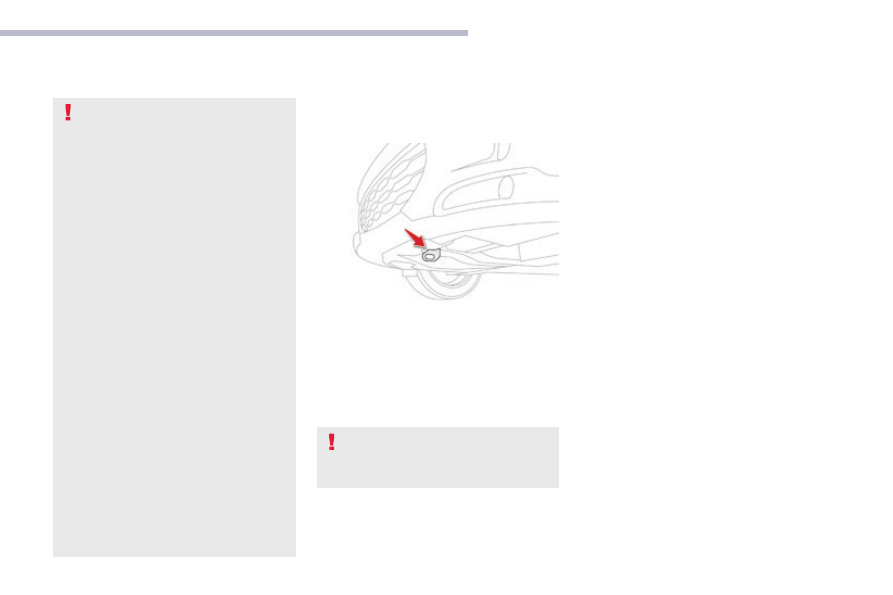

Fit the towing bar to the towing eye on the

chassis, located under the front bumper.

Observe the legislation in force in your
country.
Ensure that the weight of the towing vehicle is
higher than that of the towed vehicle.
The driver must remain at the wheel of the
towed vehicle and must have a valid driving
licence.
When towing a vehicle with all four wheels on
the ground, always use an approved towing
arm; rope and straps are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine off,
there is no longer any power assistance for
braking or steering.
In the following cases, you must always call
on a professional recovery service:
- vehicle broken down on a motorway or

fast road,

- four-wheel drive vehicle,
- when it is not possible to put the gearbox

into neutral, unlock the steering, or
release the parking brake,

- towing with only two wheels on the

ground,

- where there is no approved towing arm

available...

Put the gear lever into neutral (position N

for the CVT gearbox).

Unlock the steering by turning the ignition

switch to the "ON" position (or to "ON"
mode for vehicles fitted with the "Keyless
Entry and Starting" system).

Release the parking brake.

Switch on the hazard warning lamps on

both vehicles.

Move off gently and travel slowly for a short

distance only.

217

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

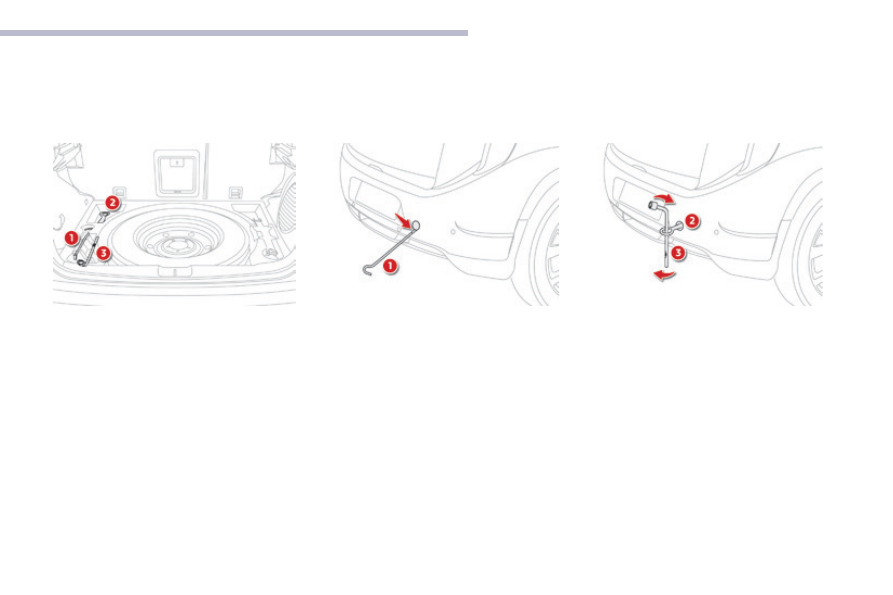

Towing another vehicle

On the rear bumper, remove the cover

by pulling at the bottom using the jack
handle 1.

Screw in the towing eye 2 fully using the

wheelbrace 3

Install the towing bar.

Switch on the hazard warning lamps on

both vehicles.

Move off gently and travel slowly for a short

distance only.

Access to the tools

The towing eye and the tools are stored under
the boot floor.
To gain access to them:
F open the boot,
F

lift and remove the boot floor,

take out the towing eye and the tools

required.

List of tools
1.

Jack handle.

Towing eye.

Wheelbrace.

218

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

Running out of fuel (Diesel)

On vehicles fitted with the 1.6 litre HDi 115
engine, the fuel system must be manually
primed if you run out of fuel; refer to the
corresponding Diesel engine compartment
view.

1.6 litre HDi engine

Fill the fuel tank with at least five litres of

Diesel.

Open the bonnet.

F If necessary, unclip the cover for access to

the priming pump.

Squeeze and release the priming pump

repeatedly until resistance is felt (there
may be resistance at the first press).

Operate the starter until the engine

starts (if the engine does not start at the
first attempt, wait around 15 seconds
before trying again).

If the engine does not start after a

few attempts, operate the priming pump
again then start the engine.

Clip the cover back in place.

Close the bonnet.

219

Technical data

C4-Aircross_en_Chap09_caracteristiques-techniques_ed01-2016

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation

(Directive 1999/99/EC).

Engines and gearboxes

.../S

: model fitted with the Stop & Start (AS&G) function.

PETROL ENGINES

1.6 litre 115

2.0 litre 150

GEARBOXES

Manual

(5-speed)

CVT

(6-speed)

Manual

(5-speed)

CVT

(6-speed)

Model codes: BU...

NKZ0

NKZ0/S

NKZ9

NKZ9/S

AFYR

AFZ7

AFYV
AFZM

AFYT
AFZH

AFZ9

AFYW

AFZP
AFZC

Transmission mode

2WD

4WD

2WD

4WD

Cubic capacity (cc)

1 590

1 998

Bore x stroke (mm)

75 x 90

86 x 86

Max power*: EU standard (kW)

113

Max power engine speed (rpm)

6 000

Max torque: EU standard (Nm)

154

199

Max torque engine speed (rpm)

4 000

4 200

Fuel

Unleaded

Catalytic converter

Yes

OIL CAPACITY (in litres)

Engine (with filter replacement)

4.2

4.3

220

Technical data

C4-Aircross_en_Chap09_caracteristiques-techniques_ed01-2016

Petrol weights and towed loads (kg)

The values for approved towed weights vary
according to the sales zone (see the tables on
the following pages).
The exact values are given in your vehicle's
registration document as well as on the
manufacturer's plate.
They are also mentioned in sales brochures.
For more details, contact a CITROËN dealer or
a qualified workshop.

The kerb weight is equal to the unladen
weight + driver (75 kg).

The GTW and towed load values indicated are
valid up to a maximum altitude of 1 000 metres;
the towed load mentioned must be reduced
by 10 % for each additional 1 000 metres of
altitude.
The speed of a towing vehicle must not exceed
62 mph (100 km/h) (comply with the legislation
in force in your country).
High exterior temperatures may result in a
reduction in the performance of the vehicle to
protect the engine; if the exterior temperature is
above 37 °C, limit the towed load.

The weight of the braked trailer can be
increased, within the GTW limit, if the
GVW of the towing vehicle is reduced
by an equal amount. Please note that
towing using a lightly loaded towing
vehicle may have an adverse effect
on its road holding

221

Technical data

C4-Aircross_en_Chap09_caracteristiques-techniques_ed01-2016

For: Russia, Ukraine, Morocco, Argentina, Chile, French overseas territories.

PETROL ENGINES

1.6 litre 115

2.0 litre 150

Gearboxes

Manual

(5-speed)

Manual (5-speed)

CVT (6-speed)

Model codes: BU...

NKZ7
NKZ0

AFZ7

AFZM

AFZH

AFZ9

AFZP
AFZC

Transmission mode

2WD

4WD

2WD

4WD

- Unladen weight

1 310

1 355

1 420

1 385

1 450

- Kerb weight

1 385

1 430

1 495

1 460

1 525

- Gross vehicle weight

(GVW)

1 870

1 970

- Gross vehicle weight (GVW) when towing

1 925

2 035

- Gross train weight (GTW)

on a 12% gradient

3 025

3 335

- Braked trailer (within GTW limit)

on a 10% or 12% gradient

1 100

1 300

- Unbraked trailer

685

715

745

725

750

- Recommended nose weight

222

Technical data

C4-Aircross_en_Chap09_caracteristiques-techniques_ed01-2016

For: Australia, New Zealand.

PETROL ENGINES

2.0 litre 150

Gearboxes

CVT (6-speed)

Model codes: BU...

AFZH

AFZ9

AFZP
AFZC

Transmission mode

2WD

4WD

- Unladen weight

1 380

1 445

- Kerb weight

1 455

1 520

- Gross vehicle weight

(GVW)

1 970

- Gross vehicle weight (GVW) when towing

2 035

- Gross train weight (GTW)

on a 12% gradient

3 020

- Braked trailer (within GTW limit)

on a 10% or 12% gradient

1 050

- Unbraked trailer

750

- Recommended nose weight

Citroen C4 Aircross (2017 year). Instruction - part 14
