Citroen Nemo Dag (2010 year). Instruction

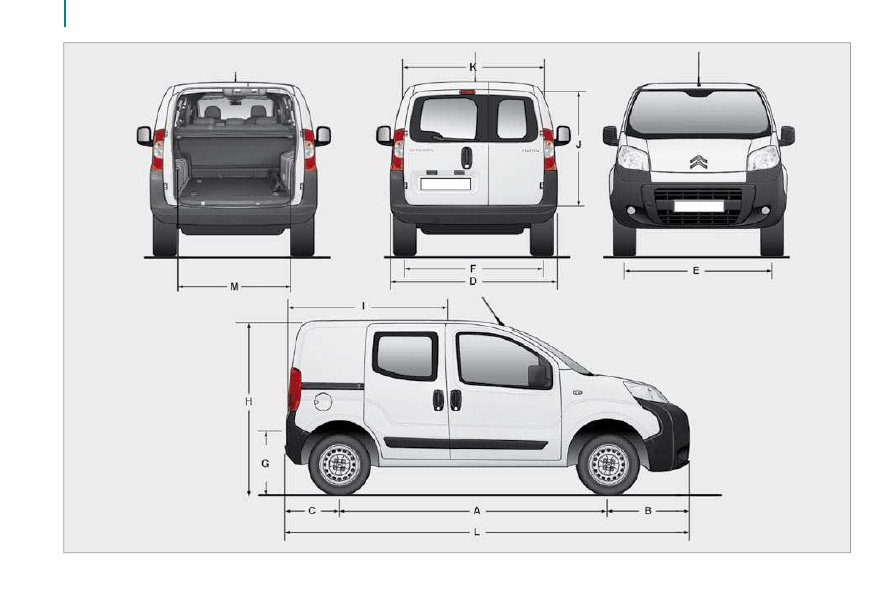

Dimensions

DIMENSIONS

The light van "L1" is the standard model, the "L2 - Worksite Pack" version is a model sold according to country:

Light van (in mm)

L2 (Worksite Pack)

Overall length

3 864

3 881

H Overall height

1 721

1 742

Height with roof bars

1 782

1 803

Wheelbase

2 513

Front overhang

760

777

C Rear overhang

591

D Overall width

2 019

Width (with mirrors folded)

1 816

Width of front track

1 469

1 464

Width of rear track

1 465

G Height of load sill

527

544

Length of interior ﬂ oor

1 523

Maximum interior load height

1 205

Maximum interior width (10 cm from the ﬂ oor)

1 473

M Interior width between wheel arches

1 046

Volume (m

)

2.5

Dimensions

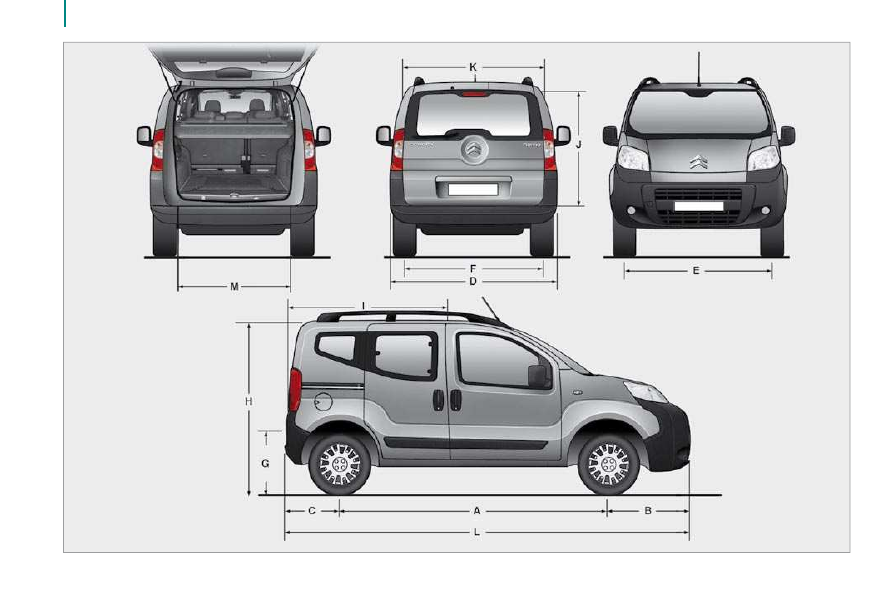

Combi (in mm)

Standard

All-terrain

Overall length

3 959

3 970

H Overall height

1 721

1 742

Height with roof bars

1 782

1 803

Wheelbase

2 513

Front overhang

855

866

C Rear overhang

591

D Overall width

2 019

Width (with mirrors folded)

1 816

Width of front track

1 464

Width of rear track

1 465

G Height of load sill

527

544

Length of interior ﬂ oor (rear bench seat in place)

743

Length of interior ﬂ oor (rear bench seat fully folded)

1 130

Maximum interior load height (under rear shelf)

592

Maximum interior width (10 cm from the ﬂ oor)

1 473

M Interior width between wheel arches

1 046

Dimensions

Combi (in mm)

Standard

All-terrain

Overall length

3 959

3 970

H Overall height

1 721

1 742

Height with roof bars

1 794

1 803

Wheelbase

2 513

Front overhang

855

866

C Rear overhang

591

D Overall width

2 019

Width (with mirrors folded)

1 816

Width of front track

1 464

Width of rear track

1 465

G Height of load sill

527

544

Length of interior ﬂ oor (rear bench seat in place)

743

Length of interior ﬂ oor (rear bench seat fully folded)

1 130

Maximum interior load height (under rear shelf)

592

Maximum interior width (10 cm from the ﬂ oor)

1 473

M Interior width between wheel arches

1 046

Engines

DIESEL ENGINE S

1.4 litre HDi 70 hp

1.3 litre HDi 75 hp

Gearboxes

Manual

Electronic

Gears

EU standard maximum power (kW)

Cubic capacity (cc)

1 399

1 248

Bore x stroke (mm)

73.7 x 82

69.6 x 82

Max power engine speed (rpm)

4 000

3 750

EU standard max torque (Nm)

160

190

Max torque engine speed (rpm)

2 750

1 750

Fuel

Diesel

Catalytic converter

Yes

Particle emissions ﬁ lter (PEF)

Yes

Stop & Start

Yes

Engine oil capacity with ﬁ lter replacement (litres)

3.8

3.0

Engines

PETROL ENGINE

1.4 litre 75 hp

Gearbox

Manual

Gears

EU standard maximum power (kW)

Cubic capacity (cc)

1 360

Bore x stroke (mm)

75 x 77

Max power engine speed (rpm)

5 200

EU standard max torque (Nm)

118

Max torque engine speed (rpm)

2 600

Fuel

Unleaded petrol

Stop & Start

Engine oil capacity with ﬁ lter replacement (litres)

3.0

Weights

WEIGHTS

Consult your registration certiﬁ cate.

In each country, it is imperative that the towed loads permitted by local legislation are complied with. For information regarding your vehicle's

towing possibilities and its gross train weight, consult a CITROËN dealer.

This table indicates the maximum weight when loaded (GVW) according to the dimensions and names of the vehicle.

Load transfer
If the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the trailer weight and GTW indicated.
Comply with the towing capacities of your vehicle.

Light van
Model codes

Engines

1.4 litre HDi 70 hp

1.3 litre HDi 75 hp

1.4 litre 75 hp

Gearboxes

Manual

Electronic

Manual

Gross vehicle weight

Kerb weight (without driver)

Payload (with driver)

Weights

Combi (with side-hinged rear doors)
Model codes

Engines

1.4 litre HDi 70 hp

1.3 litre HDi 75 hp

1.4 litre 75 hp

Gearboxes

Manual

Electronic

Manual

Gross vehicle weight

Kerb weight (without driver)

Payload (with driver)

Combi (with tailgate)
Model codes

Engines

1.4 litre HDi 70 hp

1.3 HDi 75 hp

1.4 litre 75 hp

Gearboxes

Manual

Electronic

Manual

Gross vehicle weight

Kerb weight (without driver)

Payload (with driver)

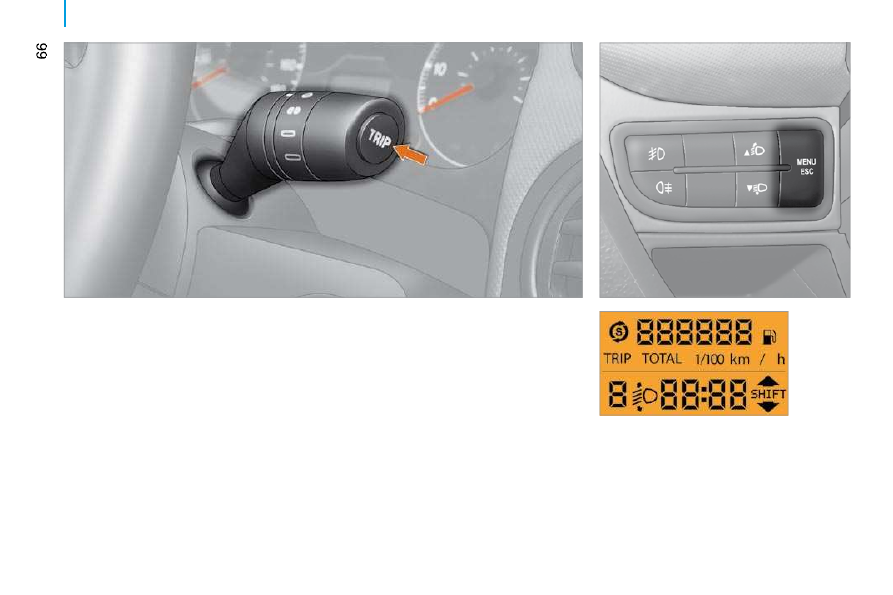

Trip computer

TRIP COMPUTER/CONFIGURATION - PERSONALISATION OF THE VEHICLE

If TRIP B is activated on MENU :
- Trip B,

- Average fuel consumption B,

- Average speed B,

- Trip duration B.

Press the MENU ESC button for more than
two seconds to return to the home screen.

  Level 1 screen:
   -   Speed (Speed beep).
  -   Time (Setting the time).
  -   Buzz (Volume of the announcements).
  -   Unit (Unit of measurement).
  -   Bag p (Passenger's airbag).
Refer to the corresponding line of the
configuration - personalisation table on the
following pages.

Zero reset
Press the TRIP button for more than two
seconds to reset the displayed data to zero.

Using the TRIP button, located at the end of
the wiper stalk, you can display the following
information in succession:
- Range,

- Trip A,

- Average fuel consumption A,

- Current fuel consumption A,

- Average speed A,

- Trip duration A.

Menu

Level 2 and 3 screens:

Menu...

Press...

Sub-

menu...

Press...

Select...

Confirm
and exit

Enables you to...

1 Speed Bleep

Increase

Activate/deactivate the audible
signal indicating exceeding of the
programmed speed and select the
speed value.

Decrease

OFF

2 Activate Trip B

Activate

Display a second route "Trip B".

OFF

Deactivate

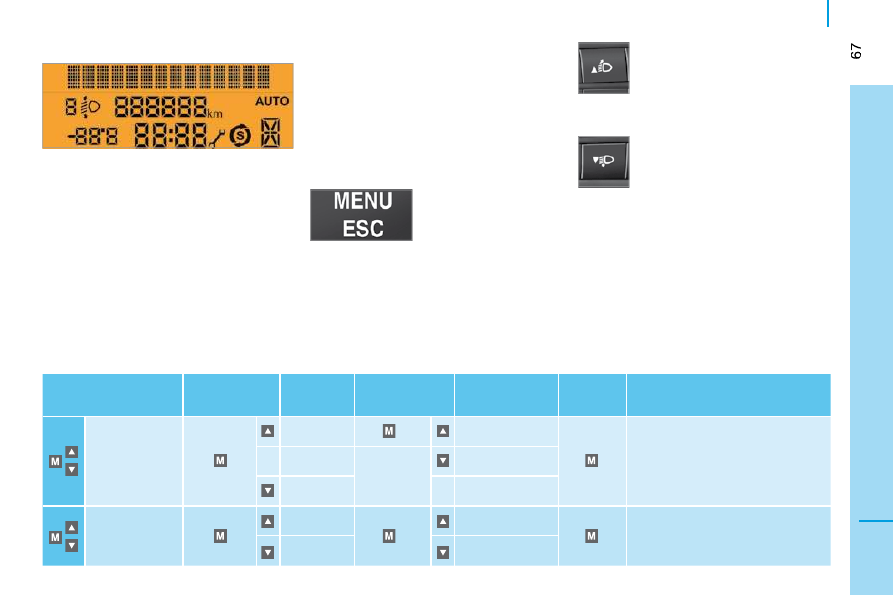

The control panel located to the left of the
steering wheel provides access to screen
menus allowing personalisation of some of
your systems.

Eight languages are available: Italian,
English, German, French, Spanish,
Portuguese, Dutch and Turkish.
As a safety precaution, the menus can only be
accessed when the ignition is off (engine off).
Refer to the corresponding line of the
configuration - personalisation table on the
following pages.

  This button enables
you to:
   -    access the menus and

sub-menus,

This button enables you to:
- scroll up through a menu,

- increase a value.

This button enables you to:
- scroll down through a menu,

- decrease a value.

- confirm your selections within a menu,

- exit from the menus.

A long press enables you to return to the
home screen.

Menu...

Press...

Sub-menu...

Press...

Select...

Confirm
and exit

Enables you to...

3 Set the time

Hours

Increase

Set the clock.

Decrease

Format

24 hour

Select the clock display mode.

12 hour

4 Set the date

Year/Month/Day

Increase

Set the date.

Decrease

5 See radio

Display the name of the station.
Display the CD track number.

OFF

6 Autoclose

While moving

Activate/deactivate the
automatic locking of the doors
above 12 mph (20 km/h)

OFF

7 Measurement
unit

Distances

Select the distance display unit.

Mi(les)

Temperature

°C

Select the temperature display
unit.

°F

Consumption

km/l

Select the fuel consumption
display unit.

l/100 km

8 Language

List of
languages
available

Select the display language.

9 Volume of
announcements

Increase

Increase/decrease the volume of the
signals and warnings (the volume changes
immediately when the button is pressed).

Decrease

Menu

Menu

Menu...

Press...

Sub-menu...

Press...

Select...

Confirm
and exit

Enables you to...

10 Volume of
the buttons

Increase

Increase/decrease the volume
of the buttons.

Decrease

11 Service

(Km/Miles
before oil
change)

Display the miles/kilometres
remaining before the next oil
change.

Display the oil level.

12 Bag
(passenger's
airbag)

Yes

Activate the passenger's
airbag.

OFF

Yes

Deactivate the passenger's
airbag.

13 Exit from

Exit from the menu. Press the
arrow at the bottom to go to
the first menu.

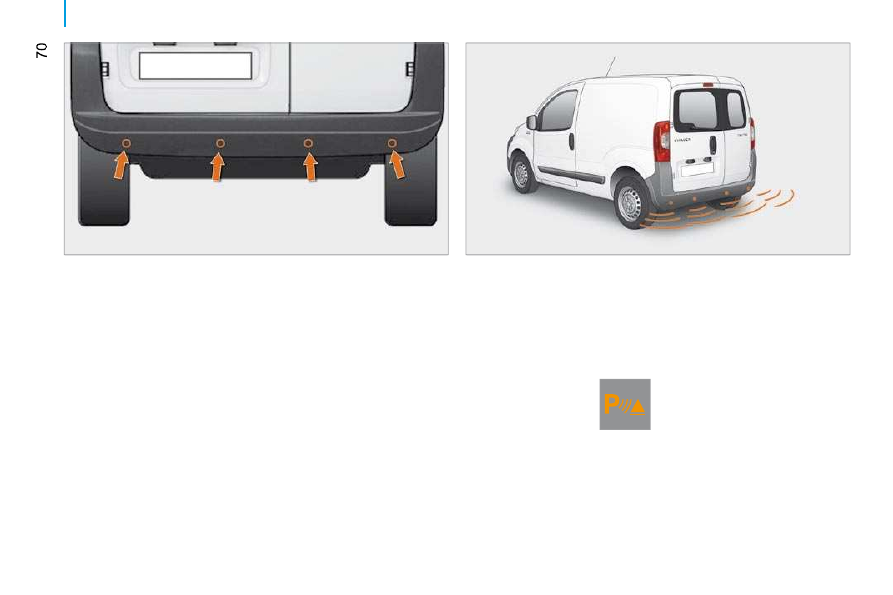

Parking sensors

REAR PARKING SENSORS

The audible system consists of four
proximity sensors, fitted in the rear bumper.
It detects any obstacle which enters the
field: person, vehicle, tree, fence, behind the
vehicle during the manoeuvre.
However, it will not be able to detect
obstacles located immediately below the
bumper.
An object, such as a stake, a roadworks
cone or any other similar object may be
detected at the beginning of the manoeuvre
but may no longer be detected when the
vehicle moves close to it.
This system does not take the place of the
vigilance and responsibility of the driver.

Stop the assistance

Change to neutral.

Operating fault

If this warning lamp or the service
warning lamp comes on in the
instrument panel, accompanied
by a message in the screen,
contact a CITROËN dealer.

Good practice

In bad weather or in winter, ensure that the
sensors are not covered with mud, ice or
snow.

Engage reverse gear

The proximity information is indicated by an
audible signal which becomes more rapid as
the vehicle approaches the obstacle.
When the distance between the rear of
the vehicle and the obstacle is less than
approximately thirty centimetres, the audible
signal becomes continuous.
This function will be deactivated automatically
if a trailer is being towed. You are advised to
obtain a towbar recommended by CITROËN
and have it installed by a professional.
If anomalies are detected on engaging
reverse gear, the warning lamp comes on,
possibly accompanied by a message in the
screen.

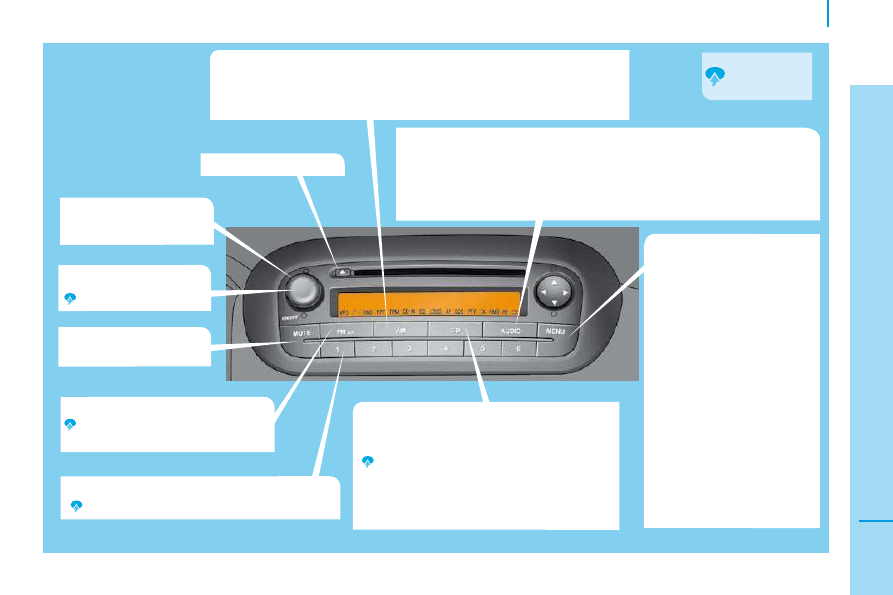

Audio equipment

Volume Increase/
Decrease.

On.

Off.

Mute On/Off.

Selection of the CD/CD MP3 source.
Use the left/right arrows to select the
previous/next track.

Use the left/right arrows to fast forward/
backward playing of the current track.

In CD MP3 mode: use the up/down arrows
to change folder.

Setting the audio options: bass, treble, fader (front/rear), balance
(left/right), loudness, EQ Preset (equaliser).
Use the up/down arrows to select the option.
Use the left/right arrows to increase or decrease the value of the option
or change the equaliser.

Access to the menu.
Use the up/down arrows to
select one of the following
functions:
       AF switching.
      Traffic info.
      Regional mode.
      MP3 display.
      Speed volume.
      External audio vol.
      Radio off.
      Restore default.
Use the left/right arrows to
change the setting of the
function selected.

CD eject.

Selection of the FM waveband.

Automatic storing of stations
(autostore AS).

Selection of the AM waveband.
Use the left/right arrows for an automatic station search.
Use the up/down arrows for a manual station search.

1/2/3/4/5/6: selection of the stored station.

Storing of a station.

Control panel

FIRST STEPS

Requires a
long press.

Audio equipment

FIRST STEPS

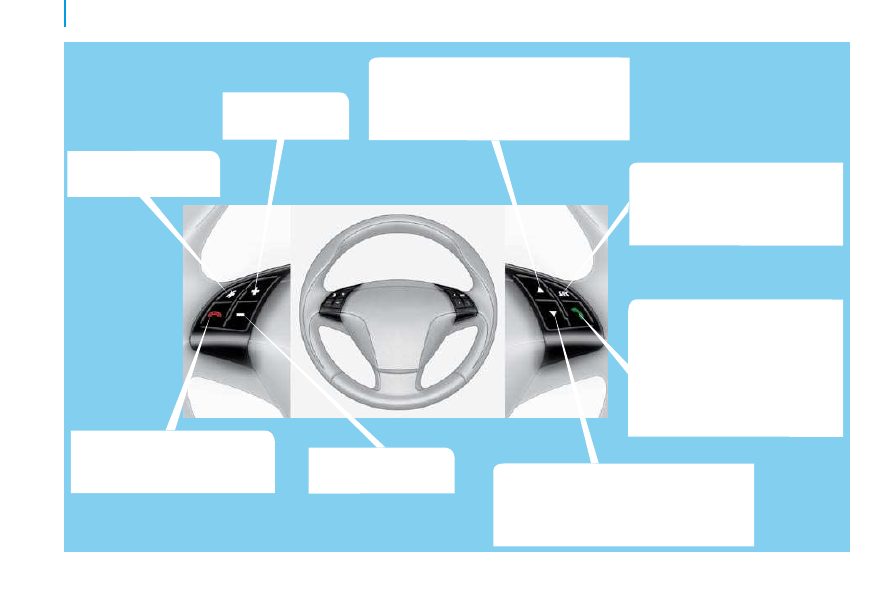

Steering mounted
controls

Increase volume.

Mute On/Off.

  Bluetooth hands-free system * :
       end a call,
      refuse an incoming call.

Reduce volume.

RADIO: select the next preset station up.
CD: select the next track.
CD MP3: select the next folder.

Change audio source:
RADIO/CD/CD MP3.
Select waveband:
FM1/FM2/FMT/MW/LW.

  Bluetooth hands-free system * :
       activate voice recognition,
      accept an incoming call or

second call,

redial the last number called,
activate secret mode.

RADIO: select the next preset station down.
CD: select the previous track.
CD MP3: select the previous folder.

* Simultaneous press on two buttons: system off.

For more information on the using the Bluetooth hands-free system,
refer to the corresponding section.

Citroen Nemo Dag (2010 year). Instruction - part 5
