SUPPLEMENT

DS Connect Nav

On-line handbook

If the "MyCITROËN" function is not available on the CITROËN public website for your country, you

can fi nd your handbook at the following address:
http://service.citroen.com/ddb/

Find your handbook on the CITROËN website, under "MyCITROËN".

Select:

Select one of the following means of access to

view your handbook on-line...

This personal and customisable space allows you to establish direct and special contact with the

manufacturer.

the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of registration of your vehicle.

Scan this code for direct access to your handbook.

Referring to the handbook on-line also gives you

access to the latest information available, easily

identifi ed by the bookmark, associated with this

symbol:

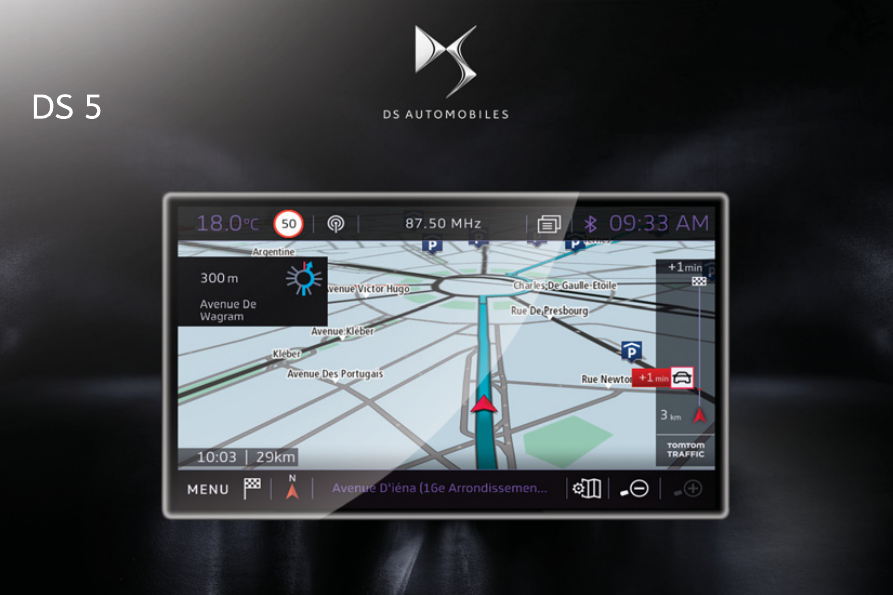

Audio and Telematics

DS Connect Nav

GPS satellite navigation - Connectivity - Multimedia audio - Bluetooth

telephone

Contents

First steps

Steering mounted controls

Menus 5
Voice commands

Navigation 12
Connected navigation

Connectivity 38
Radio Media

Telephone 62
Settings 74
Frequently asked questions

The system is protected in such a way that it will only operate in
your vehicle.

The link below gives access to OSS (Open Source Software)
codes for the system.
http://www.psa-peugeot-citroen.com/oss

  As a safety measure and because it requires sustained attention
by the driver, the pairing of a Bluetooth mobile telephone with
the Bluetooth hands-free system of your audio system must be
done with the vehicle stationary  and the ignition on.
The display of the energy economy mode message signals that
a change to standby is imminent. Refer to the Energy economy
(mode) section of your vehicle's handbook.

First steps

With the engine running, a press
mutes the sound.
With the ignition off, a press turns the
system on.

Volume.

Use the buttons below the touch screen for
access to the menus, then press the virtual
buttons in the touch screen. All of the touch
areas of the screen are white.
Each menu is displayed in one or two pages
(primary page and secondary page).

Secondary page

Primary page

The touch screen is of the "capacitive"
type.
To clean the screen, use a soft,
non-abrasive cloth (spectacles cloth)
with no additional product.
Do not use sharp objects on the
screen.
Do not touch the screen with wet
hands.

Audio and Telematics

Select the audio source (depending on
version):
-

FM / DAB * / AM * stations.

Smartphone via MirrorLink

or CarPlay

USB memory stick.

CD player (located in front panel).

Media player connected to the auxiliary
socket (jack, cable not supplied).

BluetoothTelephone connected by
Bluetooth * and using* audio streaming.

* Depending on equipment.

Short-cuts: using the virtual buttons in the
upper band of touch screen, it is possible to
go directly to the selection of audio source,
the list of stations (or titles, depending on
the source), message notifications, emails,
mapping updates and, depending on services,
navigation notifications.

In very hot conditions, the volume may
be limited to protect the system. It may
go into standby (screen and sound off)
for at least 5 minutes.
The return to normal takes place when
the temperature in the passenger
compartment drops.

In the "Settings" menu you can create
a profile for just one person or a group
of people with common points, with
the possibility of entering a multitude of
settings (radio presets, audio sttings,
navigation history, contact favourites, ...);
these settings are taken into account
automatically.

Steering mounted controls

   Media  (short press): change the
multimedia source.
  Telephone  (short press): call.
  Call in progress  (short press):
access to telephone menu.
  Telephone  (long press): reject an
incoming call, end call, access to
telephone menu.

Voice commands :
Short press, system voice
commands.
Long press, smartphone voice
commands via the system.

Decrease volume.

   Radio  (rotate): automatic search for
the previous / next station.
  Media  (rotate): previous / next track,
move in a list.
  Short press : Confirm a selection.
Other than selection, access to
presets.

   Radio : display the list of stations.
  Media : display the list of tracks.
  Radio, press and hold : update the
list of stations received.

Increase volume.

Audio and Telematics

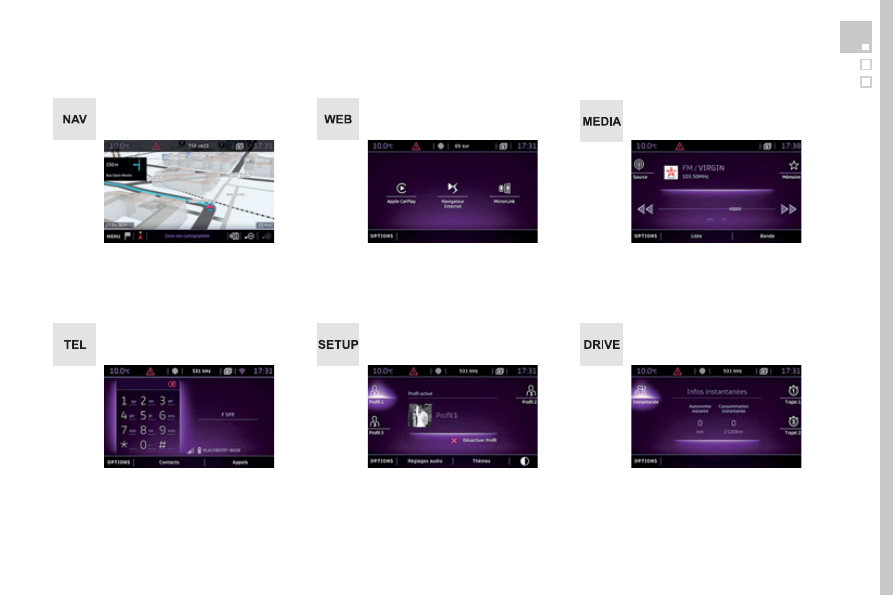

Menus

Settings

Radio Media

Connected navigation

Driving

Connectivity

Telephone

Enter settings for a personal profile and/
or adjust the settings for sound (balance,
ambience, ...), colour schemes and the display
(language, units, date, time, ...).

Select an audio source, a radio station, display
photographs.

Enter navigation settings and choose a
destination.
Use services available in real time, depending
on equipment.

Access the trip computer.
Activate, deactivate, set certain vehicle
functions.

Operate certain applications on a smartphone
connected via MirrorLink

or CarPlay

Check the state of Bluetooth and Wi-Fi
connections.

Connect a telephone by Bluetooth

, read

messages and emails and send quick
messages.

Voice commands

First steps

Steering mounted controls

Information - Using the system

Press the Push To Talk
button and tell me what you'd
like after the tone.
Remember you can interrupt

me at any time by pressing this button.
If you press it again while I'm waiting for
you to speak, it'll end the conversation.
If you need to start over, say "cancel".
If you want to undo something, say
"undo".
And to get information and tips at
any time, just say "help". If you ask to
me do something and there's some
information missing that I need, I'll
give you some examples or take you
through it step by step.
There's more information available
in "novice" mode. You can set the
dialogue mode to "expert" when you
feel comfortable.

To ensure that voice commands are
always recognised by the system,
please observe the following
recommendations:
-

speak in a normal tone without
breaking up words or raising your
voice.

always wait for the "beep" (audible
signal) before speaking,

for best operation, it is
recommended that the windows
and opening roof (if fitted) be
closed to avoid interference from
extraneous noises.

before makking a voice command,
ask other passengers to not speak.

The voice commands, with a choice
of 12 languages (English, French,
Italian, Spanish, German, Dutch,
Portuguese, Polish, Turkish, Russian,
Arabic, Brazilian), are made using the
language previously chosen and set in
the system.

The voice commands in Arabic for:
"Navigate to address" and "Display POI
in the city", are not available.

  Example of a "voice command" for
navigation:
  "Navigate to address, 11 Regent
Street, London" .

Example of a "voice command" for
the radio and media:
"Play artist" "Madonna" .

Example of a "voice command" for
the telephone:
"Call David Miller" .

Pressing the end of the lighting
control stalk activates the voice
commands function.

Audio and Telematics

Global voice commands

These commands can be made from any screen page after pressing the voice command or telephone button located on the steering wheel, as
long as there is no telephone call in progress.

"Voice command"

Help message

Help

There are lots of topics I can help you with.
You can say: "help with phone", "help with navigation", "help with media" or "help with radio".
For an overview on how to use voice controls, you can say "help with voice controls".

Voice command help

Navigation help

Radio help

Media help

Telephone help

Set dialogue mode as <...>

Select "beginner" or "expert" mode.

Select profile <...>

Select profile 1, 2 or 3.

Yes

Say "yes" if I got that right. Otherwise, say "no" and we'll start that again.

"Navigation" voice commands

These commands can be issued from any screen page after pressing the voice command or telephone button on the steering wheel, as long as
there is no telephone call in progress.

Depending on the country, give the destination instructions (address) in the language used by the system.

"Voice command"

Help message

Navigate home

To start guidance or add a stopover, say "navigate to" and then the address or contact
name.
For example, "navigate to address 11 Regent Street, London", or "navigate to contact, John
Miller".
You can specify if it's a preferred or recent destination. For example, "navigate to preferred
address, Tennis club", "navigate to recent destination, 11 Regent Street, London".
Otherwise, just say, "navigate home".
To see points of interest on a map, you can say things like "show hotels in Banbury" or
"show nearby petrol station".
For more information you can ask for "help with route guidance".

Navigate to work

Navigate to preferred address <...>

Navigate to contact <...>

Navigate to address <...>

Show nearby POI <...>

Remaining distance

To get information about your current route, you can say "tell me the remaining time",
"distance" or "arrival time".
Try saying "help with navigation" to learn more commands.

Remaining time

Arrival time

Stop route guidance

Audio and Telematics

"Radio Media" voice commands

These commands can be issued from any screen page after pressing the voice command or telephone button on the steering wheel, as long as
there is no telephone call in progress.

"Voice command"

Help message

Tune to channel <...>

You can pick a radio station by saying "tune to" and the station name or frequency.
For example "tune to channel Talksport" or "tune to 98.5 FM". To listen to a preset radio
station, say "tune to preset number". For example "tune to preset number five".

What's playing

To display the details of the current "track", "artist" and "album", you can say What's
playing

Play song <...>

Use the command "play" to select the type of music you'd like to hear. You can pick by
"song", "artist", or "album". Just say something like "play artist, Madonna", "play song, Hey
Jude", or "play album, Thriller".

Play artist <...>

Play album <...>

Media voice commands are available only for a USB connection.

"Voice command"

Help message

Call contact <...> *

To make a phone call, say "call" followed by the contact name, for example: "Call David
Miller".
You can also include the phone type, for example: "Call David Miller at home".
To make a call by number, say "dial" followed by the phone number, for example,
"Dial 107776 835 417".
You can check your voicemail by saying "call voicemail".
To send a text, say "send quick message to", followed by the contact, and then the name
of the quick message you'd like to send.
For example, "send quick message to David Miller, I'll be late".
To display the list of calls, say "display calls".
For more information on SMS, you can say "help with texting".

Dial <...> *

Display contacts *

Display calls *

Call (message box | voicemail) *

* This function is available only if the telephone connected to the system supports downloading of contacts and recent calls and if the download has

been done.

"Telephone" voice commands

If a telephone is connected to the system, these voice commands can be issued from any main screen page after pressing the telephone
button on the steering wheel, as long as there is no telephone call in progress.
If there is no telephone connected by Bluetooth, a voice message announces: "Please first connect a telephone" and the voice session will be
closed.

Audio and Telematics

"Voice command"

Help message

Send text to <...>

To hear your messages, you can say "listen to most recent message".
When you want to send a text, there's a set of quick messages ready for you to use.
Just use the quick message name and say something like "send quick message to Bill
Carter, I'll be late".
Check the phone menu for the names of the supported messages.

Please say "call" or "send quick message to", and then select a line from the list.
To move around a list shown on the display, you can say "go to start", "go to end",
"next page" or "previous page".
To undo your selection, say "undo".
To cancel the current action and start again, say "cancel".

Listen to most recent message *

"Test message" voice commands

If a telephone is connected to the system these voice commands can be issued from any main screen page after pressing the telephone button
on the steering wheel, as long as there is no telephone call in progress.
If no telephone has been connected by Bluetooth, a voice message announces: "Please first connect a telephone" and the voice session will be
closed.

* This function is only available if the telephone connected to the system supports downloading of contacts and recent calls and if the download has

been done.

The system only sends predefined "Quick messages".

12:13

23 °C

12:13

23 °C

Level 1

Level 2

Level 3

Navigation

Audio and Telematics

Level 1

Level 2

Level 3

Comments

Navigation

Select the orientation of the map; north up,
vehicle direction up or perspective.

Navigation

Display the traffic information available.

Navigation

World map

Manually locate an area on the world map or
enter the latitude and longitude coordinates.

Around the vehicle

Display the location critera selected.

Around home

Around the destination

2D mode

Switch to a 2D map.

Zoom out.

Zoom in.

Start navigation to the current address.

Save the current address.

Zoom out.

Zoom in.

12:13

23 °C

12:13

23 °C

Point of interest on map

Level 1

Level 2

Level 3

Content .. 24 25 26 27 ..
