Citroen DS5 (2016 year). Instruction - part 24

Audio and Telematics

Internet browser

Authentication for Internet browsing via
a smartphone is done using the Dial-Up
Networking (DUN) standard.

Press on " Internet browser " to
displays the browser's home page;
first connect your smartphone by
Bluetooth, option "Internet", see the
" Telephone " section.

Some smartphones of the latest
generation do not support this
standard.

Press on Connected services to
display the primary page.

10 11

Level 1

Level 2

Usage monitor

Internet connection settings

Wi-Fi connection

Bluetooth (devices)

Audio and Telematics

Level 1

Level 2

Comments

Connected services

Secondary page

Bluetooth

Connection

Search

Start the search for a device to connect.

Connect /Disconnect

Start or end the Bluetooth connection to the
selected device.

Update

Import contacts from the selected telephone to
save them in the audio system.

Delete

Deletethe selected telephone.

Confirm

Save the settings.

Connected services

Secondary page

Transfer rate

Reset

Reset the usage monitor, them confirm.

Confirm

Connected services

Secondary page

Wi-Fi connection

All

Display all Wi-Fi networks.

Secure

Display secure Wi-Fi networks.

Stored

Memorise the selected Wi-Fi network(s).

Add

Add a new Wi-Finetwork.

Off /On

Activate or deactivate a Wi-Fi network.

Connect

Select a Wi-Fi network found by the system and
connect to it.

MirrorLink

Optional depending on the

smartphone and operating system.

Audio and Telematics

As a safety measure and because it
requires sustained attention by the
driver, using a smartphone when
driving is prohibited.
All operations must be done with the
vehicle stationary .

The synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
MirrorLink

technology to be displayed

in the vehicle's screen.
The principles and standards
are constantly evolving. For the
communication process between the
smartphone and the system to work
correctly, the smartphone must be
unlocked; update the operating system
of your smartphone as well as the date
and time in the smartphone and the
system.
For the list of eligible smartphones,
connect to the brand's internet website
in your country.

Please note:
-

if your smartphone is supported, to
make it "MirrorLink

" compatible,

some phone manufacturers
nevertheless invite you to first
download a dedicated application.

When connecting a smartphone to
the system, it is recommended that
Bluetooth

be started on the smartphone .

Start the application on the
smartphone (optional, depending
on the smartphone and operating
system).

During the procedure, several screen
pages relating to certain functions
are displayed.
Accept to start and end the
connection.

Connect a USB cable. The
smartphone charges when
connected by a USB cable.

Press " MirrorLink

" to start

the application in the system.

Once connection is established, an page
is displayed with the applications already
downloaded to your smartphone and adapted
to MirrorLink

technology.

If only one application has been downloaded to
the smartphone, it starts automatically.

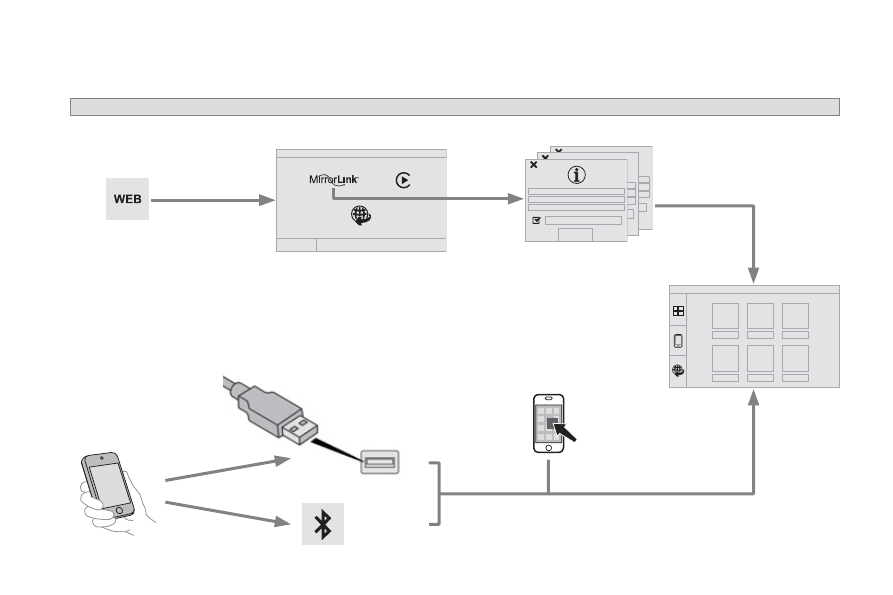

MirrorLink

smartphone

connection

Access to the different audio sources remains
accessible in the margin of the MirrorLink

display, using touch buttons in the upper bar.
Access to the menus for the system is possible
at any time using the dedicated buttons

From the system, press " Connected
services " to display the primary
page.

As a safety measure, applications
can only be viewed with the vehicle
stationary; display is interrupted once
the vehicle is moving.

Voice recognition

Press the end of the lighting control stalk to
start voice recognition of your smartphone via
the system.
Voice recognition requires a compatible
smartphone connected to the vehicle by
Bluetooth.

Level 1

Level 2

Level 3

Audio and Telematics

Level 1

Level 2

Level 3

Comments

Connected

services

MirrorLink

Access or return to the applications already
downloaded to your smartphone and adapted to
MirrorLink

technology.

Access to a menu list depending on the
application chosen.
"Back": abandon the current operation, go up
one level.
"Home": access or return to the "Car mode"
page.

Access to the "Connected services" primary
page.

CarPlay

Audio and Telematics

Press on " CarPlay " to display the
CarPlay

interface.

Connect a USB cable. The
smartphone charges when
connected by a USB cable.

Press the end of the lighting control stalk to
start voice recognition of your smartphone via
the system.

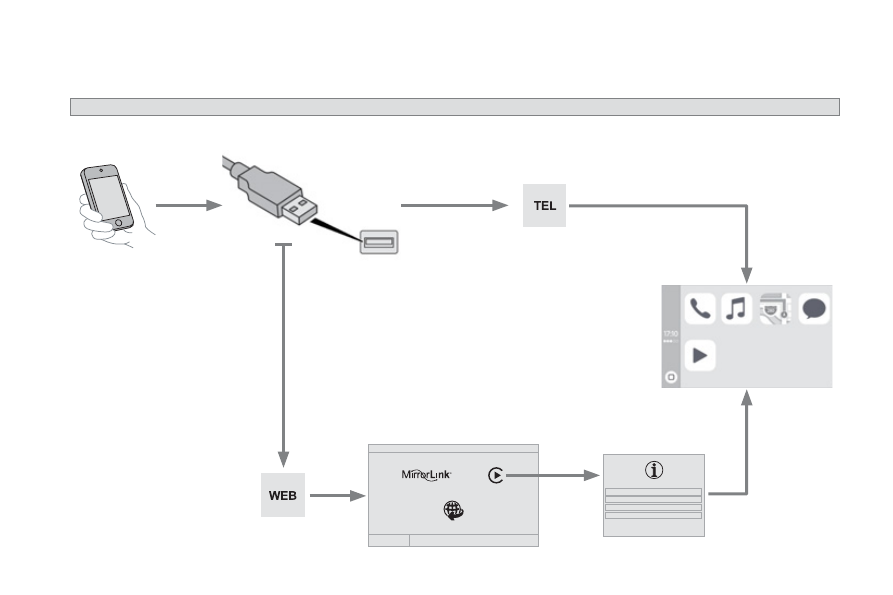

CarPlay

smartphone

connection

From the system, press " Connected
services " to display the primary
page.

Connect the USB cable. The
smartphone is charged while
connected by the USB cable.

Voice recognition

As a safety measure, applications
can only be viewed with the vehicle
stationary; display is interrupted once
the vehicle is moving.

The synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
CarPlay

technology to be displayed in

the vehicle's screen.
As the principles and standards are
constantly evolving, it is recommended
that you update the operating system of
your smartphone.
For the list of eligible smartphones,
connect to the brand's internet website
in your country.

As a safety measure and because it
requires sustained attention by the
driver, using a smartphone when
driving is prohibited.
All operations must be done with the
vehicle stationary .

During the procedure, one or more
screen pages relating to certain
functions are displayed on connection.

Press " Telephone " to display the
CarPlay

interface.

Level 1

Level 2

Level 3

Audio and Telematics

Level 1

Level 2

Level 3

Comments

Connected

services

Apple

CarPlay

Telephone

Favourites

The "Telephone" function is placed automatically
in "Siri" voice mode.
Press on "Display contacts" for access to the
telephone menus.

Calls

Contacts

Keypad

Messages

Music

Lists

Press on "Music" to browse and select the tracks
on your smartphone.
Press on "Playing" for access to the track
currently playing.

Artists

Tracks

Albums

Other...

Plan

Destinations

Press on "Destinations" to search for an address
by "Siri" voice command or by using the keypad.
The GPS function is through the telephone's 3G,
4G or Wi-Fi internet connection.

Messages

Display messages

The "Messages" function is place automatically
in "Siri" voice mode to speak the message and
the addressee.
Press on "Display messages" for access to the
messages.

Playing

Access to the track currently playing.

17 18

Level 1

Telephone

Level 2

Level 3

Contacts

Call log

5
6
7

14
15

17
18

Audio and Telematics

Level 1

Level 2

Level 3

Comments

Telephone

Call log

All calls

After making choices, start the call.

Incoming calls

Outgoing calls

Contacts

Magnifying glass

View

Create

Call

Telephone

Contacts

Addresses

After making choices, start the call.

View

Create

Modify

Delete

Delete all

By name

Confirm

Navigate to

Search for contact

Call

Bluetooth (devices)

Telephone Options

Devices detected

Telephone connection

Level 1

Level 2

Level 3

Audio and Telematics

Level 1

Level 2

Level 3

Comments

Telephone

connection

Secondary page

Bluetooth

connection

Search

Start the search for another peripheral device to
connect.

Connect / Disconnect

Start or stop theBluetooth connection to the
selected peripheral device.

Update

Import the contacts from the selected telephone
to store them in the audio system.

Delete

Delete the selected telephone.

Confirm

Save the settings.

Telephone

conn ection

Secondary page

Search

for devices

Devices detected

Telephone

Start the search for peripheral devices.

Audio streaming

Internet

Telephone

connection

Secondary page

Telephone Options

Put on hold

Cut the microphone temporarily so that the
contact cannot hear your conversation with a
passenger.

Update

Import the contacts from the selected telephone
to save then in the audio system.

Ringtones

Choose the telephone ringtone and volume.

Memory info.

Contact records used and free, percentage of
storage space used by internal contacts and
Bluetooth contacts.

Confirm

Save the settings.

Pairing a Bluetooth

telephone

For reasons of safety and because they
require prolonged attention on the part
of the driver, the operations for pairing
the Bluetooth mobile telephone to the
hands-free system of the audio system
must be carried out with the vehicle
stationary .

Procedure (short) from the

telephone

In the Bluetooth menu of your device, select the
system name in the list of devices detected.

Enter a code of at least 4 figures in the device
and confirm.

Enter this same code in the system,
select " OK " and confirm.

Procedure from the system

Activate the telephone's Bluetooth function
and ensure that it is "visible to all" (telephone
configuration).

Press on Telephone to display the
primary page.

Press on the secondary page.

Select " Bluetooth connection ".

Select Search for devices .
The list of telephones detected is
displayed.

If the telephone is not detected, it is
recommended that you switch the Bluetooth
function on your telephone off and then on again.

Select the name of the
desired peripheral from the
list and " Confirm ".

Enter a code of at least 4 figures for
the connection then " Confirm ".

Enter this same code in the telephone then
accept the connection.

The system offers to connect the telephone:
- in

Telephone " (hands-free kit, telephone

only),

- in

Audio streaming " (streaming: wireless

playing of audio files from the telephone),

- in

Internet " (internet browsing, only if your

telephone is compatible with the "DUN"
Dial-Up Networking Bluetooth standard).

Select one or more profiles and confirm.
