12 V battery

The battery is located under the bonnet.
To gain access to it:
F

open the bonnet using the interior release

lever, then the exterior safety catch,

raise the plastic cover on the (+) terminal.

Access to the battery

Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion or fire.
Wash your hands afterwards.

Procedure for starting the engine using another battery or charging a discharged battery.

General points

Lead-acid starter batteries

Batteries contain harmful substances
such as sulphuric acid and lead.
They must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.

If your vehicle has an automatic
gearbox, do not try to start the engine
by pushing the vehicle.

Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried out
only by a CITROËN dealer or a qualified
workshop.

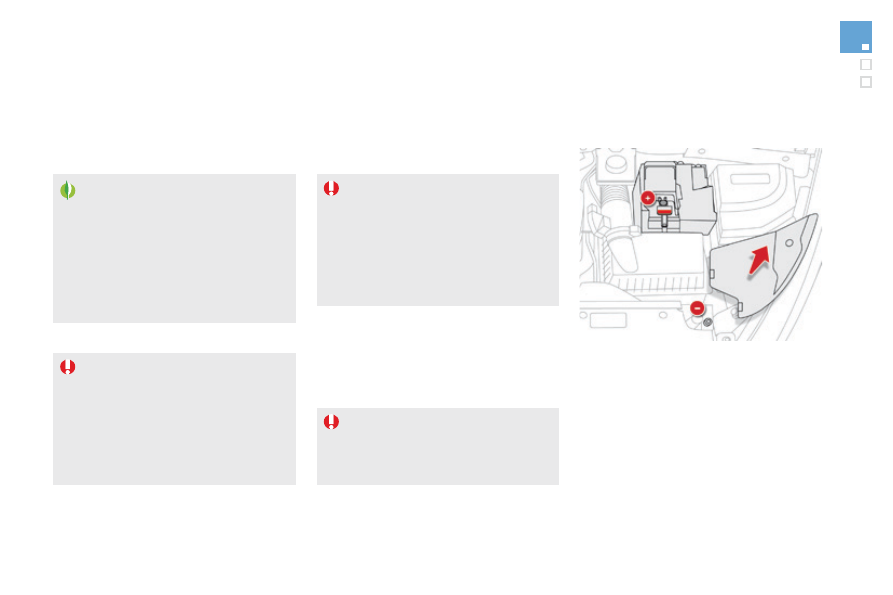

The battery (-) terminal is not accessible.
A remote earth point is provided at the front of
the vehicle.
For access to it:
F

unclip the plastic cover, located alongside

the left-hand headlamp.

DS5_en_Chap08_info-pratiques_ed02-2015

Starting using another
battery

Never try to start the engine by
connecting a battery charger.
Never use a 24 V or higher battery
booster.
First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
The two vehicles must not be in contact
with each other.
Switch off the electrical consumers on
both vehicles (audio system, wipers,
lighting, ...).
Ensure that the jump lead cables do
not pass close to moving parts of the
engine (cooling fan, belts, ...).
Do not disconnect the (+) terminal when
the engine is running.

Start the engine of the vehicle with the

good battery and leave it running for a
few minutes.

Operate the starter on the broken down

vehicle and let the engine run.

If the engine does not start straight away,
switch off the ignition and wait a few
moments before trying again.

When your vehicle's battery is discharged, the
engine can be started using a slave battery
(external or on another vehicle) and jump lead
cables or a battery booster.

Wait until the engine returns to idle then

disconnect the jump lead cables in the
reverse order.

Refit the plastic cover to the (+) terminal, if

your vehicle has one.

Allow the engine to run for at least

30 minutes, by driving or with the vehicle
stationary, so that the battery reaches an
adequate state of charge.

Raise the plastic cover on the (+) terminal,

if your vehicle has one.

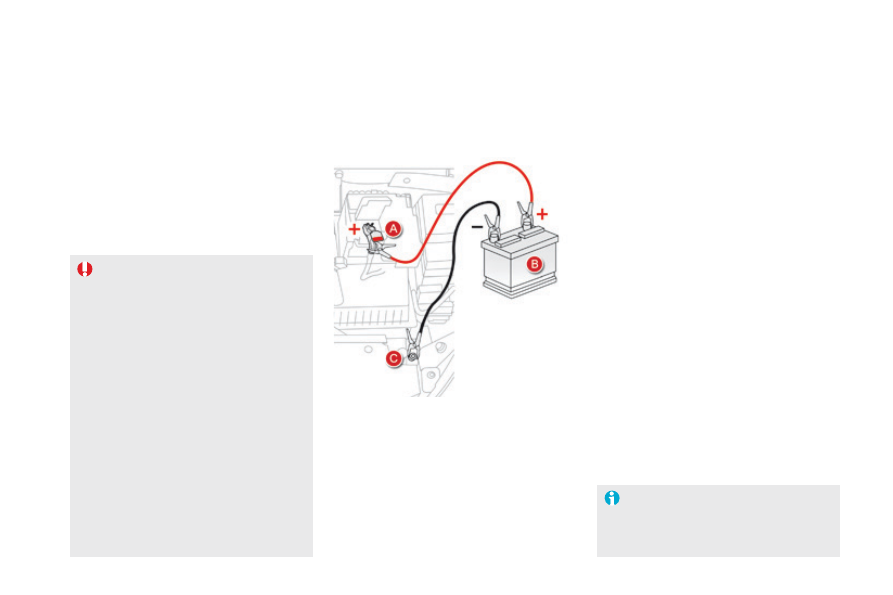

Connect the red cable to the positive

terminal (+) of the flat battery A (at the metal
elbow) then to the positive terminal (+) of the
slave battery B

or the booster.

Connect one end of the green or black

cable to the negative terminal (-) of the
slave battery B

or the booster (or earth

point on the other vehicle).

Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.

Connect the other end of the green or black

cable to the earth point c

on the broken

down vehicle.

225

Practical information

DS5_en_Chap08_info-pratiques_ed02-2015

For optimum service life of the battery, it is
essential to maintain an adequate state of
charge.
In some circumstances it may be necessary to
charge the battery:
- if you use your vehicle essentially for short

journeys,

- if the vehicle is to be taken off the road for

several weeks.

Contact a CITROËN dealer or a qualified
workshop.

charging the battery using
a battery charger

Never try to charge a frozen battery.
If the battery has been frozen, have
it checked by a CITROËN dealer or a
qualified workshop, who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.

If you envisage charging your vehicle's
battery yourself, use only a charger
compatible with lead-acid batteries of a
nominal voltage of 12 V.

Follow the instructions for use provided
by the manufacturer of the charger.
Never reverse polarities.

It is not necessary to disconnect the
battery.

Switch off the ignition.

Switch off all electrical consumers (audio

system, lighting, wipers, ...).

Switch off the charger B before connecting

the cables to the battery, so as to avoid any
dangerous sparks.

Ensure that the charger cables are in good

condition.

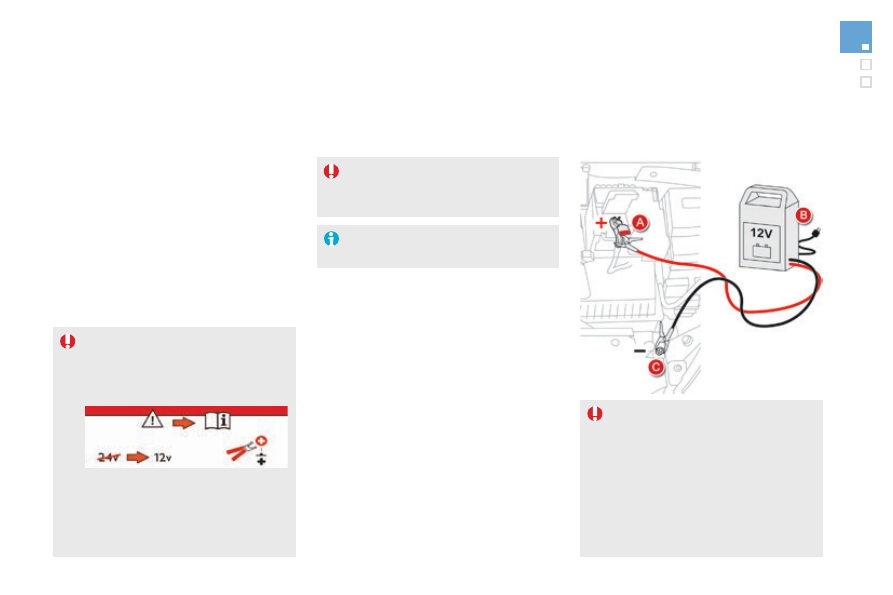

Connect the charger B cables as follows:

- the positive (+) red cable to the (+)

terminal of the battery A,

- the negative (-) black cable to the earth

point c

on the vehicle.

At the end of the charging operation, switch

off the charger B before disconnecting the
cables from the battery A.

If this label is present, it is essential
to use only a 12 V charger, to avoid
causing irreversible damage to the
electrical components related to the
Stop & Start system.

DS5_en_Chap08_info-pratiques_ed02-2015

disconnecting the battery

In order to maintain an adequate state
of charge for starting the engine, it is
recommended that the battery be disconnected
if the vehicle is taken out of service for a long
period.
Wait 2 minutes after switching off the ignition
before disconnecting the battery.
F

close the windows and the doors before

disconnecting the battery,

switch off all electrical consumers (audio

system, wipers, lighting, ...),

switch off the ignition and wait for

four minutes.

Having exposed the battery, it is only
necessary to disconnect the (+) terminal.

Quick release terminal

disconnecting the (+) terminal

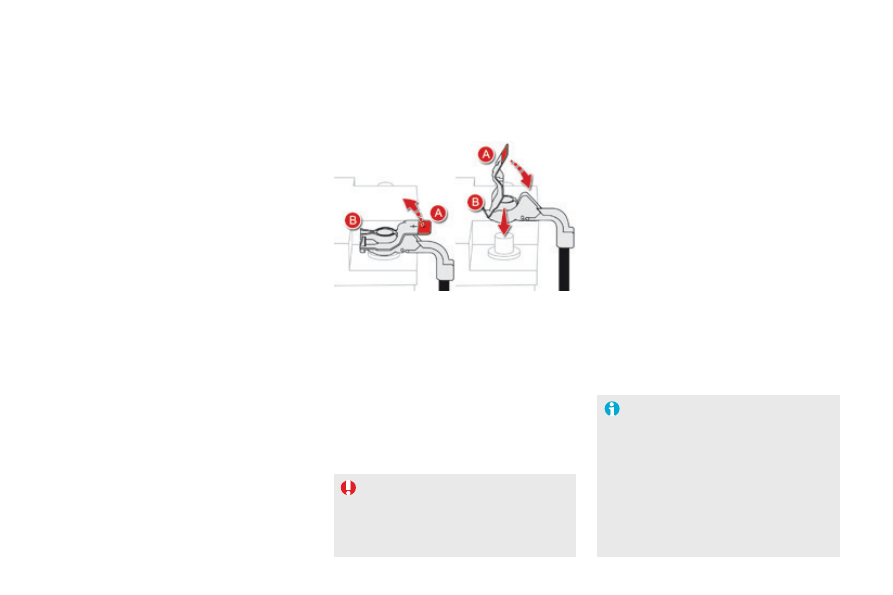

F Raise the lever A fully to release the

clamp B.

Following reconnection of the battery

Reconnecting the (+) terminal

Position the open clamp B of the cable on

the positive post (+) of the battery.

Press down on the clamp to position it

correctly on the battery post.

Lock the clamp by lowering the lever A.

Do not force the lever as locking will
not be possible if the clamp is not
positioned correctly; start the procedure
again.

The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the ambient
temperature and the state of charge of
the battery (up to about 8 hours).

After reconnecting the battery, switch on the
ignition and wait 1 minute before starting to
allow initialisation of the electronic systems.
However, if minor problems persist following
this operation, contact a CITROËN dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself reinitialise or reset certain
systems, such as:
- the remote control or electronic key

(depending on version),

-  the electric blind(s),
-  the electric windows
-  the date and time,
-  the radio preset stations.

227

Practical information

DS5_en_Chap08_info-pratiques_ed02-2015

Load reduction mode

System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.

System which manages the duration of use of
certain functions to conserve a sufficient level
of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wipers, dipped
beam headlamps, courtesy lamps, etc. for
a maximum combined duration of about
forty minutes.

Energy economy mode

Switching to economy mode

A message then appears in the instrument
panel screen indicating that the vehicle has
switched to economy mode and the active
functions are put on standby.
If a telephone call is being made at this time,
it will be maintained for around 10 minutes
with the Bluetooth hands-free system of your
audio system.

Exiting economy mode

These functions are reactivated automatically
next time the vehicle is driven.
In order to restore the use of these functions
immediately, start the engine and let it run:
- for less than ten minutes, to use the

equipment for approximately five minutes,

- for more than ten minutes, to use the

equipment for up to approximately
thirty minutes.

Let the engine run for the duration specified to
ensure that the battery charge is sufficient.
Do not repeatedly and continuously restart the
engine in order to charge the battery.

A flat battery prevents the engine from
starting.
For more information on the battery,
refer to the corresponding section.

DS5_en_Chap08_info-pratiques_ed02-2015

Changing a wiper blade

Before removing a front
wiper blade

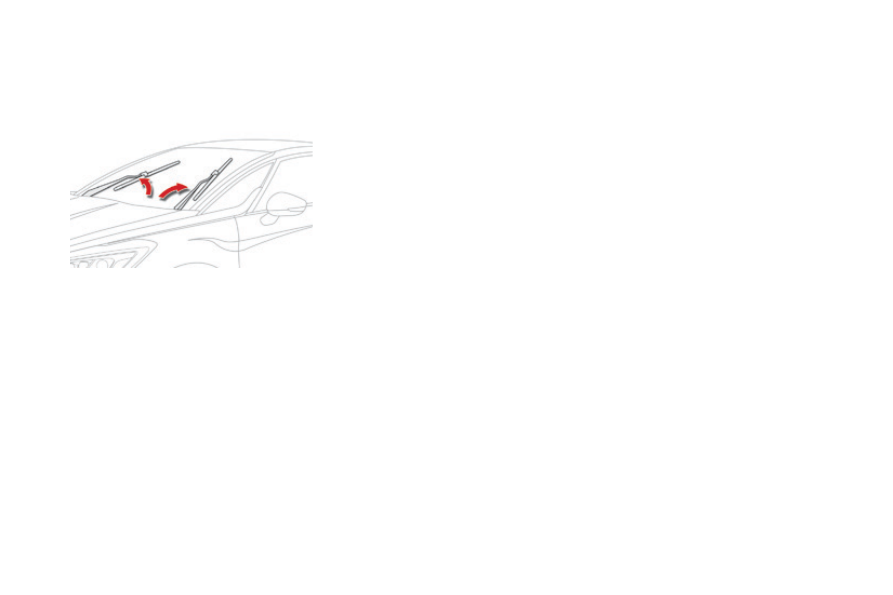

Within one minute after switching off

the ignition, operate the wiper stalk to
position the wiper blades vertically on the
windscreen.

Removing

Raise the corresponding wiper arm.

Unclip the wiper blade and remove it.

Fitting

Put the corresponding new wiper blade in

place and clip it.

Fold down the wiper arm carefully.

After fitting a front wiper
blade

Switch on the ignition.

Operate the wiper stalk again to park the

wiper blades.

229

Practical information

DS5_en_Chap08_info-pratiques_ed02-2015

General recommendations

Observe the legislation in force in your country.
Ensure that the weight of the towing vehicle is higher than that of the towed vehicle.
The driver must remain at the wheel of the towed vehicle and must have a valid driving
licence.
When towing a vehicle with all four wheels on the ground, always use an approved towing
arm; rope and straps are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine off, there is no longer any power assistance for
braking or steering.
In the following cases, you must always call on a professional recovery service:
-  vehicle broken down on a motorway or fast road,
-  four-wheel drive vehicle,
-  when it is not possible to put the gearbox into neutral, unlock the steering, or release

the parking brake,

- towing with only two wheels on the ground,
- where there is no approved towing arm available...

Towing the vehicle

Access to the tools

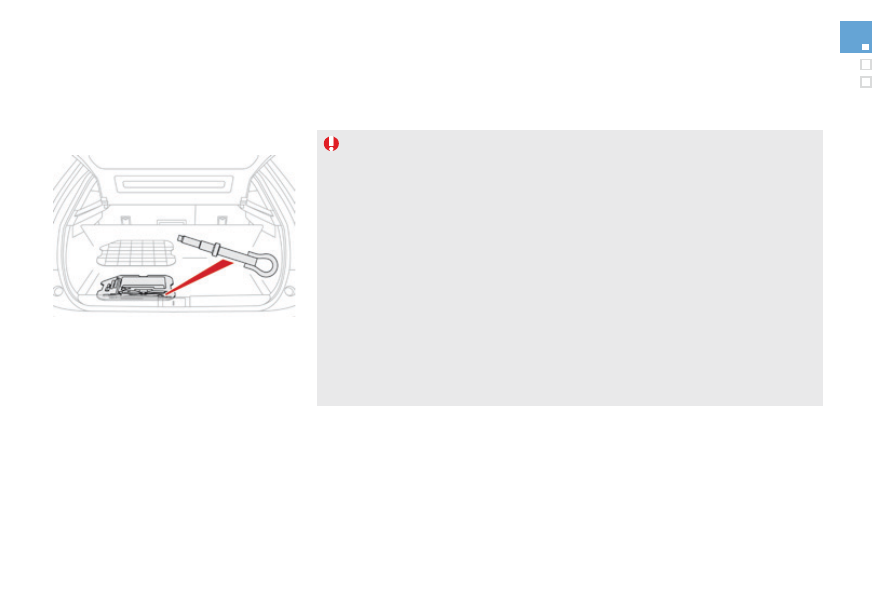

The towing eye is stowed in the boot under the
floor.
To gain access to it:
F open the boot,
F raise the boot floor,
F

take out the towing eye, located in the

storage well.

Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.

DS5_en_Chap08_info-pratiques_ed02-2015

Towing your vehicle

Towing another vehicle

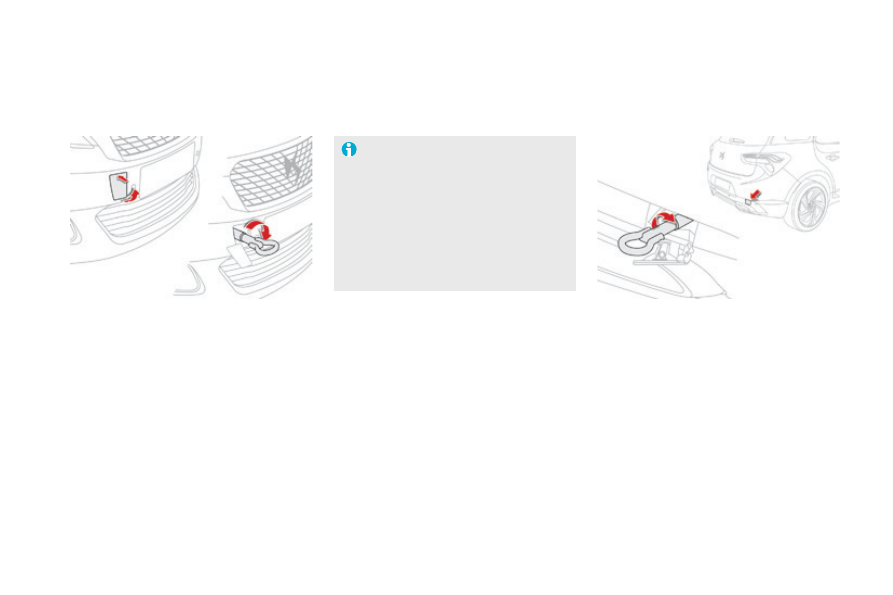

On the front bumper, unclip the cover

by pressing at the top to disengage the
securing lugs.

Screw the towing eye in fully.

Install the towing arm.

On the rear bumper, unclip the cover by

levering at the left with the point of the
towing eye.

Screw the towing eye in fully.

Install the towing arm.

Switch on the hazard warning lamps on

both vehicles.

Move off gently and drive at low speed and

for a short distance only.

Place the gear lever in neutral

(position N with an automatic
gearbox).

Failure to follow this advice could
result in damage to certain systems
(braking, transmission...) and the
absence of braking assistance the
next time the engine is started.

Unlock the steering and release the

parking brake.

Switch on the hazard warning lamps on

both vehicles.

Move off gently and drive at low speed and

for a short distance only.

231

Practical information

DS5_en_Chap08_info-pratiques_ed02-2015

Towing a trailer

We recommend the use of genuine
CITROËN towbars and their harnesses
that have been tested and approved
from the design stage of your vehicle,
and that the fitting of the towbar is
entrusted to a CITROËN dealer or a
qualified workshop.
If the towbar is not fitted by a
CITROËN dealer, it must still be
fitted in accordance with the vehicle
manufacturer's instructions.

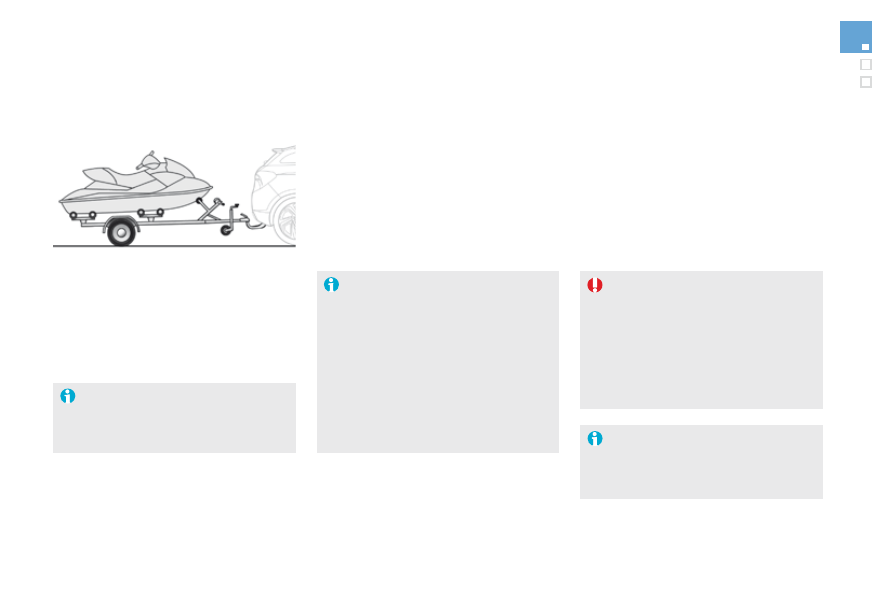

Your vehicle is primarily designed for
transporting people and luggage, but it may
also be used for towing a trailer.

When not towing a trailer, remove the
quickly-detachable tow ball before
driving, so as to avoid masking the
central rear lamp.

Driving with a trailer places greater
demands on the towing vehicle and the
driver must take particular care.
For more advice on driving when
towing, refer to the corresponding
section.

For more information on weights (and
the towed loads which apply to your
vehicle) refer to the corresponding
section.

DS5_en_Chap08_info-pratiques_ed02-2015

Fitting roof bars

Maximum authorised load evenly
distributed on the roof bars, for a
loading height not exceeding 40 cm
(with the exception of bicycle carriers):
70

kg.

If the height exceeds 40 cm, adapt the
speed of the vehicle to the profile of the
road to avoid damaging the roof bars
and the fixings on the roof.

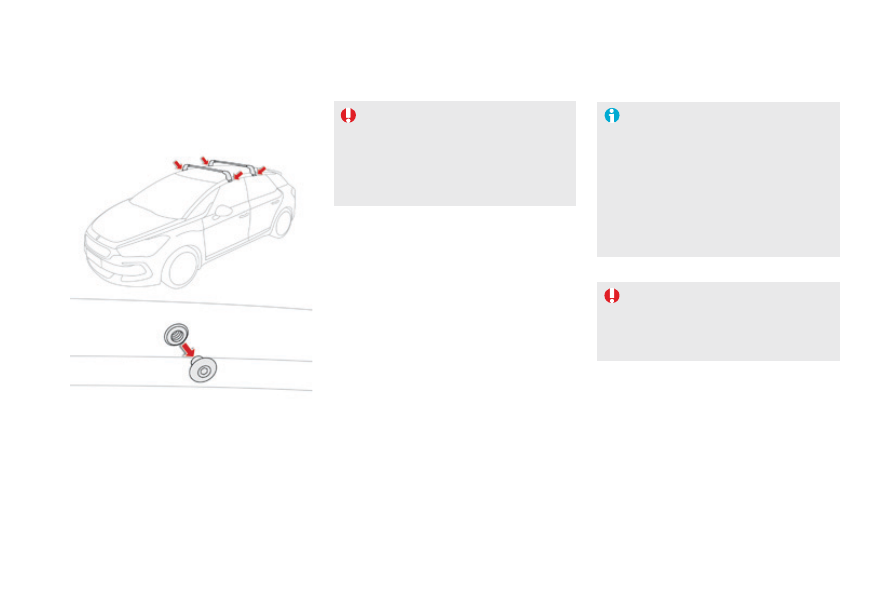

When fitting transverse roof bars, take care to
position them correctly:

Use accessories recommended by
CITROËN observing the manufacturer's
recommendations and fitting
instructions so as to avoid the risk
of damaging the body (deformation,
scratches, ...).

Remove the cap using an allen

key.

Put the bars into position then fit and

tighten the securing screws.

Be sure to refer to national legislation in
order to comply with the regulations for
transporting objects which are longer
than the vehicle.

233

Practical information

DS5_en_Chap08_info-pratiques_ed02-2015

Advice on care and maintenance

customising stickers

These customising parts are self-adhesive
stickers, treated to give good resistance to
ageing and tearing.
They are intended for customising the body.
Available also as accessories, we recommend
that you have them fitted by a CITROËN dealer
or a qualified workshop.
When washing your vehicle, keep the end of
a high-pressure lance at least 30 centimetres
from the stickers.

We strongly advise against cleaning
your vehicle in a high pressure car
wash.

Headlamps and lamps

The headlamps have polycarbonate lenses,
finished with a protective lacquer.
Do not clean them with a dry or abrasive cloth,
nor with detergent or solvent products.
Use a sponge and soapy water.
The use of a high pressure jet wash for
cleaning the headlamps, lamps and their
surrounds may damage the lacquer and seals.
Observe the recommendations on pressure
and distance for jet washing.
First clean persistent stains with a sponge and
warm soapy water.

Recommendations on the care and maintenance your vehicle are given in the maintenance and warranty guide.

Leather

Leather is a natural product. Appropriate
regular care and cleaning is essential for its
durability.
Refer to your vehicle's maintenance and
warranty guide for information on the special
precautions to observe.

DS5_en_Chap08_info-pratiques_ed02-2015

Accessories

A wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts are all suitable for your vehicle and benefit from CITROËN's recommendation and warranty.

"comfort":

door deflectors, side window blinds, rear
screen blind, isotherm module, coat hanger
fixed to head restraint, mobile reading lamp,
mirror for caravan, parking sensors, scented air
freshener, cigarette lighter, ...

"Transport systems":

child seats and booster cushions, boot carpet,
boot liner, boot net, boot spacers, transverse
roof bars, bicycle carrier, ski carrier, roof boxes,
towbars, wiring harnesses...

"Styling":

aluminium pedals, aluminium foot rest, alloy
wheels, chrome mirror shells, ...

* To avoid any risk of jamming the pedals:

- ensure that mats are correctly positioned

and secured,

- never fit one mat on top of another.

"Security and safety":

anti-intrusion alarm, anti-tilt unit, stolen vehicle
tracking system, child seats and booster
cushions, dog guard, breathalyser, first aid
kit, fire extinguisher, warning triangle, belt
cutter/glass breaker, high visibility vest, wheel
security bolts, snow chains, snow socks, ...

"Protection":

mats*, mud flaps, bumper protection strips,
boot sill protector, vehicle cover...

If a towbar and wiring harness are fitted
outside the CITROËN dealer network,
the installation must be done using
the vehicle's electrical pre-equipment
and fitted following the manufacturer's
recommendations.

The rear bodywork has been designed
to avoid spray.

235

Practical information

DS5_en_Chap08_info-pratiques_ed02-2015

The fitting of electrical equipment or
accessories which are not recommended
by CITROËN may result in a failure of
your vehicle's electronic system and
excessive electrical consumption.
Contact a CITROËN dealer
for information on the range of
recommended equipment and
accessories.

Installation of radio
communication
transmitters

Before installing any after-market radio
communication transmitter, you can
contact a CITROËN dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC).

Depending on the legislation in force in
the country, certain safety equipment
may be compulsory: high visibility
safety vests, warning triangles,
breathalyzers, spare bulbs, spare fuses,
fire extinguisher, first aid kit, mud flaps
at the rear of the vehicle.

By visiting a CITROËN dealer you can also
obtain cleaning and maintenance products
(interior and exterior) - including ecological
products in the "TECHNATURE" range,
products for topping up (screenwash...), paint
touch-up pens and aerosols for the exact
colour of your vehicle, refills (sealant cartridge
for the temporary puncture repair kit...), ...

"Multimedia":

Bluetooth hands-free system, portable satellite
navigation system, mapping update CD, driving
assistance systems, portable video screen,
portable video support bracket, multimedia
system support, 230 V/50 Hz socket,
230 V/12 V adaptor, mobile phone charger
compatible with iPhone

, Wi-Fi on board, ...

009

DS5_en_Chap09_verifications_ed02-2015

Checks

DS5_en_Chap09_verifications_ed02-2015

DS5_en_Chap09_verifications_ed02-2015

For more than 45 years, TOTAL and DS have
shared common values: excellence, creativity and
technological innovation.
It is in this same spirit that TOTAL has developed
a range of TOTAL QUARTZ lubricants adapted to
DS engines,
making them even more fuel efficient and protective of
the environment.

choose TOTAL QUARTZ lubricants
for servicing your vehicle,
this is your assurance of optimum
durability and performance from your
engine.

A dYNAMIc PARTNERSHIP,
dIREcTEd TOWARdS THE FUTURE.

Content .. 13 14 15 16 ..
