Citroen DS5 (2016 year). Instruction - part 14

207

Practical information

DS5_en_Chap08_info-pratiques_ed02-2015

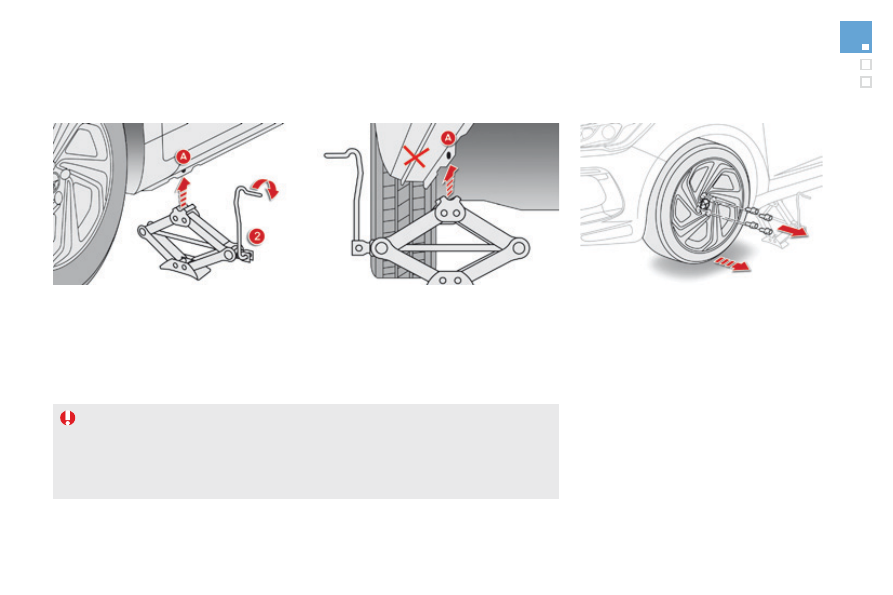

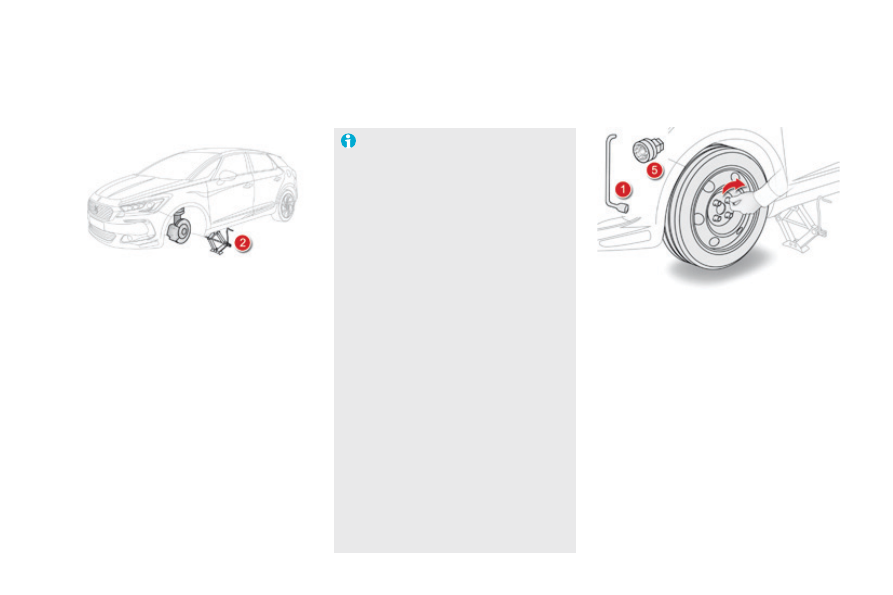

Position the foot of the jack 2 on the ground

and ensure that it is directly below the
front A or rear B

jacking point provided on

the underbody, whichever is closest to the
wheel to be changed.

F Raise the vehicle until there is sufficient

space between the wheel and the ground
to admit the spare (not punctured) wheel
easily.

Remove the bolts and store them in a clean

place.

Remove the wheel.

Extend the jack 2 until it comes into contact

with the jacking point A or B used; the
contact surface at the jacking point A or B
must be correctly engaged with the central
part of the head of the jack

Ensure that the jack is stable. If the ground is slippery or loose, the jack may slip or drop -
Risk of injury!
Ensure that the jack is positioned only at one of the jacking points A or B under the vehicle,
making sure that the vehicle's contact surface is centred on the head of the jack. Otherwise
there is a risk of damage to the vehicle and/or of the jack dropping - Risk of injury!

DS5_en_Chap08_info-pratiques_ed02-2015

Fitting a wheel

Fitting the "space-saver"
spare wheel

If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it
is normal to notice that the washers
do not come into contact with the
"space-saver" spare wheel. The wheel
is secured by the conical surface of
each bolt.

After changing a wheel

The wheel with the punctured tyre
cannot be fitted under the vehicle. It
must be stowed flat on the boot floor;
use a cover to protect the inside of the
boot.
Do not exceed 50 mph (80 km/h) when
driving with the "space-saver" type
spare wheel fitted.
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a CITROËN dealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refitted to the vehicle as soon as
possible.

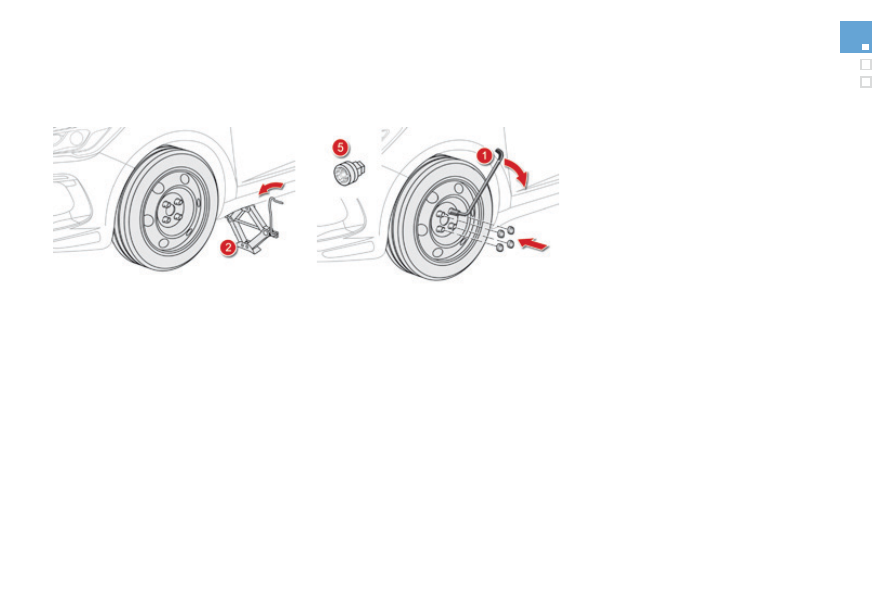

List of operations

Put the wheel in place on the hub.

Screw in the bolts fully by hand.

Pre-tighten the security bolt using the

wheelbrace 1

fitted with the security

socket 5.

Pre-tighten the other bolts using the

wheelbrace 1

only.

209

Practical information

DS5_en_Chap08_info-pratiques_ed02-2015

Lower the vehicle fully.

Fold the jack 2 and detach it.

Tighten the security bolt using the

wheelbrace 1

fitted with the security

socket 5.

Tighten the other bolts using the

wheelbrace 1

only.

F Refit the bolt protectors on each of the

bolts or the wheel trim (depending on
equipment).

Store the tools in the box.

DS5_en_Chap08_info-pratiques_ed02-2015

Snow chains

In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when braking.

The snow chains must be fitted only
to the front wheels. They must never
be fitted to "space-saver" type spare
wheels.

Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised.

Advice on installation

If you have to fit the chains during a

journey, stop the vehicle on a flat surface
on the side of the road.

Apply the parking brake and position any

wheel chocks to prevent movement of your
vehicle.

Fit the chains following the instructions

provided by the manufacturer.

Move off gently and drive for a few

moments, without exceeding 30 mph
(50 km/h).

Stop your vehicle and check that the snow

chains are correctly tightened.

Avoid driving with snow chains on roads
that have been cleared of snow, to
avoid damaging your vehicle's tyres and
the road surface. If your vehicle is fitted
with alloy wheels, check that no part of
the chain or its fixings is in contact with
the wheel rim.

Use only the chains designed to be fitted to the
type of wheel fitted to your vehicle:

Original tyre size

Maximum link size.

215/60 R16

9 mm

225/50 R17

235/45 R18

cannot be fitted with

snow chains

235/40 R19

For more information on snow chains, contact a
CITROËN dealer or a qualified workshop.

It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry surface.

211

Practical information

DS5_en_Chap08_info-pratiques_ed02-2015

Changing a bulb

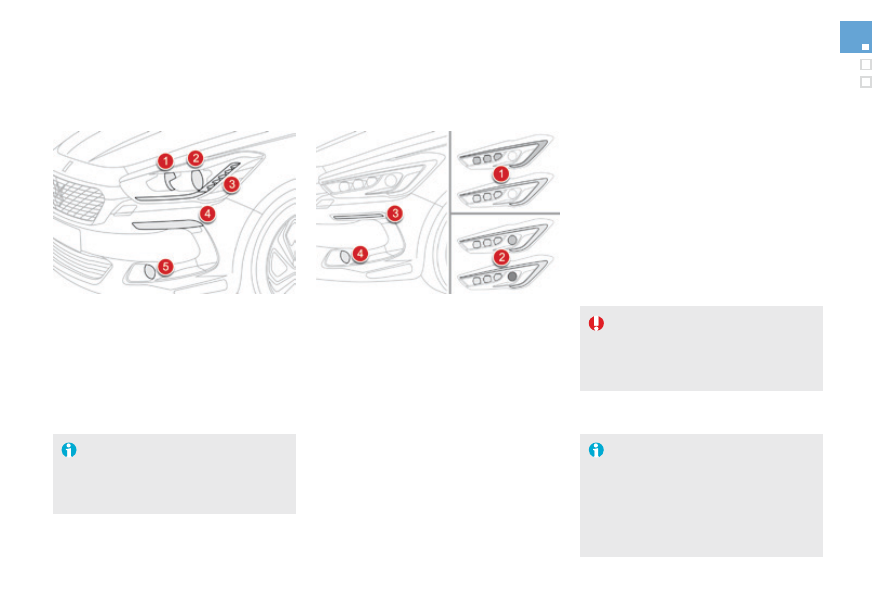

Front lamps

Model with directional xenon
headlamps

1. daytime running lamps / sidelamps

(LEds).

2. directional main beam / dipped beam

headlamps (d1S).

3. direction indicators (LEds).
4. directional foglamps (LEds).

Model with halogen headlamps

1.  Main beam headlamps (H1).
2.  dipped beam headlamps (H7).
3.  daytime running lamps / sidelamps

(LEds)

4. direction indicators (HY21).
5. directional foglamps (H11).

For bulbs with lugs (type H7...) take
care to observe their correct installation
so as to ensure the best lighting
performance.

In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal surface of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.

Risk of electrocution

Xenon bulbs (D1S) must be replaced
by a CITROËN dealer or a qualified
workshop.

Light-emitting diodes (LEd)

For the replacement of this type of lamp, go to
a CITROËN dealer or a qualified workshop.
LED (light-emitting diode) replacement kits are
available from CITROËN dealers.

* LEDs: light-emitting diodes.

DS5_en_Chap08_info-pratiques_ed02-2015

The headlamps are fitted with
polycarbonate glass with a protective
coating:
F do not clean them using a dry

or abrasive cloth, nor with a
detergent or solvent product,

use a sponge and soapy water or a

pH neutral product,

when using a high pressure washer

on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.

Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

Do not touch the bulb directly with

your fingers, use a lint-free cloth.

It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.

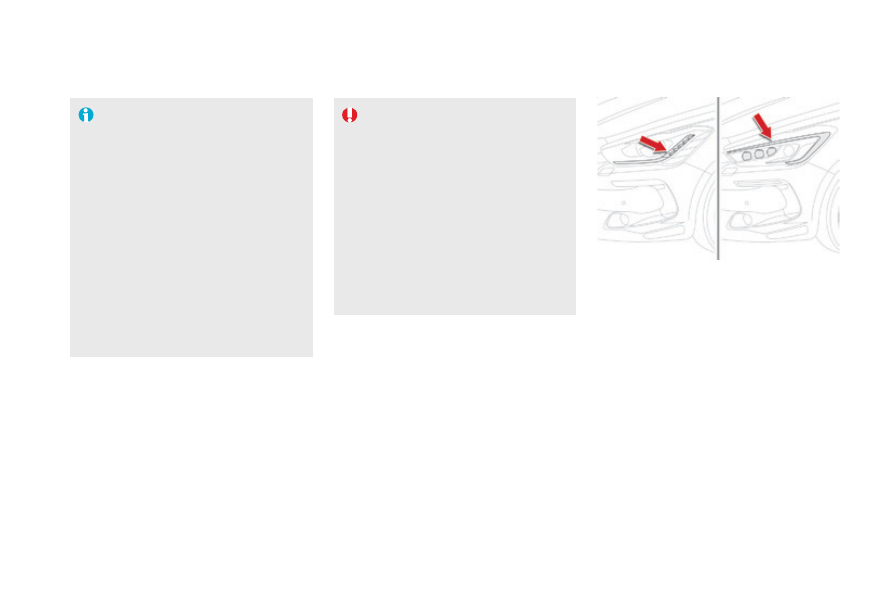

daytime running lamps / sidelamps

For the replacement of this type of LED lamp
and lighting guides, contact a CITROËN dealer
or a qualified workshop.
A replacement kit for the LEDs is available from
CITROËN dealers.

213

Practical information

DS5_en_Chap08_info-pratiques_ed02-2015

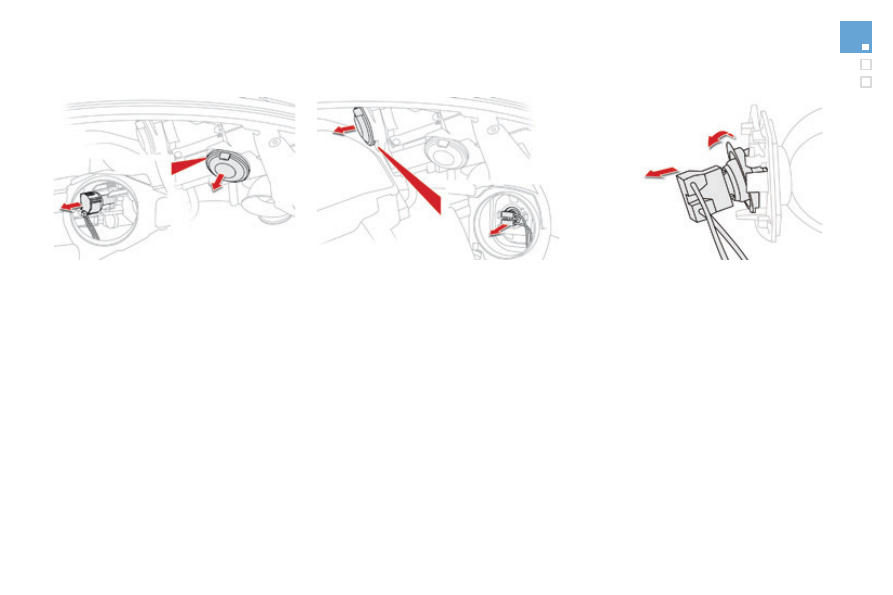

dipped beam headlamps
(halogen model)

Main beam headlamps
(halogen model)

F Press on the top of the connector then

pivot the assembly downwards.

Remove the connector with the bulb.

Remove the bulb and change it.

For reassembly, carry out these operations in
reverse order, but engaging the bottom of the
bulb first.

Remove the protective plastic cover by

pulling on the tab.

Remove the protective plastic cover by

pulling on the tab.

Remove the connector with the bulb by

pressing on the lug at the bottom.

Remove the bulb and change it.

For reassembly, carry out these operations in
reverse order.

DS5_en_Chap08_info-pratiques_ed02-2015

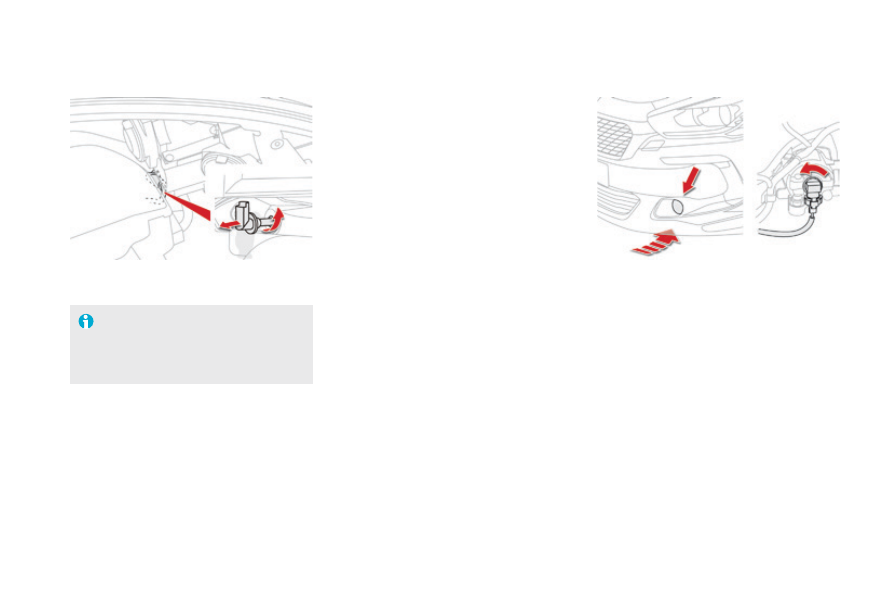

Front foglamps

Remove the deflector under the body.

Disconnect the bulb connector.

Turn the bulb a quarter of a turn, withdraw

and change it.

To refit, carry out these operations in reverse
order.
To replace these bulbs you may also contact a
CITROËN dealer or a qualified workshop.

direction indicators

Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.

The direction indicator bulb is located below
the front lamp.
F

Turn the bulb holder a quarter turn and pull

it out.

Remove the bulb and change it.

For reassembly, carry out these operations in
reverse order.
You can also contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.

215

Practical information

DS5_en_Chap08_info-pratiques_ed02-2015

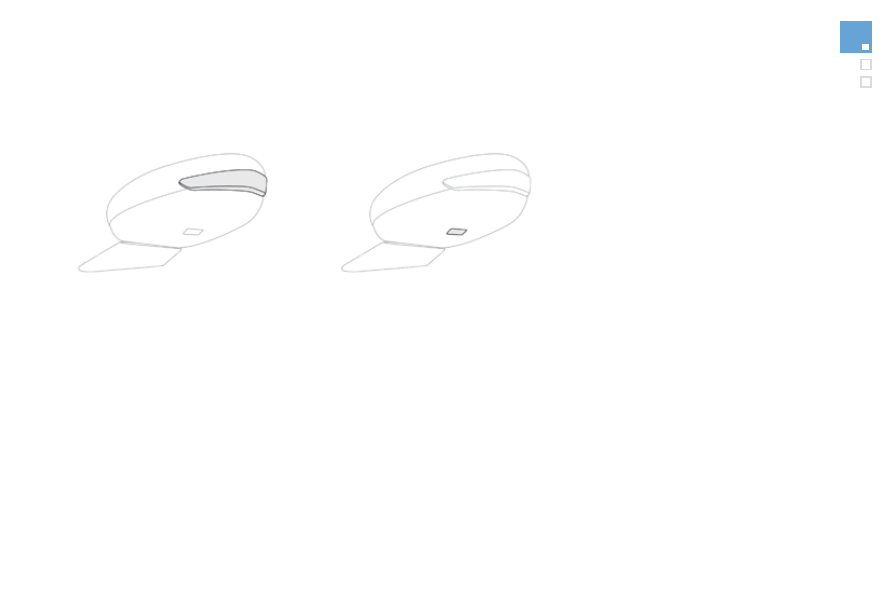

Integrated direction
indicator side repeaters

door mirror spotlamps

You should contact a CITROËN dealer or a
qualified workshop for the replacement of the
light emitting diode - LED.

You should contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.

DS5_en_Chap08_info-pratiques_ed02-2015

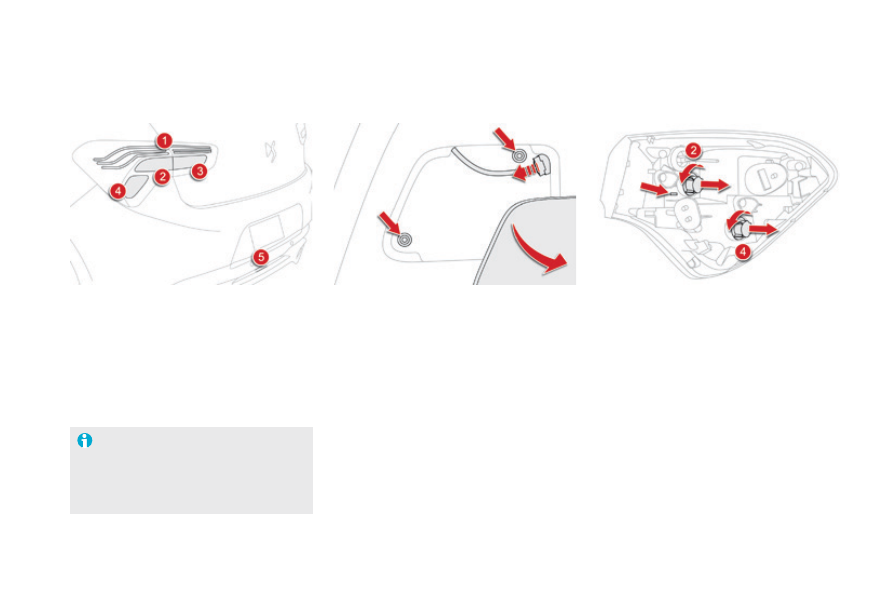

1. Sidelamps

(light emitting diodes - LEds).

2.  direction indicators (PY21W amber).
3.  Reversing lamps (P21W).
4.  Brake lamps (P21W).
5.  Foglamps (P21W).

Rear lamps

direction indicators and brake
lamps (on the wings)

Open the boot then remove the access

cover.

Disconnect the lamp connector.

Remove the two lamp fixing nuts.

Carefully remove the lamp unit from

outside. The retaining clips unclip
automatically.

Turn the bulb holder a quarter of a turn and

change the bulb.

For reassembly, carry out these operations in
reverse order.

Light emitting diodes-LEds

For replacement, contact a CITROËN
dealer or qualified workshop.

217

Practical information

DS5_en_Chap08_info-pratiques_ed02-2015

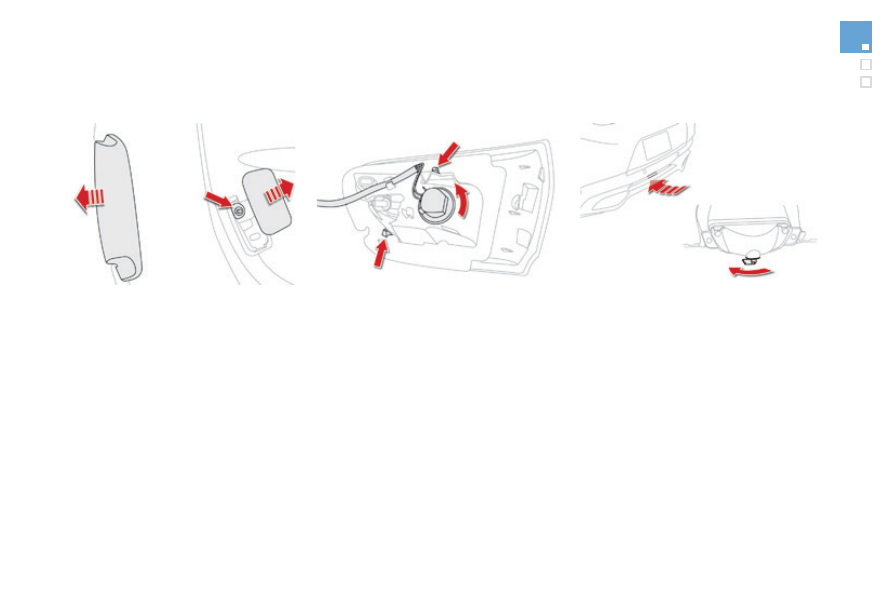

Reversing lamp (tailgate)

Carefully remove the lamp from the

outside. The retaining clips unclip
automatically.

Turn the bulb holder a quarter of a turn and

replace the bulb.

For reassembly, carry out these operations in
reverse order.

Foglamp

Open the tailgate.

Unclip the skirt of the lamp.

Remove the access cover and the lamp

fixing nut.

Access is by passing a hand under the bumper.
F

Turn the bulb holder a quarter of a turn and

pull it out.

Change the bulb.

To refit, carry out these operations in reverse
order.
You can also contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.

DS5_en_Chap08_info-pratiques_ed02-2015

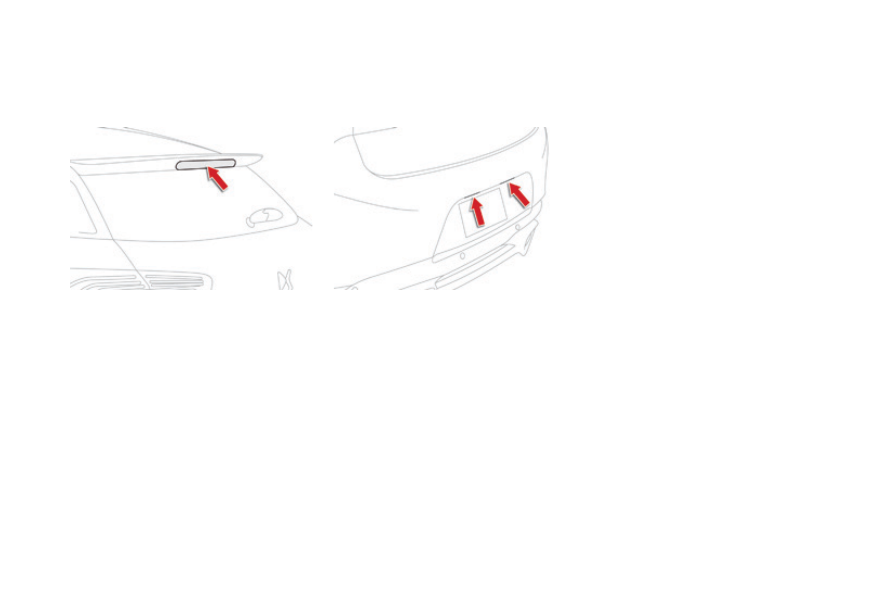

Number plate lamps

Insert a thin screwdriver into the slot

in the lens.

Push it outwards to unclip it.

Remove the lens.

Pull the bulb out and change it.

Third brake lamp
(light emitting diodes - LEds)

Contact a CITROËN dealer or qualified
workshop.

219

Practical information

DS5_en_Chap08_info-pratiques_ed02-2015

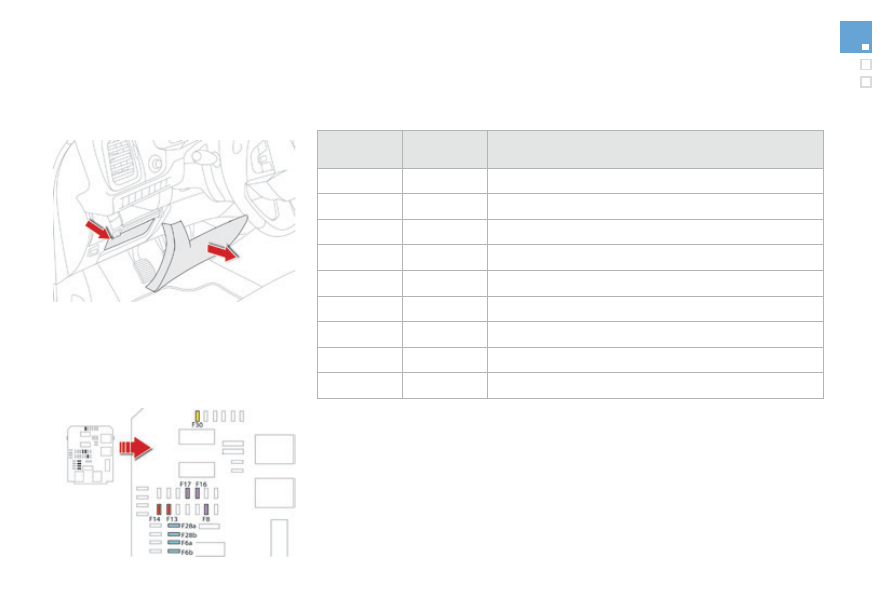

Changing a fuse

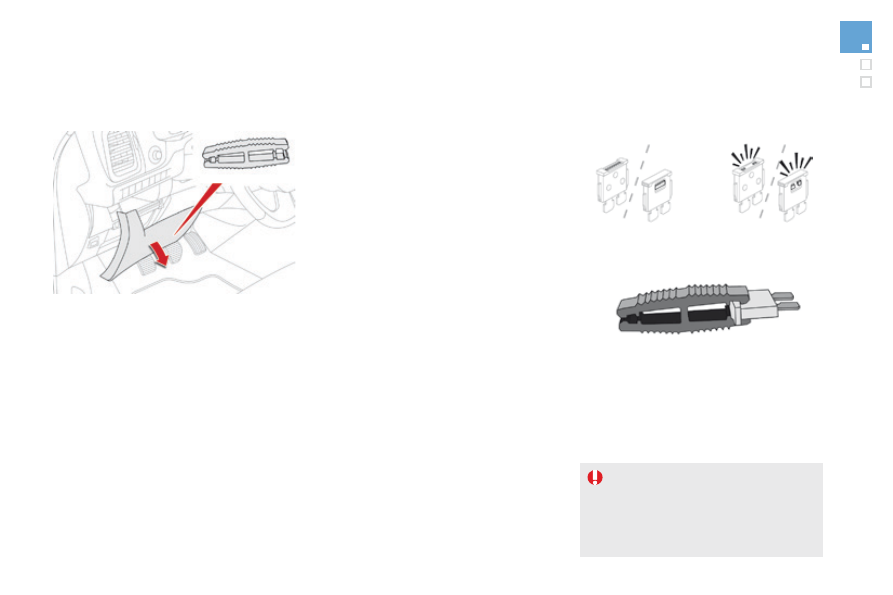

The fuse extraction tweezer is fitted to the back
of the dashboard fusebox cover.
For access to it:
F

remove the cover completely and turn it

over,

remove the tweezer.

Access to tooling

Before changing a fuse, it is necessary to:
F

identify the cause of the failure and

correct it,

switch off all electrical consumers,

immobilise the vehicle and switch off the

ignition,

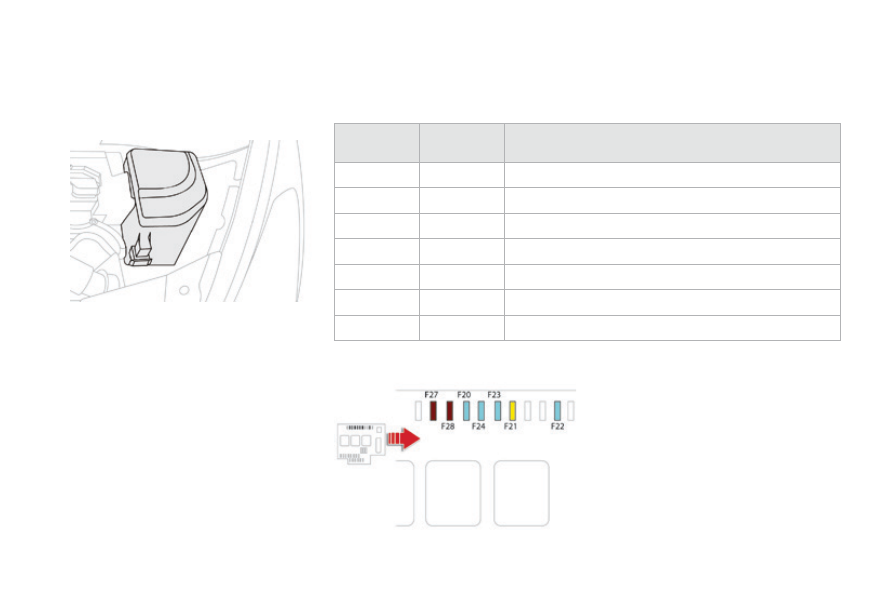

identify the failed fuse using the allocation

tables and diagrams presented on the
following pages.

changing a fuse

Good

Failed

To remove or fit a fuse, it is essential to:
F

use the special tweezer to extract the fuse

from its housing and check the condition of
its filament.

always replace the failed fuse with a fuse

of the same rating (same colour); a fuse of
different rating could cause a fault (risk of
fire).

The replacement of a fuse not
mentioned in the tables below could
cause a serious malfunction of your
vehicle. Contact a CITROËN dealer or a
qualified workshop.

If the fault recurs after replacing a fuse, have
the electrical system checked by a CITROËN
dealer or a qualified workshop.

Tweezer

DS5_en_Chap08_info-pratiques_ed02-2015

Installing electrical
accessories

Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a CITROËN dealer or a
qualified workshop.

CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.

221

Practical information

DS5_en_Chap08_info-pratiques_ed02-2015

dashboard fuses

The fusebox is placed in the lower dashboard
(left-hand side).

Access to the fuses

See the "Access to tooling" section.

Table of fuses

Fuse

N°

Rating

(A)

Functions

F6 A or B

Audio system.

Alarm.

F13

Front cigarette lighter, front 12 V socket.

F14

Rear 12 V socket.

F16

Rear map reading lamps.

F17

Courtesy mirror.

F28 A or B

Audio system.

F30

Rear wiper.

F32

Audio amplifier.

DS5_en_Chap08_info-pratiques_ed02-2015

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery.

Access to the fuses

Unclip the cover.

Change the fuse.

For information on the special requirements
and precautions to take before changing a fuse,
refer to the start of this section.
F

When you have finished, close the cover

carefully to ensure correct sealing of the
fusebox.

Fuse

N°

Rating

(A)

Functions

F20

Front / rear screenwash pump.

F21

Headlamp wash pump.

F22

Horn.

F23

Right-hand main beam headlamp.

F24

Left-hand main beam headlamp.

F27

Left hand lamp mask.

F28

Right hand lamp mask.

Table of fuses

Content .. 12 13 14 15 ..
