Citroen DS5 (2016 year). Instruction - part 6

Comfort

DS5_en_Chap03_confort_ed02-2015

These have one position for use (up) and a
stowed position (down).
They can also be removed.

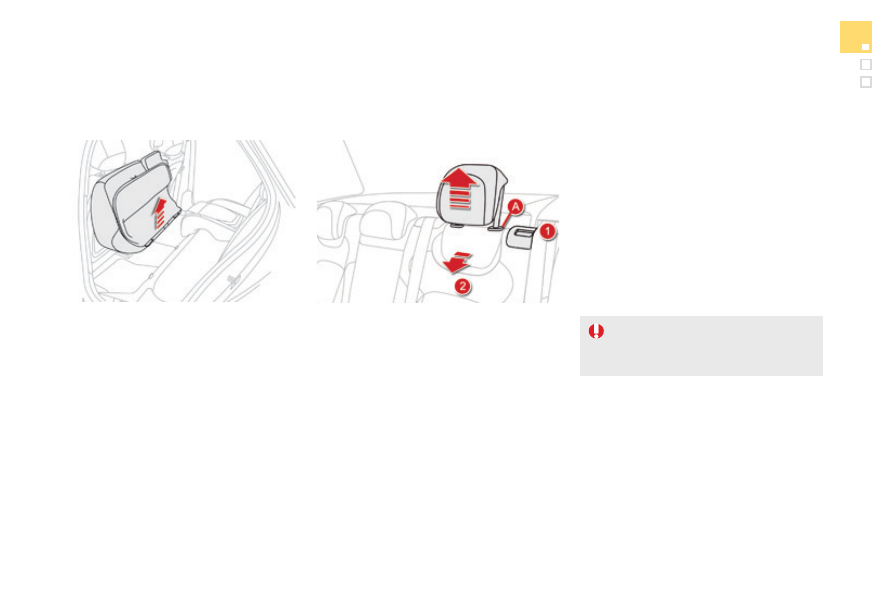

To remove a head restraint:
F

release the backrest using control 1,

tilt the backrest 2 slightly forwards,

pull the head restraint upwards to the stop,

then, press the lug A.

Rear head restraints

Never drive with the head restraints
removed; they must be in place and
correctly adjusted.

Remove the seat cushion 1 from its fixings

by pulling upwards.

Removing the seat cushion

Refitting the seat cushion

F Position the seat cushion 1 vertically in its

fixings.

DS5_en_Chap03_confort_ed02-2015

Mirrors

As a safety measure, the mirrors should
be adjusted to reduce the blind spot.

door mirrors

If the mirrors are folded using control A,
they will not unfold when the vehicle is
unlocked.

The folding and unfolding of the door
mirrors using the electronic key can be
deactivated by a CITROËN dealer or a
qualified workshop.
Fold the mirrors when putting your
vehicle through an automatic car wash.

The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.

demisting - defrosting

Adjustment

F Turn control A

to the right or to the left to

select the corresponding mirror.

F Move control A

in all four directions to

adjust.

F Return control A

to the central position.

Folding

Automatic: lock the vehicle using the
electronic key.

Unfolding

Automatic: unlock the vehicle using the
electronic key.

Manual: with the ignition on, move
control A

downwards.

Manual: with the ignition on, move
control A

upwards.

Demisting-defrosting of the door
mirrors operates by switching on
the heated rear screen.

The rear screen demist - defrost
can only operate when the engine is
running.

The mirrors can be folded manually if
necessary.

For more information, refer to the "Rear screen
and door mirrors demist-defrost" section.

Comfort

DS5_en_Chap03_confort_ed02-2015

Automatic day/night model

By means of a sensor, which measures the
light from the rear of the vehicle, this system
automatically and progressively changes
between the day and night uses.

Adjustable mirror providing a central rearward
view.
Equipped with an anti-dazzle system, which
darkens the mirror glass and reduces the
nuisance to the driver caused by the sun,
headlamps from other vehicles...

Rear view mirror

In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.

Steering wheel adjustment

F When stationary, pull the control lever to

release the adjustment mechanism.

Adjust the height and reach to suit your

driving position.

Push the control lever to lock the

adjustment mechanism.

As a safety measure, these operations
should only be carried out with the
vehicle stationary.

Seeing clearly

For better rear vision, align the bottom of the
rear view mirror with the bottom of the rear
screen.

DS5_en_Chap03_confort_ed02-2015

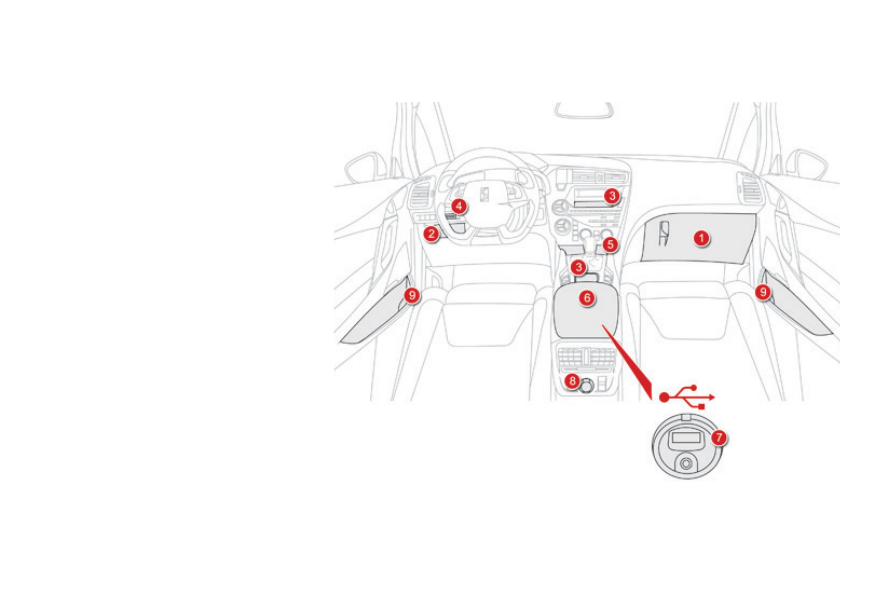

Front fittings

1.  Glove box
2.  Storage
3.  Storage (according to version)
4.  Ticket holder (according to version)
5.  Removable ashtray / 12 v accessory

socket (120 W)

Press the lid to open the ashtray.

To empty the ashtray, remove it by pulling it
upwards.

6. centre armrest and storage

It is illuminated, cooled and contains
storage spaces (1.5 litre bottle, ...).

7. USB Player
8. 12 v accessory socket (120 W)

Observe the maximum power rating to
avoid damaging your device.

9. door panel with cup holder

Comfort

DS5_en_Chap03_confort_ed02-2015

To use the cigarette lighter, press it in

and wait a few seconds until it pops out
automatically.

To connect a 12 V accessory (max power:

120 W), remove the cigarette lighter and
connect a suitable adaptor.

cigarette lighter /
12 v accessory socket

The connection of an electrical device
not approved by CITROËN, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or interference with displays
in the screens.

You can use this socket to connect a telephone
charger, a bottle warmer...
After use, put the cigarette lighter back into
place straight away.

DS5_en_Chap03_confort_ed02-2015

Mats

Fitting

To fit the mat on the driver's side:
F

move the seat fully back,

fit the mat in place,

engage the fixings by pressing down on them.

Removal

To remove the mat on the driver's side:
F

move the seat fully back,

disengage the fixings, leaving the fixing

pins in the floor carpet,

remove the mat.

Refitting

To refit the mat on the driver's side:
F

position the mat correctly,

refit the fixings by pressing,

check that the mat is secured correctly.

To avoid any risk of jamming of the
pedals:
- only use mats which are suited to

the fixings already present in the
vehicle; these fixings must be used,

- never fit one mat on top of another.
The use of mats not approved by
CITROËN may interfere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.

Comfort

DS5_en_Chap03_confort_ed02-2015

USB Player

This connection box comprises a USB port and
a Jack auxiliary socket.

Jack auxiliary socket

The Jack auxiliary socket allows the connection
of a portable device, such as a digital audio
player, so that your audio files can be heard
through the vehicle's speakers.
The management of these files is from the
portable device.

It contains two storage compartments.

centre armrest

Storage compartments

For access to the large compartment,

press button 1

then raise the cover.

For access to the small compartment

(below the armrest cover) press button 2
then raise the cover.

The large compartment houses a USB port and
a Jack auxiliary socket. It also houses an air
vent (adjustable for flow) that delivers cooled
air.

For more information, refer to the
corresponding part of the "Audio and
telematics" section.

USB port

The USB port allows the connection of a
portable device, such as a digital audio player
of the iPod

type or a USB memory stick.

The USB player reads your audio files, which
are transmitted to your audio system and
played via the vehicle's speakers.
The management of these files is from the
steering mounted controls or the audio system.

When connected to the USB port, the
portable device charges automatically.
While charging, a message is displayed
if the power consumption of the
portable device exceeds the current
delivered by the vehicle.

The USB port also allows a telephone to be
connected by MirrorLink™ or CarPlay

, so that

certain applications on the telephone can be
used in the touch screen.

DS5_en_Chap03_confort_ed02-2015

Ski flap

Opening

Lower the armrest.

Press the flap opening control.

Lower the flap.

Load the objects from inside the boot.

Lower the rear armrest for a more

comfortable position.

It may be fitted with cup holders and also gives
access to the ski flap.

Rear armrest

Do not leave the flap open when not
carrying long objects in the vehicle.

It allows long objects to be carried in the vehicle.

Rear fittings

Comfort

DS5_en_Chap03_confort_ed02-2015

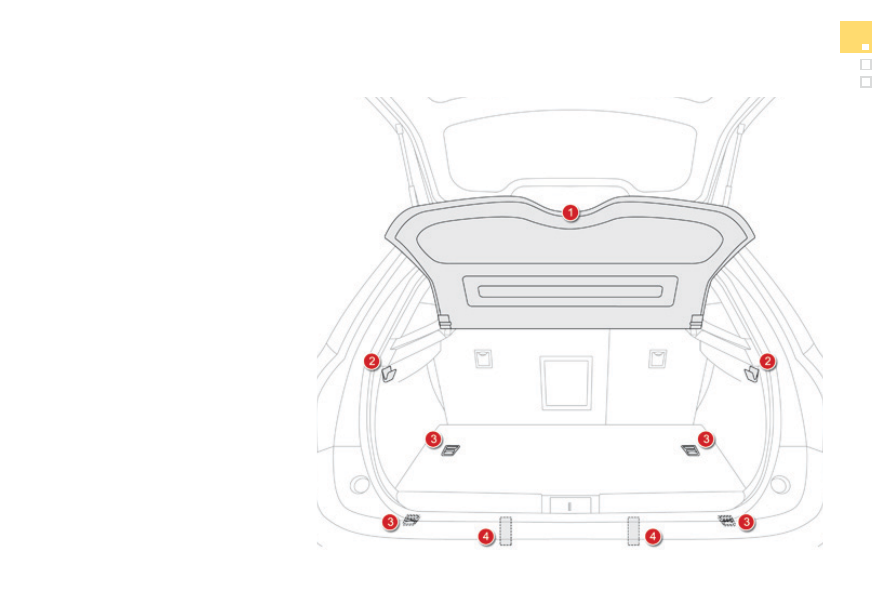

Boot fittings

1. Rear shelf

It can be removed when carrying large
objects.

2.  Bag hooks
3.  Stowing rings
4.  Warning triangle retaining straps

DS5_en_Chap03_confort_ed02-2015

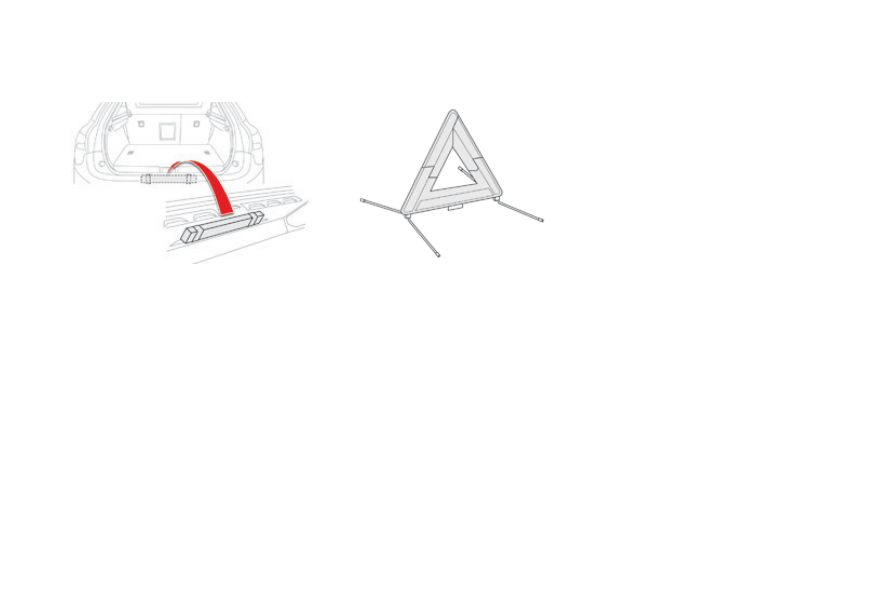

Warning triangle (stowing)

Use the straps on the interior boot trim to stow
the folded triangle or its storage box.

Placing the triangle on the road

Place the triangle behind the vehicle, as
required by the legislation in force in your
country.

Comfort

DS5_en_Chap03_confort_ed02-2015

Heating and Ventilation

controls

The incoming air follows various routes
depending on the controls selected by
the driver, the front passenger and rear
passengers.
The temperature control enables you to obtain
the level of comfort required by mixing the air of
the various circuits.
The air distribution control enables you to
select the air vents used in the passenger
compartment by the combined use of the
associated buttons.
The air flow control enables you to increase or
reduce the speed of the ventilation fan.
These controls are grouped together on control
panel A

on the centre console.

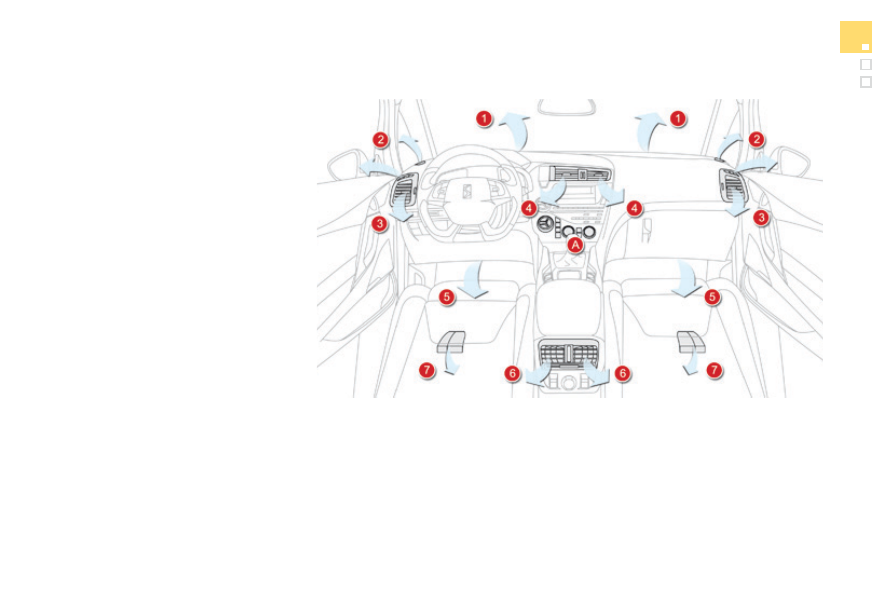

Windscreen demisting/defrosting vents.

Front side quarter light window demisting/

defrosting vents.

Side adjustable air vents.

Central adjustable air vents.

System which creates and maintains good
conditions of comfort and visibility in the
vehicle's passenger compartment.

Air outlets to the driver and front passenger

footwells.

Adjustable air vents for the rear

passengers.

Air outlets to the rear footwells.

Air distribution

DS5_en_Chap03_confort_ed02-2015

In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F

To obtain an even air distribution, take care not to obstruct the exterior air intake grilles

located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.

Do not cover the sunshine sensor, located on the dashboard; this is used for regulation

of the digital air conditioning system.

Operate the air conditioning system for at least 5 to 10 minutes, once or twice a month

to keep it in perfect working order.

Ensure that the passenger compartment filter is in good condition and have the filter

elements replaced regularly (refer to the "Checks" section).

We recommend the use of a combined passenger compartment filter. Thanks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).

To ensure correct operation of the air conditioning system, you are also advised to have

it checked regularly as recommended in the maintenance and warranty guide.

If the system does not produce cold air, switch it off and contact a CITROËN dealer or a

qualified workshop.

You can switch off the air conditioning (AC button) and stay in Automatic mode in order
to limit fuel consumption. If misting appears while in this mode, you can switch the air
conditioning back on temporarily to improve the situation.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.

Recommendations for ventilation and air conditioning

If after an extended stop in sunshine,
the interior temperature is very high, first
ventilate the passenger compartment for
a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.

The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
perfectly normal.

If you want to prioritise heating, start
and leave the engine running by
pressing ECO OFF.

Comfort

DS5_en_Chap03_confort_ed02-2015

Dual-zone digital air conditioning

1. Automatic comfort programme

We recommend the use of one of
the three AUTO modes available:
they provide optimised regulation of
the temperature in the passenger

F Press the "AUTO"

button repeatedly:

- a first indicator lamp comes on; the "low"

setting mode is selected,

- a second indicator lamp comes on; the

"medium" setting mode is selected,

- a third indicator lamp comes on; the

"high" mode setting is selected.

Use the "medium" and "high" settings in
preference to maintain the comfort level at the
rear.

When the engine is cold, the air
flow will reach its optimum level
progressively, taking account of the
weather and the desired comfort level
so as to avoid too great a distribution
of cold air.
On entering the vehicle, if the interior
temperature is much colder or warmer
than the comfort value, there is no
need to change the value displayed in
order to obtain the comfort required. In
all seasons, with the windows closed
the system corrects the difference
in temperature automatically and as
quickly as possible.

This system is designed to operate effectively
in all seasons, with the windows closed.

Automatic operation

compartment according to the comfort value
that you have chosen.
These three modes automatically control the
system, according to the desired setting, while
also maintaining the desired comfort value.

DS5_en_Chap03_confort_ed02-2015

4. Automatic visibility

programme

For maximum cooling or heating of the
passenger compartment, it is possible
to exceed the minimum value 14 or the
maximum value 28.
F Turn control 2 or 3 to the left until

"LO"

is displayed or to the right

until "HI"

is displayed.

For more information on the
automatic visibility programme,
refer to the corresponding section
in "Front demisting - defrosting".

2-3. driver's-passenger's side

settings

The driver and front passenger can
each adjust the temperature to their
requirements.

F Turn control 2 or 3

to the left or to the right

respectively to decrease or increase this
value.

A setting around the value 21 provides
optimum comfort. However, depending on your
requirements, a setting between 18 and 24 is
normal.
You are advised to avoid a left / right setting
difference of more than 3.

Manual operation

If you wish, you can make a different choice
from that offered by the system by changing a
setting. The "AUTO" indicator lamps go off; the
other functions, except the air conditioning, will
still be controlled automatically.
F

Pressing the "AUTO" button returns the

system to completely automatic operation.

With Stop & Start, when demisting has
been activated, the STOP mode is not
available.

The value indicated on the display corresponds
to a level of comfort and not to a temperature in
degrees Celsius or Fahrenheit.

Comfort

DS5_en_Chap03_confort_ed02-2015

5. Air conditioning

On / Off

F Press this button to switch off

the air conditioning.

Switching the system off could result in
discomfort (humidity, condensation).
F

Press this button again to return to

automatic operation of the air conditioning.
The indicator lamp in the "A/c" button
comes on.

To obtain cool air more quickly, you can
use recirculation of the interior air for a
few moments. Then revert to the intake of
exterior air.

6. Air distribution adjustment

Press one or more buttons to

direct the air flow towards:
- the windscreen and side

windows,

- the outer and centre air

vents,

- the footwells.

You can combine the three orientations to
obtain the desired air distribution.

7. Air flow adjustment

F Turn this control to the left to

decrease the air flow or to the
right to increase the air flow.

The air flow indicator lamps, between the two
fans, come on progressively in relation to the
value requested.

8. Air intake / Air recirculation

Interior air recirculation enables the passenger
compartment to be isolated from exterior
odours and smoke when external pollution is
detected.
It is activated automatically on operation of the
screenwash.
It is inactive when the ambient temperature is
below 5 °C to avoid the risk of misting in the
vehicle.

- The indicator lamp "with "A" on

indicates that recirculation is
controlled automatically.

- The indicator lamp "without A"

on indicates that recirculation is
forced manually.

- Both indicator lamps off

indicates that recirculation is
controlled automatically without
taking account of the detection
of pollution.

Avoid prolonged operation in interior
air recirculation mode or driving for
long periods with the system off (risk of
condensation and deterioration of air
quality).

DS5_en_Chap03_confort_ed02-2015

9. Maximum air conditioning

If you want to quickly cool

the air in the passenger
compartment, press this button;
"LO"

is displayed.

To return to the previous settings, press the
button again.

F Turn the air flow control to the

left until all of the indicator
lamps go off.

Switching the system off

This action switches off the air conditioning and
the ventilation.
Temperature related comfort is no longer
assured but a slight flow of air, due to the
movement of the vehicle, can still be felt.
F

Modify the settings (temperature, air flow

or air distribution) or press the "AUTO"
button to reactivate the system with the
values set before it was switched off.

Content .. 4 5 6 7 ..
