Citroen DS5 (2016 year). Instruction - part 4

Monitoring

Touch screen

1. "Instantaneous

2. "Trip 1

3. "Trip 2

4. "00.0 / Reset

display of information

The current instantaneous fuel consumption tab with:
-  the range,
-  the current fuel consumption,
-  the Stop & Start time counter.

The trip "1"

tab with:

- the average speed,
- the average fuel consumption,

for the first trip.

The trip "2"

tab with:

- the average speed,
- the average fuel consumption,

for the second trip.

When the desired trip is

displayed, press the reset button
or press and hold the end of the
wiper control stalk.

Trip reset

Trips "1"

and "2" are independent but their use

is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.

The trip computer information is displayed in
the primary page of the menu.
F

Press one of the buttons to display the

desired tab.

F Select the "driving

" menu.

If dashes are displayed continuously
while driving in place of the digits,
contact a CITROËN dealer or
a qualified workshop.

This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.

Trip computer, a few definitions…

Range

(miles or km)
This indicates the distance which
can still be travelled with the fuel
remaining in the tank in relation
to the average fuel consumption
over the last few miles
(kilometres) travelled.

When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).

This function is only displayed from
20 mph (30 km/h).

current fuel consumption

(mpg or l/100 km or km/l)
This is the average fuel consumption
during the last few seconds.

Average fuel
consumption

(mpg or l/100 km or km/l)
This is the average fuel
consumption since the last trip
computer zero reset.

Average speed

(mph or km/h)
This is the average speed calculated
since the last trip computer zero
reset (ignition on).

Stop & Start time
counter

(minutes / seconds or hours /
minutes)

If your vehicle is fitted with Stop & Start,
a time counter calculates the time spent in
STOP mode during a journey.
It resets to zero every time the ignition is
switched on.

Monitoring

002

DS5_en_Chap02_ouvertures_ed02-2015

Access

DS5_en_Chap02_ouvertures_ed02-2015

DS5_en_Chap02_ouvertures_ed02-2015

Electronic key

remote control

Unlocking the vehicle

complete unlocking

Selective unlocking

System which permits central unlocking or
locking of the vehicle using the lock or from a
distance. It is also used to locate and start the
vehicle, as well as providing protection against
theft.

To unlock only the driver's door,

press the open padlock once.

Unlocking is confirmed by rapid flashing
of the direction indicators for around
two seconds.
At the same time, depending on
version, the door mirrors unfold.

To unlock the other doors and

the boot, press the open padlock
again.

Press the open padlock to

completely unlock the vehicle.

This setting is done in the vehicle
configuration menu.
Complete unlocking is activated by
default.

Access

DS5_en_Chap02_ouvertures_ed02-2015

Selective boot unlocking

Locking the vehicle

Locking is confirmed by fixed
illumination of the direction indicators
for approximately two seconds.
Depending on version, the door mirrors
fold at the same time.

Press the closed padlock to fully

lock the vehicle.

Hold the button down until the

windows close completely.

F Press this button until you hear

the boot unlock. The doors
remain locked.

Be particularly aware of children when
operating the windows.

If one of the doors or the boot is not fully
closed, locking does not take place.
When the vehicle is locked, if it
is unlocked inadvertently, it will
automatically lock itself again after
about thirty seconds unless a door is
opened.
If the alarm was previously activated, it
will not be reactivated automatically.

If selective boot unlocking is
deactivated, pressing this button
unlocks the whole vehicle.

The selective boot unlocking function
is set in the vehicle configuration
menu.
By default, selective boot unlocking
is on.

DS5_en_Chap02_ouvertures_ed02-2015

Unlocking the vehicle

Keyless Entry and Starting

System that allows the unlocking, locking
and starting of the vehicle while keeping the
electronic key on your person.

complete unlocking

With the electronic key on your person and

in the recognition zone A, pass your hand
behind one of the door handles to unlock
the vehicle.

Your passengers can also open their doors, as
soon as the electronic key is in the recognition
zone.

Selective unlocking

To unlock only the drivers door, with the

electronic key on your person, pass your
hand behind the driver's door handle.

This setting is done via the vehicle
configuration menu.
By default, complete unlocking is
activated.

Unlocking is confirmed by rapid
flashing of the direction indicators for
approximately two seconds.
The door mirrors unfold at the same
time.
If the alarm is on, the audible warning
triggered when opening a door with the
key (integral with the remote control), will
stop when the ignition is switched on.

It can also be used as a remote control.
For more information, refer to the
"Electronic key / remote control" section.

For reasons of safety and theft protection,
do not leave your electronic key in the
vehicle, even when you are close to it.
It is recommended that you keep it on
your person.

To unlock the complete vehicle, pass your

hand behind one of the passenger door
handles on the same side of the vehicle as
the electronic key is located.

Access

DS5_en_Chap02_ouvertures_ed02-2015

Locking the vehicle

With the electronic key on your person in

the recognition zone A, press with a finger
or thumb on one of the door handles (at the
markings) to lock the vehicle.

Maintain pressure with your finger or thumb

until the windows close completely.

Locking is confirmed by fixed
lighting of the direction indicators for
approximately two seconds.
The door mirrors fold at the same time.

If one of the doors or the boot is still
open or if the key for Keyless Entry and
Starting system has been left inside
the vehicle or if the ignition is on, the
central locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock itself
again automatically after about thirty
seconds unless a door is opened.
If the alarm was previously activated, it
will not be reactivated automatically.
The folding and unfolding of the door
mirrors by the remote control can be
deactivated by a CITROËN dealer or a
qualified workshop.

As a safety measure (children on
board), never leave the vehicle without
taking the key for the Keyless Entry and
Starting system, even for a short period.
Guard against theft when the key for the
Keyless Entry and Starting system is
in the recognition zone with the vehicle
unlocked.
In order to preserve the charge of the
cell battery in the remote control, the
"hands-free" functions go into extended
stand-by after 21 days of non-use. To
restore these functions, press one of
the remote control buttons or start the
engine with the electronic key in the
reader.

Ensure that nothing and no person
prevents the correct operation of the
windows.
Be particularly aware of children when
operating the windows.

This function allows you to identify
your vehicle from a distance,
particularly in poor light. Your vehicle
must be locked.

Locating your vehicle

Press the closed padlock on the remote

control.

This will switch on the courtesy lamps and
the direction indicators will flash for around
ten seconds.

DS5_en_Chap02_ouvertures_ed02-2015

deadlocking

Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
locking button.
You must therefore never leave
anyone inside the vehicle when it is
deadlocked.

Using the remote control

Press the closed padlock to lock

the vehicle completely.

Maintain pressure with your finger to
close the windows.

With Keyless Entry and
Starting

By the doors:
F

With the electronic key on your person

in the recognition zone A, press with a
finger or thumb on the door handle (at the
markings) to lock the vehicle.

Within five seconds, press the door handle

again to deadlock the vehicle.

Ensure that nothing or any person
prevents the correct closing of the
windows.
Be particularly aware of children when
operating the windows.

Press the closed padlock again within

five seconds to deadlock the vehicle.

Access

DS5_en_Chap02_ouvertures_ed02-2015

Back-up key

Unlocking / Locking using the integral key with Keyless
Entry and Starting

The integral key is used to lock and unlock the
vehicle when the electronic key cannot operate:
- cell battery flat, vehicle battery discharged

or disconnected, ...

- vehicle located in an area with strong

electromagnetic signals.

F Maintain a pull on button 1

, to extract the

integral key 2.

If the alarm is activated, the audible
signal triggered on opening a door
with the key (integral with the remote
control) will stop when the ignition is
switched on.

Locking the driver's
door

Insert the integral key in the door lock, then

turn it to the rear.

Unlocking the driver's
door

Insert the integral key in the door lock, then

turn it to the front.

DS5_en_Chap02_ouvertures_ed02-2015

Unlocking the passenger doors

Pull the interior door opening control.

Locking the passenger doors

Open the doors.

On the rear doors, check that the child lock

is not on.

For more information on the child lock, refer to
the corresponding section.

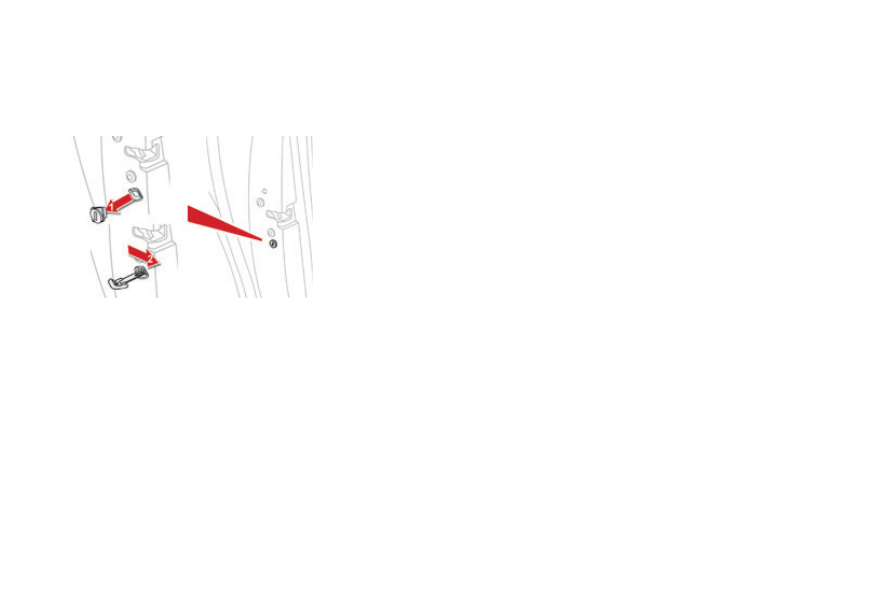

F

Remove the black cap, located on the edge

of the door, using the integral key.

Insert the integral key in the socket without

forcing it, then without turning it, move the
latch sideways towards the inside of the
door.

Remove the integral key and refit the cap.

Close the doors and check that the vehicle

has locked correctly from the outside.

Access

DS5_en_Chap02_ouvertures_ed02-2015

Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.

changing the cell battery

Battery ref.: CR2032 / 3 volts.
This replacement battery is available from a
CITROËN dealer or a qualified workshop.
A message appears in the instrument panel
screen when replacement of the battery is
needed.
F

Unclip the cover using a small screwdriver

at the cutout.

Lift off the cover.

Remove the flat battery from its location.

F Fit the new battery into its location

observing the original direction of fitment.

Clip the cover onto the casing.

Remote control problem -
reinitialisation

Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.

Place the mechanical key (integral with the

remote control) in the lock to unlock your
vehicle.

Place the electronic key in the reader.

Switch on the ignition by pressing

START/STOP.

The electronic key is fully operational again.
If the problem persists, contact a CITROËN
dealer or a qualified workshop as soon as
possible.

DS5_en_Chap02_ouvertures_ed02-2015

Lost electronic key

Visit a CITROËN dealer with the vehicle's registration certificate, your personal identification documents and if possible the key code label.
The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a new key.

Electronic key

The electronic key is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without
you being aware of it.
Do not repeatedly press the buttons of your electronic key out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
The electronic key cannot operate as a remote control when it is in the reader or even when the ignition is switched on.

Locking the vehicle

Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), take the electronic key with you when you leave the vehicle, even for a short time.

Electrical interference

The electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong magnetic fields, ...

Anti-theft protection

Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.

When purchasing a second-hand vehicle

Have all of the keys in your possession paired by a CITROËN dealer, to ensure that only your keys allow your vehicle to be unlocked and
started.

Access

DS5_en_Chap02_ouvertures_ed02-2015

Central locking

Driving with the doors locked may make
access to the passenger compartment
by the emergency services more
difficult in an emergency.

If one of the doors or the boot is
open, automatic central locking does
not complete: the sound of the locks
rebounding can be heard.

Transporting long or voluminous
objects
If you want to drive with the boot open
but the vehicle's side doors locked,
press the central locking control button
to lock the doors.

Manual central
locking

F Press this button to operate the central

locking of the vehicle (doors and boot) from
inside the vehicle.

Pressing the button again unlocks the

vehicle completely.

When locking / deadlocking from the
outside
If the vehicle is locked or deadlocked from the
outside, the button is not active.
F

After normal locking, pull one of the interior

door handles to unlock the vehicle.

After deadlocking, you have to use the

remote control, the Keyless Entry and
Starting system or the integral key to
unlock the vehicle.

Automatic central locking
of doors (anti-intrusion
security)

The doors and boot lock automatically when
driving, as soon as the speed exceeds 6 mph
(10 km/h).
To activate or deactivate this function
(activated by default):

with the ignition on, press this

button until a message appears
in the instrument panel.

DS5_en_Chap02_ouvertures_ed02-2015

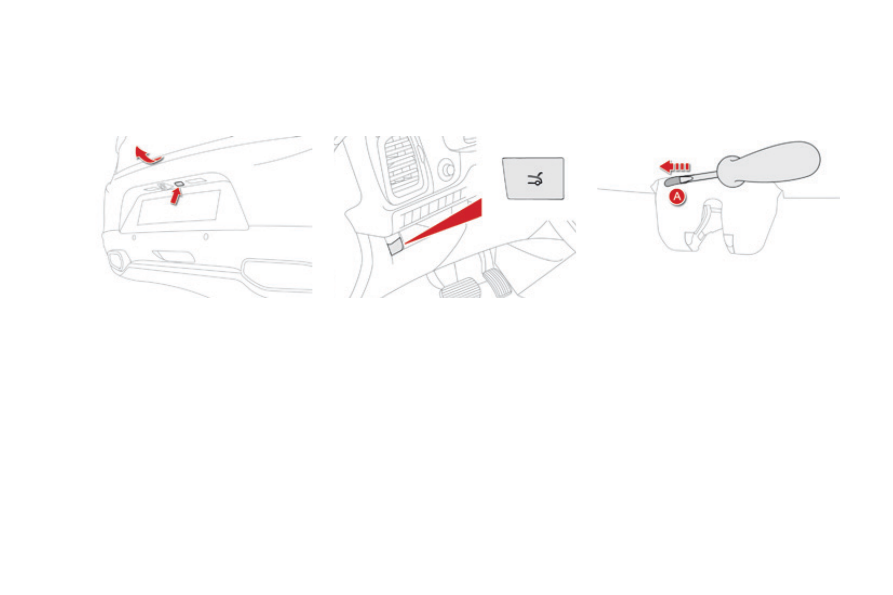

Boot

After unlocking the boot only or the vehicle,

press the opening control then raise the
tailgate.

Opening from outside

Press this button until the boot is heard to

unlock.

Tailgate release

Unlocking

Fold back the rear seats to gain access to

the lock from inside the boot.

Insert a small screwdriver into hole A of the

lock to unlock the tailgate.

Move the latch to the left.

System allowing the mechanical unlocking
of the boot in the event of a battery or central
locking system malfunction.

Locking after closing

If the fault persists after closing again, the boot
will remain locked.

closing

Lower the tailgate using the interior grab

handle.

If the tailgate is not closed correctly, engine
running or vehicle moving

(speed above

6 mph (10 km/h)), a message appears in the
instrument panel screen for a few seconds.

Opening from inside

Content .. 2 3 4 5 ..
