Citroen DS5 (2016 year). Instruction

Monitoring

Warning / indicator lamp

State

cause

Action / Observations

Airbags

on temporarily.

This lamp comes on for a few
seconds when you turn on the
ignition, then goes off.

This lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or a
qualified workshop.

fixed.

One of the airbag or seat belt
pretensioner systems has a fault.

Have it checked by a CITROËN dealer or a qualified
workshop.

directional
headlamps

flashing.

The directional headlamps system
has a fault.

Have it checked by a CITROËN dealer or a qualified
workshop.

Seat belt(s)
not fastened /
unfastened

fixed
or flashing
accompanied by an
audible signal.

A seat belt has not been fastened or
has been unfastened.

Pull the strap then insert the tongue in the buckle.

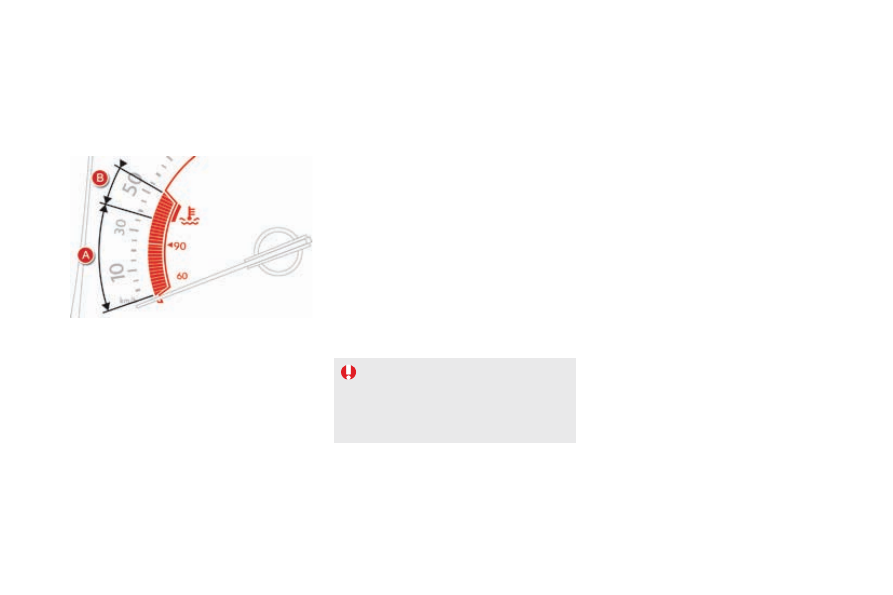

coolant
temperature gauge

With the engine running:
- in zone A, the temperature is correct,
- in zone B, the temperature is too high; the

central STOP

warning lamp comes on,

accompanied by an audible signal and a
message in the instrument panel screen.

You MUST stop as soon as it is safe to do so.
Wait a few minutes before switching off the
engine.
Contact a CITROËN dealer or a qualified
workshop.

After driving for a few minutes, the temperature
and pressure in the cooling system increase.
To top up the level:
F

wait for the engine to cool,

F unscrew the cap by two turns to allow the

pressure to drop,

when the pressure has dropped, remove

the cap,

top up the level to the "MAX" mark.

Be aware of the risk of burns when
topping up the cooling system. Do not
fill above the maximum level (indicated
on the reservoir).

Monitoring

Service indicator

More than 1 800 miles (3 000 km)
remain before the next service
is due

When the ignition is switched on, no service
information appears in the instrument panel
screen.

System which informs the driver when the
next service is due, in accordance with the
manufacturer's service schedule.

Between 600 miles (1 000 km) and 1 800 miles
(3 000 km) remain before the next service is due

For a few seconds after the ignition is switched
on, the spanner symbolising the service
operations comes on and a message is
displayed in the instrument panel indicating
the distance or time remaining before the next
service is due.
Example:

1 900 miles (2 800 km) remain

before the next service is due.
When the ignition is switched on, the
instrument panel screen temporarily indicates:

A few seconds after the ignition is switched on,
the spanner goes off

The point at which the service is due is
calculated from the last service indicator reset
to zero, according to the mileage covered and
the time elapsed since the last service.

For BlueHDi Diesel versions, depending
on the country of sale, the degree of
deterioration of the engine oil may also
be taken into account.

Service overdue

For a few seconds after the ignition is switched
on, the spanner flashes

to indicate that

the service must be carried out as soon as
possible.
Example:

the service is overdue by 300 miles.

When the ignition is switched on, the instrument
panel screen indicates:

For BlueHDi Diesel versions, the
spanner may also come on early,
according to the level of deterioration
of the engine oil, which depends on the
driving conditions in which the vehicle
is used.

The spanner remains on

alongside the

mileage recorder to indicate that a service is
overdue.

With BlueHDi Diesel versions, the
Service

warning lamp also comes on

when the ignition is switched on.

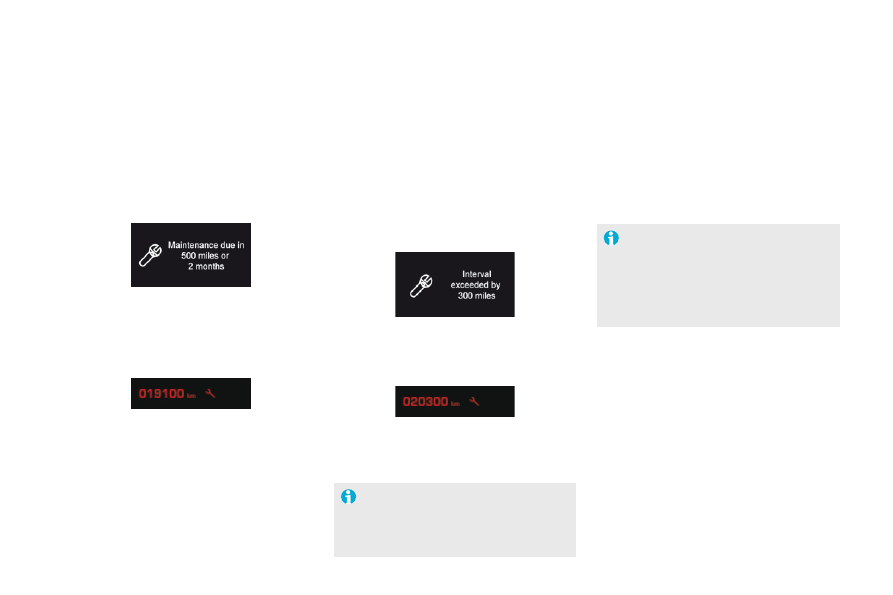

Less than 600 miles (1 000 km)
remain before the next service is due

Example:

500 miles (900 km) remain before

the next service is due.
For a few seconds after the ignition is switched
on, the instrument panel screen indicates:

After the message disappears, the spanner
remains on

alongside the mileage recorder as

a reminder that a service must be carried out
soon.

The spanner may come on if you have
exceeded the period since the last service,
as indicated in the manufacturer's service
schedule.

Monitoring

If you have to disconnect the battery
following this operation, lock the vehicle
and wait at least five minutes for the
reset to be registered.

Resetting the service indicator

After each service, the service indicator must
be reset to zero.
If you have carried out the service on your
vehicle yourself:
F

switch off the ignition,

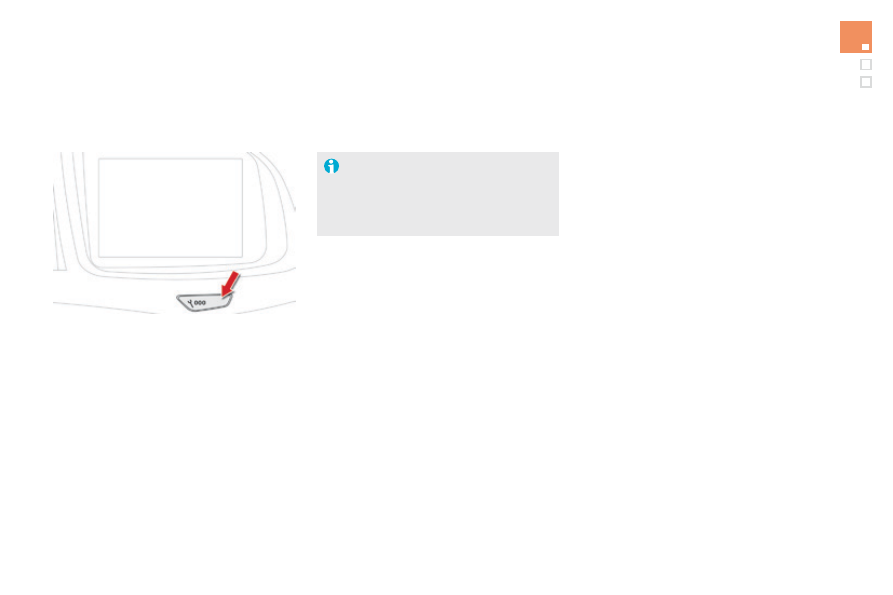

press and hold the trip distance recorder

zero reset button,

switch on the ignition; the distance recorder

display begins a countdown,

when the display indicates "=0", release

the button; the spanner disappears.

Retrieving the service
information

You can access the service information at any
time.
F

Press the trip distance recorder zero reset

button.

The service information is displayed for a
few seconds, then disappears.

Engine oil level
indicator*

Oil level incorrect

This is indicated by the display of the message
"Oil level incorrect" in the instrument panel
screen, accompanied by the service warning
lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
For more information on checking the levels,
refer to the corresponding section.

Oil level indicator fault

This is signalled by the display of the message "Oil
level measurement invalid" in the instrument panel.
Contact a CITROËN dealer or a qualified
workshop.
In the event of a fault with the electric indicator,
the oil level is no longer monitored.
If the system is faulty, you must check the
engine oil level using the manual dipstick
located under the bonnet.
For more information on checking the levels,
refer to the corresponding section.

On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds, after the servicing information.

The level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30 minutes.

Oil level correct

* Depending on version.

Monitoring

This allows manual adjustment of the
brightness of the instruments and controls
when driving at night.

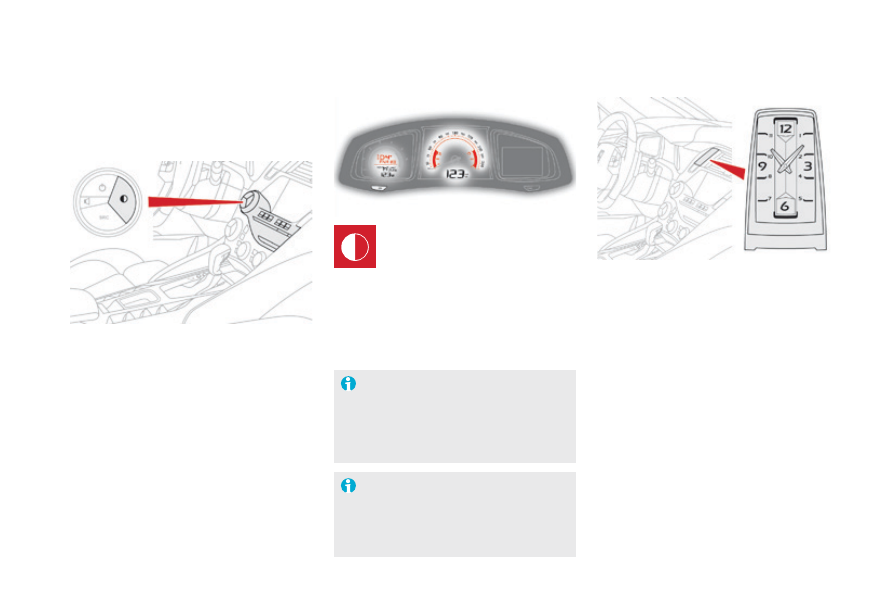

Lighting dimmer

When the lighting is on:
F

press this button to adjust the brightness of

the instruments and controls,

when the level of brightness required is

reached, release this button.

The setting is memorised when switching off
the ignition.

Pressing this button does not have any
effect when the exterior lighting is off.

The total and trip distances are displayed for thirty seconds when the ignition is switched off, when
the driver's door is opened and when the vehicle is locked or unlocked.

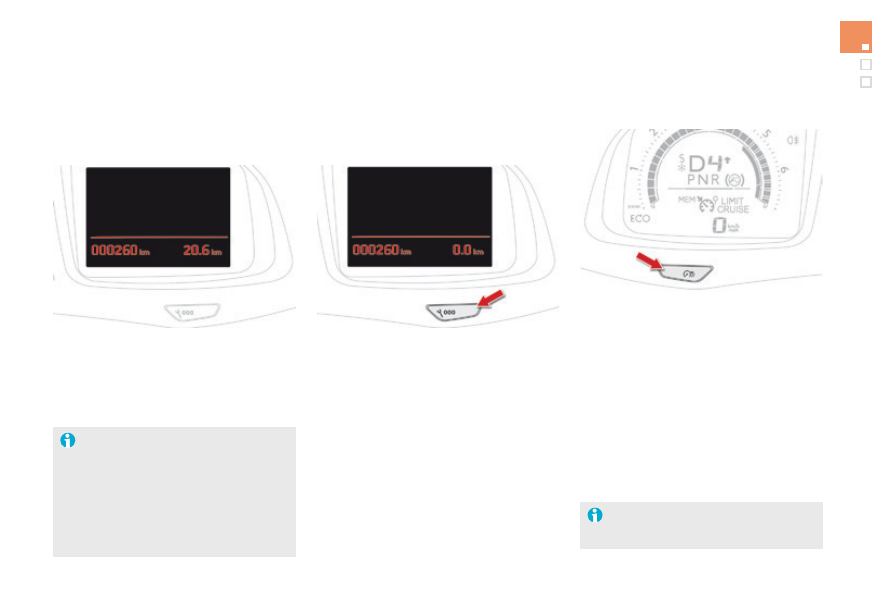

distance recorders

Total distance recorder

It measures the total distance travelled by the
vehicle since its first registration.

When travelling abroad, you may
have to change the units of distance:
the display of road speed must be in
the official units (miles or km) for the
country. The change of units is done via
the screen configuration menu, with the
vehicle stationary.

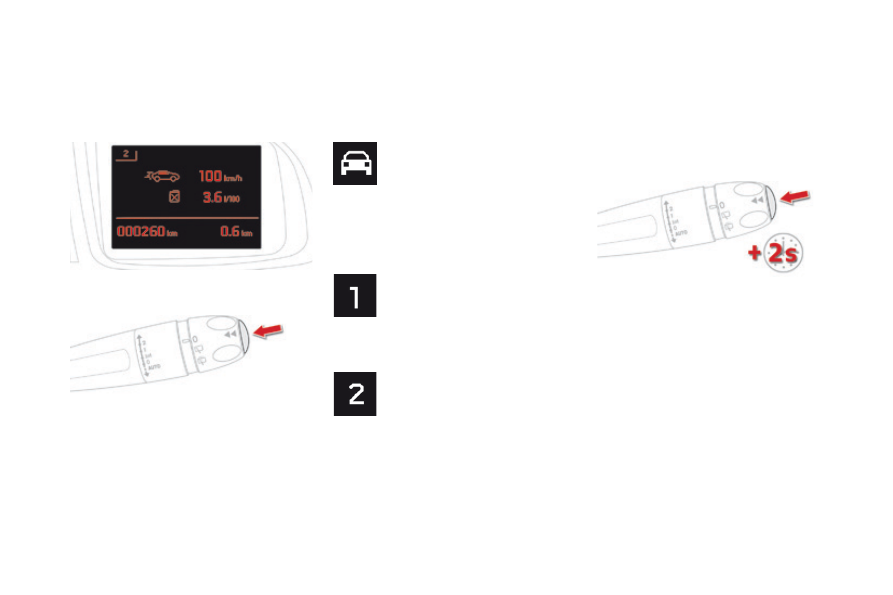

Trip distance recorder

It measures the distance travelled since it was
reset to zero by the driver.
F

With the ignition on, press the button until

zeros appear.

This allows some of the instrument panel
displays, as well as the touch screen, to be
switched off when driving at night, so as to
reduce visual fatigue for the driver.
The essential driving information, such as
the vehicle speed, warning lamps, the gear
engaged for an automatic gearbox, cruise
control or speed limiter, remains displayed in
the instrument panel.

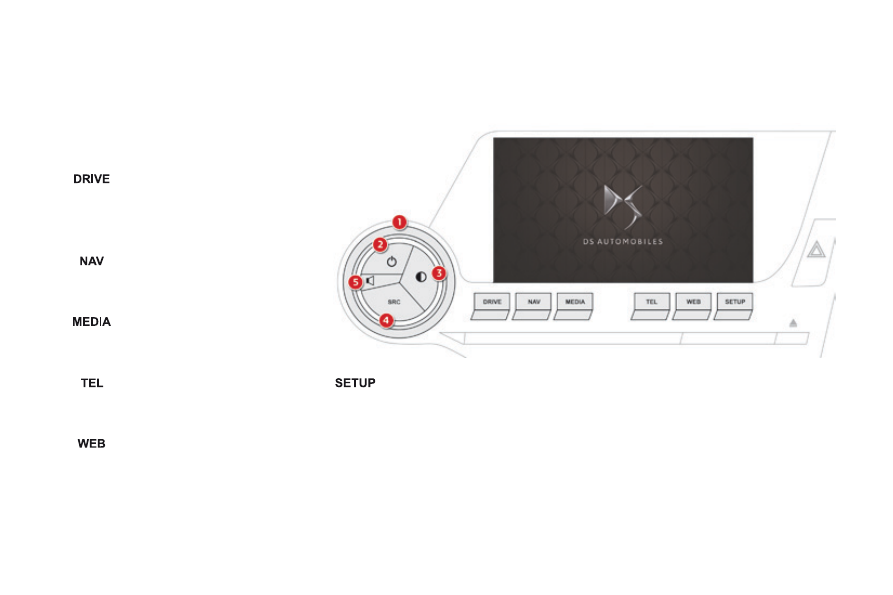

Black panel (comfortable
night display) with the
touch screen

Clock

The analogue clock does not have an
adjustment button.
To set the time, refer to the section relating to
the screen (audio system) configuration menu.
The clock is synchronised with the screen time;
once the the setting has been confirmed in the
screen, the hands will turn to synchronise with
the screen, as well as every time the ignition is
switched on.

With the exterior lighting on,

press this button to activate the
function.

Touch screen

You can return to the current display
at any time by by pressing the blank
screen or one of the menu buttons.

In automatic illumination of headlamps
mode, the "Black panel" function is
automatically deactivated once the
ambient light reaches an adequate
level.

Press this button again or press the

instrument panel lighting dimmer button to
deactivate the function.

Monitoring

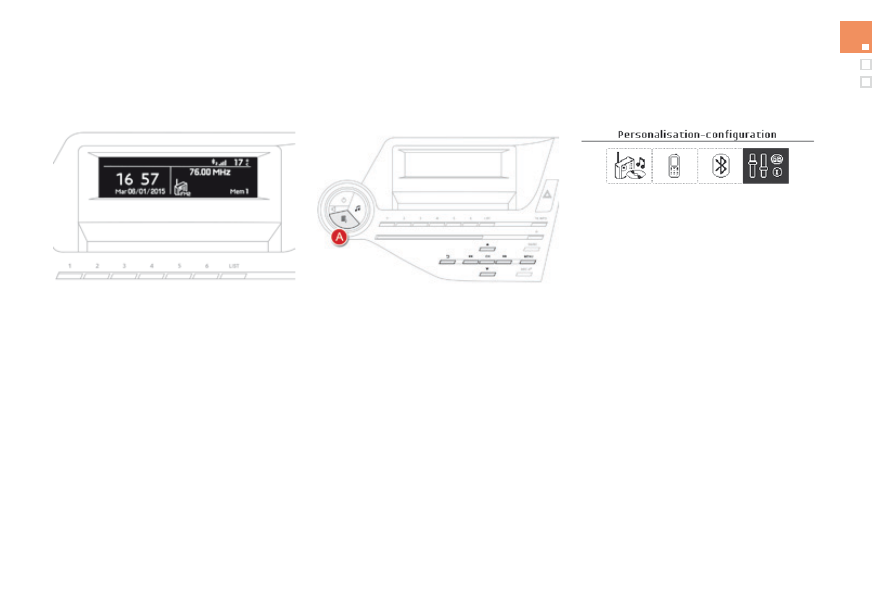

Monochrome screen C

Depending on the context, it displays:
-  time,
-  date,
-  ambient temperature (this flashes if there is

a risk of ice),

-  visual parking sensor information,
-  current audio source,
-  telephone or Bluetooth system information,
-  settings menus for the screen and the

vehicle equipment.

From the control panel of your Audio system,
press:
F button

to chooses between the display

of audio information in full screen or the
shared display of the audio source and the
time,

F the

"MENU" button for access to the main

menu,

F the "5" or "6

" buttons to scroll through the

items in the screen,

F the "7" or "8

" buttons to change a setting

value,

F the

"OK"

button to confirm,

or
F the

"Back"

button to abandon the

operation in progress.

F Press the "MENU" button for access to the

main menu

-  "Multimedia",
-  "Telephone",
-  "Bluetooth connection",
-  "Personalisation-configuration",

F Press the "7" or "8" button to select the

menu required, then confirm by pressing
the "OK"

button.

displays in the screen

controls

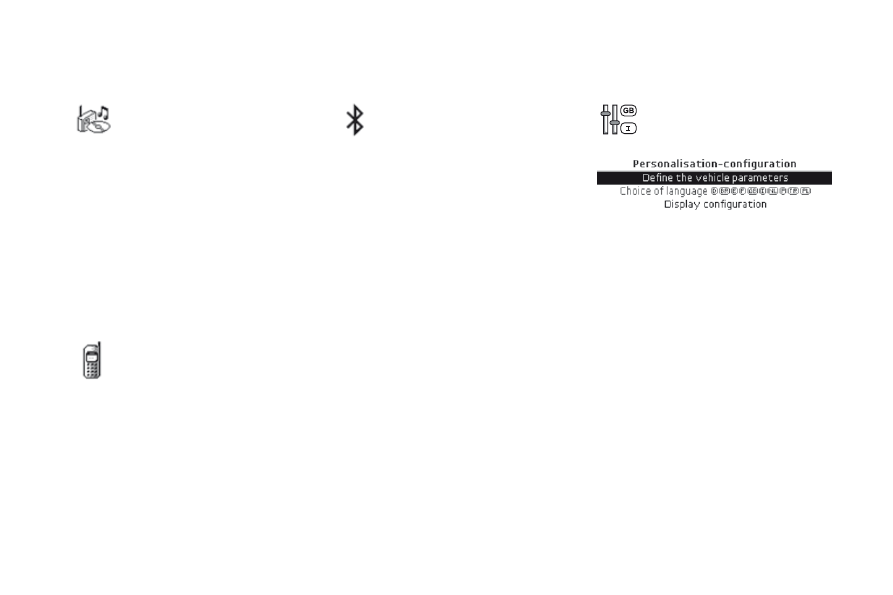

Main menu

With the audio system switched on, this
menu allows you to activate or deactivate the
functions associated with use of the radio
(RDS, DAB / FM auto tracking, RadioText
(TXT) display) or to choose the media play
mode (Normal, Random, Random all, Repeat).
For more information on the "Multimedia"
application, see the "Audio and telematics"
section.

With the audio system switched on, this menu
allows you to make a call or view the various
telephone directories.
For more information on the "Telephone"
application, see the "Audio and telematics"
section.

Wit the audio system on, this menu allows a
Bluetooth device (telephone, media player)
to be connected or disconnected and the
connection mode to be defined (hands-free,
playing audio files).
For more information on the "Bluetooth
connection" application, see the "Audio and
telematics" section.

This menu gives access to the following
functions:
-  "Define the vehicle parameters",
-  "Choice of language",
-  "Display configuration",

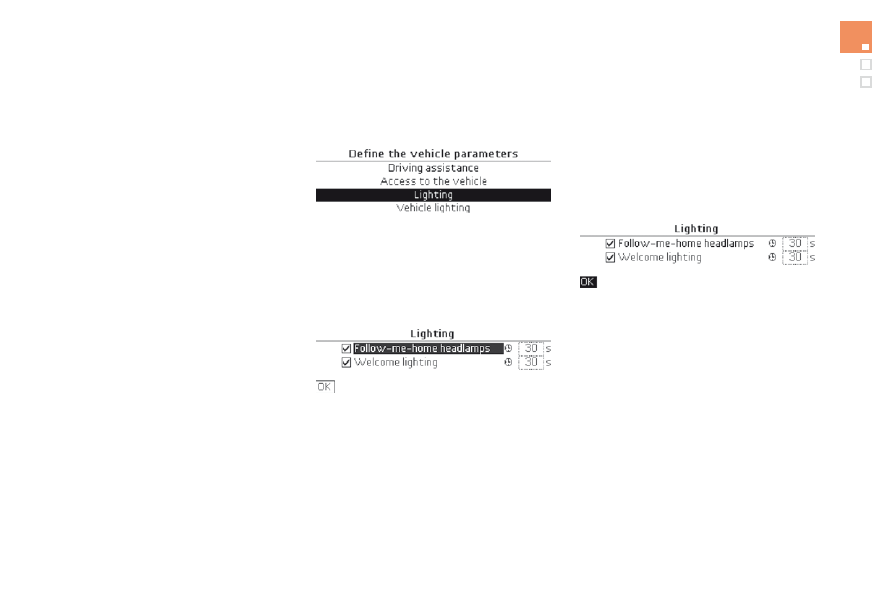

Define the vehicle parameters

This menu allows you to activate or deactivate
the following equipment, classified in different
categories:
- "Access to the vehicle" (see the "Access"

section):
● "Plip action" (Selective unlocking of the

driver's door),

● "Unlocking boot only" (Selective

unlocking of the boot).

"Multimedia" menu

"Bluetooth
connection" menu

"Telephone" menu

"Personalisation-
configuration"
menu

Monitoring

- "Driving assistance":

● "Parking brake automatic" (Automatic

electric parking brake; see the "Driving"
section),

● "Rear wipe in reverse gear" (Rear

wiper coupled to reverse gear; see the
"Visibility" section),

● "Speeds memorised" (Memorising

speeds; see the "Driving" section).

- "Vehicle lighting" (see the "Visibility"

section):
● "Directional headlamps" (Main /

additional directional lighting),

- "Interior lighting" (see the "Visibility"

section):
● "Follow-me-home headlamps"

(Automatic operation of headlamps after
switching off the ignition),

● "Welcome lighting" (Exterior welcome

lighting),

● "Mood lighting" (Mood lighting).

For example: setting of the duration of the
"follow-me-home" lighting
F Press the "7" or "8" buttons, to select the

"Define the vehicle parameters" menu,
then the "OK

" button.

F Press the "5" or "6" buttons to select

the "Interior lighting" line, then the
"OK"

button; then follow the same

procedure to select the "Follow-me-home
headlamps" line.

F Press the "7" or "8" buttons to set the

value required (15, 30 or 60 seconds), then
press the "OK"

button to confirm.

F Press the "5" or "6" buttons, then the

"OK" button to select the "OK"

box and

confirm or press the "Back" button to
cancel.

choice of language

Once this menu has been selected, you can
choose the language used by the display from
a pre-defined list.

Display configuration

This menu gives access to the following
settings:
-  "Choice of units",
-  "Date and time adjustment",
-  "Display parameters",
-  "Brightness".

As a safety measure, configuration of
the multifunction screen by the driver
must only be done when stationary.

Adjusting the date and time
F Press the "7" or "8

" button to display

the "Display configuration" menu, then
press "OK"

F Press the "5" or "6" button to select the

"Date and time adjustment" button, then
press "OK"

F Press the "7" or "8" button to select

the setting to modify. Confirm by
pressing "OK", then modify the setting and
confirm again to save the modification.

Adjust the settings one by one, confirming

with the "OK"

button.

F Press the "5" or "6" button, then the "OK"

button to select the "OK"

box and confirm

or the "Back"

button to cancel.

The analogue clock, located in the
dashboard, is synchronised with the
time in the screen. It is set after the
time is adjusted using the configuration
menu and every time the ignition is
switched on.

Monitoring

Touch screen

Associated with the navigation system, this
screen gives access to:
- menus for adjusting settings for vehicle

functions and systems,

- audio and display settings menus,
- audio system and telephone controls and

the display of associated information.

- the controls for the navigation system

and Internet services and the display of
associated information.

It also allows the display of:
- the ambient temperature (a blue snowflake

appears if there is a risk of ice),

-  the trip computer,
-  visual parking sensor information,
-  the image from the reversing camera.

As a safety measure, the driver
should only carry out operations
that require close attention with the
vehicle stationary.
Some functions are not accessible
when driving.

General operation

Recommendations

Its use is possible at all temperatures and when
wearing gloves.
Do not use pointed objects on the touch
screen.
Do not touch the touch screen with wet hands.
Uses a soft clean cloth to clean the touch
screen.

Principles

Press the virtual buttons in the touch screen.
Each menu is displayed over one or two pages
(primary page and secondary page).

Use the "Options" button to go to the
secondary page.

After a few moments with no action on
the secondary page, the primary page
is displayed automatically.

Use this button for access to
additional information and to the
settings for certain functions.

Use this button to confirm.

Use this button to quit the current
display and return to the primary
page.

For versions equipped with a navigation
system in the touch screen, refer to the
supplement in the handbook pack.

Menus

Press one of the buttons on the control panel
for direct access to a particular menu.

driving
Allows settings to be adjusted for
certain vehicle functions.
See the corresponding section.

Navigation

See the "Audio and telematics"
section.

Radio Media

See the "Audio and telematics"
section.

Telephone

See the "Audio and telematics"
section.

connected services

The connected services are
accessible via Bluetooth, Wi-Fi,
MirrorLink™ or CarPlay

connections.

See the "Audio and telematics"
section.

Settings

Allows configuration of the display
and the system.
Language, units, date and time,
colour schemes, ...

Volume.

On / Off.

Black panel (comfortable night driving

display).

Change audio source.

Access to audio settings.

See the "Audio and telematics" section.

Monitoring

"driving" menu

The systems with settings that can be adjusted are detailed in the table below.

Button

corresponding function

comments

Speed settings

Memorisation of speeds for use with the speed limiter or cruise control.

vehicle settings

Access to other functions with settings that can be adjusted:
- Automatic parking brake (Automatic electric parking brake; see the "Driving" section),
- Automatic rear wiper in reverse (Activation of rear wiper coupled to reverse gear; see the

"Visibility" section).

-  Guide-me-home lighting (Automatic guide me home lighting; see the "Visibility" section),
-  Welcome lighting (Exterior welcome lighting; see the "Visibility" section),
-  Mood lighting (Mood lighting; see the "Visibility" section),
-  Adaptive lighting (Main / additional directional lighting; see the "Visibility" section).
-  Driver plip action (Selective unlocking of the driver's door; see the "Access" section),
-  Unlocking boot (Selective unlocking of the boot; see the "Access" section).

Stop & Start

Deactivation of the function.
Function deactivated = indicator lamp on (orange).

Trip computer

System that gives you information on the current journey (range, fuel consumption…).

Instrument panel screen

Information display

Press the button on the end of the wiper

control stalk

to display the various tabs in

succession.

- The current information tab with:

●  the range,
●  the current fuel consumption,
●  the Stop & Start time counter.

- Trip "1" with:

●  the average speed,
●  the average fuel consumption
  for the first trip.

- Trip "2" with:

●  the average speed,
●  the average fuel consumption
  for the second trip.

When the desired trip is displayed, press

for more than two seconds on the end of
the wiper control stalk

Trips "1"

and "2" are independent but their use

is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.

- Radio or media.
- Satellite navigation.

Trip reset

Citroen DS5 (2016 year). Instruction - part 3
