EASE OF USE

and

COMFORT

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Practical information

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

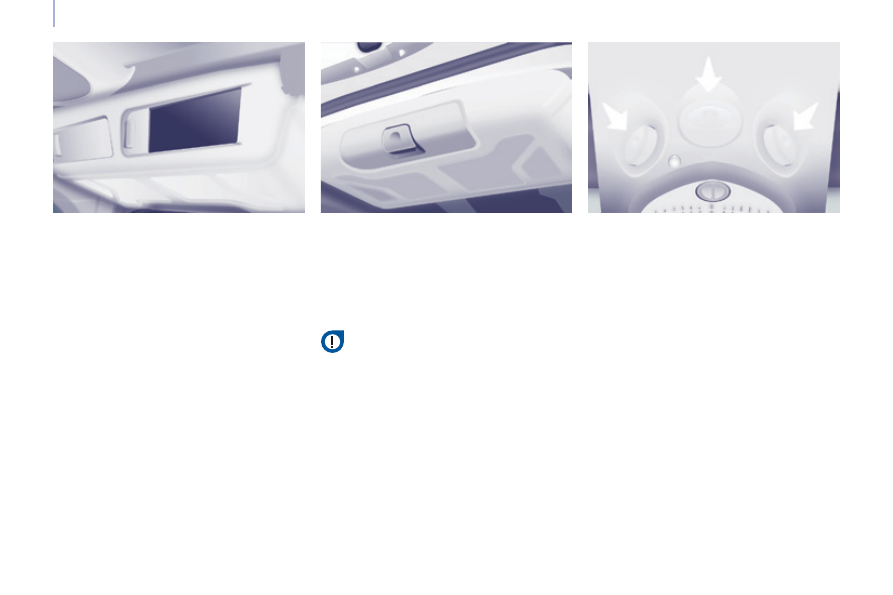

Overhead storage unit

This is located above the sun visors

and can accommodate various objects

(a jumper, file, gloves...).
The openings concealed by the sun
visors allow you to see and access the

objects stored in the overhead storage

unit.
The maximum weight permitted in the

overhead storage unit is 5 Kg.

Do not place objects in this storage

unit which could present a risk to the

occupants.

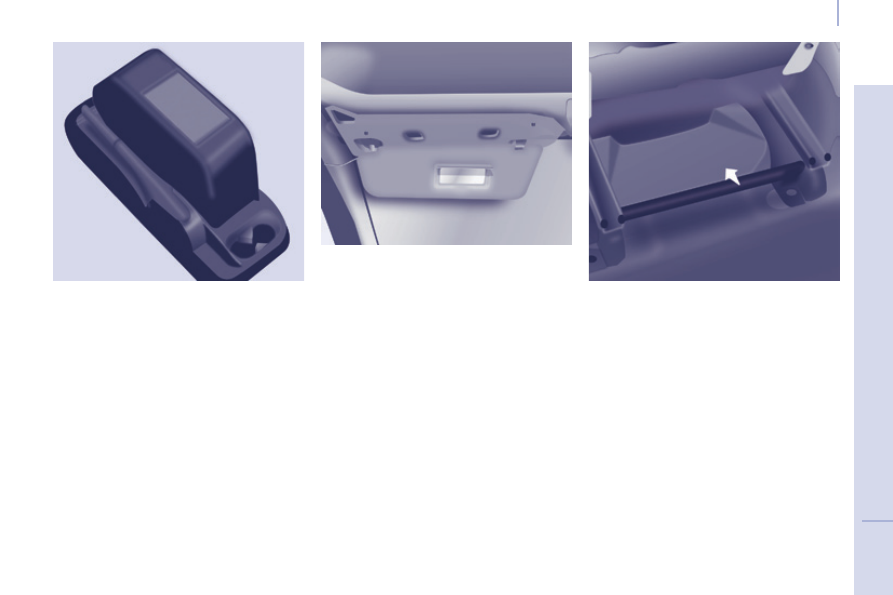

Central storage console

This console offers an appreciable

additional storage area: it can be

removed and clips onto a base which
also incorporates two cup holders at

the rear.

Ensure that the object (bottle, can...)

placed in the cup holder is retained

securely and does not risk being

dislodged while driving.
Any liquid which could spill presents

a risk of damage on contact with the

instrument panel and centre console

controls.

Take care.

Sun visor

To prevent dazzle from ahead, fold the

sun visor down.

A pocket is provided in the driver's sun

visor for storing toll cards, tickets, ...

Storage compartment under
seats

Storage compartments are available,

with or without lid, in the floor under the

front seats.
To gain access to them, move the seat

forward. The lid must be lifted from the

rear of the seat.

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Practical information

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

SEATING AREA FITTINGS

Floor boxes

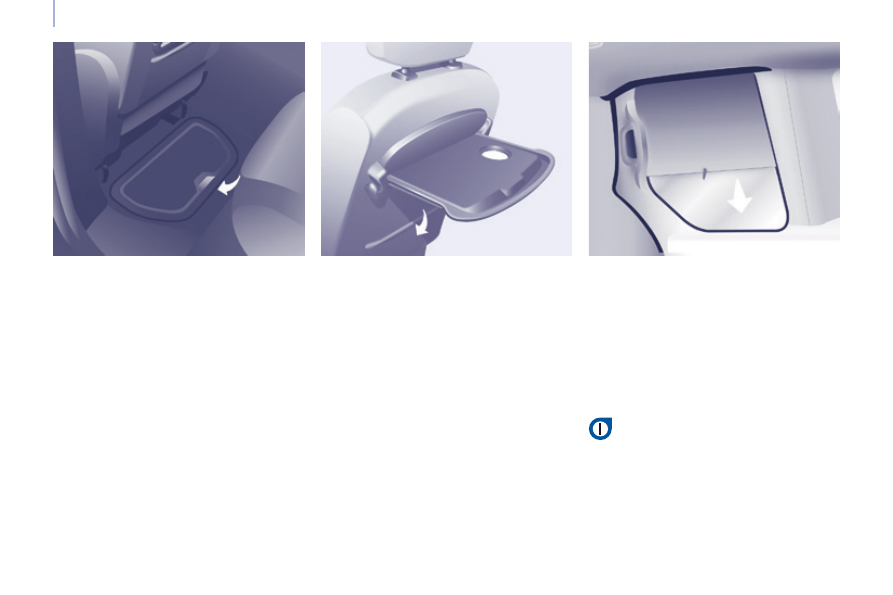

Two boxes are available, located under

the rear passenger footwells.

To open them, slide your fingers into

the recess and lift the lid.

Aircraft style tables

To put the table in place, pull it

upwards and fold it down.
As a safety precaution, above a high
pressure, the table is designed to

unhook.

To put it back in place, with the table

vertical, engage one side then the

other, forcing slightly.

Do not place hard or heavy objects

on the table. They could become

dangerous projectiles in the event of

sharp braking or impact.

A bag hook is provided on the side of

each table.

Side blinds

Side blinds may be available on the

sliding side doors.

Pull the side blind by the tab to install it.
To avoid damaging the blind when

opening the door, check that the tab is

hooked securely.

Always guide the blind slowly
using the tab, both when raising

and when lowering.

EASE OF USE

and

COMFORT

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Practical information

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

MODUTOP ROOF

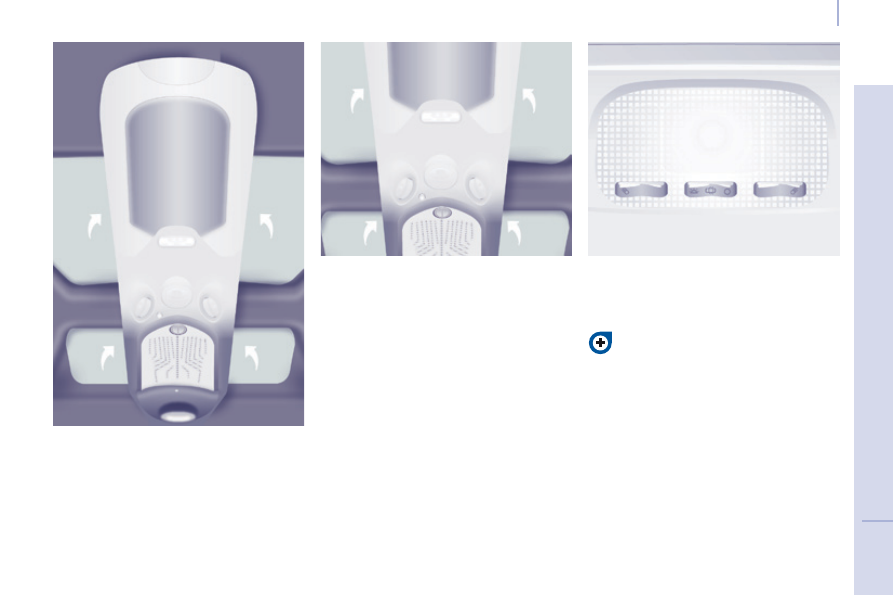

The multifunction roof extends the

overhead storage unit. It consists of

the following components:

Storage compartments

Storage compartments are provided

on each side of the roof. The maximum

authorised load is 6 kg.
The translucent base assists with

finding objects stored inside.

Do not store objects which could

present a risk to the occupants.

Courtesy lamp

The operation of the courtesy lamp is

identical to that of the front courtesy lamp.

Refer to chapter 4 "Practical
information", "Courtesy lamps"

section.

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Practical information

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

From inside

From outside

Rear box

This roof box can be accessed from

the rear seats and the boot.

From the rear seats, slide the flaps to

open.

Vents

A 3-position control allows you to

adjust the air flow through the vents.

The vents are also fitted with a scented

air freshener.

From the boot, place your thumb on
the recess then pull the handle to

open.

Open carefully to prevent objects

stored in this interior roof box from

falling out.

The maximum authorised load is 10 kg.

EASE OF USE

and

COMFORT

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Practical information

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

SCENTED AIR FRESHENER

The scented air freshener diffuses
a fragrance in the passenger
compartment from the roof console

vents.

Adjusting the flow

Turn the chromed button to adjust the

diffusion:
-

to the left to decrease,

- to the right to increase.
To stop the diffusion, turn the chromed

button fully to the left.

Removing the scented air
freshener

Press the button down while turning
it a quarter of a turn to the left to

the stop.

Remove the scented air freshener

from the roof console.

- Replace the cartridge.

100

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Practical information

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

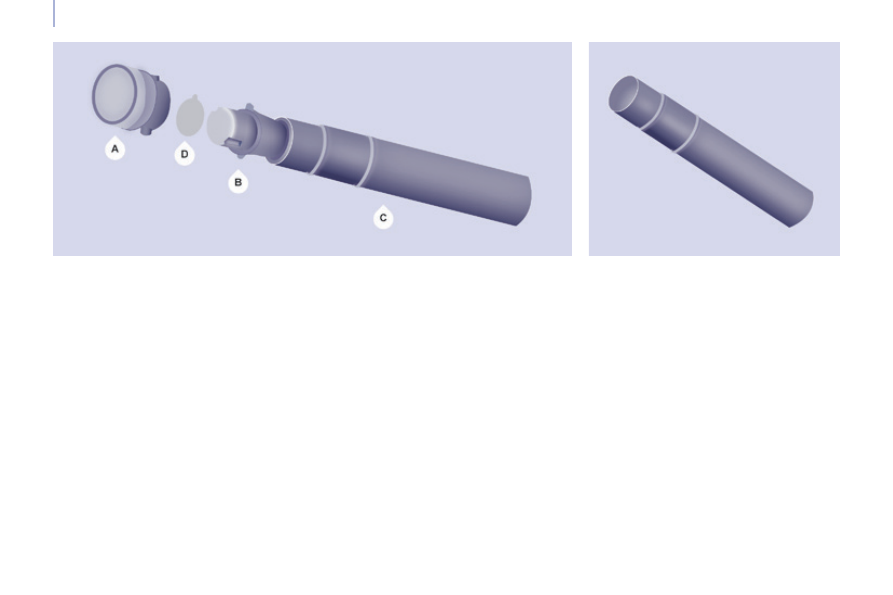

Replacing a cartridge

The scented air freshener refill consists

of a cartridge B and its sealing case C

- Remove the protective film D.
-

Place the head of the cartridge B
on the button A of the scented air

freshener.

- Turn it a quarter of a turn to lock it

on the button and remove the case.

Insert the scented air freshener in

its location.

You can change the cartridges at any
time and store cartridges which have
already been started in their original

case.
The scented air freshener button A is

independent of the cartridge.
The cartridges are supplied without the
button A

Inserting the scented air
freshener

After fitting or changing the cartridge:

- Put the scented air freshener back

in place in its location.

Turn it a quarter of a turn to the

right.

Good practice

As a safety precaution, only use the

cartridges provided for this purpose.

Do not dismantle the cartridges.
Keep the cartridge sealing cases

which are used as packaging when the

cartridges are not in use.

Never try to refill the cartridges with

fragrances other than those available

from CITROËN dealers.
Keep out of reach of children and

animals. Avoid contact with the skin

and eyes. If swallowed, consult a

doctor and show him the packaging or

product label.

The scented air freshener button A can

only be fixed on the multifunction roof

console with a cartridge.
Therefore, always retain button A and

a cartridge.
The cartridges are available from

CITROËN dealers.

101

EASE OF USE

and

COMFORT

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Practical information

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

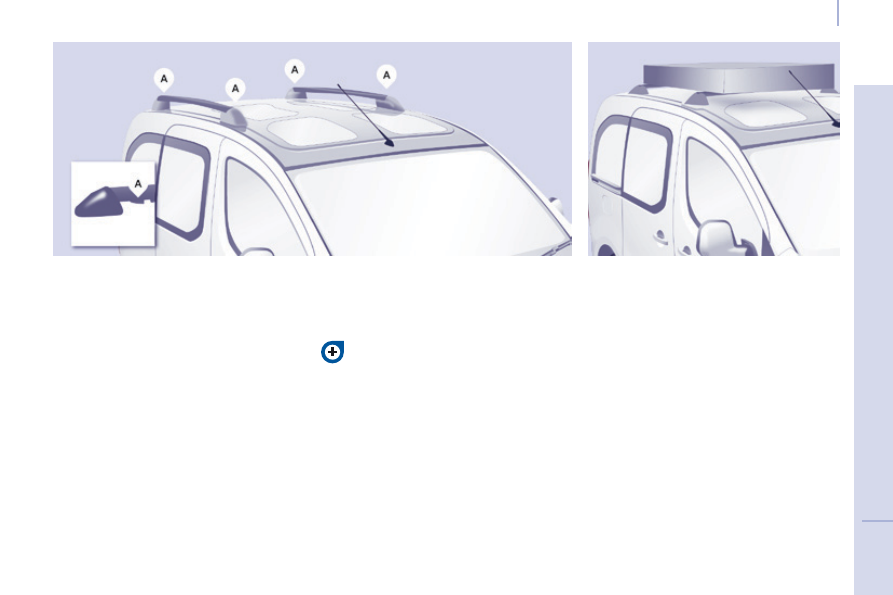

MODUTOP ROOF BARS

The maximum authorised weight on

each roof bar is 35 kg.

In all cases, the load must rest on
the non-slip bands provided for this
purpose and must not touch the roof or

the glazing of the roof.

Recommendations for loading the
roof
This procedure requires the use of
a spanner supplied with the tools for

changing a wheel.

These two longitudinal Modutop roof

bars can be removed.

Chapter 9, "Changing a wheel"

section.

- Open the protective covers.

- Slacken the four screws using the

spanner and remove them.

Turn the bars 90° placing the

hollow parts towards the front.

- Refit the the 4 screws and tighten

them using the spanner.

- Close the protective covers.
-

Use the strap passages A only to

secure the load firmly.

102

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Practical information

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

ExTERIOR ROOF BARS

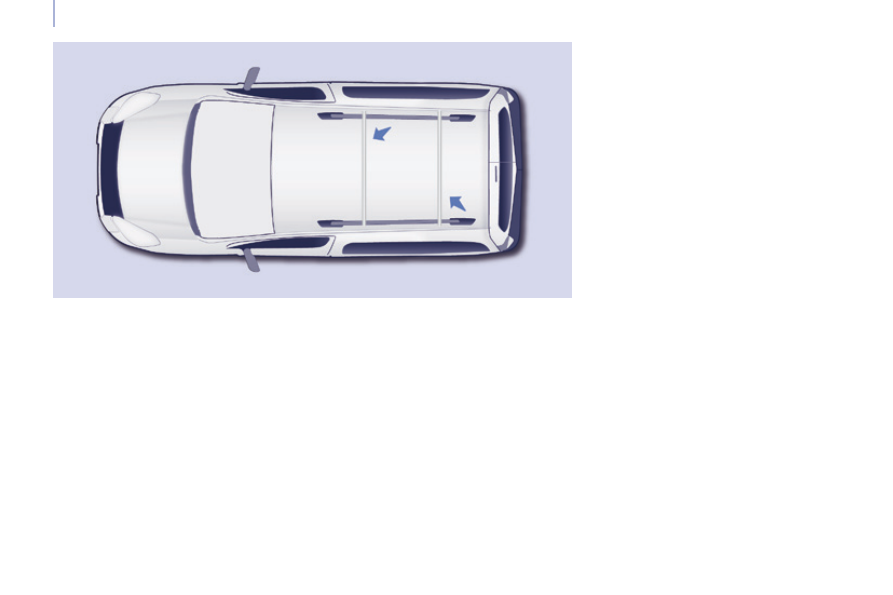

If you install transverse bars on these bars, refer to the weight values indicated

by the manufacturer but do not exceed: 75 kg.

103

EASE OF USE

and

COMFORT

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Practical information

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

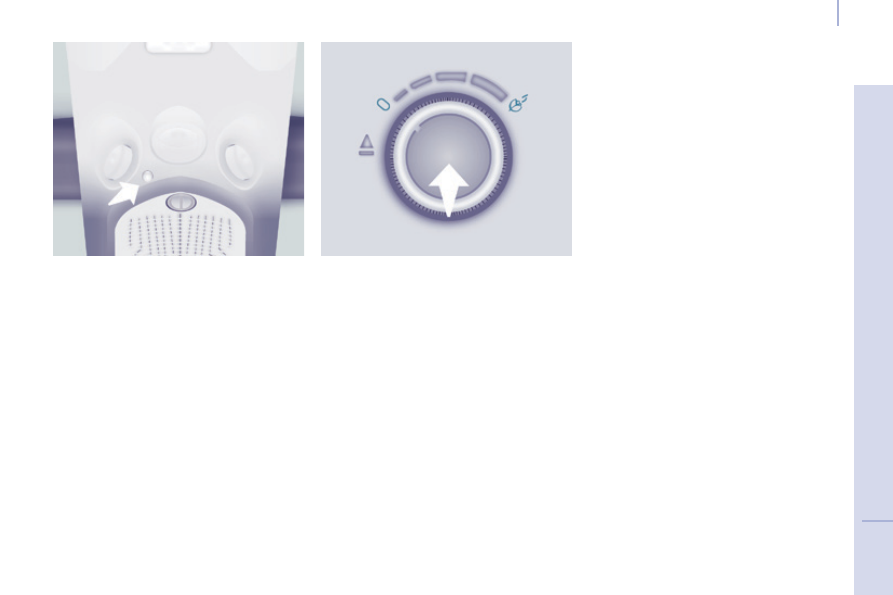

Automatic switching on/off

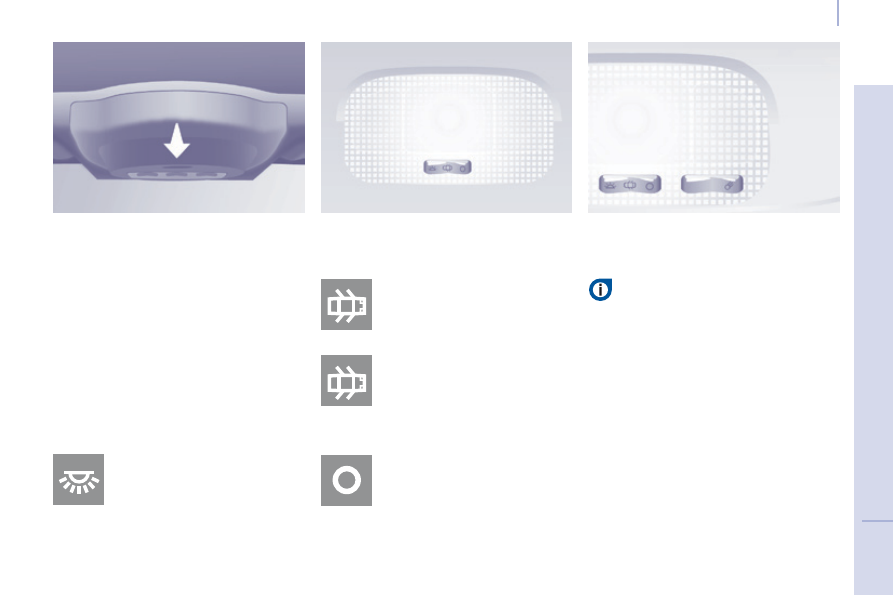

The front courtesy lamp comes on when

the key is removed from the ignition, when

the vehicle is unlocked, when one of the

front doors is opened and for location of

the vehicle using the remote control.
It goes off gradually after the ignition is
switched on and when the vehicle is

locked.

Front seats: comes on when

one of the front doors is

opened.

These are switched on and off by
means of a manual switch, with

the ignition on.

Rear seats: comes on when

one of the rear doors is

opened.
If the doors remain open for
a few minutes, the courtesy

lamps go off.

Permanently off.

Permanently on, ignition on.

Front courtesy lamp

COURTESY LAMPS

Rear courtesy lamp

Front individual reading lamps

104

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Practical information

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

LOAD SPACE COVER (5 SEAT VERSION)

This rigid shelf conceals the objects

stored in the boot.

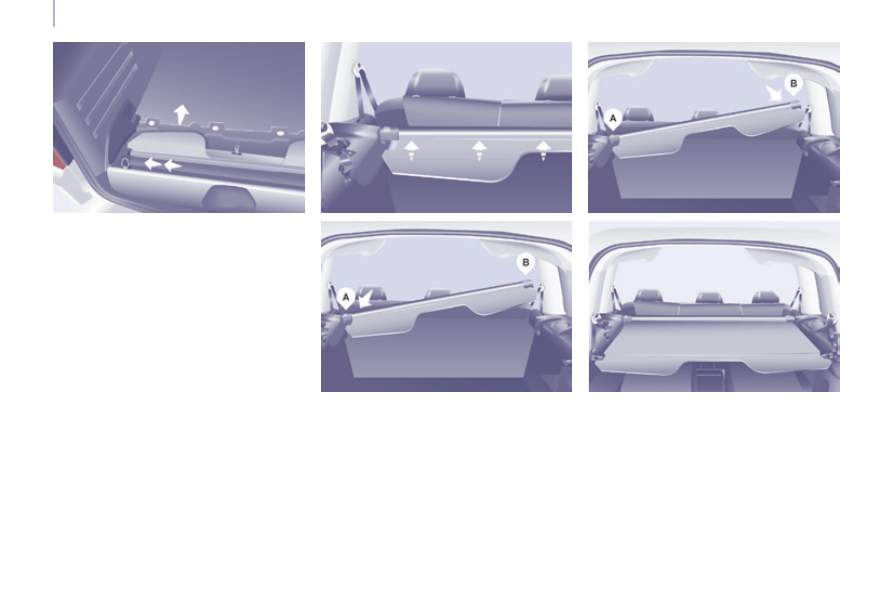

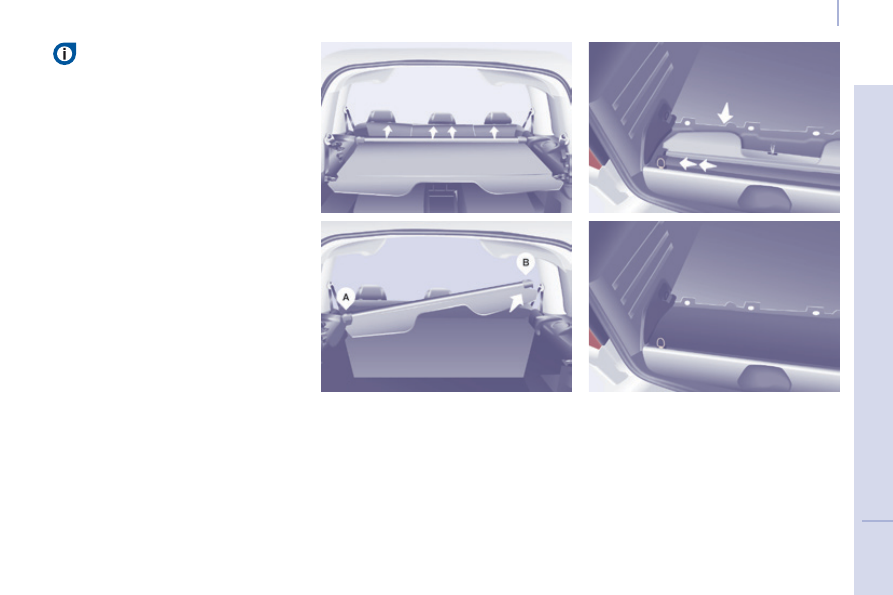

Removing
Fold the load space cover.
Detach it from the notches A and B

pulling it towards you.

Raise it and remove the assembly.

Refitting
Place the load space cover in front
of A and B

Push it forwards to insert the lugs in

the notches.
Unfold and clip into the notches C

Folding

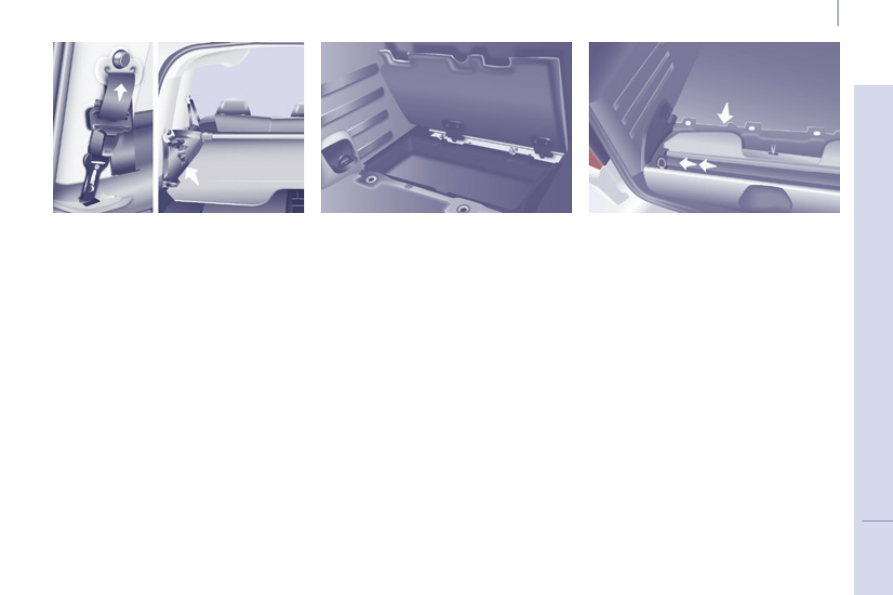

From the boot, fold the half-shelf,
raising it to detach it from the notch C

Storing (according to version)
A location is provided in the back of the

rear seats to accommodate the load

space cover folded onto itself.
Slide it vertically between the side

guides located at mid seat back height.

Insert the hinge first, with the free flaps

turned upwards.

This rigid load space cover can

form a shelf. However, as a safety

measure, do not place objects

on it which could become dangerous

projectiles in the event of sharp braking

or rear impact.

105

EASE OF USE

and

COMFORT

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Practical information

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

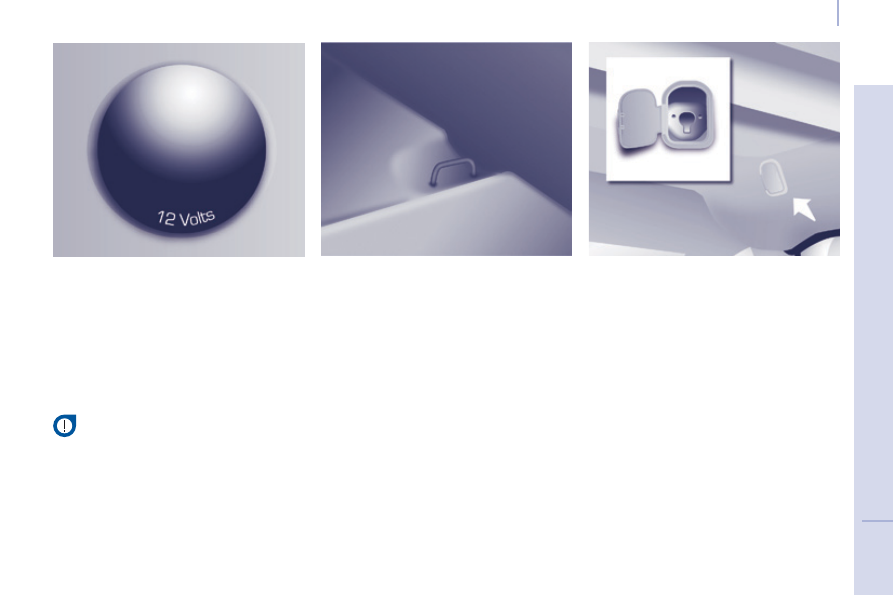

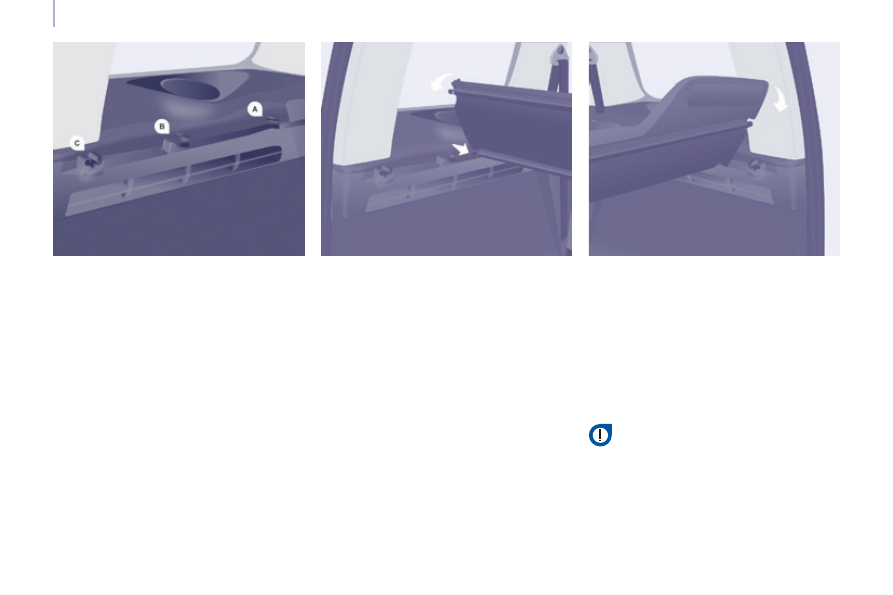

12 volt socket (120 W max)

It is advisable to limit the use of this

socket to avoid discharging the battery.

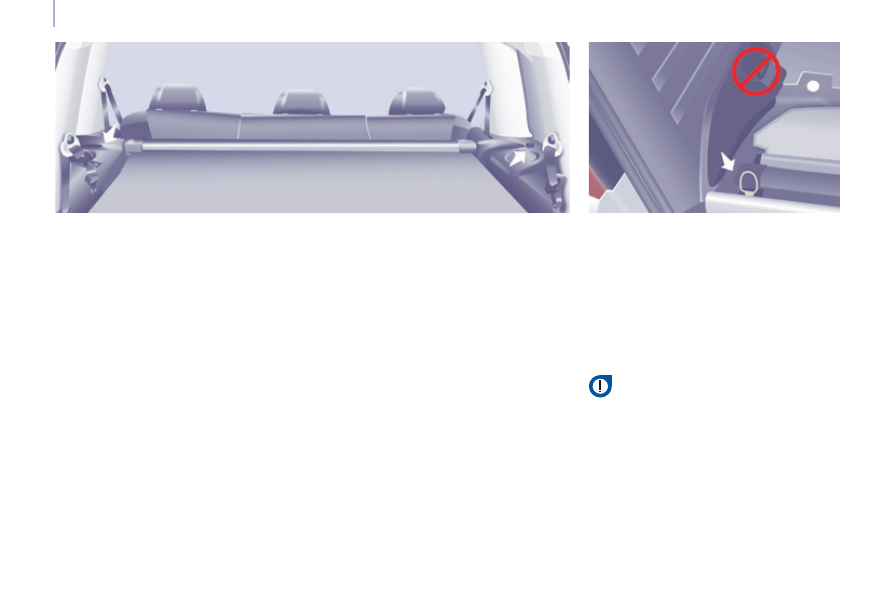

Protective net

Open the cover located in the hook

support.
Fix the top of the net in the notches,

having first turned the bar 1/4 of a turn.
Ensure that the end of the bar engages
correctly in the metal part of its

location.
Fix the straps in the locations provided

on the floor.

Tighten the net using the straps.

Stowing rings

Use these rings to secure loads on the

floor.

The connection of an electrical
device not approved by CITROËN,
such as a USB charger, may

adversely affect the operation of
vehicle electrical systems, causing
faults such as poor telephone reception
or interference with displays in the

screens.

106

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Practical information

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

REAR FITTINGS
(7 SEAT VERSION)

Cup holder

Any liquid carried in a cup (mug or
other) on board which could spill,

presents a risk.

Take care.

12 volt socket (120 W max)

It is advisable to limit the use of this

socket to avoid discharging the battery.

Stowing rings

Use the stowing rings on the floor to

secure and retain your loads firmly.
The seat belt anchorages must not be

used for this purpose.

It is recommended that the load is

immobilised by securing it firmly

using the stowing rings on the

floor.

107

EASE OF USE

and

COMFORT

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Practical information

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Storage flaps

Raise the corresponding flap.

Next to the boot sill, the recess is
intended to receive the roller tube

containing the load space cover.

Seat belts

Ensure that the centre seat belt has
reeled in correctly to its carrier in the

roof.

Prevent the row 3 seat belt buckles

from knocking by raising them as close

as possible to the anchorages in the

roof.

The seat belt buckle attachment rings

on each side of the boot must not be

used to retain loads.

108

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Practical information

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

BLIND, LOAD SPACE COVER

Position the load space screen so as to

present the rear load space cover flaps

towards you.
Engage the left-hand lug of the roller in
the support A

The load space cover is the roller blind

type. Take care not to place heavy

objects on the load space cover when

unreeled.

Compress then place the right-hand
lug facing the support B

Release to engage the roller in its

support.
Unroll the load space cover to the rear

side pillars.
Engage the ends in the rear notches to

keep it taut.

To install it
Place the row 3 seats in the fully folded

position.

Raise the storage flap at the boot sill.

Take hold of the roller in the centre and

compress it towards the left-hand pillar.

Raise the assembly.

109

EASE OF USE

and

COMFORT

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Practical information

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

To remove it
From the boot, pull the load space
cover towards you to release it from

the side pillars.

Guide the load space cover as it rolls up.

Remove the clips of the three flaps

from the base of each row 2 head

restraint.
Compress the roller to the left to
remove it from the support B

Raise it and pivot it forwards.

To store it
Store it in the recess at the boot sill,

with the two rear flaps uppermost.
First, compress the load space screen

to the left.

Release.

Arrange the two flaps and close the

storage flap.

The roller is fitted with three flaps

permitting concealment of the
boot, whether the row 2 seats
are in the normal position or the

comfort position.

Each flap has two clips which are

hooked on the base of each head

restraint.

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Mirrors and windows

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

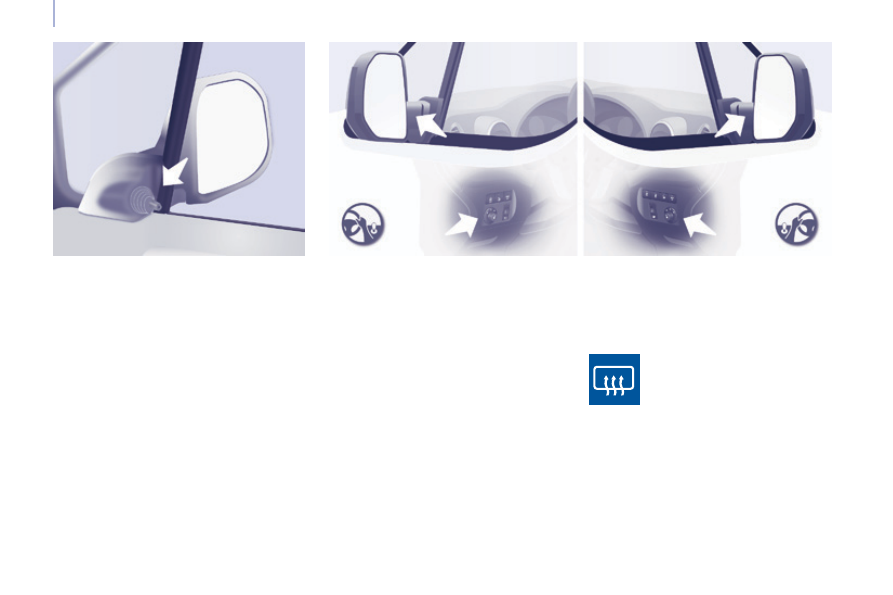

Adjusting electric door mirrors

Move the control to the right or to
the left to select the corresponding

mirror.

Move the control in all four

directions to adjust.

Return the control to the central

position.

MIRRORS

Heated mirrors

Adjusting manual door mirrors

Forced folding

If the mirror casing has come out of
its initial location, with the vehicle
stationary reposition the mirror casing
manually or use the electric folding

control.

Press the heated rear screen

button.

Move the lever in all four directions to

adjust.

When the vehicle is parked, the door

mirrors can be folded back manually.
The mirrors are not equipped with

automatic heating.

Electric folding / unfolding

The mirrors can be folded or unfolded
electrically from the inside, with the

vehicle parked and the ignition on:
-

Place the control in the central

position.

- Turn the control downwards.

The mirrors that have electric folding/

unfolding can be heated.

Content .. 5 6 7 8 ..
