Citroen Berlingo (2017 year). Instruction - part 5

Steering mounted controls

EASE OF US

E and

COMFORT

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

TRIP COMPUTER

A few definitions

Range: displays the distance which
can travelled with the remaining fuel

detected in the tank, basd on the

average consumption over the last few

miles (kilometres).
This displayed value may vary

significantly following a change in the

vehicle speed or the relief of the route.

Current fuel consumption: only
calculated and displayed above

20 mph (30 km/h).

Average fuel consumption: this is the
average fuel consumption since the

last trip computer zero reset.

Distance travelled: calculated since

the last trip computer zero reset.

Distance remaining to the
destination: calculated with reference to

the final destination, entered by the user.

If guidance is activated, the navigation

system calculates it as a current value.

Average speed: this is the average
speed calculated since the last trip

computer zero reset (ignition on).

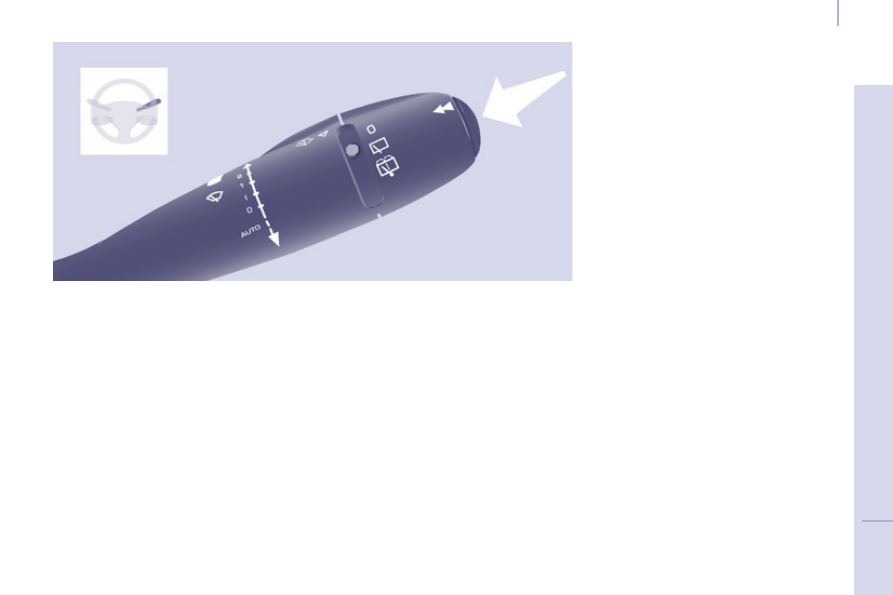

Each press of the button, located at

the end of the wiper stalk, displays the

different trip computer information in

turn, depending on the screen.

When the required trip is displayed,
press the control for more than

two seconds.

When the range falls below 20 miles

(30 km), dashes are displayed. After

filling with at least 10 litres of fuel, the

range is recalculated and is displayed

when it exceeds 60 miles (100 km).
If, whilst driving, dashes are displayed
continuously in place of the digits,

contact a CITROËN dealer.

The "vehicle" tab with the range,
current fuel consumption and the

remaining distance to run.

The "1" tab (trip 1) with the average
speed, the average fuel consumption
and the distance travelled in trip "1"

The "2" tab (trip 2) with the same
information for a 2

trip.

Reset

Steering mounted controls

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

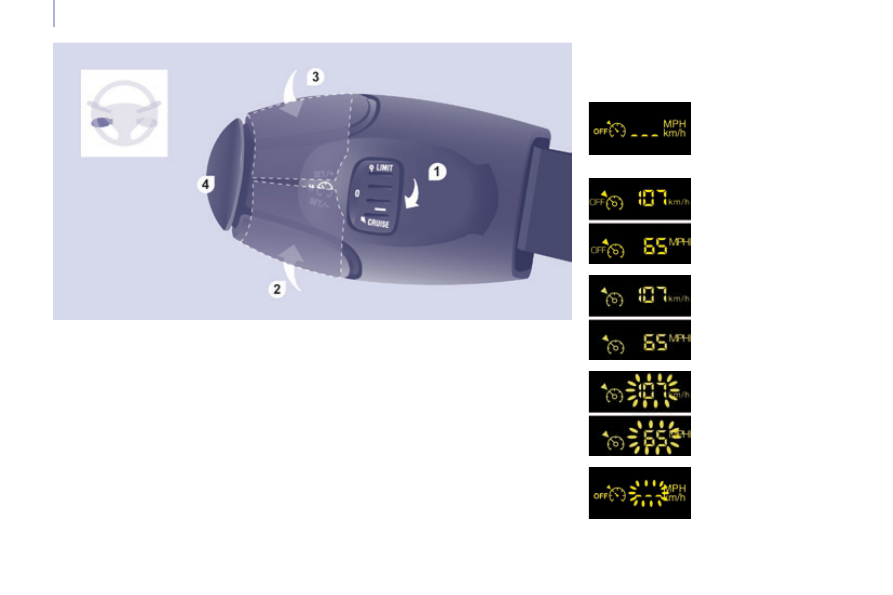

CRUISE CONTROL

"CRUISE"

"This is the speed at which the driver

wishes to drive".

This aid to driving in free-flowing

traffic enables the vehicle to maintain

the speed programmed by the driver,

unless a steep gradient makes this

impossible.
For the system to be programmed or
activated, the vehicle speed must be

greater than 25 mph (40 km/h) with

4th gear or higher engaged.

The state of the cruise control system
can be seen in the instrument panel
together with the the programmed

speed setting.

Function selected,
display of the "Cruise

Control" symbol.

Function off,
OFF

Function on.

Vehicle speed above,
the programmed

speed flashes.

Operating fault
detected,
OFF - the dashes

flash.

Cruise control mode On / Off.

Reduce cruise speed setting.

Increase cruise speed setting.

Pause / Resume cruise control.

Steering mounted controls

EASE OF US

E and

COMFORT

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

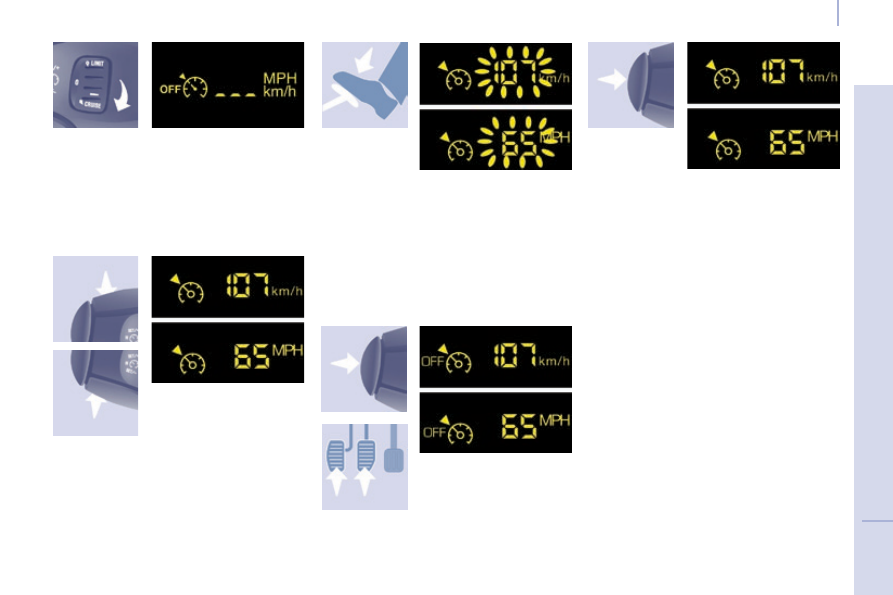

Selecting the function

First activation /
Programming a
speed

Temporarily exceeding the
speed setting

Deactivation (off)

Press this button or

the brake or clutch

pedal.

Reactivation

Following deactivation of the cruise

control, press this button.

Your vehicle will return to the last

programmed speed.

Alternatively, you can repeat the "first

activation" procedure.

It is possible to accelerate and drive
momentarily at a speed greater than

the programmed speed setting. The

value programmed flashes.
When the accelerator pedal is
released, the vehicle will return to the

programmed speed.

Reach the chosen speed by

pressing the accelerator.

Press the SET - or SET +

button.

This programmes/activates the speed

setting and the vehicle will maintain

this speed.

Place the switch in the CRUISE

position. The cruise control is

selected but is not yet active and

no speed has been programmed.

Steering mounted controls

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

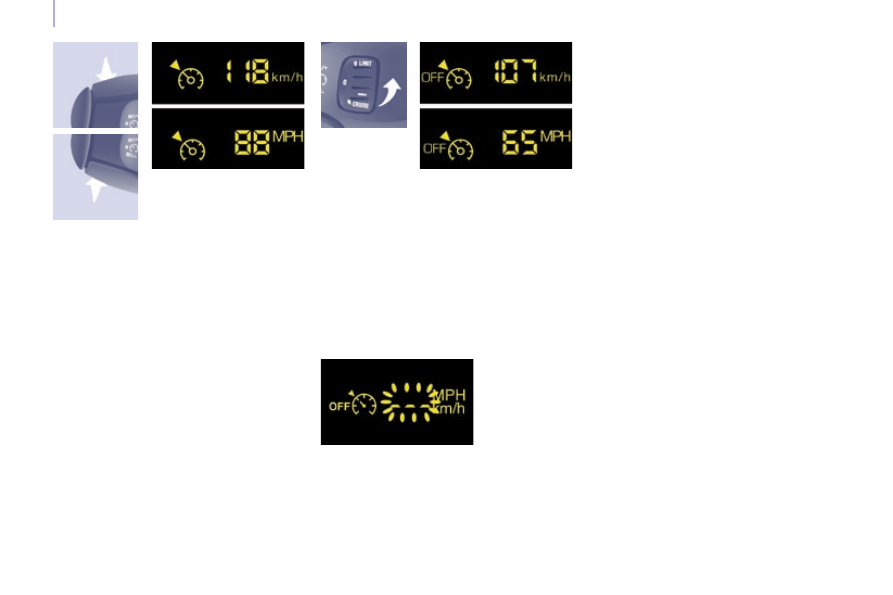

Changing the
programmed speed

Switching the system off

Operating fault

Cancelling the programmed
speed setting

When the vehicle becomes stationary,
after switching off the ignition, the

system no longer memorises a speed.

There are two methods of memorising
a speed higher

than the previous one:

Place the dial in position 0 or switch
off the ignition to switch everything

off.

Good practice

Without using the accelerator
-

Press the SET +

button.

A brief press increases the speed by 1 mph (km/h).
A maintained press increases the speed in

steps of 5 mph (km/h).

Using the accelerator
-

Exceed the memorised speed until
the speed required is reached,

Press the SET + or SET -

button.

To memorise a speed lower than the

previous one:
-

Press the SET -

button.

A brief press decreases the speed by

1 mph (km/h).
A maintained press decreases the

speed in steps of 5 mph (km/h).

The programmed speed setting is

cleared and replaced by three dashes.

Contact a CITROËN dealer or a

qualified workshop to have the system

checked.

When changing the programmed
speed setting by means of a
maintained press, pay attention as
the speed can increase or decrease

rapidly.
Do not use the cruise control on

slippery roads or in heavy traffic.
In the event of a steep slope, the cruise
control cannot prevent the vehicle from
exceeding the programmed speed

setting.
In any event, the cruise control cannot
replace the need to observe the speed
limits and the need for vigilance on the

part of the driver.

It is advisable to keep your feet near

the pedals.

To avoid any jamming under the

pedals:

- ensure that the mat and its fixings

on the floor are positioned correctly,

never place one mat on top of

another.

Steering mounted controls

EASE OF US

E and

COMFORT

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

The speed of the vehicle responds to
the pressure of the driver's foot, up
to the the accelerator pedal's point of
resistance, which indicates that the

programmed speed has been reached.
However, pressing the pedal beyond

this point of resistance to the floor

allows the programmed speed to be

exceeded. To resume use of the limiter,

simply reduce the pressure on the
accelerator pedal gradually and return

to a speed below that programmed.
Adjustments can be carried out
when stationary, with the engine
running, or with the vehicle moving.

This speed limiter shows the function
selection status in the instrument panel

and displays the programmed speed:

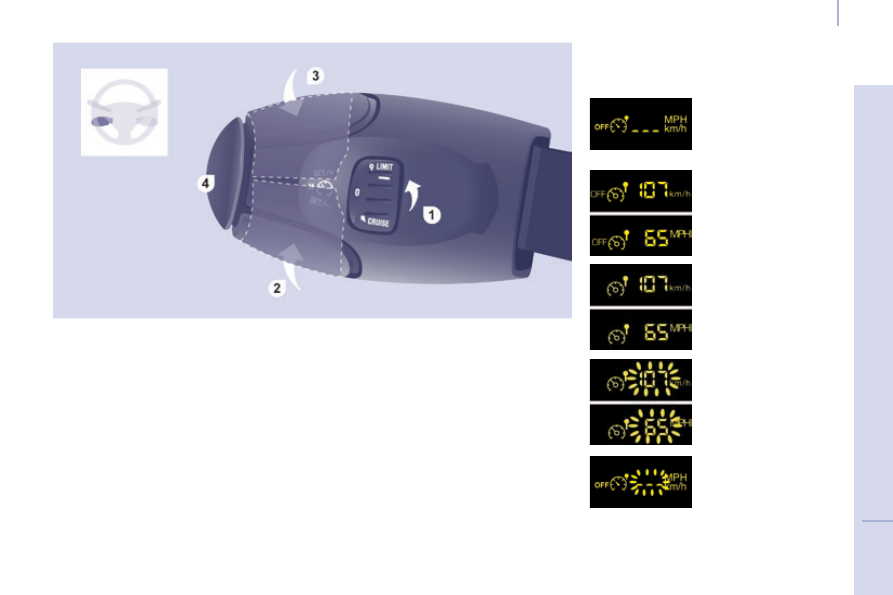

SPEED LIMITER

"LIMIT"

Function selected,
displaying of the
"Speed Limiter"

symbol.

Function off,
last programmed
speed - OFF

Function on.

Vehicle speed above,
the programmed
speed setting is

displayed flashing.

Operating fault
detected,
OFF - the dashes

flash.

Limiter mode On / Off.

2. Reduce programmed speed

setting.

3. Increase programmed speed

setting.

Speed limiter On / Pause.

"This is the selected speed which the

driver does not wish to exceed".
This selection is made with the engine
running while stationary or with the vehicle

moving. The minimum speed which can

be programmed is 20 mph (30 km/h).

Steering mounted controls

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

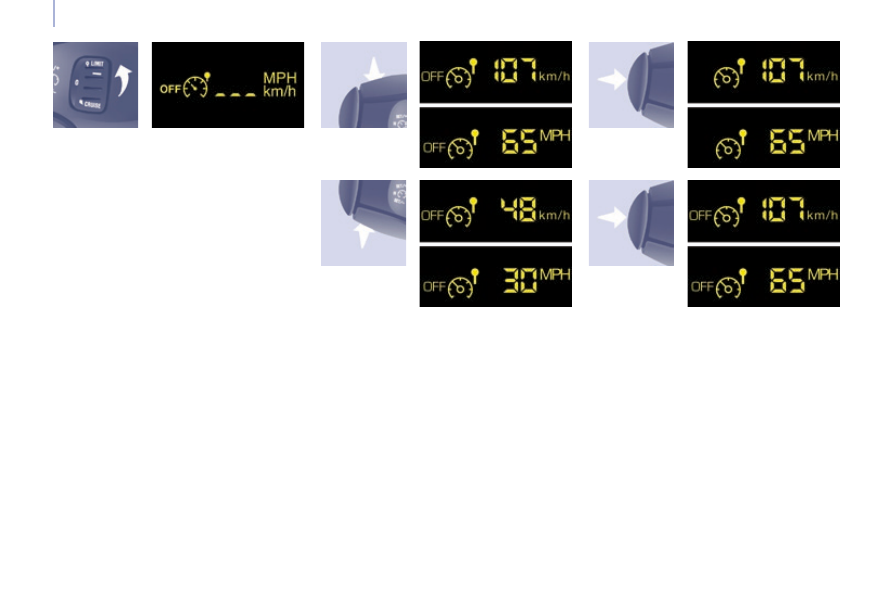

Selecting the function

Programming a speed setting

On / Off

Place the switch in the LIMIT

position. The limiter is selected

but is not yet active. The screen

indicates the last programmed

speed setting.

A speed can be programmed without
activating the limiter but with the

engine running.
To memorise a speed higher than the

previous one:
-

Press the SET +

button.

A brief press increases the speed by 1 mph (km/h).
A maintained press increases the speed in steps of

5 mph (km/h).
To memorise a speed lower than the

previous one.
-

Press the SET -

button.

A brief press decreases the speed by 1 mph (km/h).
A maintained press decreases the speed in steps of

5 mph (km/h).

Pressing this button once activates
the limiter, pressing the button again
deactivates it (OFF)

Steering mounted controls

EASE OF US

E and

COMFORT

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Exceeding the programmed
speed

Switching the function off

Operating fault

The programmed speed is cleared

then replaced by three dashes.
Contact a CITROËN dealer or a

qualified workshop to have the system

checked.

Flashing of the speed setting

Good practice
In any event, the speed limiter cannot
replace the need to observe speed
limits, nor can it replace the need for

vigilance on the part of the driver.

Always pay attention to the profile

of the road and sharp acceleration
and stay in complete control of your

vehicle.

To avoid any jamming under the

pedals:

- ensure that the mat and its fixings

on the floor are positioned correctly,

never place one mat on top of

another.

Pressing the accelerator pedal in order
to exceed the programmed speed
will have no effect unless you press
the pedal

firmly beyond the point of

resistance

The limiter is deactivated temporarily

and the programmed speed flashes

accompanied by an audible signal.
To return to the limiter function, reduce
your speed to below the programmed

speed.

The speed setting flashes:
-

following forcing of the accelerator
point of resistance,

when the limiter cannot prevent an
increase in the vehicle speed due

to the profile of the road or on a

steep descent,

- in the event of sharp acceleration.

Place the switch in position 0 or
switch off the ignition to switch the

system off.

The last programmed speed remains in

the memory.

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Ventilation

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

VENTILATION

the side vents and the central
vents,

Air flow

the footwells,

the windscreen and the footwells,

the windscreen.

The air distribution can be
modulated by placing the
control in the intermediate

positions, marked "●".

Air distribution

The air supply distribution is

determined by the following symbols:

in the red zone, provides
heating of the passenger

compartment.

in the blue zone, provides
ambient air,

The speed of the blown air at
the vents varies from 1 to the

fastest 4. Position 0 switches

it off.

Adjust this control in order

to attain the desired comfort

level.

Heating

Manual air conditioning

Temperature

Control positioned:

EASE OF USE

and

COMFORT

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Ventilation

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Intake of exterior air

Recirculation of interior air

Air conditioning A/C

The LED in the button is

off. This is the preferred

operating position.

Pressing the button starts
the air conditioning system,

the LED is on. Pressing the

button again switches the
function off and the LED

goes off.

The air conditioning does not operate if

the fan speed is set to 0.

The air conditioning can only operate

with the engine running.

The LED in the button is on.

Recirculation temporarily
prevents exterior odours

and smoke from entering the

passenger compartment.

Used with the setting of the fan speed
(from 1 to 4), recirculation enables you
to attain the desired comfort level more

quickly with both hot or cold settings.

This position should only be temporary.

When your desired comfort level has

been reached, return to the intake

of exterior air position to permit
renewal of the air in the passenger

compartment and avoid misting. This is

the preferred operating mode.

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Ventilation

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Good practice

For maximum cooling or heating of the
passenger compartment, it is possible
to exceed the value 15 by turning until

LO is displayed or the value 27 by

turning until HI is displayed.
On entering the vehicle, the inside
temperature may be much colder

(or warmer) than is comfortable. There

is no advantage in changing the value

displayed in order to quickly reach the

level of comfort required. The system

will use its maximum performance to

reach the comfort value set.

DIGITAL AIR CONDITIONING

Automatic operation

AUTO comfort programme
This is the normal air conditioning

system operating mode.

Driver or passenger side comfort
value
The value indicated in the screen
corresponds to a level of comfort and
not a temperature in degrees Celsius

or Fahrenheit.

Turn this control to the left
or to the right to decrease or

increase the value. A setting

around the value 21 provides

optimum comfort. However,

depending on your requirements, a

setting between 18 and 24 is usual.

Do not cover the sunshine sensor

located on the dashboard.

Press this button, the AUTO

symbol is displayed.
The system controls the

distribution, the flow and the

intake of air to guarantee

comfort and a sufficient circulation

of air in the passenger compartment

according to the comfort value set. No

further action on your part is required.

Air flow will increase gradually when

the engine is cold, to prevent excessive

distribution of cold air.
For your comfort, the settings are
stored when the ignition is switched off
and are reinstated the next time the

vehicle is started.
The automatic function will no longer
be maintained if you change a setting

manually (AUTO is cleared).

SEPARATE SETTINGS FOR DRIVER AND PASSENGER

EASE OF USE

and

COMFORT

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Ventilation

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Manual operation

You can, according to your

requirements, make a different selection

from that offered by the system by

changing a setting. The other functions

will still be controlled automatically.

Pressing the AUTO button restores fully

automatic operation.

Air distribution
Pressing this button several
times in succession directs

the air flow towards:

the windscreen,

the windscreen and footwells,

the footwells,

the side vents, central vents and
footwells,

- the side vents and central vents.

Air flow
Press the small fan button to

reduce the flow or the large

fan button to increase the

flow.

On the display, the blades of the fan fill

when the flow is increased.

Switching the air
conditioning On / Off
Press this button, the A/C
symbol is displayed and the

air conditioning is activated.

Deactivating the system
Press the air flow small fan

button until the fan
symbol disappears from the

display.

This action deactivates all of the
system's functions, with the exception
of the air recirculation and rear screen

demisting (if fitted on your vehicle).

Your comfort setting is no longer

maintained and is switched off.

Intake of exterior air /
Recirculation of interior air
Press this button to

recirculate the interior air.

The recirculation symbol is

displayed.

Pressing the large fan
button or the AUTO button
reactivates the system with
the values set before it was

deactivated.

Recirculation prevents exterior odours

and smoke from entering the passenger

compartment. Avoid prolonged operation

in interior air recirculation mode (risk of

condensation, odour and humidity).
Pressing this button again activates the

intake of exterior air.

Pressing this button again switches off

the air conditioning.

The ventilation outlet, located
in the glove box, diffuses cool
air (if the air conditioning is

on) regardless of the reference
temperature requested in the
passenger compartment and

regardless of the exterior temperature.

For your comfort, do not deactivate the

system for long periods.

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Ventilation

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Recommended settings for air conditioning

If I require...

Air distribution

Temperature

Air flow

Air recirculation

A/C

Heating

Cooling

Demisting

Defrosting

With automatic digital air conditioning, operation in AUTO mode is recommended,

irrespective of the requirement.

Remember to switch it off when the ambient air suits your requirements.

EASE OF USE

and

COMFORT

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Ventilation

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

DEMISTING AND DEFROSTING

Manual mode

Turn the control to this

temperature setting.

Increase the air flow setting.

Press the air conditioning button.

Returning to exterior air

intake open permits renewal

of the air in the passenger

compartment (LED off).

Turn the control to this air

distribution setting.

Demisting the rear screen and/
or mirrors

Pressing this button, with the
engine running, activates the
rapid demisting - defrosting of

the rear screen and/or electric

mirrors.

This function switches off:
-

when the button is pressed,

when the engine is switched off,

automatically to prevent excessive

energy consumption.

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Ventilation

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

DEMISTING AND DEFROSTING

GOOD PRACTICE

Vents

"Leave them open"
For optimum distribution and diffusion
of hot or cool air in the passenger

compartment, there are adjustable

central and side vents which can
be directed sideways (right or left)

or vertically (up or down). For your

comfort while driving, do not close

them and direct the flow of air towards

the windows instead.
Air vents in the footwells and directed
towards the windscreen complete the

equipment.

Do not block the vents located at the

windscreen or the air extractor located

in the boot.

Dust filter, odour filter
(activated carbon)

This filter traps certain dust and limits

odours.

Ensure that this filter is in good

condition and have all of the filter

elements replaced regularly.

Refer to the "Checks" section of

chapter 7.

Air conditioning

In all seasons, the air conditioning
should only be used with the

windows closed. However, if the

interior temperature remains high

after a prolonged period parked in

the sun, first ventilate the passenger

compartment for a few minutes.
Use the AUTO mode as much as
possible as it permits optimised

control of all of the functions: air flow,

passenger compartment comfort
temperature, air distribution, air

intake mode or air recirculation in the

passenger compartment.
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,

to keep it in good working order.
If the system does not produce cold air,
do not use it and contact a CITROËN

dealer or a qualified workshop.

Automatic mode: visibility
programme
The comfort programme (AUTO) may

not be sufficient to quickly demist or

defrost the windows (humidity, several

passengers, ice).
In this case, select the visibility

programme. The visibility programme

indicator comes on.
It activates the air conditioning, the air

flow and provides optimum distribution

of the ventilation to the windscreen and

side windows.

It deactivates the air recirculation.

It is normal that the condensation
created by the air conditioning system

results in a flow of water which may

form a puddle under the vehicle when

parked.

EASE OF USE

and

COMFORT

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Seats

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

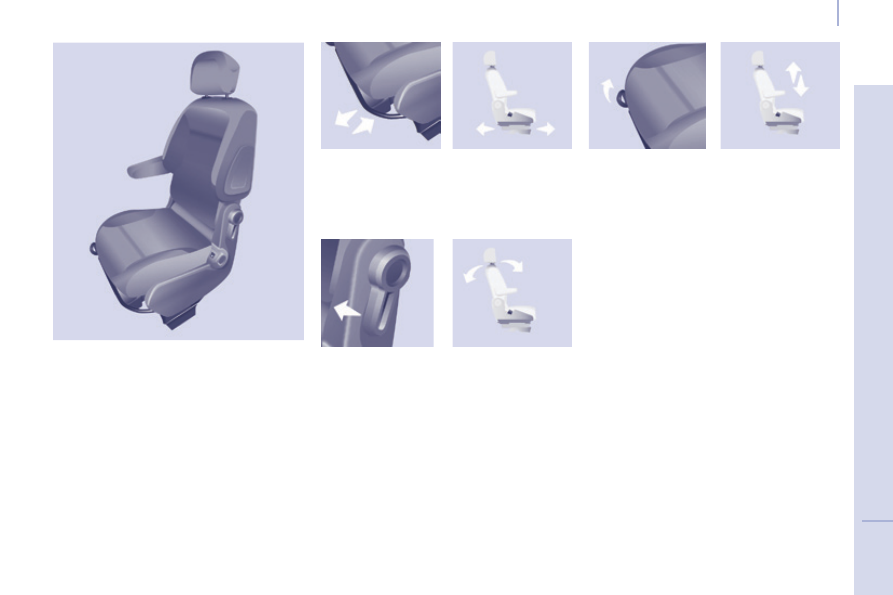

FRONT SEATS

Forwards/backwards

Seat height (driver)

To raise the seat, pull the control

upwards then take your weight off the

seat cushion.
To lower the seat, pull the control
upwards then push on the seat

cushion.

Seat backrest angle

Lift the bar and slide the seat forwards

or backwards.

The following adjustments are

available:

With your back pressed against the

seat backrest, move the lever forwards

and set the required angle.

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Seats

Berlingo2VP_en_Chap04_Ergonomie_ed02-2016

Never drive with the head
restraints removed; they must be

in place and correctly adjusted.

Adjustable armrest

Front heated seats control

Each front seat may be fitted with a

control located on the side part of the

cushion.

Press to switch on the cushion heating.

Press again to switch it off.

Head restraint height

To raise the head restraint, slide it vertically

upwards.
To lower the head restraint, press the
button and slide the head restraint

vertically downwards.

The adjustment is correct when the upper

edge of the head restraint is level with the

top of the head.
To remove the head restraint, press the

button and pull the head restraint upwards.
To re-install the head restraint, engage

the rods in the holes making sure they are

aligned with the seat back.

To access the vertical position, raise

the armrest until it locks.
Lower the armrest to return it to a

position for use.
To remove the armrest, press the
release button from the vertical position

and move aside the armrest.

To put the armrest back in place, clip it

in the vertical position.

If the vehicle is fitted with the additional

console and an armrest, to fold the
passenger seat to the table position

remove the console or the armrest.

Content .. 3 4 5 6 ..
