19

Technical data

DS3-Cabrio_en_Chap10_caracteristiques_ed02-2015

Petrol engines

PureTech 82

VTi 120

PureTech 110

PureTech 110 S&S

Gearbox

 Manual

(5-speed)

 Automatic

(4-speed)

 EAT6

(6-speed

automatic)

 Manual

(5-speed)

 EAT6 (6-speed automatic)

Model code:

SB...

 HMZ6

 5FS9

 HNVT

 HNZ6/S

 HNZT/S

 HNVT/S

 Unladen  weight

 1  035

 1  133

 1  145

 1  090

 1  150

 -

 Kerb  weight

 1  110

 1  208

 1  220

 1  165

 1  225

 -

 Gross vehicle weight
(GVW)

 1  536

 1  610

 1  630

 1  598

 1  635

 -

 Gross train weight (GTW)
on a 12% gradient

 2  336

 2  510

 2  530

 2  498

 2  535

 -

 Braked trailer (within the GTW limit)
on a 12% gradient

 800

 900

 900

 900

 900

 -

 Braked trailer *  (with transfer of load within the
GTW limit)

 1  100

 1  150

 1  150

 1  100

 1  150

 -

 Unbraked  trailer

 520

 570

 570

 520

 570

 -

 Recommended nose weight

 46

 46

 46

 46

 46

 -

  *    The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning,

towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

             Petrol  weights  and  towed  loads  (in  kg)

Technical data

20

DS3-Cabrio_en_Chap10_caracteristiques_ed02-2015

  *    The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning,

towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

  **    For  Belgium.

 Petrol weights and towed loads (in kg)

 The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
 The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
 High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

Petrol engines

PureTech 130 S&S

THP 165 S&S

THP 150 S&S **

Gearbox

  Manual  (5-speed)

  Manual  (6-speed)

Model code:

SB...

  HNYM/S

  5GZM/S

 5GWM/S **

 Unladen  weight

  1  120

  1  165

 Kerb  weight

  1  195

  1  240

 Gross vehicle weight
(GVW)

  1  620

  1  630

 Gross train weight (GTW)
on a 12% gradient

  2  520

  2  530

 Braked trailer (within the GTW limit)
on a 12% gradient

  900

  900

 Braked trailer *  (with transfer of load within the
GTW limit)

  1  150

  1  150

 Unbraked  trailer

  570

  570

 Recommended nose weight

  46

  46

21

Technical data

DS3-Cabrio_en_Chap10_caracteristiques_ed02-2015

  *   See the "Towing a trailer" section of the DS 3 user guide.

 Weights (in kg) - GT RACING

Petrol engine

208 Racing

Gearbox

  Manual  (6-speed)

Model codes : SB...

  5GRM/S

 Unladen  weight

  1  166

 Kerb  weight

  1  241

 Gross vehicle weight
(GVW)

  1  629

 Gross train weight (GTW)
on a 12% gradient

  1  629

 Braked trailer (within the GTW limit)
on a 12% gradient

  0

 Braked trailer (with transfer of load within the
GTW limit)

  0

 Unbraked  trailer

  0

 Recommended  nose  weight *

  0

Technical data

22

DS3-Cabrio_en_Chap10_caracteristiques_ed02-2015

Diesel engine

BlueHDi 100 S&S

BlueHDi 120 S&S

BlueHDi 115 S&S **

Gearbox

  Manual  (5-speed)

  Manual  (6-speed)

Model code:

SB...

  BHY6/S

  BHZM/S

 BHXM/S **

 Cubic capacity (cc)

  1  560

  1  560

 Bore x stroke (mm)

  75  x  88.3

  75  x  88.3

 Max power: EU standard (kW) *

  73

  88

85 **

 Max power engine speed (rpm)

  3  750

  3  500

 Max torque: EU standard (Nm)

  254

  300

 Max torque engine speed (rpm)

  1  750

  1  750

 Fuel

  Diesel

  Diesel

 Catalytic  converter

  Yes

  Yes

 Particle filter (FAP)

  Yes

  Yes

 Engine oil capacity (in litres) (with filter
replacement)

  3.75

  3.75

  .../S:  model fitted with Stop & Start

           Diesel  engines

  *    The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation

(Directive  1999/99/EC).

  **    For  Belgium.

23

Technical data

DS3-Cabrio_en_Chap10_caracteristiques_ed02-2015

Diesel engine

BlueHDi 100 S&S

BlueHDi 120 S&S

BlueHDi 115 S&S **

Gearbox

  Manual  (5-speed)

  Manual  (6-speed)

Model  code:

SB...

  BHY6/S

  BHZM/S

 BHXM/S **

   -

Unladen  weight

  1  148

  1  200

   -

Kerb  weight

  1  223

  1  275

   -

Gross  vehicle  weight
(GVW)

  1  652

  1  665

   -

Gross  train  weight  (GTW)



on a 12 % gradient

  2  552

  2  565

   -

Braked  trailer  (within  GTW  limit)



on a 12 % gradient

  900

  900

   -

Braked  trailer *   (with  load  transfer  with  the
GTW  limit)

  1  150

  1  150

   -

Unbraked  trailer

  570

  570

   -

Recommended  nose  weight

  46

  46

  *    The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount. Warning:

towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

  **    For  Belgium.

 The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
 The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
 High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

             Diesel  weights  and  towed  loads  (in  kg)

Technical data

24

DS3-Cabrio_en_Chap10_caracteristiques_ed02-2015

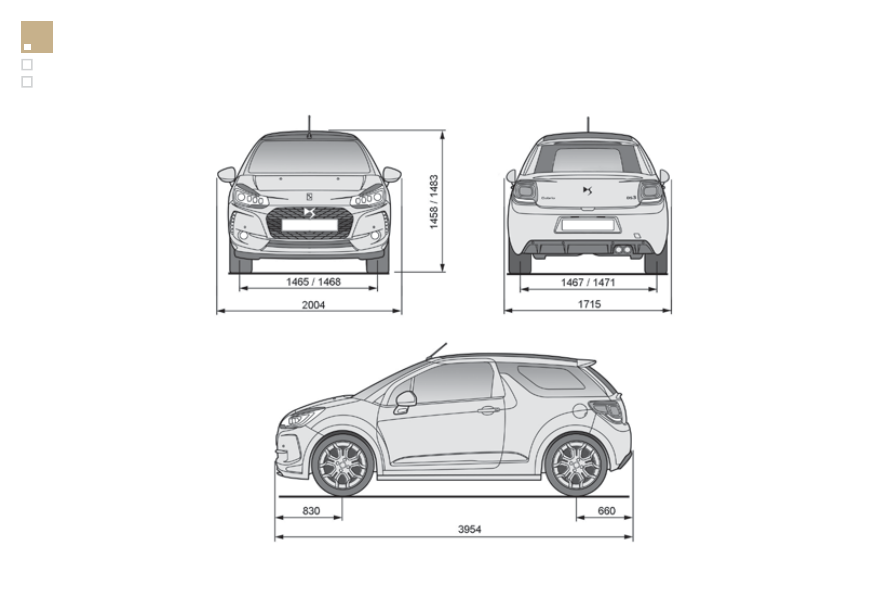

      Dimensions (in mm)

25

Technical data

DS3-Cabrio_en_Chap10_caracteristiques_ed02-2015

 Dimensions (in mm) - GT RACING

  Bumpers and lower body

 Your vehicle has reduced ground
clearance.
 Take care when traversing kerbs,
speed humps, access ramps, fords,
unmade  roads…
