Citroen DS3 (2016 year). Instruction

Access

DS3-Cabrio_en_Chap02_ouvertures_ed02-2015

In order to maintain the state of charge
of the battery, it is recommended that the
roof be operated with the

engine running .

Operation of the roof is possible:
- engine running, or
-

ignition on.

During operation of the roof with just
the ignition on, starting the engine may
cause the roof to stop, depending on
the state of charge of the battery. To
have the roof continue the operation,
operate the control again after the
engine has started.

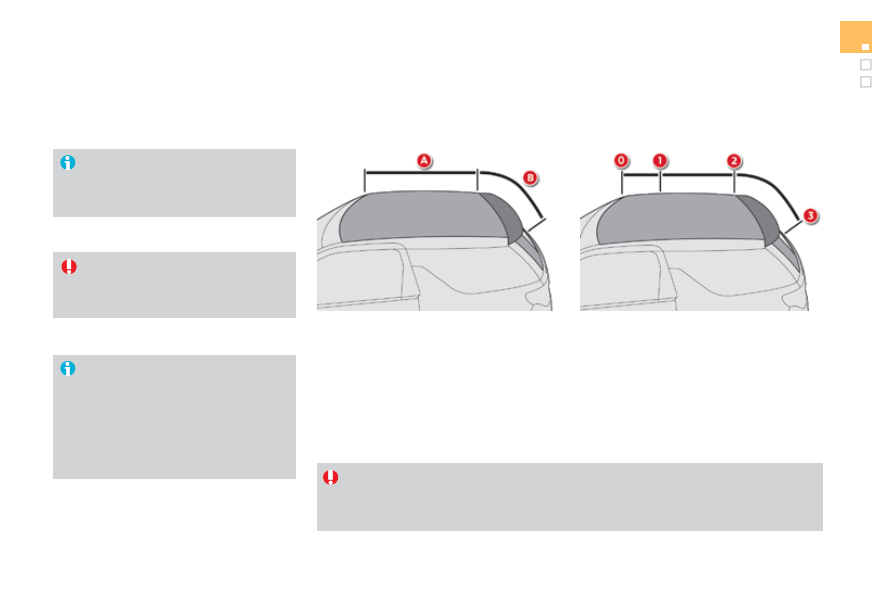

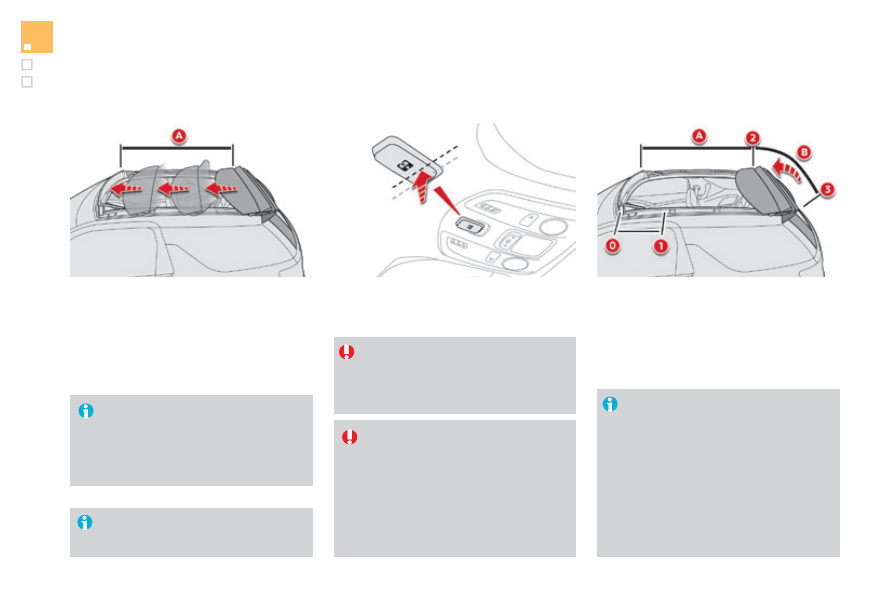

Operating zones

There are two operating zones:

Zone A : horizontal operating zone, in manual

or automatic mode.

Zone B : vertical operating zone, in automatic

mode only.

Before operating the roof, ensure that no occupant of the vehicle or person outside the
vehicle could be subject to any risk related to the movement of the roof or the rear screen
and that no object could interfere with the operation.

Roof positions

Position 0 : Roof completely closed.

Position 1 : Stop position for automatic roof

closing.

Position 2 : Roof open horizontally.

Position 3 : Roof completely open.

Access

DS3-Cabrio_en_Chap02_ouvertures_ed02-2015

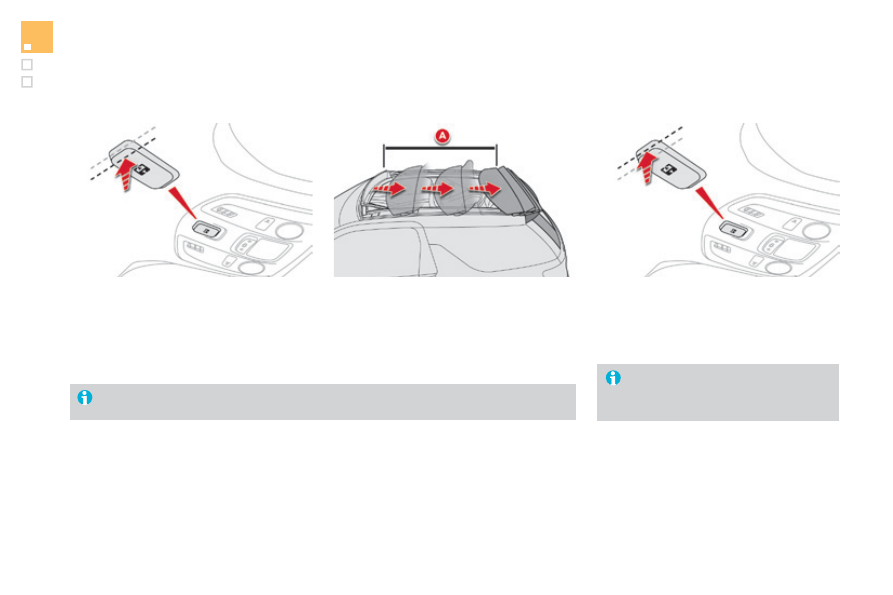

Opening

Manual mode

Automatic mode

During automatic operation of the roof
in zone

A , pressing the control stops

the roof.

Opening of the roof in zone

B can only be done in automatic mode.

 In zone

A , press the control beyond the

point of resistance to begin opening the
roof.

 In zone

A , press and hold the control

without passing the point of resistance to
open the roof.

 The roof stops as soon as you release the

control.

Access

DS3-Cabrio_en_Chap02_ouvertures_ed02-2015

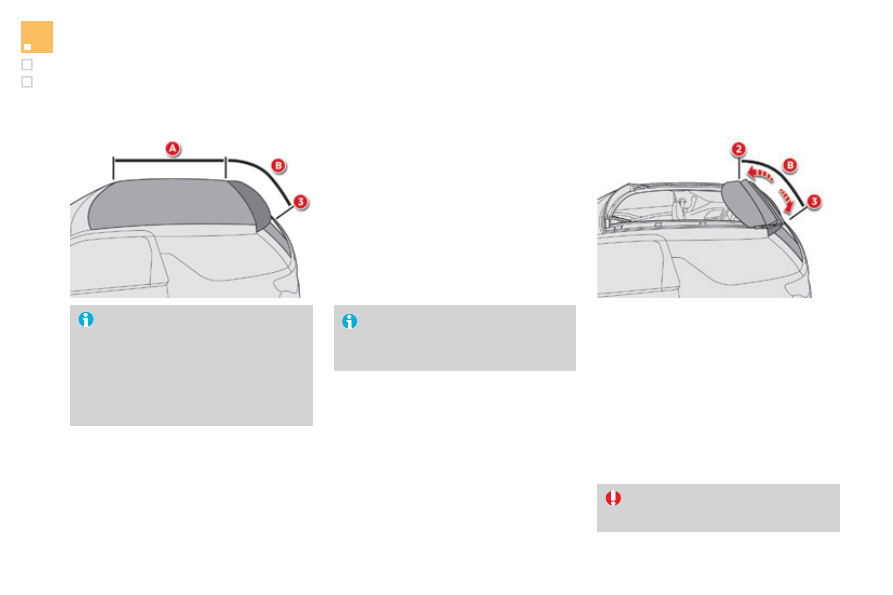

During complete opening of the roof,
the rear screen comes down onto the
rear shelf. Ensure that no object is left
on the shelf which might damage the
rear screen or the roof.

Automatic opening of the roof in zone

is not possible if the boot is open.
In the event of a problem, check that
the boot is fully closed .

During an operation in zone

B , an

instruction to stop the roof is not
possible.
Pressing the control reverses the
direction of movement of the roof,
whichever direction the control is
pressed.
This "anti-panic" function allows a quick
change in direction of movement of the
roof if suddenly required.

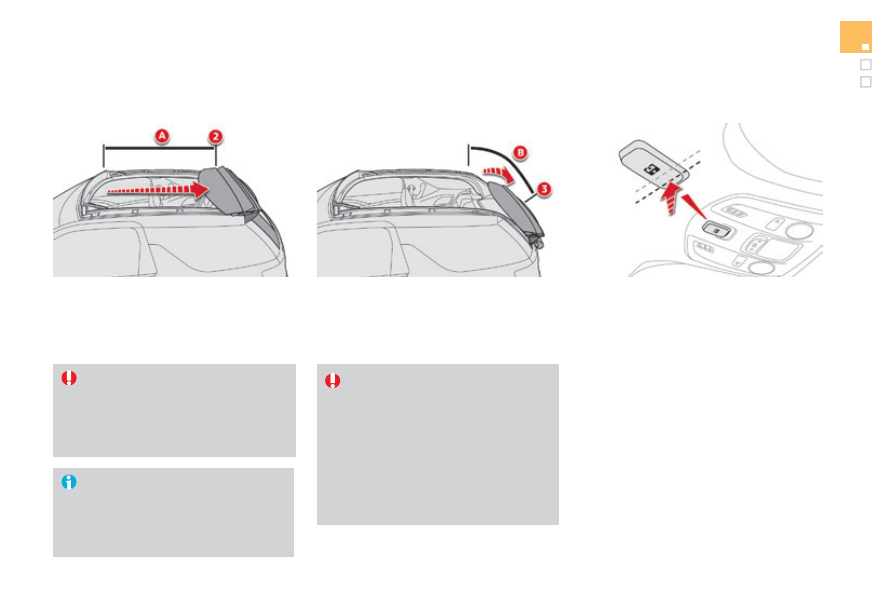

 Release the control: opening of the roof

continues up to the maximum horizontal
position (position

2 ).

 In zone

B , a press on the control opens the

roof completely (position

3 ).

Closing

Manual mode

 In zone

A , press and hold the control

without passing the point of resistance
to close the roof.

Access

DS3-Cabrio_en_Chap02_ouvertures_ed02-2015

Automatic mode

 In position

3 , press the control to begin

closing the roof.

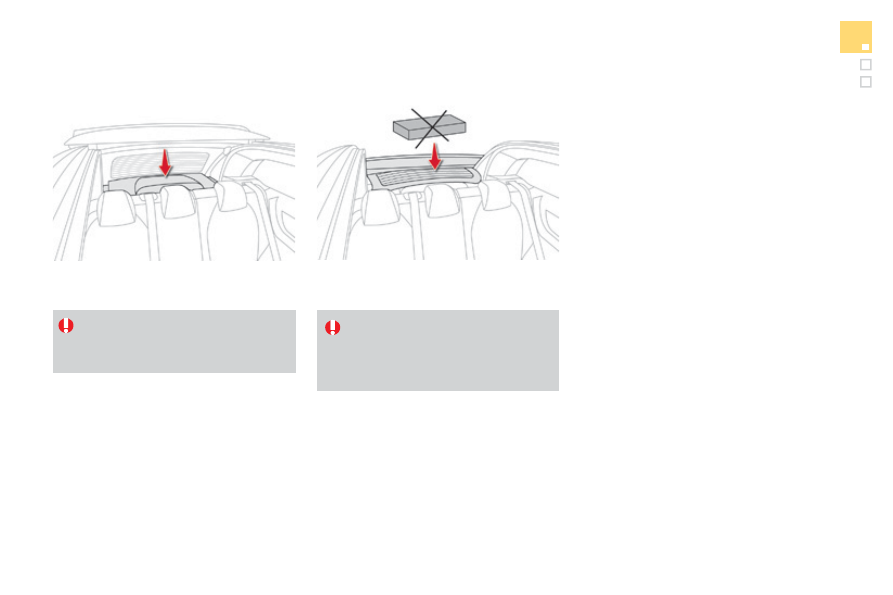

When the roof is completely open,

the rear screen rests on the rear

shelf.

Do not place any object on the rear

screen.

Closing the roof in zone

B can only be

done in

automatic mode.

Complete closing of the roof in zone

can only be done in

manual mode.

Press and hold the control until the roof
is heard to lock.
If the roof does not lock correctly,
operate the control again with the
engine running.
If the problem persists, contact
a CITROËN dealer or a qualified
workshop.

 Release the control: closing of the roof

continues up to position

2 .

During an operation in zone

B , an

instruction to stop the roof is not

possible.

Pressing the control reverses the

direction of movement of the roof,

whichever direction the control is

pressed.

This "anti-panic" function allows a quick

change in direction of movement of the

roof in the event if suddenly required.

If the roof does not lock correctly, operate
the control again with the engine running.
If the problem persists, contact
a CITROËN dealer or a qualified
workshop.

 The roof stops as soon as you release the

control.

 To close the roof completely, press and

hold the control until the the roof is heard
to lock.

Access

DS3-Cabrio_en_Chap02_ouvertures_ed02-2015

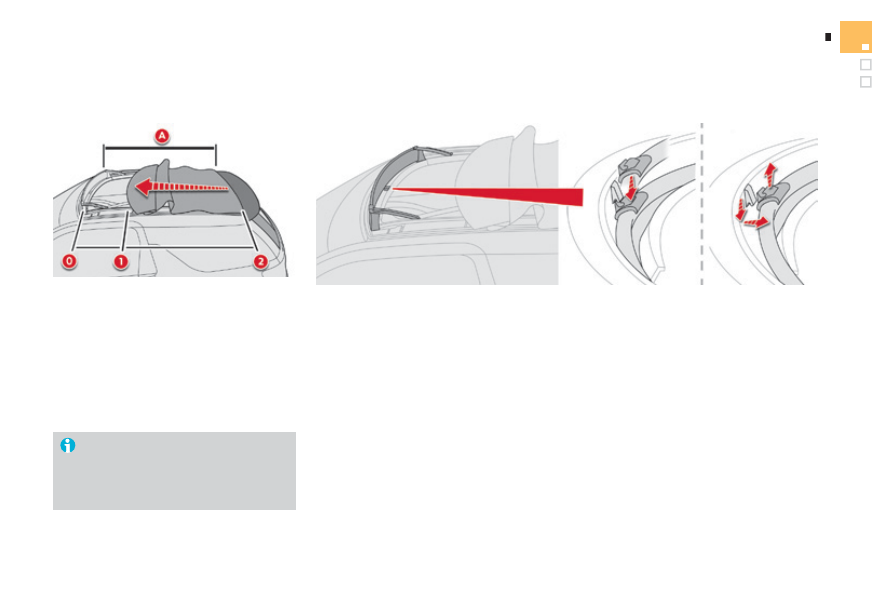

During automatic closing of the roof
in zone

A (position 2 to position 1 ),

pressing the control stops the roof.

 Between positions

2 and 1 , pressing the

control beyond the point of resistance
allows automatic closing of the roof to
position

1 .

 Between positions

1 and 0 , press and hold

the control until the roof closes fully.

Aero-acoustic deflector

An aero-acoustic deflector is available to
improve the acoustic comfort of occupants of
the vehicle in certain driving conditions (high
speed), by reducing the turbulence in the
passenger compartment resulting from the
displacement of air.
On opening the roof, the aero-acoustic
deflector may be deployed if it is not secured.
On closing the roof, the deflector folds away
automatically.

 With the roof open, this deflector can be

folded away manually and secured at its
centre: press vertically down on the cross
member near the paddle at the top of the
deflector and clip this paddle in the cut-out.

 To release and deploy the deflector

manually, press vertically down on the
cross member near the paddle to unclip
it from the cut-out and pull it gently
towards you.

Access

DS3-Cabrio_en_Chap02_ouvertures_ed02-2015

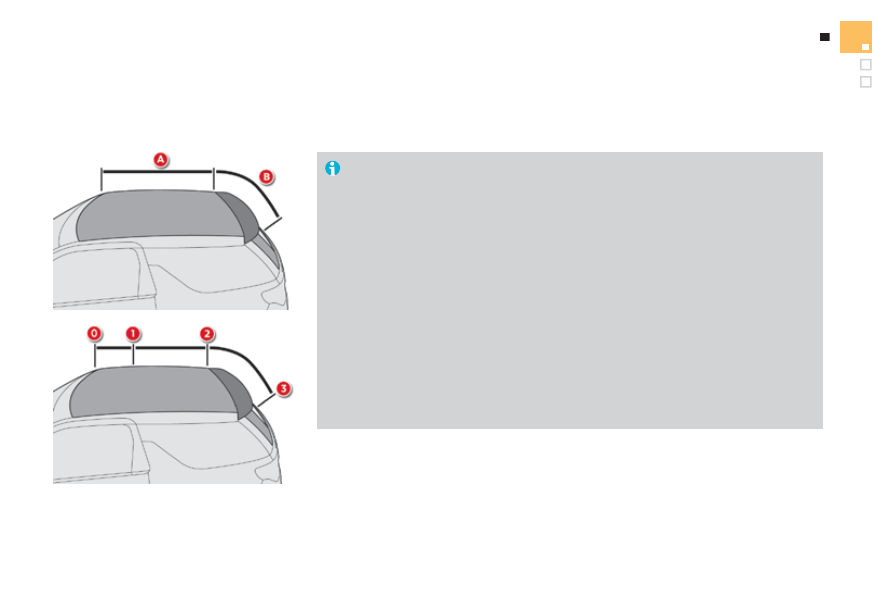

Operating the roof when

driving

If a roof operation is started while the vehicle's
speed is below about 70 mph (120 km/h),
exceeding this speed limitation leads to the
following situations, depending on the type of
roof operation in progress:
- an operation in progress in zone

A is

stopped,

   The roof opening and closing control
operates up to about 70 mph (120 km/h).
Above this speed, a message in the
screen informs you that operation of the
roof is not possible (speed too high).

- an opening operation in progress in zone

is continued through to completion,

- a closing operation in progress in zone

B is

stopped and complete opening of the roof
to position

3 is carried out automatically,

- an opening or closing operation in zone

following an "anti-panic" function is
continued through to completion.

A new operation of the roof will be
possible as soon as the vehicle's speed
drops below about 70 mph (120 km/h).

If the roof stops in zone

B , a message in the

screen will ask you to stop the operation of the
roof immediately.
 Press and hold the control:

- in the opening direction to reach

position

3 ,

- in the closing direction to reach

position

2 .

Downgraded operation

You must not drive when the roof is
stopped in zone

B .

Access

DS3-Cabrio_en_Chap02_ouvertures_ed02-2015

Precautions for use

Never place objects on the roof, whether open or closed.

In the event of prolonged storage of the vehicle outside, it is recommended that the roof be

protected with a cover.

To avoid damaging the roof, do not open it under snowy or frosty conditions.

Never use sharp tools to remove ice or accumulations of snow on the roof.

Never use scrapers or aerosol products to remove ice that may have formed on the rear

screen.

Avoid operating the heated rear screen when the roof is completely open (risk of

overheating).
To limit the creation of folds in the roof fabric, it is recommended that the roof not be left

open for long periods.

Operation of the vehicle's air conditioning system is not recommended while the roof is

open.
Never place objects on the transverse roof support when the roof is open.

It is recommended that the roof be closed when the vehicle is left parked.

Even if the roof is closed, it is prudent not to leave any valuable objects inside

the vehicle.

When you leave the vehicle, remove the ignition key to avoid any unwanted operation

of the roof.
If your vehicle has a voice command system, this may not work as well when driving with

the roof open.
Protection of the roof opening and closing electric motors: during repeated opening and

closing of the roof, the electric motors may become too hot and then no longer allow the

roof to be opened or closed. Allow the motors to cool down by not operating the roof for

ten minutes.

Reinitialisation

Do not release the control during the
reinitialisation procedure.

Operating

fault

In the event of an electrical fault,
contact a CITROËN dealer or a
qualified workshop.

If the automatic roof operation mode is lost, the
system must be reinitialised.


With the engine running , press and hold

the control for closing the roof.

 After about 5 seconds, the roof closes

completely to position

0 .

The roof is then reinitialised.

Access

DS3-Cabrio_en_Chap02_ouvertures_ed02-2015

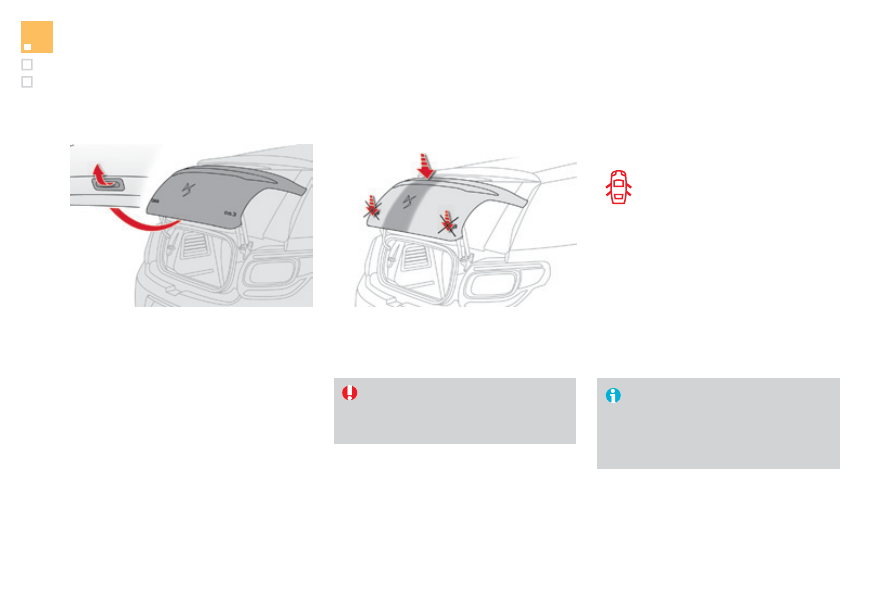

Boot

Opening

 After unlocking the vehicle using the

remote control or the key, press the
opening control and raise the boot lid.

Closing

 Lower the boot lid by pressing on the

middle of its finisher.

If the boot is not closed correctly:

when the engine is running , this

warning lamp comes on, accompanied
by a message on the multifunction
screen for a few seconds,

when the vehicle is moving (speed above

6 mph (10 km/h)), this warning lamp comes
on, accompanied by an audible signal and
a message in the multifunction screen for a
few seconds.

It is strongly recommended not to
lower the boot lid by pressing on
either end.

If the boot is not fully closed,
opening the roof in zone

B is not

possible.
Check that the boot is fully closed.

Access

DS3-Cabrio_en_Chap02_ouvertures_ed02-2015

If the roof is carrying out an opening operation in zone

B , an action on the boot opening

control causes the roof to close. The boot will be released when the roof reaches position

2 .

You can then raise the boot lid.

Conditions for opening the boot with the roof in zone B

To avoid interference between the boot and the roof in zone B, opening the boot depends on the position of the roof.

If the roof is carrying out a closing operation in zone

B , an action on the boot opening

control has no effect on the roof operation, but the boot will only be released once the roof
has reached position

2 . You can then raise the boot lid.

During an opening or closing operation of the roof in zone

B following an "anti-panic"

function, the boot opening control is inhibited. It will work again once the roof has reached
position

2 or position 3 .

If the roof is position

3 , an action on the boot opening control causes the closing of the roof

to position

2 . When the roof has reached this position, the boot lid will be released. You can

then raise the boot lid.

Access

DS3-Cabrio_en_Chap02_ouvertures_ed02-2015

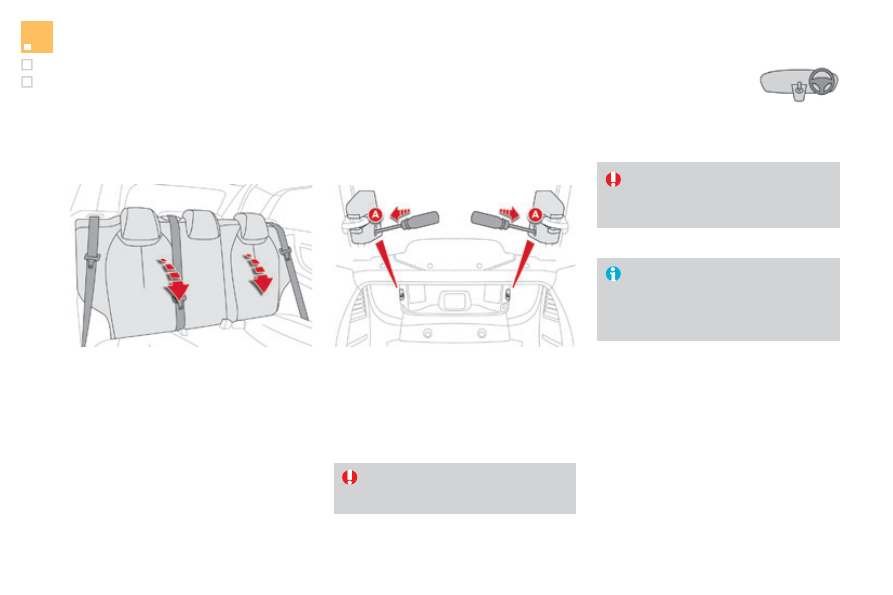

System for mechanical unlocking of the boot
in the event of a battery or central locking
malfunction.

Unlocking

Emergency release

 Insert a small screwdriver into hole

A of

each lateral latch to unlock the boot.

 Fold back the rear seat to gain access to

the two latches, from inside the boot.

Before opening the boot, ensure that
the roof is not in zone

B .

For information on the perimeter
protection of your vehicle, refer to the
DS 3 handbook.

The alarm provides only

perimeter

protection for your vehicle.

Alarm

System for the protection and dissuasion
against theft of your vehicle.

Practical information

DS3-Cabrio_en_Chap08_info-pratiques_ed02-2015

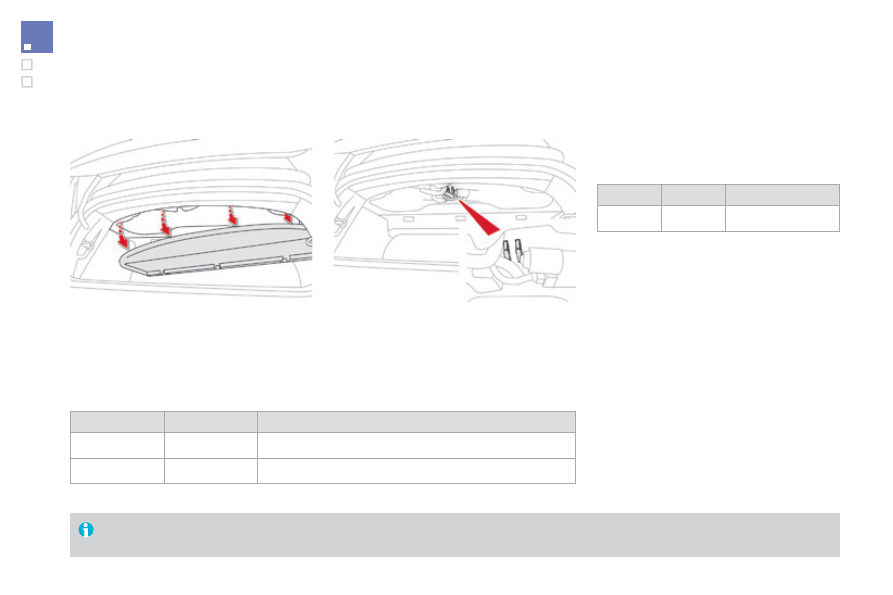

Changing a fuse

      To unclip the upper boot trim, pull it down, starting on the left.
     Remove the trim by tipping it downwards.
     Change  the  fuses.
To reassemble, carry out these operations in reverse order, starting at the back
of the boot.

Fuse under the bonnet

(maxi-fuse)

Fuse N°

Rating

Functions

20 A

Soft top roof

20 A

Soft top roof

If the roof is in zone

B when a fuse fails, it is then not possible to open the boot. To be able to open the boot and proceed with fuse

replacement, first close the roof manually from inside the boot (by folding the rear seats).

There are three fuses for the soft top roof.

Fuses under the rear shelf

Fuse N°

Rating

Functions

MF08

40 A

Soft top roof

The maxi-fuses provide additional protection
for the electrical systems. All work on the
maxi-fuses must be carried out by a CITROËN
dealer or a qualified workshop.

Practical information

DS3-Cabrio_en_Chap08_info-pratiques_ed02-2015

Recommendations on the care of your vehicle

Remove bird droppings or tree resins
as their acidity may damage the roof.

To avoid damaging the roof, never use
a high pressure jet wash.

Never use chemical products,
detergents, stain removers, solvents,
alcohol, petrol, ... to clean the roof.

The general recommendations on the care of your vehicle are given in the maintenance and warranty guide.

Allow the vehicle to dry in a shaded
area and avoid direct exposure to
the sun.

We recommend that you wash
your vehicle in an automatic roller car
wash.

To remove marks, sponge them (but
never rub them) using soapy water,
then immediately rinse with clean
water.

To waterproof the roof, use only special
waterproofing products for fabric roofs.

Soft top

Before washing the soft top, first
remove as much dirt as possible from
the surface using a soft brush or a
vacuum cleaner.

For the regular maintenance of the
soft top and to conserve its original
appearance, we recommend an
ecological "Fly remover - Soft top roof
cleaner" from the "TECHNATURE"
range. To obtain this product go to a
CITROËN dealer.

Aero-acoustic deflector

We recommend that you clean the
aero-acoustic defector

with care using

a soft brush.

Technical data

DS3-Cabrio_en_Chap10_caracteristiques_ed02-2015

Petrol engines

PureTech 82

VTi 120

PureTech 110

PureTech 110 S&S

Gearbox

Manual

(5-speed)

Automatic

(4-speed)

EAT6

(6-speed

automatic)

Manual

(5-speed)

EAT6 (6-speed automatic)

Model code:

SB...

HMZ6

5FS9

HNVT

HNZ6/S

HNZT/S

HNVT/S

Cubic capacity (cc)

1 199

1 598

1 199

Bore x stroke (mm)

75 x 90.5

77 x 85.8

75 x 90.5

Max power: EU standard (kW) *

Max power engine speed (rpm)

5 750

6 000

5 500

Max torque: EU standard (Nm)

118

160

205

Max torque engine speed (rpm)

2 750

4 250

1 500

Fuel

Unleaded

Catalytic converter

Yes

Engine oil capacity (in litres) (with filter
replacement)

3.25

4.25

3.25

.../S: model fitted with Stop & Start.

Petrol engines

* The maximum power corresponds to the type-approved value on a test bed, under conditions defined by European legislation

(Directive 1999/99/EC).

Technical data

DS3-Cabrio_en_Chap10_caracteristiques_ed02-2015

* The maximum power corresponds to the type-approved value on a test bed, under conditions defined by European legislation

(Directive 1999/99/EC).

** For Belgium.

Petrol engines

.../S: model fitted with Stop & Start.

Petrol engines

PureTech 130 S&S

THP 165 S&S

THP 150 S&S **

Gearbox

Manual (6-speed)

Model code:

SB...

HNYM/S

5GZM/S

5GWM/S **

Cubic capacity (cc)

1 199

1 598

Bore x stroke (mm)

75 x 90.5

77 x 85.8

Max power: EU standard (kW) *

120

110 **

Max power engine speed (rpm)

5 500

6 000

Max torque: EU standard (Nm)

230

240

Max torque engine speed (rpm)

1 750

1 400

Fuel

Unleaded

Catalytic converter

Yes

Engine oil capacity (in litres) (with filter
replacement)

3.5

4.25

DS3-Cabrio_en_Chap10_caracteristiques_ed02-2015

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation

(Directive 1999/99/EC).

Engines - GT RACING

Petrol engine

208 Racing

Gearbox

Manual (6-speed)

Model code : SB...

5GRM/S

Cubic capacity (cc)

1 598

Bore x stroke (mm)

77 x 85.8

Max power: EU standard (kW) *

153

Max power engine speed (rpm)

5 800

Max torque: EU standard (Nm)

300

Max torque engine speed (rpm)

1 700

Fuel

Unleaded

Catalytic converter

Yes

Engine oil capacity (in litres) (with filter
replacement)

4.25

Citroen DS3 (2016 year). Instruction - part 25
