P R A C T I C A L I N F O R M A T I O N

Main beam headlamps

Sidelamps



Remove the rubber cover.



Detach the clips by lowering

them on each side of the bulb.



Pull on the bulb-holder to remove it.



Replace the faulty bulb.



Push the bulb-holder back into

its housing.



Reattach the clips.



Reﬁ t the rubber cover.



Rotate the bulb-holder a quarter

turn anti-clockwise.



Remove it from its housing.



Replace the faulty bulb.



Reposition the bulb-holder.

 Rotate it a quarter turn clockwise

to reposition in its housing.

Direction indicators

The direction indicator bulb is located

underneath the main beam bulb.


Remove the rubber cover.



Pull on the bulb-holder to remove it.



Replace the faulty bulb.



Reposition the bulb-holder in the

bracket and push it in.



Reﬁ t the rubber cover.

176

P R A C T I C A L I N F O R M A T I O N

Integrated direction indicator
side repeaters

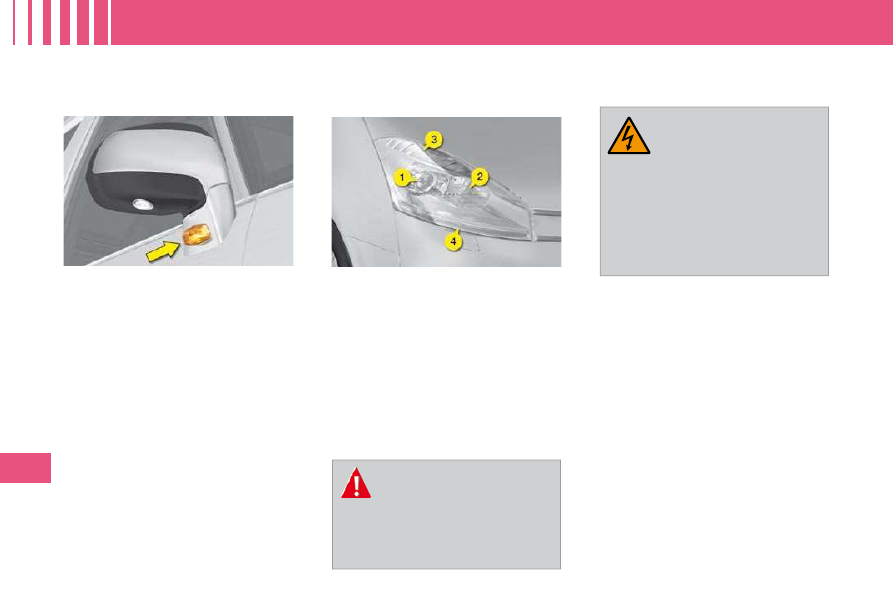

To change the repeater, press down-

wards ﬁ rmly on the zone indicated

by the arrow, then pull the repeater.

Repeaters can be obtained from a

CITROËN dealer.

Model with Xenon headlamps
and directional headlamps

1. Dual-function Xenon head-

lamps (dipped/main beam)

2. Additional main beams

(H7- 55 W )

3. Sidelamps (H6 W- 6 W )

(see previous page)

4. Direction indicators

(H21- 21 W )

(see previous page)

Dual-function Xenon headlamps
(dipped/main beam)

Additional main beams


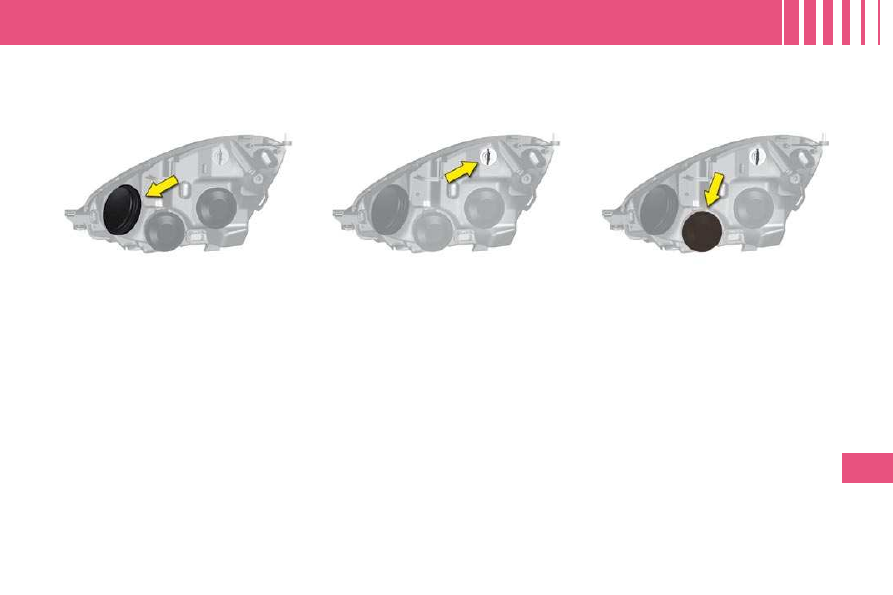

Remove the rubber cover.



Rotate the bulb-holder a quarter

turn anti-clockwise and remove it

from its housing.



Replace the faulty bulb.



Reposition the bulb-holder by

pushing it in, tightening it by a

quarter turn clockwise.



Reﬁ t the rubber cover.

If the headlamp bears this

symbol, any operation to

change the Xenon dual-

function directional head-

lamp (D1S-35 W) must be carried

out by professionals (risk of elec-

trocution).
Consult a CITROËN dealer.
It is recommended to change both

bulbs at the same time if one of

them is faulty.

When using a high-pres-

sure washer on persistent

marks, do not direct the jet

at the lamps or their edges for too

long, so as to avoid damaging their

protective coating and seals.

177

P R A C T I C A L I N F O R M A T I O N

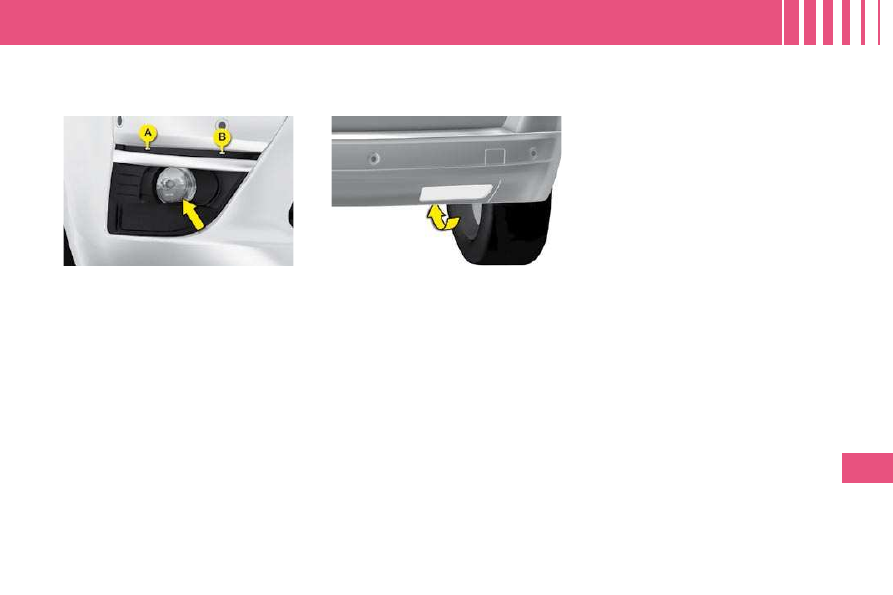

Front foglamps (H11-55 W)



Insert the key in the notch A , tilt-

ing the bulb-holder cover, locat-

ed underneath the bumper, then

insert the key in the notch B to

remove it.



Undo the lamp.



Tilt the bulb-holder.



Change the faulty bulb.



Reposition the bulb-holder.



Do up the lamp and reﬁ t the bulb-

holder cover ﬁ rmly in place.



Pass your hand underneath

the bumper to reach the bulb-

holder.



Rotate the bulb-holder a quarter

turn.



Pull on the bulb-holder.

 Rotate the bulb a quarter turn to

remove it.



Replace the faulty bulb.

 Fit the bulb.


Reposition the bulb-holder by

rotating it a quarter turn.

Rear foglamp (P21 W)

178

P R A C T I C A L I N F O R M A T I O N

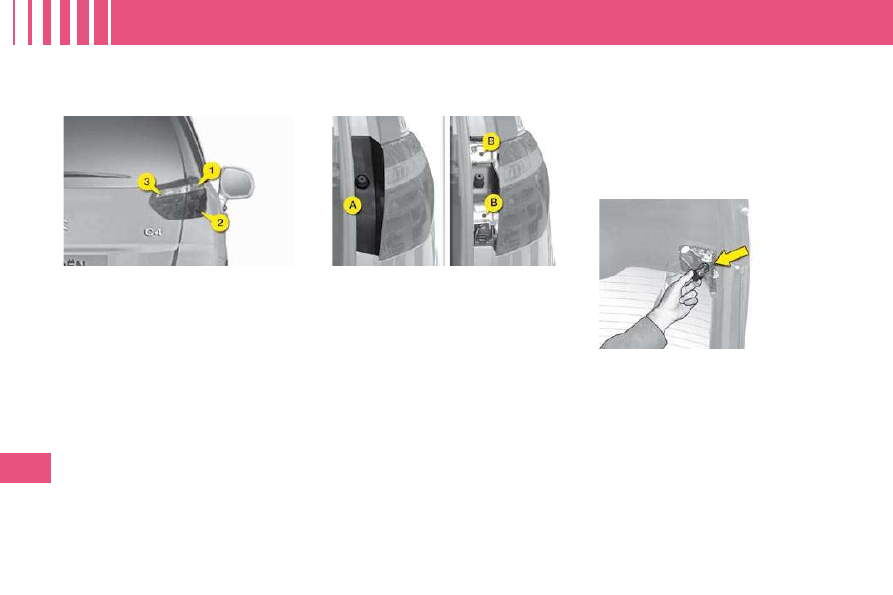

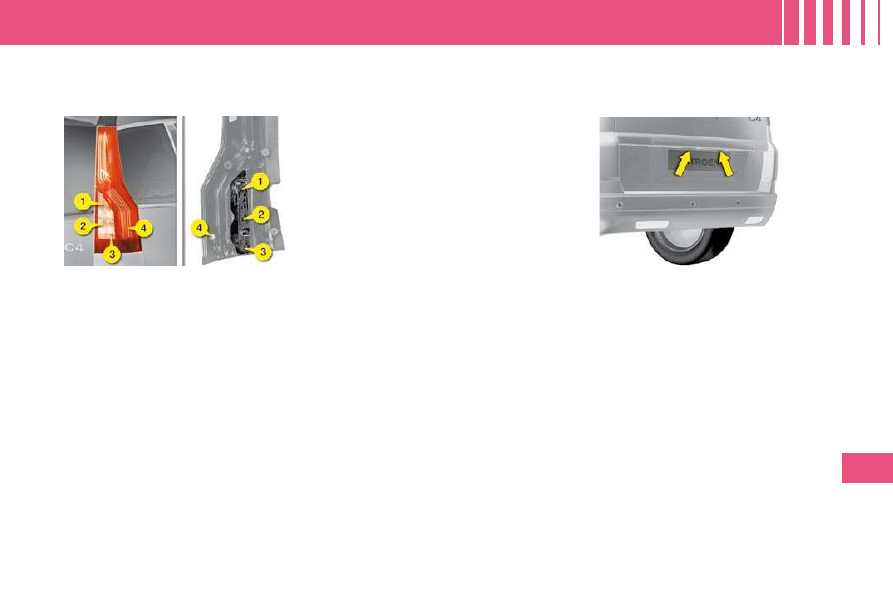

Rear lamps (C4 Picasso)

1. Direction indicators

(PY 21 W)

2. Stoplamps/sidelamps

(P21/5 W)

3. Reversing lamp (P21 W )



Identify the faulty bulb.



With the boot open, press on the

plastic cover A , located close

to the lens, to release it from its

housing.

 Undo the two screws B on the

side of the lens and detach the

lamp by pulling it rearwards.



Disconnect the connector linking

the lens unit with the tailgate.



Remove the bulb-holder.



Replace the bulbs.

To remove a bulb, rotate it a

quarter turn.

To reﬁ t the bulb, rotate it a quarter

turn in the other direction.



Reposition the bulb-holder.

 Reconnect the connector to the

lens unit.

Lamps mounted on the
bodywork



Identify the faulty bulb.



With the boot open, remove the

plastic cover on the tailgate.



Remove the bulb-holder from its

housing.



Replace the bulb.

To remove a bulb, rotate it a

quarter turn.

To reﬁ t the bulb, rotate it a quarter

turn in the other direction.



Reposition the bulb-holder.



Reﬁ t the plastic cover.

Lamps mounted on the tailgate



Reﬁ t the lamp unit on the body

and do up the two screws.



Reposition the plastic cover by

pressing on it.

179

P R A C T I C A L I N F O R M A T I O N

Rear lamps
(Grand C4 Picasso)

1. Direction indicators

(PY 21 W)

  2.    Stoplamps    (P21 W)
  3.    Reversing lamp    (P21 W)
  4.    Sidelamps (diodes)

For this type of lamp, contact a

CITROËN dealer.

Changing bulbs


Identify the faulty bulb.



With the tailgate open, undo the

3 screws located on the side of

the lens unit and pull it rearwards

to detach.



Disconnect the connector linking

the lens unit to the boot. Do not
disconnect the diodes.



Remove the seal.



Remove the bulb-holder.



Replace the bulbs.

To remove a bulb, rotate it a

quarter turn.

To ﬁ t the bulb, rotate it a quarter

turn in the other direction.



Reposition the bulb-holder.



Reﬁ t the seal.

 Reconnect the connector to the

lens unit.



Arrange the harness in the open-

ing provided in the body.



Reﬁ t the lens unit to the body

and ﬁ t and tighten the 3 screws.

Number plate lamps (W 5 W)

 Insert a thin screwdriver into one

of the external holes of the lens.



Push it outwards to unclip it.



Remove the lens.



Change the faulty bulb.

180

P R A C T I C A L I N F O R M A T I O N

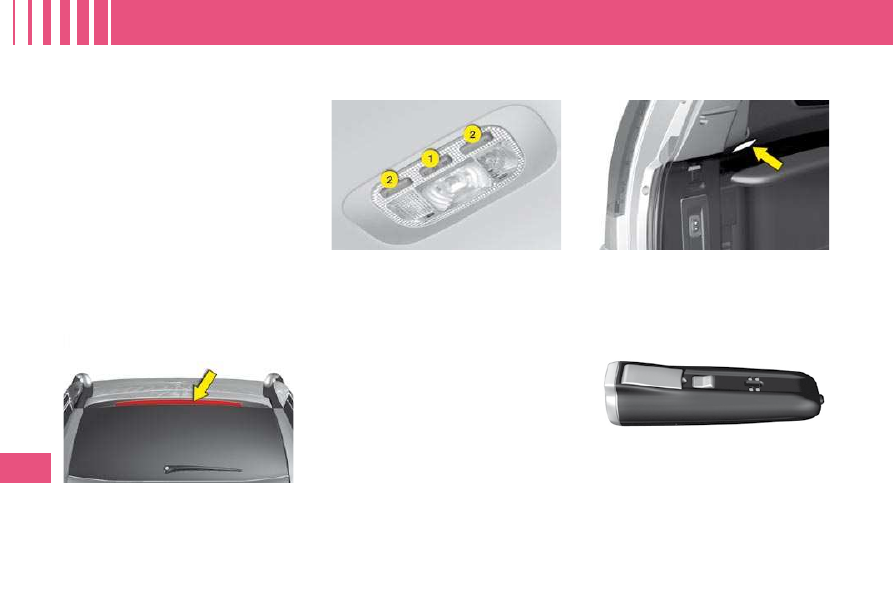

Third brake lamp with bulb
(W 5 W)


With the boot open, detach the

interior trim.

 Undo the nuts.


Using a thin screwdriver, detach

the 3 retaining lugs.



Remove the lamp via the exterior

of the tailgate.



Remove the bulb-holder.



Change the faulty bulb(s).

To reﬁ t, carry out these operations in

reverse order.

Third brake lamp (diodes)

For the replacement of this type of

diode lamp, contact a CITROËN

dealer.

Interior lighting

Interior lamp (1/W 5 W)

Detach the cover of the interior

lamp 1 with a thin screwdriver, close

to the button, to access the faulty

bulb.

Map reading lamps (2/W 5 W)

Detach the cover of the interior lamp.

To access the faulty bulb, detach the

partition for the reading lamp 2 con-

cerned, as necessary.

Boot lamps (W 5 W)

Detach the unit by pushing it rear-

wards.

Torch (Krypton 3.6 V)



Open the tab.



Push with a ﬂ at screwdriver

in the hole under the tab and
recover the bulb unit.



Open the bulb unit fully to change

the bulb.

180

P R A C T I C A L I N F O R M A T I O N

Third brake lamp with bulb
(W 5 W)


With the boot open, detach the

interior trim.

 Undo the nuts.


Using a thin screwdriver, detach

the 3 retaining lugs.



Remove the lamp via the exterior

of the tailgate.



Remove the bulb-holder.



Change the faulty bulb(s).

To reﬁ t, carry out these operations in

reverse order.

Third brake lamp (diodes)

For the replacement of this type of

diode lamp, contact a CITROËN

dealer.

Interior lighting

Interior lamp (1/W 5 W)

Detach the cover of the interior

lamp 1 with a thin screwdriver, close

to the button, to access the faulty

bulb.

Map reading lamps (2/W 5 W)

Detach the cover of the interior lamp.

To access the faulty bulb, detach the

partition for the reading lamp 2 con-

cerned, as necessary.

Boot lamps (W 5 W)

Detach the unit by pushing it rear-

wards.

Torch (Krypton 3.6 V)



Open the tab.



Push with a ﬂ at screwdriver

in the hole under the tab and
recover the bulb unit.



Open the bulb unit fully to change

the bulb.

181

P R A C T I C A L I N F O R M A T I O N

CHANGING A FUSE

Procedure for replacing a faulty fuse

with a new fuse to rectify a failure of

the corresponding function.

There are two fuseboxes under the

dashboard, one fusebox in the en-

gine compartment and another on

the battery.

Changing a fuse

Before replacing a fuse, it is essen-

tial to ﬁ nd the cause of the incident

and to have it rectiﬁ ed. The fuse

identiﬁ cation numbers are indicated

inside the fusebox.

Replace a blown fuse with one of the

same rating (the same colour).

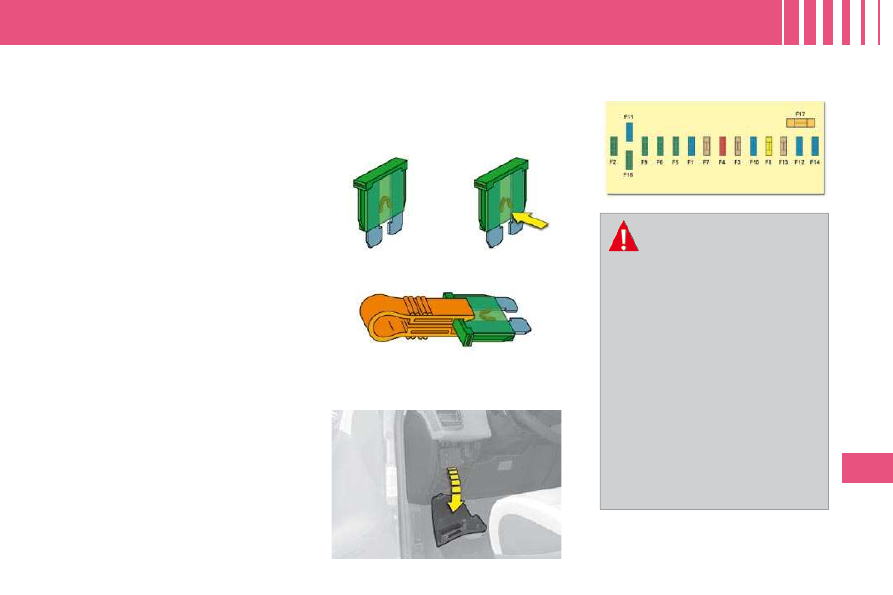

Use the special tool A that is pro-

vided in the fuse housing ﬂ ap, which

also contains spare fuses.

Correct

Incorrect

Tool A

Access to the ﬁ rst dashboard

fusebox

Fuses under the dashboard

Your

vehicle's

electrical

system is designed to oper-

ate with either standard or

optional equipment.

Before installing electrical equip-

ment or accessories on your vehi-

cle, consult a CITROËN dealer.

CITROËN declines all responsibil-

ity for the consequences and costs

that are caused by faults or repairs

on your vehicle resulting from the

installation of accessories that

are not supplied and/or not rec-

ommended by CITROËN and not

installed according to its instruc-

tions, particularly when the energy

consumption of all of the additional

accessories connected exceeds

10 milliamperes (Ma).

181

P R A C T I C A L I N F O R M A T I O N

CHANGING A FUSE

Procedure for replacing a faulty fuse

with a new fuse to rectify a failure of

the corresponding function.

There are two fuseboxes under the

dashboard, one fusebox in the en-

gine compartment and another on

the battery.

Changing a fuse

Before replacing a fuse, it is essen-

tial to ﬁ nd the cause of the incident

and to have it rectiﬁ ed. The fuse

identiﬁ cation numbers are indicated

inside the fusebox.

Replace a blown fuse with one of the

same rating (the same colour).

Use the special tool A that is pro-

vided in the fuse housing ﬂ ap, which

also contains spare fuses.

Correct

Incorrect

Tool A

Access to the ﬁ rst dashboard

fusebox

Fuses under the dashboard

Your

vehicle's

electrical

system is designed to oper-

ate with either standard or

optional equipment.

Before installing electrical equip-

ment or accessories on your vehi-

cle, consult a CITROËN dealer.

CITROËN declines all responsibil-

ity for the consequences and costs

that are caused by faults or repairs

on your vehicle resulting from the

installation of accessories that

are not supplied and/or not rec-

ommended by CITROËN and not

installed according to its instruc-

tions, particularly when the energy

consumption of all of the additional

accessories connected exceeds

10 milliamperes (Ma).

182

P R A C T I C A L I N F O R M A T I O N

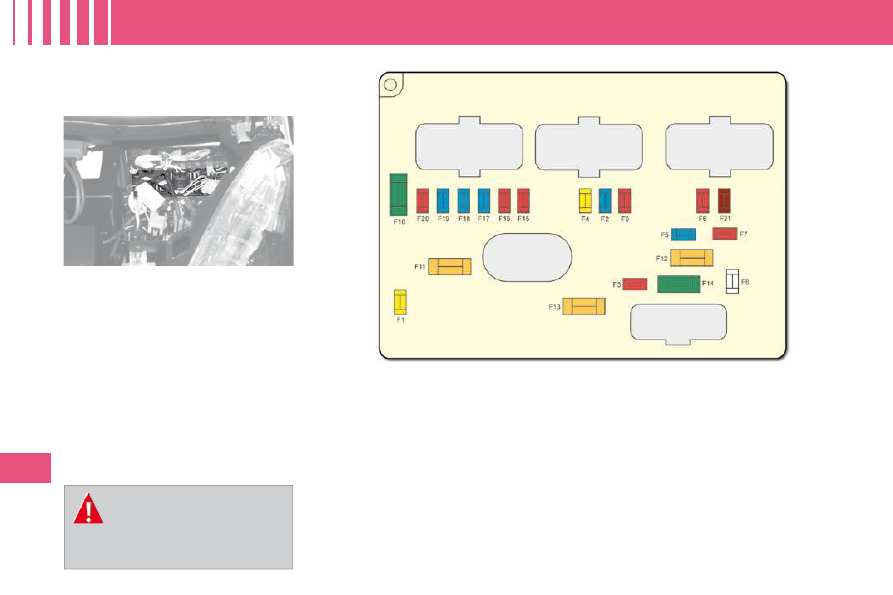

Fuses under the dashboard

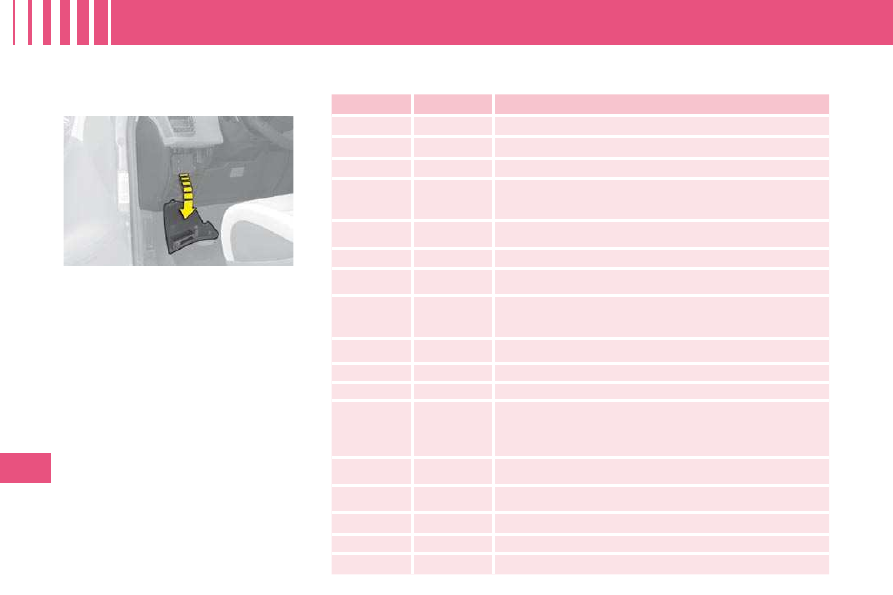

Access to the fuses


Undo the screw by a quarter turn

and pivot the housing.

Table of fuses

Fuse N°

Rating

Functions

15 A

Rear screen wipe

30 A

Locking and unlocking earth

5 A

Airbags and pretensioners

10 A

Multimedia, photochromic rear view mirror, particle

ﬁ lter, diagnostic socket, air conditioning, manual

headlamp height adjustment

30 A

Front windows, front door electronics control panel,

panoramic glass roof

30 A

Rear windows

5 A

Interior lamps, refrigerated glovebox, radio

20 A

Multifunction screen, radio, steering wheel controls,

multimedia, deﬂ ation detection, alarm, trailer

30 A

Multimedia, front 12 V sockets, torch, radio

F10

15 A

Height corrector (suspension)

F11

15 A

Brake switch, ignition switch

F12

15 A

Parking assistance, automatic screen wipe and

lighting, passenger’s electric seat, lane departure

warning system, Hi-Fi ampliﬁ er, trailer

F13

5 A

Engine relay unit (BSM), driver’s electric seat

F14

15 A

Air conditioning, Bluetooth

hands-free kit,

automatic gearbox lever, airbags, instrument panel

F15

30 A

Locking and unlocking

F16

SHUNT

F17

40 A

Heated rear screen

183

P R A C T I C A L I N F O R M A T I O N

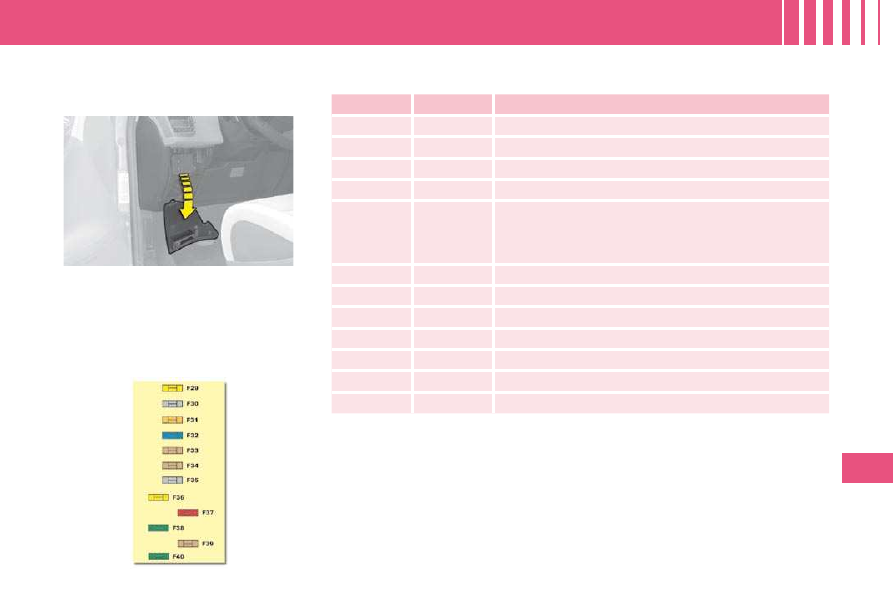

Access to the second dashboard
fusebox

  After  any  operation  on  the  fuses
in  the  fusebox,  check  that  the
fusebox cover is

reﬁ tted correctly

for their protection.

Table of fuses

Fuse N°

Rating

Functions

F29

20 A

Heated seats

F30

Not used

F31

40 A

Trailer relay unit

F32

15 A

Rear 12 V socket

F33

5 A

Parking assistance, automatic screen wipe and

lighting, passenger’s electric seat, lane departure

warning system, Hi-Fi ampliﬁ er

F34

5 A

Trailer

F35

Not used

F36

20 A

Hi-Fi ampliﬁ er

F37

10 A

Air conditioning, lighting pack

F38

30 A

Driver’s electric seat

F39

5 A

Fuel ﬂ ap

F40

30 A

Passenger’s electric seat, panoramic glass roof

184

P R A C T I C A L I N F O R M A T I O N

Fuses in the engine
compartment

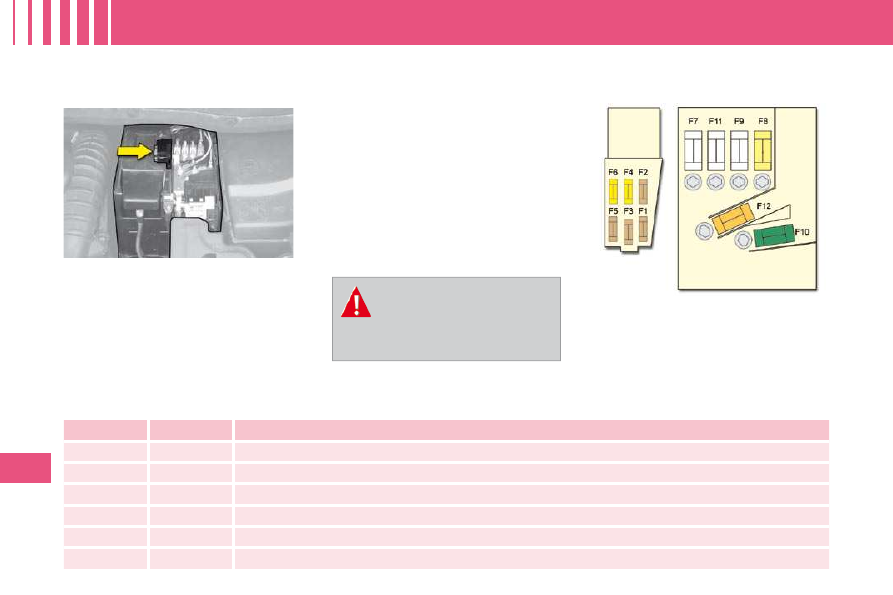

Access to the fuses


Detach and remove the cover.

After any operation, carefully

reﬁ t

the  cover. If the  cover  is  not cor-
rectly  positioned  or  not  properly
closed,  this  could  cause  serious
problems on your vehicle. For the
same reason, take care not to spill
any liquid in the fusebox.

All work on the maxi-fuses,

which are located in these

fuseboxes and which give

extra protection, must be carried

out by a CITROËN dealer.

185

P R A C T I C A L I N F O R M A T I O N

Table of fuses

Fuse N°

Rating

Functions

20 A

Engine management

15 A

Horn

10 A

Screen wash pump

20 A

Headlamp wash pump

15 A

Engine components

10 A

Xenon dual-function directional headlamps, automatic headlamp height adjustment,

clutch switch, protection switch box (BCP)

10 A

Automatic gearbox, engine coolant level switch, power steering

25 A

Starter motor

10 A

Stop lamp switch

F10

30 A

Engine components

F11

40 A

Rear blower

F12

30 A

Screen wipe

F13

40 A

Built-in Systems Interface (BSI)

F14

30 A

Air pump, heat exchange saver

F15

10 A

Right-hand main beam

F16

10 A

Left-hand main beam

F17

15 A

Left-hand dipped beam

F18

15 A

Right-hand dipped beam

F19

15 A

Engine components

F20

10 A

Engine components

F21

5 A

Cooling fan relay

186

P R A C T I C A L I N F O R M A T I O N

Fuses on the battery

After any operation, carefully

reﬁ t

Table of fuses

Fuse N°

Rating

Functions

5 A

Automatic gearbox actuator

5 A

Stop switch

5 A

Battery charge estimation ECU

20 A

ESP supply

5 A

ESP supply

20 A

ECU for 6-speed electronic gearbox/automatic gearbox

Access to the fuses


Detach and remove the cover.

Fuses F1 to F6 are located on the

small board, clipped vertically on the

battery fusebox.

Fuses F7 to F12

are midi-

fuses. All work on these

fuses must be carried out

by a CITROËN dealer.

187

P R A C T I C A L I N F O R M A T I O N

BATTERY

Procedure for charging your battery

when it is ﬂ at or for starting the en-

gine using another battery.

Access to the battery

The battery is located under the

bonnet.
To gain access to it:


open the bonnet using the inte-

rior lever, then the exterior lever,



secure the bonnet strut,



remove the plastic cover to gain

access to the two terminals,



unclip the fuse box to remove

the battery, if necessary.

Do not force the plate as locking will

not be possible of the clip is posi-

tioned incorrectly.

Start the procedure again.

Starting using another
battery

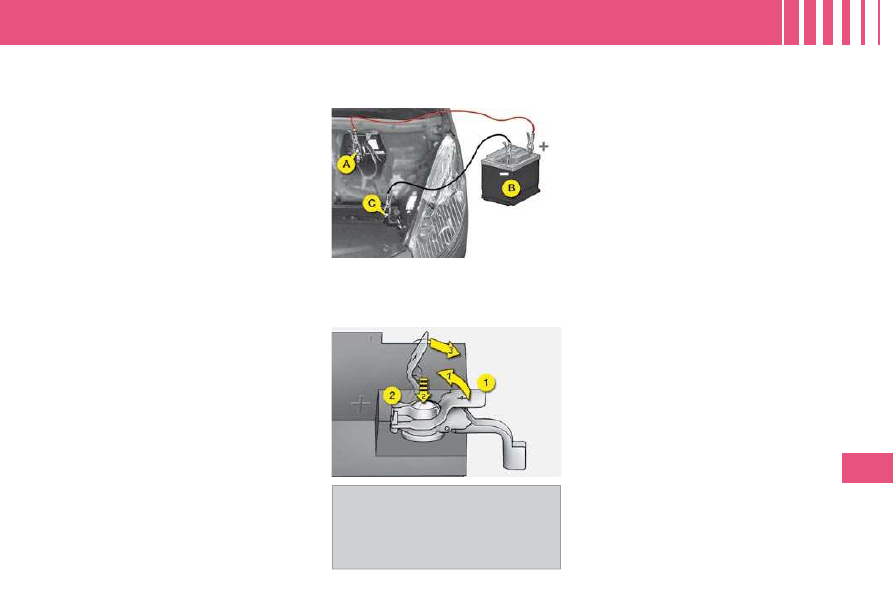

 Connect the red cable to the

positive terminal (+) of the ﬂ at

battery A , then to the positive ter-

minal (+) of the slave battery B .



Connect one end of the green or

black cable to the negative ter-

minal (-) of the slave battery B .

 Connect the other end of the

green or black cable to an earth

point C on the broken down

vehicle.



Operate the starter, let the engine

run.



Wait until the engine returns to

idle and disconnect the cables.

Charging the battery using a
battery charger



Disconnect the battery from the

vehicle.

 Follow the instructions for use

provided by the manufacturer of

the charger.



Reconnect starting with the nega-

tive terminal (-).



Check that the terminals and

connectors are clean. If they are

covered with sulphate (whitish or

greenish deposit), remove them

and clean them.

Disconnecting/Reconnecting
the cables



Raise the locking plate 1 fully.



Position the open clip of the ca-

ble on the positive (+) terminal of

the battery.



Press vertically on the clip 2 to

position it correctly against the

battery.



Lock the clip by lowering the

plate 1 .

188

P R A C T I C A L I N F O R M A T I O N

The batteries contain harm-

ful substances such as sul-

phuric acid and lead. They

must be disposed of in accordance

with regulations and must not, in

any circumstances, be discarded

with household waste.
Take used remote control batteries

and vehicle batteries to a special

collection point.

It is advisable to disconnect the

battery if the vehicle is to be left

unused for more than one month.

Do not disconnect the ter-

minals while the engine is

running.

Do not charge the batteries without

disconnecting the terminals ﬁ rst.

Do not push the vehicle to start the

engine if it is ﬁ tted with a 6-speed

electronic gearbox system.

Following reconnection of the
battery
Following reconnection of the bat-

tery, switch on the ignition and wait

1 minute before starting to permit

initialisation of the electronic sys-

tems. However, if slight difﬁ culties

are encountered following this oper-

ation, contact a CITROËN dealer.

Referring to the corresponding sec-

tion, you must yourself reinitialise:

- the remote control key,

- the one-touch electric windows,

- the glass panoramic roof shutter,

- the settings of the multifunction

screen,

- the audio equipment radio stations,

- the GPS satellite navigation

system.

Before disconnecting the
battery
Wait 2 minutes after switching off

the ignition before disconnecting

the battery.
Close the windows and the doors

before disconnecting the battery.

ENERGY ECONOMY MODE

System which manages the duration

of use of certain functions to con-

serve a sufﬁ cient level of charge in

the battery.

After the engine has stopped, you

can still use functions such as the

audio and telematics system, wind-

screen wipers, dipped headlamps,

courtesy lamps, etc. for a maximum

combined duration of thirty minutes.

Switching to economy mode

Once the thirty minutes are over, a

message appears on the multi-function

screen indicating that the vehicle has

switched to economy mode and the

active functions are put on standby.

If the telephone is being used at this

time:

- it will be maintained for 10 minutes

with your Audio system hands-free

kit,

- it will be maintained for 10 min-

utes with the NaviDrive, then it

will transfer to your telephone

depending on its model.

Exiting economy mode

These functions are reactivated au-

tomatically next time the vehicle is

driven.
In order to resume the use of these

functions immediately, start the engine

and let it run for at least 5 minutes.

A ﬂ at battery prevents the

engine from starting (refer

to the corresponding para-

graph).

Content .. 12 13 14 15 ..
