Citroen C4 Picasso Dag (2009 year). Instruction - part 13





160

X

C H E C K S

 RUNNING OUT OF FUEL
(DIESEL)

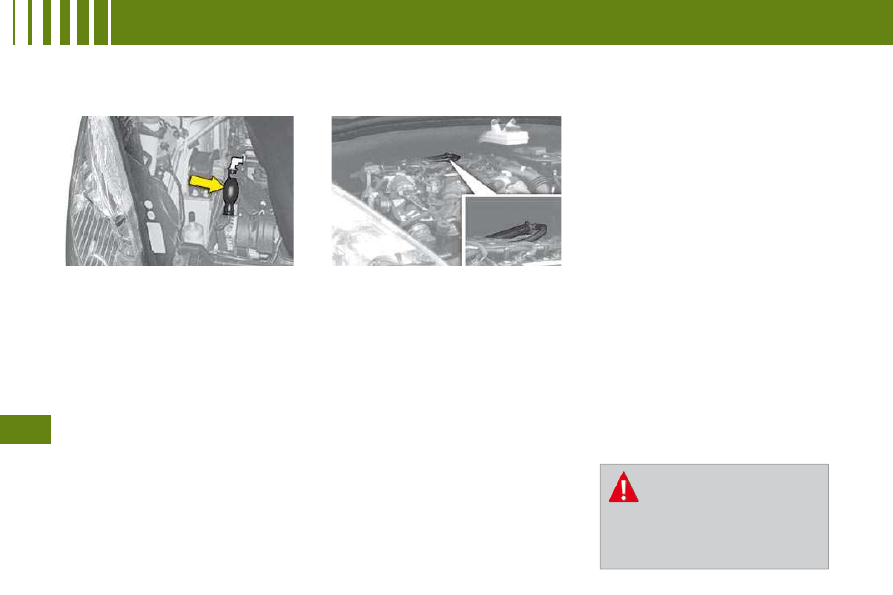

  HDi 138 engine

 Detach the protective cover for access
to the priming pump.

  HDi 110 engine

 Detach the protective cover for access
to the priming pump.

  Priming the fuel circuit

 In the event of running out of fuel:
   

   after  fi lling  (minimum  5  litres),

squeeze  the  manual  priming
pump  repeatedly,  until  some  re-
sistance is felt,

     then  operate  the  starter,  gently

pressing the accelerator until the
engine starts.

 If the engine fails to start at the fi rst

attempt,  wait  15 seconds  before
trying again.
 If the engine fails to start after a few
attempts, repeat the procedure from
the  beginning.  When  the  engine  is
idling, accelerate gently to complete
the purge of the circuit.

  HDi engines are of a highly
technical nature.
 All  maintenance  and  re-

pairs require specifi c qualifi cations

which  only  your  CITROËN  dealer
can guarantee.

161

X

C H E C K S

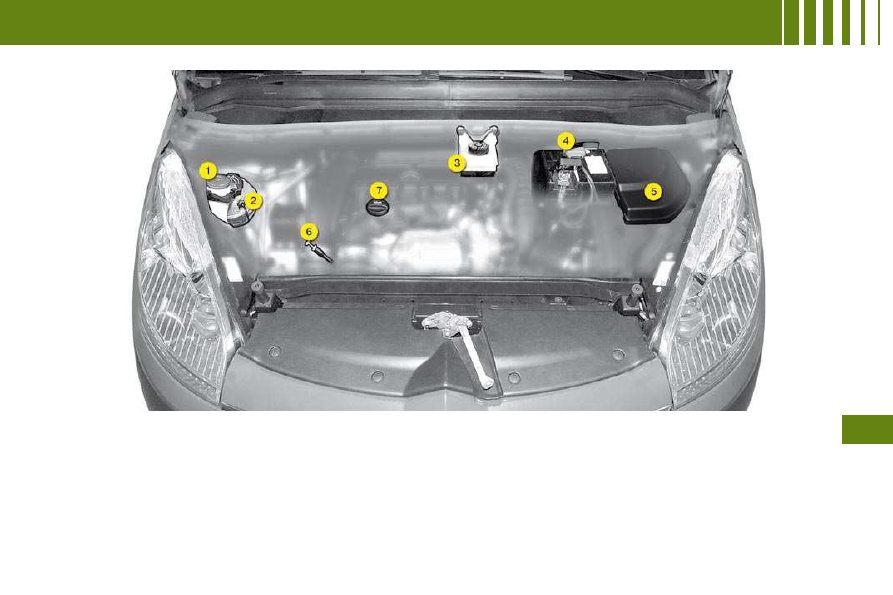

           PETROL ENGINES

 The covers and caps allow you access for checking the level of the various fl uids and for replacing certain components.

   1.   Screenwash and headlamp wash

reservoir.

  2.   Coolant header tank.

  3.

   Brake fl uid reservoir.

  4.   Battery/Fuses.
  5.   Fuse box.

  6.   Engine oil dipstick.
  7.

   Engine oil fi ller cap.

162

X

C H E C K S

  *   According to engine.

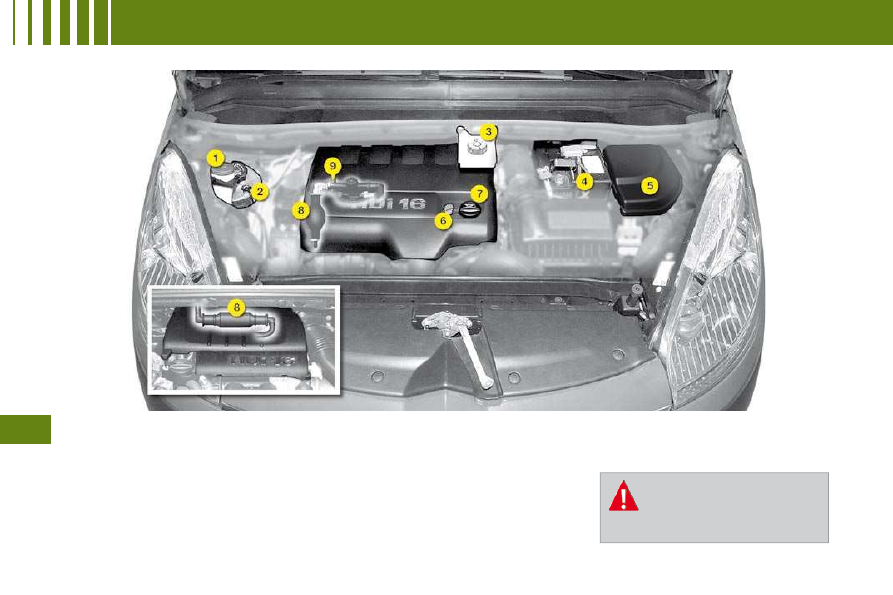

           DIESEL ENGINES

 The covers and caps allow you access for checking the level of the various fl uids, for replacing certain components and

for repriming the fuel.

   1.   Screenwash

and

headlamp

wash reservoir.

  2.   Coolant header tank
  3.

   Brake fl uid reservoir.

  4.   Battery/Fuses.

  5.   Fuse box.
  6.   Engine oil dipstick.
  7.

   Engine oil fi ller cap.

  8.   Priming pump * .
  9.   Degas screw * .

 As the diesel circuit is pres-
surised,  any  work  on  this
circuit is prohibited.

163

C H E C K S

                         CHECKING LEVELS

 Check  all  of  these  levels  regularly
and top them up if necessary, unless
otherwise indicated.
 If a level drops signifi cantly, have the

corresponding system checked by a
CITROËN dealer.
 Take  care  when  working  under  the
bonnet, as some parts of the engine
can be extremely hot (risk of burns).

  Oil level

  Oil change
 Refer  to  the  Maintenance  and
Warranty Guide for details of the in-
terval for this operation.

  Oil specifi cation
 The oil must correspond to your en-
gine and conform to the manufacturer's
recommendations.

  Brake fluid level

  Fluid change
 Refer  to  the  Maintenance  and
Warranty Guide for details of the in-
terval for this operation.
This  fl uid  must  be  changed  regu-

larly. Fluid which has been used for
too long may cause a loss of braking

effi ciency.

  Fluid specifi cation

 The brake fl uid must conform to the

manufacturer's

recommendations

and fulfi l the DOT4 standards.

  Coolant level

  Coolant change
 The  coolant  does  not  have  to  be
changed.

  Fluid specifi cation
 The  coolant  must  conform  to  the
manufacturer's recommendations.

 The  reading  will  only  be
correct  if  the  vehicle  is  on
level ground and the engine
has  been  off  for  more  than
15 minutes.

 The check is carried out either when
the ignition is switched on using the
oil  level  indicator  on  the  instrument
panel, or using the dipstick.
 Check this level also between each
scheduled  service  and  before  long
journeys.

 The brake fl uid level should

be close to the "MAX" mark.
If  it  is  not,  check  the  brake
pad wear.

 The coolant level should be
close to the "MAX" mark but
should never exceed it.
 When  the  engine  is  warm,

the temperature of the coolant is regu-
lated by the fan. This can operate with
the ignition off.


On vehicles which are fi tted with

a  particle  emission  fi lter,  the  fan

may operate after the vehicle has

been switched off, even if the en-

gine is cold.
 In addition, as the cooling system is
pressurised,  wait  at  least  one  hour
after switching off the engine before
carrying out any work.
 To  avoid  any  risk  of  scalding,  un-
screw  the  cap  by  two  turns  to  allow
the pressure to drop. When the pres-
sure  has  dropped,  remove  the  cap
and top up the level.

 In  order  to  maintain  the  re-
liability  of  the  engine  and
emission  control  system,

the  use  of  additives  in  the  engine
oil is prohibited.

164

X

C H E C K S

  Screenwash and headlamp
wash fluid

  Fluid specifi cation
 For  optimum  cleaning  and  to  avoid

freezing, this fl uid must not be topped

up or replaced with plain water.
 Reservoir capacities:
   -

screenwash: approximately 3 litres,

  -

screenwash

and

headlamp

wash: approximately 6 litres.

  Diesel additive level
(Diesel engine with particle
emission filter)

 A  low  additive  level  is  indicated  by
lighting of the service warning lamp,
accompanied by an audible warning
and a message on the multifunction
screen.

  Topping up
 This additive must be topped up by
a CITROËN dealer without delay.

        Used products

 Avoid  prolonged  contact  of

used  oil  or  fl uids  with  the

skin.

 Most of these fl uids are harmful to

health or indeed very corrosive.

 Do  not  discard  used  oil  or

fl uids  into  sewers  or  onto

the ground.

 Take used oil to a CITROËN dealer
(France)  or  an  authorised  waste
disposal site.

 In the case of vehicles fi tted

with  headlamp  washers,  the

minimum level of this fl uid is

indicated by an audible signal

and  a  message  on  the  multifunction
screen.
 Top up the level when you next stop
the vehicle.

165

X

C H E C K S

                     CHECKS

 Unless  otherwise  indicated,  check
these  components  in  accordance
with  the  Maintenance  and  Warranty
Guide and according to your engine.
 Otherwise, have them checked by a
CITROËN dealer.

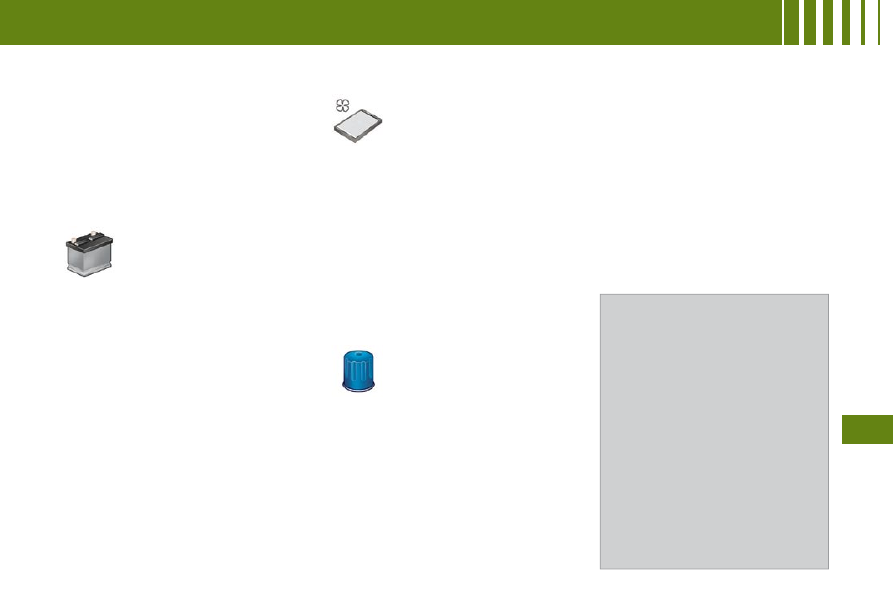

  Battery

 The battery does not require
any maintenance.
  However,  check  that  the
terminals  are  clean  and
correctly  tightened,  par-
ticularly  in  summer  and
winter.

 When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.

  Air filter and passenger compartment filter

 Refer  to  the  Maintenance
and  Warranty  Guide  for
details  of  the  replacement
intervals  for  these  compo-
nents.

 Depending on the environment (e.g.
dusty  atmosphere)  and  the  use  of
the vehicle (e.g. city driving),  replace
them  twice  as  often  if  necessary

(refer to the "Engines" paragraph).
 A  clogged  cabin  fi lter  may  have  an

adverse  effect  on  the  performance
of  the  air  conditioning  system  and
generate undesirable odours.

  Oil filter

 Replace  the  oil  fi lter  each

time  the  engine  oil  is
changed.

      Particle filter system (Diesel)

 Complementary  to  the  catalytic

converter,  this  fi lter  makes  an  ac-

tive  contribution  to  the  preservation
of  air  quality  by  the  retaining  of  the
unburnt  pollutant  particles.  Black
exhaust  fumes  are  thus  no  longer
emitted.
 After  prolonged  idling  or  driving  at
very  low  speeds,  you  may  occa-
sionally  notice  water  vapour  being
emitted  from  the  exhaust  when  ac-
celerating. This is of no consequence
to the running of the vehicle or to the
environment.

 If  there  is  risk  of  clogging,  a  mes-
sage  appears  on  the  multifunction
screen,  accompanied  by  an  audi-
ble signal and lighting of the service
warning lamp.
 This alert tells you that the particle

fi lter  is  starting  to  fi ll  up  (in  condi-

tions  of  urban  driving  of  excep-
tionally  long  duration:  low  speeds,

traffi c jams etc.)

 To regenerate the fi lter, it is advised

to drive as soon as possible, when

traffi c conditions permit, at a speed

of  40  mph  (around  60  km/h)  or

more for at least fi ve minutes (until

the alert message disappears).
 If  this  alert  persists,  consult  a
CITROËN dealer.

 Refer to the Maintenance and Warranty
Guide for details of the replacement in-
terval for this component.

166

X

C H E C K S

                Brake pads

 Brake  wear  depends  on
the  style  of  driving,  par-
ticularly  in  the  case  of  ve-
hicles  used  in  town,  over
short  distances.  It  may  be

necessary  to  have  the  condition  of
the  brakes  checked,  even  between
vehicle services.
 Unless there is a leak in the circuit, a

drop in the brake fl uid level indicates

that the brake pads are worn.

      Manual gearbox

 The  gearbox  does  not  re-
quire any maintenance (no
oil change).

  6-speed electronic gear

control gearbox

 The  gearbox  does  not  require  any
maintenance (no oil change).

      Automatic gearbox

 The  gearbox  does  not  require  any
maintenance (no oil change).

  Brake disc wear

 For  information  relating  to
checking  the  brake  disc
wear,  contact  a  CITROËN
dealer.

  Parking brake

 If a loss of effectiveness of this sys-
tem  is  noticed,  the  parking  brake
must be checked, even between two
services.
 This  system  must  be  checked  by  a
CITROËN dealer.

  Only  use  products  recom-
mended  by  CITROËN  or
products of equivalent quality

and specifi cations.

 In  order  to  optimise  the  operation
of  units  as  important  as  the  braking
system, CITROËN selects and offers

very specifi c products.
 To  avoid  damaging  the  electrical
units,  the  use  of  a  high  pressure
washer in the engine compartment is
strictly  prohibited .

 Refer

to

the

Warranty

and

Maintenance  Record  for  the  details
of the level checking interval for this
component.

 Refer to the Warranty and Maintenance
Record  for  details  of  the  checking  in-
terval for this component.

 Refer

to

the

Warranty

and

Maintenance  Record  for  details  of
the  level  checking  interval  for  this
component.

167

XI

P R A C T I C A L   I N F O R M A T I O N

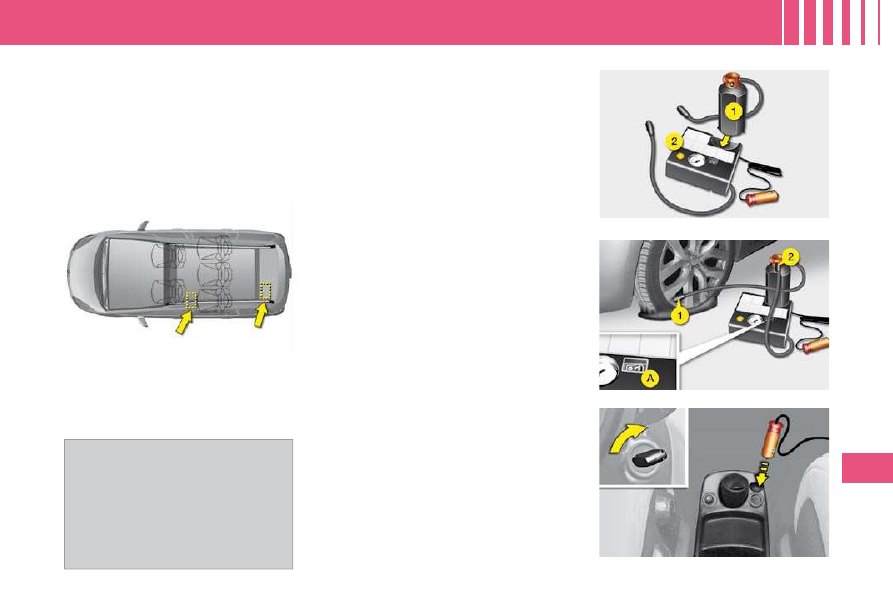

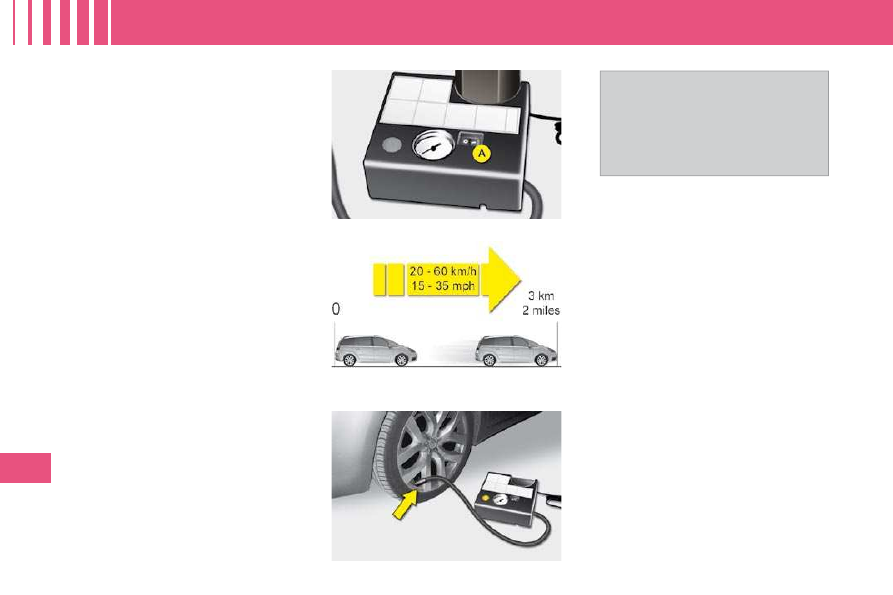

       PUNCTURE REPAIR KIT

  Using the kit

 The  kit  is  located  in  the  boot  under

the fl oor or under the fl ap in the sec-

ond  row  left-hand  passenger  foot-

well  (open  by  turning  the  screw  a

quarter of a turn).

   

   Tick  the  wheel  to  be  repaired

on  the  speed  limitation  sticker

enclosed  then  affi x  the  sticker

to  the  vehicle's  steering  wheel

to remind you that a wheel is in

temporary use.

  

   Switch off the ignition.

  

   Clip the bottle  1  on the compres-

sor  2 .

     Check  that  the  switch   A   is  tilted

to position  "0" .

  

   Connect the pipe of the bottle  1

to the valve of the tyre to be re-

paired.

  

   Unwind the pipe of the compres-

sor  2

  fully before connecting it to

the bottle.

  

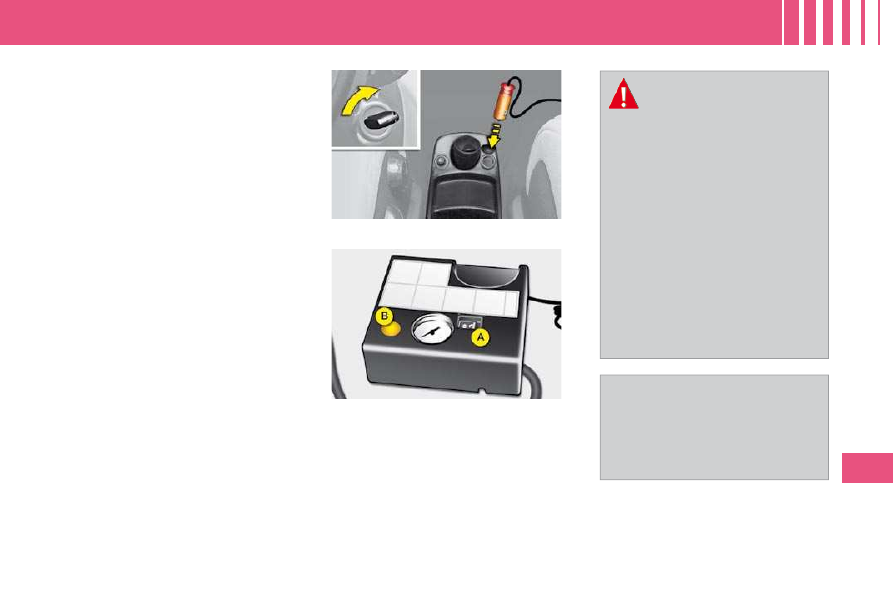

   Connect  the  compressor's  elec-

tric  plug  to  the  vehicle's  12 V

socket.

     Start  the  vehicle  and  leave  the

engine running.

 Complete  system  consisting  of  a

compressor  and  a  bottle  of  sealant

which  permits   temporary  repair   of

the tyre so that you can drive to the

nearest garage.

 This  repair  kit  is  available  from

CITROËN dealers.
 It  is  designed  to  repair  holes  of

a  maximum  diameter  of  4  mm,

 located  exclusively  on  the  tyre

tread  or  shoulder.  Avoid  remov-

ing any foreign bodies which have

pene trated the tyre.

168

XI

P R A C T I C A L   I N F O R M A T I O N

  

   Remove  the  compressor  and

store the bottle in the plastic bag,

supplied in the kit, to avoid staining

your vehicle with traces of fl uid.

  

   Drive  immediately  for  approxi-

mately  two  miles  (three  kilome-

tres), at reduced speed (between

15 and 35 mph [20 and 60 km/h]),

to plug the puncture.

  

   Stop to check the repair and the

pressure.

  

   Connect the compressor pipe di-

rectly to the valve of the repaired

wheel.

  

   Switch  on  the  compressor  by

moving  the  switch   A   to  posi-

tion  "1"

   until  the  tyre  pressure

reaches 2.0 bars.

If  this  pressure  has  not  been

reached  after  approximately  three

minutes,  the  tyre  cannot  be  re-

paired; contact a CITROËN dealer

to have your vehicle repaired.

169

XI

P R A C T I C A L   I N F O R M A T I O N

  

   Connect  the  compressor's  elec-

tric  plug  to  the  vehicle's  12 V

socket again.

  

   Start the vehicle again and leave

the engine running.

  

   Adjust  the  pressure  using  the

compressor  (to  infl ate:  switch  A

in  position   "1" ;  to  defl ate:

switch  A

   in  position   "0"   and

press  button   B ),  in  accordance

with  the  vehicle's  tyre  pressure

label (located on the door aper-

ture on the driver's side), then re-

member to check that the leak is

plugged correctly (no further loss

of  pressure  after  several  miles

[kilometres]).

  

   Remove  the  compressor,  then

store the whole kit.

  

   Drive at reduced speed (50 mph

[80 km/h]).

  

   Visit a CITROËN dealer as soon as

possible to have the tyre repaired

or replaced by a technician.

 Take  care,  the  bottle  of

sealant  contains  ethylene-

glycol.  This  product  is

harmful  if  swallowed  and  causes

irritation to the eyes. Keep it out of

reach of children.
 The expiry date of the sealant is in-

dicated on the base of the bottle.
The  bottle  is  designed  for  a  single

use; even if only partly used, it must

be replaced.

 After  use,  do  not  discard  the  bot-

tle into the environment, take it to a

CITROËN dealer or to an authorised

waste disposal site.

 Do  not  forget  to  obtain  a  new

bottle  of  sealant,  available  from

CITROËN dealers.

 If  the  vehicle  is  fi tted  with  tyre

under-infl ation  detection,  the  tyre

under-infl ation warning light will re-

main on after the wheel has been

repaired  until  the  system  is  reini-

tialised by a CITROËN dealer.

170

XI

P R A C T I C A L   I N F O R M A T I O N

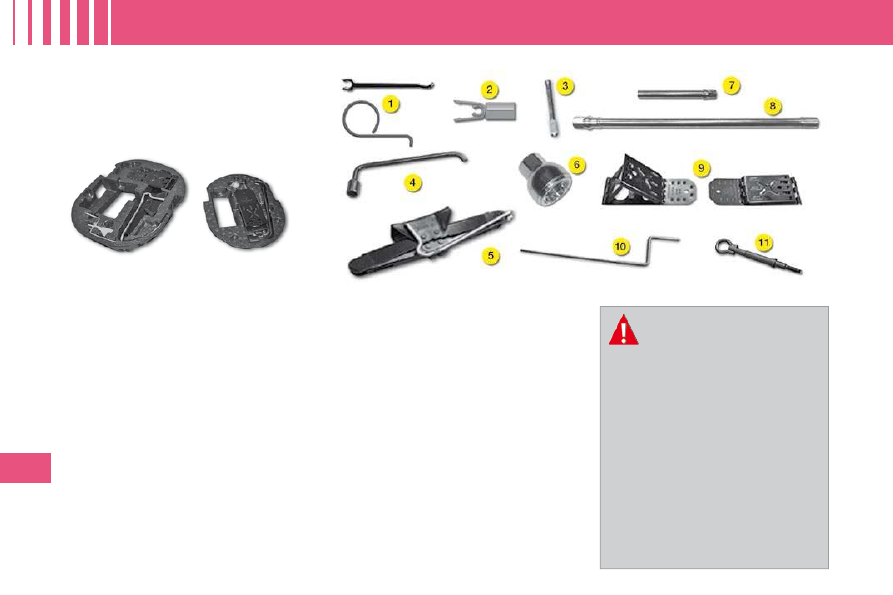

               CHANGING A WHEEL

  Access to the tools

 Depending on equipment, the tools

are  to  be  found  either  in  the  com-

partment under the second-row pas-

senger  footwells  (the  compartment

is  opened  by  turning  the  screw  a

quarter turn) or in the well under the

third-row left-hand seat.

   1.

   Tool for removing the central trim

on alloy wheels *



or

  2.

   Tool  for  removing  the  chrome

covers on the wheel bolts on alloy

wheels *

  3.

   Centring guide *

  4.

   Tool  for  removing  the  wheel

bolts

  5.

   Vehicle jack with integrated handle

  6.

   Security  bolt  socket  (located  in

the glovebox) **

 Switch  on  your  hazard

warning lamps, ensure that

any  passengers  leave  the

vehicle and fi nd a safe place to wait

away from traffi c (e.g. behind crash

barriers or on a grass verge).

 Never  get  underneath  the  vehicle

if  it  is  supported  only  by  the  jack;

use a stand.
 The jack and the tools are specifi c

to your vehicle. Do not use for any

other purpose.

Do not to exceed a speed of 50 mph

(80 km/h) on your spare wheel.

 Have  the  original  wheel  repaired

and refi tted as soon as possible.



  7.

   Short extension for C4 Picasso

  8.

   Long  extension  for  Grand

C4 Picasso  (located  in  the  well

under  the  right  hand  third  row

seat)

  9.

   Two chocks, provided for chang-

ing a wheel or for other uses on

the  vehicle  (such  as  unlocking

the electric parking brake)

  10.

  Parking brake release tool (elec-

tric parking brake)

  11.

  Removable towing eye

  *   With alloy wheels only.

  **   With security bolts only.

171

XI

P R A C T I C A L   I N F O R M A T I O N

  Grand C4 Picasso

   C4 Picasso

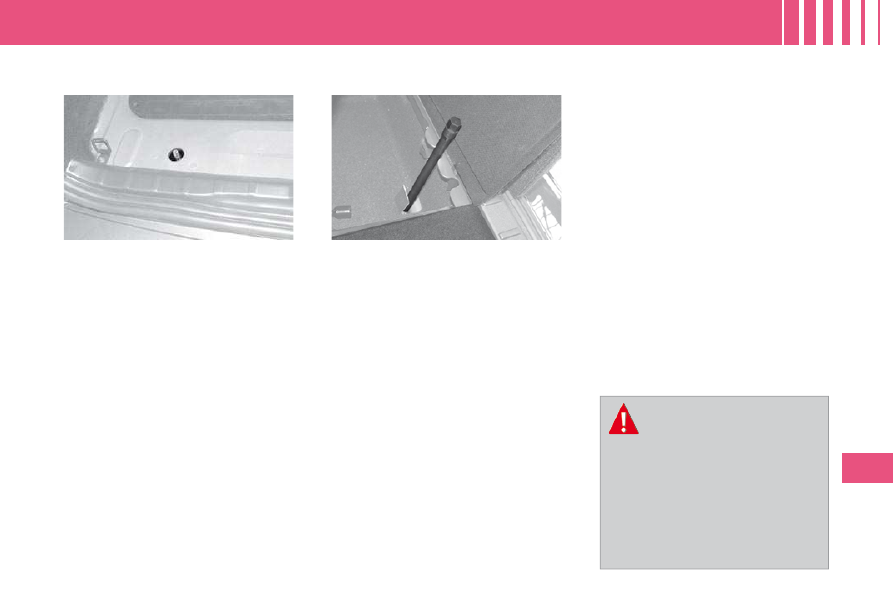

  Access to the spare wheel

  Taking out the wheel
(Grand C4 Picasso)
   

   Lift the boot fl oor covering to re-

veal the spare wheel carrier drive

on the right.

  

   Take  the  extension   8   clipped  in

the  rear  of  the  well  below  the

right hand third-row seat.

  

   Lift  up  the  spare  wheel  carrier

drive aperture cap.

  

   Fit the extension to the drive then

engage  the  head  of  the  wheel-

brace  4

  on the extension.

  

   Turn the assembly  clockwise  to

the end of its travel to lower the

spare  wheel  carrier;  the  spare

wheel  is  now  resting  on  the

ground.

  

   Pull the wheel towards you and

pass  the  linking  plate  through

the centre of the wheel.

 With  the  damaged  wheel

now under the vehicle fl oor,

the  vehicle  has  reduced

ground  clearance,  so  take  extra

care  when  reversing  or  driving  on

uneven surfaces, including kerbs.

 Retrieval  of  the  spare  wheel  and

stowage of the affected road wheel

are operations that should be done

with  the  vehicle  supported  on  its

wheels, not by the jack.

  Putting the wheel back in place
   

   The  tyre  valve  must  be  facing

upwards.

  

   Pass  the  linking  plate  through

the centre of the wheel (fi rst re-

moving the central trim on certain

alloy wheels).

     Turn  the  carrier  drive   anti-

 clockwise  to draw in the carrier

cable.  Initially  the  drive  will  turn

freely, then the cable will tighten

to raise the wheel.



Check  that  the  wheel  is  tight

against  the  vehicle  fl oor  and

not interfering with other nearby

components (e.g. the exhaust).

     Stow the tools.

  Taking out the wheel
(C4 Picasso)
   

   Lift the boot fl oor covering to re-

veal the spare wheel carrier drive

on the left.

  

   Take  the  extension   7   from  the

set of tools.

  

   Lift  up  the  spare  wheel  carrier

drive aperture cap, if fi tted.

  

   Fit the extension to the drive then

engage  the  head  of  the  wheel-

brace

 on the extension.

  

   Turn the assembly  clockwise  to

the end of its travel to lower the

spare  wheel  carrier;  the  spare

wheel  is  now  resting  on  the

ground.

  

   Pull the wheel towards you and

pass  the  linking  plate  through

the centre of the wheel.

172

P R A C T I C A L   I N F O R M A T I O N

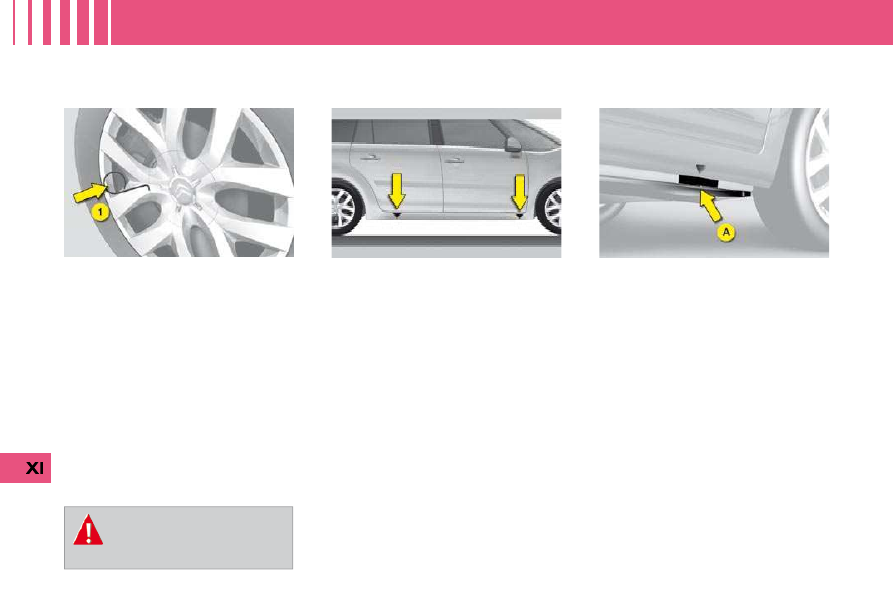

          Removing a wheel

   

   Park the vehicle on level, stable

and  non-slippery  ground.  Apply

the  parking  brake  (a  message

and  a  warning  lamp  appear  on

the instrument panel).



Switch off the ignition and engage

fi rst gear or reverse gear depend-

ing on the slope (position  P  if an

automatic  gearbox,   D   or   R   if  a

6-speed electronic gearbox).

  

   Use a chock to secure the vehi-

cle more safely. Place the chock

 9

  in front of the wheel that is op-

posite the wheel affected.

  

   Detach the trim using the remov-

ing tool  4 , pulling in the area of

the valve.



For  vehicles  with  alloy  wheels,

insert  the  trim  removing  tool   1

into the recess in the central trim

and lever it off.



For  vehicles  with  alloy  wheels

that  have  visible  bolts,  remove

the chrome covers using the re-

moving tool  2 .

  

   Slacken the wheel bolts. For ve-

hicles  with  alloy  wheels,  undo

the security bolts using the secu-

rity socket  6 .

  

   Position the jack under the vehi-

cle, at the jacking point  A  closest

to the wheel to be changed.

     Unwind the jack  5

  until its brack-

et is in contact with the ground.

Make sure that the jack is verti-

cal under the jacking point used.

  

   Continue  to  extend  the  jack  so

as to raise the vehicle.

  

   Undo the wheel bolts and remove

the wheel.

 Before any operation of this

sort, it is advisable to deac-

tivate  your  pneumatic  sus-

pension.

173

XI

P R A C T I C A L   I N F O R M A T I O N

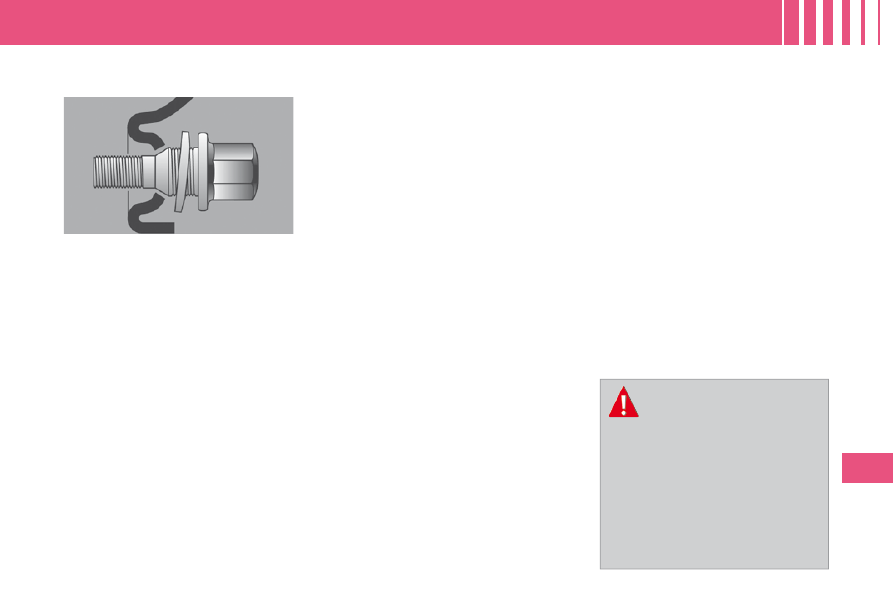

  Temporary use spare wheel

 If  your  vehicle  is  equipped  with  a

spare wheel for temporary use only,

when fi tting this it is normal to observe

that the wheel bolts do not come to

bear directly on the wheel rim.

 The  spare  wheel  is  secured  by  the

conical  tapering  of  the  wheel  bolt’s

shaft.
 When refi tting the original wheel, en-

sure that the wheel bolts and wash-

ers are clean and in good condition.

  Fitting a wheel

   Position the wheel with the aid of

the centring guide  3 .

   Do up the 3 bolts by hand, then

remove  the  centring  guide   3 .

Position the 4 th  bolt.

   Pre-tighten  the  wheel  bolts,

using the wheelbrace  4 .

 Retract the jack  5

  and disengage it.

   Tighten  the  wheel  bolts,  using

the wheelbrace  4 .

   Ensure that the tyre pressure is

correct.

  Under-infl ation detection

 Wheels  with  under-infl ation  detec-

tion  have  tyre  pressure  sensors.

Have repairs to them carried out by

a CITROËN dealer. The spare wheel

does not have a sensor.

  Security bolts (alloy wheels)

 Each  wheel  may  be  equipped  with

one security bolt.

 To remove it:
   

   Remove its protective cover us-

ing  of  the  tool  for  removing  the

chrome covers  2 .

  

   Use  the  security  bolt  socket   6

with the wheelbrace  4 .

  Spare wheel dimensions

 If your spare wheel has dimensions

different  from  those  of  the  normal

vehicle  wheels  (identifi ed  by  a  la-

bel), it is imperative to use the spare

wheel only temporarily, to drive with

caution,  not  to  exceed  50  mph

(80  km/h)  and  to  have  the  tyre  re-

paired and the normal wheel refi tted

as soon as possible.

  Tyre pressures

 These  are  indicated  on  the  la-

bel  on  the  front  left-hand  door

pillar (see section "Technical Data -

§ Identifi cation markings").

 The wheel bolts are specifi c

to each type of wheel.

 If  new  wheels  are  fi tted,  check

with your CITROËN dealer that the

 If  new  wheels  are  fi tted,  check

 If  new  wheels  are  fi tted,  check

wheel bolts are compatible with the

new wheels.
 Note:  take  care  to  note  down  the

code  number  on  the  head  of  the

security bolt socket. This will ena-

ble you to obtain a replacement se-

curity bolt socket from a CITROËN

dealer.

173

XI

P R A C T I C A L   I N F O R M A T I O N

  Temporary use spare wheel

 If  your  vehicle  is  equipped  with  a

spare wheel for temporary use only,

when fi tting this it is normal to observe

that the wheel bolts do not come to

bear directly on the wheel rim.

 The  spare  wheel  is  secured  by  the

conical  tapering  of  the  wheel  bolt’s

shaft.
 When refi tting the original wheel, en-

sure that the wheel bolts and wash-

ers are clean and in good condition.

  Fitting a wheel

   Position the wheel with the aid of

the centring guide  3 .

   Do up the 3 bolts by hand, then

remove  the  centring  guide   3 .

Position the 4 th  bolt.

   Pre-tighten  the  wheel  bolts,

using the wheelbrace  4 .

 Retract the jack  5

  and disengage it.

   Tighten  the  wheel  bolts,  using

the wheelbrace  4 .

   Ensure that the tyre pressure is

correct.

  Under-infl ation detection

 Wheels  with  under-infl ation  detec-

tion  have  tyre  pressure  sensors.

Have repairs to them carried out by

a CITROËN dealer. The spare wheel

does not have a sensor.

  Security bolts (alloy wheels)

 Each  wheel  may  be  equipped  with

one security bolt.

 To remove it:
   

   Remove its protective cover us-

ing  of  the  tool  for  removing  the

chrome covers  2 .

  

   Use  the  security  bolt  socket   6

with the wheelbrace  4 .

  Spare wheel dimensions

 If your spare wheel has dimensions

different  from  those  of  the  normal

vehicle  wheels  (identifi ed  by  a  la-

bel), it is imperative to use the spare

wheel only temporarily, to drive with

caution,  not  to  exceed  50  mph

(80  km/h)  and  to  have  the  tyre  re-

paired and the normal wheel refi tted

as soon as possible.

  Tyre pressures

 These  are  indicated  on  the  la-

bel  on  the  front  left-hand  door

pillar (see section "Technical Data -

§ Identifi cation markings").

 The wheel bolts are specifi c

to each type of wheel.

 If  new  wheels  are  fi tted,  check

with your CITROËN dealer that the

 If  new  wheels  are  fi tted,  check

 If  new  wheels  are  fi tted,  check

wheel bolts are compatible with the

new wheels.
 Note:  take  care  to  note  down  the

code  number  on  the  head  of  the

security bolt socket. This will ena-

ble you to obtain a replacement se-

curity bolt socket from a CITROËN

dealer.

174

XI

P R A C T I C A L   I N F O R M A T I O N

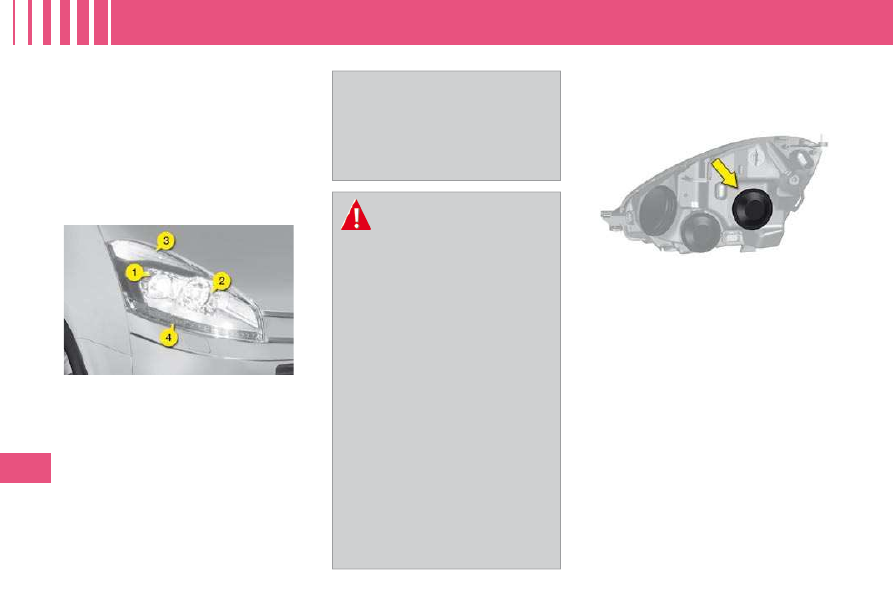

         CHANGING A BULB

 Procedure for replacing a faulty bulb

with  a  new  bulb  without  the  use  of
tools.

 In  some  climatic  conditions  (e.g.

low  temperature  or  humidity),  the

presence of misting on the internal

surface  of  the  glass  of  the  head-

lamps  and  rear  lamps  is  normal;

it disappears after the lamps have

been on for a few minutes.

 The  headlamps  are  fi tted

with  polycarbonate  glass

with a protective coating:

       do  not  clean  them  using  a

dry  or  abrasive  cloth,  nor
with  a  detergent  or  solvent
product,


  

   use a sponge and soapy water,

  

   when  using  a  high  pressure

washer on persistent marks, do

not direct at the lamps or their

outlines for too long, so as not

to  damage  their  coating  and

their seals.

    

   Do  not  touch  the  bulb  directly

with  your  fi ngers,  use  lint-free

cloths.

 Changing  a  halogen  bulb  should

only  be  done  after  the  headlamp

has  been  switched  off  for  a  few

minutes (risk of serious burns).

 It  is  imperative  to  use  only  anti-

ultraviolet (UV) type bulbs in order

not to damage the headlamp.

   Dipped beam headlamps

   

   Remove the rubber cover.

  

   Rotate the bulb-holder a quarter

turn anti-clockwise and remove it

from its housing.

  

   Replace the faulty bulb.

  

   Reposition  the  bulb-holder  by

pushing  it  in,  tightening  it  by  a

quarter turn clockwise.

  

   Refi t the rubber cover.

  Front lamps

   1.    Dipped beams (H7-55 W)
  2.    Main beams (H1-55 W)
  3.    Sidelamps (H6 W-6 W)
  4.    Direction indicators

(H21-21 W)

               Model with halogen headlamps















Content   ..  11  12  13  14   ..
