Stain Repel Fabric Cleaning Procedure — If
Equipped

Stain Repel seats may be cleaned in the following manner:
• Remove as much of the stain as possible by blotting with

a clean, dry towel.

• Blot any remaining stain with a clean, damp towel.
• For tough stains, apply Mopar Total Clean, or a mild

soap solution to a clean, damp cloth and remove stain.

Use a fresh, damp towel to remove soap residue.

• For grease stains, apply Mopar Multi-Purpose Cleaner

to a clean, damp cloth and remove stain. Use a fresh,

damp towel to remove soap residue.

• Do not use any harsh solvents or any other form of

protectants on Stain Repel products.

Seat Belt Maintenance

Do not bleach, dye or clean the belts with chemical solvents

or abrasive cleaners. This will weaken the fabric. Sun

damage can also weaken the fabric.

If the belts need cleaning, use a mild soap solution or

lukewarm water. Do not remove the belts from the vehicle

to wash them. Dry with a soft cloth.
Replace the belts if they appear frayed or worn or if the

buckles do not work properly.

NOTE:

If the belts retract slowly, inspect the upper turning

loop for soiling. If soiling is present, clean with a wet soft

cloth until all residue is removed.

WARNING!

A frayed or torn belt could rip apart in a collision and
leave you with no protection. Inspect the belt system
periodically, checking for cuts, frays, or loose parts.
Damaged parts must be replaced immediately. Do not
disassemble or modify the system. Seat belt assemblies
must be replaced after a collision if they have been
damaged (i.e., bent retractor, torn webbing, etc.).

SERVICING AND MAINTENANCE

551

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Plastic And Coated Parts

Use Mopar Total Clean to clean vinyl upholstery.

CAUTION!

• Direct contact of air fresheners, insect repellents,

suntan lotions, or hand sanitizers to the plastic,
painted, or decorated surfaces of the interior may
cause permanent damage. Wipe away immediately.

• Damage caused by these type of products may not be

covered by your New Vehicle Limited Warranty.

Cleaning Plastic Instrument Cluster Lenses

The lenses in front of the instruments in this vehicle are

molded in clear plastic. When cleaning the lenses, care

must be taken to avoid scratching the plastic.
1. Clean with a wet soft cloth. A mild soap solution may be

used, but do not use high alcohol content or abrasive

cleaners. If soap is used, wipe clean with a clean damp

cloth.

2. Dry with a soft cloth.

Leather Parts

Mopar Total Clean is specifically recommended for leather

upholstery.
Your leather upholstery can be best preserved by regular

cleaning with a damp soft cloth. Small particles of dirt can

act as an abrasive and damage the leather upholstery and

should be removed promptly with a damp cloth. Stubborn

soils can be removed easily with a soft cloth and Mopar

Total Clean. Care should be taken to avoid soaking your

leather upholstery with any liquid. Please do not use

polishes, oils, cleaning fluids, solvents, detergents, or

ammonia-based cleaners to clean your leather upholstery.

Application of a leather conditioner is not required to

maintain the original condition.

NOTE:

If equipped with light colored leather, it tends to

show any foreign material, dirt, and fabric dye transfer

more so than darker colors. The leather is designed for easy

cleaning, and FCA recommends Mopar total care leather

cleaner applied on a cloth to clean the leather seats as

needed.

552

SERVICING AND MAINTENANCE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION!

Do not use Alcohol and Alcohol-based and/or Ketone
based cleaning products to clean leather seats, as
damage to the seat may result.

Glass Surfaces

All glass surfaces should be cleaned on a regular basis with

Mopar Glass Cleaner, or any commercial household-type

glass cleaner. Never use an abrasive type cleaner. Use

caution when cleaning the inside rear window equipped

with electric defrosters or windows equipped with radio

antennas. Do not use scrapers or other sharp instruments

that may scratch the elements.
When cleaning the rear view mirror, spray cleaner on the

towel or cloth that you are using. Do not spray cleaner

directly on the mirror.

SERVICING AND MAINTENANCE

553

-------------------------------------------------------------------------------------------------------------------------------------------------------------

IDENTIFICATION DATA

Vehicle Identification Number

The Vehicle Identification Number (VIN) is found on the

left front corner of the instrument panel, visible through

the windshield. This number also appears on the vehicle

frame etched on right hand center rail, as well as the

Automobile Information Disclosure Label affixed to a

window on your vehicle, the vehicle registration and title.

NOTE:

It is illegal to remove or alter the VIN.

BRAKE SYSTEM

If power assist is lost for any reason (for example, repeated

brake applications with the engine off), the brakes will still

function. However, you will experience a substantial in-

crease in braking effort to stop the vehicle.
If either the front or rear hydraulic system loses normal

braking capability, the remaining system will still function

with some loss of overall braking effectiveness. This will be

evident by increased pedal travel during application,

greater pedal force required to slow or stop, and activation

of the “Brake Warning Light” and the “ABS Warning

Light” (if equipped) during brake use.

WHEEL AND TIRE TORQUE SPECIFICATIONS

Proper lug nut/bolt torque is very important to ensure that

the wheel is properly mounted to the vehicle. Any time a

wheel has been removed and reinstalled on the vehicle, the

lug nuts/bolts should be torqued using a properly cali-

brated torque wrench using a high quality six sided (hex)

deep wall socket.

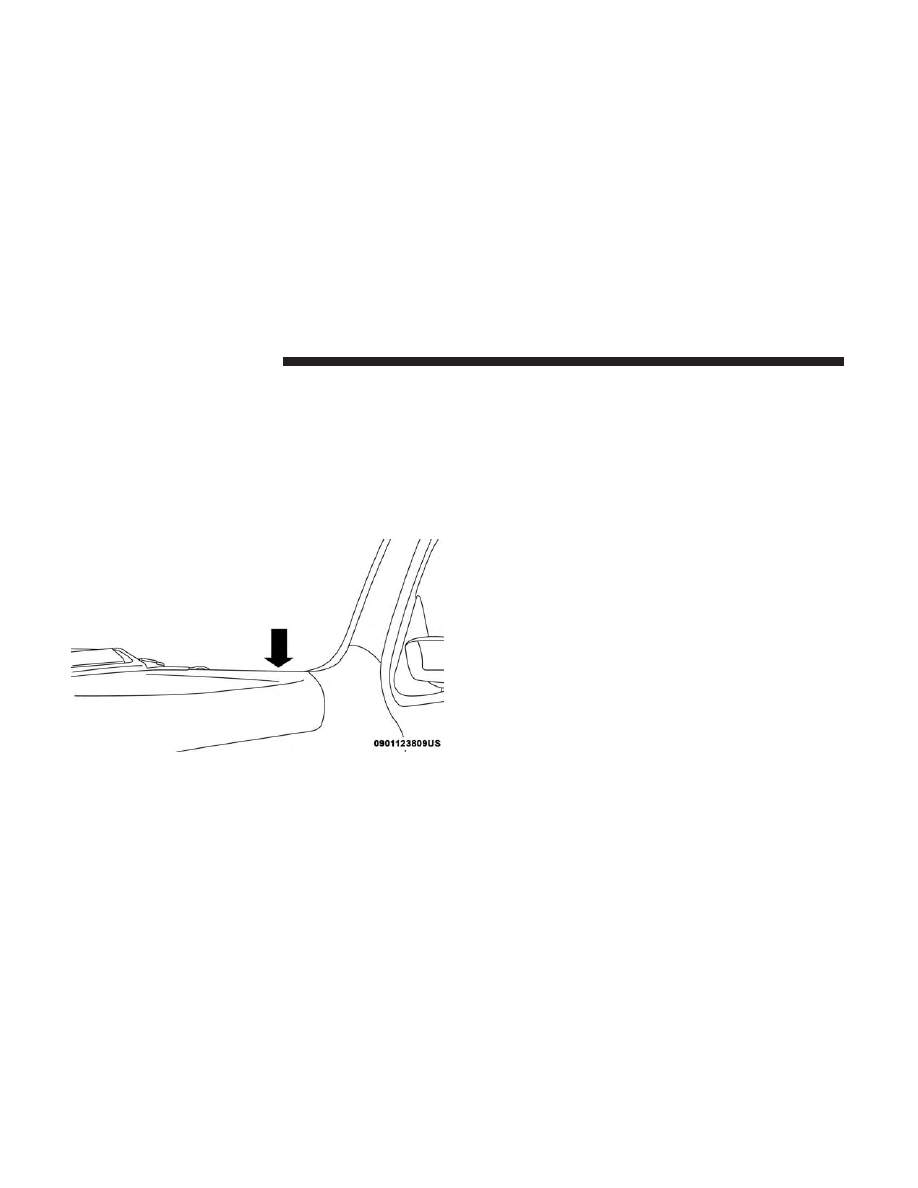

Vehicle Identification Number

556

TECHNICAL SPECIFICATIONS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Torque Specifications

Lug Nut/

Bolt Torque

Lug Nut/

Bolt Type

**Lug Nut/

Bolt Size

Lug Nut/

Bolt Socket

Size

130 Ft-Lbs

(176 N·m)

Cone

M14 x 1.50

22 mm

**Use only your authorized dealer recommended lug nuts/

bolts and clean or remove any dirt or oil before tightening.

NOTE:

Do not oil wheel studs. For chrome wheels, do not

substitute with chrome plated wheel nuts.
Inspect the wheel mounting surface prior to mounting the

tire and remove any corrosion or loose particles.

Tighten the lug nuts/bolts in a star pattern until each

nut/bolt has been tightened twice. Ensure that the socket is

fully engaged on the lug nut/bolt (do not insert it half-

way).

Wheel Mounting Surface

TECHNICAL SPECIFICATIONS

557

-------------------------------------------------------------------------------------------------------------------------------------------------------------

After 25 miles (40 km), check the lug nut/bolt torque to be

sure that all the lug nuts/bolts are properly seated against

the wheel.

WARNING!

To avoid the risk of forcing the vehicle off the jack, do
not tighten the lug nuts/bolts fully until the vehicle has
been lowered. Failure to follow this warning may
result in personal injury.

FUEL REQUIREMENTS

3.6L Engine

Do not use E-85 flex fuel or ethanol blends greater than

15% in this engine.

These engines are designed to meet all

emissions regulations and provide opti-

mum fuel economy and performance

when using high quality unleaded

“Regular” gasoline having a posted oc-

tane number of 87 as specified by the

(R+M)/2 method. The use of higher oc-

tane “Premium” gasoline is not required, as it will not

provide any benefit over “Regular” gasoline in these engines.
While operating on gasoline with an octane number of 87,

hearing a light knocking sound from the engine is not a

cause for concern. However, if the engine is heard making

a heavy knocking sound, see your dealer immediately. Use

of gasoline with an octane number lower than 87 can cause

engine failure and may void or not be covered by the New

Vehicle Limited Warranty.
Poor quality gasoline can cause problems such as hard

starting, stalling, and hesitations. If you experience these

symptoms, try another brand of gasoline before consider-

ing service for the vehicle.

Four, Five, And Six Lug Nuts/Bolts Torque Pattern

558

TECHNICAL SPECIFICATIONS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5.7L Engine

Do not use E-85 flex fuel or ethanol blends greater than

15% in this engine.

This engine is designed to meet all emis-

sions regulations and provide satisfac-

tory fuel economy and performance

when using high-quality unleaded gaso-

line having an octane range of 87 to 89 as

specified by the (R+M)/2 method. The

use of 89 octane “Plus” gasoline is rec-

ommended for optimum performance and fuel economy.
While operating on gasoline with an octane number of 87,

hearing a light knocking sound from the engine is not a

cause for concern. However, if the engine is heard making

a heavy knocking sound, see your dealer immediately. Use

of gasoline with an octane number lower than 87 can cause

engine failure and may void or not be covered by the New

Vehicle Limited Warranty.
Poor quality gasoline can cause problems such as hard

starting, stalling, and hesitations. If you experience these

symptoms, try another brand of gasoline before consider-

ing service for the vehicle.

Reformulated Gasoline

Many areas of the country require the use of cleaner burning

gasoline referred to as “Reformulated Gasoline”. Reformu-

lated gasoline contains oxygenates and are specifically

blended to reduce vehicle emissions and improve air quality.
The use of reformulated gasoline is recommended. Prop-

erly blended reformulated gasoline will provide improved

performance and durability of engine and fuel system

components.

Materials Added To Fuel

Besides using unleaded gasoline with the proper octane

rating, gasolines that contain detergents, corrosion and

stability additives are recommended. Using gasolines that

have these additives will help improve fuel economy,

reduce emissions, and maintain vehicle performance.

Designated TOP TIER Detergent Gaso-

line contains a higher level of detergents

to further aide in minimizing engine

and fuel system deposits. When avail-

able, the usage of TOP TIER Detergent

gasoline

recommended.

Visit

www.toptiergas.com for a list of TOP

TIER Detergent Gasoline Retailers.

TECHNICAL SPECIFICATIONS

559

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Indiscriminate use of fuel system cleaning agents should be

avoided. Many of these materials intended for gum and

varnish removal may contain active solvents or similar

ingredients. These can harm fuel system gasket and dia-

phragm materials.

Gasoline/Oxygenate Blends

Some fuel suppliers blend unleaded gasoline with oxygen-

ates such as ethanol.

CAUTION!

DO NOT use E-85, gasoline containing methanol, or
gasoline containing more than 15% ethanol (E-15). Use
of these blends may result in starting and drivability
problems, damage critical fuel system components,
cause emissions to exceed the applicable standard,
and/or cause the “Malfunction Indicator Light” to
illuminate. Please observe pump labels as they should
clearly communicate if a fuel contains greater than 15%
ethanol (E-15).

Problems that result from using gasoline containing more

than 15% ethanol (E-15) or gasoline containing methanol are

not the responsibility of the manufacturer and may void or

not be covered under New Vehicle Limited Warranty.

Do Not Use E-85 In Non-Flex Fuel Vehicles

Non-Flex Fuel Vehicles (FFV) are compatible with gasoline

containing up to 15% ethanol (E-15). Use of gasoline with

higher ethanol content may void the New Vehicle Limited

Warranty.
If a Non-FFV vehicle is inadvertently fueled with E-85 fuel,

the engine will have some or all of these symptoms:
• Operate in a lean mode.
• OBD II “Malfunction Indicator Light” on.
• Poor engine performance.
• Poor cold start and cold drivability.
• Increased risk for fuel system component corrosion.

CNG And LP Fuel System Modifications

Modifications that allow the engine to run on compressed

natural gas (CNG) or liquid propane (LP) may result in

damage to the engine, emissions, and fuel system compo-

nents. Problems that result from running CNG or LP are

not the responsibility of the manufacturer and may void or

not be covered under the New Vehicle Limited Warranty.

560

TECHNICAL SPECIFICATIONS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MMT In Gasoline

Methylcyclopentadienyl Manganese Tricarbonyl (MMT) is

a manganese-containing metallic additive that is blended

into some gasoline to increase octane. Gasoline blended

with MMT provides no performance advantage beyond

gasoline of the same octane number without MMT. Gaso-

line blended with MMT reduces spark plug life and

reduces emissions system performance in some vehicles.

The manufacturer recommends that gasoline without

MMT be used in your vehicle. The MMT content of

gasoline may not be indicated on the gasoline pump;

therefore, you should ask your gasoline retailer whether

the gasoline contains MMT. MMT is prohibited in Federal

and California reformulated gasoline.

Fuel System Cautions

CAUTION!

Follow these guidelines to maintain your vehicle’s
performance:
• The use of leaded gasoline is prohibited by Federal

law. Using leaded gasoline can impair engine perfor-
mance and damage the emissions control system.

(Continued)

CAUTION! (Continued)

• An out-of-tune engine or certain fuel or ignition

malfunctions can cause the catalytic converter to
overheat. If you notice a pungent burning odor or
some light smoke, your engine may be out of tune or
malfunctioning and may require immediate service.
Contact an authorized dealer for service assistance.

• The use of fuel additives, which are now being sold

as octane enhancers, is not recommended. Most of
these products contain high concentrations of metha-
nol. Fuel system damage or vehicle performance
problems resulting from the use of such fuels or
additives is not the responsibility of the manufac-
turer and may void or not be covered under the New
Vehicle Limited Warranty.

NOTE:

Intentional tampering with the emissions control

system can result in civil penalties being assessed against

you.

TECHNICAL SPECIFICATIONS

561

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Carbon Monoxide Warnings

WARNING!

Carbon monoxide (CO) in exhaust gases is deadly.
Follow the precautions below to prevent carbon mon-
oxide poisoning:
• Do not inhale exhaust gases. They contain carbon

monoxide, a colorless and odorless gas, which can
kill. Never run the engine in a closed area, such as a
garage, and never sit in a parked vehicle with the
engine running for an extended period. If the vehicle
is stopped in an open area with the engine running
for more than a short period, adjust the ventilation
system to force fresh, outside air into the vehicle.

• Guard against carbon monoxide with proper main-

tenance. Have the exhaust system inspected every
time the vehicle is raised. Have any abnormal condi-
tions repaired promptly. Until repaired, drive with
all side windows fully open.

562

TECHNICAL SPECIFICATIONS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FLUID CAPACITIES

U.S.

Metric

Fuel (Approximate)
1500 Regular Cab Shortbed/Crew Quad Cab Models

23 Gallons

87 Liters

1500 Regular Cab Shortbed/Crew Quad Cab Models

26 Gallons

98 Liters

1500 Regular Cab Longbed/Crew Quad Cab Models (Optional)

33 Gallons

121 Liters

Engine Oil With Filter
3.6L Engine (We recommend you use SAE 0W-20, API Certified)

5 Quarts

4.7 Liters

5.7L Engines (We recommend you use SAE 5W-20, API Certified)

7 Quarts

6.6 Liters

Cooling System
3.6L Engine (We recommend you use Mopar Antifreeze/Coolant 10

Year/150,000 Mile Formula that meets the requirements of FCA Mate-

rial Standard MS.90032.)

13.7 Quarts

13 Liters

3.6L Motor Generator Unit (We recommend you use Mopar

Antifreeze/Coolant 10 Year/150,000 Mile Formula that meets the re-

quirements of FCA Material Standard MS.90032.)

1.8 Quarts

1.7 Liters

5.7L Engine – 1500 Models (We recommend you use Mopar

Antifreeze/Coolant 10 Year/150,000 Mile Formula that meets the re-

quirements of FCA Material Standard MS.90032.)

18.3 Quarts

17.3 Liters

TECHNICAL SPECIFICATIONS

563

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FLUIDS AND LUBRICANTS

Engine

Component

Fluid, Lubricant, or Genuine Part

Engine Coolant

We recommend you use Mopar Antifreeze/Coolant 10

Year/150,000 Mile Formula OAT (Organic Additive Tech-

nology).

Motor Generator Unit (If Equipped)

We recommend you use Mopar Antifreeze/Coolant 10

Year/150,000 Mile Formula OAT (Organic Additive Tech-

nology).

Engine Oil – 3.6L Engine

We recommend you use API Certified SAE 0W-20 Engine

Oil, meeting the requirements of FCA Material Standard

MS-6395 such as Mopar, Pennzoil, and Shell Helix. Refer to

your engine oil filler cap for correct SAE grade.

Engine Oil – 5.7L Engine

We recommend you use API Certified SAE 5W-20 Engine

Oil, meeting the requirements of FCA Material Standard

MS-6395 such as Mopar, Pennzoil, and Shell Helix. Refer to

your engine oil filler cap for correct SAE grade.

Engine Oil Filter

We recommend you use Mopar brand Engine Oil Filters.

Spark Plugs

We recommend you use Mopar Spark Plugs.

Fuel Selection – 3.6L Engine

87 Octane, 0-15% Ethanol (Do not use E-85).

Fuel Selection – 5.7L Engines

89 Octane Recommended - 87 Octane Acceptable, 0-15%

Ethanol (Do not use E-85).

564

TECHNICAL SPECIFICATIONS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION!

• Mixing of engine coolant (antifreeze) other than

specified Organic Additive Technology (OAT) en-
gine coolant (antifreeze), may result in engine dam-
age and may decrease corrosion protection. Organic
Additive Technology (OAT) engine coolant is differ-
ent and should not be mixed with Hybrid Organic
Additive Technology (HOAT) engine coolant (anti-
freeze) or any “globally compatible” coolant (anti-
freeze). If a non-OAT engine coolant (antifreeze) is
introduced into the cooling system in an emergency,
the cooling system will need to be drained, flushed,
and refilled with fresh OAT coolant (conforming to
MS.90032), by an authorized dealer as soon as pos-
sible.

• Do not use water alone or alcohol-based engine

coolant (antifreeze) products. Do not use additional
rust inhibitors or antirust products, as they may not
be compatible with the radiator engine coolant and
may plug the radiator.

• This vehicle has not been designed for use with

propylene glycol-based engine coolant (antifreeze).
Use of propylene glycol-based engine coolant (anti-
freeze) is not recommended.

TECHNICAL SPECIFICATIONS

565

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Chassis

Component

Fluid, Lubricant, or Genuine Part

Automatic Transmission

Use only Mopar ZF 8&9 Speed ATF Automatic Transmission

Fluid, or equivalent. Failure to use the correct fluid may

affect the function or performance of your transmission.

Transfer Case – 48-11 Active On-Demand 2–speed Transfer

Case (With 4WD AUTO)

We recommend you use MOPAR Transfer Case Lubricant

for Borg Warner 44-44 and 44-45.

Transfer Case – 48-12 Part Time 2–Speed Transfer Case

(Without 4WD AUTO)

We recommend you use MOPAR Transfer Case Lubricant for

Borg Warner 44-45, 44-46, 44-47, 44-48 and Pre 2016 44-44.

Front Axle

We recommend you use Mopar GL-5 Synthetic Axle Lubri-

cant SAE 75W-85.

Rear Axle (3.21/3.55)

We recommend you use Mopar Synthetic Gear Lubricant

SAE 75W-90 (MS-A0160). Limited-Slip Rear Axles require

the addition of 5 oz. (148 ml) Mopar Limited Slip Additive

(MS-10111).

Rear Axle (3.92)

We recommend you use Mopar Synthetic Gear Lubricant

SAE 75W-140 (MS-8985). Limited-Slip Rear Axles require

the addition of 5 oz. (148 ml) Mopar Limited Slip Additive

(MS-10111).

Max Tow Rear Axle (3.92)

We Recommend You Use Dana SAE 80W90 Axle Lubricant.

Brake Master Cylinder

We recommend you use Mopar DOT 3. If DOT 3 brake

fluid is not available, then DOT 4 is acceptable.

566

TECHNICAL SPECIFICATIONS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

RAM 1500 (2019 year). Manual - part 35
