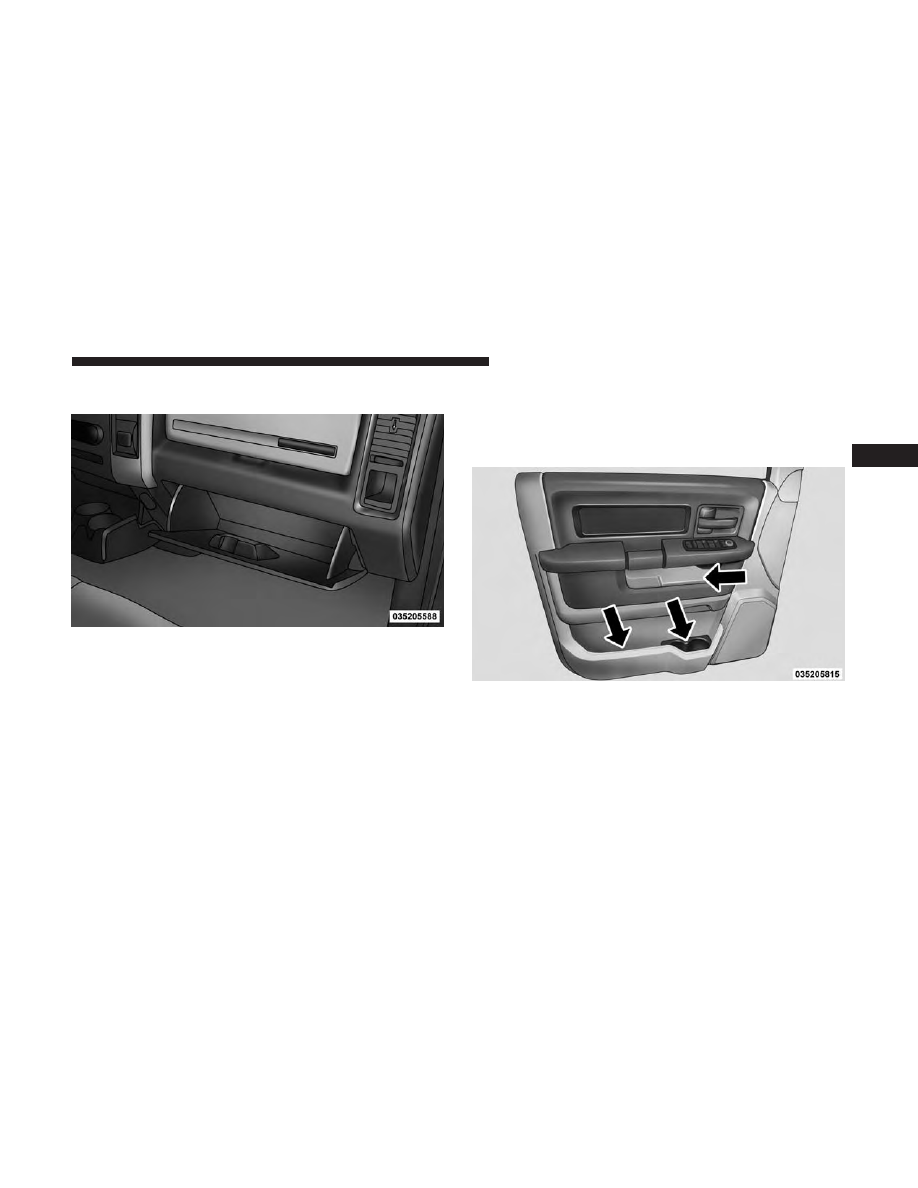

To open the lower glove compartment, pull on the handle
to release the latch and lower the glove compartment door.

Door Storage

Front Door Storage — If Equipped

Storage areas and bottle holders (drivers side only) are
located in the door trim panels.

Lower Glove Compartment

Front Door Storage

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

181

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Rear Door Storage — If Equipped

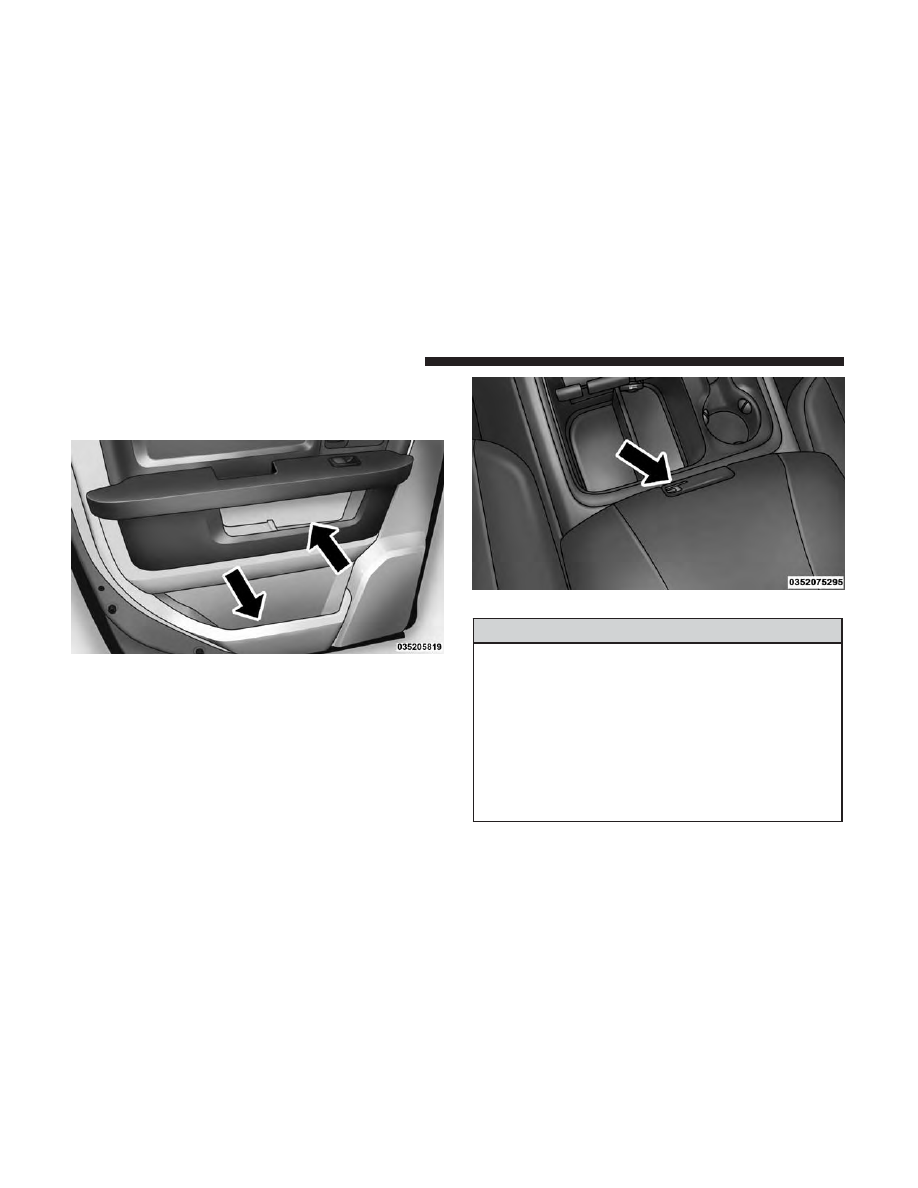

Storage compartments are located in both the driver and
passenger rear door trim panels.

Center Storage Compartment — If Equipped

The center storage compartment is located between the
driver and passenger seats. The storage compartment
provides an armrest and contains both and upper and
lower storage area.

WARNING!

• This armrest is not a seat. Anyone seated on the

armrest could be seriously injured during vehicle
operation, or a collision. Only use the center seating
position when the armrest is fully upright.

• In a collision, the latch may open if the total weight

of the items stored exceeds about 10 lbs (4.5 kg).
These items could be thrown about endangering
occupants of the vehicle. Items stored should not
exceed a total of 10 lbs (4.5 kg).

Rear Door Storage

Center Storage Compartment

182

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

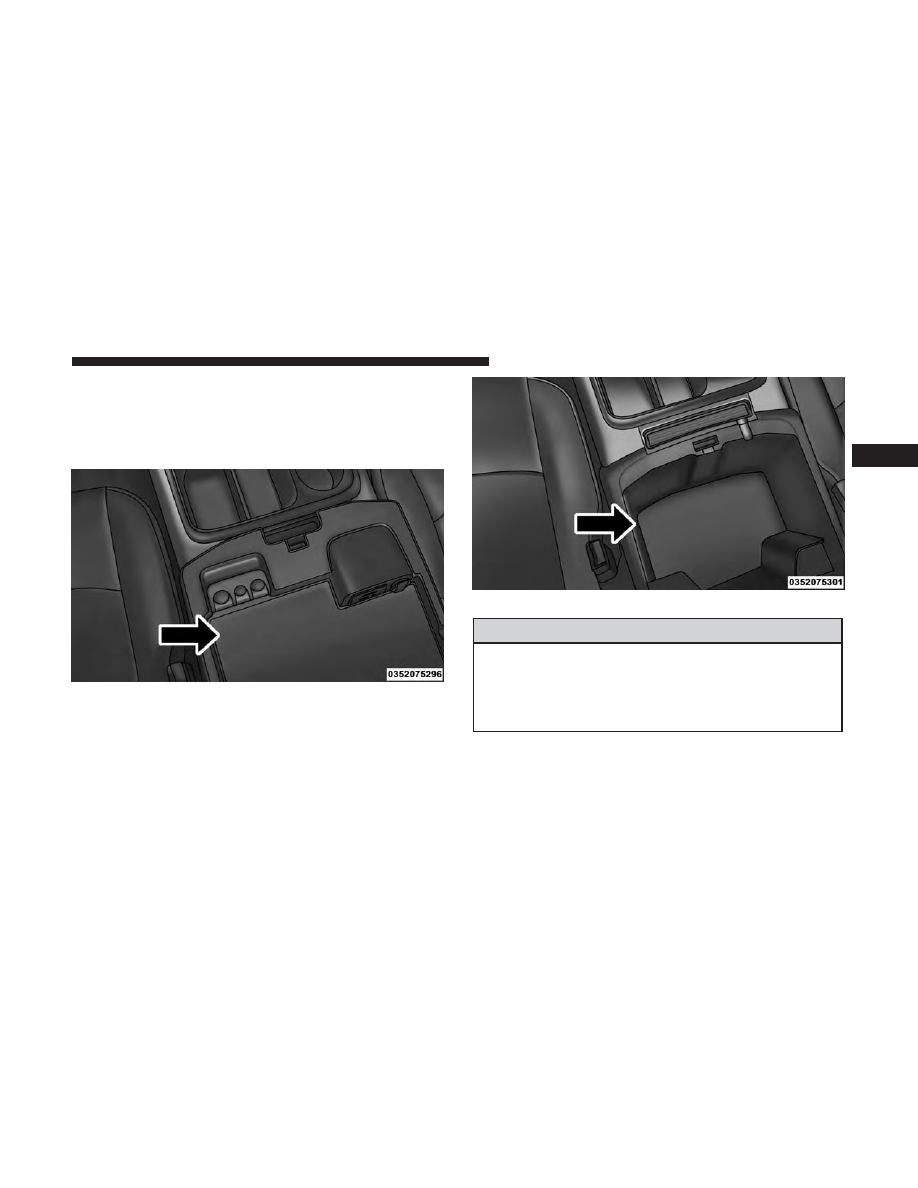

Pull on the upper handle on the front of the armrest to raise
the cover. The upper storage area contains a USB power
outlet that can be used to power small electrical devices,
refer to “Electrical Power Outlets” for further information.

With the upper lid closed, pull on the lower handle to open
the lower storage bin.

WARNING!

Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the console
compartment lid open may result in injury in a colli-
sion.

Upper Storage Compartment

Lower Storage Bin

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

183

-------------------------------------------------------------------------------------------------------------------------------------------------------------

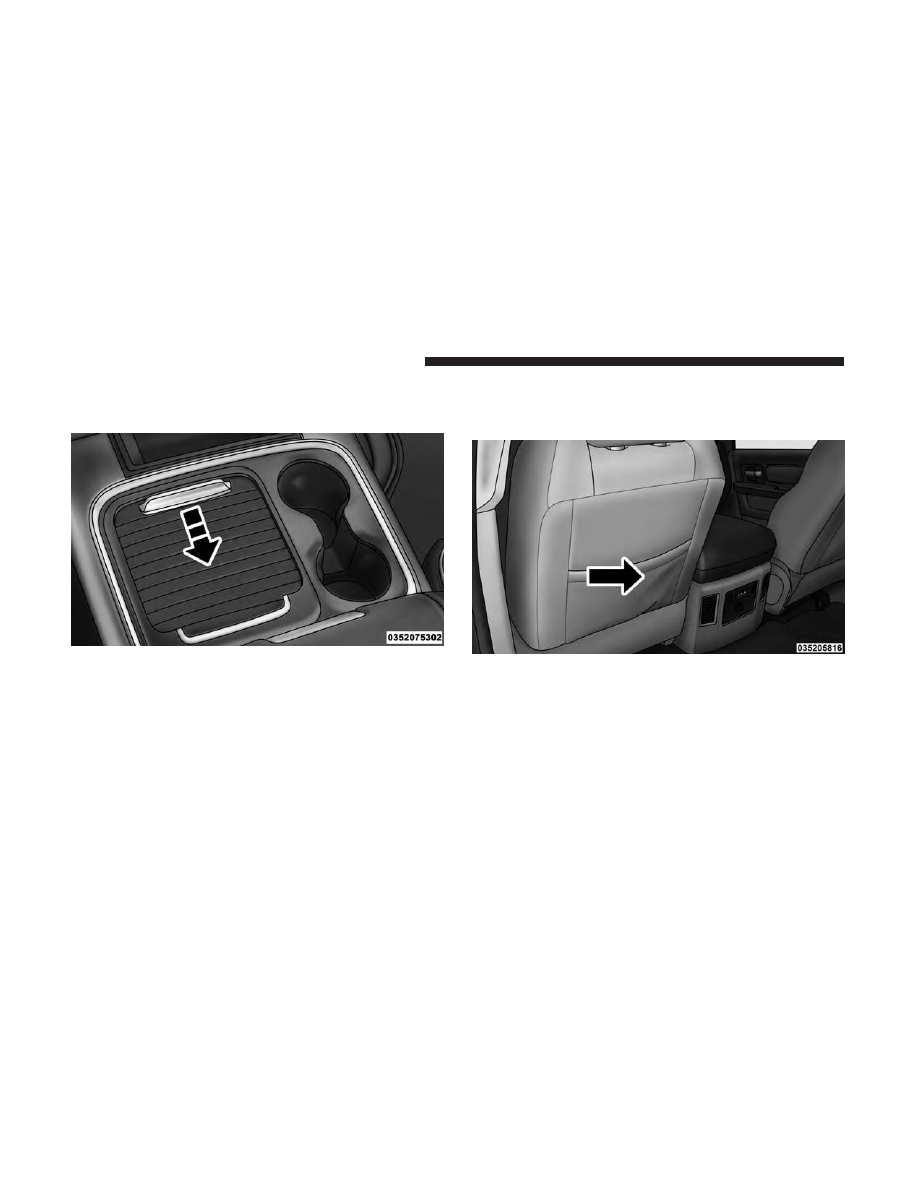

The center console is equipped with a front storage bin
located next to the cupholders. This storage bin may be
equipped with a manual sliding top door.

Seatback Storage

Located in the back of both the driver and passenger front
seats are pockets that can be used for storage.

Front Storage Bin With Door — If Equipped

Drivers Side Seatback Storage

184

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage (Regular Cab)

The storage bin is located behind the front seats and runs
the length of the cab.

Storage and Seats (Crew Cab/Quad Cab)

The Crew Cab and Quad Cab models provide additional
storage under the rear seats. Lift the seats to access the
storage compartment.

To open the storage compartments, unsnap the securing
snap located at either side of the load floor and lift upward
on the fold flat lid.

NOTE:

For more information on storage and the fold flat

floor, refer to “Fold Flat Load Floor” in this section.

Storage Bin

Crew Cab Storage

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

185

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Plastic Grocery Bag Retainers (Regular Cab
Models)

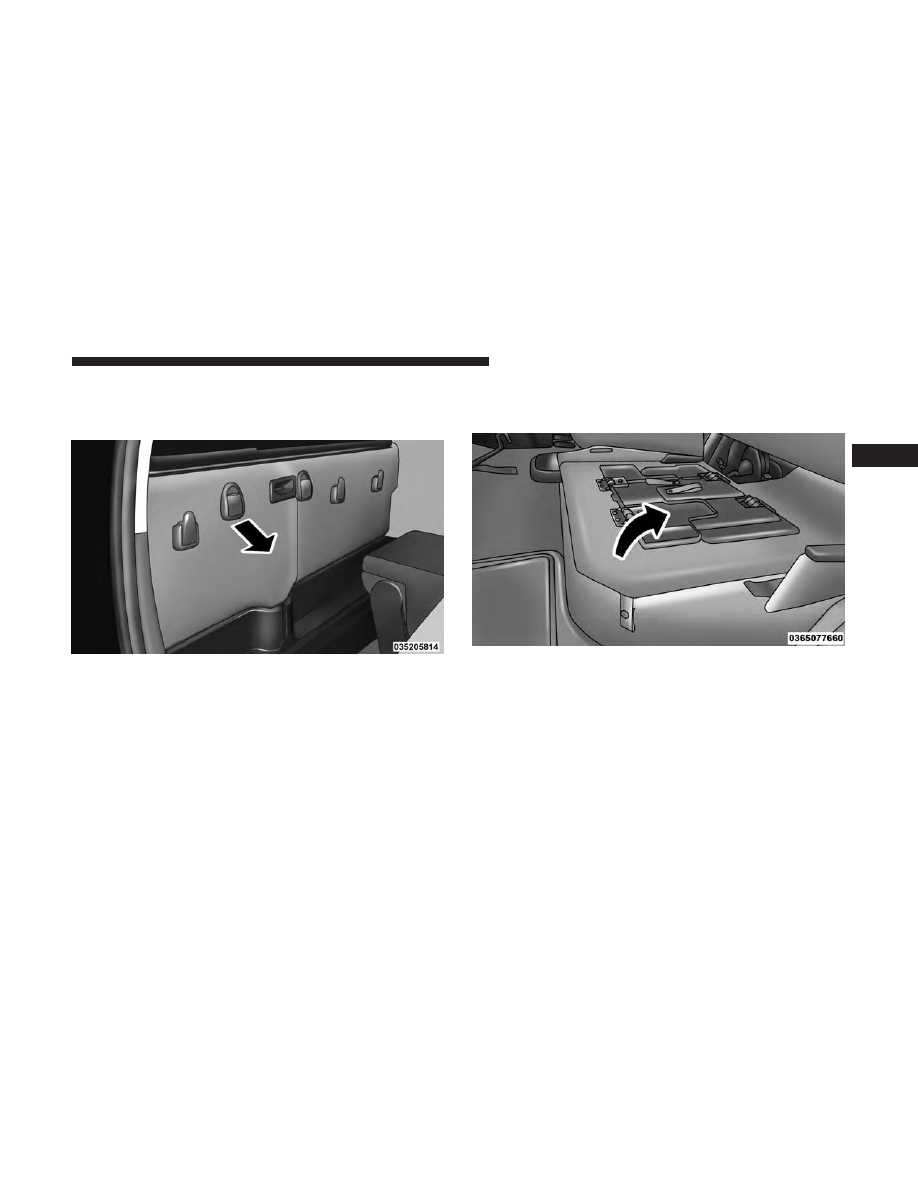

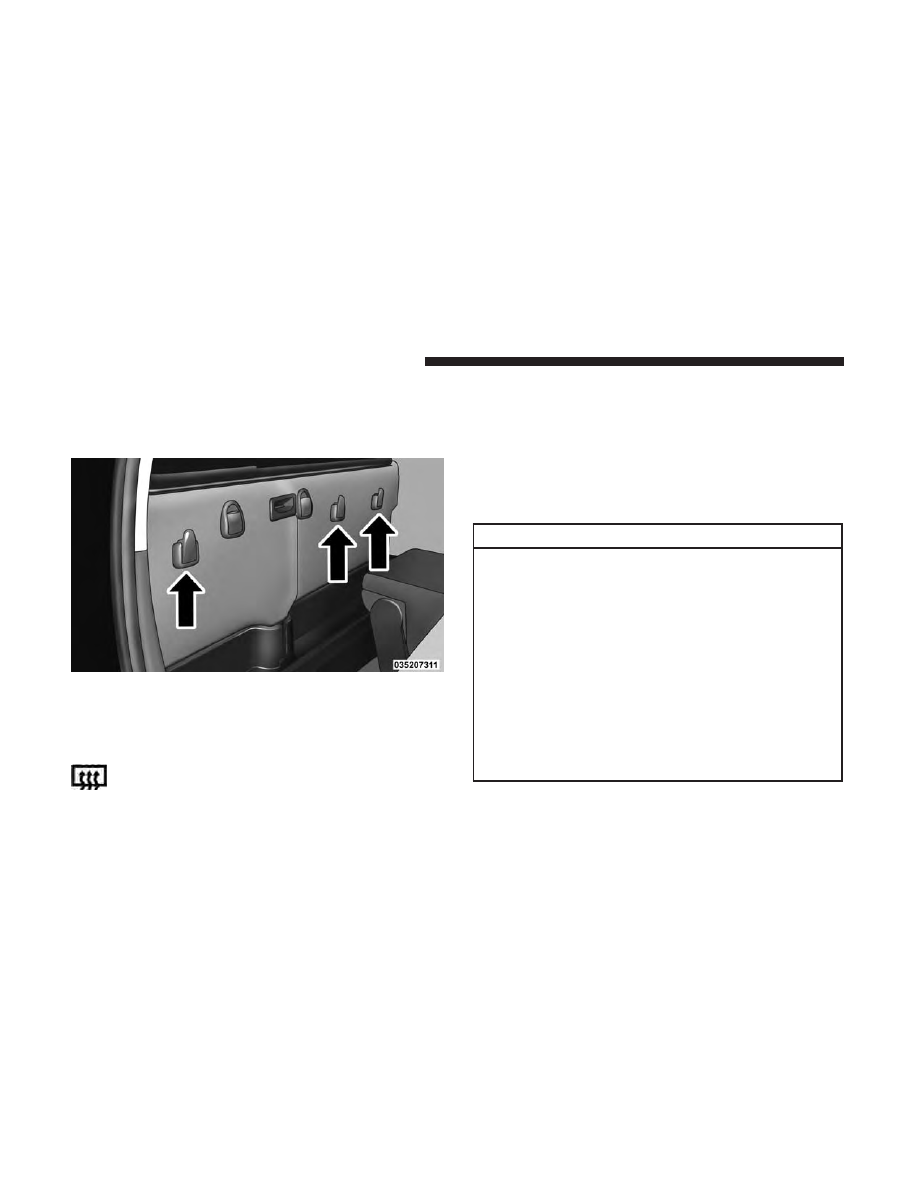

Retainer hooks which will hold plastic grocery bag handles
are built into the back panel of the cab, behind the rear seat.

REAR WINDOW FEATURES

Rear Window Defroster

The rear window defroster button is located on the
climate control panel. Push this button to turn on

the rear window defroster and the heated outside mirrors

(if equipped). An indicator in the button will illuminate
when the rear window defroster is on. The rear window
defroster automatically turns off after approximately 10
minutes. For an additional five minutes of operation, push
the button a second time.

NOTE:

To prevent excessive battery drain, use the rear

window defroster only when the engine is operating.

CAUTION!

Failure to follow these cautions can cause damage to
the heating elements:
• Use care when washing the inside of the rear win-

dow. Do not use abrasive window cleaners on the
interior surface of the window. Use a soft cloth and a
mild washing solution, wiping parallel to the heat-
ing elements. Labels can be peeled off after soaking
with warm water.

• Do not use scrapers, sharp instruments, or abrasive

window cleaners on the interior surface of the win-
dow.

• Keep all objects a safe distance from the window.

Grocery Bag Hooks

186

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Power Sliding Rear Window — If Equipped

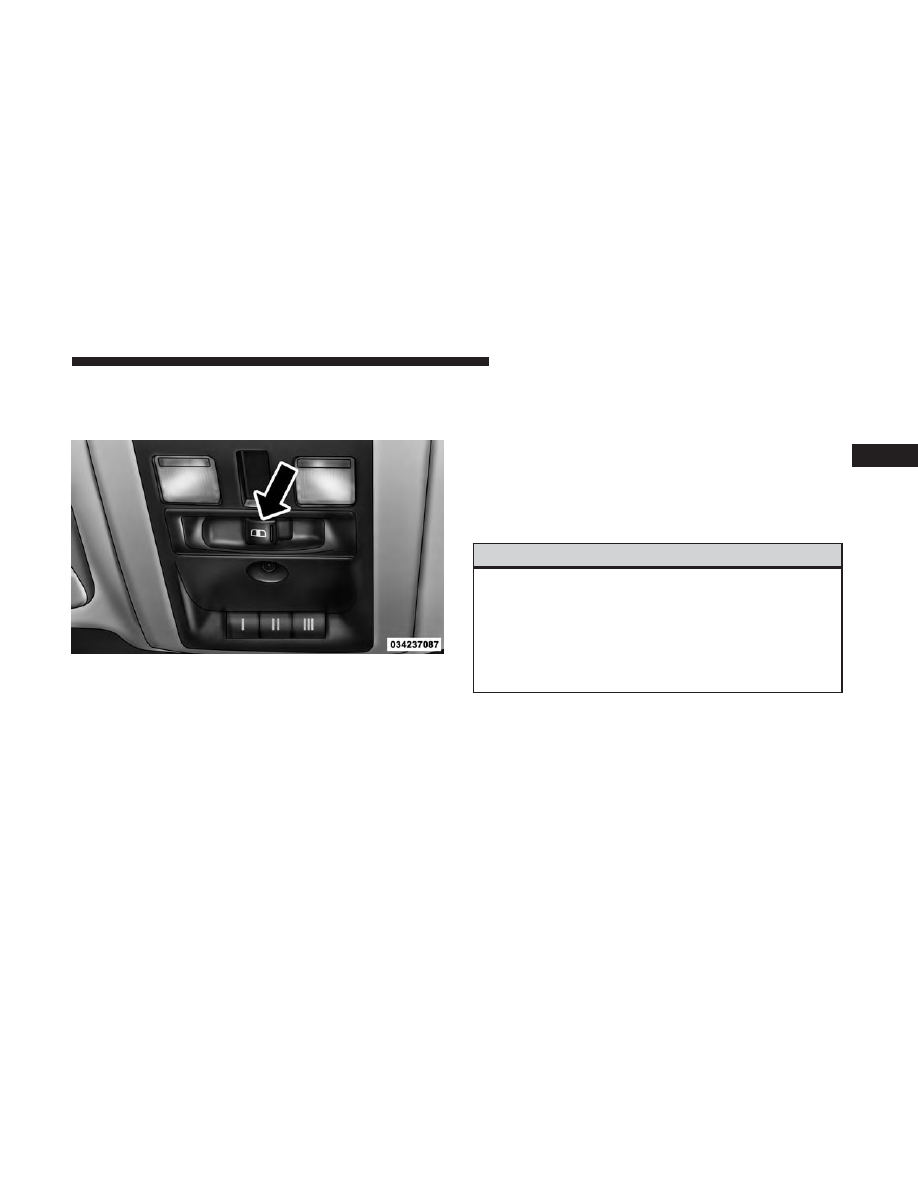

The switch for the power sliding rear window is located on
the overhead console.

Push the switch to the right to open the glass. Pull the
switch to the left to close the glass.

Manual Sliding Rear Window — If Equipped

A locking device in the center of the window helps to
prevent entry from the rear of the vehicle. Squeeze the lock
to release the window.

FOLD FLAT LOAD FLOOR — IF EQUIPPED

Quad Cab and Crew Cab models with a 60/40 rear seat
may be equipped with a folding load floor.

WARNING!

Do not operate the vehicle with loose items stored on
the load floor. While driving or in an accident you may
experience abrupt stopping, rapid acceleration, or
sharp turns. Loose objects stored on the load floor may
move around with force and strike occupants, resulting
in serious or fatal injury.

Rear Window Switch

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

187

-------------------------------------------------------------------------------------------------------------------------------------------------------------

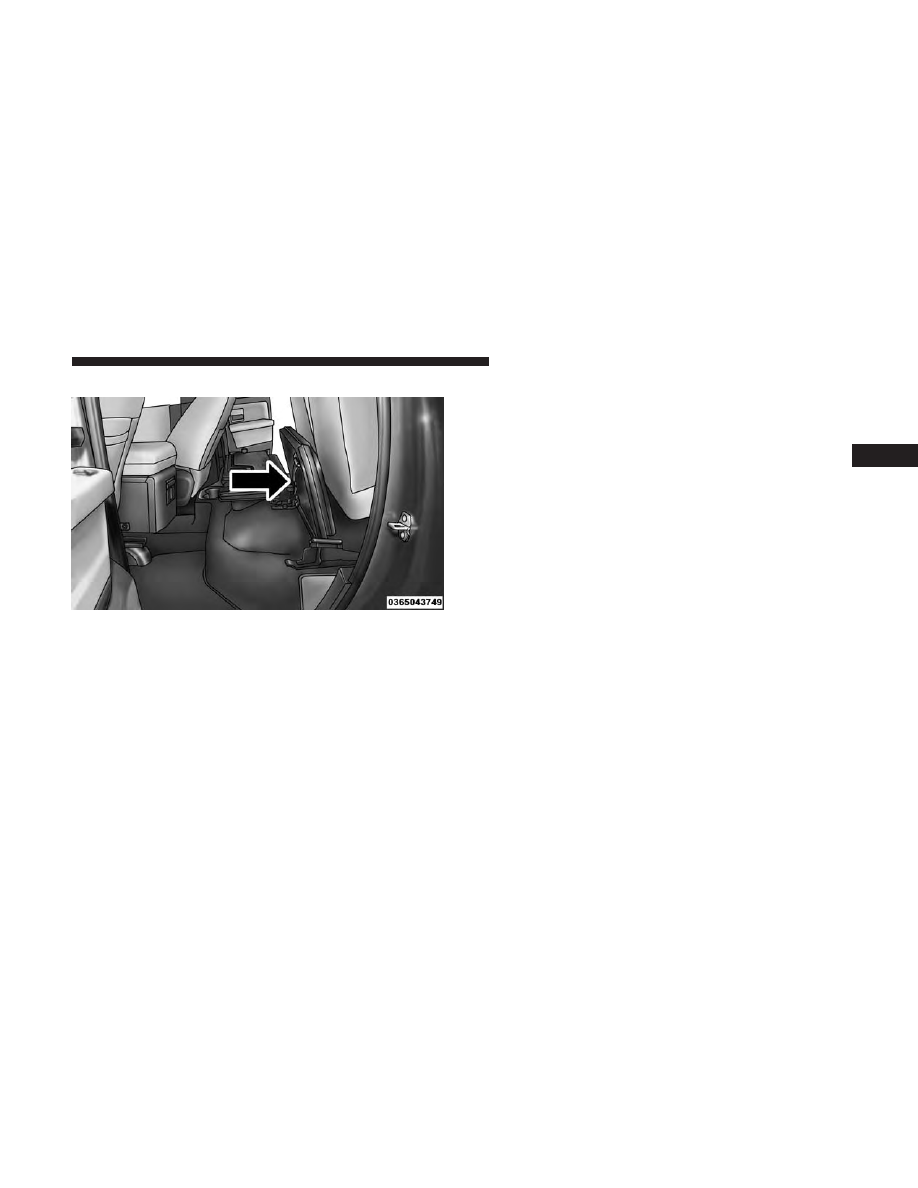

Unfolding The Load Floor/Quad Cab

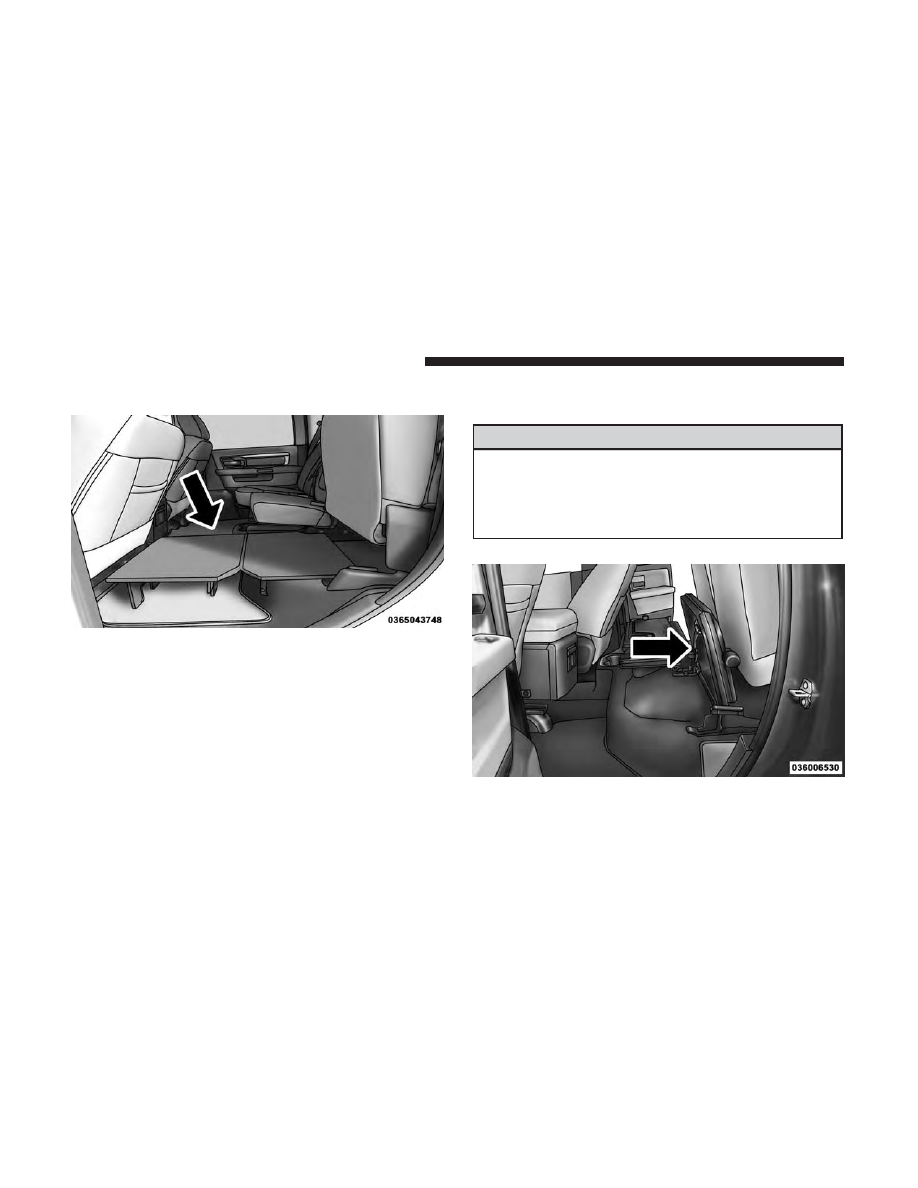

1. Lift the 60/40 seat cushion(s) to the upward position.

2. Grasp the knob on the load floor and lift the knob until

the load floor unfolds into position.

3. Reverse the procedure to store the load floor.

Unfolding The Load Floor

Load Floor In Open Position

188

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Unfolding The Load Floor/Crew Cab

1. Lift the 60/40 seat cushion(s) to the upward position.

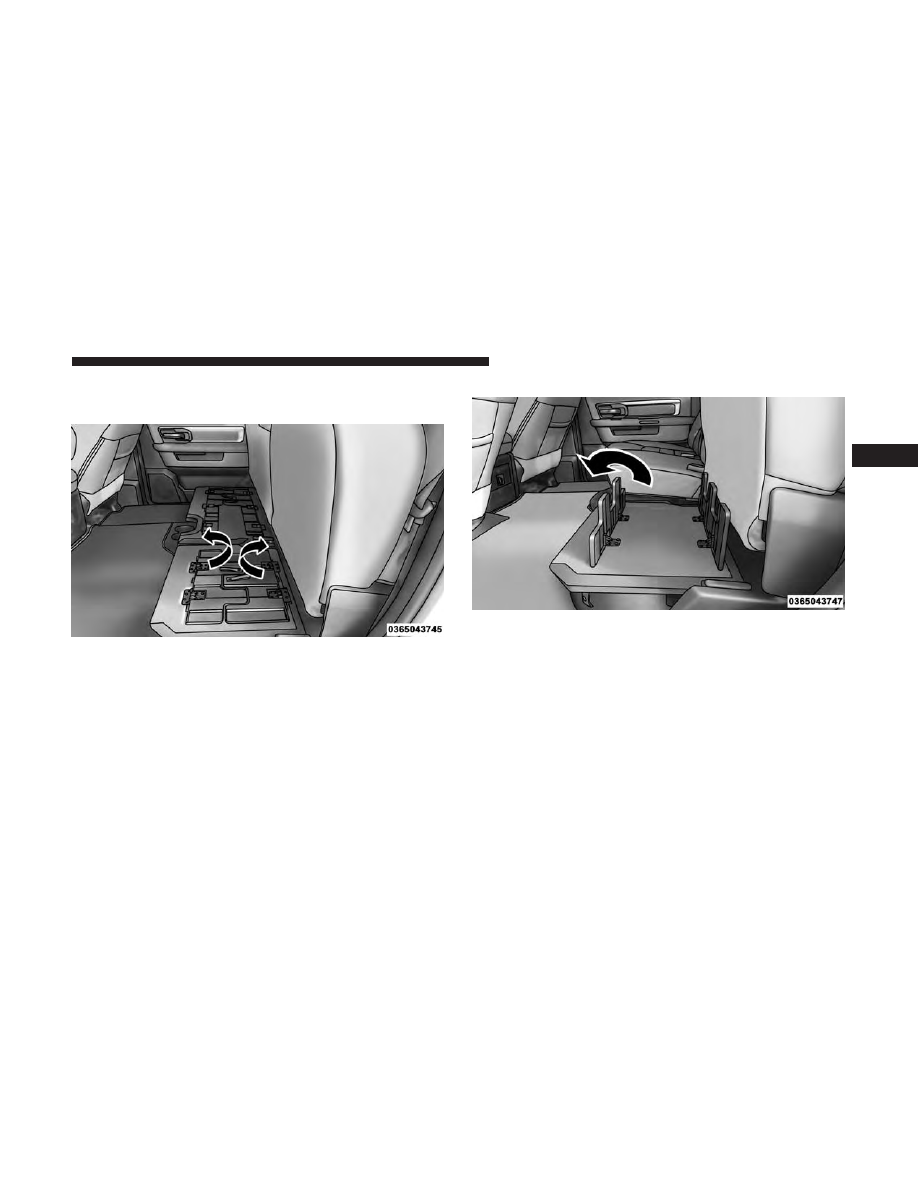

2. Unfold both the legs using the straps.

Load Floor Legs In Stowed Position

Load Floor Legs In Opened Position

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

189

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. Lift the front panel until the load floor unfolds into

position.

4. Reverse the procedure to store the load floor.

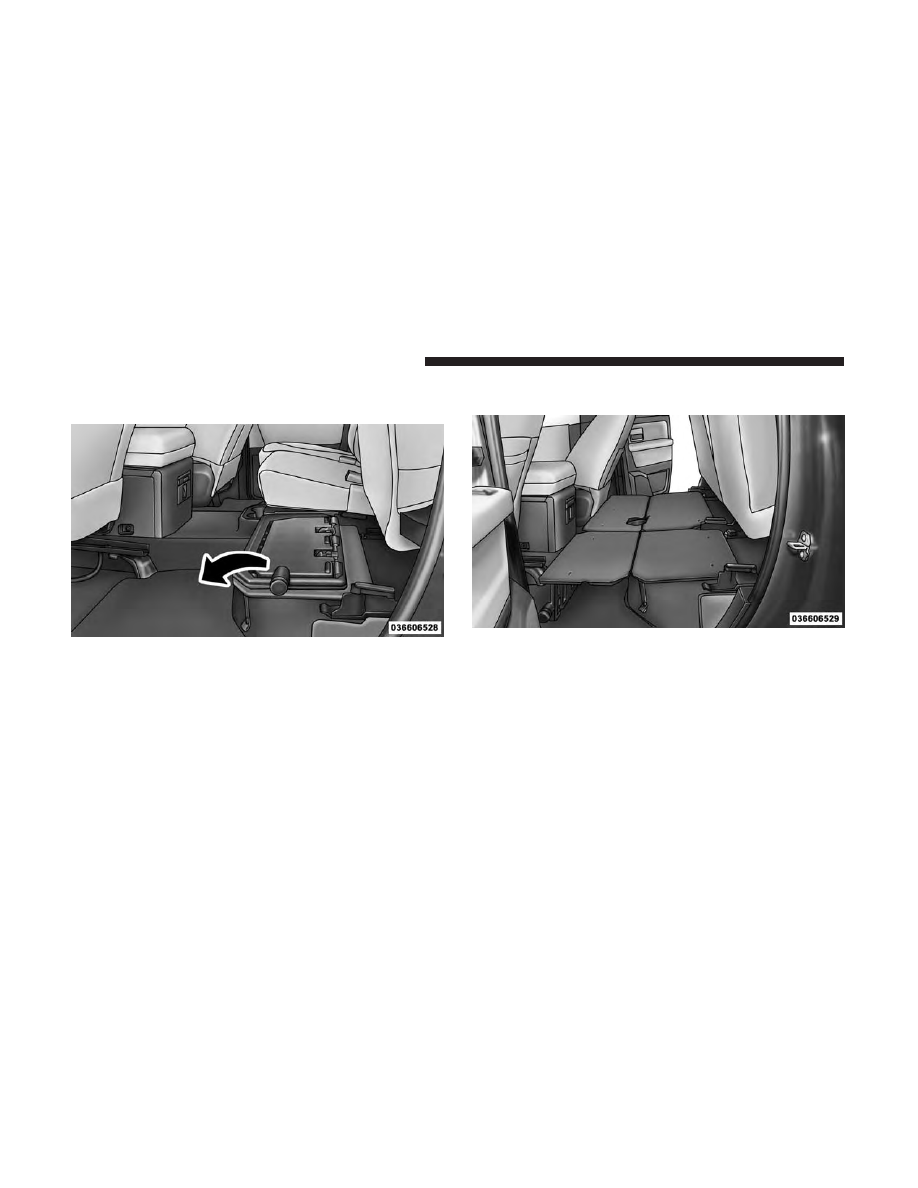

Positioning The Load Floor For Storage Access Under
The Seat

1. Lift the 60/40 seat cushion(s) to the upward position.

2. Unsnap the securing snap located at either side of the

load floor.

3. Lift the load floor up to access storage under the load

floor.

WARNING!

Do not drive with the load floor in the up position.
When stopping fast or in an accident, the load floor
could move to the down position causing serious
injury.

Quad Cab — If Equipped

Load Floor In Open Position

Load Floor Securing Straps/Quad Cab

190

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Crew Cab — If Equipped

4. Reverse the procedure to put the load floor back in the

secured down position before you operate the vehicle.

Load Floor Securing Straps/Crew Cab

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

191

-------------------------------------------------------------------------------------------------------------------------------------------------------------

UNDERSTANDING YOUR INSTRUMENT PANEL

CONTENTS

䡵 INSTRUMENT PANEL FEATURES . . . . . . . . . . .195
䡵 INSTRUMENT CLUSTER . . . . . . . . . . . . . . . . . .196
䡵 WARNING AND INDICATOR LIGHTS . . . . . . . .200

▫ Red Telltale Indicator Lights . . . . . . . . . . . . . . .201
▫ Yellow Telltale Indicator Lights . . . . . . . . . . . . .208
▫ Green Telltale Indicator Lights. . . . . . . . . . . . . .219
▫ Blue Telltale Indicator Lights . . . . . . . . . . . . . . .221
▫ White Telltale Indicator Lights. . . . . . . . . . . . . .221

䡵 INSTRUMENT CLUSTER DISPLAY . . . . . . . . . . .222

▫ Instrument Cluster Display Controls . . . . . . . . .222
▫ Instrument Cluster Display Screens . . . . . . . . . .224
▫ Oil Life Reset. . . . . . . . . . . . . . . . . . . . . . . . . .226
▫ Instrument Cluster Display Selectable Menu

Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .227

▫ Instrument Cluster Display Messages. . . . . . . . .234
▫ Battery Saver On/Battery Saver Mode Message —

Electrical Load Reduction Actions —
If Equipped . . . . . . . . . . . . . . . . . . . . . . . . . .236

䡵 CYBERSECURITY . . . . . . . . . . . . . . . . . . . . . . . .238
䡵 UCONNECT SETTINGS . . . . . . . . . . . . . . . . . . .239

▫ Buttons On The Faceplate . . . . . . . . . . . . . . . . .240
▫ Buttons On The Touchscreen . . . . . . . . . . . . . . .241
▫ Customer Programmable Features —

Uconnect 5.0 Personal Settings. . . . . . . . . . . . . .241

▫ Customer Programmable Features — Uconnect

8.4/8.4 NAV Personal Settings . . . . . . . . . . . . .256

䡵 UCONNECT RADIOS — IF EQUIPPED . . . . . . . .273
䡵 IPOD/USB/MP3 CONTROL — IF EQUIPPED. . . .273
䡵 STEERING WHEEL AUDIO CONTROLS — IF

EQUIPPED . . . . . . . . . . . . . . . . . . . . . . . . . . . .274

4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

▫ Radio Operation. . . . . . . . . . . . . . . . . . . . . . . .274
▫ CD Player — If Equipped . . . . . . . . . . . . . . . . .274

䡵 CD/DVD DISC MAINTENANCE . . . . . . . . . . . .275
䡵 RADIO OPERATION AND MOBILE DEVICES . . .275

▫ Regulatory And Safety Information . . . . . . . . . .275

䡵 CLIMATE CONTROLS . . . . . . . . . . . . . . . . . . . .277

▫ Manual Climate Controls Without A Touchscreen —

If Equipped . . . . . . . . . . . . . . . . . . . . . . . . . .277

▫ Climate Controls With a Touchscreen . . . . . . . . .282
▫ Automatic Temperature Control (ATC) — If

Equipped . . . . . . . . . . . . . . . . . . . . . . . . . . . .291

▫ Operating Tips . . . . . . . . . . . . . . . . . . . . . . . .291

䡵 PERSONALIZED MENU BAR . . . . . . . . . . . . . . .294
䡵 UCONNECT VOICE RECOGNITION . . . . . . . . .294

▫ Introducing Uconnect . . . . . . . . . . . . . . . . . . . .294
▫ Get Started . . . . . . . . . . . . . . . . . . . . . . . . . . .295
▫ Basic Voice Commands . . . . . . . . . . . . . . . . . . .297
▫ Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .298

▫ Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .300
▫ Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .302
▫ Voice Text Reply . . . . . . . . . . . . . . . . . . . . . . .303
▫ Climate (8.4/8.4 NAV) . . . . . . . . . . . . . . . . . . .305
▫ Navigation (8.4 /8.4 NAV) . . . . . . . . . . . . . . . .306
▫ Uconnect Access (8.4/8.4 NAV) . . . . . . . . . . . . .306
▫ Vehicle Health Alert . . . . . . . . . . . . . . . . . . . .307
▫ Register (8.4/8.4 NAV) . . . . . . . . . . . . . . . . . . .308
▫ Mobile App (8.4/8.4 NAV) . . . . . . . . . . . . . . . .308
▫ Voice Texting (8.4/8.4 NAV) . . . . . . . . . . . . . . .309
▫ Yelp (8.4/8.4 NAV). . . . . . . . . . . . . . . . . . . . . .310
▫ SiriusXM Travel Link (8.4/8.4 NAV). . . . . . . . . .311
▫ Siri Eyes Free — If Equipped . . . . . . . . . . . . . .312
▫ Do Not Disturb . . . . . . . . . . . . . . . . . . . . . . . .314
▫ General Information . . . . . . . . . . . . . . . . . . . . .315
▫ Additional Information . . . . . . . . . . . . . . . . . . .316

194

UNDERSTANDING YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

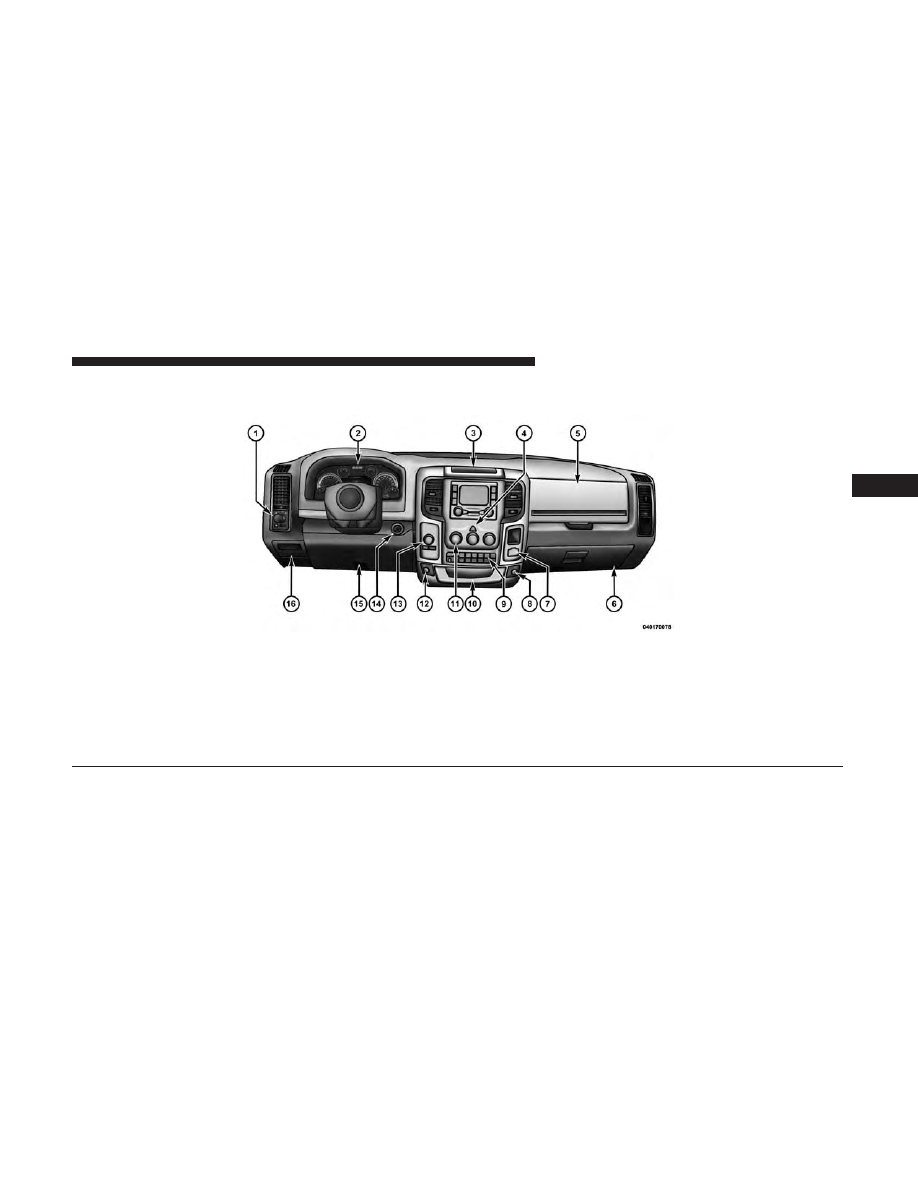

INSTRUMENT PANEL FEATURES

1 — Headlight Switch

7 — 115v Power Inverter Outlet

13 — Gear Selector/Transfer Case Position
Switch — If Equipped

2 — Instrument Cluster

8 — Power Outlet — If Equipped

14 — Ignition Switch

3 — Radio

9 — Lower Switch Bank

15 — Hood Release

4 — Hazard Switch

10 — Instrument Panel Drawer

16 — Parking Brake Release

5 — Upper Glove Compartment

11 — Climate Controls

6 — Lower Glove Compartment

12 — Power Outlet/Cigar Lighter — If
Equipped

4

UNDERSTANDING YOUR INSTRUMENT PANEL

195

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT CLUSTER

1. Tachometer

• Indicates the engine speed in revolutions per minute

(RPM x 1000).

2. Instrument Cluster Display

• When the appropriate conditions exist, this display

shows the Instrument Cluster Display messages. Refer

Base Instrument Clusters

196

UNDERSTANDING YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

to “Instrument Cluster Display” in “Understanding
Your Instrument Panel” for further information.

3. Speedometer

• Indicates vehicle speed.

4. Fuel Gauge

• The pointer shows the level of fuel in the fuel tank

when the ignition is in the ON/RUN position.

The fuel pump symbol points to the side of the

vehicle where the fuel door is located.

5. Temperature Gauge

• The temperature gauge shows engine coolant tem-

perature. Any reading within the normal range indi-
cates that the engine cooling system is operating
satisfactorily.

• The gauge pointer will likely indicate a higher tem-

perature when driving in hot weather, up mountain
grades, or when towing a trailer. It should not be
allowed to exceed the upper limits of the normal
operating range.

WARNING!

A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer for
service if your vehicle overheats. If you decide to look
under the hood yourself, see “Maintaining Your Ve-
hicle”. Follow the warnings under the Cooling System
Pressure Cap paragraph.

CAUTION!

Driving with a hot engine cooling system could dam-
age your vehicle. If the temperature gauge reads “H”
pull over and stop the vehicle. Idle the vehicle with the
air conditioner turned off until the pointer drops back
into the normal range. If the pointer remains on the
“H”, turn the engine off immediately and call an
authorized dealer for service.

4

UNDERSTANDING YOUR INSTRUMENT PANEL

197

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     10      11      12      13     ..
