(8) Verify that all clips on fuel filler housing are

fully engaged to outer quarter panel.

(9) Place fuel fill neck in position.
(10) Install screws to hold fuel fill neck to fuel

filler housing.

(11) Engage latch release link into clip on fuel fill

blocker latch arm.

(12) Verify fuel fill blocker latch operation.
(13) Install water shield patch to cover access hole

in C-pillar.

(14) Install left quarter trim panel.

FUEL FILL DOOR BLOCKER
LATCH

REMOVAL

(1) Remove left quarter trim panel.
(2) Remove water shield patch covering access hole

in C-pillar.

(3) Disengage latch release link from clip on fuel

fill blocker latch arm (Fig. 12).

(4) Remove screws holding fuel fill blocker latch to

C-pillar (Fig. 10).

(5) Remove fuel fill blocker latch from vehicle.

INSTALLATION

(1) Position fuel fill blocker latch on vehicle.
(2) Install screws to hold fuel fill blocker latch to

C-pillar.

(3) Engage latch release link into clip on fuel fill

blocker latch arm with fuel door in the closed posi-
tion.

(4) Install water shield patch to cover access hole

in C-pillar.

(5) Verify fuel fill blocker latch operation.
(6) Install left quarter trim panel.

FUEL FILL DOOR BLOCKER
LATCH STRIKER

REMOVAL

(1) Remove sliding door trim panel.
(2) Remove sound shield as necessary to access

striker

(3) Remove screws attaching fuel fill door blocker

latch striker to sliding door rear end frame (Fig. 11).

(4) Remove fuel fill door blocker latch striker from

vehicle.

INSTALLATION

(1) Position fuel fill door blocker latch striker on

vehicle.

(2) Install screws attaching fuel fill door blocker

latch striker to sliding door rear end frame.

(3) Install sliding door sound shield.
(4) Install sliding door trim panel.

FUEL FILL DOOR BLOCKER
LOCKOUT LINK

REMOVAL

(1) Remove left quarter trim panel.
(2) Remove water shield patch covering access hole

in C-pillar.

(3) Disengage fuel filler lockout link from clip on

fuel fill blocker latch arm (Fig. 12).

(4) Open fuel fill door.
(5) Remove screws holding fuel filler housing to

fuel filler tube neck.

(6) Reaching inside fuel filler housing, release clips

holding housing to outer quarter panel.

Fig. 10 FUEL FILL

1 - FUEL FILLER BLOCKER LATCH ARM
2 - C-PILLAR

Fig. 11 FUEL FILL DOOR BLOCKER LATCH

STRIKER

1 - LEFT SLIDING DOOR
2 - FUEL FILLER STOP STRIKER

23 - 52

EXTERIOR

RS

FUEL FILL DOOR (Continued)

(7) Remove fuel filler housing and lockout link

from vehicle.

(8) Disengage clip holding link to fuel fill door

(Fig. 13).

(9) Remove link from fuel fill door.

INSTALLATION

(1) Insert link into clip on fuel fill door.
(2) Engage clip to hold link to fuel fill door.
(3) Insert lockout link through grommet in panel

between inner and outer quarter panel.

(4) Close fuel fill door.
(5) Install fuel filler housing to outer quarter

panel.

(6) Verify that all clips on fuel filler housing are

fully engaged to outer quarter panel.

(7) Engage fuel filler lockout link into clip on fuel

fill blocker latch arm.

(8) Install water shield patch covering access hole

in C-pillar.

(9) Install left quarter trim panel.

GRILLE OPENING
REINFORCEMENT

REMOVAL

(1) Release hood latch and open hood.
(2) Remove bolts attaching hood latch to cross-

member and position latch out of the way.

(3) Remove radiator sight shield.
(4) Remove engine air inlet resonator.
(5) Remove hood cable.
(6) Remove hood prop rod.
(7) Remove screw attaching coolant recovery bottle

to crossmember.

(8) Remove bolts attaching radiator isolators to

crossmember.

(9) Remove bolts attaching ends of crossmember to

radiator closure panel (Fig. 14).

(10) Lift crossmember upward and away from

radiator closure panel.

(11) Remove crossmember from vehicle.

INSTALLATION

(1) Place radiator closure panel crossmember in

position on vehicle.

(2) Insert ends of crossmember between layered

metal sections of radiator closure panel at each side
of radiator.

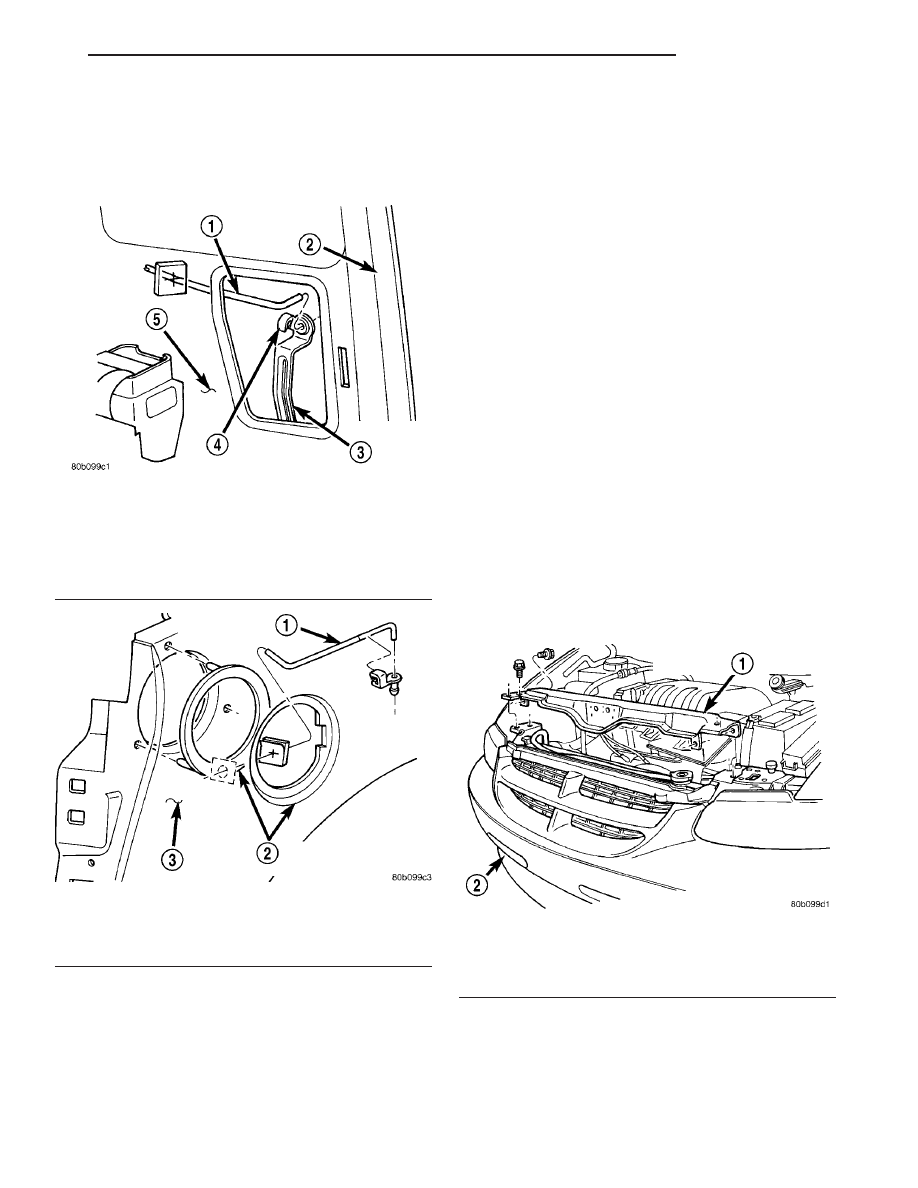

Fig. 12 FUEL FILLER LOCKOUT LINK AT LATCH

ARM

1 - FUEL FILLER LOCKOUT LINK
2 - C-PILLAR
3 - FUEL FILLER BLOCKER LATCH ARM
4 - PLASTIC LINK CLIP
5 - INNER QUARTER PANEL

Fig. 13 FUEL FILLER LOCKOUT LINK

1 - FUEL FILLER LOCKOUT LINK
2 - FUEL FILLER OPENING
3 - QUARTER PANEL

Fig. 14 RADIATOR CLOSURE PANEL

CROSSMEMBER

1 - RADIATOR CLOSURE PANEL CROSSMEMBER
2 - FRONT FASCIA

RS

EXTERIOR

23 - 53

FUEL FILL DOOR BLOCKER LOCKOUT LINK (Continued)

(3) Align with paint breaks around bolt heads.
(4) Install bolts attaching ends of crossmember to

radiator closure panel (Fig. 14). Tighten bolts to 19
N·m (14 ft. lbs.) torque.

(5) Install bolts attaching radiator isolators to

crossmember.

(6) Install screw attaching coolant recovery bottle

to crossmember.

(7) Install bolt attaching air cleaner housing to

crossmember.

(8) Install engine air inlet resonator.
(9) Install radiator sight shield.
(10) Install hood prop rod.
(11) Align hood latch by placing latch over net

pierce tabs. If alignment is required, flatten tabs.

(12) Install bolts attaching hood latch to cross-

member. Tighten bolts to 13.5 N·m (10 ft. lbs.)
torque.

(13) Verify hood latch operation and hood align-

ment.

FRONT WHEELHOUSE
SPLASH SHIELD

REMOVAL

(1) Hoist and support vehicle on safety stands.

(Refer to LUBRICATION & MAINTENANCE/HOIST-
ING - STANDARD PROCEDURE).

(2) Remove front wheel.
(3) Remove push pin fasteners attaching splash

shield to frame rail forward of suspension.

(4) Remove push pin fasteners attaching splash

shield to frame rail rearward of suspension.

(5) Remove screws attaching wheelhouse splash

shield to front fender and front bumper fascia.

(6) Remove splash shield from vehicle (Fig. 15).

INSTALLATION

(1) Place splash shield in position on vehicle (Fig.

15).

(2) Install push pin fasteners attaching splash

shield to frame rail forward of suspension.

(3) Install push pin fasteners attaching splash

shield to frame rail rearward of suspension.

(4) Install screws attaching wheelhouse splash

shield to front fender.

(5) Install front wheel.
(6) Lower vehicle.

LUGGAGE RACK RISER

REMOVAL

(1) Remove two fasteners from the front riser.

Gently pull up on the luggage rack side rail and
detach the riser snap to remove riser from the rail
(Fig. 16).

(2) Repeat for the opposite side, if necessary.
(3) Remove front riser(s) from vehicle (Fig. 17).

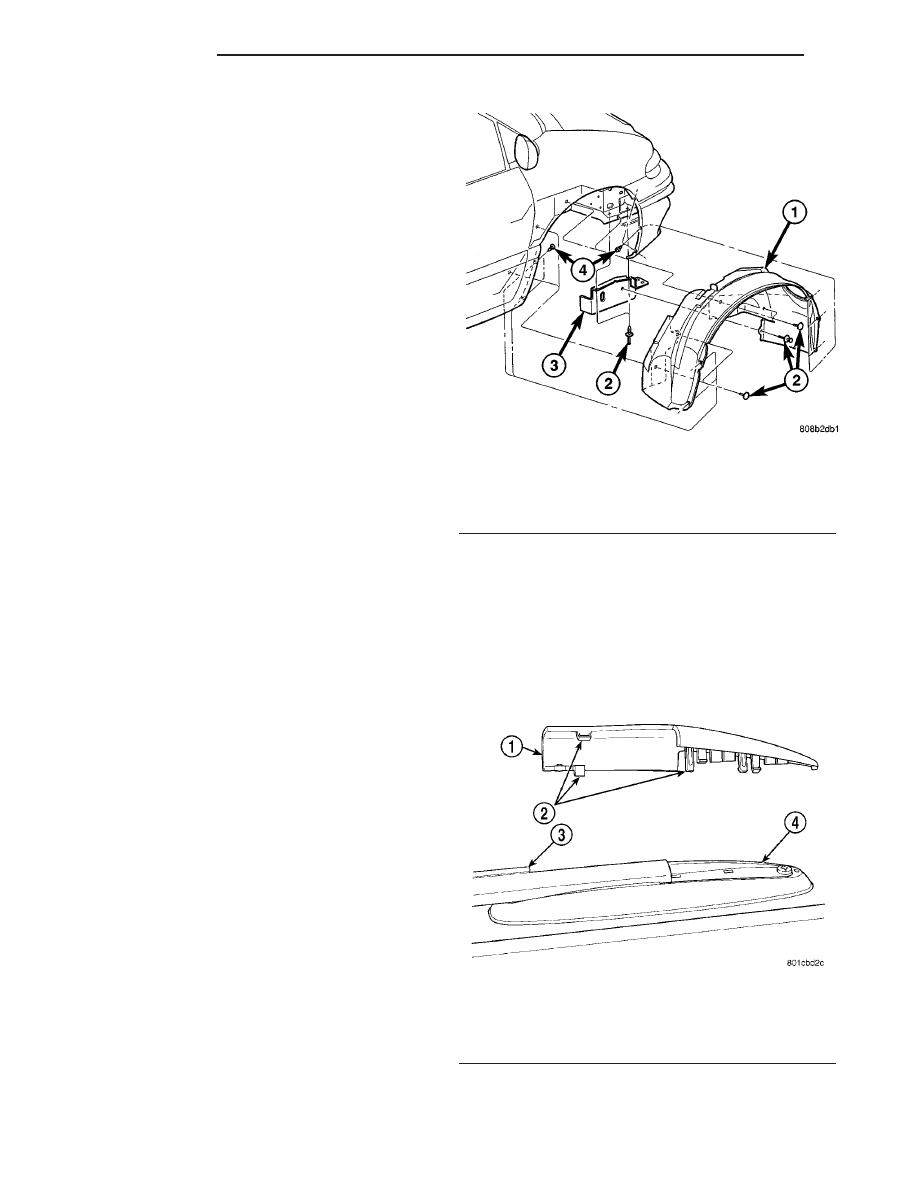

Fig. 15 FRONT WHEELHOUSE SPLASH SHIELD

1 - FRONT FENDER WHEELHOUSE SPLASH SHIELD
2 - PUSH PIN FASTENERS
3 - ACCESSORY DRIVE SPLASH SHIELD
4 - SCREWS

Fig. 16 LUGGAGE RACK RISER COVER

1 - FRONT RISER COVER
2 - LOCK TABS
3 - LUGGAGE RACK SIDE RAIL
4 - FRONT RISER

23 - 54

EXTERIOR

RS

GRILLE OPENING REINFORCEMENT (Continued)

INSTALLATION

(1) Place front riser into position on luggage rack

side rail.

(2) Install two fasteners into the riser.
(3) Repeat for the opposite side, if necessary.

LUGGAGE RACK CROSSBAR

REMOVAL

(1) Remove luggage rack front risers.
(2) Depress stanchion levers down until they click

into the unlock position. (Fig. 18). Work from side to
side sliding the crossbar assembly forward moving a
little at a time to ensure it remains perpendicular to
the side rails.

(3) Remove crossbar from vehicle.

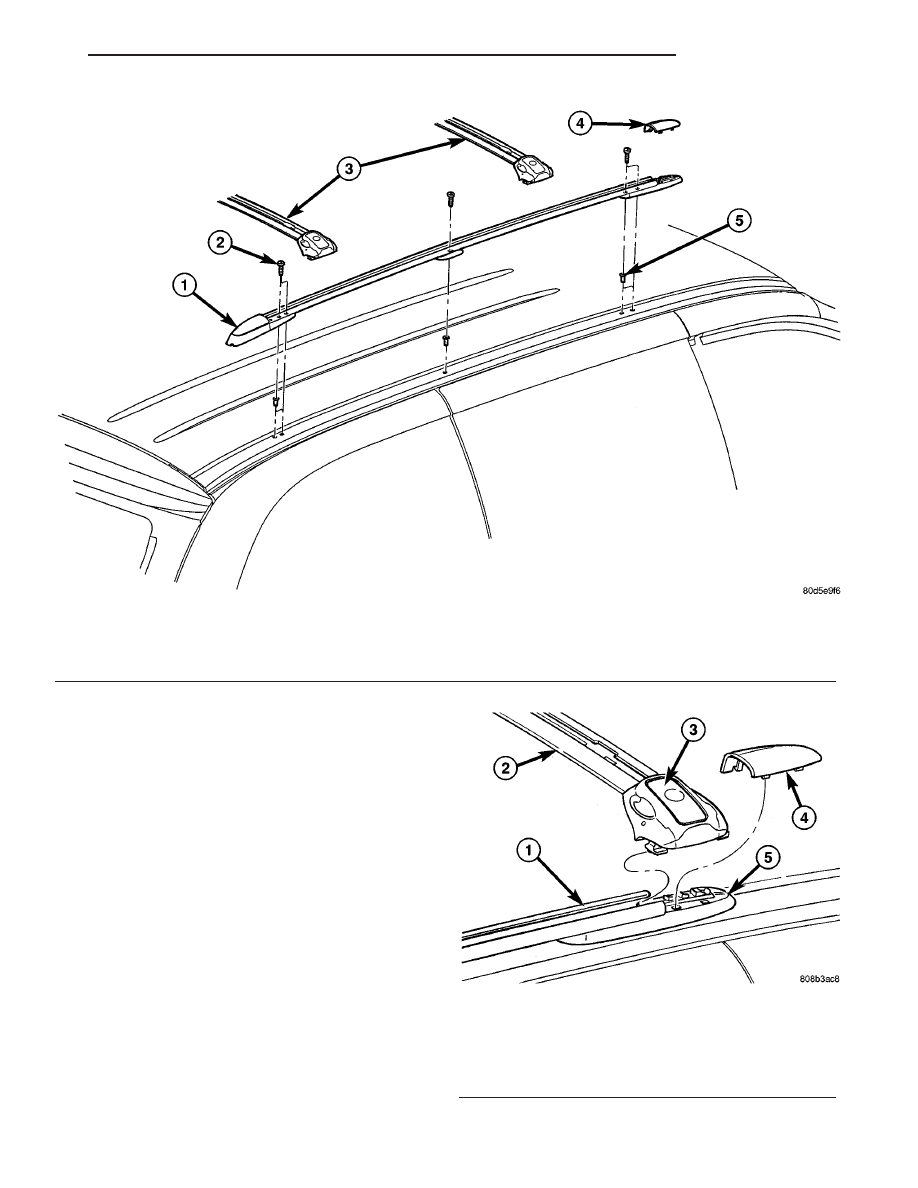

Fig. 17 LUGGAGE RACK, CROSSBARS AND RISER COVER

1 - LUGGAGE RACK SIDE RAILS
2 - SCREWS
3 - CROSSBARS

4 - FRONT RISER COVER
5 - RIV-NUTS

Fig. 18 LUGGAGE RACK CROSSBAR

1 - LUGGAGE RACK
2 - CROSSBAR
3 - SLIDE LOCK
4 - FRONT RISER COVER
5 - FRONT RISER

RS

EXTERIOR

23 - 55

LUGGAGE RACK RISER (Continued)
