Fig.

8

RIGHT

FRONT

WHEEL

HOUSING

8W - 91 - 22

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

RS

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig.

9

INLET

AIR

SENSORS

RS

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 23

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig.

10

2.4

LITER

ENGINE

CONNECT

ORS

REAR

8W - 91 - 24

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

RS

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

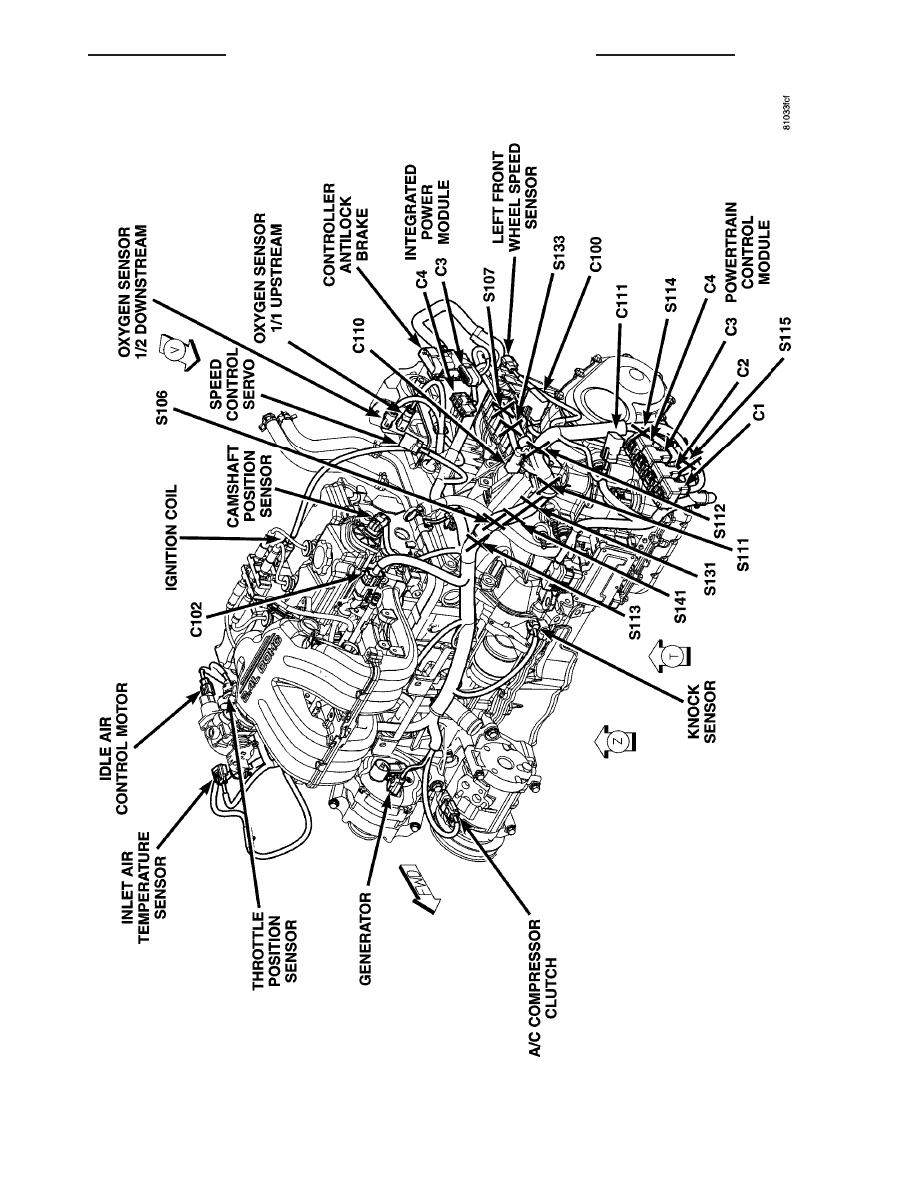

Fig.

1

1

2.4

LITER

ENGINE

FRONT

RS

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 25

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
