Component

Page

Liftgate Cinch/Release Motor (Power

Liftgate) . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-92

Liftgate Cylinder Lock Switch (Export) . . 8W-80-92
Liftgate Left Pinch Sensor (Power

Liftgate) . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-92

Liftgate Right Pinch Sensor (Power

Liftgate) . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-92

Low Note Horn . . . . . . . . . . . . . . . . . . . . . 8W-80-92
Manifold Absolute Pressure Sensor (Gas) . 8W-80-93
Mass Air Flow Sensor (Diesel) . . . . . . . . . 8W-80-93
Memory Seat/Mirror Module C1 . . . . . . . . 8W-80-93
Memory Seat/Mirror Module C2 . . . . . . . . 8W-80-94
Memory Seat/Mirror Module C3 . . . . . . . . 8W-80-94
Memory Seat/Mirror Module C4 . . . . . . . . 8W-80-94
Memory Set Switch . . . . . . . . . . . . . . . . . 8W-80-95
Message Center (Highline) . . . . . . . . . . . . 8W-80-95
Mode Door Actuator (ATC) . . . . . . . . . . . . 8W-80-95
Mode Door Actuator (MTC) . . . . . . . . . . . 8W-80-95
Multi-Function Switch . . . . . . . . . . . . . . . 8W-80-96
Natural Vacuum Leak Detection Assembly

(2.4L Except Export) . . . . . . . . . . . . . . . 8W-80-96

Output Speed Sensor (EATX) . . . . . . . . . . 8W-80-96
Overhead Console (Except Base) . . . . . . . 8W-80-96
Oxygen Sensor 1/1 Upstream (Gas) . . . . . 8W-80-97
Oxygen Sensor 1/2 Downstream (Gas) . . . 8W-80-97
Passenger Airbag . . . . . . . . . . . . . . . . . . . 8W-80-97
Passenger Blend Door Actuator (ATC) . . . 8W-80-97
Passenger Blend Door Actuator (MTC) . . . 8W-80-98
Passenger Door Courtesy Lamp . . . . . . . . 8W-80-98
Passenger Door Lock Switch . . . . . . . . . . . 8W-80-98
Passenger Folding Mirror Relay (Export) . 8W-80-98
Passenger Heated Seat Back . . . . . . . . . . 8W-80-99
Passenger Heated Seat Cushion . . . . . . . . 8W-80-99
Passenger Heated Seat Module C1 . . . . . . 8W-80-99
Passenger Heated Seat Module C2 . . . . . . 8W-80-99
Passenger Heated Seat Module C3 . . . . . 8W-80-100
Passenger Power Seat Front Riser

Motor . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-100

Passenger Power Seat Horizontal

Motor . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-100

Passenger Power Seat Rear Riser

Motor . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-100

Passenger Power Seat Recliner Motor . . 8W-80-100
Passenger Power Seat Switch . . . . . . . . . 8W-80-101
Passenger Power Window Motor . . . . . . . 8W-80-101
Passenger Power Window Switch . . . . . . 8W-80-101
Passenger Seat Belt Switch . . . . . . . . . . 8W-80-101
Passenger Seat Belt Tensioner . . . . . . . . 8W-80-102
Power Folding Mirror Switch (Export) . . 8W-80-102
Power Liftgate Module C1 . . . . . . . . . . . 8W-80-102
Power Liftgate Module C2 . . . . . . . . . . . 8W-80-103
Power Liftgate Motor . . . . . . . . . . . . . . . 8W-80-103
Power Mirror Switch . . . . . . . . . . . . . . . 8W-80-104
Power Outlet (Except Lowline) . . . . . . . . 8W-80-104
Power Seat Circuit Breaker (30A) . . . . . 8W-80-104

Component

Page

Power Window Circuit Breaker (25A) . . . 8W-80-104
Power Window Switch (LHD Lowline) . . 8W-80-105
Powertrain Control Module C1 (NGC) . . 8W-80-105
Powertrain Control Module C1

(SBEC) . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-106

Powertrain Control Module C2 (NGC) . . 8W-80-107
Powertrain Control Module C2 (SBEC) . 8W-80-108
Powertrain Control Module C3 (NGC) . . 8W-80-109
Powertrain Control Module C4 (NGC)

(EATX) . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-110

Radiator Fan No. 1 (Diesel) . . . . . . . . . . 8W-80-111
Radiator Fan No. 1 (Gas) . . . . . . . . . . . . 8W-80-111
Radiator Fan No. 2 (Diesel) . . . . . . . . . . 8W-80-111
Radiator Fan No. 2 (Gas) . . . . . . . . . . . . 8W-80-111
Radiator Fan Relay (Gas) . . . . . . . . . . . . 8W-80-112
Radiator Fan Relay No. 1 (Diesel) . . . . . 8W-80-112
Radiator Fan Relay No. 2 (Diesel) . . . . . 8W-80-112
Radiator Fan Relay No. 3 (Diesel) . . . . . 8W-80-113
Radio C1 . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-113
Radio C2 (CD Changer) . . . . . . . . . . . . . 8W-80-114
Radio C2 (DVD/CD Changer) . . . . . . . . . 8W-80-114
Rear A/C-Heater Unit (3 Zone MTC) . . . . 8W-80-114
Rear Auto Temp Control Switch

(3 Zone ATC) . . . . . . . . . . . . . . . . . . . . 8W-80-115

Rear Blower Front Control Switch

(3 Zone MTC) . . . . . . . . . . . . . . . . . . . 8W-80-115

Rear Blower Motor Power Module C1

(3 Zone ATC) . . . . . . . . . . . . . . . . . . . . 8W-80-115

Rear Blower Motor Power Module C2

(3 Zone ATC) . . . . . . . . . . . . . . . . . . . . 8W-80-116

Rear Blower Rear Control Switch C1

(3 Zone MTC) . . . . . . . . . . . . . . . . . . . 8W-80-116

Rear Blower Rear Control Switch C2

(3 Zone MTC) . . . . . . . . . . . . . . . . . . . 8W-80-116

Rear Dome Lamp (Except Luxury) . . . . . 8W-80-116
Rear Intrusion Sensor (United

Kingdom) . . . . . . . . . . . . . . . . . . . . . . 8W-80-117

Rear Mode Motor (3 Zone ATC) . . . . . . . . 8W-80-117
Rear Power Outlet . . . . . . . . . . . . . . . . . 8W-80-117
Rear Temperature Motor (3 Zone ATC) . . 8W-80-117
Rear Washer Pump Motor . . . . . . . . . . . . 8W-80-118
Rear Wiper Motor . . . . . . . . . . . . . . . . . . 8W-80-118
Recirculation Door Actuator (ATC) . . . . . 8W-80-118
Recirculation Door Actuator (MTC) . . . . . 8W-80-118
Remote Keyless Entry Antenna

(Japan) . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-119

Remote Keyless Entry Module . . . . . . . . 8W-80-119
Right B-Pillar Switch (Power Sliding

Door) . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-119

Right Cinch/Release Motor

(Power Sliding Door) . . . . . . . . . . . . . . 8W-80-119

Right Combination Relay

(Trailer Tow) . . . . . . . . . . . . . . . . . . . . 8W-80-120

Right Cylinder Lock Switch (Export) . . . 8W-80-120
Right Door Speaker (Lowline) . . . . . . . . . 8W-80-120

8W - 80 - 4

8W-80 CONNECTOR PIN-OUTS

RS

Component

Page

Right Door Speaker (Midline/Highline) . . 8W-80-120
Right Fog Lamp (Except Export) . . . . . . 8W-80-121
Right Fog Lamp (Export) . . . . . . . . . . . . 8W-80-121
Right Front Door Ajar Switch (Base) . . . 8W-80-121
Right Front Door Lock Motor/Ajar Switch

(Except Base) . . . . . . . . . . . . . . . . . . . 8W-80-121

Right Front Park/Turn Signal Lamp

(Except Export) . . . . . . . . . . . . . . . . . . 8W-80-121

Right Front Wheel Speed Sensor . . . . . . 8W-80-122
Right Full Open Switch (Power Sliding

Door) . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-122

Right Headlamp (Except Export) . . . . . . 8W-80-122
Right Headlamp Leveling Motor

(Export) . . . . . . . . . . . . . . . . . . . . . . . 8W-80-122

Right High Beam Lamp (Export) . . . . . . 8W-80-123
Right Instrument Panel Speaker . . . . . . 8W-80-123
Right Liftgate Flood Lamp . . . . . . . . . . . 8W-80-123
Right Low Beam Lamp (Export) . . . . . . . 8W-80-123
Right Mid Reading Lamp (Premium/

Luxury) . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-123

Right Park Lamp (Export) . . . . . . . . . . . 8W-80-124
Right Power Mirror . . . . . . . . . . . . . . . . 8W-80-124
Right Rear Lamp Assembly . . . . . . . . . . 8W-80-124
Right Rear Pillar Speaker . . . . . . . . . . . 8W-80-125
Right Rear Reading Lamp (Luxury) . . . . 8W-80-125
Right Rear Speaker (Lowline) . . . . . . . . . 8W-80-125
Right Rear Speaker (Midline/Highline) . . 8W-80-125
Right Rear Vent Motor . . . . . . . . . . . . . . 8W-80-125
Right Rear Wheel Speed Sensor . . . . . . . 8W-80-126
Right Remote Radio Switch . . . . . . . . . . 8W-80-126
Right Repeater Lamp (Export) . . . . . . . . 8W-80-126
Right Seat Airbag . . . . . . . . . . . . . . . . . . 8W-80-126
Right Side Impact Airbag Control

Module . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-127

Component

Page

Right Sliding Door Control Module C1

(Power Sliding Door) . . . . . . . . . . . . . . 8W-80-127

Right Sliding Door Control Module C2

(Power Sliding Door) . . . . . . . . . . . . . . 8W-80-127

Right Sliding Door Latch Sensing Switch (Power

Sliding Door) . . . . . . . . . . . . . . . . . . . 8W-80-128

Right Sliding Door Lock Motor

(Power Sliding Door) . . . . . . . . . . . . . . 8W-80-128

Right Sliding Door Lock Motor/Ajar

Switch (Manual Sliding Door) . . . . . . . 8W-80-128

Right Sliding Door Motor (Power Sliding

Door) . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-128

Right Speed Control Switch . . . . . . . . . . 8W-80-129
Right Stop/Turn Signal Relay (Trailer

Tow) . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-129

Right Turn Signal Lamp (Export) . . . . . . 8W-80-129
Right Visor/Vanity Lamp (Except Base) . 8W-80-129
Sentry Key Immobilizer Module . . . . . . . 8W-80-130
Siren (United Kingdom) . . . . . . . . . . . . . 8W-80-130
Solenoid/Pressure Switch Assy (EATX) . . 8W-80-130
Speed Control Servo (Gas) . . . . . . . . . . . 8W-80-130
Sunroof Module (Except Export) . . . . . . . 8W-80-131
Sunroof Switch (Except Export) . . . . . . . 8W-80-131
Thatcham Alarm Module (United

Kingdom) . . . . . . . . . . . . . . . . . . . . . . 8W-80-131

Throttle Position Sensor (Gas) . . . . . . . . 8W-80-132
Traction Control Switch . . . . . . . . . . . . . 8W-80-132
Trailer Tow Connector (Except Export) . . 8W-80-132
Transmission Control Module (3.3L/

3.8L) . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-80-133

Transmission Range Sensor (EATX) . . . . 8W-80-134
Vehicle Speed Sensor (MTX) . . . . . . . . . . 8W-80-134
Washer Fluid Level Switch . . . . . . . . . . . 8W-80-134
Water In Fuel Sensor (Diesel) . . . . . . . . . 8W-80-134
Wiper Module . . . . . . . . . . . . . . . . . . . . . 8W-80-134

RS

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 5

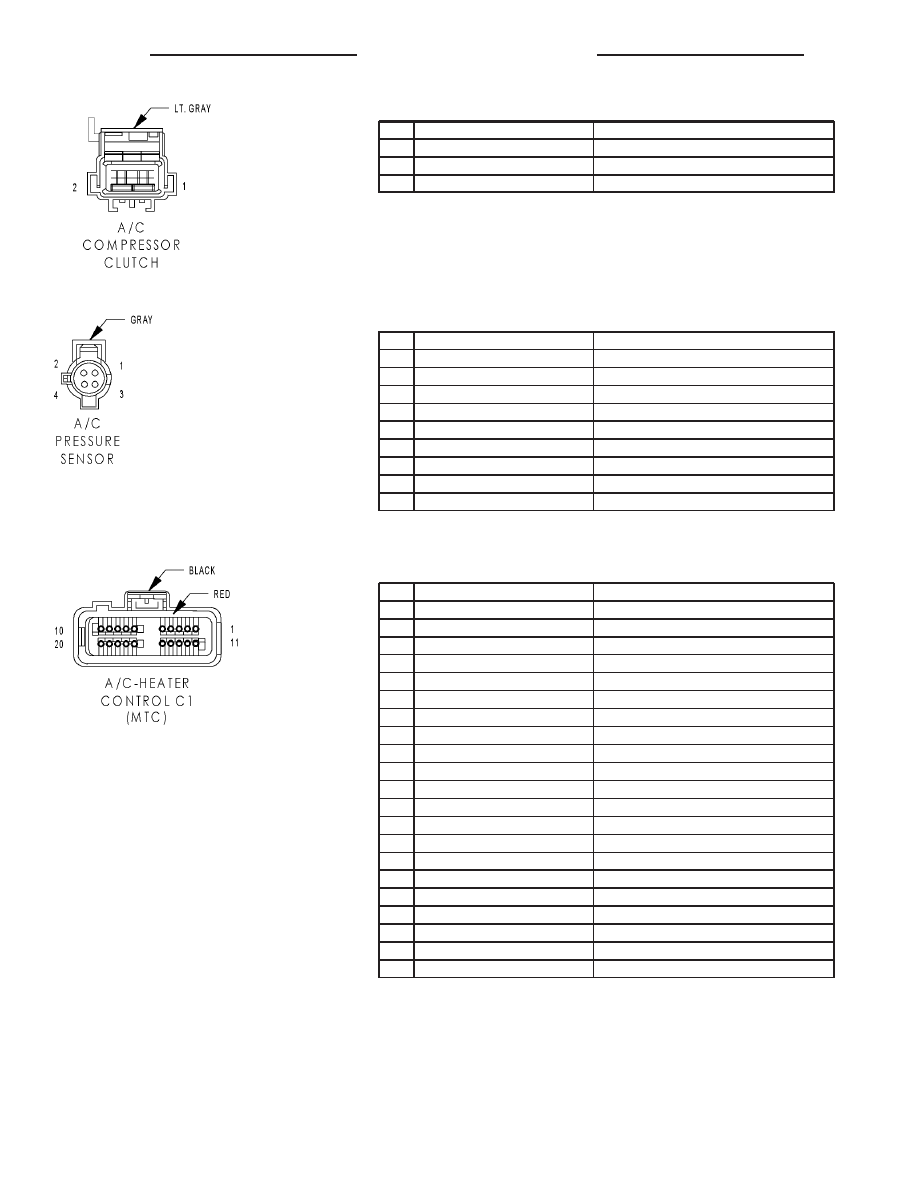

A/C COMPRESSOR CLUTCH - LT. GRAY 2 WAY

CAV

CIRCUIT

FUNCTION

1

C3 20DB/YL (2.4L)

A/C COMPRESSOR CLUTCH RELAY OUTPUT

1

C3 18DB/YL (3.3L/3.8L/DIESEL)

A/C COMPRESSOR CLUTCH RELAY OUTPUT

2

Z153 18BK/GY

GROUND

A/C PRESSURE SENSOR - GRAY 4 WAY

CAV

CIRCUIT

FUNCTION

1

K900 18DB/DG (GAS)

SENSOR GROUND

1

C918 20BK/LB (DIESEL)

A/C PRESSURE SENSOR GROUND

2

F855 20PK/YL (2.4L)

5 VOLT SUPPLY

2

F851 20LB/PK (DIESEL)

SENSOR REFERENCE VOLTAGE B

2

F855 18PK/YL (3.3L/3.8L)

5 VOLT SUPPLY

3

C18 18LB/BR (3.3L/3.8L)

A/C PRESSURE SENSOR SIGNAL

3

C18 20LB/BR (DIESEL)

A/C PRESSURE SENSOR SIGNAL

3

C18 18LB/BR (2.4L)

A/C PRESSURE SIGNAL

4

-

-

A/C-HEATER CONTROL C1 (MTC) - BLACK/RED 20 WAY

CAV

CIRCUIT

FUNCTION

1

Z24 18BK/OR

GROUND

2

C121 20DB/DG (LHD)

SENSOR GROUND

2

C121 22DB/DG (RHD)

SENSOR GROUND

3

C22 20LB/WT (3 ZONE)

REAR TEMPERATURE FEEDBACK SIGNAL

4

-

-

5

F850 20LB/PK (3 ZONE)

5 VOLT SUPPLY

6

-

-

7

C32 22DB/TN

RECIRCULATION DOOR DRIVER (A)

8

C54 22LB/YL (3 ZONE)

REAR BLEND DOOR DRIVER

9

C34 22DB/LB

COMMON DOOR DRIVER (B)

10

D25 20WT/VT

PCI BUS

11

-

-

12

C121 20DB/DG (3 ZONE)

REAR TEMPERATURE RETURN

13

F504 20GY/PK

IGNITION SWITCH OUTPUT (RUN)

14

E12 20OR/GY

PANEL LAMPS DRIVER

15

C21 22LB

EVAPORATOR TEMPERATURE SENSOR SIGNAL

16

C33 22LB/BR

PASSENGER BLEND DOOR DRIVER (A)

17

C61 22DB/LG (EXCEPT BASE)

DRIVER BLEND DOOR DRIVER (A)

18

C35 22LB/LG

MODE DOOR DRIVER (A)

19

C53 22LB (3 ZONE)

REAR MODE DOOR DRIVER

20

C154 20LB/OR (3 ZONE)

REAR COMMON DOOR DRIVER

8W - 80 - 6

8W-80 CONNECTOR PIN-OUTS

RS

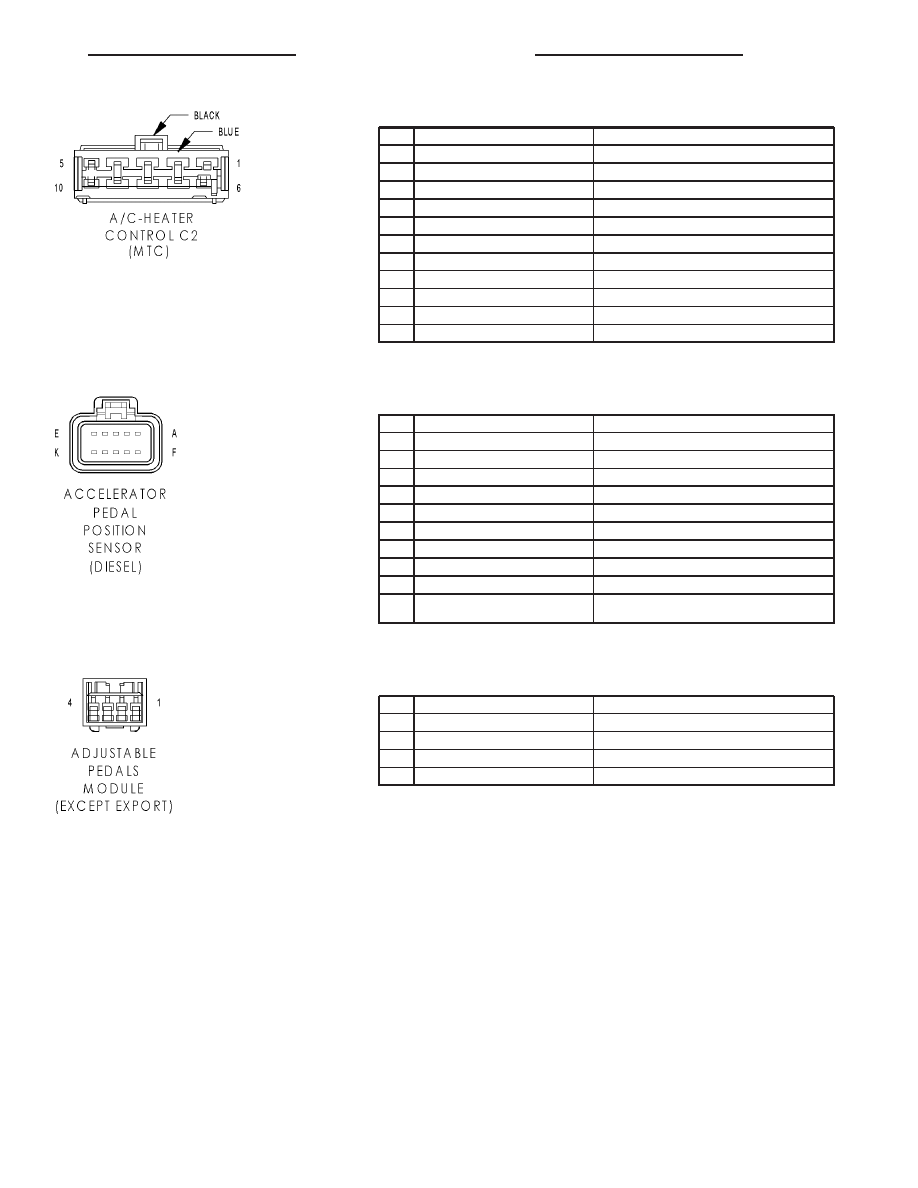

A/C-HEATER CONTROL C2 (MTC) - BLACK/BLUE 10 WAY

CAV

CIRCUIT

FUNCTION

1

-

-

2

C75 12DB/GY

BLOWER MOTOR HIGH DRIVER

3

C74 12DB/WT

BLOWER MOTOR M3 DRIVER

4

Z134 12BK/OR (LHD EXPORT)

GROUND

4

Z134 12BK/LG (EXCEPT LHD EXPORT)

GROUND

5

C71 16DB/BR

BLOWER MOTOR LOW DRIVER

6

-

-

7

-

-

8

-

-

9

C73 14DB/VT

BLOWER MOTOR M2 DRIVER

10

C72 16DB/OR

BLOWER MOTOR M1 DRIVER

ACCELERATOR PEDAL POSITION SENSOR (DIESEL) - 10 WAY

CAV

CIRCUIT

FUNCTION

A

-

-

B

-

-

C

-

-

D

K4 20BK/LB

LOW IDLE POSITION SWITCH GROUND

E

K151 20WT

LOW IDLE POSITION SWITCH SENSE

F

-

-

G

-

-

H

K22 20OR/DB

ACCELERATOR PEDAL POSITION SENSOR SIGNAL

J

K167 20BR/YL

ACCELERATOR PEDAL POSITION SENSOR GROUND

K

F852 20VT/PK

ACCELERATOR PEDAL POSITION SENSOR 5 VOLT
SUPPLY

ADJUSTABLE PEDALS MODULE (EXCEPT EXPORT) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

A128 18RD/OR

ADJUSTABLE PEDALS RELAY OUTPUT

2

Z146 18BK/YL

GROUND

3

Q102 18OR/LB

ADJUSTABLE PEDALS SWITCH SENSE

4

Q103 18OR/LG

ADJUSTABLE PEDALS SWITCH GROUND

RS

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 7















Content   ..  245  246  247  248   ..
