Chrysler Town, Dodge Caravan. Manual - part 1091





VM.1067 HIGH PRESSURE PUMP REMOVER

VM.1068 90 DEGREES AFTER TDC ALIGNMENT PIN

VM.1069 CRANKSHAFT REM/INSTALL SLEEVE

VM.1070 FLYWHEEL LOCKING TOOL

VM.1072 COMPRESSION TESTER ADAPTER

RG

ENGINE

9 - 17

CYLINDER HEAD (Continued)

VM.1073 CRANKSHAFT FRONT BEARING

REMOVER/INSTALLER

VM.1074 TIMING BELT RETAINER

VM.1075 FLYWHEEL ALIGNMENT PINS

VM.1077 POWER STEERING BELT REMOVER

VM.1078 POWER STEERING BELT INSTALLER

9 - 18

ENGINE

RG

CYLINDER HEAD (Continued)

CYLINDER HEAD

STANDARD PROCEDURE

STANDARD PROCEDURE - VALVE SERVICE

This procedure is done with the engine cylinder

head removed from the block.

DISASSEMBLY

(1) Remove the engine cylinder head from the cyl-

inder block. Refer to cylinder head removal and
installation in this section.

(2) Use Valve Spring Compressor Tool and com-

press each valve spring.

(3) Remove the valve locks, retainers, and springs.
(4) Inspect and remove any burrs on the top of the

valve stem, especially around the groove for the
locks.

(5) Remove the valves, and place them in a rack in

the same order as removed.

VALVE CLEANING

(1) Clean all carbon deposits from the combustion

chambers, valve ports, valve stems, valve stem
guides and head.

(2) Clean all build-up and gasket material from

the engine cylinder head machined gasket surface.

INSPECTION

(1) Inspect for cracks in the combustion chambers

and valve ports.

(2) Inspect for cracks on the exhaust seat.
(3) Inspect for cracks in the gasket surface at each

coolant passage.

(4) Inspect valves for burned, cracked or warped

heads.

(5) Inspect for scuffed or bent valve stems.
(6) Replace valves displaying any damage.
(7) Check valve spring height (Fig. 11).

Fig. 11 VALVE SPRING CHART

LOAD Kg

HEIGHT mm

STATE

P1

0.00

H1

45.26

FREE LENGTH

P2

182-5 +10%

H2

38.00

VALVE CLOSED

P3

395±5%

H3

28.20

VALVE OPEN

RG

ENGINE

9 - 19

VALVE REFACING

(1) Use a valve refacing machine to reface the

intake and exhaust valves to the specified angle.

(2) After refacing, a margin of at least 4.52-4.49

mm (.178-.177 inch) must remain (Fig. 12). If the
margin is less than 4.49 mm (.177 inch), the valve
must be replaced.

VALVE SEAT REFACING

(1) Install a pilot of the correct size in the valve

guide bore. Reface the valve seat to the specified
angle with a good dressing stone. Remove only
enough metal to provide a smooth finish.

(2) Use tapered stones to obtain the specified seat

width when required.

VALVE STAND DOWN

Valve stand down is to maintain the adequate com-

pression ratio.

(1) Invert cylinder head.
(2) Fit each valve to its respective valve guide.
(3) Using a straight edge and feeler gauge, check

valve head stand down: Inlet valve head stand down
1.08 to 1.34 mm (.042 to .052 ins.) and exhaust valve
stand down .99 to 1.25 mm (.035 to .049 ins.).

(4) If valve head stand down is not in accordance

with above, discard original valves, check stand down
with new valves and recut valve seat inserts to
obtain correct stand down.

VALVE GUIDES

(1) Valve Guides height requirement.
(2) Measurement A (Fig. 13): 16.50 - 17.00 mm.

Measurment B : 14.50 - 15.00 mm.

VALVE STEM-TO-GUIDE CLEARANCE
MEASUREMENT

(1) Measure and record internal diameter of valve

guides. Valve guide internal diameter is 8.0 to 8.015
mm (.3149 to .3155 ins.).

(2) Measure valve stems and record diameters.

Intake valve stem diameter 7.94 to 7.96 mm (.3125 to
.3133 in). Exhaust valve stem diameter 7.92 to 7.94
mm (.3118 to .31215 in).

(3)

Subtract diameter of valve stem from internal

diameter of its respective valve guide to obtain valve
stem clearance in valve guide. Clearance of inlet
valve stem in valve guide is .040 to .075 mm (.0015
to .0029 in). Clearance of exhaust valve stem in valve
guide is .060 to .093 mm (.0023 to .0036 in).

(4) If valve stem clearance in valve guide exceeds

tolerances, new valve guides must be installed.

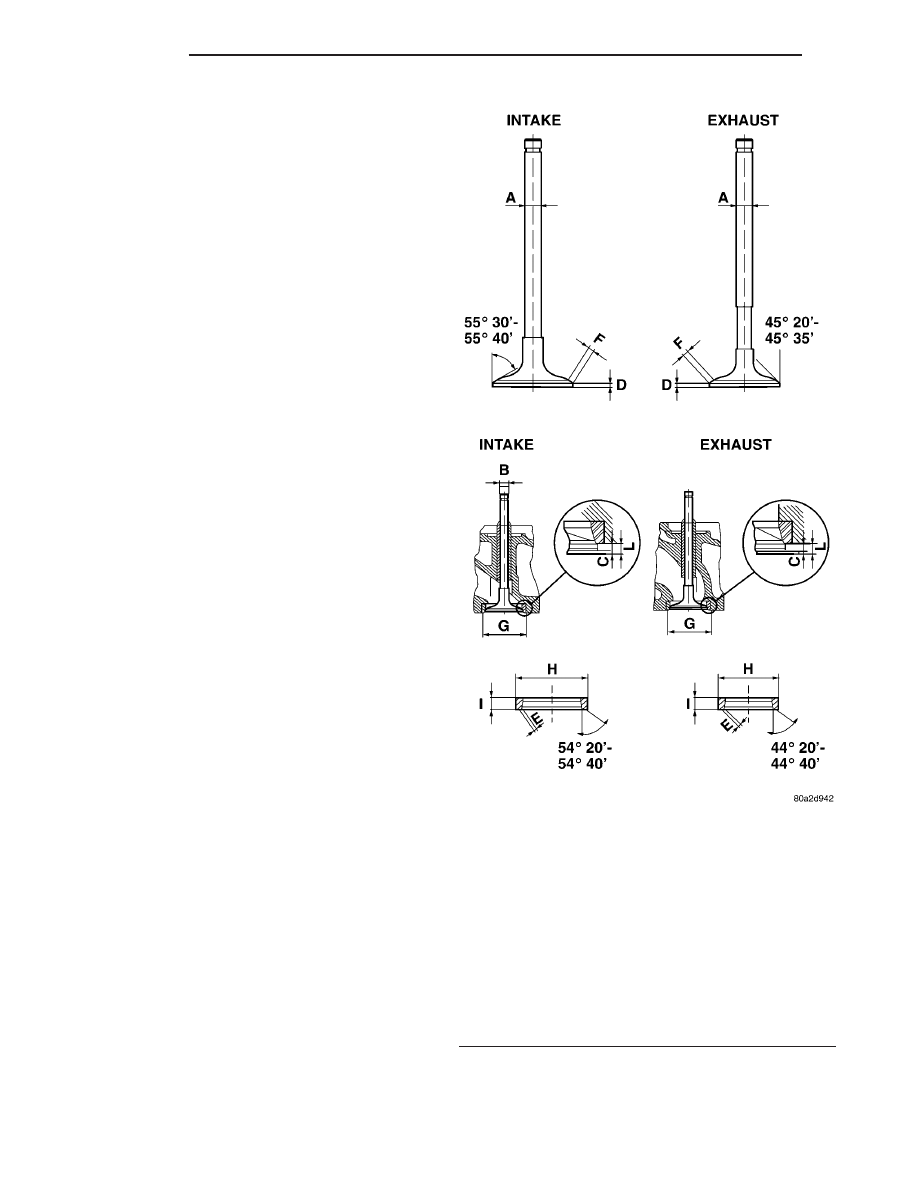

Fig. 12 VALVE SPECS.

MEASUREMENT

INTAKE

EXHAUST

A

7.940-7.960

7.922-7.940

B

8.00-8.015

8.000-8.015

C

1.08-1.34

0.990-1.250

+0.07

D

2.2 ± 0.08

2.09

2

0.09

E

1.80-2.20

1.65-2.05

F

2.73-3.44

2.45-3.02

G

41.962-41.985

35.964-35.987

H

42.070-42.086

36.050-36.066

I

7.14-7.19

7.00-7.05

L

3.11-3.26

3.10-3.25

9 - 20

ENGINE

RG

CYLINDER HEAD (Continued)
