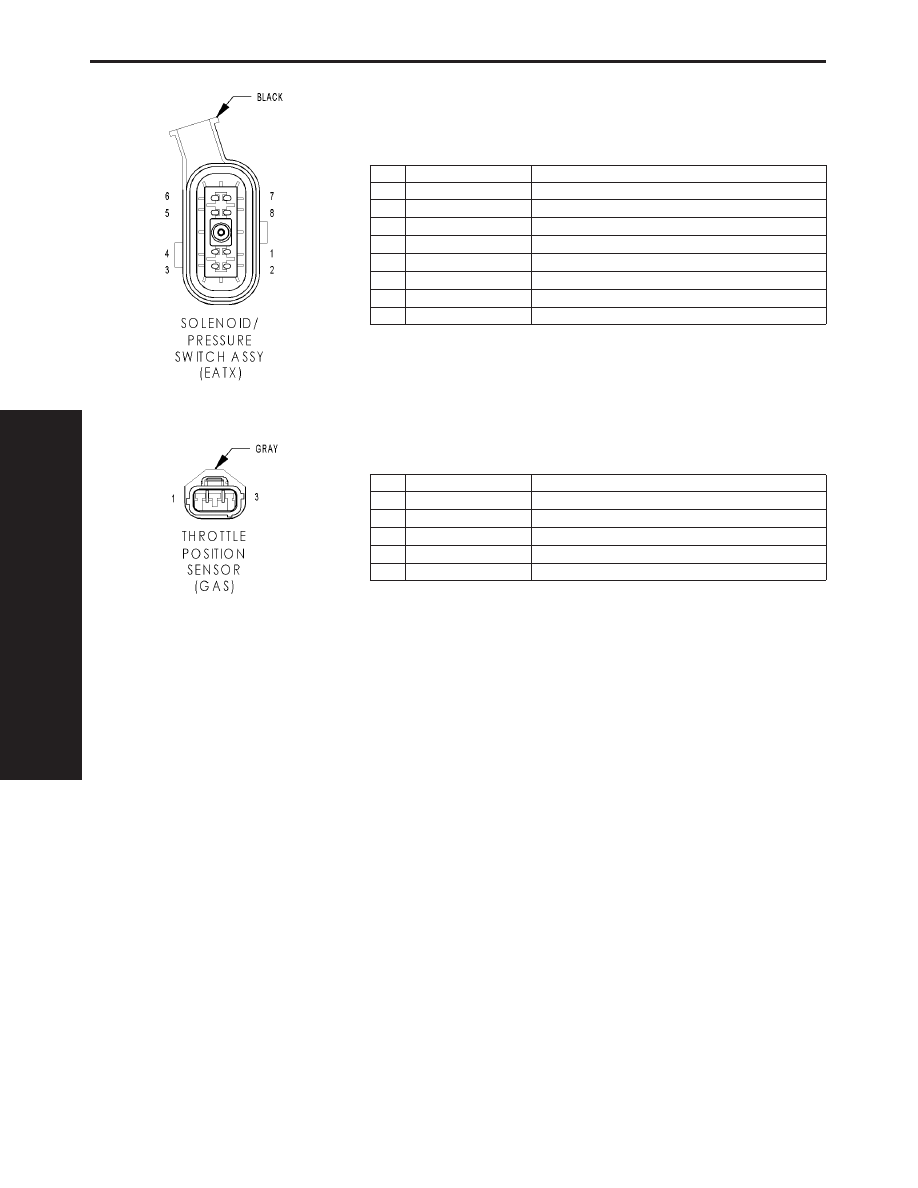

SOLENOID/PRESSURE SWITCH ASSY (EATX)

CAV

CIRCUIT

FUNCTION

1

T47 18YL/DG

2-4 PRESSURE SWITCH SENSE

2

T50 18YL/TN

LOW/REVERSE PRESSURE SWITCH SENSE

3

T9 18DG/TN

OVERDRIVE PRESSURE SWITCH SENSE

4

T16 18YL/OR

TRANSMISSION CONTROL RELAY OUTPUT

5

T59 18YL/LB

UNDERDRIVE SOLENOID CONTROL

6

T60 18YL/GY

OVERDRIVE SOLENOID CONTROL

7

T20 18DG/WT

LOW/REVERSE SOLENOID CONTROL

8

T19 18YL/DB

2-4 SOLENOID CONTROL

THROTTLE POSITION SENSOR (GAS)

CAV

CIRCUIT

FUNCTION

1

K900 18DB/DG

SENSOR GROUND

2

K22 18BR/OR (3.3L/3.8L)

THROTTLE POSITION SENSOR SIGNAL

2

K22 18BR/OR (2.4L)

TP SIGNAL

3

F855 18PK/YL (3.3L/3.8L)

5 VOLT SUPPLY

3

F855 20PK/YL (2.4L)

5 VOLT SUPPLY

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

332

CONNECTOR PINOUTS

TRANSMISSION CONTROL MODULE (3.3L/3.8L)

CAV

CIRCUIT

FUNCTION

1

T1 18DG/LB

TRS T1 SENSE

2

-

-

3

T3 18DG/DB

TRS T3 SENSE

4

-

-

5

-

-

6

K24 18BR/LB

CRANKSHAFT POSITION SENSOR SIGNAL

7

D15 20DG/YL

SCI TRANSMIT (TCM)

8

T751 18YL

FUSED IGNITION SWITCH OUTPUT (START)

9

T9 18DG/TN

OVERDRIVE PRESSURE SWITCH SENSE

10

T10 18DG/LG

TORQUE MANAGEMENT REQUEST SENSE

11

F1 18PK/WT

FCM OUTPUT (UNLOCK-RUN-START)

12

K22 18BR/OR

THROTTLE POSITION SENSOR SIGNAL

13

T13 18DG/VT

SPEED SENSOR GROUND

14

T14 18DG/BR

OUTPUT SPEED SENSOR SIGNAL

15

T15 18YL/BR

TRANSMISSION CONTROL RELAY CONTROL

16

T16 18YL/OR

TRANSMISSION CONTROL RELAY OUTPUT

17

T16 18YL/OR

TRANSMISSION CONTROL RELAY OUTPUT

18

-

-

19

T19 18YL/DB

2-4 SOLENOID CONTROL

20

T20 18DG/WT

LOW/REVERSE SOLENOID CONTROL

21

-

-

22

-

-

23

-

-

24

-

-

25

-

-

26

-

-

27

-

-

28

-

-

29

-

-

30

-

-

31

-

-

32

-

-

33

-

-

34

-

-

35

-

-

36

-

-

37

-

-

38

-

-

39

-

-

40

-

-

41

T41 18YL/DB

TRS T41 SENSE

42

T42 18DG/YL

TRS T42 SENSE

43

D25 18WT/VT

PCI BUS

44

-

-

45

-

-

46

D123 20WT/OR

FLASH PROGRAM ENABLE

47

T47 18YL/DG

2-4 PRESSURE SWITCH SENSE

48

-

-

49

-

-

50

T50 18YL/TN

LOW/REVERSE PRESSURE SWITCH SENSE

51

K900 18DB/DG

SENSOR GROUND

52

T52 18DG/WT

INPUT SPEED SENSOR SIGNAL

53

Z132 16BK/YL

GROUND

54

T54 18DG/OR

TRANSMISSION TEMPERATURE SENSOR SIGNAL

55

T55 18YL/VT (AUTOSTICK)

AUTOSTICK/OVERDRIVE OFF MUX INPUT

56

A104 18YL/RD

FUSED B(+)

57

Z133 16BK/LG

GROUND

58

N7 18DB/OG

VEHICLE SPEED SENSOR SIGNAL

59

T59 18YL/LB

UNDERDRIVE SOLENOID CONTROL

60

T60 18YL/GY

OVERDRIVE SOLENOID CONTROL

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

333

CONNECTOR PINOUTS

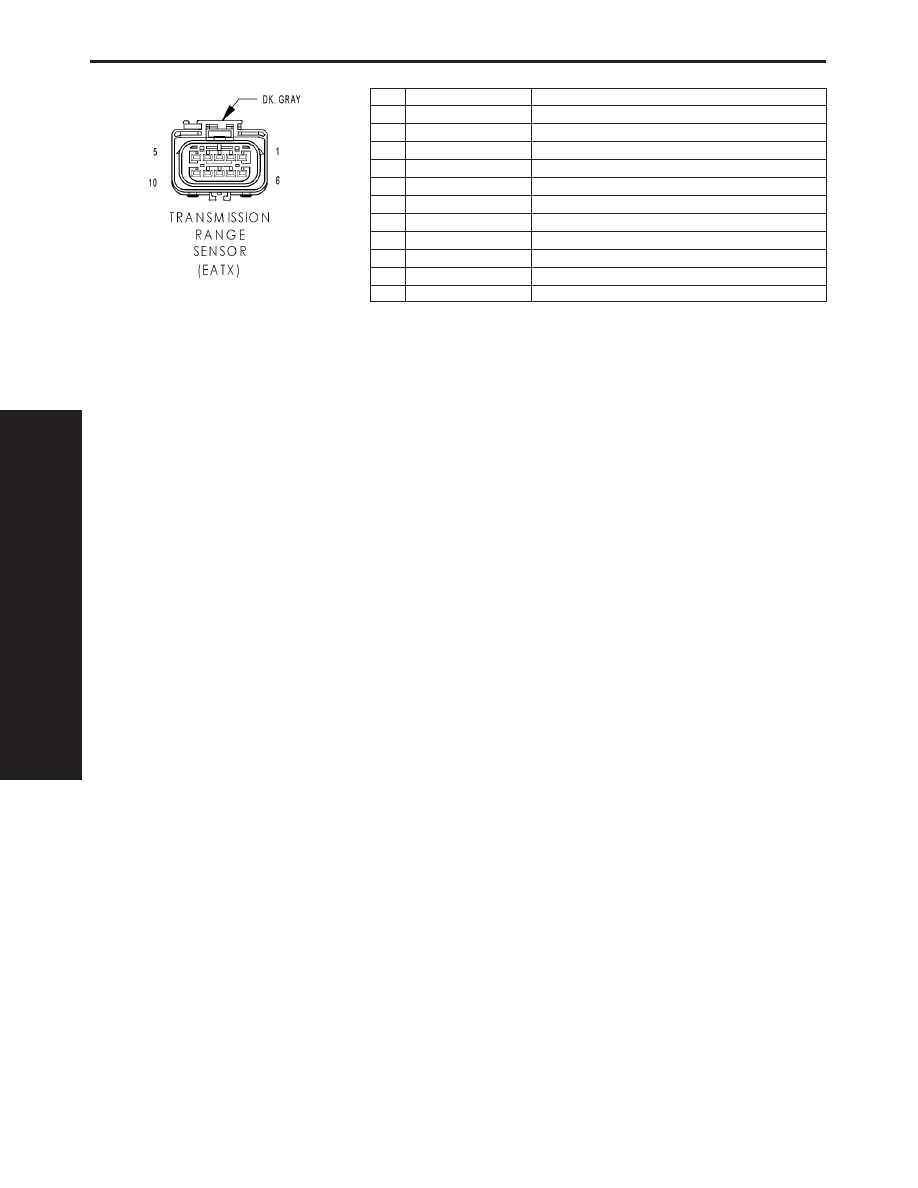

TRANSMISSION RANGE SENSOR (EATX)

CAV

CIRCUIT

FUNCTION

1

-

-

2

-

-

3

T13 18DG/VT

SPEED SENSOR GROUND

4

T54 18DG/OR

TRANSMISSION TEMPERATURE SENSOR SIGNAL

5

T41 18DG/GY (3.3L/3.8L)

TRS T41 SENSE

6

-

-

7

T1 18DG/LB

TRS T1 SENSE

8

T3 18DG/DB

TRS T3 SENSE

9

T42 18DG/YL

TRS T42 SENSE

10

T41 18YL/DB (3.3L/3.8L)

PARK/NEUTRAL POSITION SWITCH SENSE (TRS T41)

10

T41 18DG/GY (2.4L)

TRS T41 SENSE

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

334

CONNECTOR PINOUTS

10.0

SCHEMATIC DIAGRAMS

10.1

EATX–3.3/3.8L

S

C

H

E

M

A

T

I

C

D

I

A

G

R
A

M

S

335

SCHEMATIC DIAGRAMS
