Chrysler Town, Dodge Caravan. Manual - part 25





(3) Tighten tie rod jam nuts (Fig. 12) to 75 N·m

(55 ft. lbs.) torque.

(4) Adjust steering gear to tie rod boots at the

inner tie rod.

(5) Remove steering wheel clamp.
(6) Remove the alignment equipment.
(7) Road test the vehicle to verify the steering

wheel is straight and the vehicle does not wander or
pull.

STANDARD PROCEDURE - CURB HEIGHT
MEASUREMENT

The wheel alignment is to be checked and all align-

ment adjustments made with the vehicle at its
required curb height specification.

Vehicle height is to be checked with the vehicle on

a flat, level surface, preferably a vehicle alignment
rack. The tires are to be inflated to the recommended
pressure. All tires are to be the same size as stan-
dard equipment. Vehicle height is checked with the
fuel tank full of fuel, and no passenger or luggage
compartment load.

Vehicle height is not adjustable. If the measure-

ment is not within specifications, inspect the vehicle
for bent or weak suspension components. Compare
the parts tag on the suspect coil spring(s) to the
parts book and the vehicle sales code, checking for a
match. Once removed from the vehicle, compare the
coil spring height to a correct new or known good coil
spring. The heights should vary if the suspect spring
is weak.

(1) Measure from the inboard edge of the wheel

opening fender lip directly above the wheel center
(spindle), to the floor or alignment rack surface.

(2) When measuring, the maximum left-to-right

differential is not to exceed 12.5 mm (0.5 in.).

(3) Compare the measurements to the specifica-

tions listed in the following Curb Height Specifica-
tions charts.

CURB HEIGHT SPECIFICATIONS

TIRE SALES CODE/TIRE SIZE

FRONT

REAR

ALL

755 mm ± 11 mm

29.72 in. ± 0.43 in

770 mm ± 11 mm

30.31 in. ± 0.43 in.

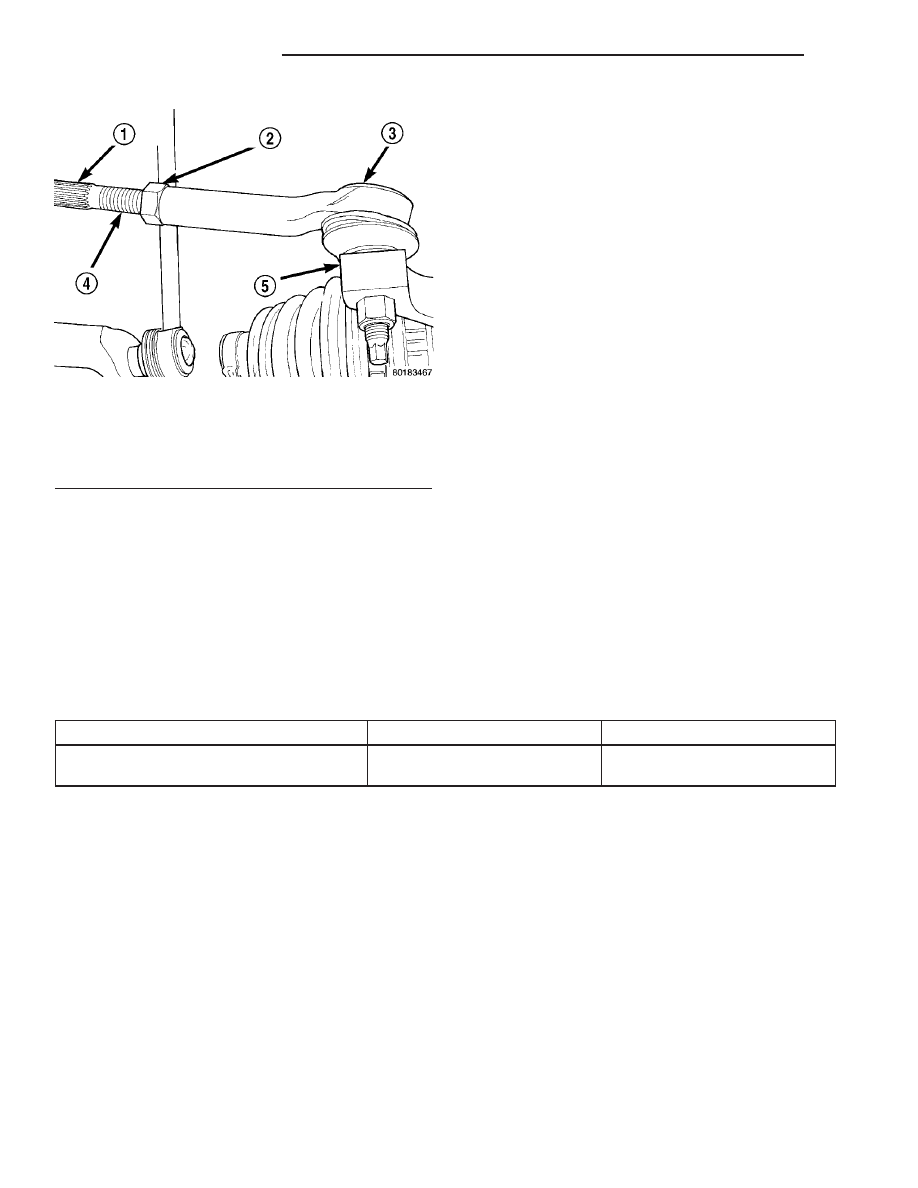

Fig. 12 Front Wheel Toe Adjustment

1 - INNER TIE ROD SERRATION
2 - OUTER TIE ROD JAM NUT
3 - OUTER TIE ROD END
4 - INNER TIE ROD
5 - STEERING KNUCKLE

2 - 54

WHEEL ALIGNMENT

RS

WHEEL ALIGNMENT (Continued)

SPECIFICATIONS

WHEEL ALIGNMENT

NOTE: All specifications are given in degrees.

NOTE: All wheel alignments are to be set at curb
height. (Refer to 2 - SUSPENSION/WHEEL ALIGN-
MENT - STANDARD PROCEDURE)

FRONT WHEEL ALIGNMENT

PREFERRED SETTING

ACCEPTABLE RANGE

CAMBER

+0.10°

-0.30° to +0.50°

Cross-Camber (Maximum side-to-side
difference)

0.0°

0.50°

CASTER*

+2.31°

+1.31° to +3.31°

Cross-Caster (Maximum side-to-side difference)

0.0°

1.00°

TOTAL TOE**

+0.10°

2

0.10° to +0.30°

Maximum side-to-side difference

0.0°

0.06°

REAR WHEEL ALIGNMENT

PREFERRED SETTING

ACCEPTABLE RANGE

CAMBER*

0.0°

-0.25° to +0.25°

TOTAL TOE* **

0.0°

2

0.20° to +0.20°

THRUST ANGLE*

0.0°

-0.30° to +0.30°

Notes:

* For reference only. These are non-adjustable angles.

** TOTAL TOE is the sum of both left and right wheel toe settings. TOTAL TOE must be equally split between
each front wheel to ensure the steering wheel is centered after setting toe. Positive toe is toe-in and negative toe
is toe-out

RS

WHEEL ALIGNMENT

2 - 55

WHEEL ALIGNMENT (Continued)

DIFFERENTIAL & DRIVELINE

TABLE OF CONTENTS

page

page

HALF SHAFT - FRONT

. . . . . . . . . . . . . . . . . . . . . 1

HALF SHAFT - REAR

. . . . . . . . . . . . . . . . . . . . . 13

PROPELLER SHAFT

. . . . . . . . . . . . . . . . . . . . . 21

REAR DRIVELINE MODULE

. . . . . . . . . . . . . . . . 23

HALF SHAFT - FRONT

TABLE OF CONTENTS

page

page

HALF SHAFT - FRONT

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 1

DIAGNOSIS AND TESTING - HALF SHAFT

. . . . . 1

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 4

SPECIFICATIONS - HALF SHAFT - FRONT

. . . . 6

CV BOOT - INNER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 6

CV BOOT - OUTER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 10

HALF SHAFT - FRONT

DESCRIPTION

All vehicles use an unequal length half shaft sys-

tem (Fig. 1).

The left half shaft uses a tuned rubber damper

weight. When replacing the left half shaft, be sure
the replacement half shaft has the same damper
weight as the original.

All half shaft assemblies use the same type of

inner and outer joints. The inner joint of both half
shaft assemblies is a tripod joint, and the outer joint
of both half shaft assemblies is a Rzeppa joint. Both
tripod joints and Rzeppa joints are true constant
velocity (CV) joint assemblies. The inner tripod joint
allows for the changes in half shaft length through
the jounce and rebound travel of the front suspen-
sion.

On vehicles equipped with ABS brakes, the outer

CV joint is equipped with a tone wheel used to deter-
mine vehicle speed for ABS brake operation.

The inner tripod joint of both half shafts is splined

into the transaxle side gears. The inner tripod joints
are retained in the side gears of the transaxle using
a snap ring located in the stub shaft of the tripod
joint. The outer CV joint has a stub shaft that is
splined into the wheel hub and retained by a steel
hub nut.

DIAGNOSIS AND TESTING - HALF SHAFT

VEHICLE INSPECTION

(1) Check for grease in the vicinity of the inboard

tripod joint and outboard CV joint; this is a sign of
inner or outer joint seal boot or seal boot clamp dam-
age.

NOISE AND/OR VIBRATION IN TURNS

A clicking noise and/or a vibration in turns could

be caused by one of the following conditions:

• Damaged outer CV or inner tripod joint seal

boot or seal boot clamps. This will result in the loss
and/or contamination of the joint grease, resulting in
inadequate lubrication of the joint.

• Noise may also be caused by another component

of the vehicle coming in contact with the half shafts.

CLUNKING NOISE DURING ACCELERATION

This noise may be a result of one of the following

conditions:

• A torn seal boot on the inner or outer joint of the

half shaft assembly.

• A loose or missing clamp on the inner or outer

joint of the half shaft assembly.

• A damaged or worn half shaft CV joint.

RS

DIFFERENTIAL & DRIVELINE

3 - 1
