(3) Place the left end cover in position and snap
into place. Make sure that it is underneath the A-pil-
lar trim and top cover.
(4) Install two screws to the left instrument panel
end cover.
(5) Place left lower instrument panel bezel in posi-
tion and make sure the orientation of the hinge is
correct and snap bezel hinge into place
(6) Roll bezel upward and snap into place.
(7) Connect the battery negative cable.
POWER FOLDAWAY MIRROR
SWITCH - RHD
DIAGNOSIS AND TESTING - POWER
FOLDAWAY MIRROR SWITCH - RHD
The following test is designed to be used only on
vehicles equipped with power fold away side view
mirrors.
(1) Remove power mirror switch from mounting
position (Refer to 8 - ELECTRICAL/POWER MIR-
RORS/POWER FOLDAWAY MIRROR SWITCH -
REMOVAL).
(2) Using an ohmmeter, test for continuity between
the terminals of the switch as shown in the tables
below (Fig. 3).
NOTE: When testing using the chart below be cer-
tain to read the chart correctly. Example - When
testing left mirror “DOWN
↓
”, pins 1, 9, 10 will show
continuity to each other but not with 3, 4, 5.
(3) If test results are not obtained as shown in the
tables below, replace the switch.
EXTENDED MIRROR SWITCH CIRCUIT TEST
NOTE: MIRROR POSITION SWITCH MUST BE IN
THE
“EXTENDED”
POSITION
TO
USE
CHART
BELOW.
WOBBLE
PLATE
POSITION
LEFT MIRROR
SELECTED
RIGHT
MIRROR
SELECTED
CONTINUITY
BETWEEN
PINS
CONTINUITY
BETWEEN
PINS
DOWN
1, 9, 10
6, 9, 10
3, 4, 5
3, 4, 5
UP
1, 4, 5
6, 4, 5
3, 9, 10
3, 9, 10
RIGHT
2, 9, 10
7, 9, 10
3, 4, 5
3, 4, 5
LEFT
2, 4, 5
7, 4, 5
3, 9, 10
3, 9, 10

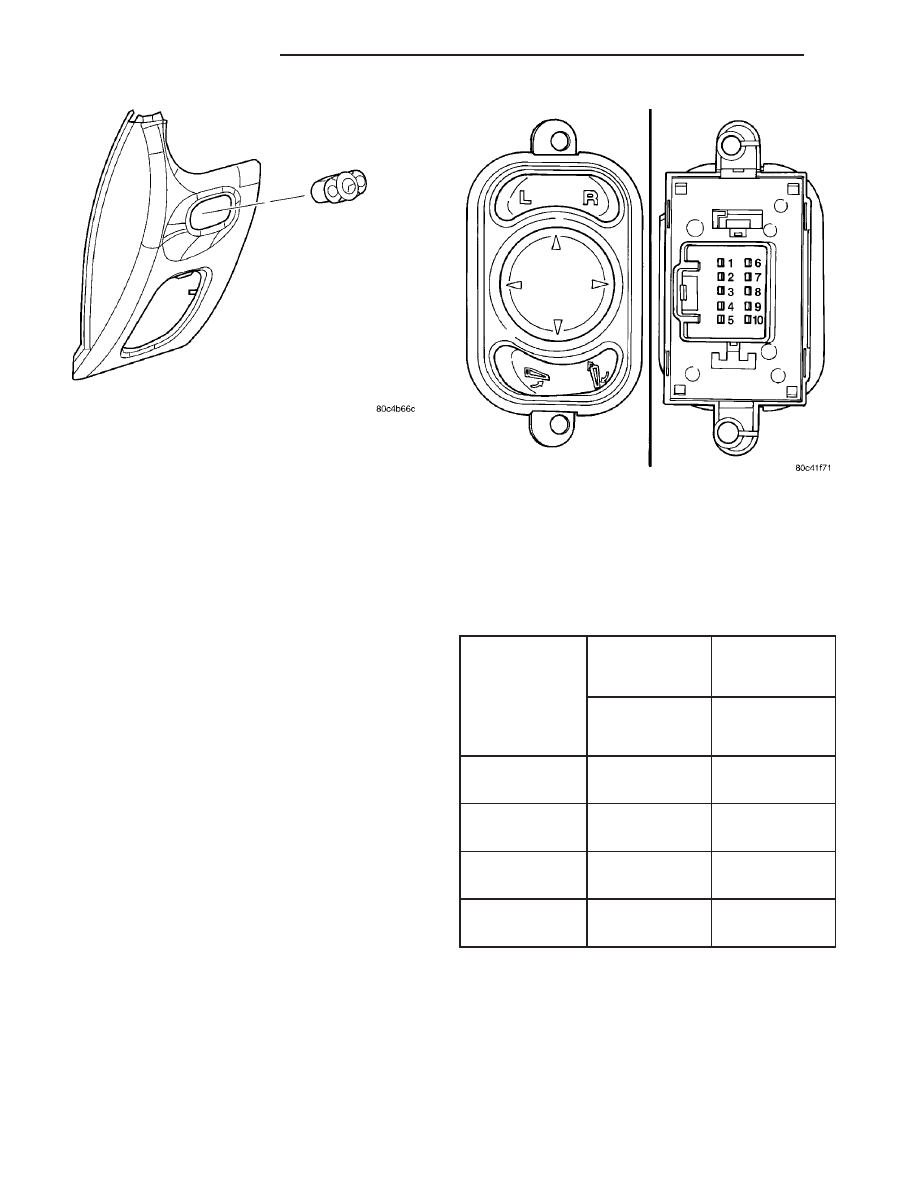

Fig. 2 POWER MIRROR SWITCH
Fig. 3 POWER FOLDAWAY MIRROR SWITCH
8N - 10
POWER MIRRORS
PT
POWER MIRROR SWITCH - LHD (Continued)
