Chrysler PT Cruiser. Manual - part 509





DIAGNOSIS AND TESTING - REMOTE KEYLESS
ENTRY TRANSMITTER

Using special tool 9001, first test to ensure that

the transmitter is functioning. Typical testing dis-
tance is 2.5 centimeters (1 inch) for Asian transmit-
ters and 30.5 centimeters (12 inches) for all others.
To test, position the transmitter as shown (Fig. 4).
Press any transmitter button, then test each button
individually. The tool will beep if a radio signal
strength that lights five or more LED’s is detected.
Repeat this test three times. If transmitter fails any
of the test refer to the Diagnostic Procedures man-
ual.

STANDARD PROCEDURE

STANDARD PROCEDURE - HORN CHIRP
TOGGLE

The toggling of the horn chirp (between enabled

and disabled) can be performed with the use of the
DRB III

t scan tool or by the customer.

DRB lll

PROGRAMMING

When using the DRB lll

t scan tool, select:

(1) “Theft Alarm”
(2) “VTSS”
(3) “Miscellaneous”
and then the desired function.

CUSTOMER PROGRAMMING

Using a transmitter programmed to the RKE Mod-

ule, the status of the horn chirp may be toggled by
the customer.

NOTE: The RKE Module is responsible for keeping
track of the horn chirp status; thus this procedure
does not need to be repeated for each transmitter
programmed to the system.

(1) With the ignition switch in RUN position, press

and hold the transmitter Unlock button for a mini-
mum of 4 seconds to a maximum of 10 seconds.

(2) While holding the UNLOCK button for 4-10

seconds, press the LOCK button. A chime will be
heard to indicate a successful toggle, at which time
both buttons may be released.

STANDARD PROCEDURE - TRANSMITTER
PROGRAMING

New Remote Keyless Entry (RKE) transmitters can

be programed using the DRBIII

t scan tool and the

proper Diagnostic Procedures manual, if no function-
ing transmitter is available.

The following procedure can be used as long as one

functioning transmitter is available:

(1) Insert the key into the ignition switch, and

turn the ignition switch to the RUN position (without
starting the vehicle).

(2) Using the RKE transmitter programmed to the

RKE module, press and continuously hold down the
UNLOCK button for 4-10 seconds.

(3) Within the 4-10 second time range, continue to

hold the UNLOCK button and press the PANIC but-
ton. Both buttons may then be released. Upon the
PANIC button being depressed, the message for cus-
tomer programming mode will be transmitted to the
RKE module.

(4) A chime will be heard to verify that the cus-

tomer programming mode has been entered.

(5) Press and release any button on each transmit-

ter that is to be programmed to the RKE module,
including any transmitters which were previously
programmed to the RKE module (with a maximum of
four possible). After each transmitter is successfully
programmed, a chime will be heard to verify that
successful

programming

of

the

transmitter

has

occurred.

(6) After thirty seconds, or upon the ignition

switch being turned OFF, a chime will indicate that
the RKE module has exited the programming mode.

STANDARD PROCEDURE - RKE TRANSMITTER
BATTERIES

The Remote Keyless Entry (RKE) transmitter case

snaps open and shut for battery access. To replace
the RKE transmitter batteries:

(1) Using a thin coin, gently pry at the notch in

the center seam of the RKE transmitter case halves
near the key ring until the two halves unsnap.

(2) Lift the back half of the transmitter case off of

the RKE transmitter.

(3) Remove the two batteries from the RKE trans-

mitter.

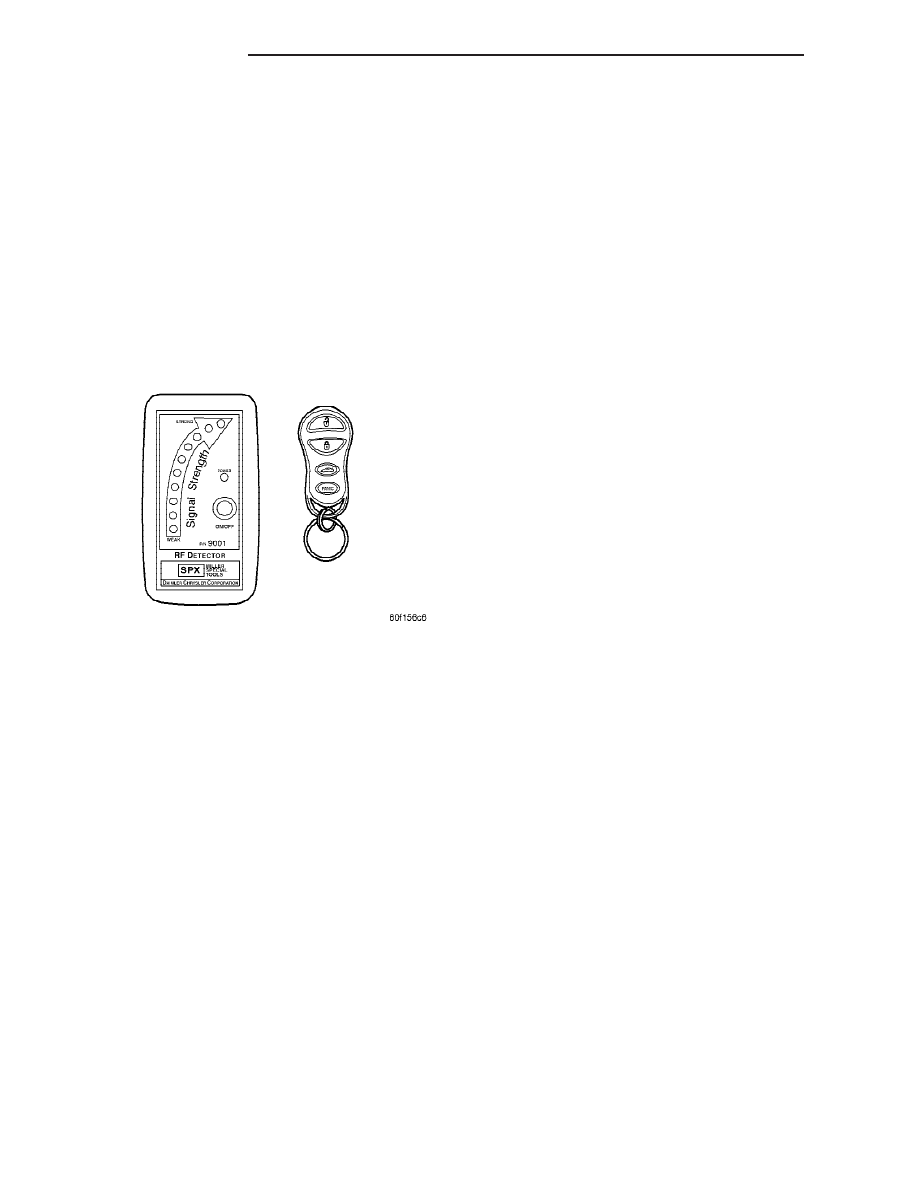

Fig. 4 RKE TRANSMITTER DIAGNOSIS

8N - 6

POWER LOCKS

PT

REMOTE KEYLESS ENTRY TRANSMITTER (Continued)

(4) Replace the two batteries with new Panasonic

2016, or equivalent. Be certain that the batteries are
installed with their polarity correctly oriented.

(5) Align the two RKE transmitter case halves

with each other, and squeeze them firmly and evenly
together until they snap back into place.

SPECIFICATIONS - TRANSMITTER RANGE

Normal operation range is within 7 meters (23 ft.)

of the vehicle. Range may be better or worse depend-
ing on the environment around the vehicle.

PT

POWER LOCKS

8N - 7

REMOTE KEYLESS ENTRY TRANSMITTER (Continued)

POWER MIRRORS

TABLE OF CONTENTS

page

page

POWER MIRRORS

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 8

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

DIAGNOSIS AND TESTING - POWER

MIRRORS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

POWER MIRROR SWITCH - LHD

DIAGNOSIS AND TESTING - POWER MIRROR

SWITCH - LHD

. . . . . . . . . . . . . . . . . . . . . . . . 9

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 9

POWER FOLDAWAY MIRROR SWITCH - RHD

DIAGNOSIS AND TESTING - POWER

FOLDAWAY MIRROR SWITCH - RHD

. . . . . . 10

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 11

POWER MIRRORS

DESCRIPTION

The mirrors are controlled by a single switch

assembly located on the front left lower instrument
panel (LHD) or on the front right lower instrument
panel (RHD). The push button switch (LHD) or
rocker switch (RHD) uses L (left) and R (right) for
mirror selection and a button to push for the desired
direction of mirror movement.

The motors which operate the mirrors are part of

the mirror assembly and cannot be replaced sepa-
rately.

These vehicles may be equipped with power fold-

away mirrors. This feature allows both the driver
and passenger side view mirrors to fold inward
(retract) on demand. The vehicle has an additional
switch located below the power mirror switch that
controls the folding function of the mirror assembly.

The foldaway side view mirror is attached to the

vehicle’s door in the same manner as mirrors without
the foldaway option. The foldaway mirrors unique
option is the internal motor which allows the mirrors
to fold inward. The fold-away mirror motor is not ser-
viceable separately and if a motor is found to be
faulty, the entire side view mirror must be replaced.

OPERATION

Use the mirror select switch, located to the left of

the steering column on the instrument panel, to
adjust the view obtained in the outside mirrors.
Press the L or R button for Left or Right mirror
selection. Use the center off position to guard against
accidentally moving a mirror position.

Select a mirror and press one of the four arrows for

the direction you want the mirror to move.

DIAGNOSIS AND TESTING - POWER MIRRORS

WIRING VOLTAGE TEST (LHD)

The following wiring test determines whether or

not voltage is continuous through the body harness
to switch.

(1) Remove the power mirror switch.
(2) Disconnect wire connector from back of power

mirror switch.

(3) Connect the clip end of a 12 volt test light to

Pin 7 in the harness connector at the mirror switch.
Touch the test light probe to Pin 3.

If the test light illuminates, the wiring circuit

between the battery and switch is OK.

If the lamp does not illuminate, first check fuse 18

in the Junction Block (JB). If fuse 18 is OK, then
check for a broken wire.

Refer to the appropriate wiring information.

POWER MIRROR MOTOR TEST (LHD)

If the power mirror switch is receiving proper cur-

rent and ground and mirrors do not operate, proceed
with power mirror motor test. Refer to the appropri-
ate wiring information.

(1) Disconnect wire harness connector to power

mirror switch.

(2) Using two jumper wires:
• Connect one to a 12 volt source

• Connect the other to a good body ground

• Refer to the Mirror Motor Test Chart for proper

wire connections at the switch connector.

8N - 8

POWER MIRRORS

PT

MIRROR MOTOR TEST CHART

12 VOLTS

GROUND

MIRROR REACTION

SWITCH CONNECTOR

RIGHT

LEFT

PIN 4

PIN 1

-

UP

PIN 8

PIN 1

-

LEFT

PIN 1

PIN 4

-

DOWN

PIN 1

PIN 8

-

RIGHT

PIN 9

PIN 10

UP

-

PIN 2

PIN 10

LEFT

-

PIN 10

PIN 9

DOWN

-

PIN 10

PIN 2

RIGHT

-

(3) If results shown in table are not obtained,

check for open or shorted circuit. Replace mirror
assembly as necessary.

POWER MIRROR SWITCH -
LHD

DIAGNOSIS AND TESTING - POWER MIRROR
SWITCH - LHD

(1) Disconnect and isolate the battery negative

cable.

(2) Remove power mirror switch (Refer to 8 -

ELECTRICAL/POWER MIRRORS/POWER MIRROR
SWITCH - REMOVAL).

(3) Using an ohmmeter, test for continuity between

the terminals of the switch as shown in the Mirror
Switch Test table (Fig. 1).

(4) If test results are not obtained as shown in the

Mirror Switch Test table, replace the switch.

MIRROR SWITCH TEST TABLE

SWITCH POSITION

MOVE BUTTON

CONTINUITY BETWEEN

TERMINALS

MIRROR IN

9

L

9

POSITION

UP

PIN 2 TO 4
PIN 4 TO 7
PIN 8 TO 10

RIGHT

PIN 3 TO 8
PIN 8 TO 9
PIN 4 TO 10

DOWN

PIN 2 TO 8
PIN 7 TO 8
PIN 4 TO 10

LEFT

PIN 3 TO 4
PIN 4 TO 9
PIN 8 TO 10

MIRROR IN

9

R

9

POSITION

UP

PIN 2 TO 4
PIN 4 TO 7
PIN 1 TO 8

RIGHT

PIN 1 TO 4
PIN 3 TO 8
PIN 8 TO 9

DOWN

PIN 1 TO 4
PIN 2 TO 8
PIN 7 TO 8

LEFT

PIN 3 TO 4
PIN 1 TO 8
PIN 4 TO 9

REMOVAL

(1) Disconnect and isolate the battery negative cable.
(2) Remove the left lower instrument panel bezel.

Pull top rearward, lower to floor and with a quick
pulling motion remove off instrument panel.

(3) Remove two screws to the left instrument

panel end cover.

(4) Pull the left end cover rearward to unsnap.

Maneuver it out from underneath the left A-pillar
trim and top cover. Removal of these components is
not necessary.

(5) Disconnect the power mirror switch wiring con-

nector and remove end cover from vehicle.

(6) With the left end cover on the bench, gently

pry in on the tabs (4) of the mirror switch and push
through the front of the cover and remove (Fig. 2).

INSTALLATION

(1) Place the mirror switch in cover opening and

firmly snap into place.

(2) Connect the power mirror switch wiring con-

nector.

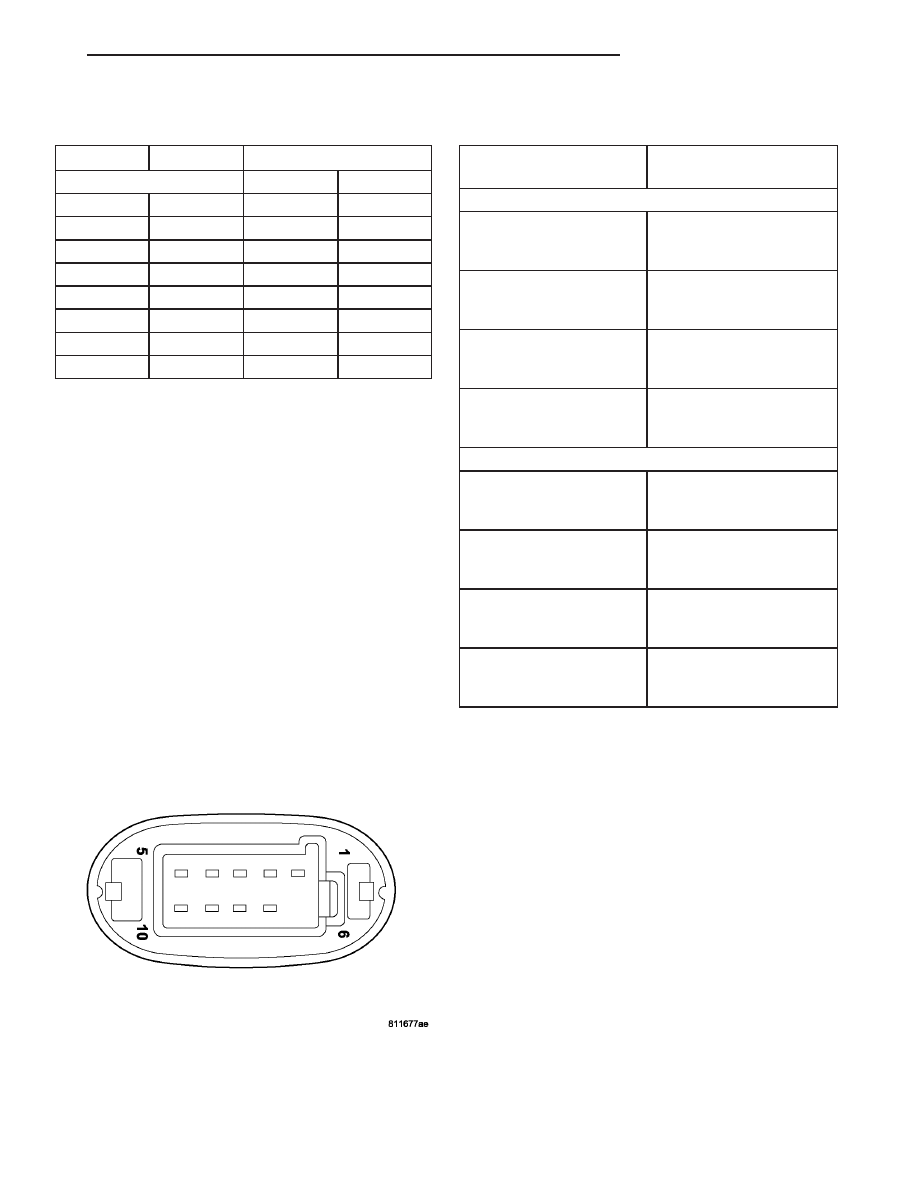

Fig. 1 POWER MIRROR SWITCH

PT

POWER MIRRORS

8N - 9

POWER MIRRORS (Continued)
