ANTENNA CABLE - SATELLITE
RADIO
DESCRIPTION
The satellite radio antenna connects the roof
mounted antenna to the satellite receiver module. It
has two connectors at each end and is routed above
the headliner, then behind the left quarter panel
trim.
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Remove the D-pillar trim panel (Refer to 23 -
BODY/INTERIOR/D-PILLAR TRIM - REMOVAL).
(3) Remove the left rear quarter trim panel (Refer
to 23 - BODY/INTERIOR/LEFT QUARTER TRIM
PANEL - REMOVAL).
(4) Lower the rear portion of the headliner as nec-
essary to access the underside of the satellite
antenna (Refer to 23 - BODY/INTERIOR/HEAD-
LINER - REMOVAL).
(5) Detach the antenna cable from the body har-
ness (Fig. 7). Disconnect wire harness connectors at
each end of the cable.
INSTALLATION
(1) Secure the antenna cable to the body harness.
Connect the wire harness connectors at each end of
the antenna.
(2) Install the headliner (Refer to 23 - BODY/IN-
TERIOR/HEADLINER - INSTALLATION).
(3) Install the left rear quarter trim panel (Refer
to 23 - BODY/INTERIOR/LEFT QUARTER TRIM
PANEL - INSTALLATION).
(4) Install the D-pillar trim panel (Refer to 23 -
BODY/INTERIOR/D-PILLAR TRIM - INSTALLA-
TION)
(5) Connect the battery negative cable.

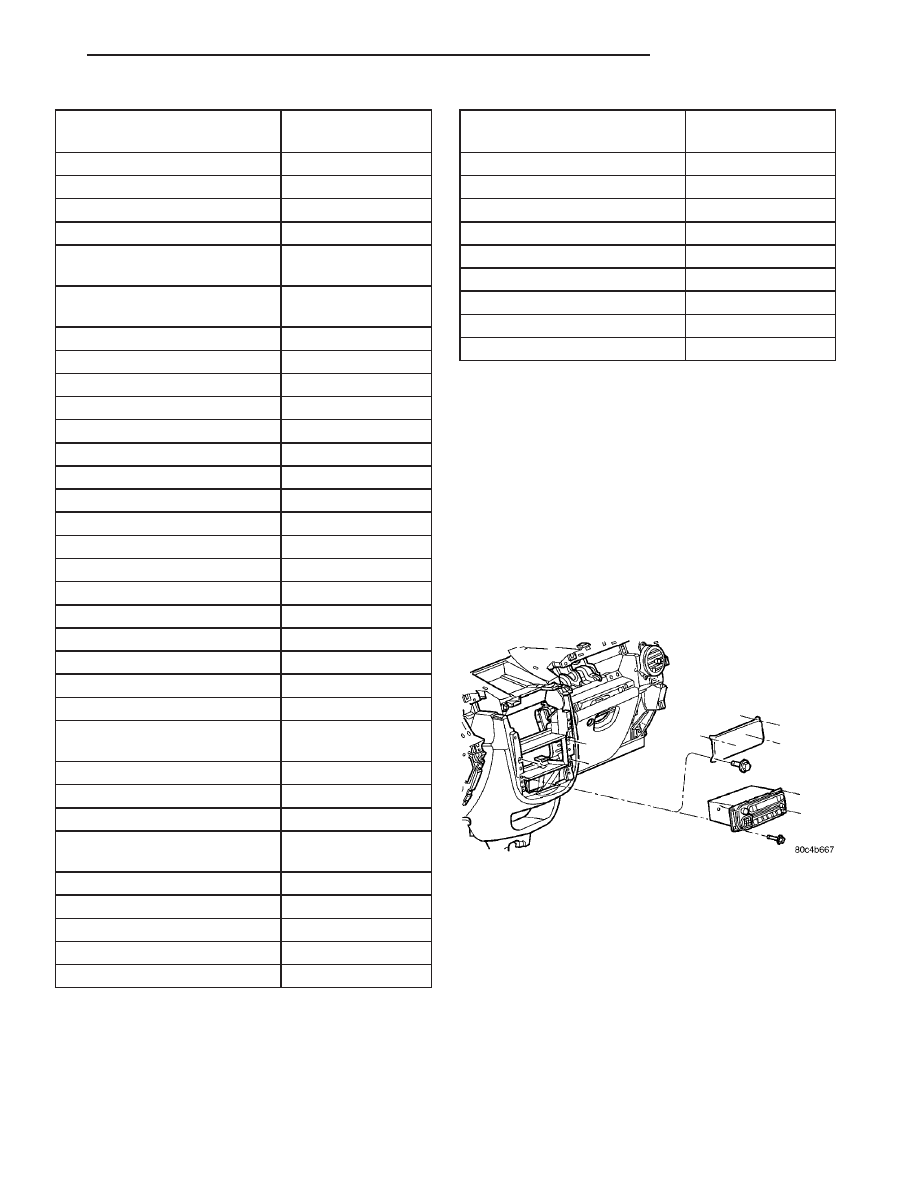

RADIO
DESCRIPTION
Available radios for this vehicle include:
• AM/FM/cassette with CD changer control fea-
ture (RBY, RBT or RAD sales code)
• AM/FM/cassette/CD/ (RAZ sales code)
• AM/FM/CD with CD changer control (RBK sales
code)
• AM/FM/CD with 6 CD changer (RBQ sales code)
• AM/FM/CD (REK sales code) - export only
• AM/FM/CD GPS Navigation (RB3 sales code)
All factory-installed radios can communicate on the
Programmable Communications Interface (PCI) data
bus network.
COUNTRY CODE AND CABIN EQ SETTING - REK
RADIO ONLY
The REK radio may require the country code and
cabin EQ setting to be set if not programmed cor-
rectly.
If battery power is lost to radio, the anti-theft
code must be entered before radio will operate.
If the region the vehicle will be driven in uses 10
kHz spacing on the AM band (i.e. 950, 960 etc.), set
the Country Code to “USA”. If the region uses 9 kHz
spacing, has LW and MW Bands, and uses RDS (i.e.
AF, PTY, TA, etc.), set the radio for “EUR”. If neither
of the previous settings apply, and the vehicle is not
being driven in Japan, set the radio to “ROW”. Vehi-
cles driven in Japan should have the radio set to
“JPN”. The following chart list selected country codes
and radio broadcast standards.
To enter the country code and EQ setting, use a
scan tool.
COUNTRY CODE SELECTION CHART
INTERNATIONAL COUNTRY
CODE
RADIO
BROADCAST STD.
AFGAHANISTAN (8AA)
ROW
ALBANIA (8BA)
ROW
ALGERIA (8AC)
EUR
AMERICAN SAMOA (8AD)
ROW
ANDORRA (8AE)
ROW
ANGOLA (8AF)
ROW
ANGUILLA (8HA)
USA
ANTARCTICA (8HB)
ROW

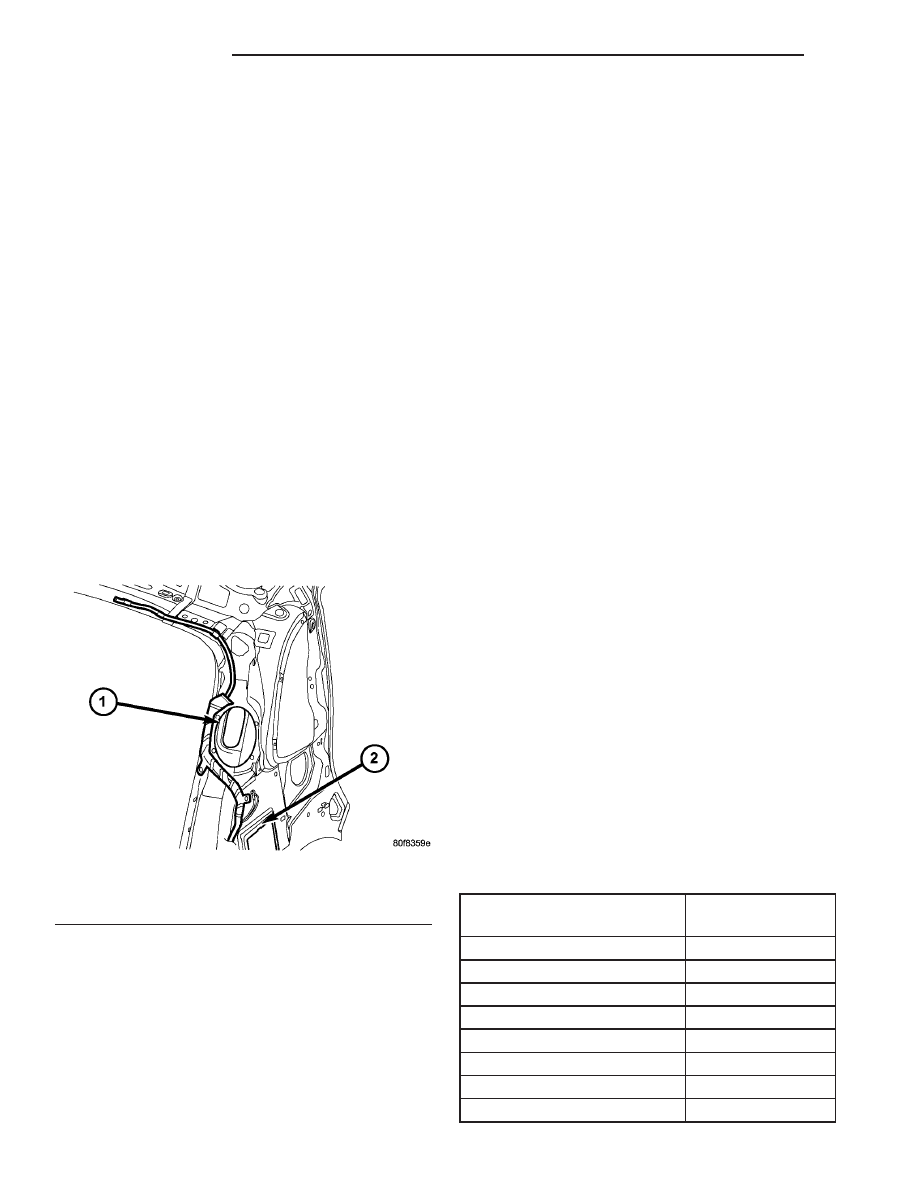

Fig. 7 ANTENNA CABLE - SATELLITE RADIO
1 - ANTENNA CABLE - SATELLITE RADIO
2 - SATELLITE RECEIVER MODULE
8A - 8
