OUTSIDE FRONT DOOR HANDLE

REMOVAL

(1) Remove door trim panel.
(2) Remove water shield as necessary.
(3) Remove door glass.
(4) Disengage clips holding latch release link and

lock link to door at latch.

(5) Disconnect links from latch.
(6) Remove

screws

attaching

handle

to

door

through access hole in door inner pane (Fig. 72).

(7) Remove door handle from door.

INSTALLATION

(1) Place door handle in position on door.
(2) Install screws to attach to handle to door.

(3) Insert links into clips on latch.
(4) Engage clips to attach latch release link and

lock link to door latch.

(5) Verify door latch handle operation.
(6) Install door glass.
(7) Install water shield.
(8) Install door trim panel.

QUARTER TRIM LOWER (C-PILLAR)

REMOVAL

(1) Remove rear seat cushion and back.
(2) Pull upper quarter trim from panel (Fig. 73).
(3) Remove sill trim as necessary to clear quarter

trim removal path.

(4) Disengage clips attaching lower quarter trim to

inner quarter trim from vehicle.

(5) Remove quarter trim from vehicle.

INSTALLATION

(1) Place quarter trim in position on vehicle.
(2) Engage clips to attach lower quarter trim to

inner quarter panel.

(3) Install upper quarter trim.
(4) Install sill trim.
(5) Install rear seat cushion and back.

QUARTER TRIM UPPER (C-PILLAR)

REMOVAL

(1) Disengage clips holding upper quarter trim to

inner quarter panel (Fig. 73).

NOTE: Start at top forward area of trim and pull
inboard.

(2) Remove seat cushion.
(3) Remove lower seat belt anchor nut.
(4) Slide seat belt through trim panel.
(5) Remove upper quarter trim from vehicle.

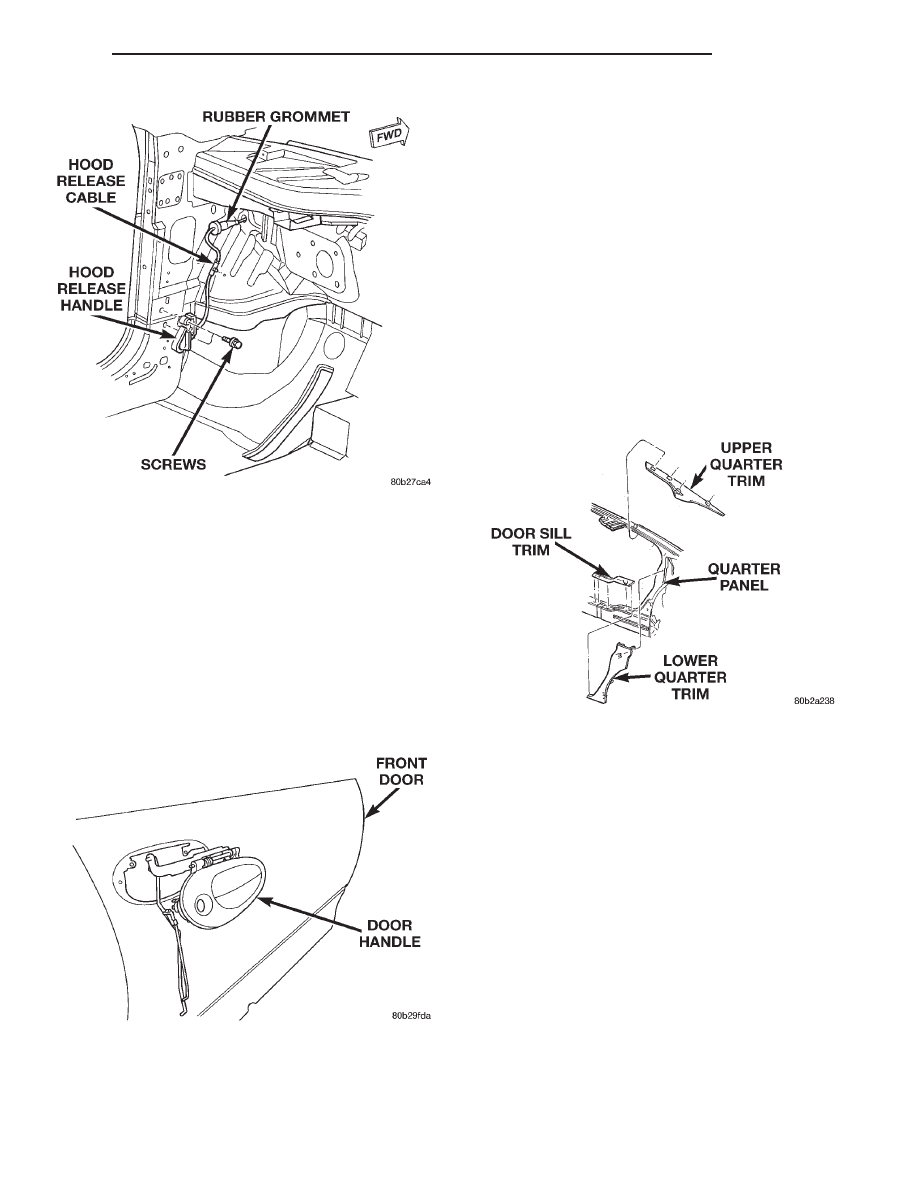

Fig. 71 Hood Release Handle

Fig. 72 Outside Front Door Handle

Fig. 73 Lower Quarter Trim

300M

BODY

23 - 33

REMOVAL AND INSTALLATION (Continued)

INSTALLATION

(1) Slide belt through trim panel.
(2) Place upper quarter trim in position on vehicle.
(3) Engage clips to attach upper quarter trim to

inner quarter panel.

NOTE: Start at lower attachments first and work up.

(4) Install seat belt anchor nut.
(5) Install seat cushion.

REAR DOOR

REMOVAL

(1) Open rear door.
(2) Mark location of hinge on door end frame.
(3) Disengage clips holding wire harness connector

and boot to hinge pillar.

(4) Remove connector from hinge pillar.
(5) Disengage clip holding wire connector together

on hinge pillar side of the connector.

(6) Remove door wire harness from instrument

panel harness.

(7) Disengage door check stop from pin on upper

door hinge.

(8) Support door on suitable lifting device.
(9) Remove bolt and nut attaching lower hinge to

door end frame (Fig. 74).

(10) Steady door on lifting device and remove bolt

and nut attaching upper hinge to door end frame.

(11) Remove door from vehicle.

INSTALLATION

(1) Place door in position on vehicle.
(2) Engage door onto pin on upper door hinge.
(3) Steady door on lifting device and install bolt

and nut attaching upper hinge to door end frame.
Tighten the hinge bolt and nut to 28 N·m (250 in
lbs.) torque. If the double ended stud is loosen or

replaced tighten the stud to 14 N·m (120 in. lbs.)
torque.

(4) Install bolt and nut attaching lower hinge to

door end frame.

(5) Verify door alignment and operation.
(6) Connect door wire harness to instrument panel

wire harness.

(7) Attach check strap.
(8) Align door to achieve equal spacing to sur-

rounding body panels. Panels should be flush across
all gaps. If door needs to be aligned (damages or
hinge replacement) and can not be achieved, may be
necessary to remove the double ended stud and
replaced it with a bolt. This may allow extra move-
ment to achieve the proper alignment.

REAR DOOR BODY MOUNTED WEATHERSTRIP

REMOVAL

(1) Open rear door.
(2) Remove door opening sill plate.
(3) Pull body mounted weatherstrip from fence

around door opening (Fig. 75).

INSTALLATION

(1) Position color dot on weatherstrip at the B-pil-

lar upper corner.

(2) Engage weatherstrip on the fence at upper

B-pillar and work down the B-pillar.

(3) Engage weatherstrip along the header and

down the C-pillar.

(4) Engage weatherstrip along the sill. There may

be slack material, work the slack material to the
front of the opening.

(5) Verify weatherstrip sealing.

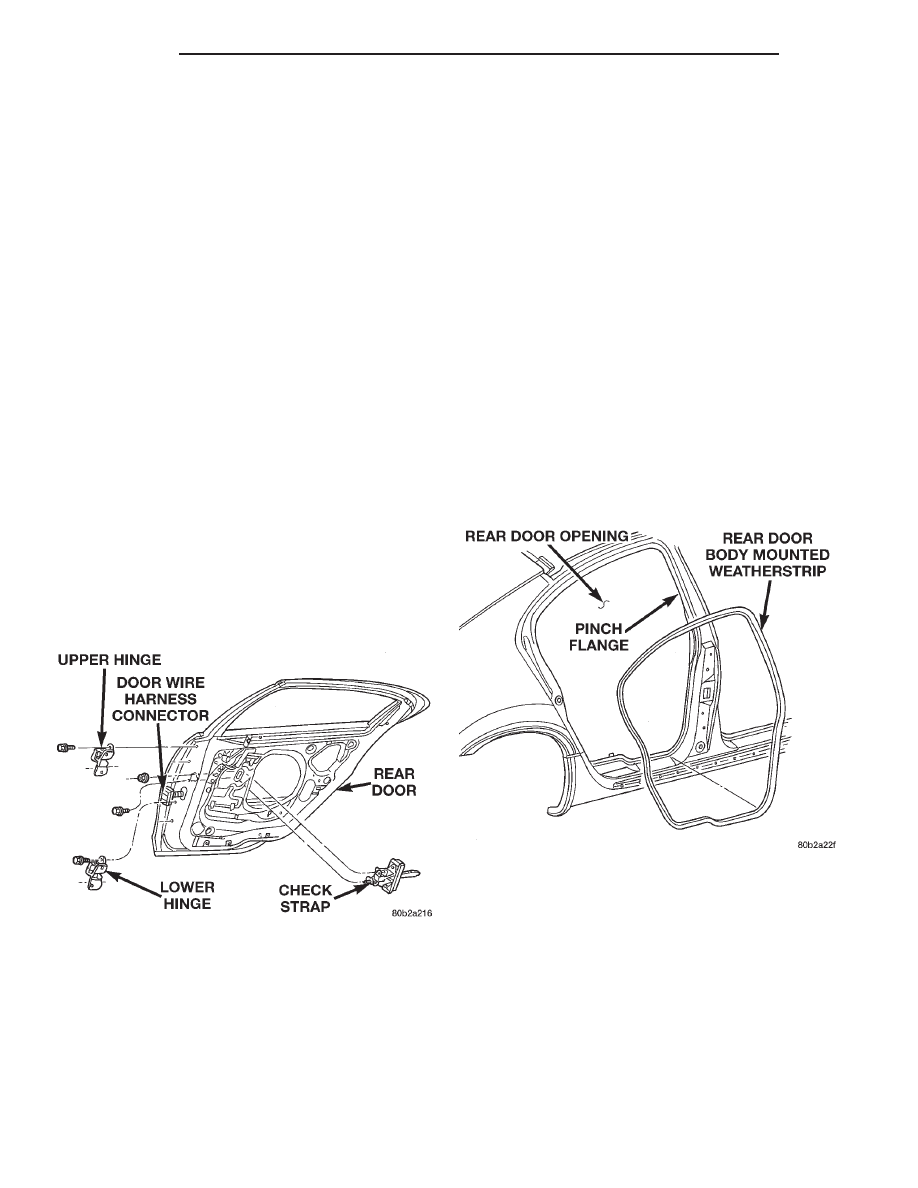

Fig. 74 Rear Door

Fig. 75 Rear Door Body Mounted Weatherstrip

23 - 34

BODY

300M

REMOVAL AND INSTALLATION (Continued)

REAR DOOR CHECK STRAP

REMOVAL

(1) Close door glass.
(2) Remove door trim panel.
(3) Remove water shield as necessary.
(4) Remove bolt and nut attaching check strap to

door end and body.

(5) Remove check strap from vehicle (Fig. 76).

INSTALLATION

(1) Place check strap in position on vehicle.
(2) Install bolt and nut to attach check strap to

door end and body.

(3) Verify check strap operation.
(4) Install water shield.
(5) Install door trim panel.

REAR DOOR GLASS

REMOVAL

(1) Remove door trim panel.
(2) Remove water shield as necessary.
(3) Raise door glass to gain access to roller channel

to glass fasteners through holes in inner door panel.

(4) Loosen lift plate nuts attaching regulator roller

channel to glass (Fig. 77).

(5) Slide roller channel rearward to allow lift plate

nuts to pass through key hole slots in channel.

(6) Remove glass from roller channel.
(7) Raise glass upward and out of the opening at

top of door.

INSTALLATION

(1) Lower glass into opening at top of door.
(2) Place glass in position against roller channel.
(3) Insert lift plate nuts into key hole slots in

roller channel and slide channel forward to locked
position.

(4) Tighten nuts to attach regulator roller channel

to glass and lift plate.

(5) Install upper trim retainer channel.
(6) Install water shield.
(7) install door trim panel.

REAR DOOR GLASS REGULATOR

REMOVAL

(1) Remove flag cover, door trim panel, water

shield as necessary, and pull cup support bracket.

(2) Slide glass from regulator roller channel (Fig.

78).

(3) Disconnect power window motor wire connec-

tor.

(4) Loosen screw attaching regulator scissor chan-

nel to door panel.

(5) Remove screw and bolt heads from keyhole

slots in door panel.

(6) Loosen bolt attaching regulator support brace

to door panel.

(7) Loosen bolts attaching regulator to door panel.
(8) Remove regulator from door panel.
(9) Slide regulator rearward and rotate forward

end of roller channel through access hole in door
panel.

INSTALLATION

(1) Insert roller channel through access hole in

door panel.

(2) Insert bolt and screw heads through key hole

slots in door panel.

(3) Tighten bolts attaching regulator to door panel.
(4) Tighten bolt to attach regulator support brace

to door panel.

(5) Tighten screw to attach regulator scissor chan-

nel to door panel.

(6) Connect power window motor wire connector.
(7) Lower door glass on to regulator roller channel.
(8) Align glass and verify operation.
(9) Install pull cup support bracket, water shield,

door trim panel and flag cover.

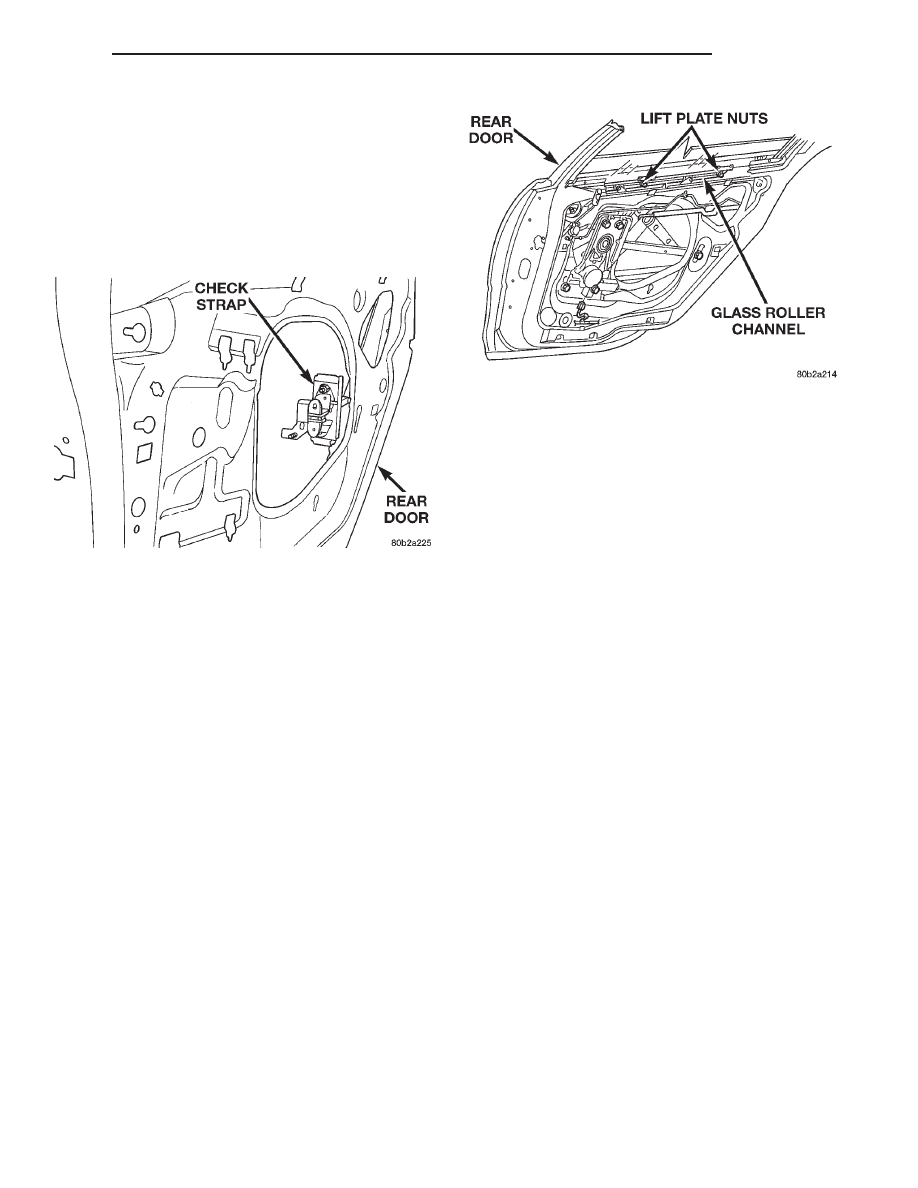

Fig. 76 Rear Door Check Strap

Fig. 77 Rear Door Glass

300M

BODY

23 - 35

REMOVAL AND INSTALLATION (Continued)

REAR DOOR GLASS RUN WEATHERSTRIP

REMOVAL

(1) Remove flag cover, door trim panel, water

shield as necessary, and pull cup support bracket.

(2) Remove door glass.
(3) Pull weatherstrip from lower rear channel

above door latch (Fig. 79).

(4) Pull run weatherstrip from window frame

channel.

INSTALLATION

(1) Clean butyl material from door flange area.
(2) Place door run weatherstrip in position on win-

dow frame channel.

(3) Push door run weatherstrip in position on win-

dow frame channel.

(4) Push weatherstrip into lower rear channel

above door latch.

(5) Install door glass.
(6) Install pull cup support bracket, water shield,

door trim panel and flag trim.

REAR DOOR HINGE

REMOVAL

(1) Mark outline of hinge on B-pillar and door end

frame.

(2) Remove nut and bolt attaching hinge to B-pil-

lar. Refer to Rear Door Removal procedure.

(3) Remove bolts attaching hinge to door end

frame (Fig. 80).

(4) Remove hinge from door.

INSTALLATION

(1) Align hinge to marks on door end frame.
(2) Place hinge in position on door.
(3) Install bolts to attach hinge to door end frame.
(4) Align hinge to marks on B-pillar.
(5) Install nut and bolt to attach hinge to B-pillar.
(6) Verify door alignment and operation, adjust as

necessary.

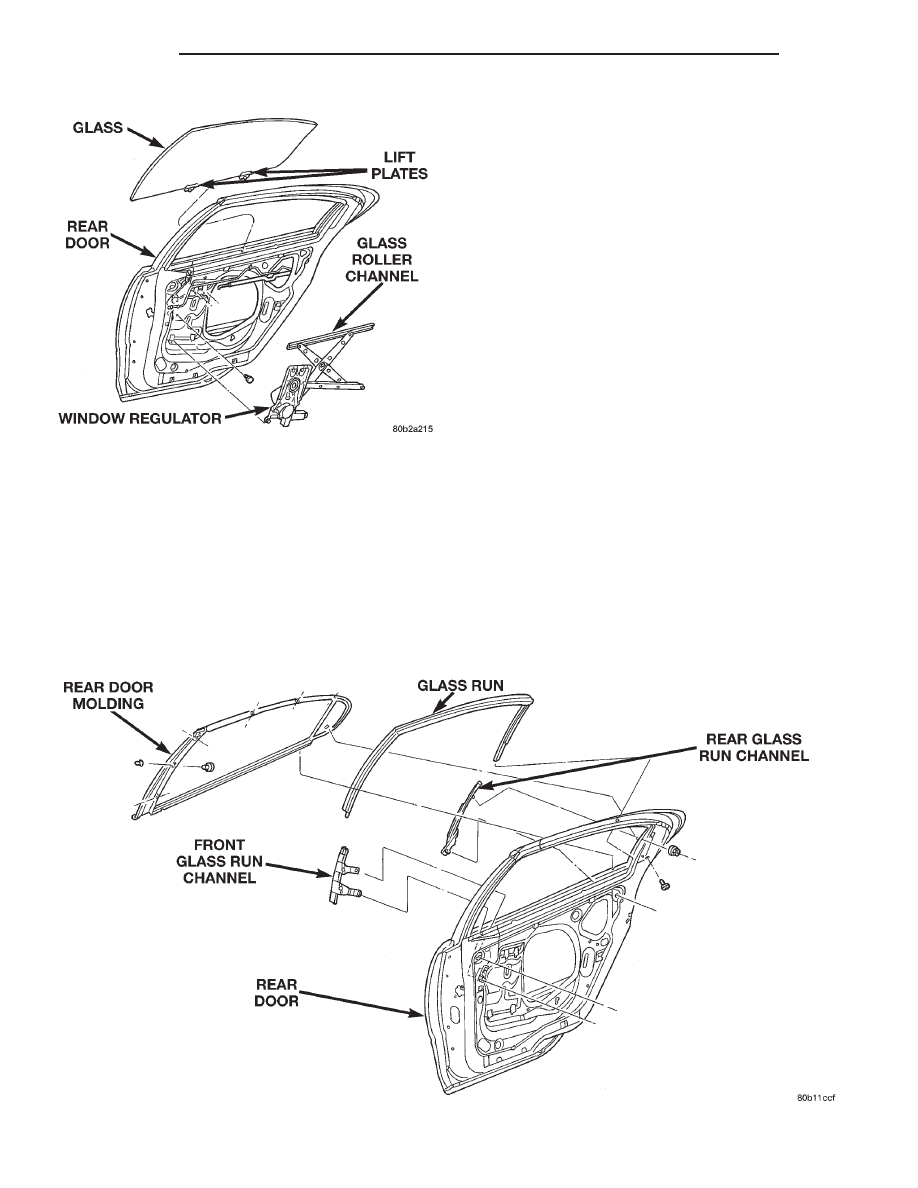

Fig. 79 Rear Door Glass Run Weatherstrip

Fig. 78 Rear Door Window Regulator

23 - 36

BODY

300M
