8W-01 GENERAL INFORMATION
INDEX
page
page
DESCRIPTION AND OPERATION
CIRCUIT FUNCTIONS . . . . . . . . . . . . . . . . . . . . . 4
CIRCUIT INFORMATION . . . . . . . . . . . . . . . . . . . 4
CONNECTOR INFORMATION . . . . . . . . . . . . . . . 7
ELECTROSTATIC DISCHARGE (ESD)
SENSITIVE DEVICES . . . . . . . . . . . . . . . . . . . . 8
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . 1
NOTES, CAUTIONS, and WARNINGS . . . . . . . . . 7
SECTION IDENTIFICATION . . . . . . . . . . . . . . . . . 5
SPLICE LOCATIONS . . . . . . . . . . . . . . . . . . . . . . 7
SYMBOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
TAKE OUTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
TERMINOLOGY . . . . . . . . . . . . . . . . . . . . . . . . . . 7
DIAGNOSIS AND TESTING
INTERMITTENT AND POOR CONNECTIONS . . . . 9
TROUBLESHOOTING TESTS . . . . . . . . . . . . . . . . 9
TROUBLESHOOTING TOOLS . . . . . . . . . . . . . . . 8
TROUBLESHOOTING WIRING PROBLEMS . . . . 10
SERVICE PROCEDURES
CONNECTOR AND TERMINAL REPLACEMENT . 12
CONNECTOR REPLACEMENT . . . . . . . . . . . . . . 11
DIODE REPLACEMENT . . . . . . . . . . . . . . . . . . . 14
TERMINAL REPLACEMENT . . . . . . . . . . . . . . . . 12
TERMINAL/CONNECTOR REPAIR- AUGAT
CONNECTORS . . . . . . . . . . . . . . . . . . . . . . . . 12
TERMINAL/CONNECTOR REPAIR-MOLEX
CONNECTORS . . . . . . . . . . . . . . . . . . . . . . . . 11
WIRING REPAIR . . . . . . . . . . . . . . . . . . . . . . . . 10
SPECIAL TOOLS
WIRING/TERMINAL . . . . . . . . . . . . . . . . . . . . . . 14
DESCRIPTION AND OPERATION
INTRODUCTION
Chrysler wiring diagrams are designed to provide
information regarding the vehicles wiring content. In
order to effectively use Chrysler wiring diagrams to
diagnose and repair a Chrysler vehicle, it is impor-
tant to understand all of their features and charac-
teristics.

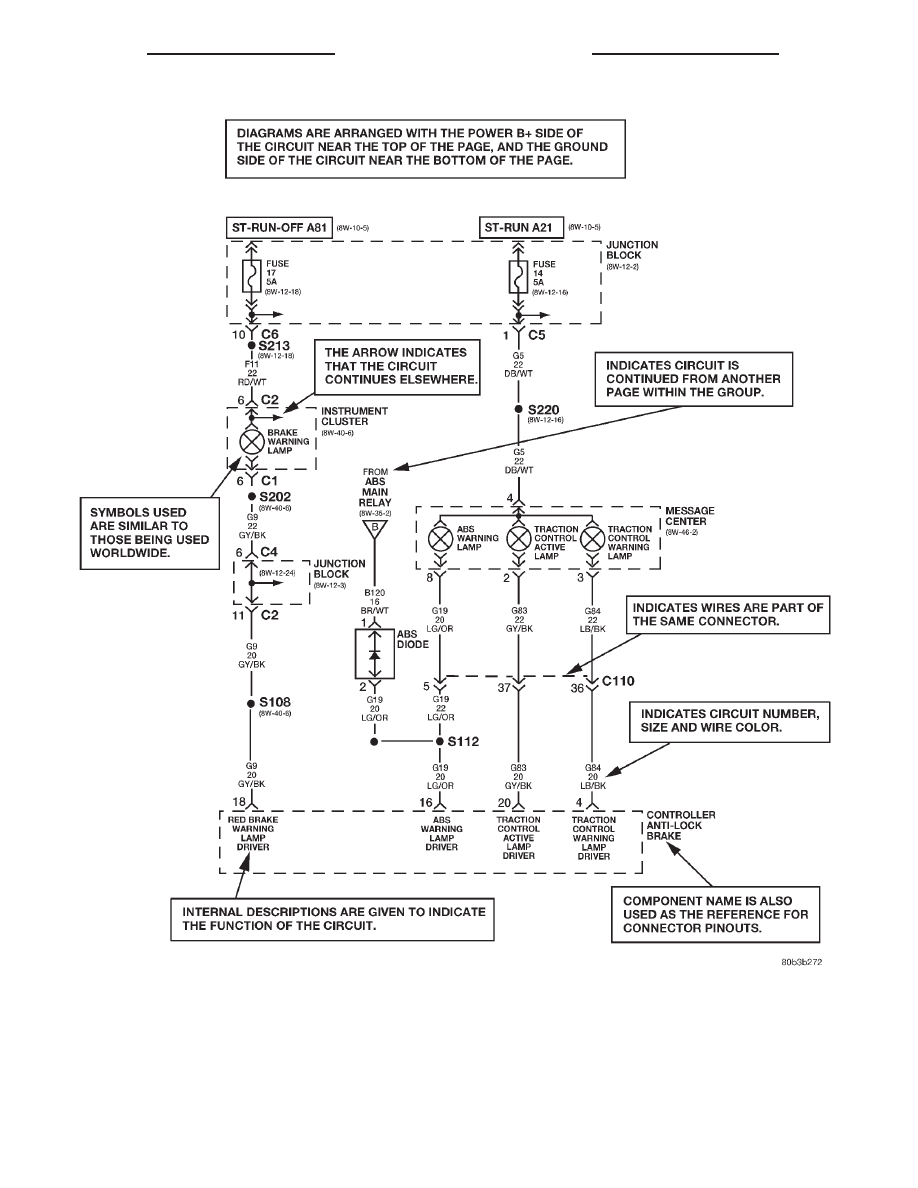

Diagrams are arranged such that the power (B+)
side of the circuit is placed near the top of the page,
and the ground (B-) side of the circuit is placed near
the bottom of the page.
All switches, components, and modules are shown
in the at rest position with the doors closed and the
key removed from the ignition.

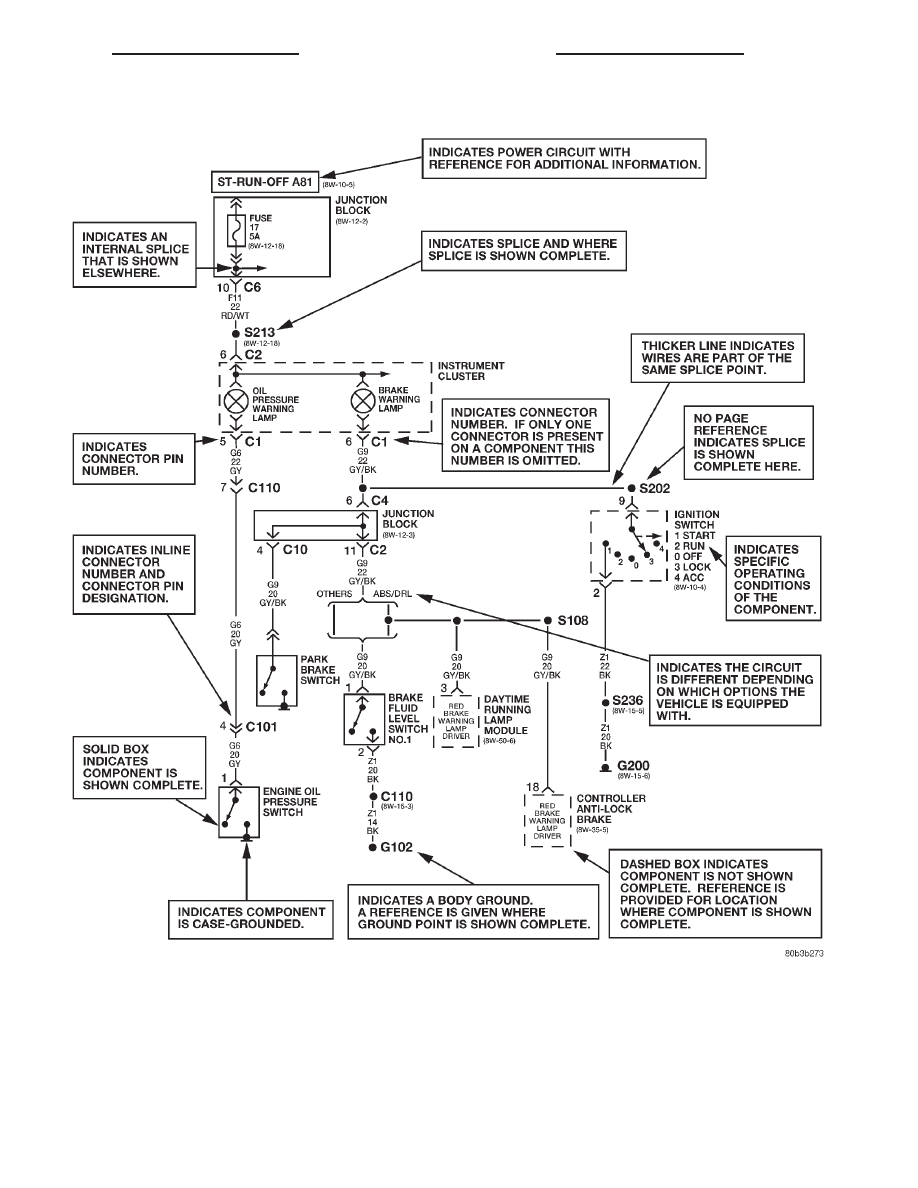

Components are shown two ways. A solid line
around a component indicates that the component is
complete. A dashed line around a component indi-
cates that the component being shown is not com-
plete.
Incomplete
components
have
a
reference
number to indicate the page where the component is
shown complete.
It is important to realize that no attempt is made
on the diagrams to represent components and wiring
as they appear on the vehicle. For example, a short
piece of wire is treated the same as a long one. In
addition, switches and other components are shown
as simply as possible, with regard to function only.
300M
8W - 01 GENERAL INFORMATION
8W - 01 - 1
