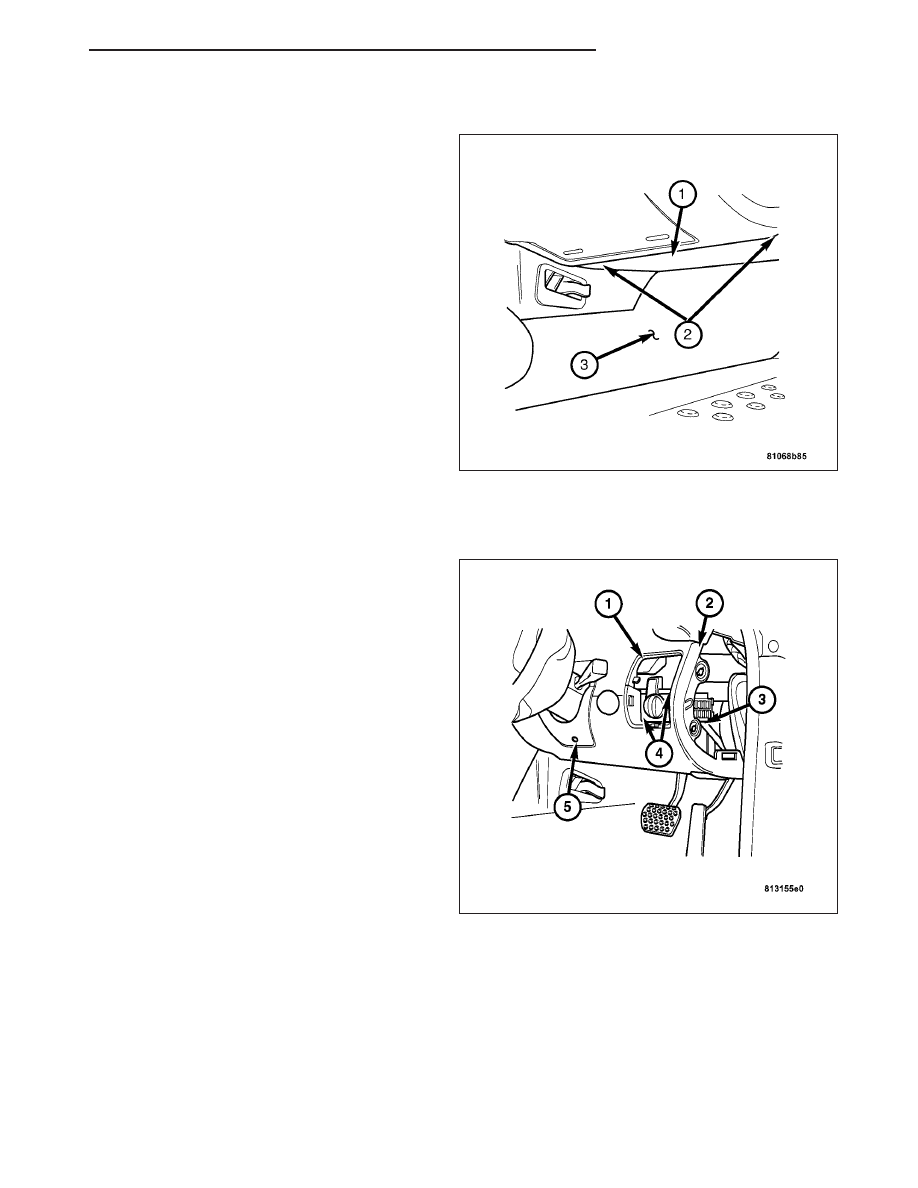

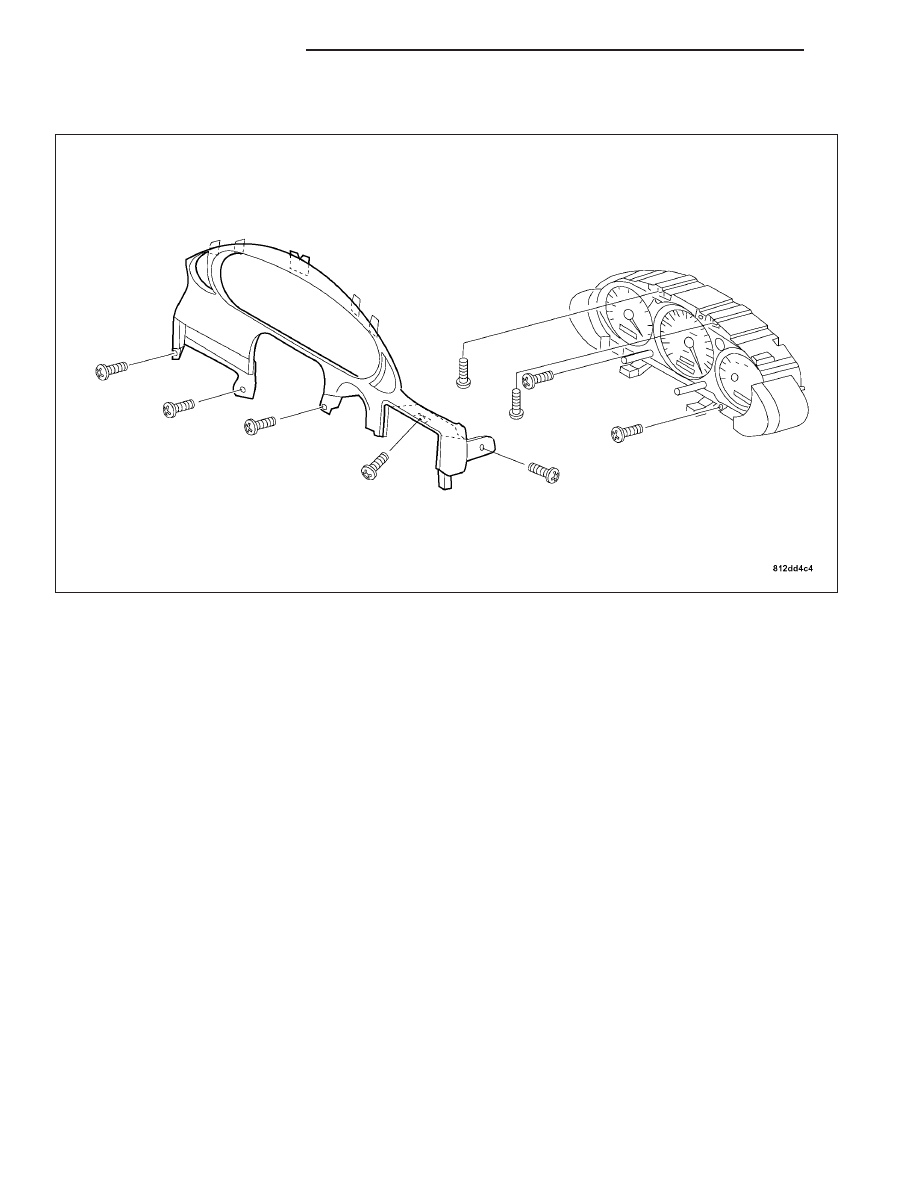

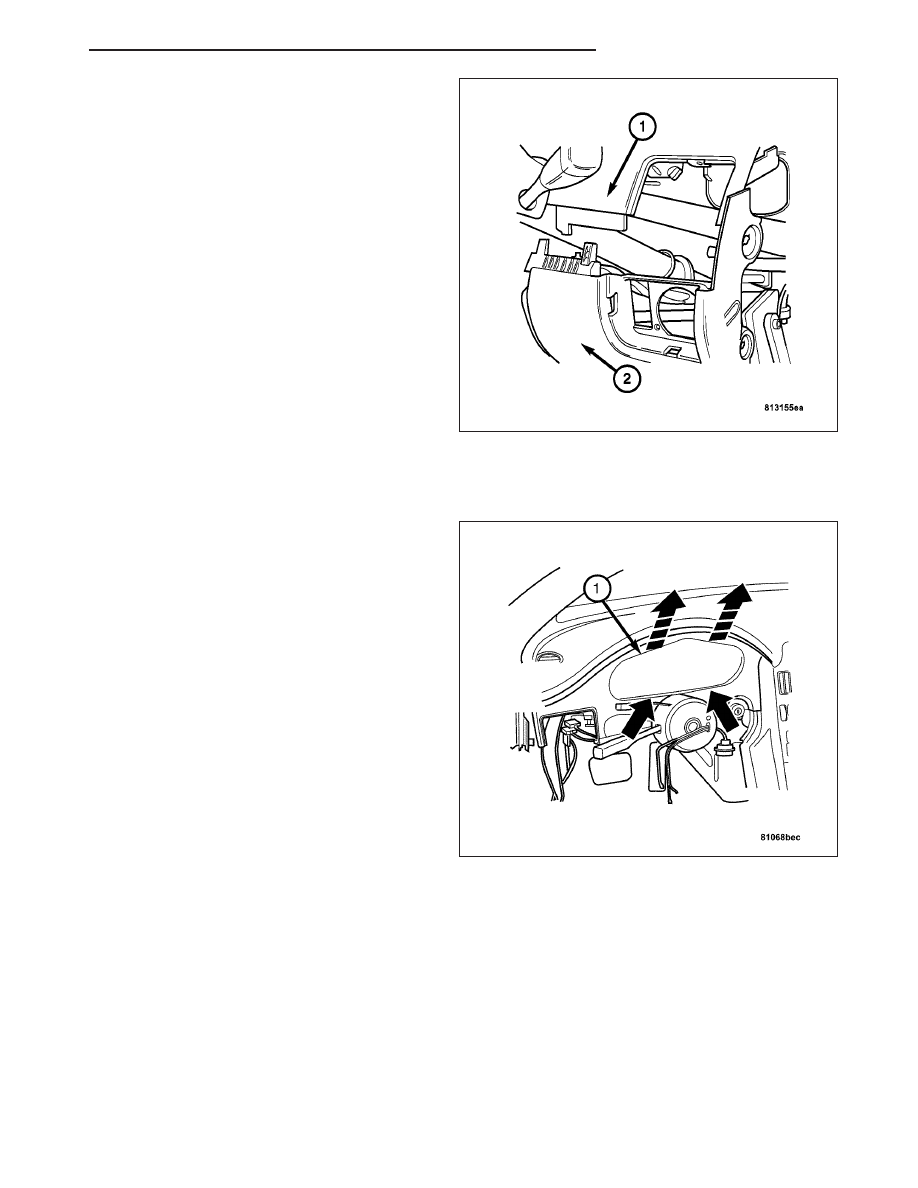

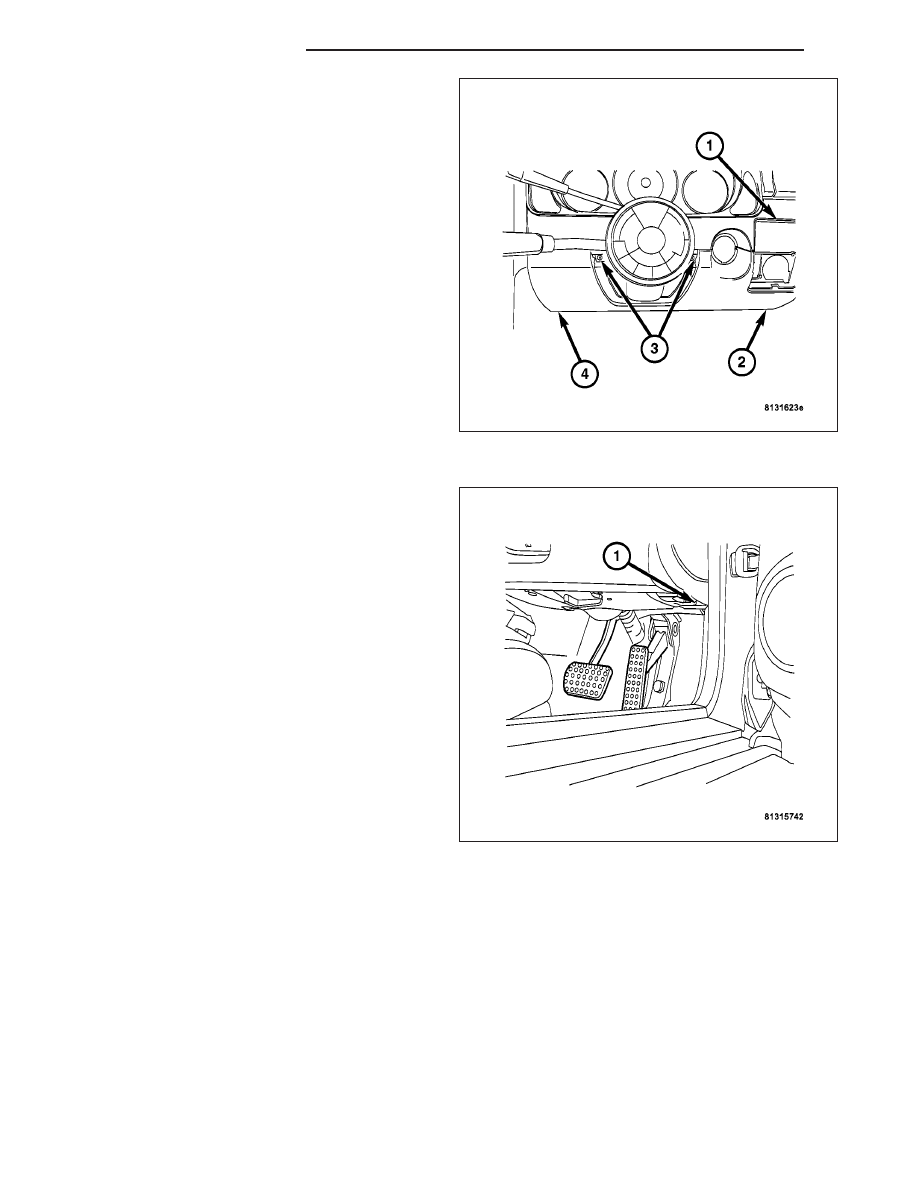

REMOVAL - LOWER INSTRUMENT PANEL (RIGHT) 1. Fold back the carpet (3). 2. Remove the screws (2) attaching the lower instru- ment panel to the glove compartment. 3. Pull the lower instrument panel (1) out. REMOVAL - LOWER I/P PANEL RIGHT - RHD 1. Remove the right side I/P air outlet deflector (1) by pulling it out of the I/P. 2. Remove the screw (5) attaching the steering col- umn panel under the steering column, then remove 3. Remove the fuse panel side cover. 4. Remove the two screws (4) attaching the lower I/P to the illumination control module and the screw (3) 5. Disconnect the illumination control module harness connector, then remove the illumination control 6. Remove the screw (2) attaching the lower I/P panel to the cluster cover. ZH INSTRUMENT PANEL 23 - 359 |
