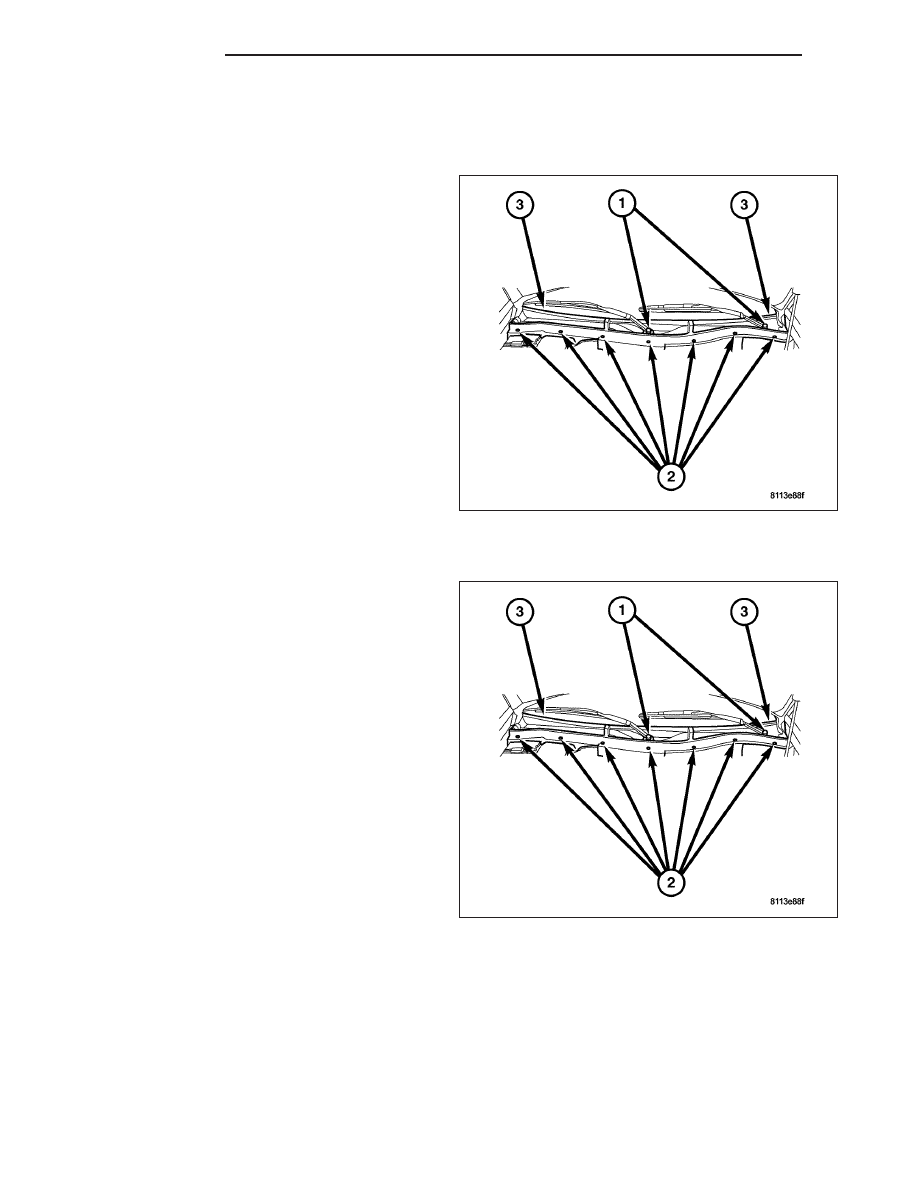

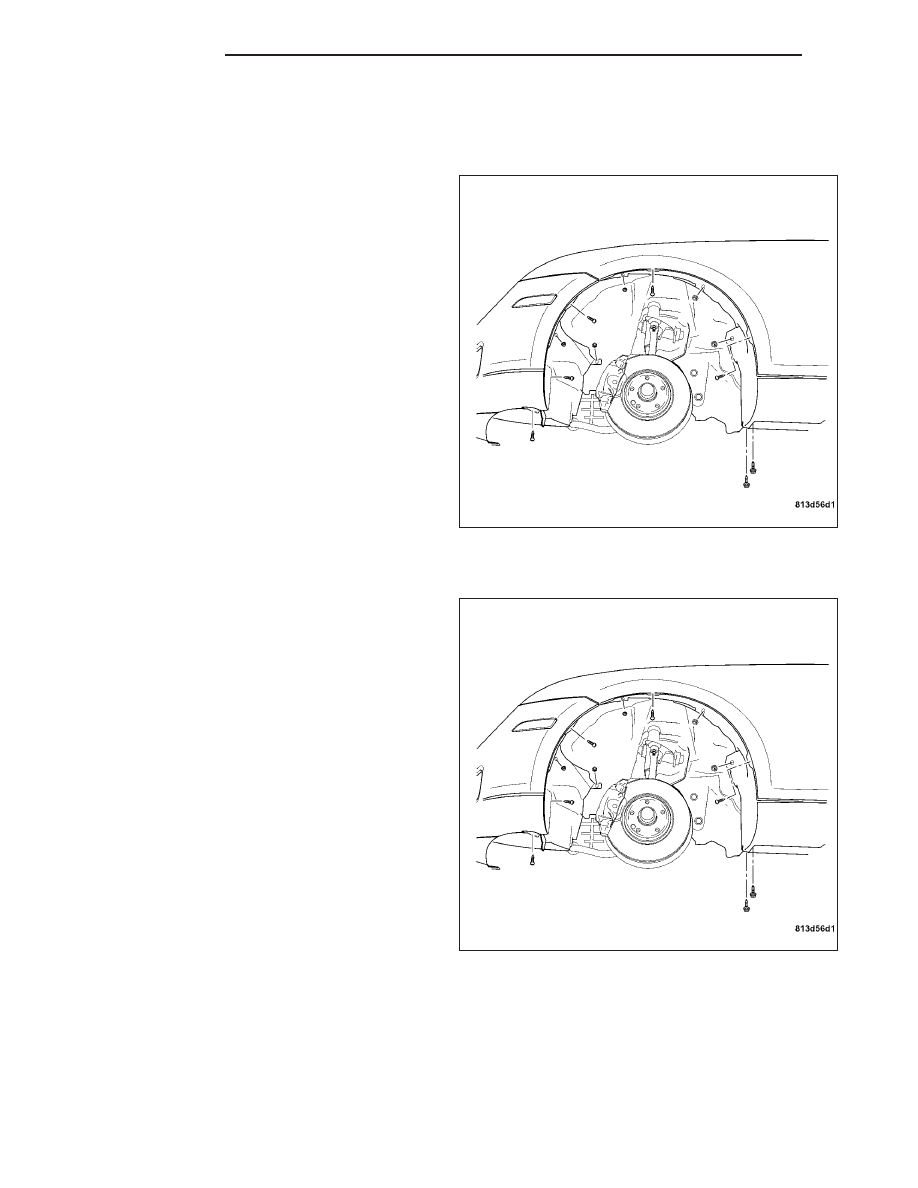

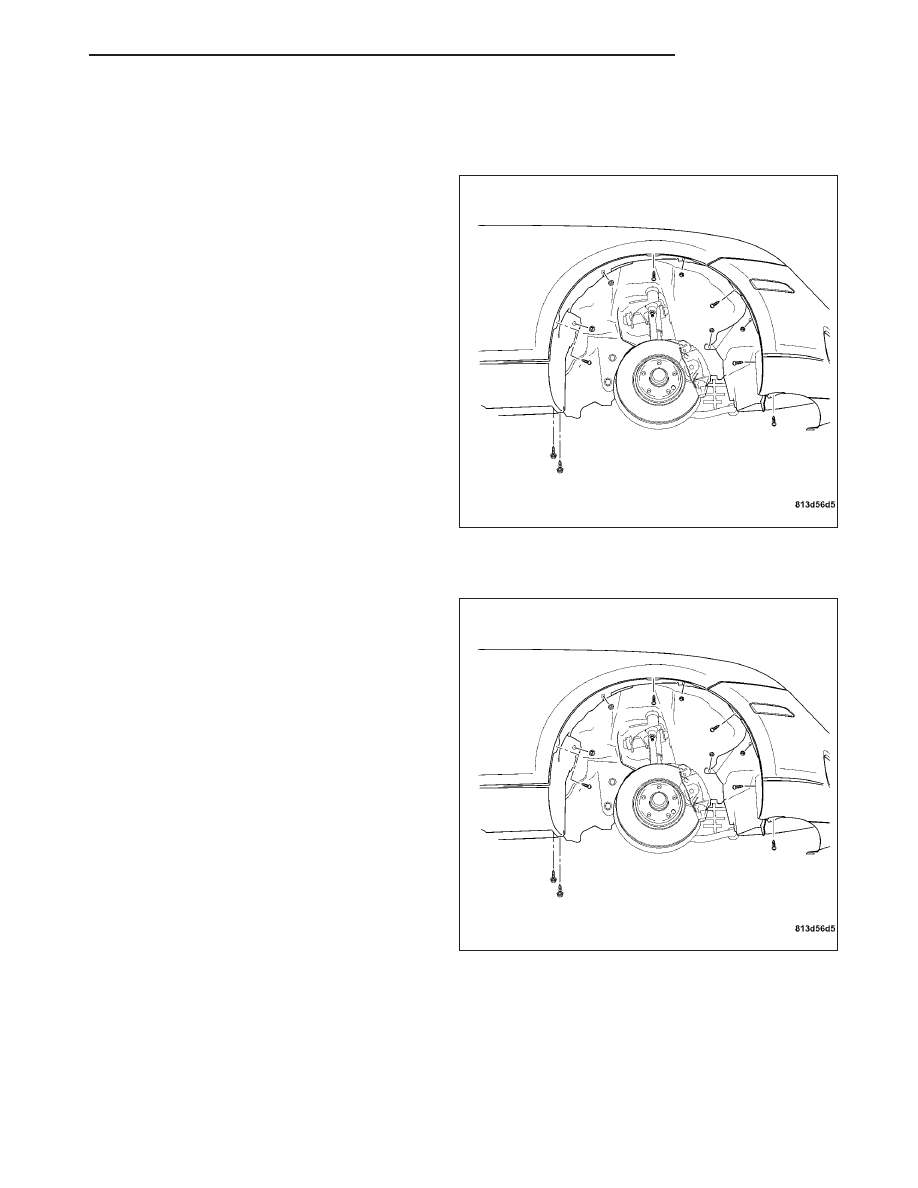

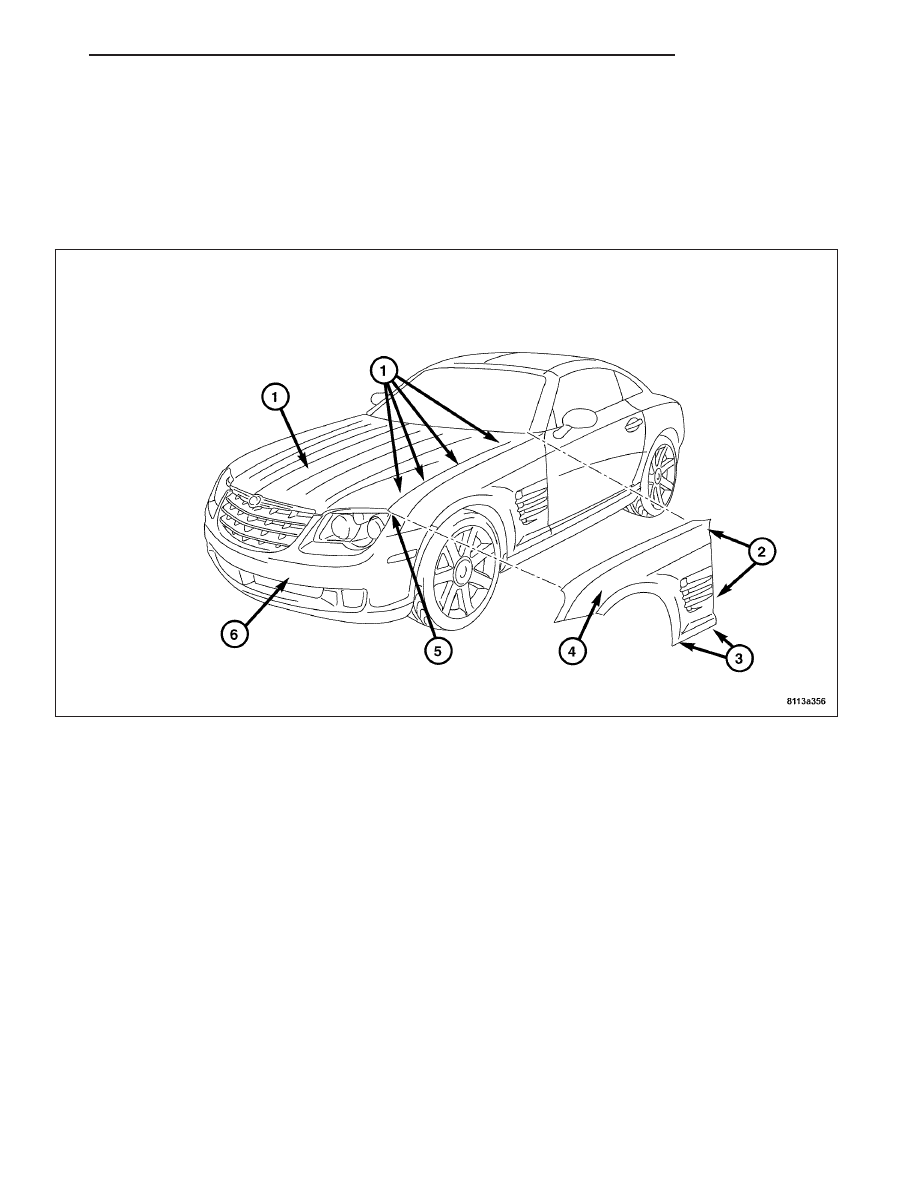

4. Remove the bolts (3) on the lower rear portion of the fender. 5. Remove the screw (5) on the top front of the fender. 6. Remove the four bolts (1) attaching the fender to the inner support. 7. Remove the front fender (4). INSTALLATION 1. Position the front fender (4). 2. Install the four bolts (1) attaching the fender to the inner support. 3. Install the screw (5) on the top front of the fender. 4. Install the bolts (3) on the lower portion of the rear of the fender. 5. Install the bolts (2) on the fender attaching it to the A-pillar. 6. Install the front fascia (6). (Refer to 13 - FRAME & BUMPERS/BUMPERS/FRONT FASCIA - INSTALLATION). 7. Close the hood (7). 8. Align the fender. (Refer to 23 - BODY/BODY STRUCTURE/GAP AND FLUSH - SPECIFICATIONS). ZH EXTERIOR 23 - 303 |
