Chrysler Crossfire. Manual - part 740





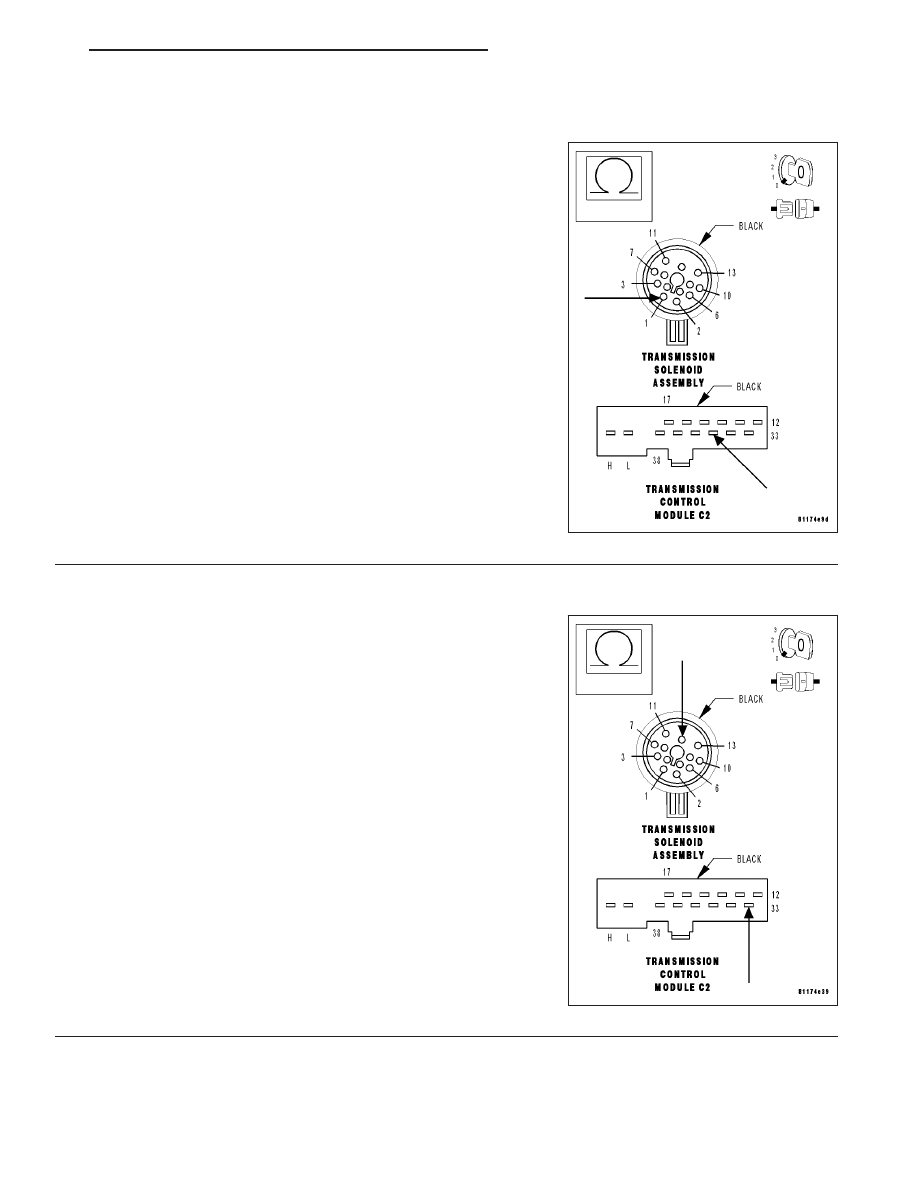

(P0715) N3 INPUT SPEED SENSOR CIRCUIT (CONTINUED)

4.

N3 INPUT SPEED SENSOR SIGNAL CIRCUIT OPEN

With the ignition off.

Measure the resistance of the N3 Input Speed Sensor Signal circuit
from the TCM C2 harness connector to the Transmission Solenoid
Assembly harness connector.

Is the resistance below 5.0 ohms?

Yes

>>

Go To 5

No

>> Repair the N3 Input Speed Sensor Signal circuit for an

open.

Perform NAG1 TRANSMISSION VERIFICATION TEST.

5.

SENSOR GROUND CIRCUIT OPEN

With the ignition off.

Measure the resistance of the Sensor Ground circuit from the TCM C2
harness connector to the Transmission Solenoid Assembly harness
connector.

Is the resistance below 5.0 ohms?

Yes

>>

Go To 6

No

>> Repair the Sensor Ground circuit for an open.

Perform NAG1 TRANSMISSION VERIFICATION TEST.

ZH

NAG1 - ELECTRICAL DIAGNOSTICS

21 - 109

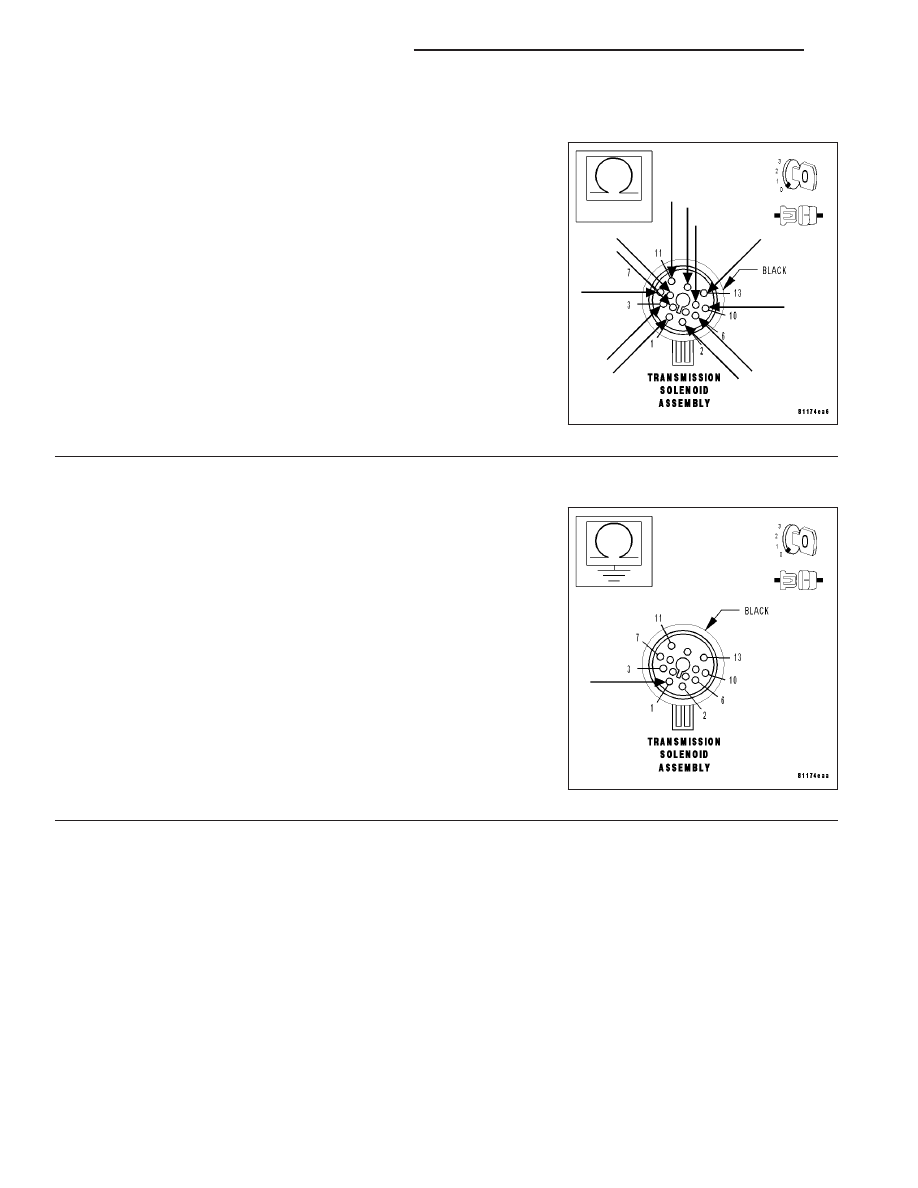

(P0715) N3 INPUT SPEED SENSOR CIRCUIT (CONTINUED)

6.

N3 SPEED SENSOR SIGNAL CIRCUIT SHORT TO OTHER CIRCUITS

With the ignition off.

Measure the resistance from the N3 Speed Sensor Signal circuit to all
other circuits in the Transmission Solenoid Assembly harness connec-
tor.

Is the resistance above 100 kohms for all measurements?

Yes

>> Go To 7

No

>> Repair the N3 Speed Sensor Signal circuit for a short to

other circuit(s).

Perform NAG1 TRANSMISSION VERIFICATION TEST.

7.

N3 INPUT SPEED SENSOR SIGNAL CIRCUIT SHORT TO GROUND

With the ignition off.

Measure the resistance between ground and the N3 Input Speed Sen-
sor Signal circuit.

Is the resistance above 100 kohms?

Yes

>> Go To 8

No

>> Repair the N3 Input Speed Sensor Signal circuit for a

short to ground.

Perform NAG1 TRANSMISSION VERIFICATION TEST.

21 - 110

NAG1 - ELECTRICAL DIAGNOSTICS

ZH

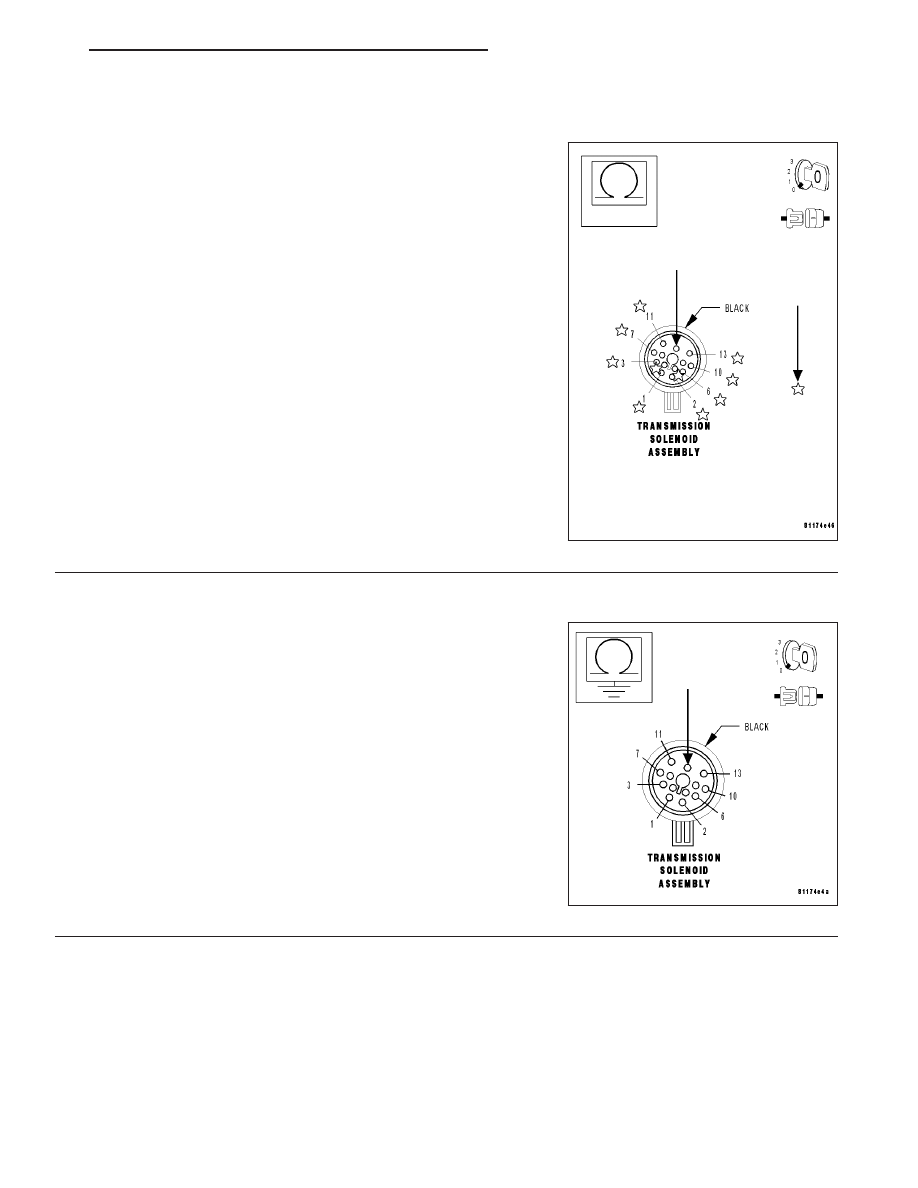

(P0715) N3 INPUT SPEED SENSOR CIRCUIT (CONTINUED)

8.

SENSOR GROUND CIRCUIT SHORT TO OTHER CIRCUITS

With the ignition off.

Measure the resistance from the Sensor Ground circuit to all other cir-
cuits in the Transmission Solenoid harness connector.

Is the resistance above 100 kohms for all measurements?

Yes

>> Go To 9

No

>> Repair the Sensor Ground circuit for a short to other cir-

cuits.

Perform NAG1 TRANSMISSION VERIFICATION TEST.

9.

SENSOR GROUND CIRCUIT SHORT TO GROUND

With the ignition off.

Measure the resistance between ground and the Sensor Ground cir-
cuit.

Is the resistance above 100 kohms?

Yes

>> Go To 10

No

>> Repair the Sensor Ground circuit for a short to ground.

Perform NAG1 TRANSMISSION VERIFICATION TEST.

ZH

NAG1 - ELECTRICAL DIAGNOSTICS

21 - 111

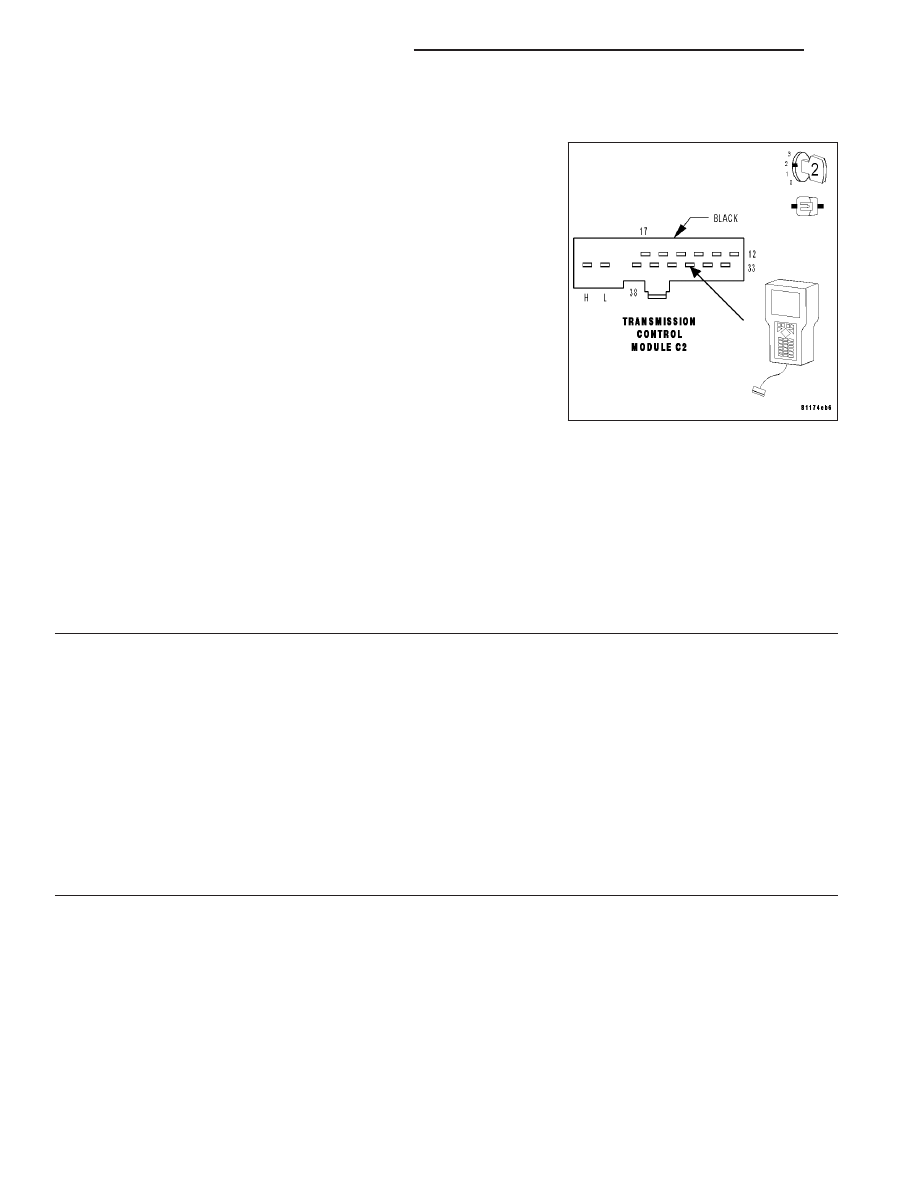

(P0715) N3 INPUT SPEED SENSOR CIRCUIT (CONTINUED)

10.

CHECKING N3 INPUT SPEED SENSOR W/ LAB SCOPE

With the ignition off.

Reconnect the TCM C2 harness connector.

Reconnect the Transmission Solenoid Assembly harness connector.

Turn the ignition on.

With the DRB III

T

/PEP Module being used as a Dual Channel Lab

Scope with Miller special tool #6801, backprobe N3 Input Speed Sen-
sor Signal circuit using Channel 1 at the TCM C2 harness connector.

WARNING: PROPERLY SUPPORT THE VEHICLE.
Raise all drive wheels off the ground.

Start the engine.

WARNING: BE SURE TO KEEP HANDS AND FEET CLEAR OF
ROTATING WHEELS.
Place gear selector in drive and increase vehicle speed to engage 2nd
gear.

Compare the scope pattern on the DRB III

T

with a typical 5 volt

square wave pattern.

Does the scope pattern match a typical 5 volt square wave signal scope pattern?

Yes

>> Replace the Transmission Control Module. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MOD-

ULES/TRANSMISSION CONTROL MODULE - REMOVAL).

Perform NAG1 TRANSMISSION VERIFICATION TEST.

No

>> Replace the N3 Input Speed Sensor. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC -

NAG1/ELECTROHYDRAULIC UNIT - REMOVAL).

Perform NAG1 TRANSMISSION VERIFICATION TEST.

11.

INTERMITTENT WIRING AND CONNECTORS

The condition that caused this DTC to set is currently not present. Inspect the related wiring harness for a possible
intermittent condition.

Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.

Wiggle the wires while checking for shorts and open circuits.

Note: Check for any Technical Service Bulletins that may apply.

Were any problems found?

Yes

>> Repair as necessary.

Perform NAG1 TRANSMISSION VERIFICATION TEST.

No

>> Test Complete.

21 - 112

NAG1 - ELECTRICAL DIAGNOSTICS

ZH
