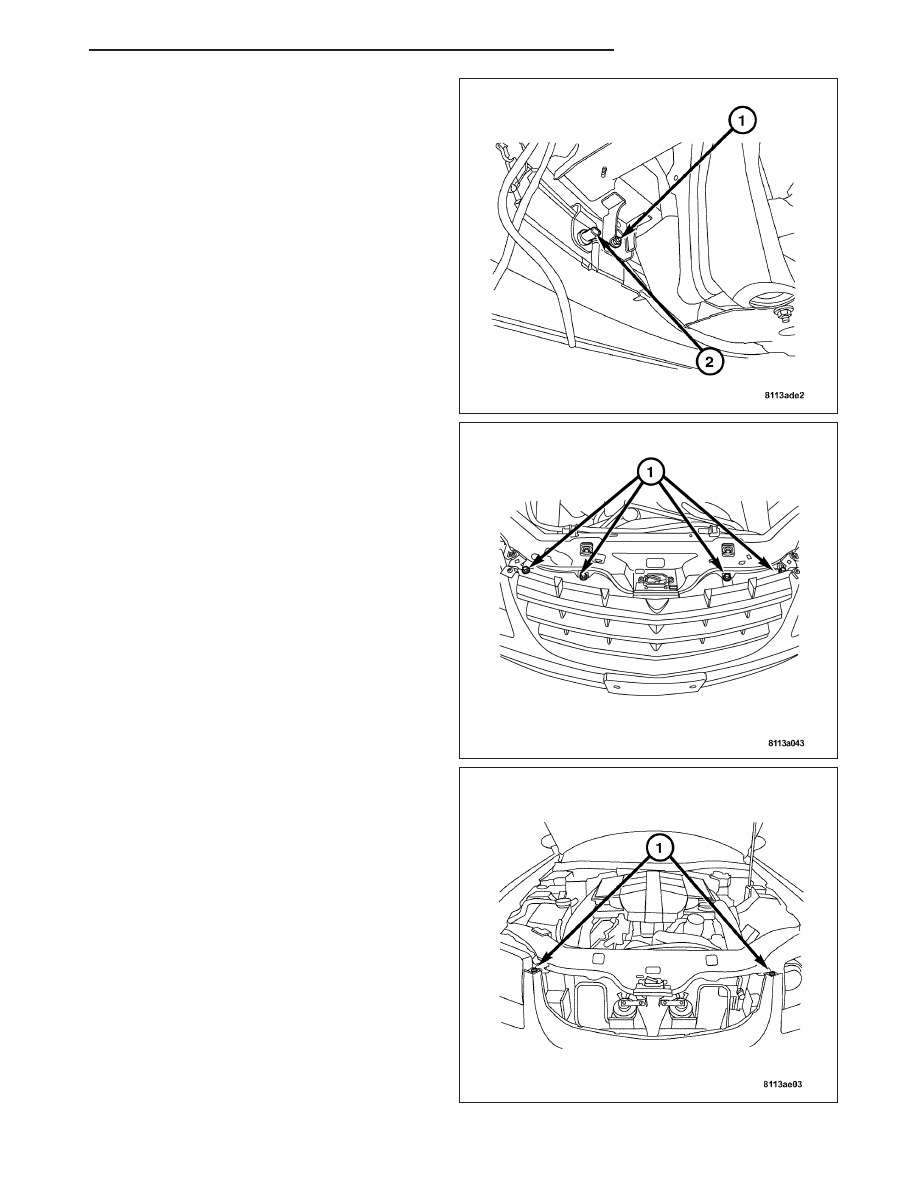

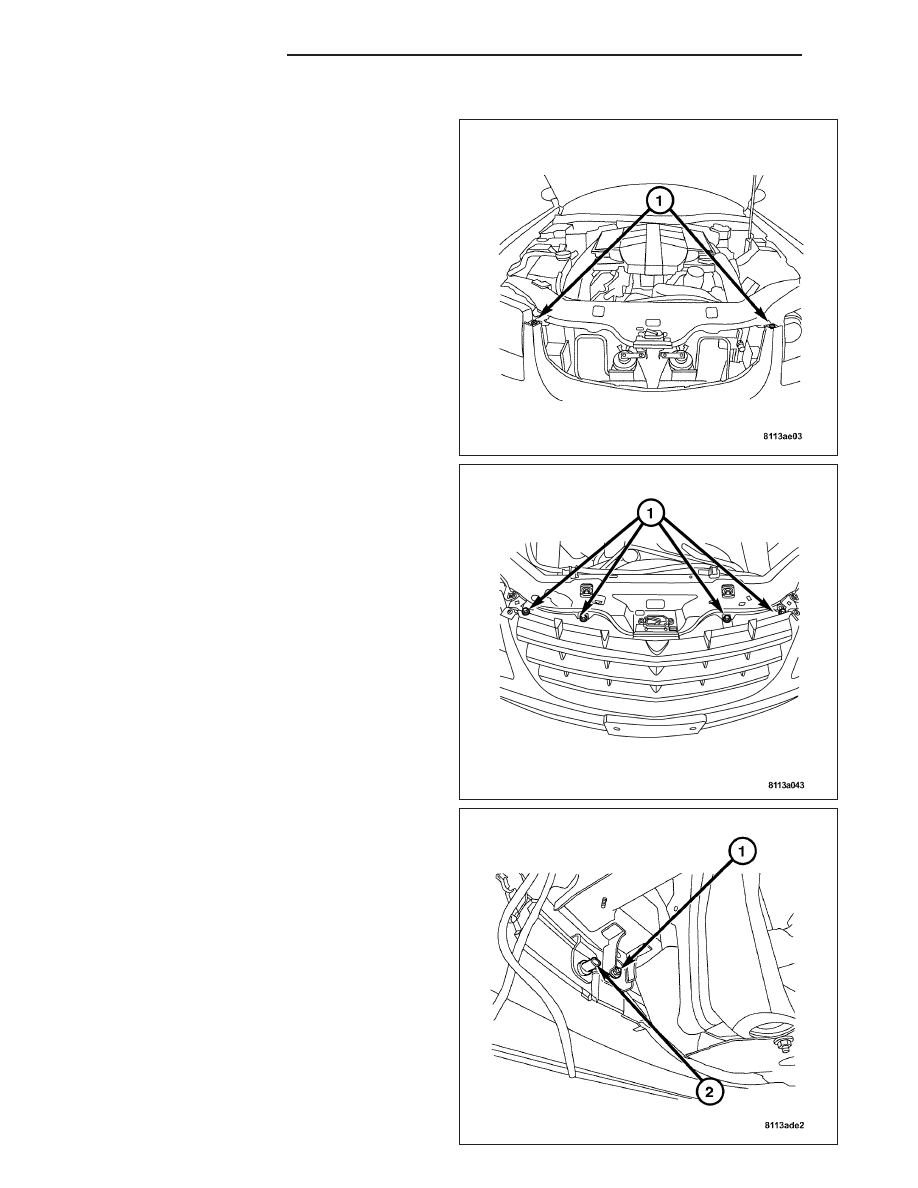

8. Remove the lower fascia retaining nuts (1). 9. Remove the left and right front fender to fascia retaining nuts and bolts. (Refer to 23 - BODY/EX- 10. Lower the vehicle. 11. Remove the front grille assembly retaining bolts (1). 12. Remove the upper fascia retaining bolts (1). 13. Remove the fascia from the vehicle. ZH FRAME & BUMPERS 13 - 3 |
