OIL SPRAY NOZZLES

REMOVAL

1. Remove the upper oil pan. (Refer to 9 - ENGINE/

LUBRICATION/OIL PAN - REMOVAL).

2. If necessary, rotate the crankshaft slightly at the

vibration damper.

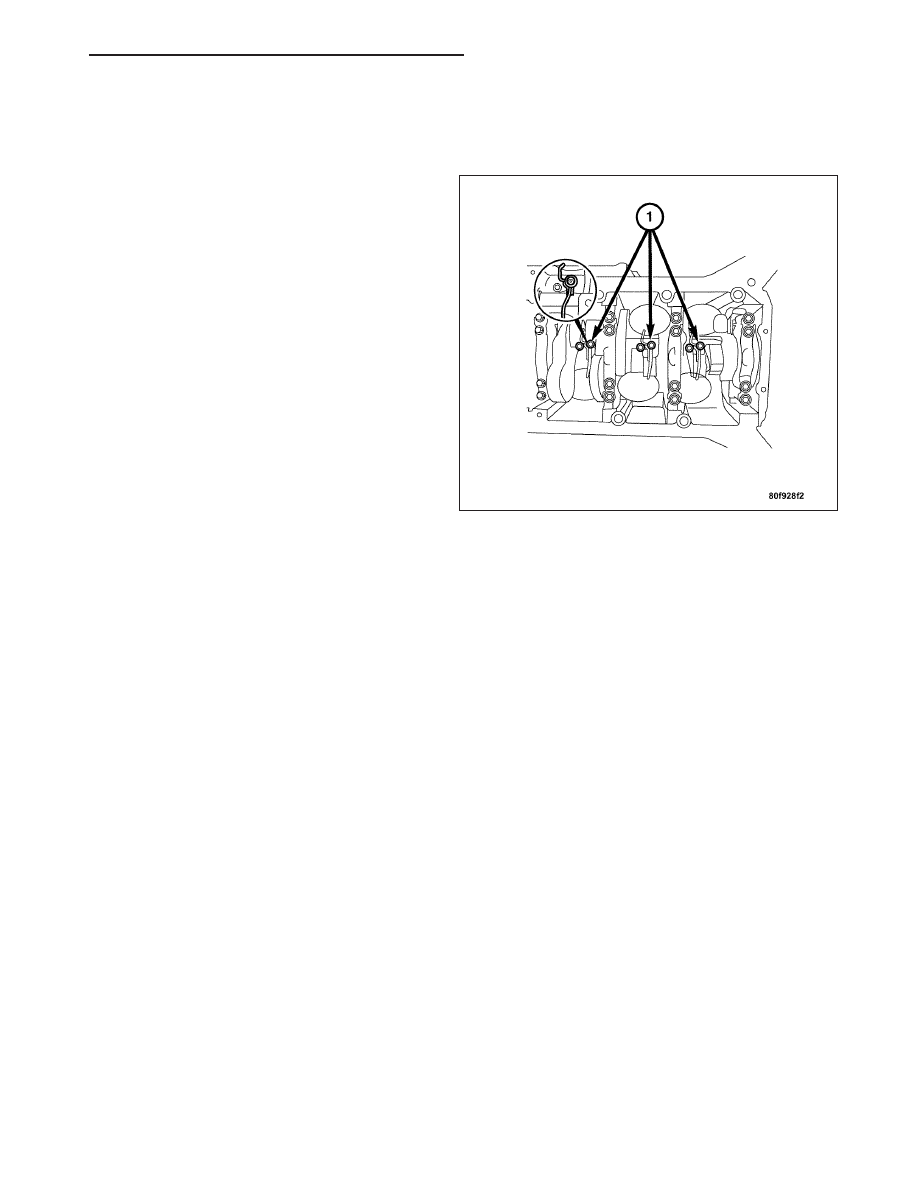

3. Remove the oil spray nozzle bolts (1) and the oil

spray nozzles.

Note: Do not use hard objects to clean the oil
spray nozzles. Replace the oil spray nozzles if
they are blocked.

4. Use compressed air only in the oil flow direction to

clean the oil spray nozzles.

INSTALLATION

Note: Ensure the jet pipes of the oil spray nozzles are not damaged or bent during installation.

1. Position the oil spray nozzles and bolts in the engine block. Tighten the bolts to 15 N·m (11 ft. lbs.).

2. Install the upper oil pan. (Refer to 9 - ENGINE/LUBRICATION/OIL PAN - INSTALLATION).

OIL PUMP

DESCRIPTION

The gear-type oil pump is located below the crankshaft and is driven from the crankshaft by a separate roller chain.

REMOVAL

1. Remove the lower oil pan. (Refer to 9 - ENGINE/LUBRICATION/OIL PAN - REMOVAL).

ZH

ENGINE - 3.2L SERVICE INFORMATION

9 - 805

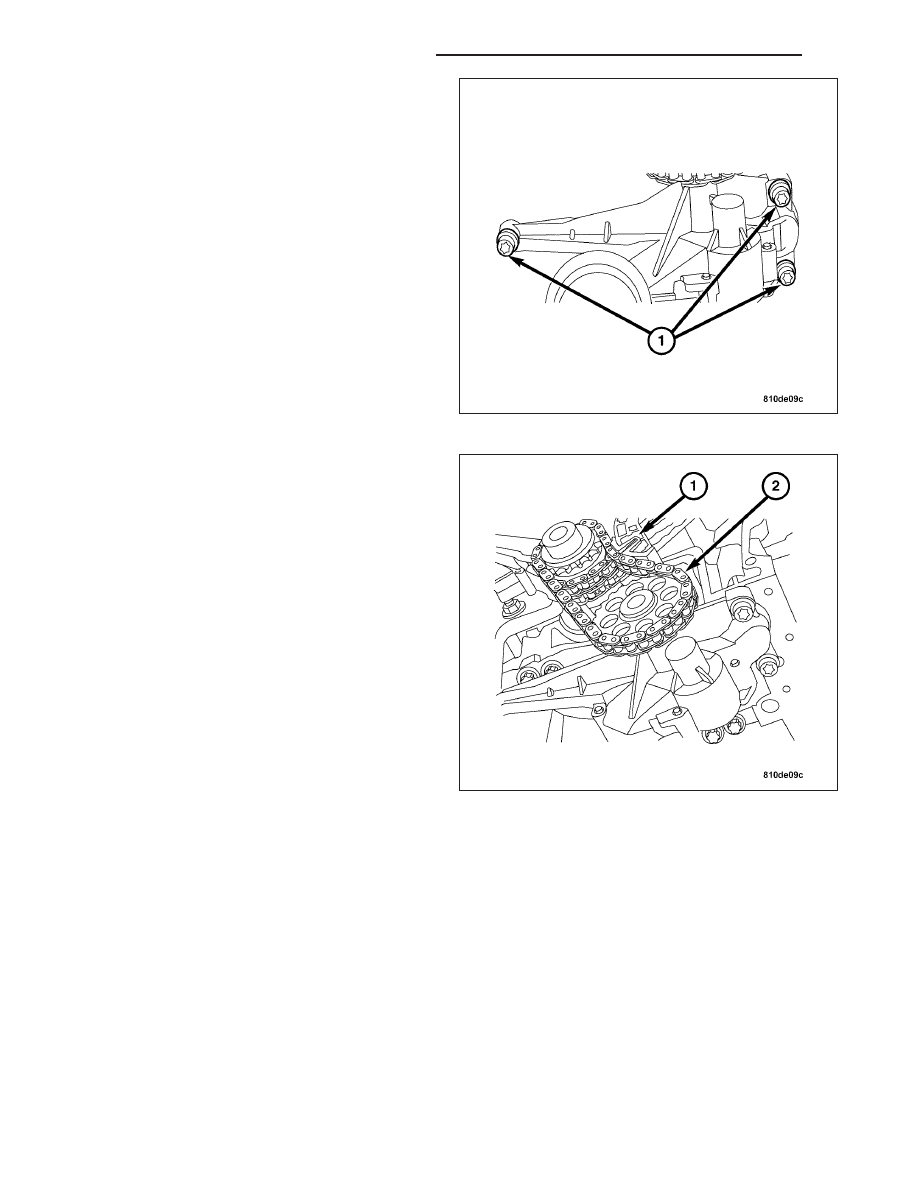

2. Remove the oil pump bolts (1).

3. Release the oil pump chain tensioner (1) and

remove the oil pump from the oil pump drive chain
(2).

CLEANING

1. Clean all of the parts thoroughly in a suitable solvent.

9 - 806

ENGINE - 3.2L SERVICE INFORMATION

ZH

INSTALLATION

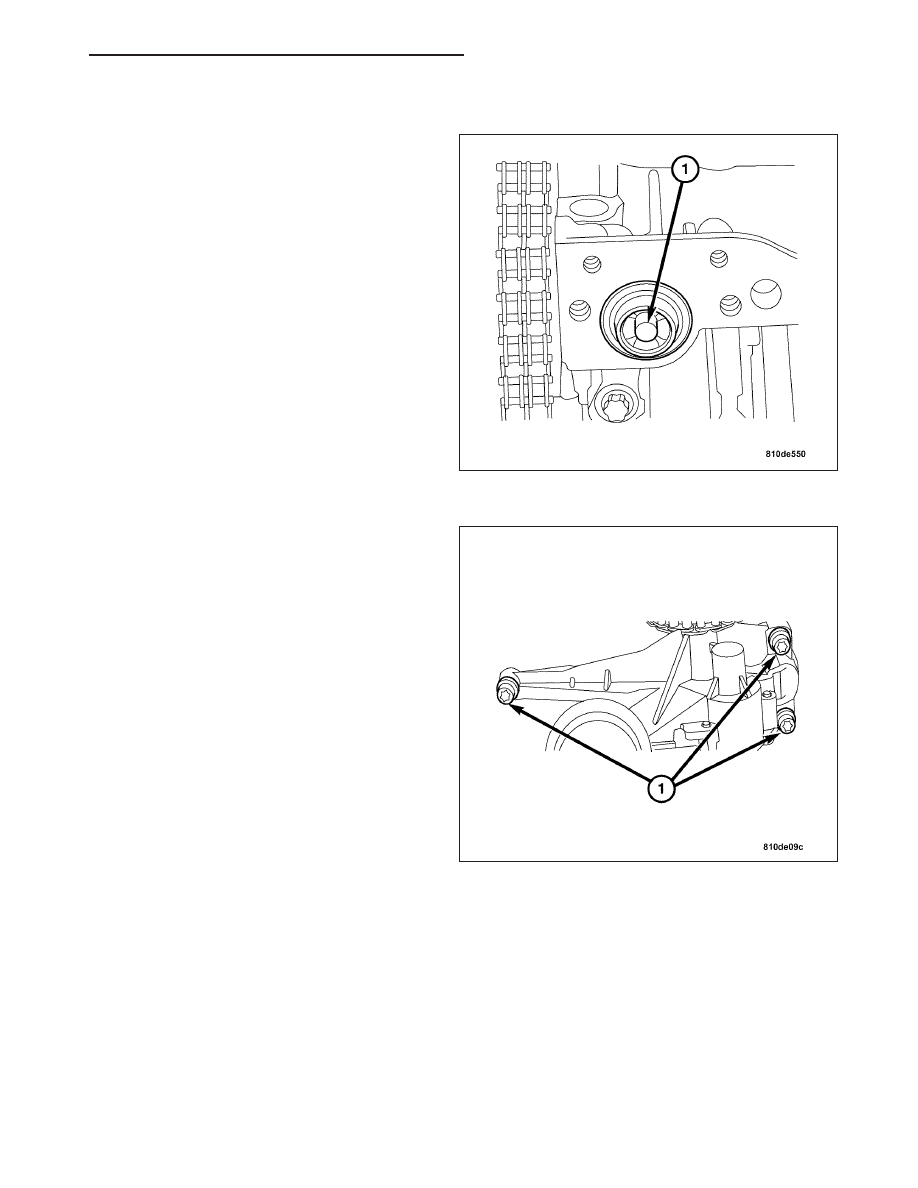

1. Inspect the oil pump check valve. Remove any

debris or sealant. Check the operation of the check
valve by pressing and releasing the plunger (1).

2. Fill the oil pump with engine oil.

3. Check the oil pump drive chain for wear. Replace

any worn or damaged parts.

4. Position the oil pump driven sprocket in the drive

chain. Position and install the oil pump and bolts.
Tighten the bolts to 20 N·m (15 ft. lbs.).

5. Install the lower oil pan. (Refer to 9 - ENGINE/LU-

BRICATION/OIL PAN - INSTALLATION).

6. Refill the engine with motor oil to specified level.

7. Start the engine and check for leaks.

ZH

ENGINE - 3.2L SERVICE INFORMATION

9 - 807

OIL PUMP DRIVE CHAIN

REMOVAL

1. Remove the timing chain cover. (Refer to 9 -

ENGINE/VALVE TIMING/GEAR HOUSING COVER
- REMOVAL).

2. Remove the oil pump. (Refer to 9 - ENGINE/LU-

BRICATION/OIL PUMP - REMOVAL).

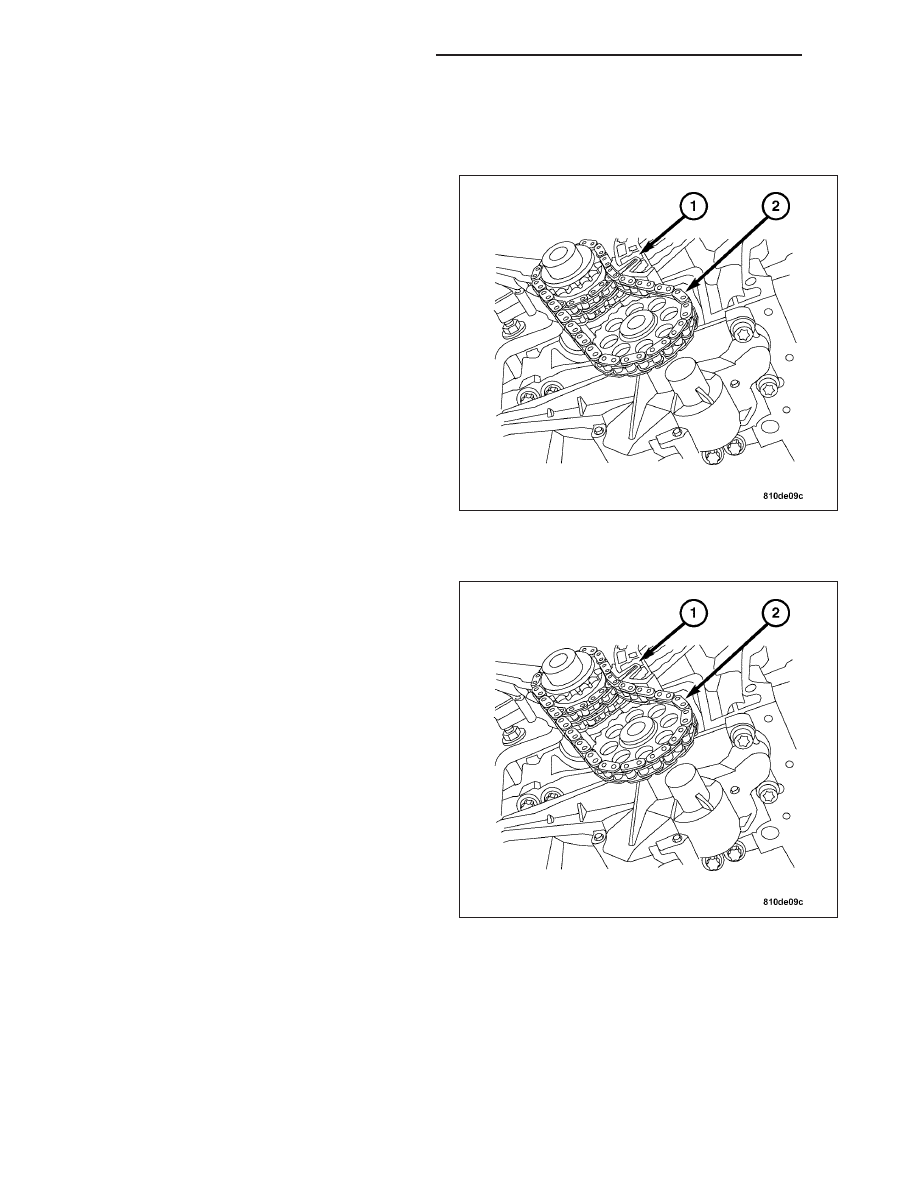

3. Remove the oil pump drive chain (2) and disgard.

Inspect the oil pump drive chain tensioner spring
for wear and replace as necessary.

INSTALLATION

1. Check the oil pump drive chain guide for wear and

replace as necessary.

2. Install the new oil pump drive chain and the oil

pump.(Refer to 9 - ENGINE/LUBRICATION/OIL
PUMP - INSTALLATION).

3. Install the timing chain cover. (Refer to 9 -

ENGINE/VALVE TIMING/GEAR HOUSING COVER
- INSTALLATION).

OIL PRESSURE RELIEF VALVE

DESCRIPTION

The oil pressure relief valve cannot be adjusted or repaired. If faulty, worn, or damaged, the entire oil pump assem-
bly must be replaced.

9 - 808

ENGINE - 3.2L SERVICE INFORMATION

ZH
