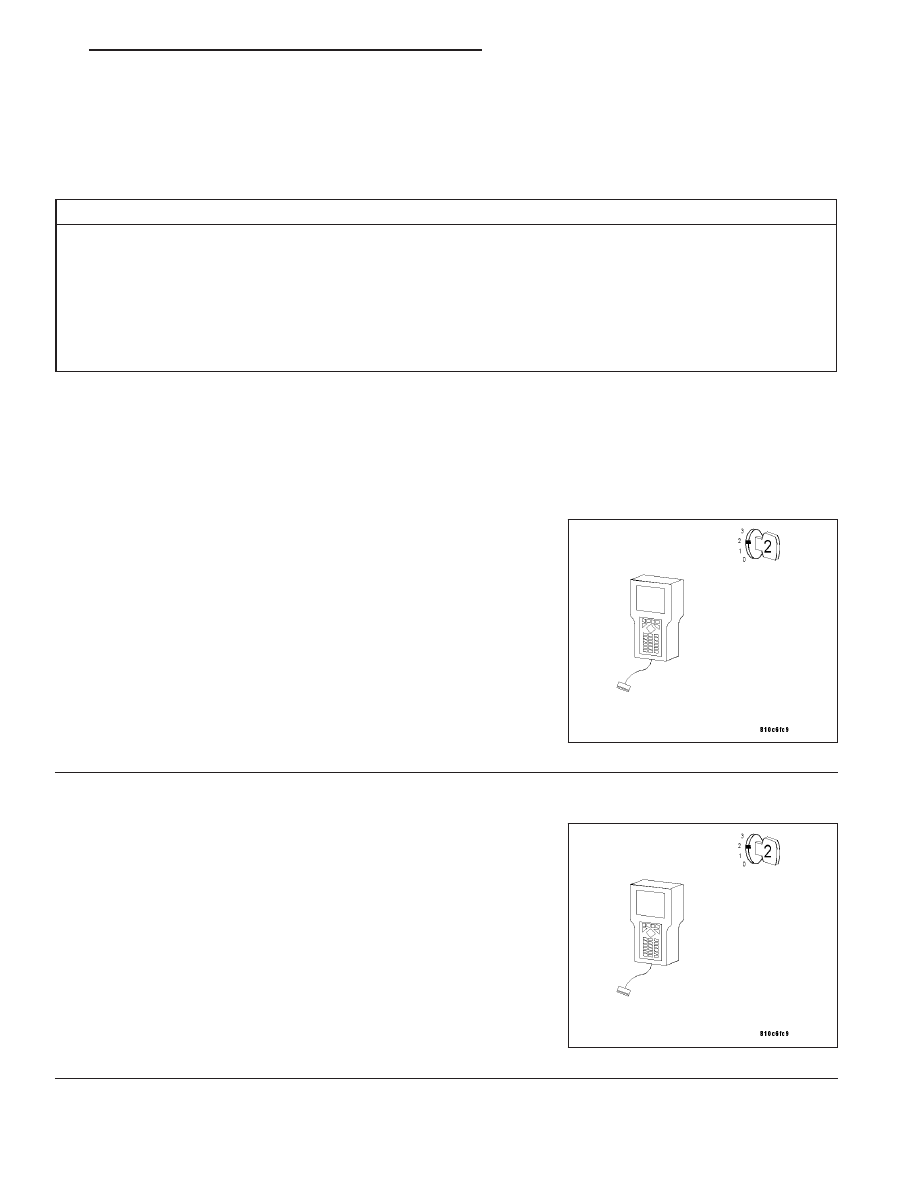

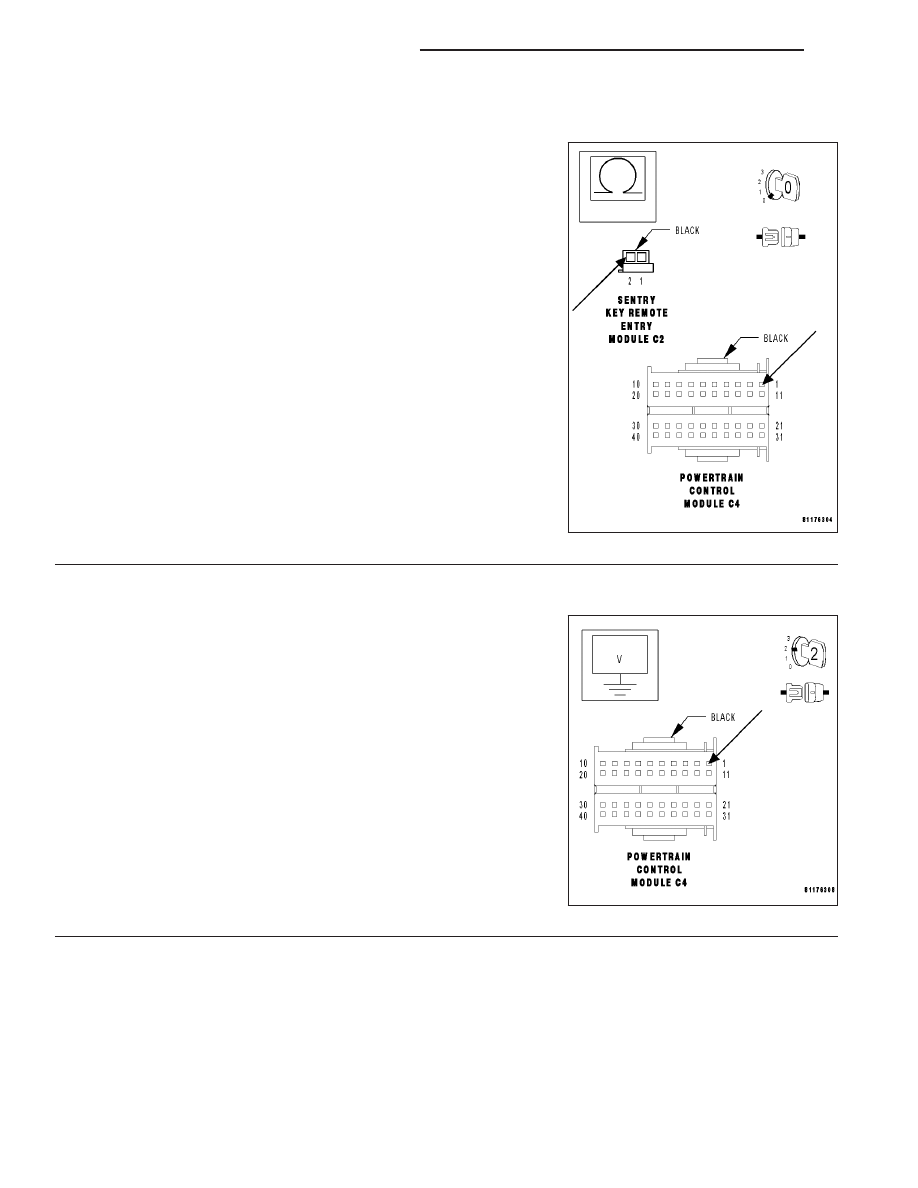

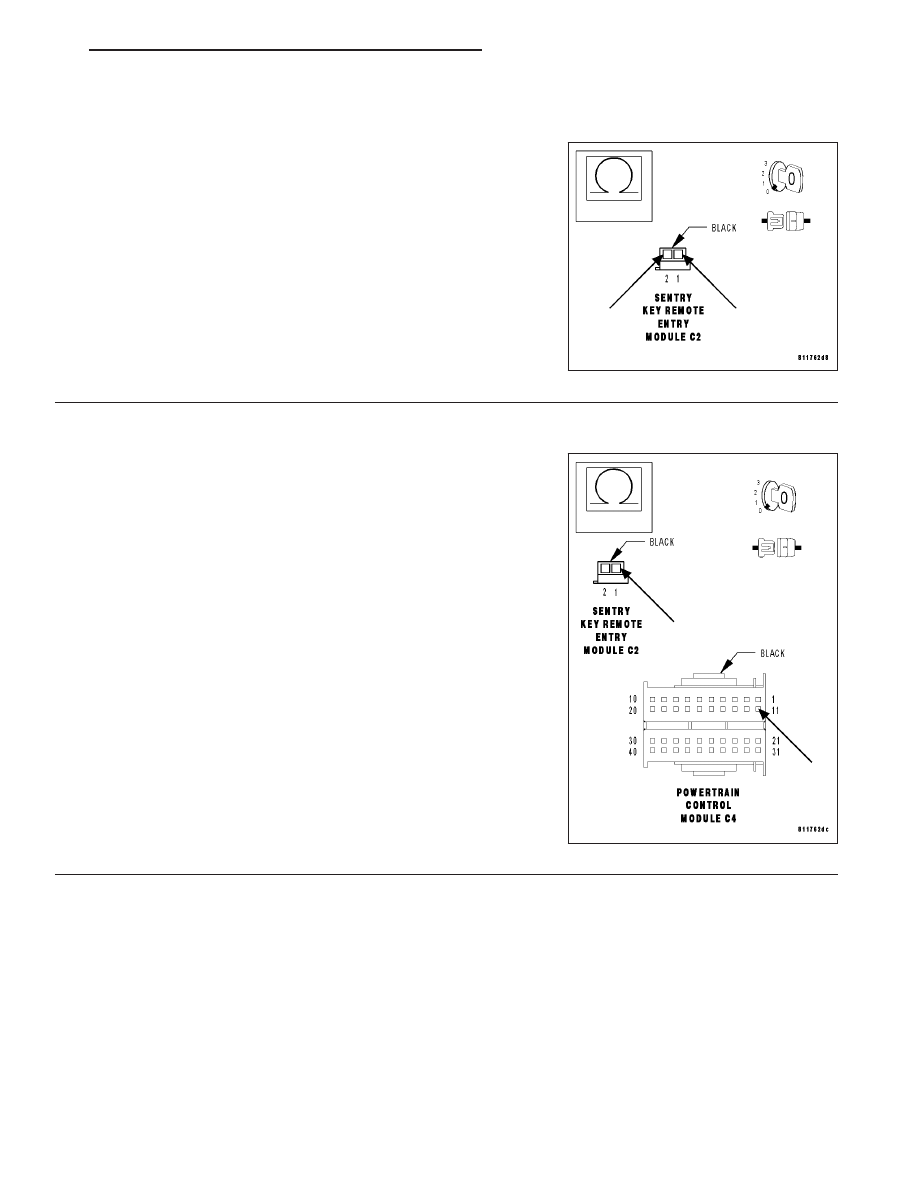

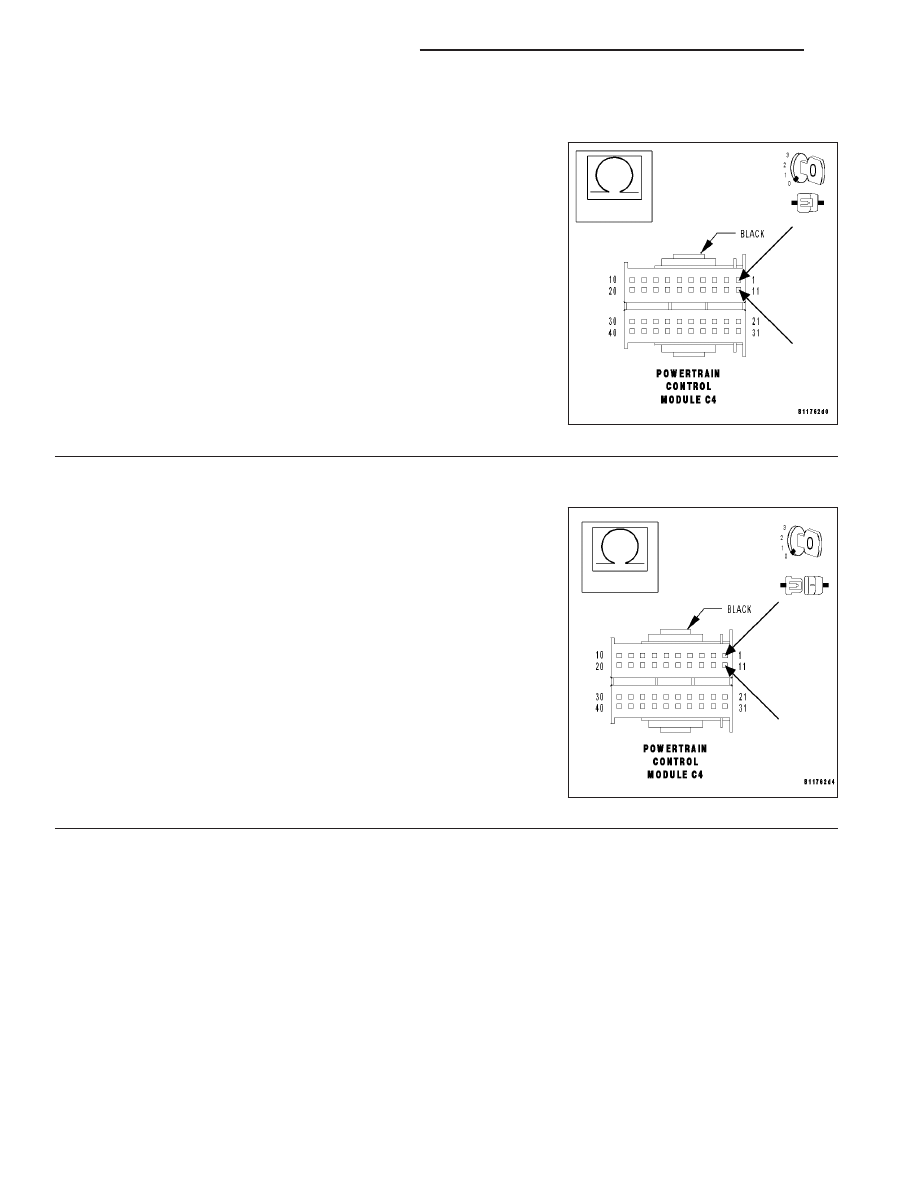

(P0600) NO CLUSTER BUS MESSAGE (CONTINUED) When Monitored and Set Condition • When Monitored: With the ignition on. • Set Condition: This DTC is set when a CAN ID is not received in the required time from the Instrument Cluster POSSIBLE CAUSES CAN C BUS (+)/(-) CIRCUIT OPEN CAN C BUS (+)/(-) CIRCUIT SHORT TO GROUND CAN C BUS (+)/(-) CIRCUIT SHORT TO VOLTAGE INSTRUMENT CLUSTER SENTRY KEY REMOTE ENTRY MODULE POWERTRAIN CONTROL MODULE For a complete Electronic Control Module Circuit Diagram, (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL Diagnostic Test 1. CHECK TO SEE IF INSTRUMENT CLUSTER DTCS ARE PRESENT Turn ignition on. With the DRB III T , read Instrument Cluster DTCs. Are any performance or BUS related DTCs present? Yes >> Repair all Instrument Cluster DTCs before proceeding. Perform POWERTRAIN VERIFICATION TEST - VER 2. No >> Go To 2 2. VERIFY DTCS With the ignition on. With the DRB III T , erase PCM DTCs. Turn the ignition off, then back on. Monitor the DRB III T for this DTC. Did the DTC, (P0600) NO CLUSTER BUS MESSAGE, set again? Yes >> Go To 3 No >> Go To 12 ZH ENGINE - ELECTRICAL DIAGNOSTICS 9 - 585 |
