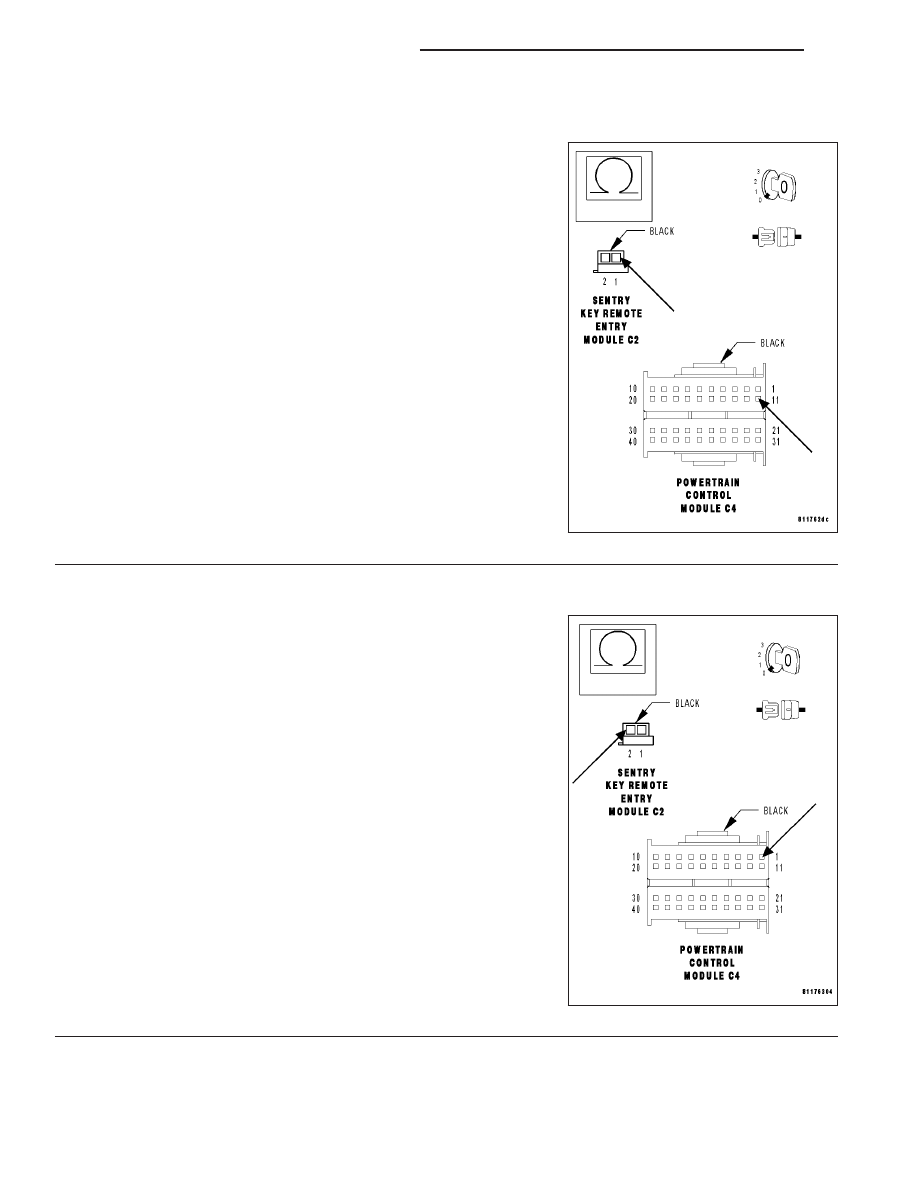

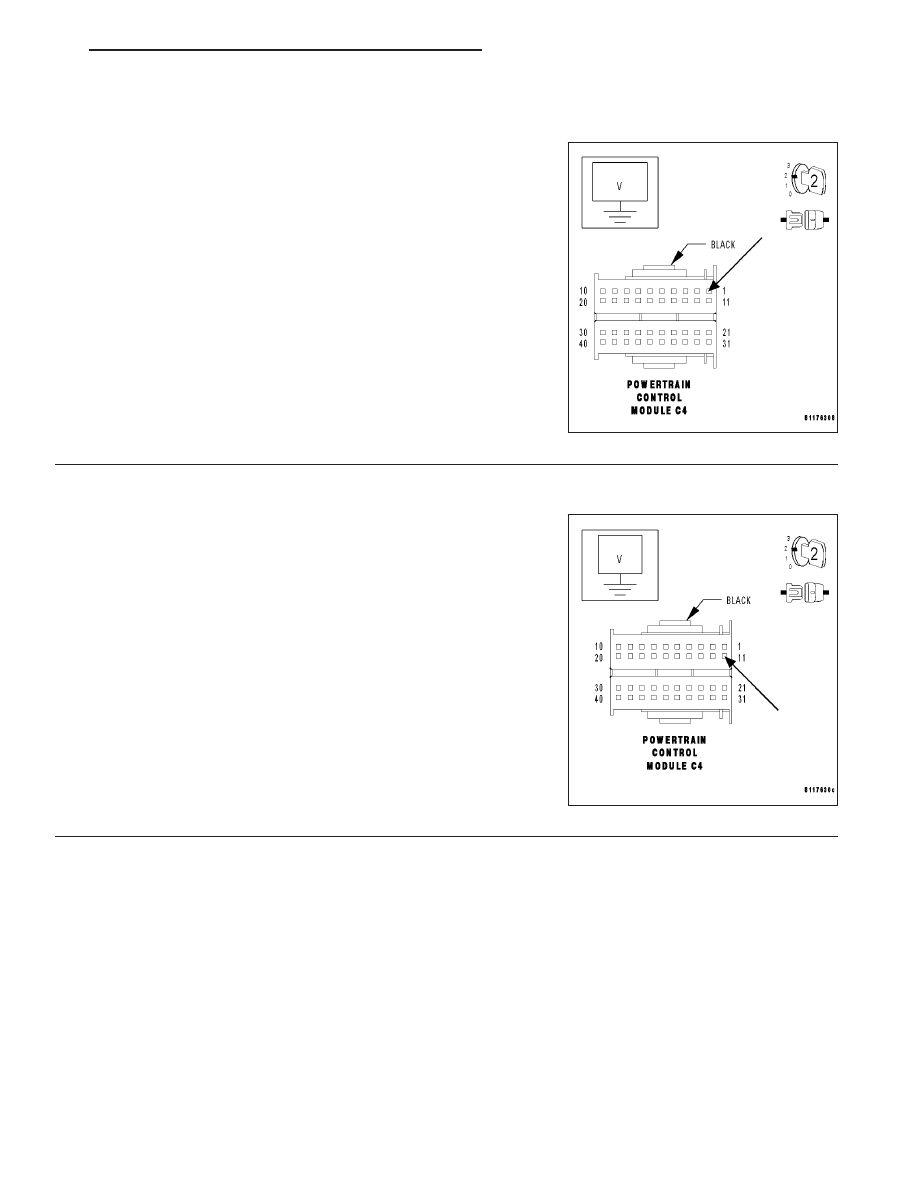

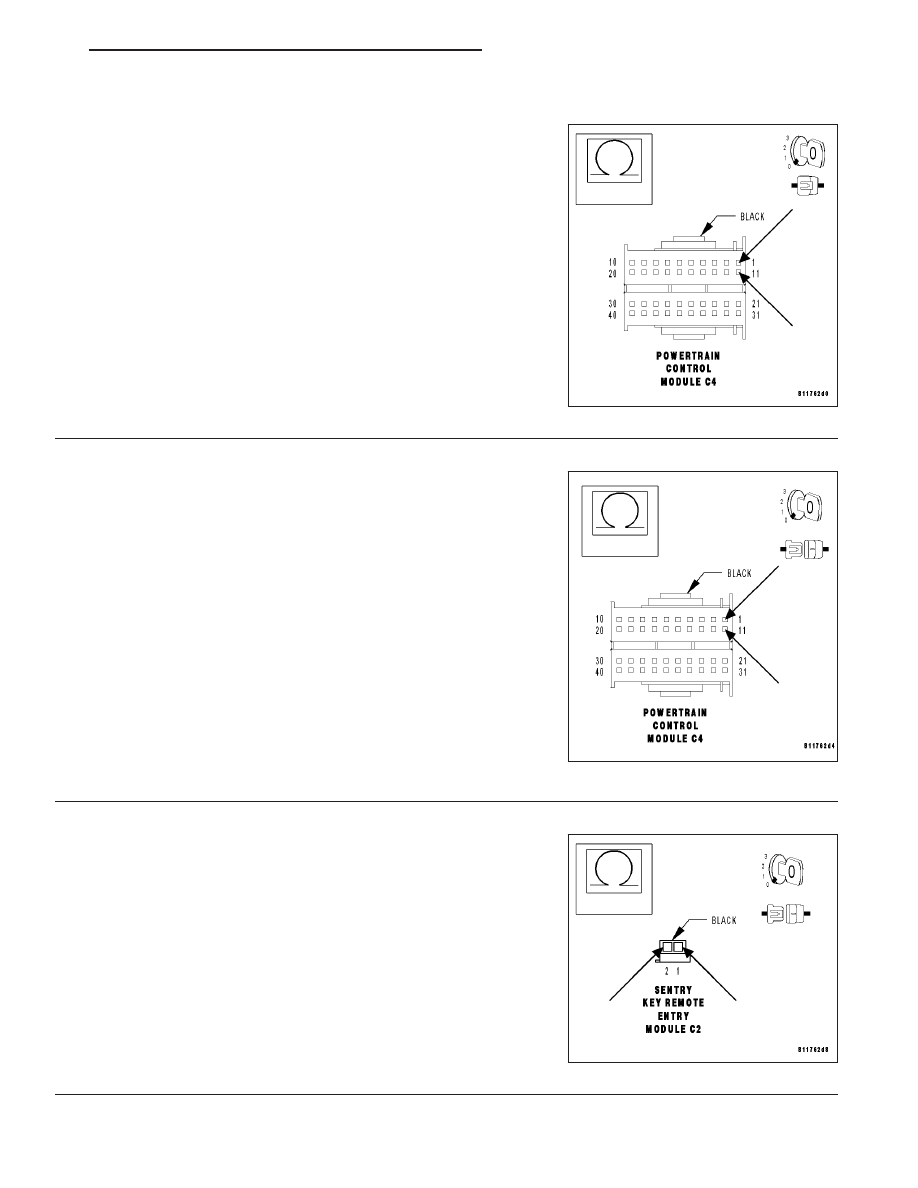

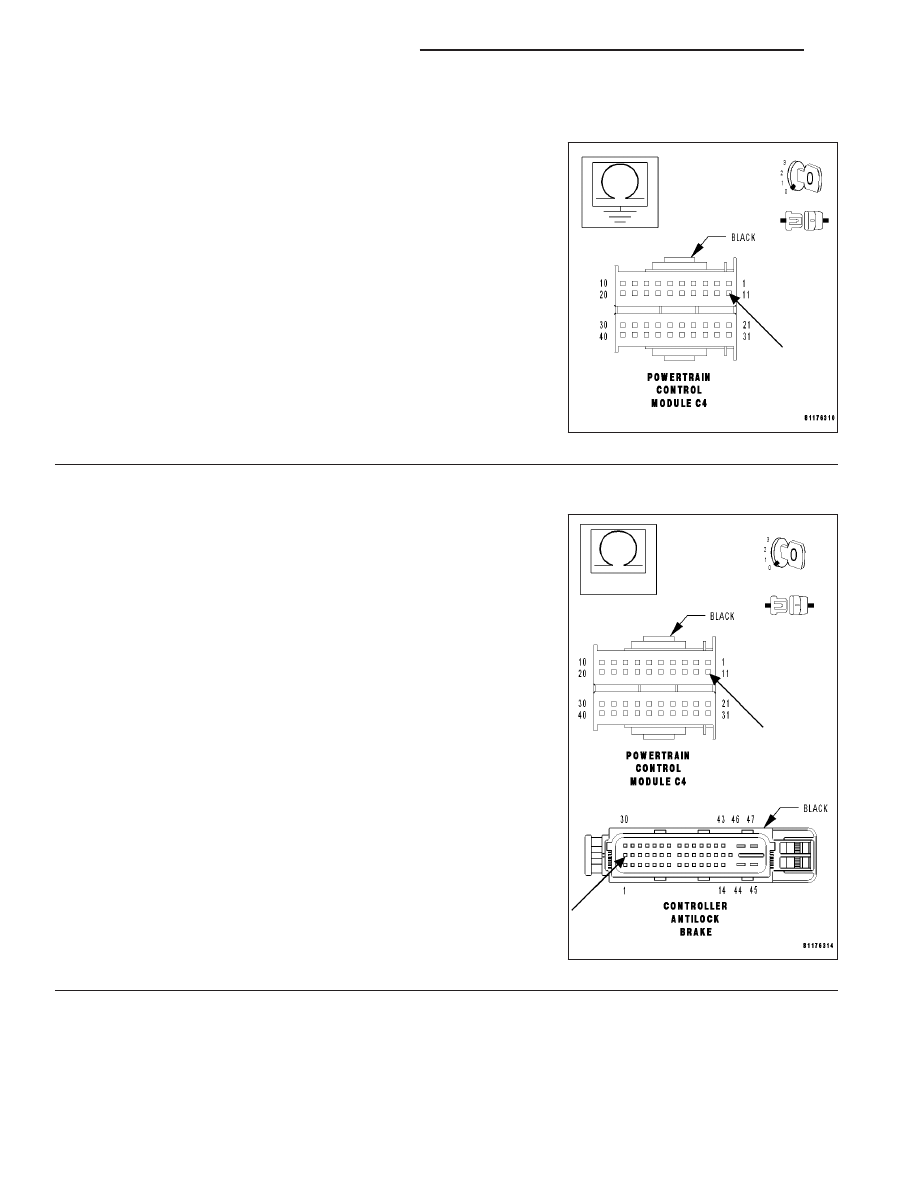

(P0600) NO CAN MESSAGE FROM CAB MODULE (CONTINUED) 3. PCM AND SKREEM CAN C BUS TERMINATION Turn the ignition off. Measure the resistance of the PCM CAN C BUS termination by back- Is the resistance between 50 and 70 ohms? Yes >> Go To 11 No >> Go To 4 4. PCM CAN C BUS TERMINATION With the ignition off. Disconnect the PCM C4 harness connector. Note: Check connectors — Clean/repair as necessary. Is the SKREEM CAN C BUS termination resistance between 110 Yes >> Replace and program the Powertrain Control Module. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL CONTROL MODULE - REMOVAL). Perform POWERTRAIN VERIFICATION TEST - VER 2. No >> Go To 5 5. SKREEM TERMINATION With the ignition off. Measure the resistance of the SKREEM CAN C BUS termination by Is the resistance between 110 and 130 ohms? Yes >> Go To 6 No >> Replace the Sentry Key Remote Entry Module. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES/EN- Perform POWERTRAIN VERIFICATION TEST - VER 2. ZH ENGINE - ELECTRICAL DIAGNOSTICS 9 - 565 |
