*WIPERS LOW SPEED INOPERATIVE (CONTINUED)

POSSIBLE CAUSES

MULTI-FUNCTION SWITCH

BODY CONTROL MODULE

WIPER MOTOR

For a complete Wipers/Washers Circuit Diagram, (Refer to 8 - ELECTRICAL/WIPERS/WASHERS - SCHEMATICS
AND DIAGRAMS).

Diagnostic Test

1.

TEST THE WIPER MOTOR

Note: If any BCM DTCs are set, diagnose them first before con-
tinuing.
Turn the ignition off.

Disconnect the Body Control Module (BCM) C2 harness connector.

Note: Check connectors - Clean/repair as necessary.

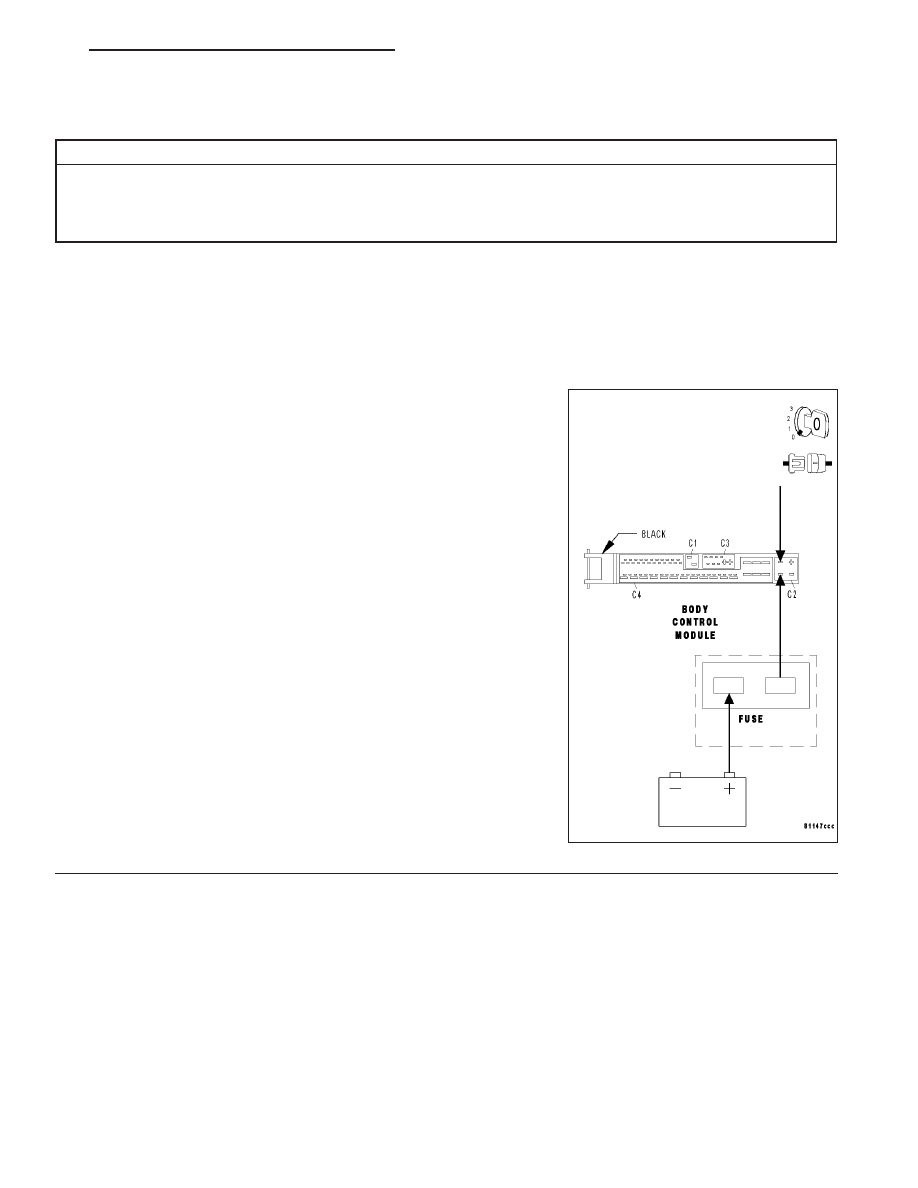

Connect a jumper wire between cavity 2 of the BCM C2 harness con-
nector and B(+).

Connect a jumper wire between cavity 41 of the BCM C2 harness con-
nector and ground.

With the jumper wires connected, does the Wiper Motor move?

Yes

>> Go to 2

No

>> Replace the Wiper Motor. (Refer to 8 - ELECTRICAL/WIP-

ERS/WASHERS/FRONT WIPER MOTOR - REMOVAL).

Perform BODY VERIFICATION TEST.

ZH

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

8R - 21

*WIPERS LOW SPEED INOPERATIVE (CONTINUED)

2.

MEASURE WIPER SWITCH MUX CIRCUIT VOLTAGE

Disconnect the BCM harness connector.

Turn the ignition on.

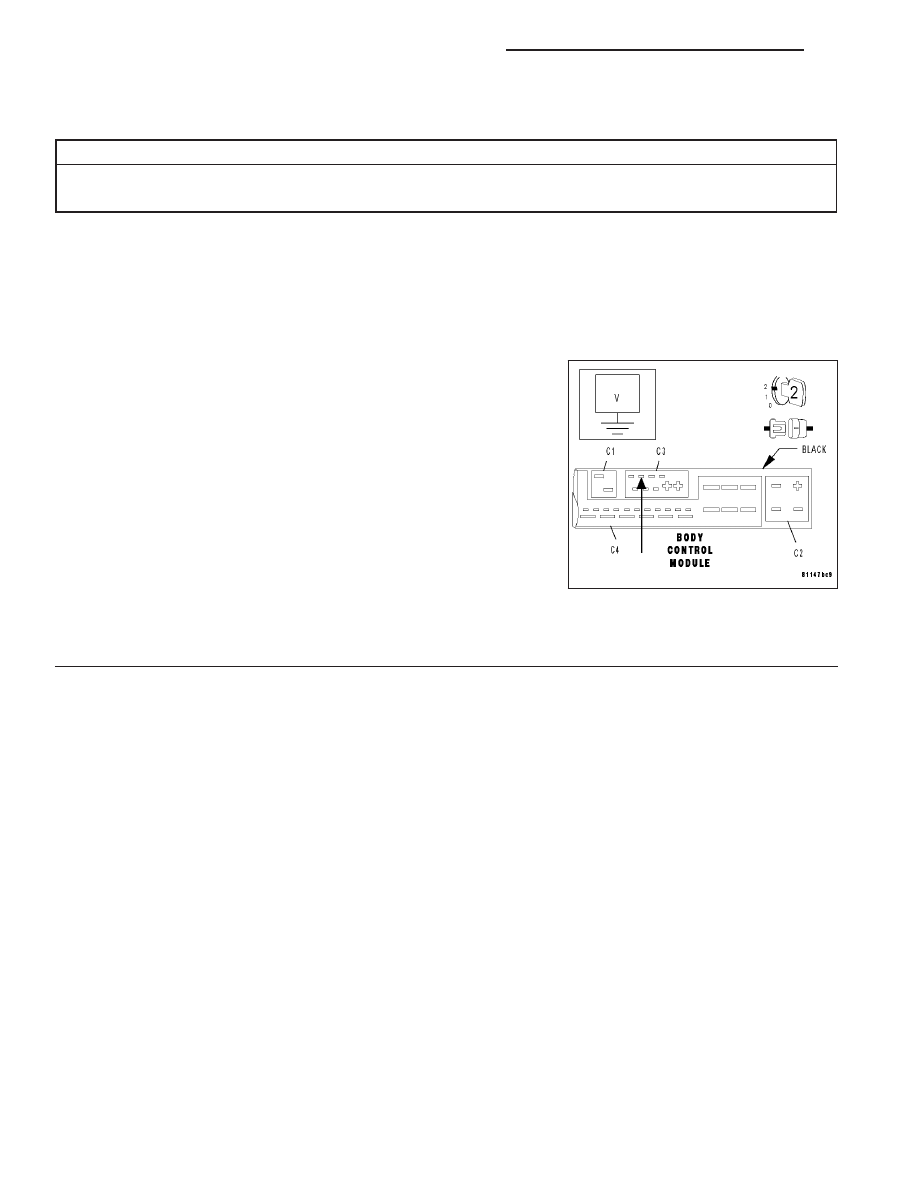

Measure the BCM C3 harness connector cavity 65 for voltage with the
Wiper Switch in the Low position.

Is the voltage approximately 12 volts?

Yes

>> Replace the Body Control Module. (Refer to 8 - ELECTRI-

CAL/ELECTRONIC CONTROL MODULES/BODY CON-
TROL/CENTRAL TIMER MODUL - REMOVAL).

Perform BODY VERIFICATION TEST.

No

>> Replace the Multi-Function Switch. (Refer to 8 - ELECTRI-

CAL/LAMPS/LIGHTING - EXTERIOR/MULTI-FUNCTION
SWITCH - REMOVAL).

Perform BODY VERIFICATION TEST.

8R - 22

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

ZH

*WIPERS INTERMITTENT SPEED INOPERATIVE

ZH

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

8R - 23

*WIPERS INTERMITTENT SPEED INOPERATIVE (CONTINUED)

POSSIBLE CAUSES

MULTI-FUNCTION SWITCH

BODY CONTROL MODULE

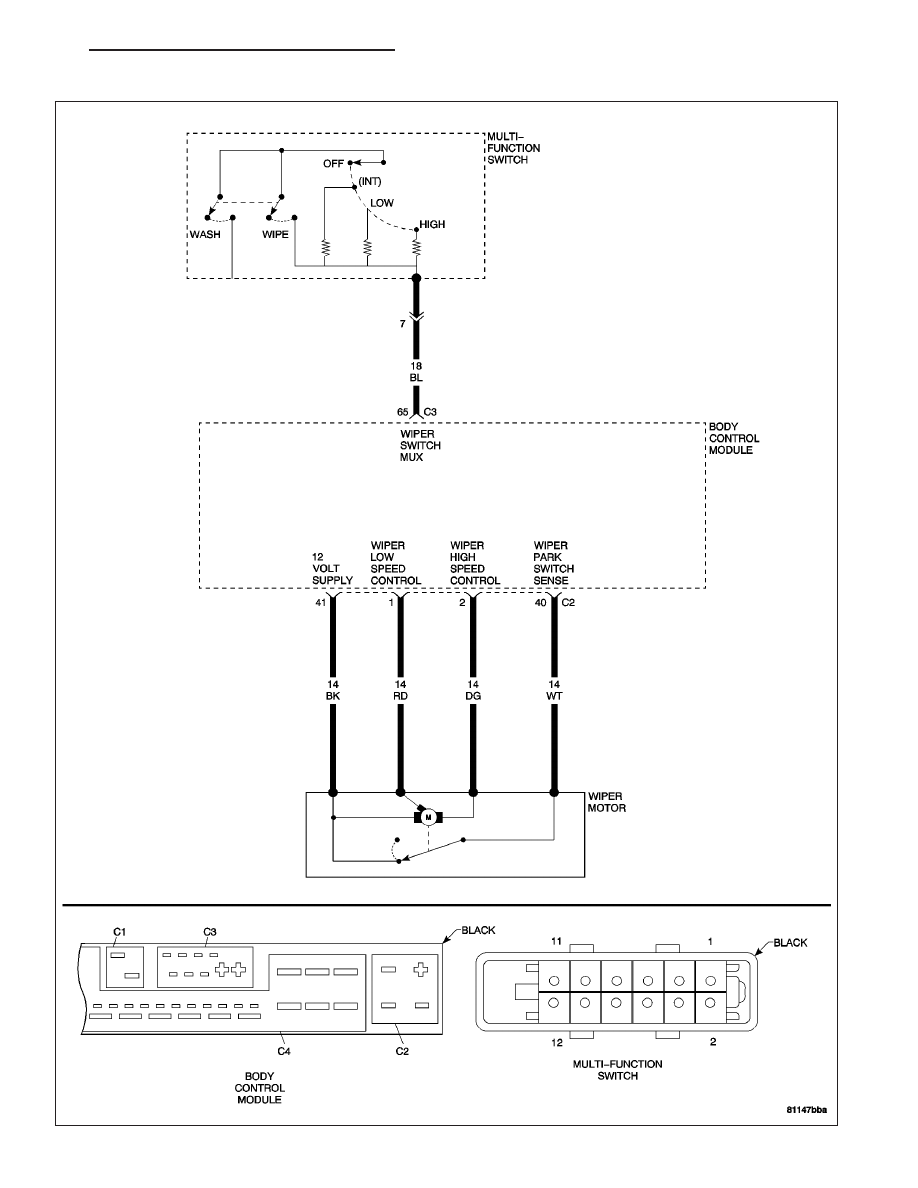

For a complete Wipers/Washers Circuit Diagram, (Refer to 8 - ELECTRICAL/WIPERS/WASHERS - SCHEMATICS
AND DIAGRAMS).

Diagnostic Test

1.

MEASURE WIPER SWITCH MUX CIRCUIT VOLTAGE

Note: If any BCM DTCs are set, diagnose them first before con-
tinuing.
Disconnect the Body Control Module (BCM) connector.

Turn the ignition on.

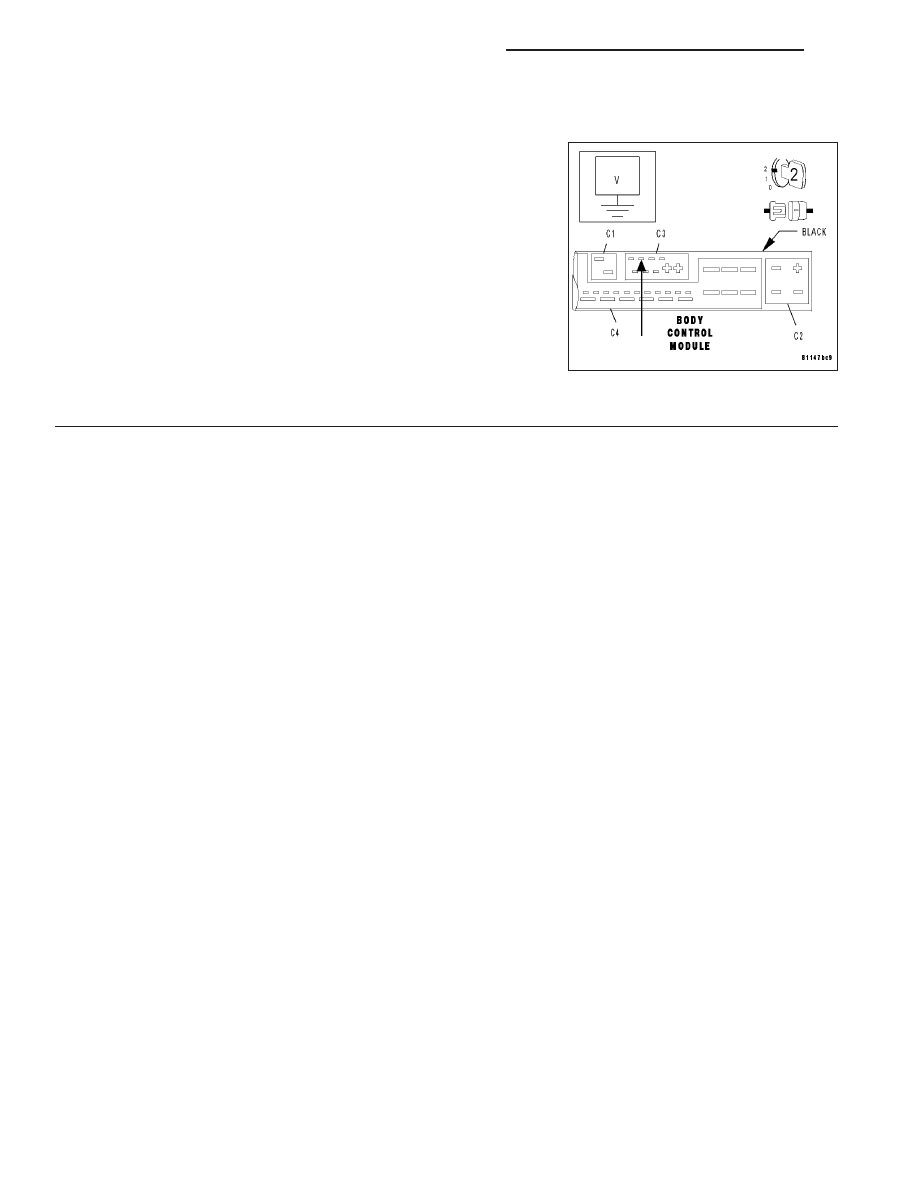

Measure the BCM C3 harness connector cavity 65 for voltage with the
Wiper Switch in the Intermittent position.

Is the voltage approximately 12 volts?

Yes

>> Replace the Body Control Module. (Refer to 8 - ELECTRI-

CAL/ELECTRONIC CONTROL MODULES/BODY CON-
TROL/CENTRAL TIMER MODUL - REMOVAL).

Perform BODY VERIFICATION TEST.

No

>> Replace the Multi-Function Switch. (Refer to 8 - ELECTRI-

CAL/LAMPS/LIGHTING - EXTERIOR/MULTI-FUNCTION SWITCH - REMOVAL).

Perform BODY VERIFICATION TEST.

8R - 24

WIPERS/WASHERS - ELECTRICAL DIAGNOSTICS

ZH
