REMOVAL

REMOVAL - SENTRY KEY REMOTE ENTRY MODULE

1. Disconnect the negative battery cable.

2. Remove the instrument cluster to gain access to

the SKREEM module. (Refer to 8 - ELECTRICAL/
INSTRUMENT CLUSTER - REMOVAL).

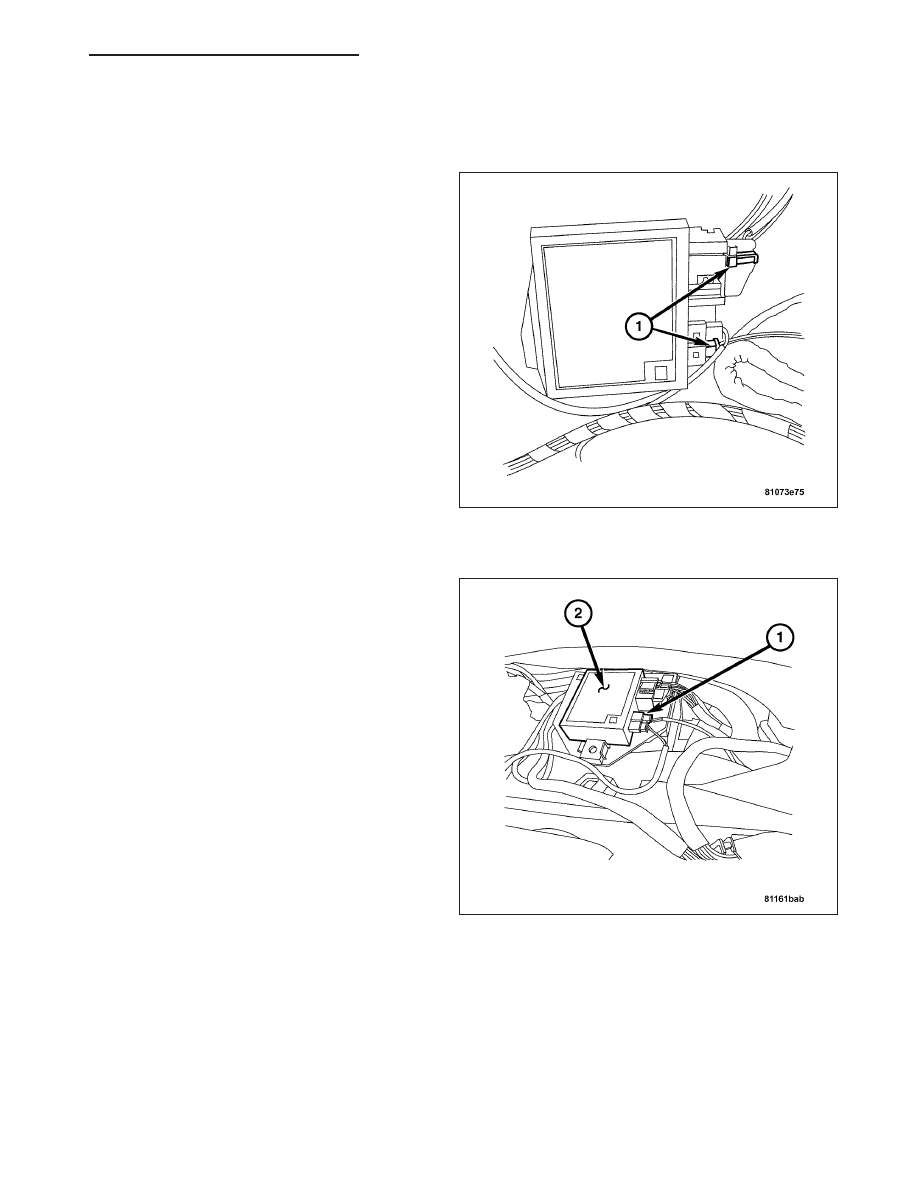

3. Disconnect the 2-pin CAN bus connector and the

18-pin electrical connector (1) from the SKREEM.

4. Disconnect the 2-pin connector for the sentry key

antenna ring.

5. Press the retaining tabs apart.

6. Remove the SKREEM from the base plate.

REMOVAL - SENTRY KEY ANTENNA RING

1. Remove the instrument cluster. (Refer to 8 - ELEC-

TRICAL/INSTRUMENT CLUSTER - REMOVAL).

2. Disconnect the sentry key antenna ring electrical

connector (1) from the sentry key remote entry
module (2).

ZH

VEHICLE THEFT SECURITY - SERVICE INFORMATION

8Q - 57

Note: Before disassembly, note the wire harness
routing for proper reassembly.

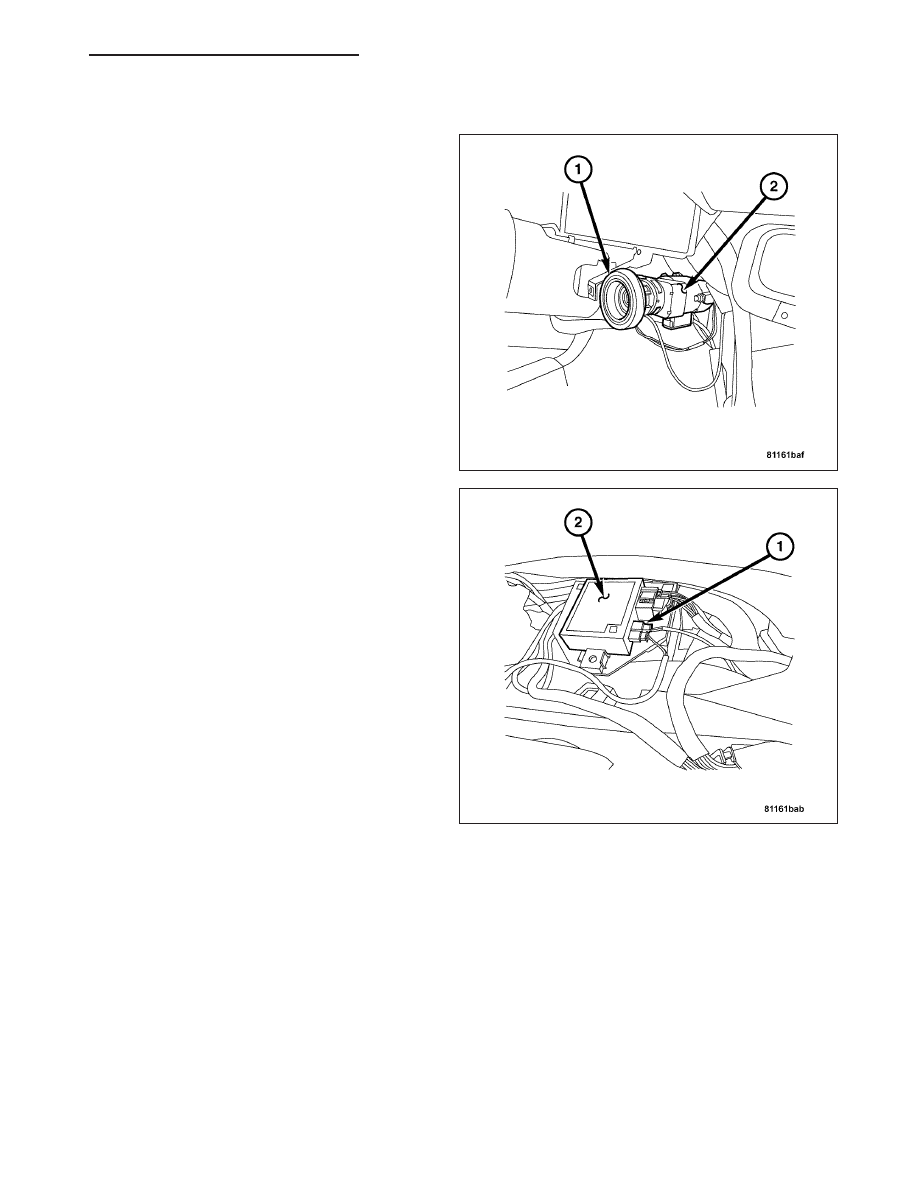

3. Pull to remove the sentry key antenna ring (1) from

the ignition switch key cylinder (2).

INSTALLATION

INSTALLATION - SENTRY KEY REMOTE ENTRY MODULE

1. Install the SKREEM module to the base plate.

2. Connect the 18-pin electrical connector and the

2-pin CAN bus connector (1) to the SKREEM.

3. Connect the 2-pin connector for the sentry key

antenna ring.

4. Install the instrument cluster. (Refer to 8 - ELEC-

TRICAL/INSTRUMENT

CLUSTER

-

INSTALLA-

TION).

5. Connect the negative battery cable.

8Q - 58

VEHICLE THEFT SECURITY - SERVICE INFORMATION

ZH

INSTALLATION - SENTRY KEY ANTENNA RING

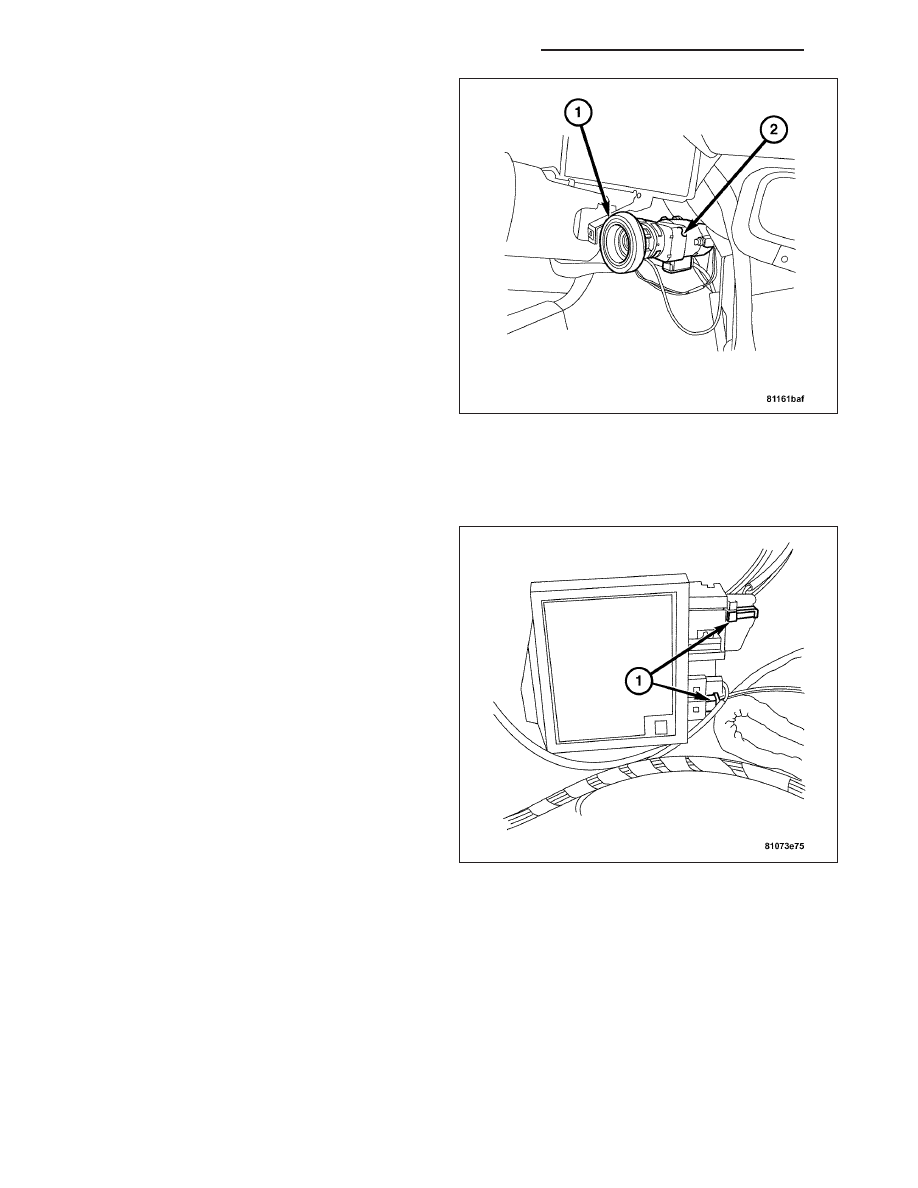

1. Install the sentry key antenna ring (1) to the ignition

switch key cylinder (2).

2. Install the sentry key antenna ring electrical con-

nector (1) to the sentry key remote entry module
(2).

3. Install the instrument cluster. (Refer to 8 - ELEC-

TRICAL/INSTRUMENT

CLUSTER

-

INSTALLA-

TION).

ZH

VEHICLE THEFT SECURITY - SERVICE INFORMATION

8Q - 59

DOOR CYLINDER LOCK SWITCH

REMOVAL

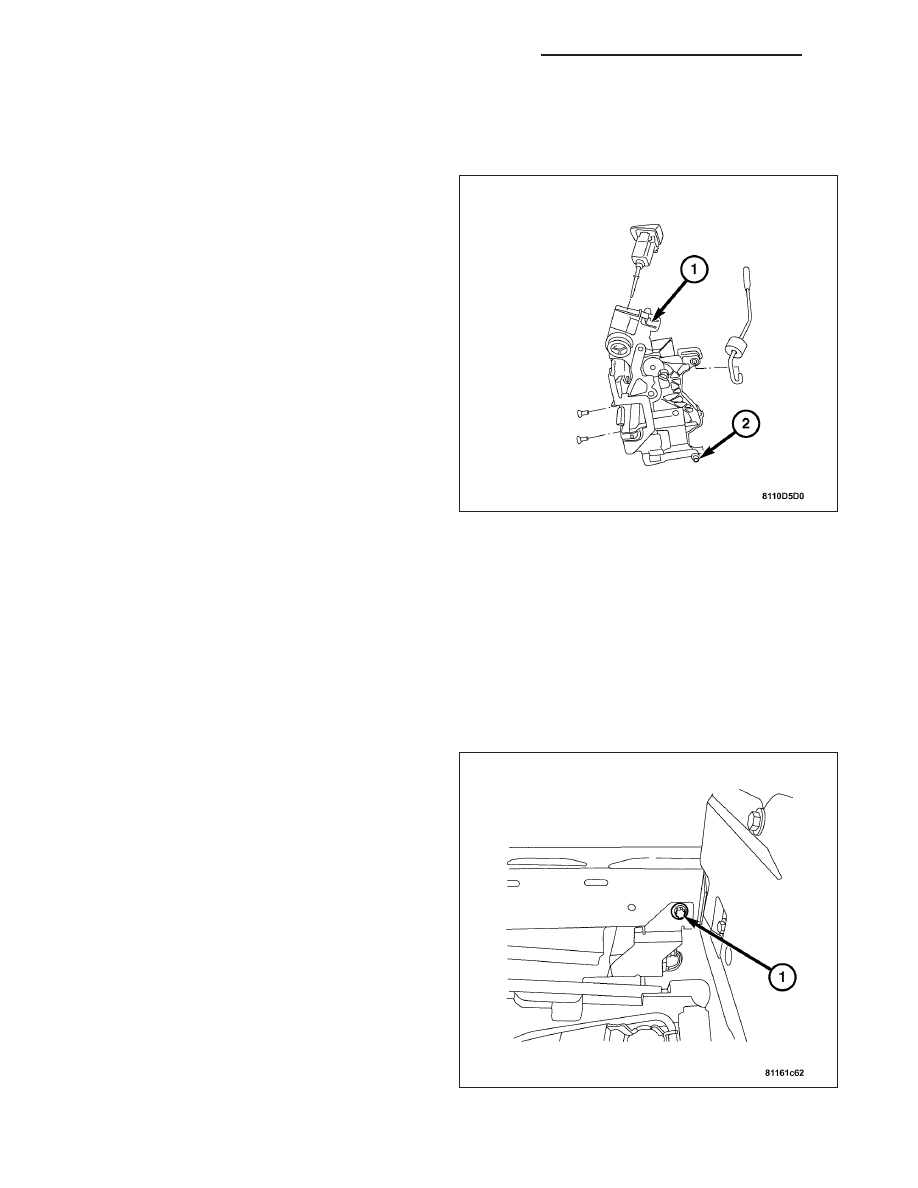

The Driver Cylinder Lock Switch (1) is an integral part
of the Driver Door Lock Actuator assembly and cannot
be adjusted or repaired. If faulty, worn, or damaged,
the entire assembly must be replaced. (Refer to 8 -
ELECTRICAL/POWER

LOCKS/DRIVER

DOOR

LATCH SWITCH - REMOVAL).

INSTALLATION - DRIVER CYLINDER LOCK SWITCH

The Driver Cylinder Lock Switch is an integral part of the Driver Door Lock Actuator assembly and cannot be
adjusted or repaired. If faulty, worn, or damaged, the entire assembly must be replaced. For installation procedures,
refer to the Body Section. (Refer to 8 - ELECTRICAL/POWER LOCKS/DRIVER DOOR LATCH SWITCH -
INSTALLATION).

ANTI-THEFT TOW SENSOR

REMOVAL

1. Remove the right side trunk inner trim panel.

2. Remove the bolt (1) from the anti-theft tow sensor

bracket.

8Q - 60

VEHICLE THEFT SECURITY - SERVICE INFORMATION

ZH
