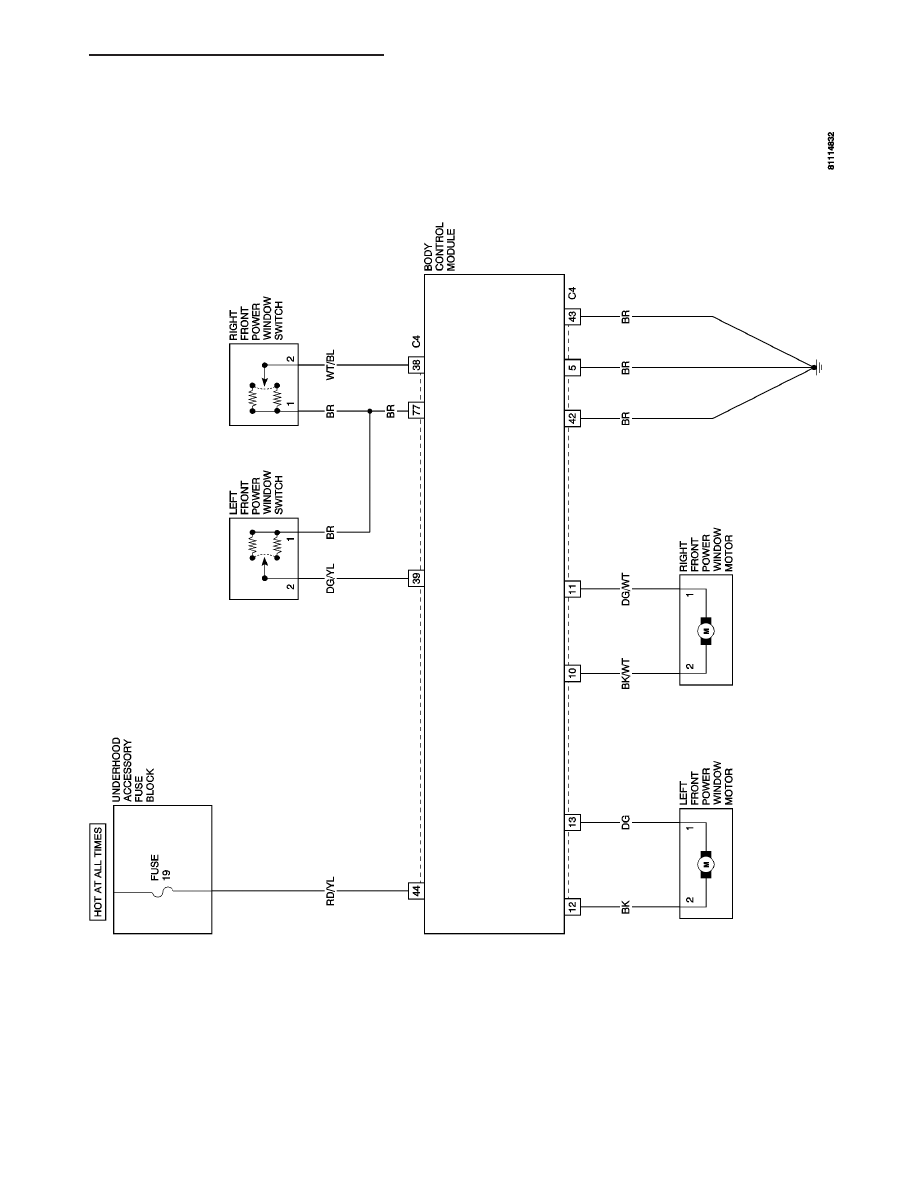

Each door window motor receives power and ground individually through separate window switches. Reversing the
current to the motor within the switch will cause the motor to rotate in the opposite direction which forces the win-
dow either up or down. The switches in the Center Console provide one-touch opening.

DIAGNOSIS AND TESTING

WARNING: REFER TO RESTRAINTS BEFORE ATTEMPTING ANY DOOR, SEAT, STEERING WHEEL, STEER-
ING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE
PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PER-
SONAL INJURY.(Refer to 8 - ELECTRICAL/RESTRAINTS - WARNING).

Before any testing of the Power Window System is performed, the battery should be fully charged. All the wiring
harness connectors should be inspected and cleaned, if necessary, to ensure good connections.

1. If both of the power windows are inoperative, check Fuse 19 in the Underhood Accessory Fuse Block.

2. With the dome lamp on, apply the power window switch in the direction of the failure.

3. If the dome lamp dims, the window track may be jammed. Check for obstructions in the guide tracks or worn

weatherstrips causing a binding.

4. If the dome lamp does not dim, proceed with testing of the individual power window system components and

circuits. For complete Power Windows System diagnosis, refer to Power Windows Electrical Diagnostics in this
section.

WINDOW MOTOR

REMOVAL

8N - 122

POWER WINDOWS - SERVICE INFORMATION

1. Disconnect the negative battery cable.

2. Remove the door interior trim panel. (Refer to 23 -

BODY/DOOR - FRONT/TRIM PANEL - REMOVAL).

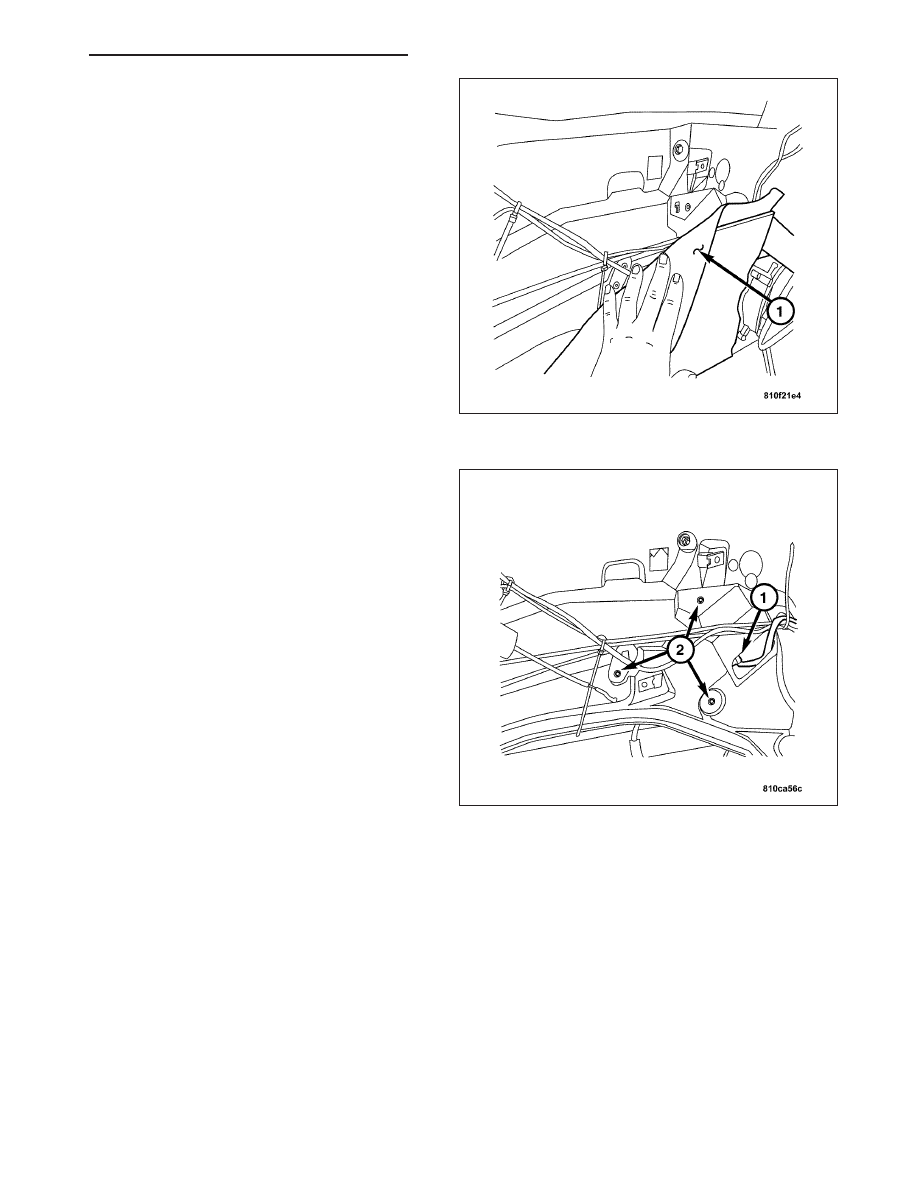

3. Carefully

peel

back

the

door

watershield

(1)

enough to expose the power window motor attach-
ment rivets and harness connector.

Note: Use caution to properly support the power
window motor before drilling rivets.

4. Disconnect the power window motor harness con-

nector (1).

5. Drill out the three power window motor attaching

rivets (2).

6. Remove the power window motor from the door.

POWER WINDOWS - SERVICE INFORMATION

8N - 123

INSTALLATION

Note: Insure the original mounting hole pattern is
used when installing the power window motor.

Note: Before installing, lightly grease the gear on
the power window motor.

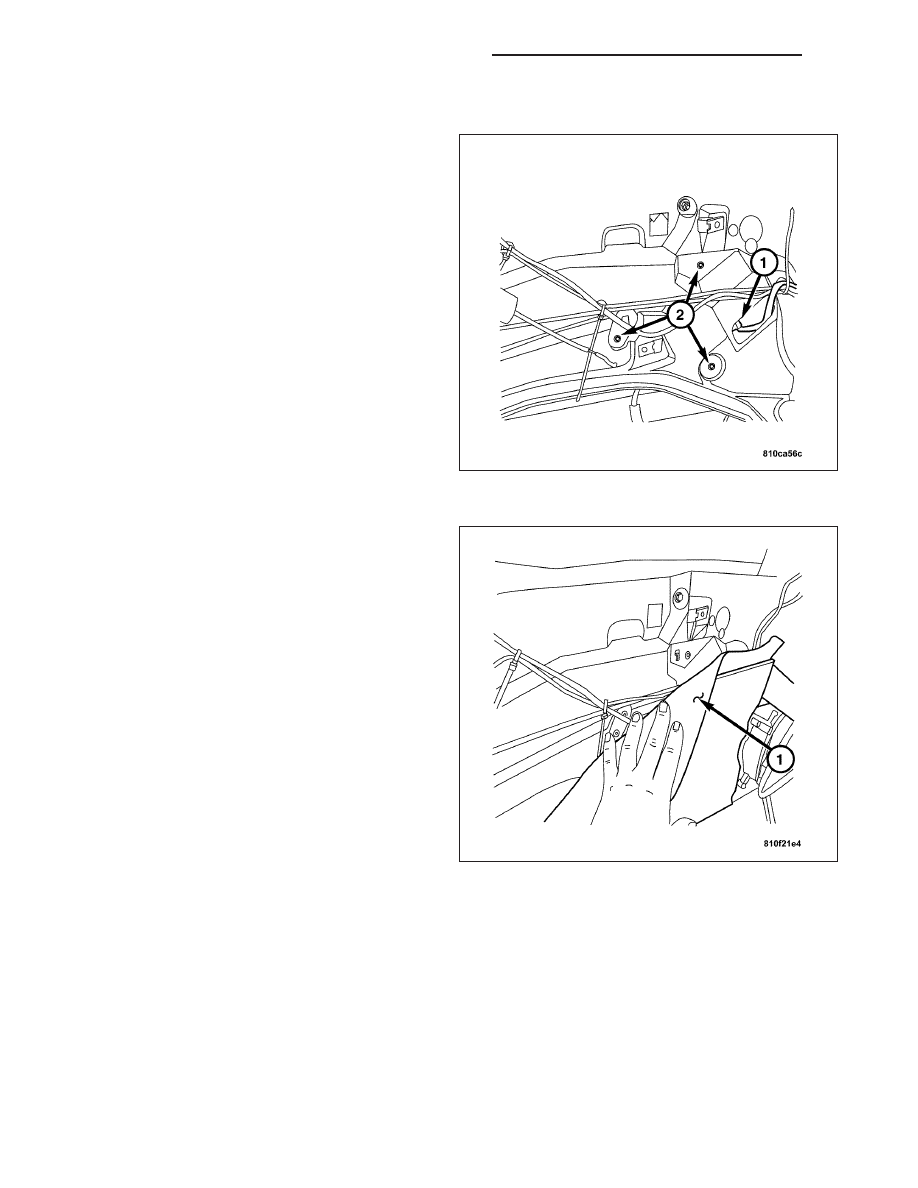

1. Position the power window motor into the door.

2. Install the three power window motor attaching riv-

ets (2).

3. Connect the power window motor harness connec-

tor (1).

4. Install the door watershield (1).

5. Install the door interior trim panel. (Refer to 23 -

BODY/DOOR - FRONT/TRIM PANEL - INSTALLA-
TION).

6. Connect the negative battery cable.
