Chrysler Crossfire. Manual - part 111





CONDITION

POSSIBLE CAUSES

CORRECTION

CLUTCH DISC BINDS ON INPUT
SHAFT SPLINES.

1. Clutch disc hub splines damaged
during installation.

1. Clean, smooth, and lubricate hub
splines if possible. Replace disc if
necessary.

2. Input shaft splines rough,
damaged, or corroded.

2. Clean, smooth, and lubricate
shaft splines if possible. Replace
input shaft if necessary.

CLUTCH DISC RUSTED TO
FLYWHEEL AND/OR PRESSURE
PLATE.

1. Clutch not used for an extended
period of time (e.g. long term
vehicle storage).

1. Sand rusted surfaces with 180
grit sanding paper. Replace clutch
cover and flywheel if necessary.

PILOT BEARING SEIZED, LOOSE,
OR ROLLERS ARE WORN.

1. Bearing cocked during
installation.

1. Install and lubricate a new
bearing.

2. Bearing defective.

2. Install and lubricate a new
bearing.

3. Bearing not lubricated.

3. Install and lubricate a new
bearing.

4. Clutch misalignment.

4. Inspect clutch and correct as
necessary. Install and lubricate a
new bearing.

CLUTCH WILL NOT DISENGAGE
PROPERLY.

1. Low hydraulic clutch fluid level.

1. Replace hydraulic clutch
components as necessary.

2. Clutch cover loose.

2. Follow proper bolt tightening
procedure.

3. Clutch disc bent or distorted.

3. Replace clutch disc.

4. Clutch cover diaphragm spring
bent or warped.

4. Replace clutch cover.

5. Clutch disc installed backwards.

5. Remove and install clutch disc
correctly.

6. Clutch master or slave cylinder
failure.

6. Replace hydraulic components as
necessary.

CLUTCH PEDAL SQUEAK.

1. Pivot pin loose.

1. Tighten pivot pin if possible.
Replace clutch pedal if necessary.

2. Master cylinder bushing not
lubricated.

2. Lubricate master cylinder
bushing.

3. Pedal bushings worn out or
cracked.

3. Replace and lubricate bushings.

CLUTCH MASTER OR SLAVE
CYLINDER PLUNGER DRAGGING
AND/OR BINDING

1. Master or slave cylinder
components worn or corroded.

1. Replace hydraulic clutch
components as necessary.

RELEASE BEARING IS NOISY.

1. Release bearing defective or
damaged.

1. Replace release bearing/slave
cylinder.

ZH

CLUTCH

6 - 5

CONDITION

POSSIBLE CAUSES

CORRECTION

CONTACT SURFACE OF
RELEASE BEARING DAMAGED.

1. Clutch cover incorrect or release
fingers bent or distorted.

1. Replace clutch cover and release
bearing/slave cylinder.

2. Release bearing defective or
damaged.

2. Replace the release bearing/
slave cylinder.

3. Release bearing misaligned.

3. Check and correct runout of
clutch components. Check front
bearing sleeve for damage/
alignment. Repair as necessary.

PARTIAL ENGAGEMENT OF
CLUTCH DISC. ONE SIDE OF
DISC IS WORN AND THE OTHER
SIDE IS GLAZED AND LIGHTLY
WORN.

1. Clutch pressure plate position
incorrect.

1. Replace clutch disc and cover.

2. Clutch cover, spring, or release
fingers bent or distorted.

2. Replace clutch disc and cover.

3. Clutch disc damaged or
distorted.

2. Replace clutch disc.

4. Clutch misalignment.

4. Check alignment and runout of
flywheel, disc and clutch cover.
Correct as necessary.

STANDARD PROCEDURE

MASTER CYLINDER BLEEDING

WARNING: RISK OF POISONING DUE TO SWAL-
LOWING BRAKE FLUID. RISK OF INJURY DUE TO
BRAKE FLUID COMING INTO CONTACT WITH THE
SKIN AND EYES.

Note: Only pour brake fluid into suitable, appropri-
ately marked containers. Wear protective clothing
and safety glasses when handling brake fluid.

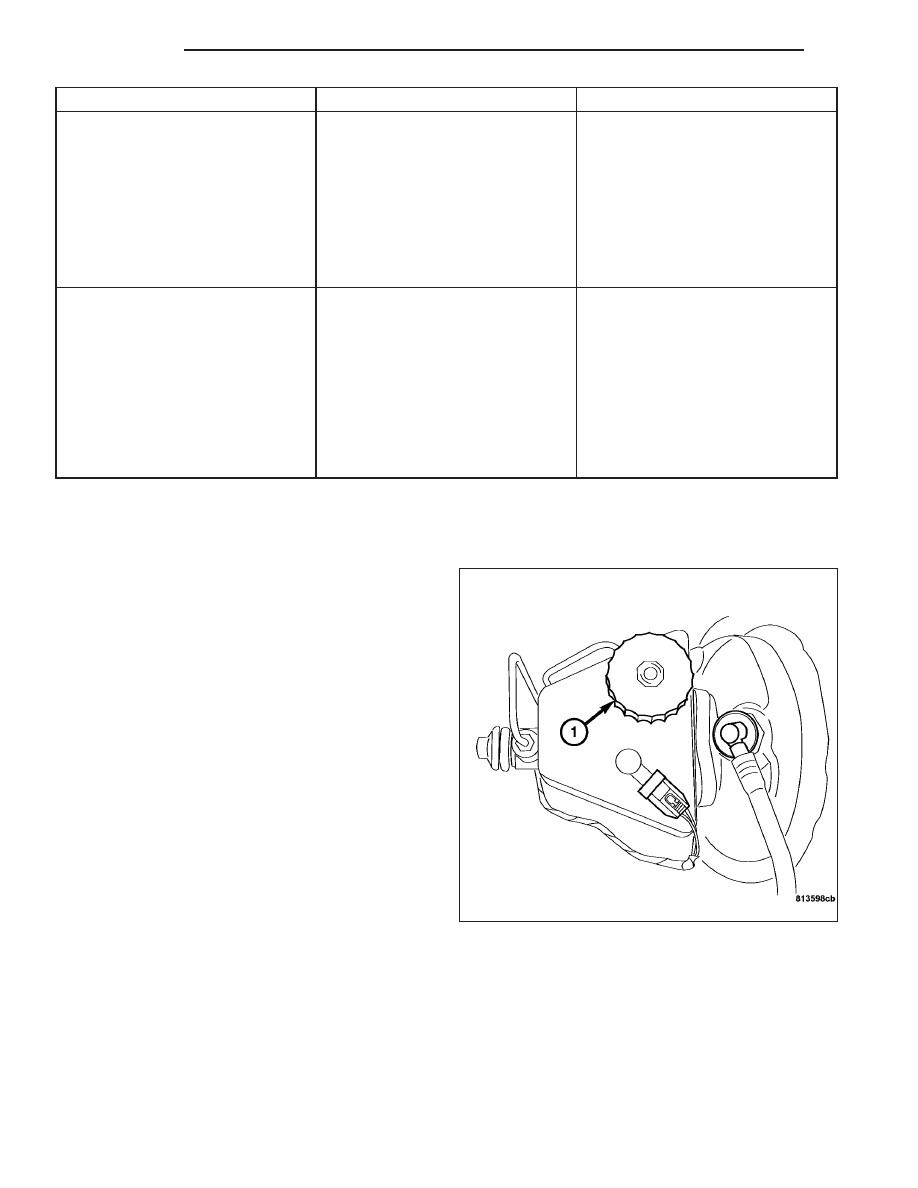

1. Remove the brake master cylinder reservoir cap

(1).

2. Connect a pressure bleeder to the brake master

cylinder reservoir.

6 - 6

CLUTCH

ZH

3. Raise and support the vehicle.

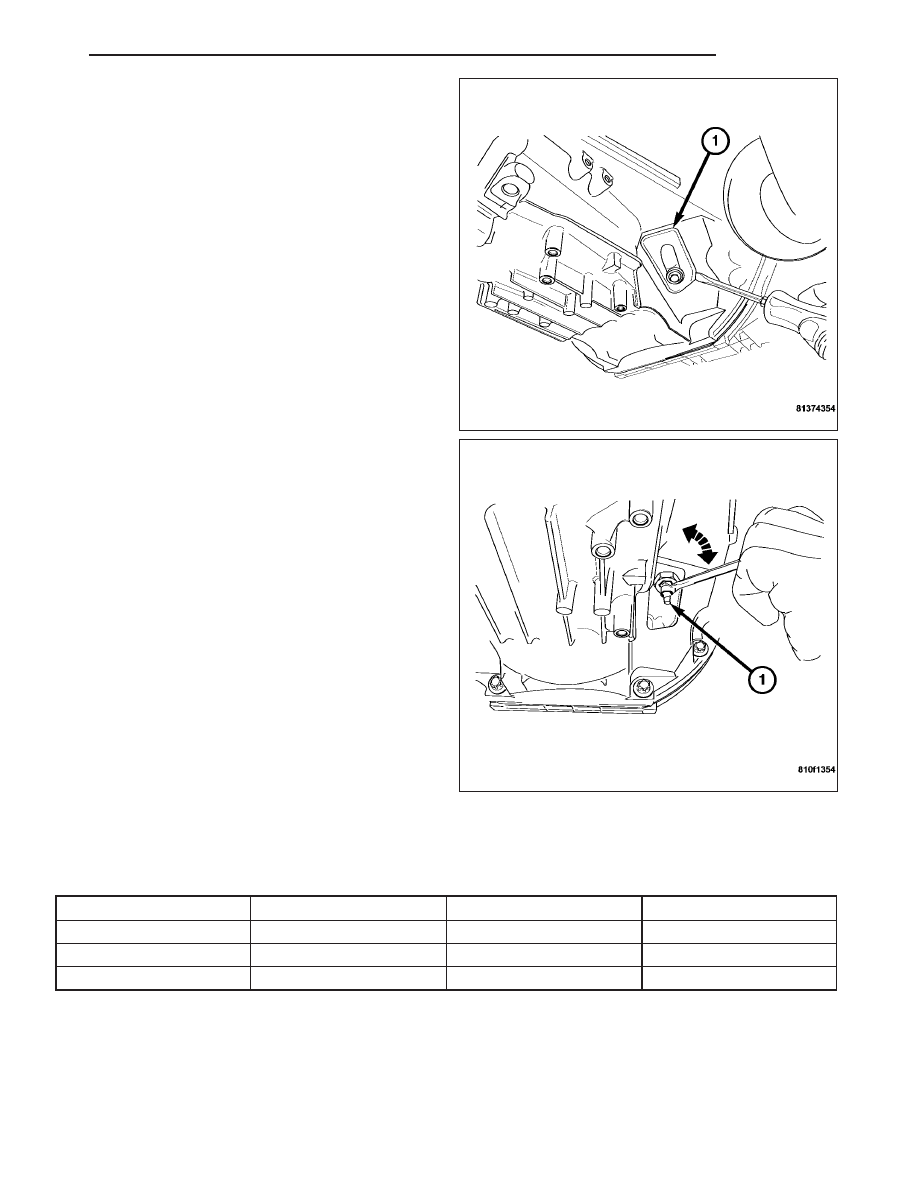

4. Remove the bleeder screw rubber access plug (1).

5. Remove the bleeder screw rubber cap.

6. Open the bleeder screw (1) on the slave cylinder.

7. Allow the brake fluid to flow until there are no bub-

bles and fluid is clear.

8. Close the bleeder screw.

9. Install the bleeder screw rubber cap.

10. Install the bleeder screw rubber access plug.

11. Lower the vehicle.

12. Disconnect the pressure bleeder.

13. Install the brake master cylinder reservoir cap.

14. Check the operation of the clutch.

SPECIFICATIONS - TORQUE

TORQUE SPECIFICATIONS

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Flywheel Bolts

45

33

398

Slave Cylinder Bolts

10

7

89

Clutch Cover Bolts

25

18

221

ZH

CLUTCH

6 - 7

SPECIAL TOOLS

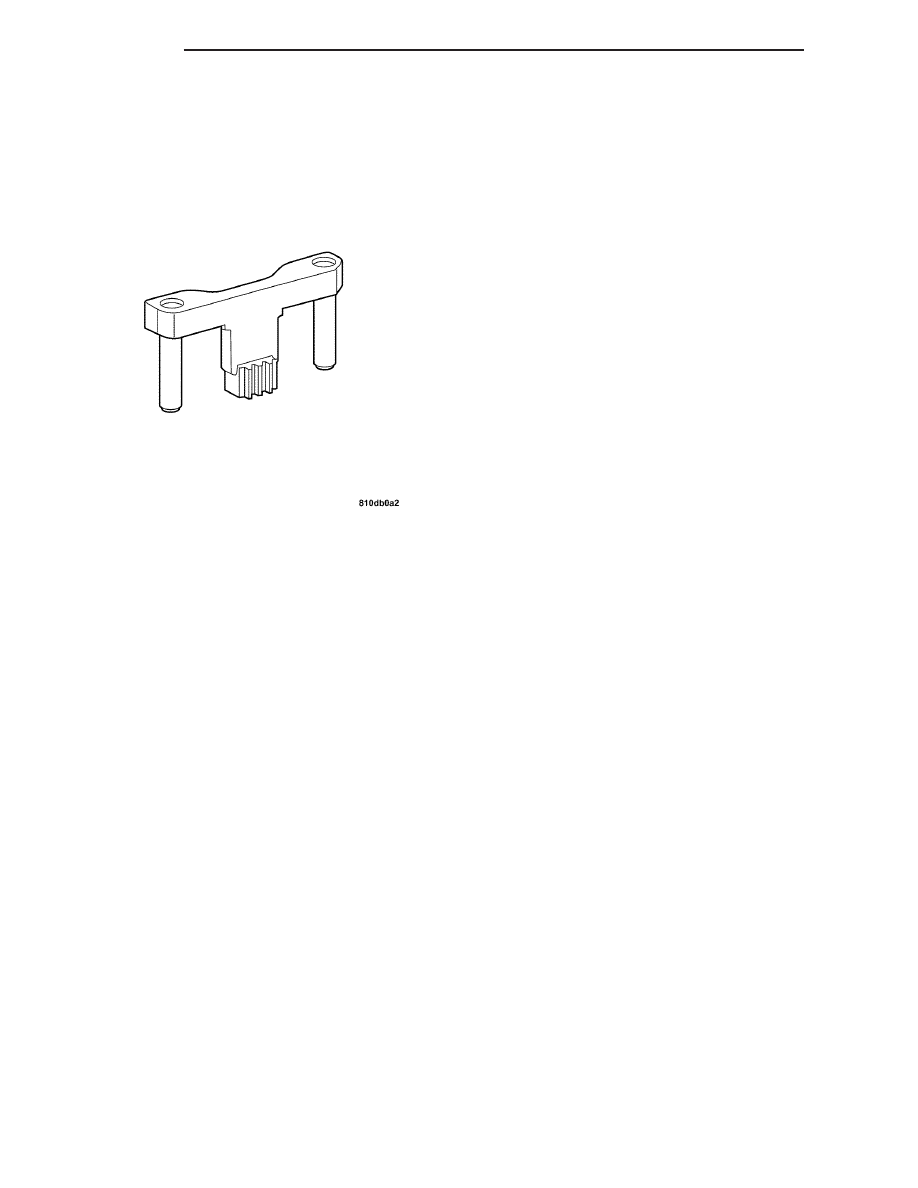

9102 FLYWHEEL LOCKING TOOL

6 - 8

CLUTCH

ZH
