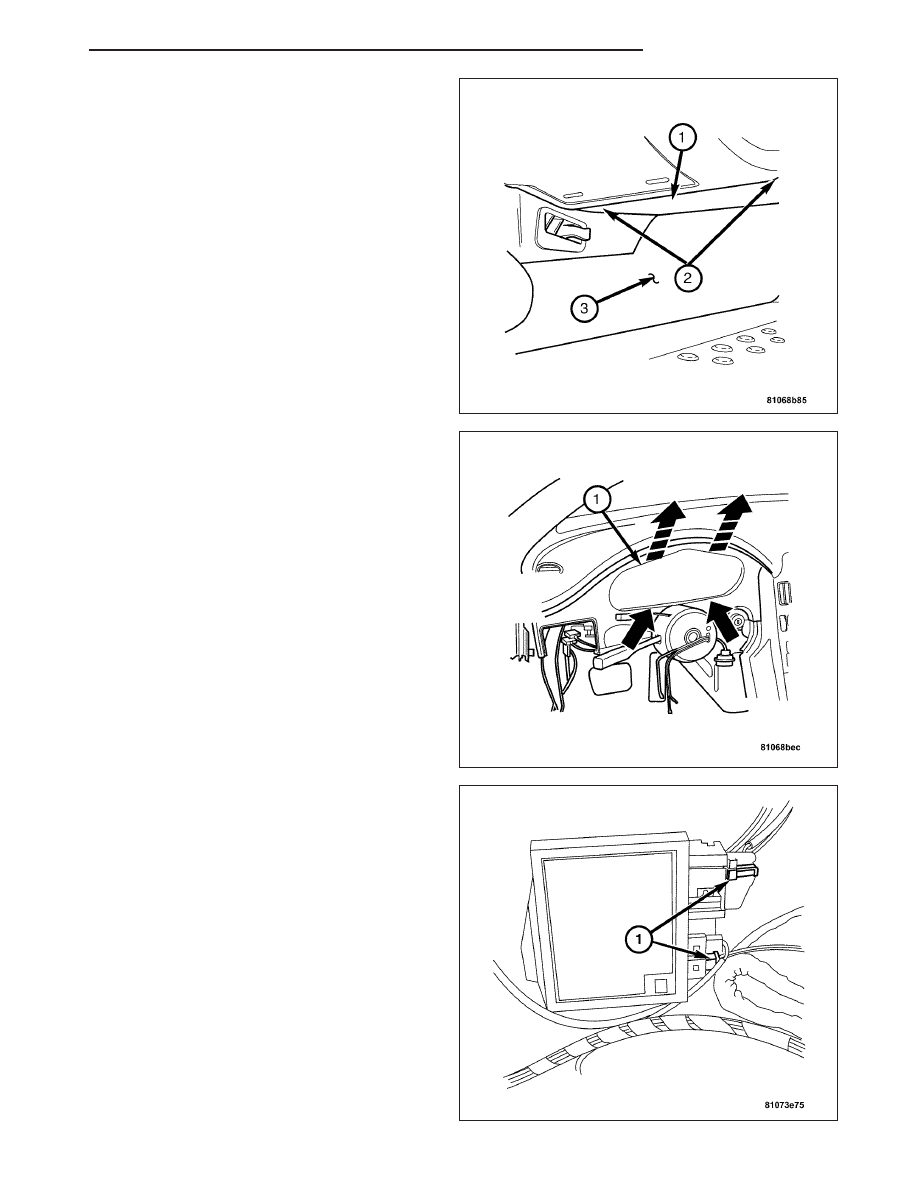

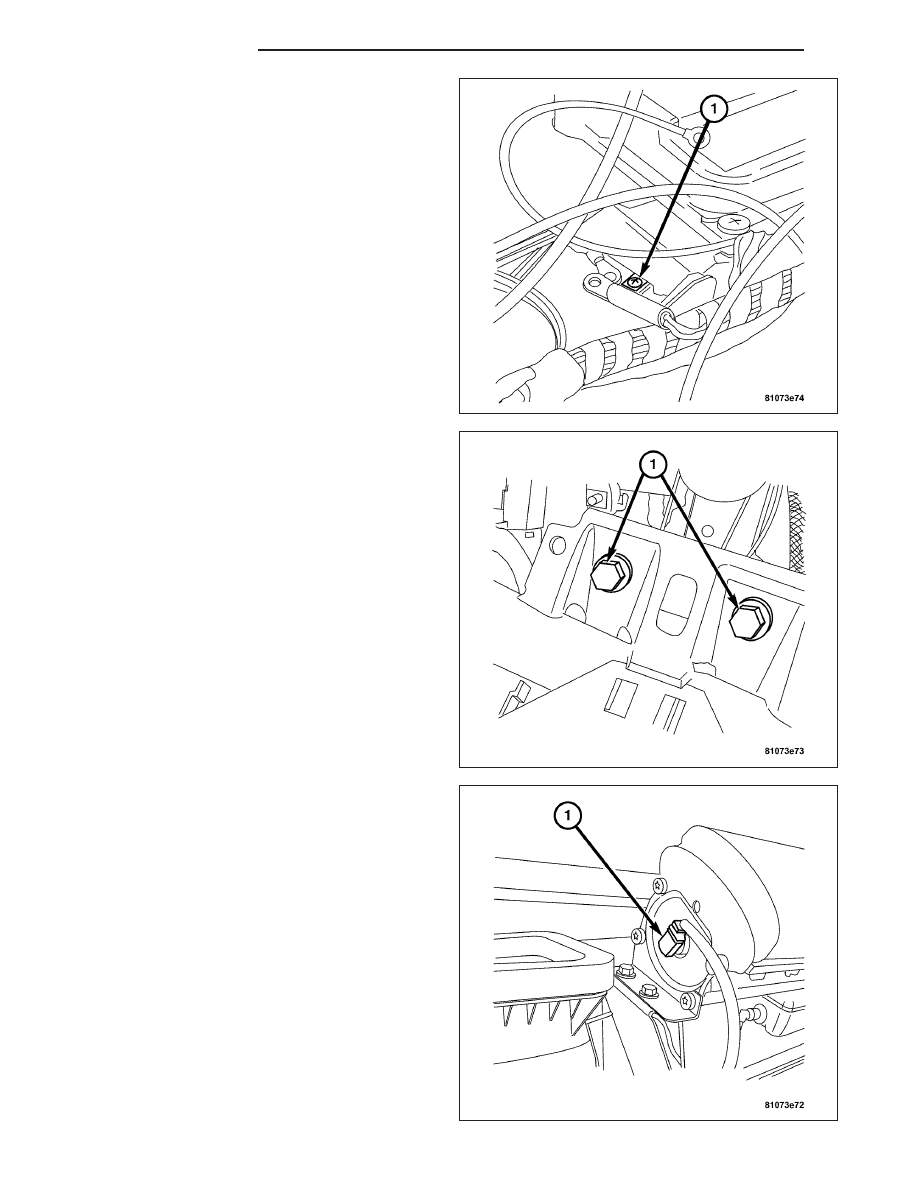

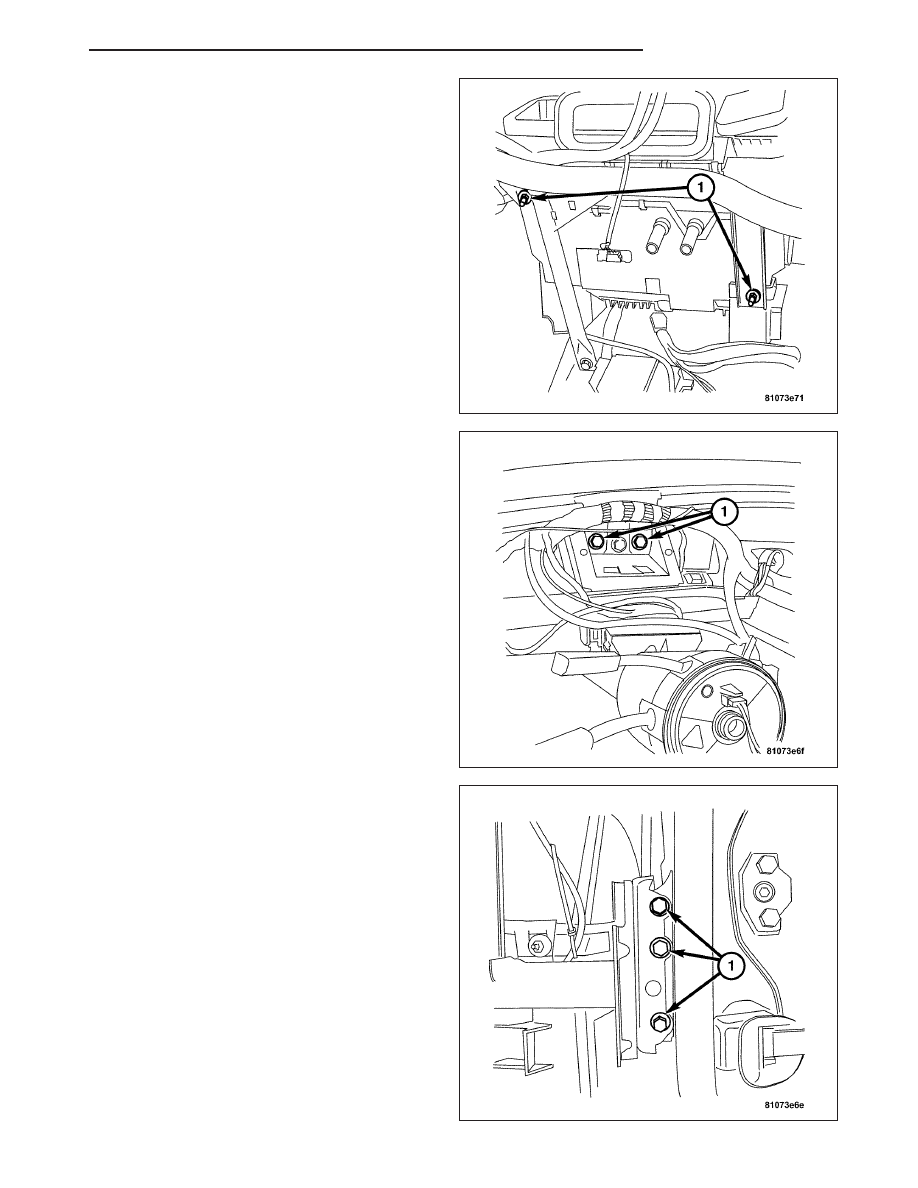

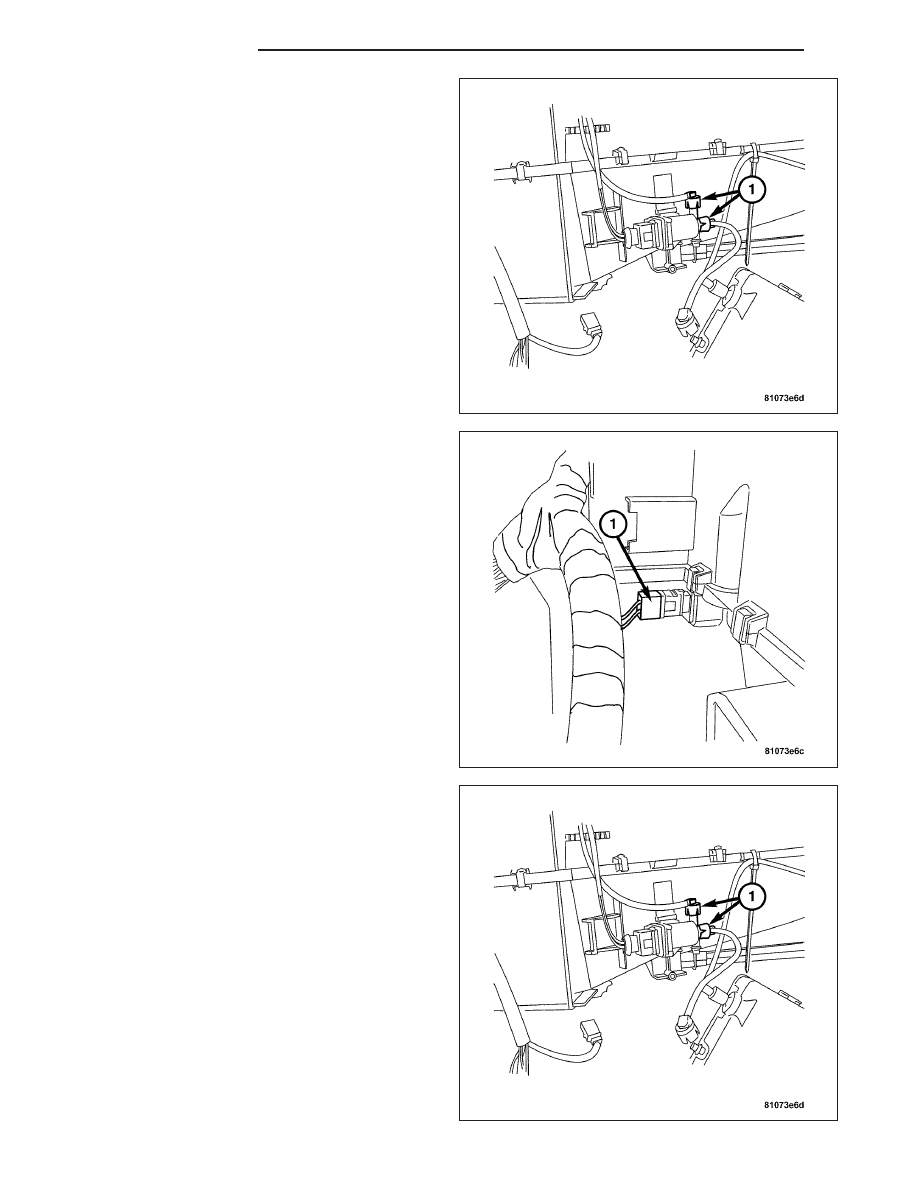

9. Remove the lower instrument panel (2).(Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - REMOVAL). 10. Remove the instrument cluster cover (1).(Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT 11. Remove the green insulating mats. 12. Remove the nuts for the instrument cluster holder then remove instrument cluster.(Refer to 8 - CLUSTER - REMOVAL). 13. Remove the Sentry Key Remote Entry Module (SKREEM) by: • Disconnect the 2-pin CAN harness connector • Disconnect the 2-pin harness connector for the • Disconnect the 18-pin harness connector (1). • Press the retaining tabs apart (1). • Remove the SKREEM control module from the Note: This is necessary to remove the instrument 14. Remove all of the wiring harness nylon ties attaching the wiring harnesses on the instrument ZH DISTRIBUTION 24 - 103 |
