Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 829





When Monitored:
With the ignition on.

Set Condition:
The Hands Free Module detects high voltage on the (X793) Microphone Feed circuit.

Possible Causes

(X793) MICROPHONE FEED CIRCUIT OPEN

(X793) MICROPHONE FEED CIRCUIT SHORT TO VOLTAGE

INSIDE REAR VIEW MIRROR

HANDS FREE MODULE

Diagnostic Test

1.

CHECK FOR ACTIVE DTC

With the scan tool, read the active DTC’s.

Cycle the ignition switch from off to on at least 5 times, leaving the ignition on for a minimum of 90 seconds per
cycle.

Attempt to make a phone call with the system.

With the scan tool, read the active DTC’s.

Does the scan tool display this DTC as active?

Yes

>> Go To 2

No

>> If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness con-

nectors. Look for broken, bent, pushed out, or corroded terminals.

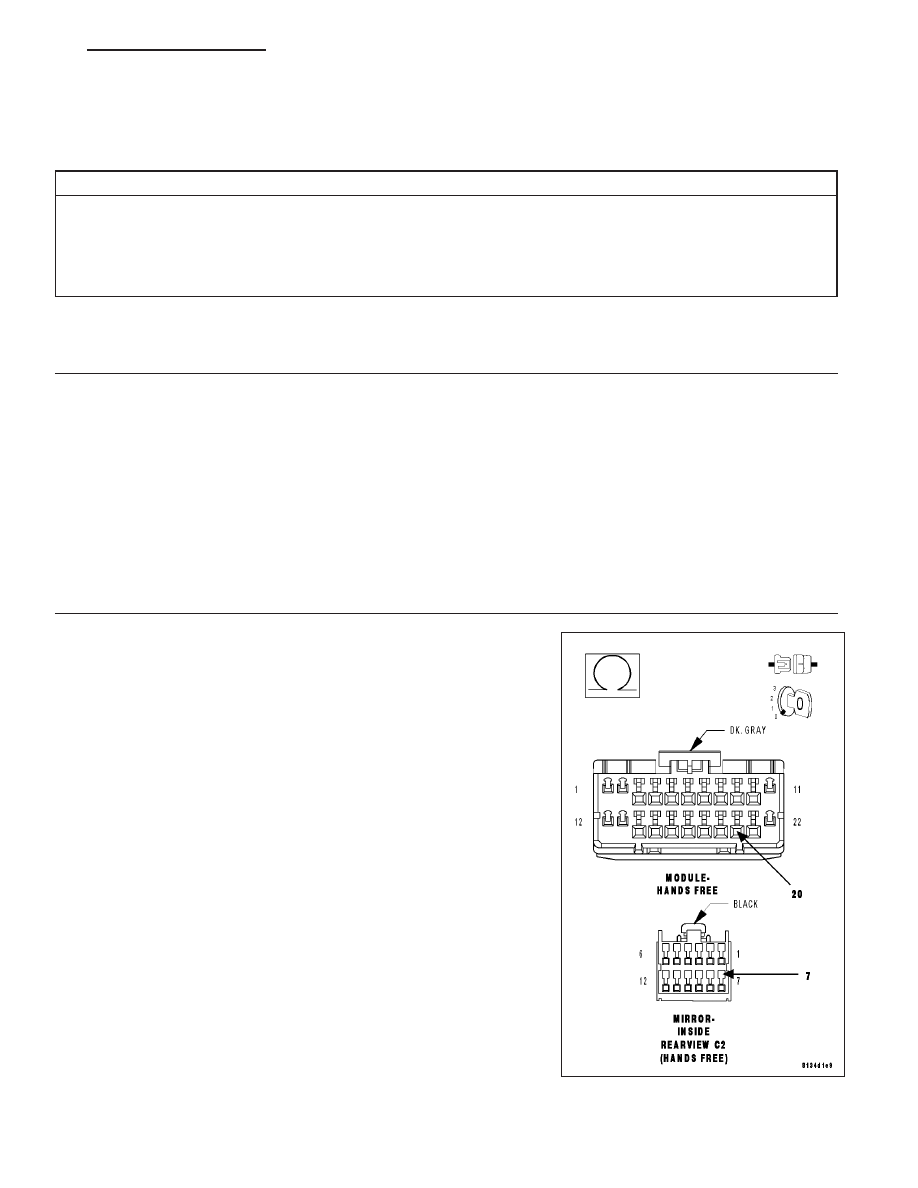

2.

(X793) MICROPHONE FEED CIRCUIT OPEN

Turn the ignition off.

Disconnect the Hands Free Module harness connector.

Disconnect the Inside Rear View Mirror C2 harness connector.

Measure the resistance of the (X793) Microphone Feed circuit between
the HFM connector and the inside rear view mirror connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 3

No

>> Repair the (X793) Microphone Feed circuit for an open.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

8T - 32

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

LX

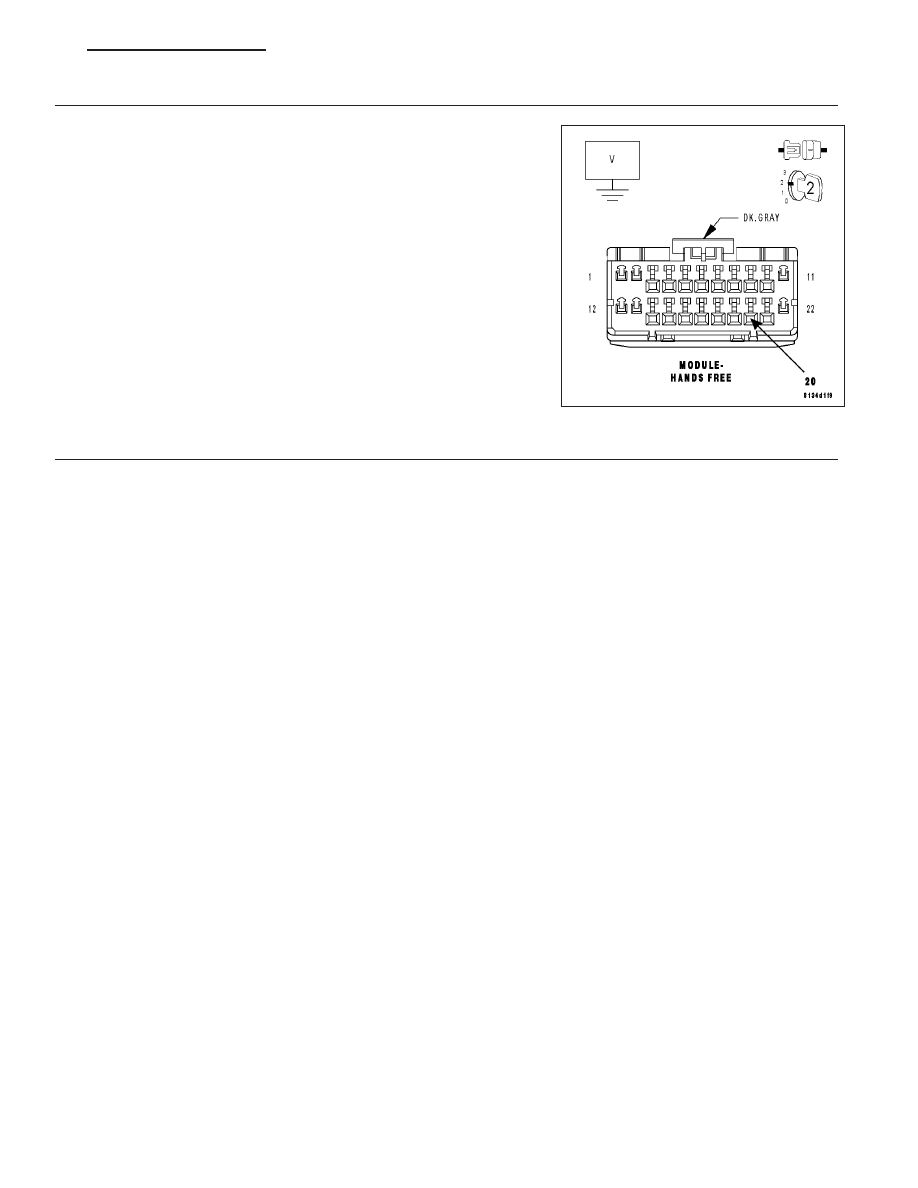

3.

(X793) MICROPHONE FEED CIRCUIT SHORT TO VOLTAGE

Turn the ignition on.

Measure the voltage of the (X793) Microphone Feed circuit.

Is the voltage above 1.0 volt?

Yes

>> Repair the (X793) Microphone Feed circuit for short to volt-

age.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

No

>> Go To 4

4.

INSIDE REAR VIEW MIRROR

Replace the Inside Rear View Mirror in accordance with the service information.

Cycle the ignition switch from off to on at least 5 times, leaving the ignition on for a minimum of 90 seconds per
cycle.

Attempt to make a phone call with the system.

With the scan tool, read the active DTC’s.

Does the scan tool display this DTC as active?

Yes

>> Inspect the wiring and connectors for damage or shorted circuits. If ok, replace and program the Hands

Free Module in accordance with the service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

No

>> Repair is complete.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

LX

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

8T - 33

B1459-TELEMATICS MIRROR CONTROL CIRCUIT LOW

For a complete wiring diagram Refer to Section 8W.

8T - 34

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

LX

When Monitored:
With the ignition on.

Set Condition:
The Hands Free Module detects low voltage on the (X793) Microphone Feed circuit.

Possible Causes

(X793) MICROPHONE FEED CIRCUIT OPEN

(X793) MICROPHONE FEED CIRCUIT SHORT TO GROUND

INSIDE REAR VIEW MIRROR

HANDS FREE MODULE

Diagnostic Test

1.

CHECK FOR ACTIVE DTC

With the scan tool, read the active DTC’s.

Cycle the ignition switch from off to on at least 5 times, leaving the ignition on for a minimum of 90 seconds per
cycle.

Attempt to make a phone call with the system.

With the scan tool, read the active DTC’s.

Does the scan tool display this DTC as active?

Yes

>> Go To 2

No

>> If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness con-

nectors. Look for broken, bent, pushed out, or corroded terminals.

2.

(X793) MICROPHONE FEED CIRCUIT OPEN

Turn the ignition off.

Disconnect the Hands Free Module harness connector.

Disconnect the Inside Rear View Mirror C2 harness connector.

Measure the resistance of the (X793) Microphone Feed circuit between
the HFM connector and the inside rear view mirror connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 3

No

>> Repair the (X793) Microphone Feed circuit for an open.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

LX

NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS

8T - 35
