2. Install mounting fasteners (1). Torque fasteners to 7

N·m (62 in. lbs).

3. Install rear mounting fastener (2). Torque fastener

to 7 N·m (62 in. lbs).

8R - 100

WIPERS/WASHERS - SERVICE INFORMATION

LX

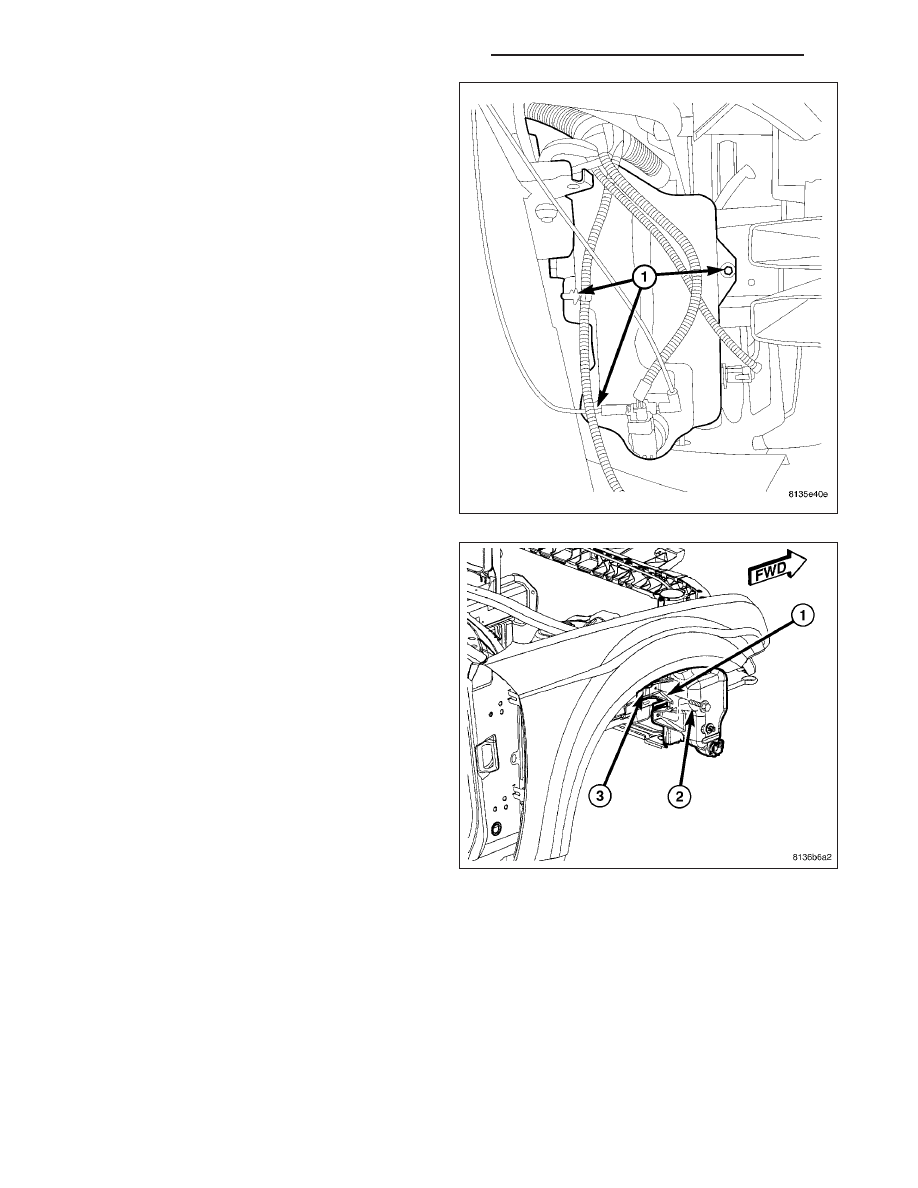

4. Connect electrical harness connectors (1 and 3)

and hoses (2) to reservoir.

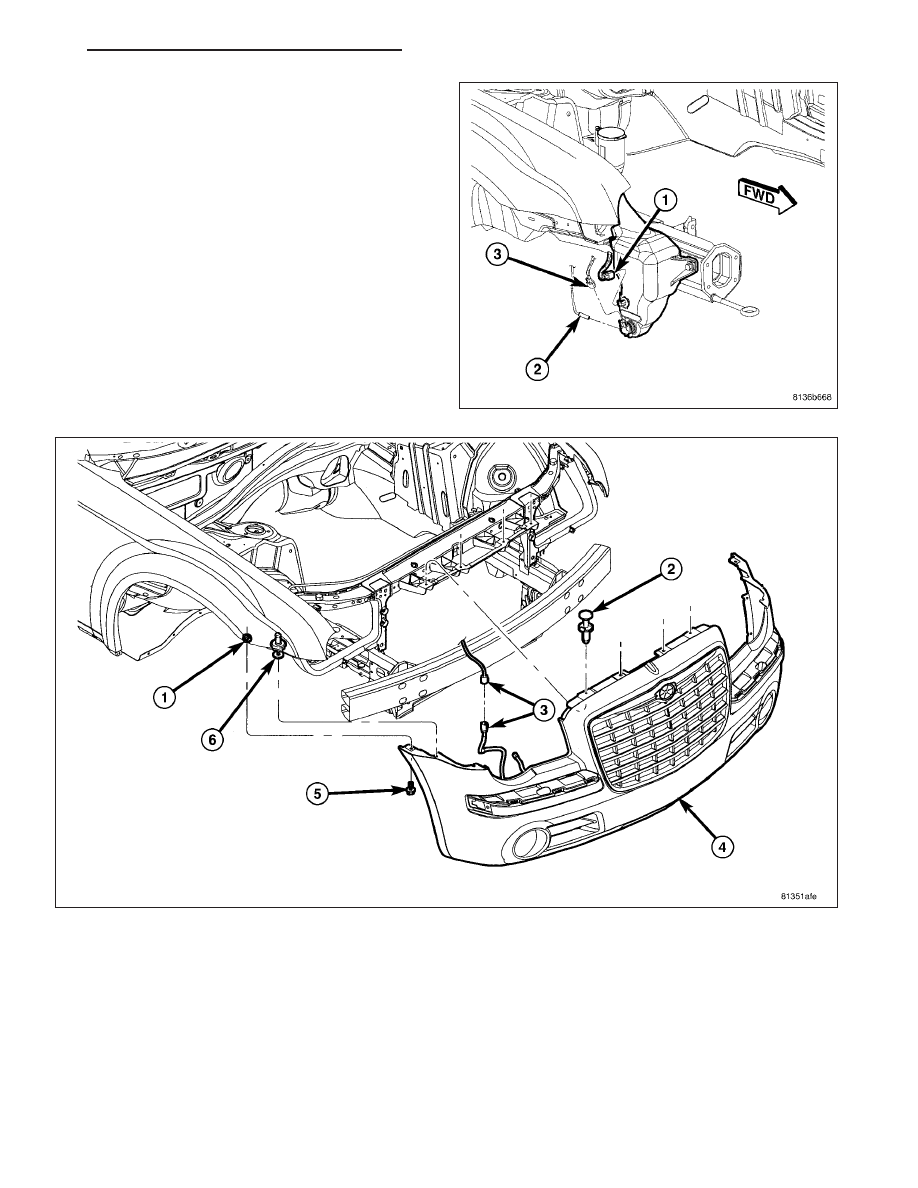

5. Install front fascia (4) (Refer to 13 - FRAME & BUMPERS/BUMPERS/FRONT FASCIA - INSTALLATION).

6. Connect the battery negative cable.

7. Fill reservoir.

LX

WIPERS/WASHERS - SERVICE INFORMATION

8R - 101

WIPER ARMS

REMOVAL

FRONT WIPER ARM

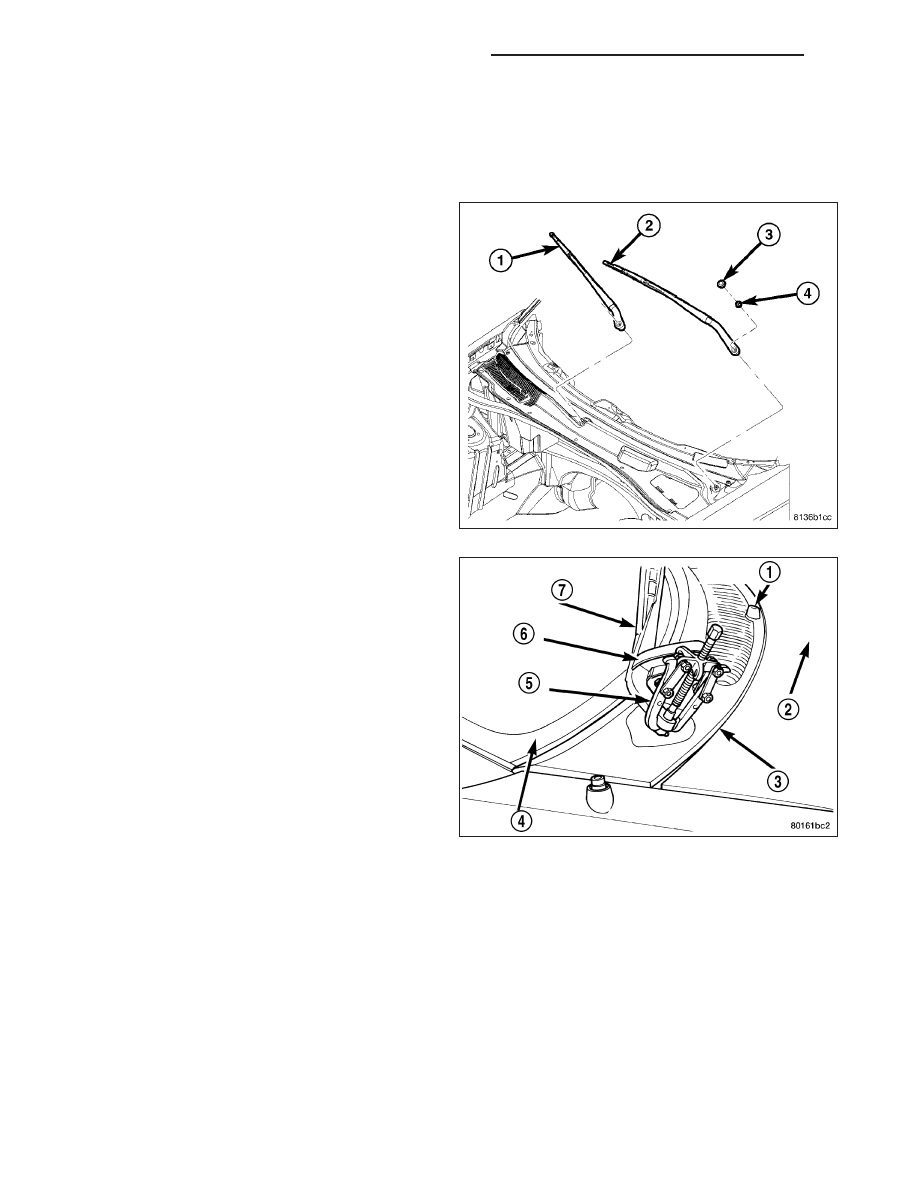

1. Remove the nut caps (3).

2. Remove the retaining nuts (4).

3. Using a suitable two jaw puller (5), separate the

wiper arm (7) from the wiper pivot.

8R - 102

WIPERS/WASHERS - SERVICE INFORMATION

LX

4. Remove the wiper arms (1 and 2).

REAR WIPER ARM - WAGON

1. Remove the nut cap (2).

2. Remove the retaining nut (1).

3. Gently rock the wiper arm from side to side to

loosen it from the shaft.

4. Remove the wiper arm (3).

LX

WIPERS/WASHERS - SERVICE INFORMATION

8R - 103
