REAR WIPER/WASHER SYSTEM - WAGON ONLY

All rear wiper and washer system functions are initi-
ated with the rear wiper and washer switch in the
instrument panel switch pod located on the instrument
panel center bezel, just above the radio and below the
a/c outlets (Refer to 8 - ELECTRICAL/INSTRUMENT
CLUSTER/INSTRUMENT PANEL SWITCH POD -
REMOVAL). Pushing the left side of the wiper/washer
switch selects the rear wiper system operating mode
(intermittent). it has fixed 10 seconds delay between
wipe (not adjustable). indicator at bottom of the WIPE
graphic will light up when the wipe switch is ON and goes away when the wipe is OFF. Depressing the momentary
contact switch activates the rear washer system. When a rear wiper or washer mode is selected, the circuitry within
the instrument panel switch pod sends an electronic rear wiper/washer switch status message over the Controller
Area Network (CAN) data bus to the ElectroMechanical Instrument Cluster (EMIC) also referred to as the Cab Com-
partment Node (CCN). The CCN then sends electronic messages to the Front Control Module (FCM) over the CAN
data bus requesting the appropriate rear wiper and washer system operating modes.

INTERMITTENT WIPE MODE

When the rear wiper switch is pressed to the left, the instrument cluster sends an electronic wiper switch message
to the FCM, then the FCM electronic wipe logic circuit responds by selecting a predetermined length of time
between wiper sweeps.

WASH MODE

When the rear washer control switch is depressed to the right in the momentary Wash position, the instrument clus-
ter sends an electronic washer switch message to the FCM, then the FCM directs battery current and ground to the
washer pump/motor. This will cause the washer pump/motor to be energized for as long as the Wash switch is held
closed up to about ten seconds, and to de-energize when the rear wiper/washer switch is released.

WIPE-AFTER-WASH MODE

When the rear washer switch is released from the momentary Wash position, the instrument cluster sends an elec-
tronic washer switch message to the FCM. The FCM de-energizes the washer pump/motor, but allows the rear
wiper motor to operate for several wipe cycles before it de-energizes the rear wiper relay.

OFF MODE

When the Off position of the rear wiper switch is selected, one of three events is possible. The event that will occur
depends upon the position of the wiper blade on the liftgate glass and the mode the wiper motor is operating under
at the moment that the Off position is selected. If the wiper blade is in the down position on the glass and the rear
wiper system is operating in the intermittent cycle mode when the Off position is selected, the park switch is open
and the FCM de-energizes the rear wiper relay control coil causing the rear wiper motor to cease to operate.

If the wiper blade is not in the down position on the glass and is operating in the intermittent cycle mode when the
Off position is selected, the park switch is closed to ground and the FCM keeps the rear wiper relay control coil
energized to operate the rear wiper motor until the rear wiper blade is in the down position on the glass and the
park switch input is an open circuit.

The third event occurs with the rear wiper operating in the wipe-after-wash mode when the Off position is selected,
in which case the FCM will continue to run the wiper motor until the completion of two wipes after wash before the
rear wiper blade is parked. The FCM will also run the rear wiper motor to park the rear wiper blade if the ignition
switch is turned to the Off position while the rear wiper system is still operating.

8R - 68

WIPERS/WASHERS - SERVICE INFORMATION

LX

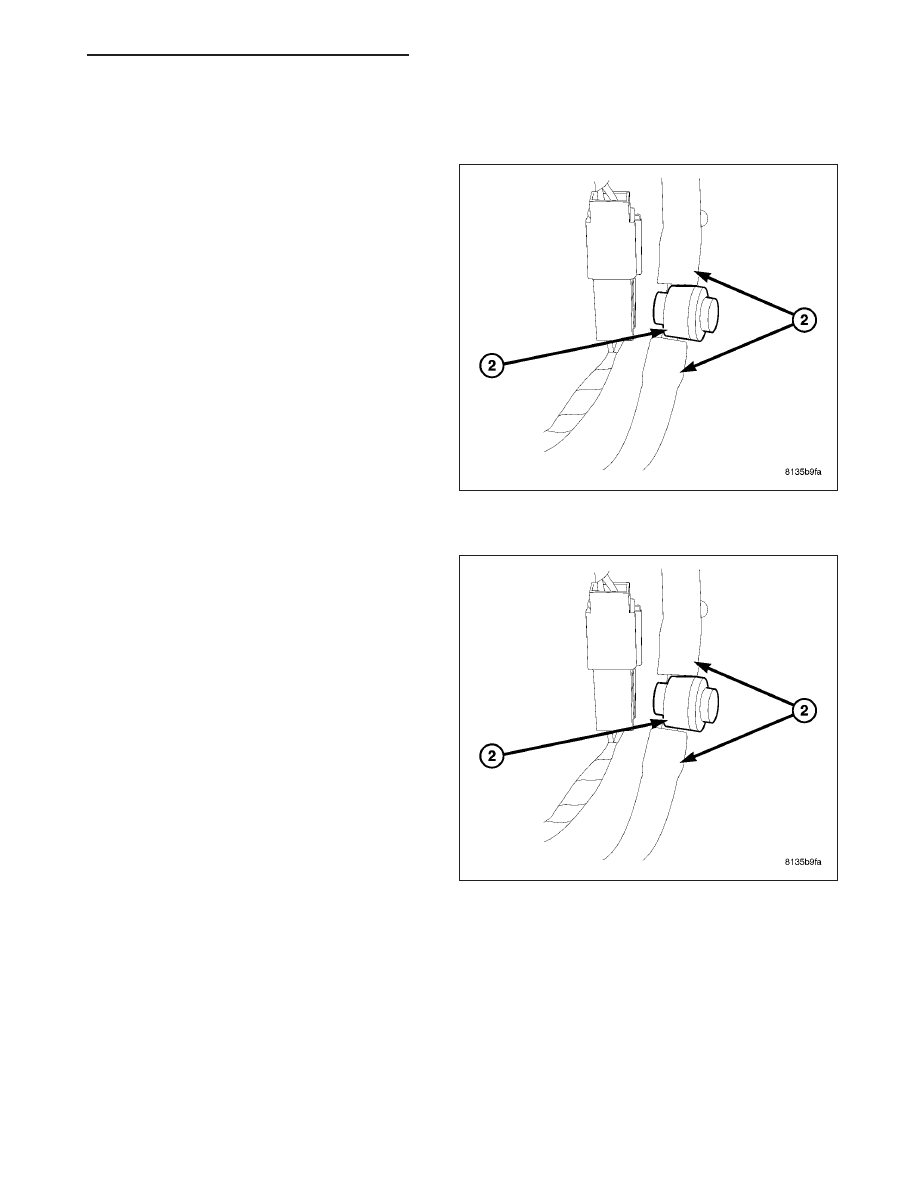

CHECK VALVE

REMOVAL

The rear washer check valve is located on the lower
liftgate.

1. Disconnect and isolate the battery negative cable.

2. Remove the lower liftgate trim panel (Refer to 23 -

BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/
TRIM PANEL - REMOVAL).

3. Remove check valve by twisting washer hose at

each end.

INSTALLATION

1. Insert check valve into washer hose.

2. Install lower liftgate trim panel (Refer to 23 -

BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/
TRIM PANEL - INSTALLATION).

3. Connect battery negative cable.

LX

WIPERS/WASHERS - SERVICE INFORMATION

8R - 69

FRONT WIPER MODULE

DESCRIPTION

The front wiper module is secured with screws
through two rubber grommet-type insulators to the
cowl plenum panel. The module is located in the rear
of the engine compartment where it is concealed
beneath the molded plastic cowl plenum grille panel.
The ends of the pivot shafts protruding through open-
ings in the cowl plenum cover/grille panel are the only
visible components of the wiper module. The wiper
module consists of the following major components:

Crank Arm - The wiper motor crank arm is a stamped steel unit with an internally splined hole on the driven
end that is secured to the wiper motor output shaft with a nut, and a long ball stud secured to the drive end
to accept the wiper linkage.

Linkage - The two wiper linkage members are each constructed of stamped steel. A driver side drive link with
a plastic socket-type bushing in the left end, and a plastic sleeve-type bushing in the right end. The socket
bushing is snap-fit over the pivot ball stud on the left pivot lever arm, while the sleeve bushing is fit over the
longer pivot stud on the wiper motor crank arm. The passenger side drive link has a plastic socket-type bush-
ing on each end. One end of this drive link is snap-fit over the ball stud on the right pivot lever arm, while the
other end is snap-fit over the top of the driver side drive link on the ball stud of the wiper motor crank arm.

Motor - The wiper motor is secured on the underside of the module bracket near the center with three screws.
The wiper motor output shaft passes through a hole in the module bracket, where a nut secures the wiper
motor crank arm to the motor output shaft. The two-speed permanent magnet wiper motor features an integral
transmission, an internal park switch, and an internal Positive Temperature Coefficient (PTC) circuit breaker.

Pivots - This module features two pivots. The two wiper pivot shafts have lever arms with ball studs at their
base to accept the wiper linkage. The upper end of all three pivot shafts has a threaded stud with a tapered
and serrated area just below the threads to accept the left wiper arm or the right wiper arm links.

The front wiper module cannot be adjusted or repaired. The front wiper motor is available for separate service
replacement. If any other component of the module is inoperative or damaged, the entire front wiper module unit
must be replaced.

OPERATION

The front wiper module operation is controlled by the battery current inputs received by the wiper motor through the
wiper on/off and wiper high/low relays. The wiper motor speed is controlled by current flow to either the low speed
or the high speed set of brushes. The park switch is a single pole, single throw, momentary switch within the wiper
motor that is mechanically actuated by the wiper motor transmission components. The park switch alternately opens
and closes the wiper park switch sense circuit to ground, depending upon the position of the wipers on the glass.
This feature allows the motor to complete its current wipe cycle after the wiper system has been turned Off, and to
park the wiper blades in the lowest portion of the wipe pattern. The automatic resetting circuit breaker protects the
motor from overloads.

The wiper motor crank arm, the two wiper linkage members, and the two wiper pivots mechanically convert the
rotary output of the wiper motor to the back and forth wiping motion of the wiper arms and blades on the glass.

8R - 70

WIPERS/WASHERS - SERVICE INFORMATION

LX

REMOVAL

1. Disconnect and isolate the battery negative cable.

2. Remove the wiper arms (1) and (2) (Refer to 8 -

ELECTRICAL/WIPERS/WASHERS/WIPER ARMS -
REMOVAL).

3. Remove the cowl panel (1) (Refer to 23 - BODY/

EXTERIOR/COWL GRILLE - REMOVAL).

4. Disconnect the wiper motor electrical connector (1).

LX

WIPERS/WASHERS - SERVICE INFORMATION

8R - 71
