3.
CHECK (R4) RIGHT CURTAIN SQUIB 1 LINE 1 CIRCUIT AND (R2) RIGHT CURTAIN SQUIB 1 LINE 2
CIRCUIT FOR A SHORT TO BATTERY
WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.
Disconnect the 8443 Load Tool and Jumper from the Right Side Curtain
Airbag connector.
Disconnect the ORC connectors.
NOTE: Check connectors - Clean and repair as necessary.

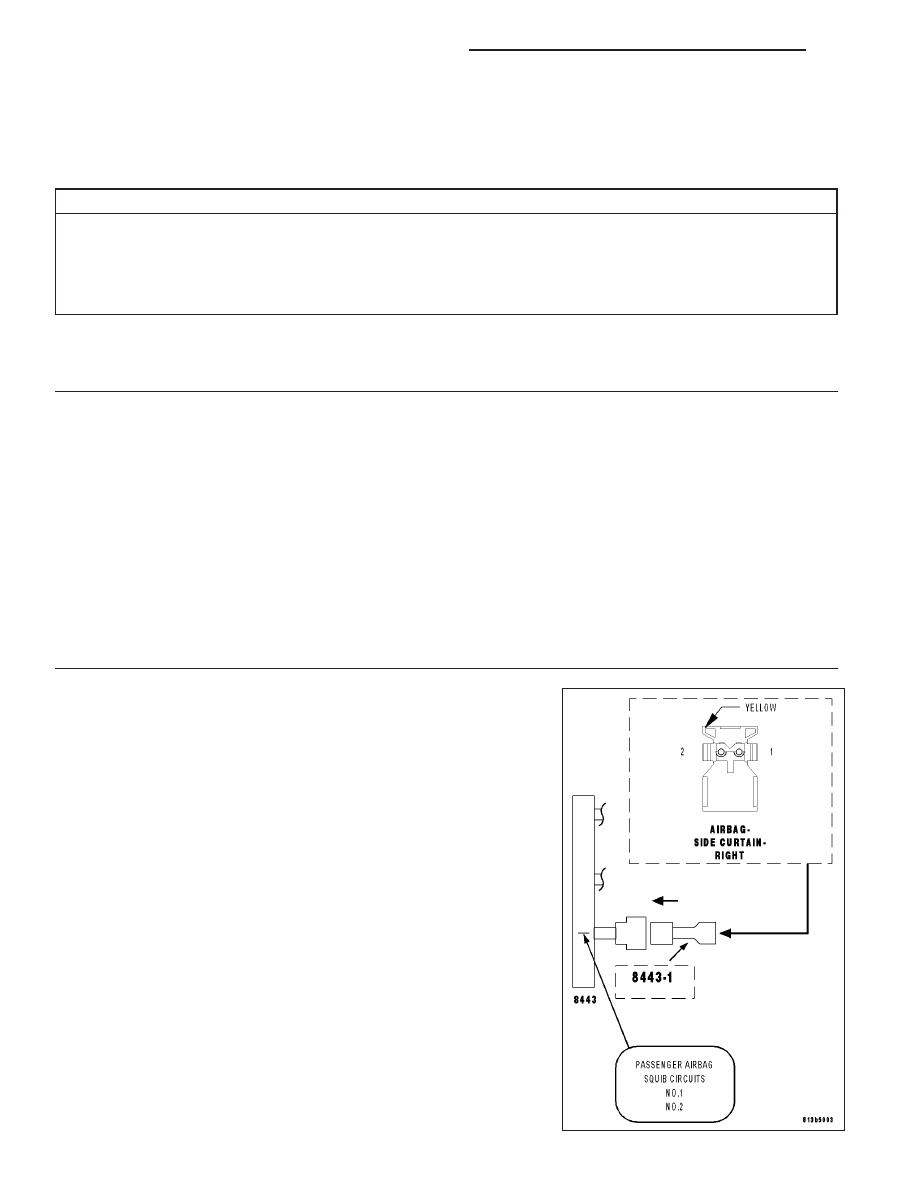

Connect the 8443 Load Tool ORC Adaptor to the ORC C1 connector.
Measure the voltage of the (R4) Right Curtain Squib 1 Line 1 circuit
between the Right Side Curtain Airbag connector and ground.
Measure the voltage of the (R2) Right Curtain Squib 1 Line 2 circuit
between the Right Side Curtain Airbag connector and ground.
Is there any voltage present on either circuit?
Yes
>> Repair the Right Curtain Squib 1 circuits with voltage present for a short to battery.
Perform ORC VERIFICATION TEST - VER 1
No
>> Go to 4
4.
REPLACE THE ORC
WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.
WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to
take the proper precautions can result in accidental airbag deployment and personal injury or death.
NOTE: When reconnecting airbag system components the Ignition must be turned off and the Battery must
be disconnected.
Repair
Replace the ORC in accordance with the Service Information.
Perform ORC VERIFICATION TEST - VER 1
5.
STORED ORC DTC
With the scan tool, record and erase all DTC’s from all Airbag System Modules.
If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.
WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or con-
taminated terminals.
The following additional checks may assist you in identifying a possible intermittent problem.
Reconnect any disconnected components and harness connector.
WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
With the scan tool monitor active codes as you work through the following steps.
Wiggle the wiring harness and connectors of the related airbag circuit or component.
If codes are related to the Driver Airbag circuits, rotate the steering wheel from stop to stop.
If only stored codes return continue the test until the problem area has been isolated.
In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question.
Are any ACTIVE DTCs present?
Yes
>> Select the appropriate diagnostic procedure from the Table of Contents in this section.
No
>> No problem found at this time. Erase all codes before returning vehicle to customer
8O - 102
RESTRAINTS - ELECTRICAL DIAGNOSTICS
LX
