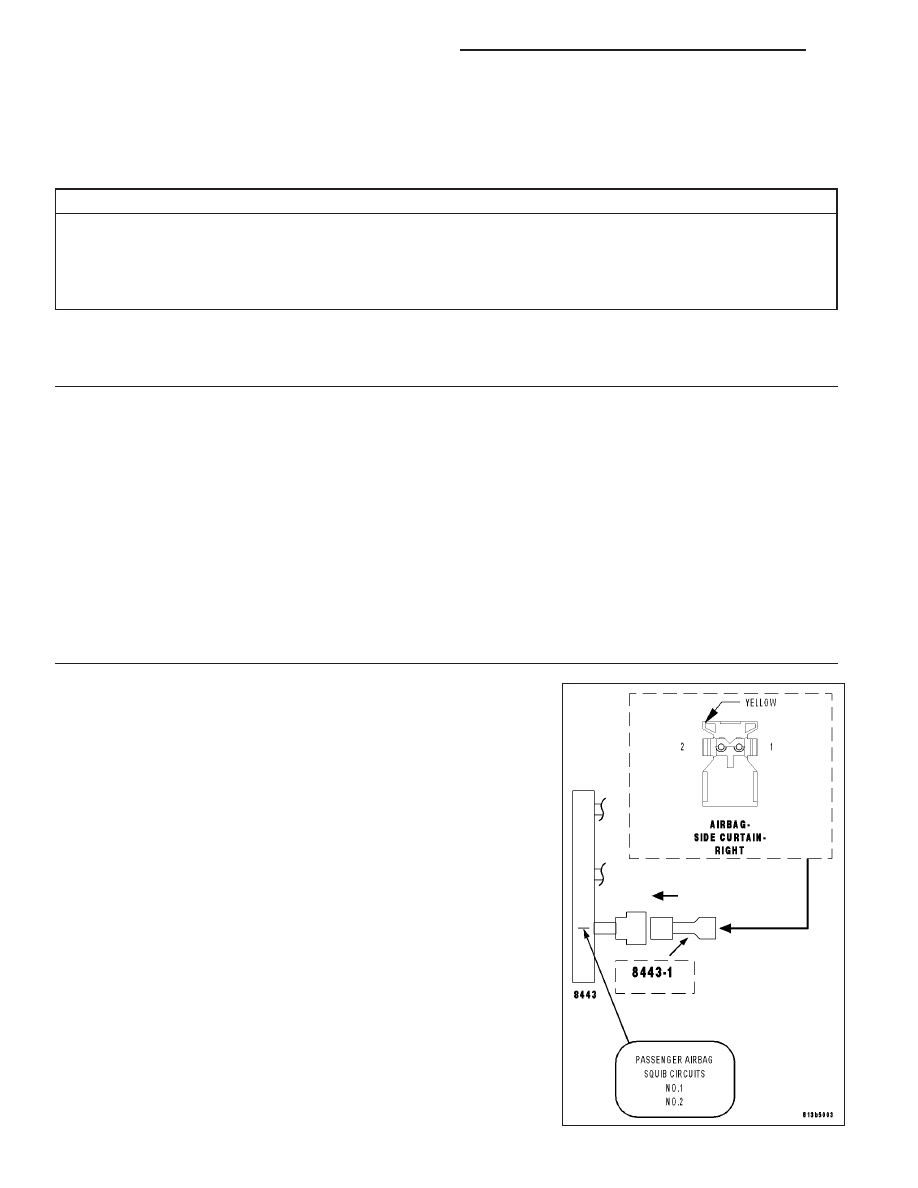

• When Monitored: • Set Condition: Possible Causes (R4) RIGHT CURTAIN SQUIB 1 LINE 1 CIRCUIT OR (R2) RIGHT CURTAIN SQUIB 1 LINE 2 CIRCUIT RIGHT SIDE CURTAIN AIRBAG ORC Diagnostic Test 1. DETERMINE ACTIVE OR STORED DTC NOTE: Ensure the battery is fully charged. NOTE: The scan tool, SRS Airbag Load Tool MRL 8443, and DVOM are required to perform the following NOTE: When reconnecting airbag system components the Ignition must be turned off and the Battery must Is the DTC active or stored? ORC - ACTIVE DTC Go To 2 ORC - STORED DTC Go To 5 2. CHECK FOR SHORTED SQUIB CIRCUITS IN RIGHT SIDE CURTAIN AIRBAG WARNING: To avoid personal injury or death, turn the ignition off, WARNING: To avoid personal injury or death, do not place an NOTE: Check connectors - Clean and repair as necessary. WARNING: To avoid personal injury or death, turn the ignition on, Does the scan tool display: B1B20 RIGHT SIDE CURTAIN Yes >> Go To 3 No >> Replace the Right Side Curtain Airbag in accordance with the Service Information. Perform ORC VERIFICATION TEST - VER 1 8O - 98 RESTRAINTS - ELECTRICAL DIAGNOSTICS LX |
