Theory of Operation

The Sunroof Motor/Module supplies a 12 volt supply circuit to the sunroof switch. When the switch is closed to any
of the 3 sense circuits (open, close or vent), it sends that command back to the module.

When Monitored:
Whenever the Sunroof module is awake.

Set Condition:
Whenever the module has determined that the vent switch has been applied for over 15 seconds or there is
a short to voltage on the Sunroof Vent Switch Sense circuit, this code will set.

Possible Causes

(Q4) SUNROOF VENT SWITCH SENSE CIRCUIT SHORT TO VOLTAGE

(Q4) SUNROOF VENT SWITCH SENSE CIRCUIT SHORT TO (Q6) SUNROOF SWITCH SUPPLY CIRCUIT

SUNROOF SWITCH SHORTED

SUNROOF MOTOR/MODULE

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

Turn the ignition on.

With the scan tool, record and erase DTC’s

Press and release the Sunroof Switch in all positions several times.

Wait 30 seconds.

With the scan tool, read DTC’s.

Does the scan tool display B1847–SUNROOF VENT SWITCH INPUT CIRCUIT HIGH?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not present at this time. Check the switch for any bind-

ing conditions and using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

2.

SUNROOF SWITCH SHORTED

With the scan tool, erase DTC’s.

Turn the ignition off.

Disconnect the Sunroof Switch connector.

Turn the ignition on and wait 30 seconds.

With the scan tool, read DTC’s.

Does the scan tool display B1847–SUNROOF VENT SWITCH
INPUT CIRCUIT HIGH?

Yes

>> Go To 3

No

>> Replace the Sunroof Switch.

Perform BODY VERIFICATION TEST - VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

8N - 210

POWER TOP - ELECTRICAL DIAGNOSIS

LX

3.

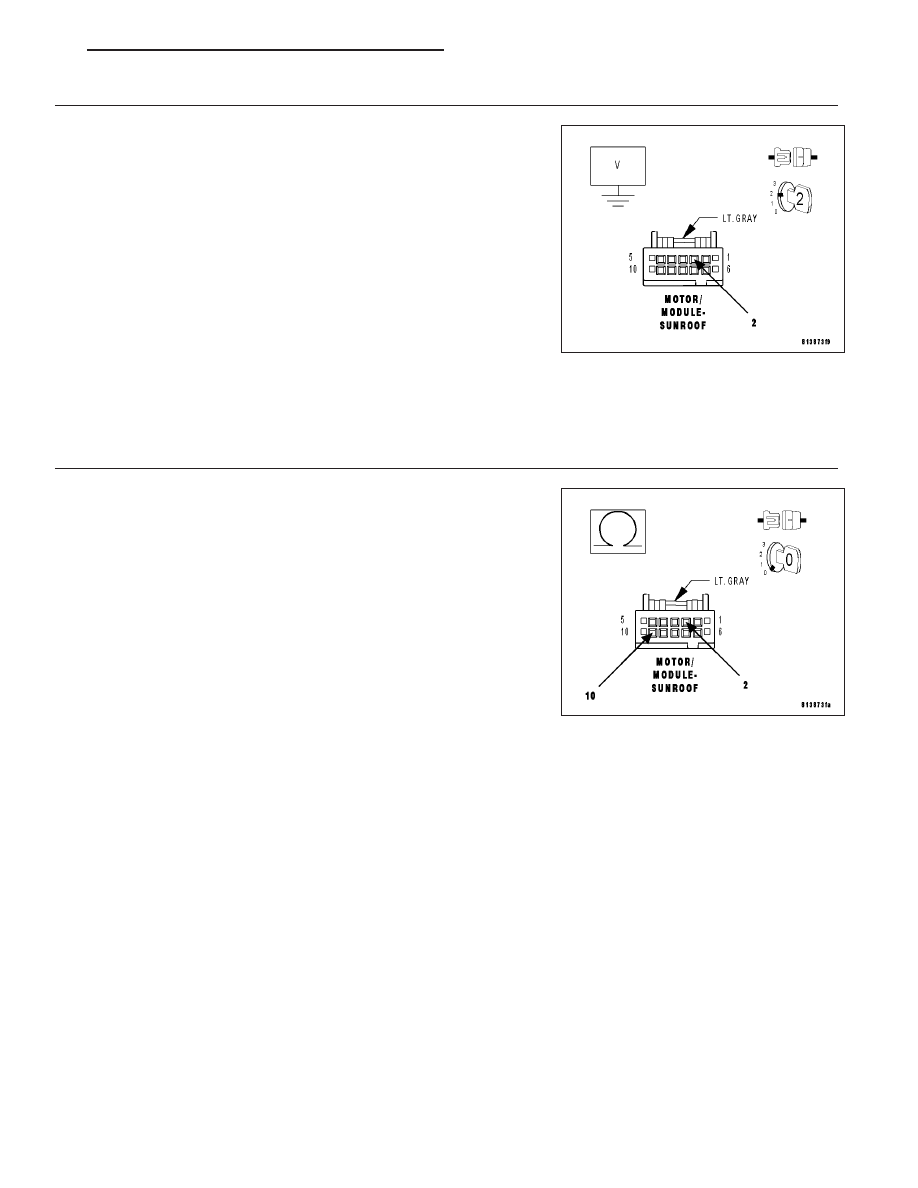

(Q4) SUNROOF VENT SWITCH SENSE CIRCUIT SHORT TO VOLTAGE

NOTE: To further diagnose the sunroof, it is necessary to lower or
remove the headliner.
Turn the ignition off.

Lower the headliner to gain access to the Sunroof Motor/Module con-
nector.

Disconnect the Sunroof Motor/Module connector.

NOTE: Ensure the A-Pillar connector is connected before proceed-
ing.
Turn the ignition on.

Measure the voltage between the (Q4) Sunroof Vent Switch Sense cir-
cuit and Ground.

Is the voltage above 0.4 volts?

Yes

>> Repair the (Q4) Sunroof Vent Switch Sense circuit for a short to voltage.

Perform BODY VERIFICATION TEST - VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

No

>> Go To 4

4.

(Q4) SUNROOF VENT SWITCH SENSE CIRCUIT SHORT TO (Q6) SUNROOF SWITCH SUPPLY CIRCUIT

Turn the ignition off.

Disconnect the A-Pillar connector.

Measure the resistance between the (Q4) Sunroof Vent Switch Sense
circuit and the (Q6) Sunroof Switch Supply circuit in the Sunroof Motor/
Module connector.

Is the resistance below 1000.0 ohms?

Yes

>> Repair the (Q4) Sunroof Vent Switch Sense circuit for a

short to the (Q6) Sunroof Switch Supply circuit.

Perform BODY VERIFICATION TEST - VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

No

>> Replace the Sunroof Motor/Module.

Perform the Sunroof Position Calibration, (Refer to 8 -
ELECTRICAL/POWER TOP/MOTOR - STANDARD PRO-
CEDURE - SUNROOF POSITION CALIBRATION). Perform
the Excessive Force Limitation Calibration, (Refer to 8 -
ELECTRICAL/POWER TOP/MOTOR - STANDARD PRO-
CEDURE - EXCESSIVE FORCE LIMITATION CALIBRA-
TION).

Perform BODY VERIFICATION TEST - VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

LX

POWER TOP - ELECTRICAL DIAGNOSIS

8N - 211

B1849–SUNROOF MOTOR CONTROL CIRCUIT/PERFORMANCE (STALLED)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Whenever the Sunroof motor/module is in motion.

Set Condition:
Whenever the sunroof motor/module is attempting to move the sunroof in response to the input switches (or in
response to an obstacle), and it doesn’t appear to be responding correctly. This code is usually set when there
is some type of binding in the sunroof mechanism.

Possible Causes

SUNROOF MOTOR/MODULE

MECHANICAL BINDING, STICKING OR CABLES OUT OF CALIBRATION

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

Turn the ignition on.

With the scan tool, record and erase DTC’s

Operate the Sunroof Switch in all positions several times.

Wait 30 seconds.

With the scan tool, read DTC’s.

Does the scan tool display B1849–SUNROOF MOTOR CONTROL CIRCUIT/PERFORMANCE (STALLED)?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not present at this time. Check for any binding or stick-

ing conditions.

2.

SUNROOF MOTOR

NOTE: To further diagnose the sunroof, it is necessary to lower or remove the headliner.

NOTE: Any time the Sunroof Motor is removed, it is necessary to perform the Position Calibration when the
motor is re-installed.
Turn the ignition off.

Lower the headliner to gain access to the Sunroof Motor/Module.

Remove the Sunroof Motor/Module from the sunroof.

NOTE: Ensure the A-Pillar connector is connected before proceeding.
Turn the ignition on.

While holding the motor firmly in your hand, have an assistant press the sunroof switch Open and after the motor
stops press Close (NOT VENT) several times and observe the motor operation.

Did the motor operate smoothly and powerfull?

Yes

>> Repair or replace the sunroof mechanism as necessary in accordance with Service Information.Perform

BODY VERIFICATION TEST - VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

No

>> Replace the Sunroof Motor Module in accordance with service information.

(Refer to 8 - ELECTRICAL/POWER TOP/MOTOR - INSTALLATION) Perform BODY VERIFICATION
TEST - VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

8N - 212

POWER TOP - ELECTRICAL DIAGNOSIS

LX

B2227–SUNROOF ECU INTERNAL

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Whenever the Sunroof module is awake.

Set Condition:
Whenever the module has determined that there is a motor or electronic malfunction, this code will set.

Possible Causes

SUNROOF MOTOR/MODULE

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

Turn the ignition on.

With the scan tool, record and erase DTC’s

Operate the Sunroof Switch in all positions several times.

Wait 30 seconds.

With the scan tool, read DTC’s.

Does the scan tool display B2227–SUNROOF ECU INTERNAL?

Yes

>> Replace the Sunroof Motor/Module.

Perform the Sunroof Position Calibration, (Refer to 8 - ELECTRICAL/POWER TOP/MOTOR - STAN-
DARD PROCEDURE - SUNROOF POSITION CALIBRATION). Perform the Excessive Force Limitation
Calibration, (Refer to 8 - ELECTRICAL/POWER TOP/MOTOR - STANDARD PROCEDURE - EXCES-
SIVE FORCE LIMITATION CALIBRATION).

Perform BODY VERIFICATION TEST - VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

No

>> The conditions that caused this code to set are not present at this time. Operate the Sunroof several

times and recheck for DTC’s. If the code reappears now or later, replace the Sunroof Motor/Module.

U0141–LOST COMMUNICATION WITH FRONT CONTROL MODULE

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0155-LOST COMMUNICATION WITH CLUSTER/CCN

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

LX

POWER TOP - ELECTRICAL DIAGNOSIS

8N - 213
