U0025 CAN B BUS (-) CIRCUIT LOW

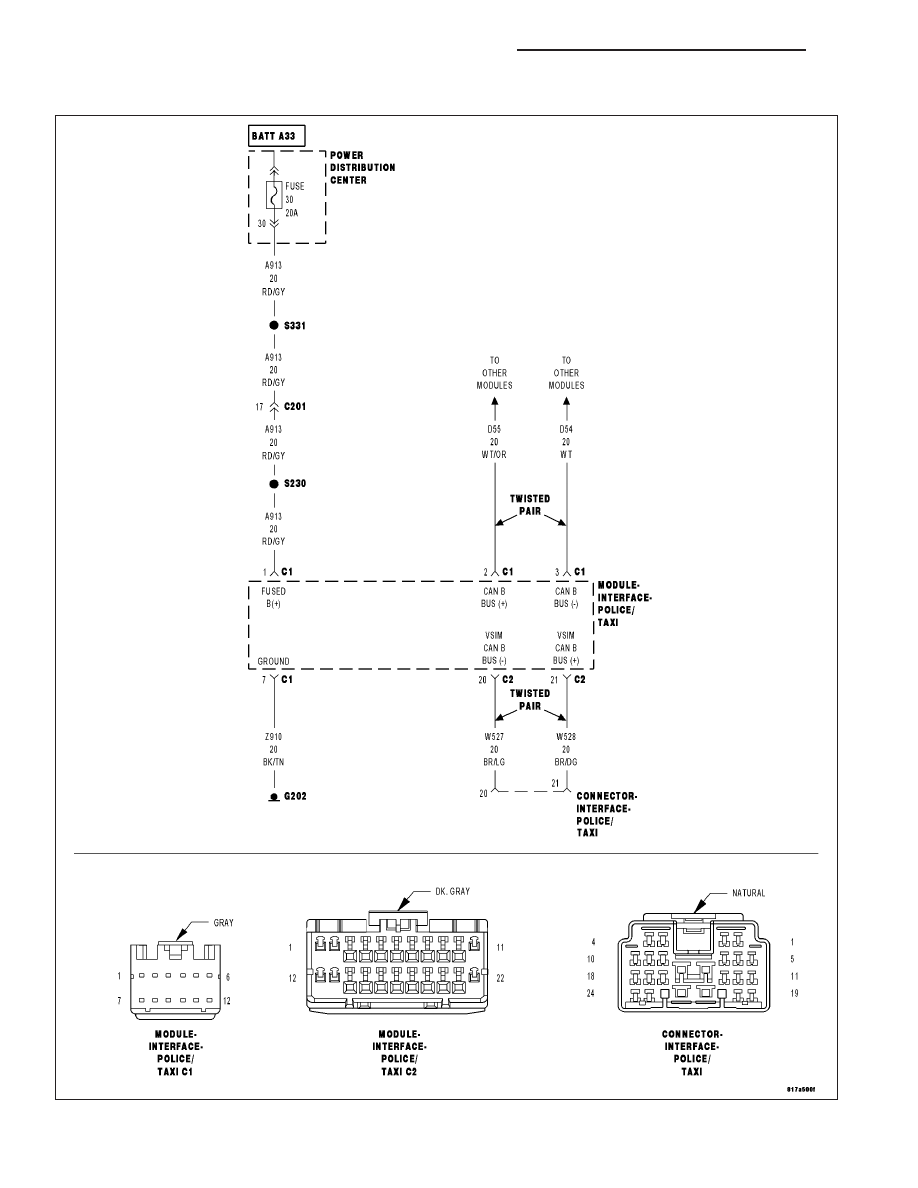

For a complete wiring diagram Refer to Section 8W.

8M - 130

MESSAGE CENTER - ELECTRICAL DIAGNOSTICS

LX

When Monitored:
With the ignition switch on.

Set Condition:
The Multi-Purpose Module (Police And Taxi Interface Module-PTIM) has detected the (W527) VSIM CAN B
Bus (-) circuit is below a calibrated value.

Possible Causes

(W527) VSIM CAN B BUS (-) CIRCUIT SHORTED TO GROUND

MULTI-PURPOSE MODULE (POLICE AND TAXI INTERFACE MODULE-PTIM)

Diagnostic Test

1.

CHECK FOR ACTIVE DTC

With the scan tool, read the active DTCs.

Erase the DTCs.

Turn the ignition off, wait 10 seconds, then turn the ignition on.

With the scan tool, read the active DTC’s.

Does the scan tool display this DTC as active?

Yes

>> Go To 2.

No

>> If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness con-

nectors. Look for broken, bent, pushed out, or corroded terminals, and repair any obvious problems.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

2.

CHECK (W527) VSIM CAN B BUS (-) CIRCUIT FOR A SHORT TO GROUND

Turn the ignition off.

Disconnect the Multi-Purpose Module (Police And Taxi Interface Mod-
ule-PTIM) C2 harness connector.

Disconnect the Multi-Purpose Module (Police And Taxi Interface Mod-
ule-PTIM) 24 way harness connector (aftermarket light/siren controller
side).

Disconnect the scan tool from the DLC.

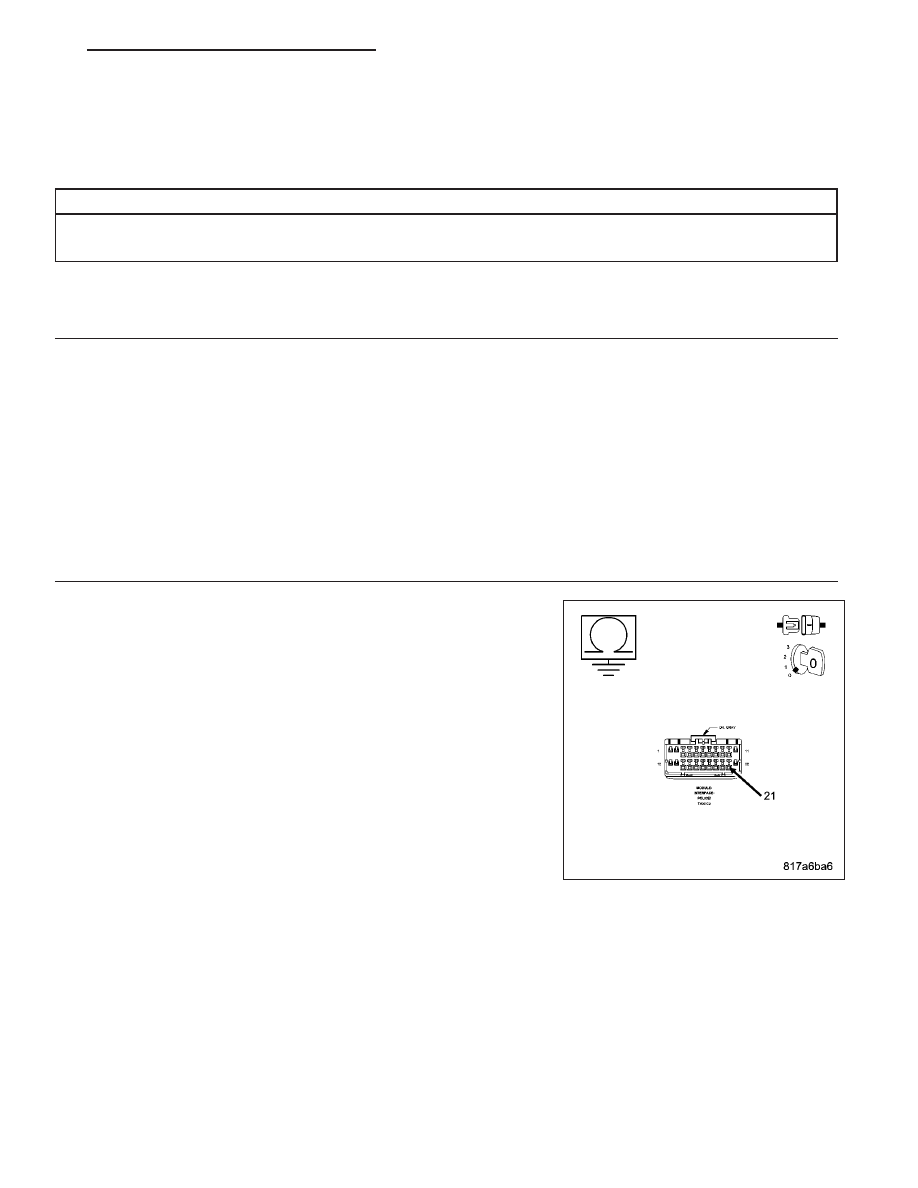

Measure the resistance between ground and the (W527) VSIM CAN B
Bus (-) circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (W527) VSIM CAN B Bus (+) circuit for a short

to ground.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

No

>> Inspect the wiring and connectors for damage or shorted

circuits. If ok, replace the Multi-Purpose Module (Police And
Taxi Interface Module-PTIM) in accordance with the service
information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

LX

MESSAGE CENTER - ELECTRICAL DIAGNOSTICS

8M - 131

U0026 — CAN B BUS (-) CIRCUIT HIGH

For a complete wiring diagram Refer to Section 8W.

8M - 132

MESSAGE CENTER - ELECTRICAL DIAGNOSTICS

LX

When Monitored:
With the ignition switch on.

Set Condition:
The Multi-Purpose Module (Police And Taxi Interface Module-PTIM) has detected the (W527) VSIM CAN B
Bus (-) circuit is above a calibrated value.

Possible Causes

(W528) VSIM CAN B BUS (+) CIRCUIT SHORTED TO VOLTAGE

(W527) VSIM CAN B BUS (-) CIRCUIT SHORTED TO VOLTAGE

MULTI-PURPOSE MODULE (POLICE AND TAXI INTERFACE MODULE-PTIM)

Diagnostic Test

1.

CHECK FOR ACTIVE DTC

With the scan tool, read the active DTCs.

Erase the DTCs.

Turn the ignition off, wait 10 seconds, then turn the ignition on.

With the scan tool, read the active DTC’s.

Does the scan tool display this DTC as active?

Yes

>> Go To 2.

No

>> If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness con-

nectors. Look for broken, bent, pushed out, or corroded terminals, and repair any obvious problems.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

2.

VSIM CAN B BUS CIRCUITS SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the Multi-Purpose Module (Police And Taxi Interface Mod-
ule-PTIM) C2 harness connector.

Disconnect the scan tool from the DLC.

Turn the ignition on.

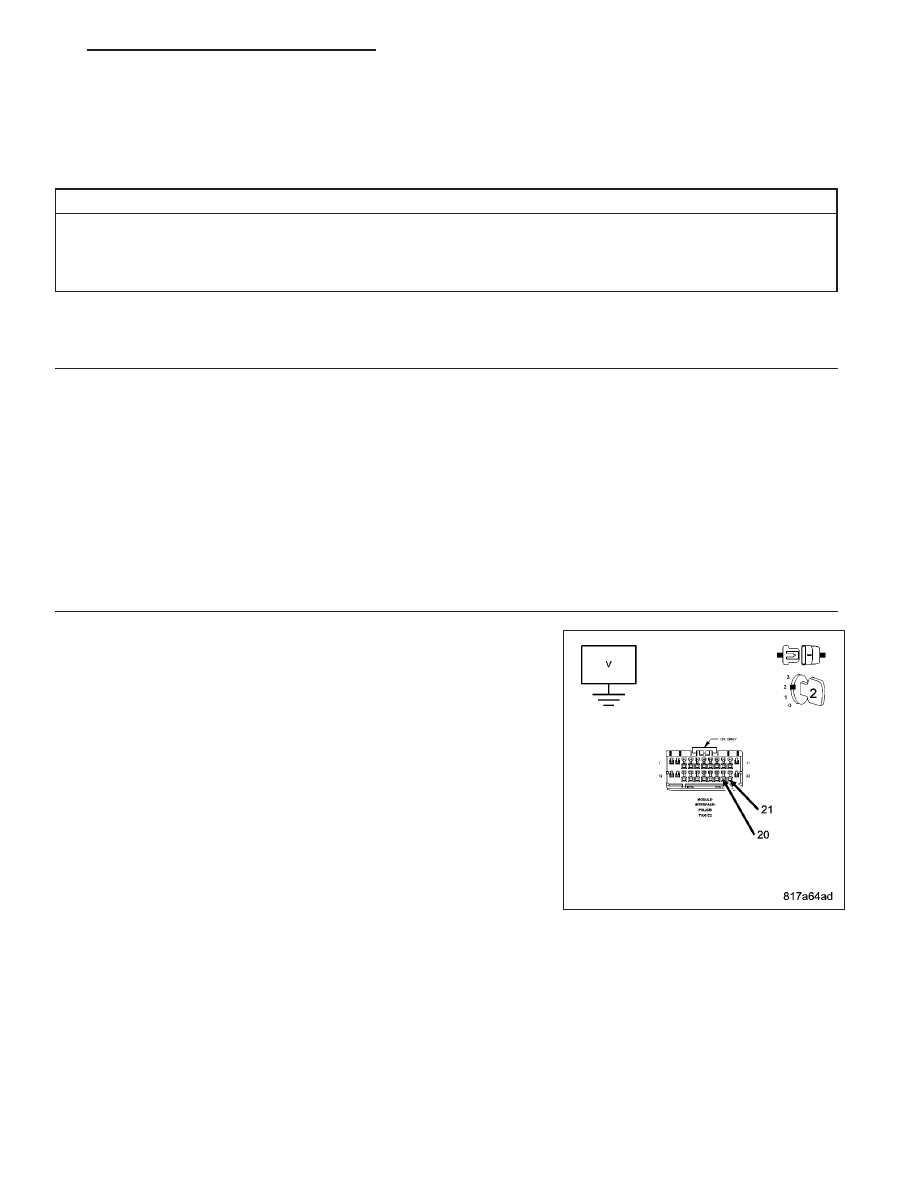

Measure the voltage of the VSIM CAN B Bus circuits.

Is the voltage above 6.0 volts for either circuit?

Yes

>> Repair the VSIM CAN B Bus circuit(s) for a short to voltage.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

No

>> Inspect the wiring and connectors for damage or shorted

circuits. If ok, replace the Multi-Purpose Module (Police And
Taxi Interface Module-PTIM) in accordance with the service
information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).
