4.

ISOLATE THE SHORT TO GROUND IN THE (W515) DRIVER SEAT BELT SWITCH SENSE CIRCUIT

Turn the ignition off.

Disconnect the Multi-Purpose Module (Police And Taxi Interface Mod-
ule-PTIM) 24 way harness connector (aftermarket light/siren controller
side).

Measure the resistance of the (W515) Driver Seat Belt Switch Sense
circuit between ground and the Multi-Purpose Module (Police And Taxi
Interface Module-PTIM) C2 harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (W515) Driver Seat Belt Switch Sense circuit for

a short to ground.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

No

>> Refer to electrical diagnostics for the aftermarket light/siren

controller, and repair or replace the aftermarket light siren
controller in accordance with the manufacturer’s service
information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

5.

CHECK THE MULTI-PURPOSE MODULE (POLICE AND TAXI INTERFACE MODULE-PTIM)

Turn the ignition off.

Disconnect all Multi-Purpose Module (Police And Taxi Interface Module-PTIM) and aftermarket light/siren controller
harness connectors.

Check for damaged or corroded pins, pinched wires, or damaged connectors, and repair any obvious problems.

Connect all Multi-Purpose Module (Police And Taxi Interface Module-PTIM) and aftermarket light/siren controller har-
ness connectors.

Turn the ignition on.

With the scan tool monitor active codes as you work through the following step.

Wiggle the wiring harness and connectors of the Multi-Purpose Module (Police And Taxi Interface Module-PTIM) and
aftermarket light/siren controller.

If only stored codes return continue the test until the problem area has been isolated, and repair any obvious prob-
lems.

Is B2381 — DRIVER SEAT BELT OUTPUT CIRCUIT LOW still displayed?

Yes

>> Replace the Multi-Purpose Module (Police And Taxi Interface Module-PTIM) in accordance with the ser-

vice information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

No

>> Repair is complete. The problem may have been caused by a loose or corroded terminal.

8M - 110

MESSAGE CENTER - ELECTRICAL DIAGNOSTICS

LX

B2382 — DRIVER SEAT BELT OUTPUT CIRCUIT HIGH

For a complete wiring diagram Refer to Section 8W.

LX

MESSAGE CENTER - ELECTRICAL DIAGNOSTICS

8M - 111

When Monitored:
With the ignition switch on.

Set Condition:
The Multi-Purpose Module (Police And Taxi Interface Module-PTIM) has detected the Driver Seat Belt Switch
Sense circuit above a calibrated value.

Possible Causes

(W515) DRIVER SEAT BELT SWITCH SENSE CIRCUIT OPEN OR SHORTED TO VOLTAGE

AFTERMARKET LIGHT/SIREN CONTROLLER

MULTI-PURPOSE MODULE (POLICE AND TAXI INTERFACE MODULE-PTIM)

1.

CHECK FOR ANY OF THE FOLLOWING ACTIVE DTCS

With the scan tool, read all active DTCs from all modules.

NOTE: Check for FCM configuration, CAN B or C hardware electrical, VIN Missing/Mismatch, battery or igni-
tion related DTCs.

Does the scan tool display any active DTCs to the conditions listed above?

Yes

>> Diagnose and repair the DTC. Refer to the Table of Contents in ELECTRONIC CONTROL MODULES -

ELECTRICAL DIAGNOSTICS for a complete list of the symptoms.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

No

>> Go To 2. Diagnostic Test

2.

CHECK FOR ACTIVE DTC

With the scan tool, read the active DTCs.

Erase the DTCs.

Turn the ignition off, wait 10 seconds, then turn the ignition on.

With the scan tool, read the active DTC’s.

Does the scan tool display this DTC as active?

Yes

>> Go To 3.

No

>> If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness con-

nectors. Look for broken, bent, pushed out, or corroded terminals, and repair any obvious problems.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

3.

CHECK THE (W515) DRIVER SEAT BELT SWITCH SENSE CIRCUIT FOR A SHORT TO VOLTAGE

Turn the ignition off.

Disconnect the Multi-Purpose Module (Police And Taxi Interface Mod-
ule-PTIM) C2 harness connector.

Turn the ignition on.

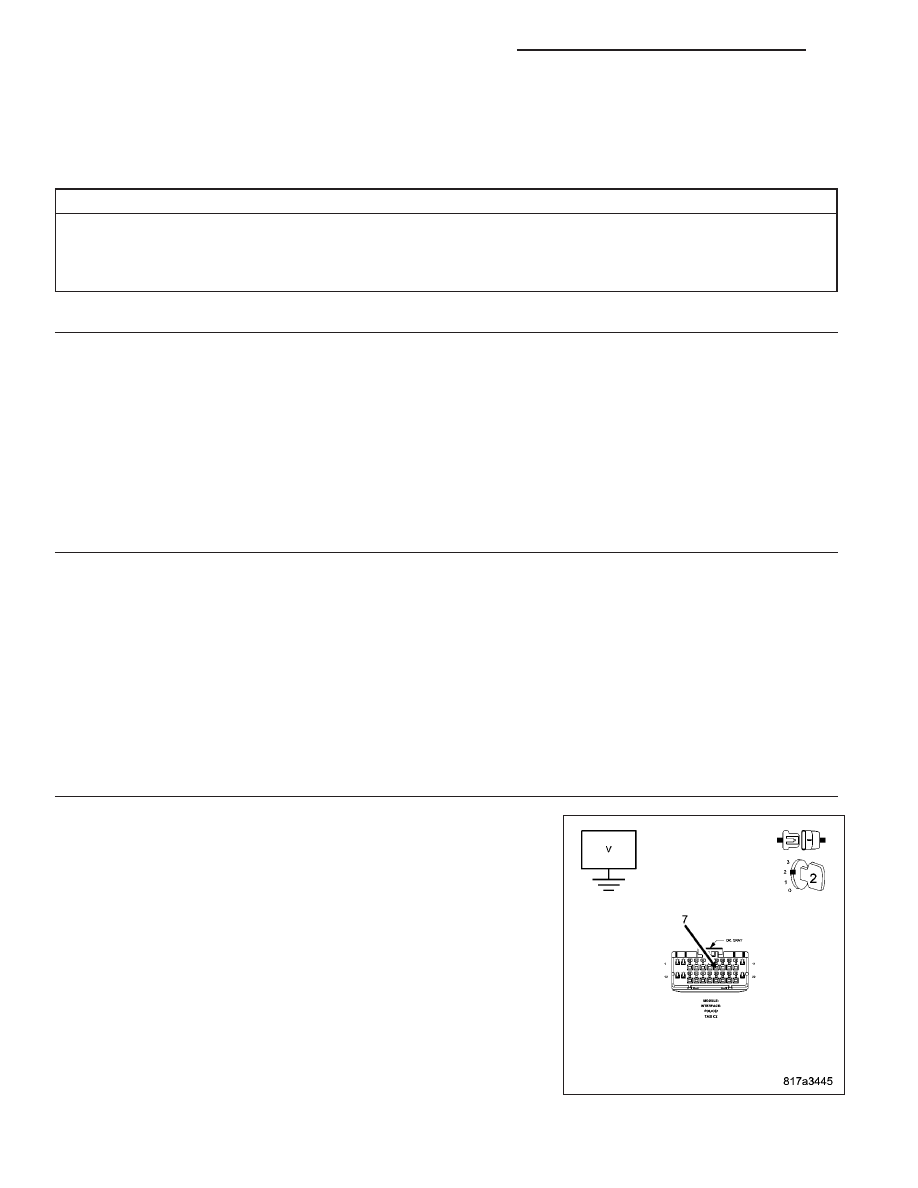

Measure the voltage of the (W515) Driver Seat Belt Switch Sense cir-
cuit between ground and the Multi-Purpose Module (Police And Taxi
Interface Module-PTIM) C2 harness connector.

Is there any voltage present?

Yes

>> Go To 4.

No

>> Go To 5.

8M - 112

MESSAGE CENTER - ELECTRICAL DIAGNOSTICS

LX

4.

ISOLATE THE SHORT TO VOLTAGE IN THE (W515) DRIVER SEAT BELT SWITCH SENSE CIRCUIT

Turn the ignition off.

Disconnect the Multi-Purpose Module (Police And Taxi Interface Mod-
ule-PTIM) 24 way harness connector (aftermarket light/siren controller
side).

Turn the ignition on.

Measure the voltage of the (W515) Driver Seat Belt Switch Sense cir-
cuit between ground and the Multi-Purpose Module (Police And Taxi
Interface Module-PTIM) C2 harness connector.

Is there any voltage present?

Yes

>> Repair the (W515) Driver Seat Belt Switch Sense circuit for

a short to power.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

No

>> Refer to electrical diagnostics for the aftermarket light/siren

controller, and repair or replace the aftermarket light siren
controller in accordance with the manufacturer’s service
information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

5.

CHECK THE (W515) DRIVER SEAT BELT SWITCH SENSE CIRCUIT FOR AN OPEN

Turn the ignition off.

Disconnect the Multi-Purpose Module (Police And Taxi Interface Mod-
ule-PTIM) 24 way harness connector (aftermarket light/siren controller
side).

Measure the resistance of the (W515) Driver Seat Belt Switch Sense
circuit between the Multi-Purpose Module (Police And Taxi Interface
Module-PTIM) 24 way and the PTIM C2 harness connectors.

Is the resistance below 5.0 ohms?

Yes

>> Go To 6.

No

>> Repair the (W515) Driver Seat Belt Switch Sense circuit for

an open or high resistance.

LX

MESSAGE CENTER - ELECTRICAL DIAGNOSTICS

8M - 113
